Lexus ES350 2007 Operating the lights and windshield wipers

112
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlights
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and park-
ing lights turn on and off
automatically.
(When the engine switch
is in IG-ON mode) USA
Canada

113
2-3. Operating the lights and windshield wipers
2
When driving
AFS (vehicle with discharge headlights)
AFS (Adaptive Front Lighting System) improves visibility at intersections
and on curves by automatically adjusting the direction of light axis of the
headlights according to vehicle speed and the degree of the tire angle
that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■Deactivating AFS
Turn the switch OFF to deactivate
AFS.
OFF
ON
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight control system to mal-
function.

114
2-3. Operating the lights and windshield wipers
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds
after all doors are closed with the engine switch switched to ACC or turned
OFF. (The light turns off immediately if the button on the key is pressed
after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the
engine switch to ACC or turned OFF and driver’s door is opened.
To turn the lights on again, switch to IG-ON mode, or turn the light switch OFF
once and then back to the or position.
■Automatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes... (vehicles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization
Settings (e.g. light sensor sensitivity) can be changed. (→P. 4 0 5 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

115
2-3. Operating the lights and windshield wipers
2
When driving
Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
Fog lights ON

116
2-3. Operating the lights and windshield wipers

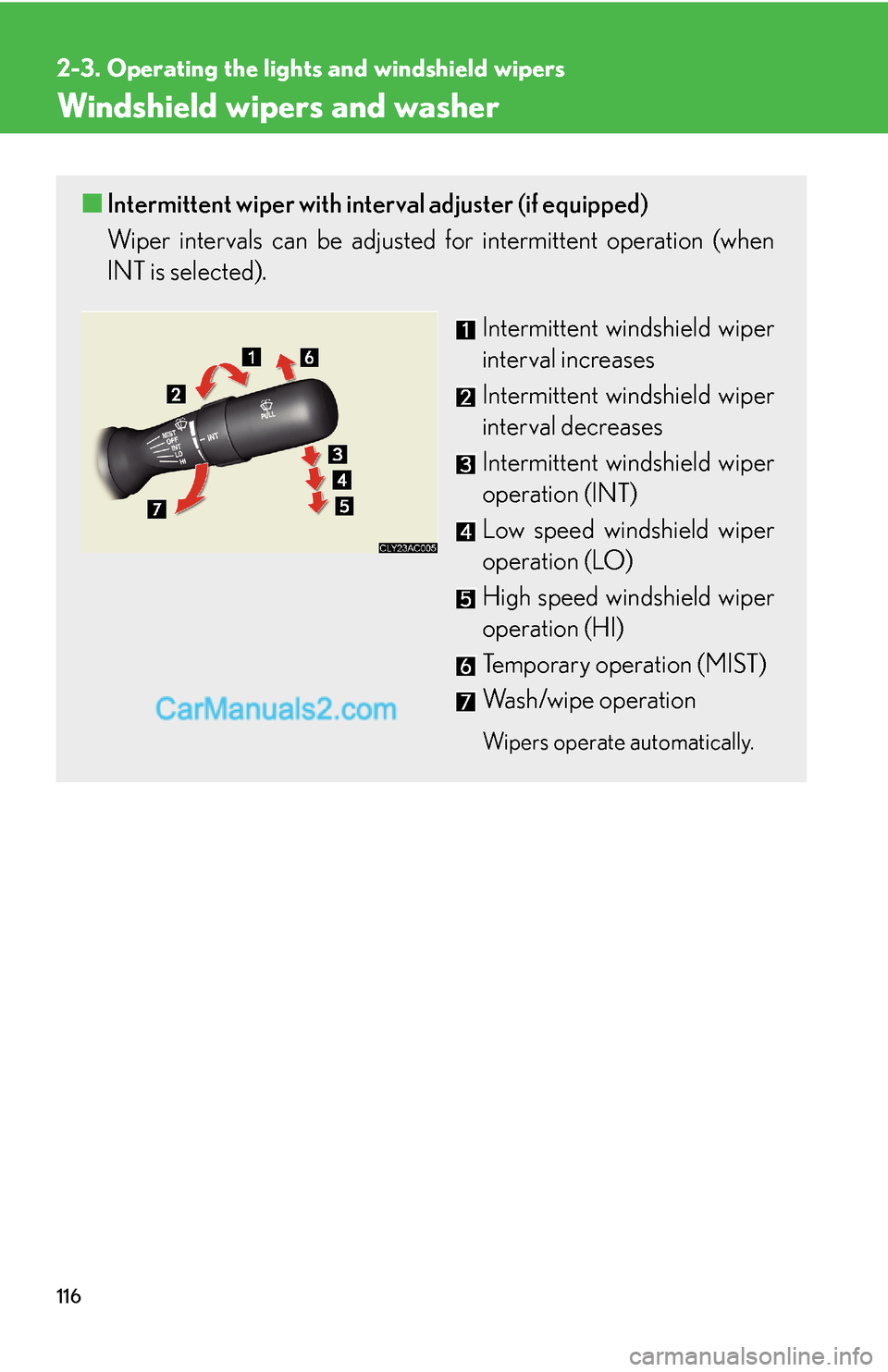

Windshield wipers and washer
■Intermittent wiper with interval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when
INT is selected).
Intermittent windshield wiper
interval increases
Intermittent windshield wiper
interval decreases
Intermittent windshield wiper
operation (INT)
Low speed windshield wiper
operation (LO)
High speed windshield wiper
operation (HI)
Temporary operation (MIST)
Wash/wipe operation
Wipers operate automatically.

117
2-3. Operating the lights and windshield wipers
2
When driving
■Rain-sensing windshield wipers (if equipped)
With AUTO selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Sensor sensitivity (-)
With AUTO selected, wiper
response to falling rain is less
sensitive.
Sensor sensitivity (+)
With AUTO selected, wiper
response to falling rain is more
sensitive.
Rain-sensing windshield
wiper operation (AUTO)
Low speed windshield wiper
operation (LO)
High speed windshield wiper
operation (HI)
Temporary operation (MIST)
Wash/wipe operation
Wipers operate automatically.
(With AUTO selected, after
operating several times, the wip-
ers operate one more time after
a short delay to prevent drip-
ping.)

118
2-3. Operating the lights and windshield wipers
■The windshield wiper and washer can be operated when
The engine switch is in IG-ON mode.
■Rain drop sensor (vehicles equipped with the rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode (vehicles
equipped with the rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or any-
thing else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
The sensor judges the amount of raindrops.
