9DISC´AUXº button
Push this button to turn the CD
changer, DVD changer or AUX on.
For details, see pages 163, 188, 189
and 201.
10TAPEº button
Push this button to turn the cassette
tape player on. For details, see
pages 163 and 181.
11SCANº button
Push this button to scan radio sta-
tions or scan the tracks,discs, files or
folders. For details, see page 171.
12Cassette tape slot
Insert a cassette tape into the slot.
For details, see page 181.
13 button for the cassette tape
Push this button to stop and eject the
cassette tape. For details, see page
181.
14FMº button
Push this button to choose an FM sta-
tion. For details, see pages 163 and
169.
15AM´SATº button
Push this button to choose either an
AM or SAT station. For details, see
pages 163, 169 and 175.
16PWR´VOLº knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 163.
Page 5 of 72
163
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Turning the system on and off
PWR´VOLº: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
AUDIOº: Push this button to display
touch-screen buttons for audio system
(audio control mode).
You can select the function that enables
automatic return to the previous screen
from the audio screen. See (a) Automatic
transitionº on page 156 for details.
Switching between functions
Push AM´SATº, FMº, TAPEº or
DISC´AUXº button to turn on the de-
sired mode. The selected mode turns
on immediately.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
tape player, CD changer or DVD changer
does not turn on.
You can turn off each player by ejecting the
cassette tape or disc. If the audio system
was previously off, then the entire audio
system will be turned off when you eject
the cassette tape or disc. If another func-
tion was previously playing, it will come on
again.
Page 11 of 72
169
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the DISC´AUXº button to switch to
AUX mode. For details, refer to the
Own-
er's Manualº.
Listening to the radio
Push AM´SATº or FMº to choose ei-
ther an AM or FM station.
AMº, FM1º or FM2º appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the AM´SATº button, AMº, SAT1º,
SAT2º, SAT3º station appears on the dis-
play. For details about satellite radio
broadcast, see Ð Radio operation (XM
Satellite Radio broadcast)º on page 174.
Ð Radio operation
Page 16 of 72
174AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Lexus
satellite receiver and antenna must be pur-
chased and installed, and the subscription
to the XM Satellite Radio is necessary.
How to subscribe to an XM Satellite
Radio
An XM Satellite Radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states.
How to subscribe: You must enter into a
separate service agreement with the XM
Satellite Radio in order to receive satellite
broadcast programming in the vehicle.
Additional activation and service subscrip-
tion fees apply that are not included in the
purchase price of the vehicle and optional
digital satellite tuner. For complete infor-
mation on subscription rates and terms, or
to subscribe to the XM Satellite Radio,
visit XM on the web at www.xmradio.com
or call an XM's Listener Care at
1-877-515-3987. The XM Satellite
Radio is solely responsible for the quality,
availability and content of the satellite ra-
dio services provided, which are subject to
the terms and conditions of the XM Satel-
lite Radio customer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by select-
ing channel 000º on the radio. For details,
see the Displaying the radio IDº that fol-
lows.
All fees and programming are the respon-
sibility of the XM Satellite Radio and are
subject to change.
Satellite tuner technology notice:
Toyota's satellite radio tuners are awarded
Type Approval Certificates from XM
Satellite Radio Inc. as proof of
compatibility with the services offered by
the XM Satellite Radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting
a problem.
If you select the CH 000º using the
TUNEº knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates
the display between the radio ID and the
specific radio ID code.
Ð Radio operation
(XM Satellite Radio
broadcast
)
Page 17 of 72
175
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
Listening to satellite radio
Push the AM´SATº button to choose
either an AM station or an SAT channel.
Besides AMº, SAT1º, SAT2º or SAT3º
appears on the display.
Turn this knob to select the next or pre-
vious channel.
If you turn continuously, you can rapidly
scroll forward or down through the chan-
nels.
Page 18 of 72
176AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
Channel category
Touch either TYPEº or TYPEº to go
to the next or previous category.
Presetting a channel
1. Tune in the desired channel.
2. Touch one of the channel selector
touch-screen buttons (1 Ð 6) and hold
it until a beep is heard.
This sets the channel to the button and the
name and number of the channel appears
on the touch-screen button.
Each SAT mode can store up to 6 stations.
To change the preset channel to a different
one, follow the same procedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
Page 21 of 72
179
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
If the satellite radio tuner malfunctions
When problems occur with the XM tuner, a message will appear on the display. Refer-
ring to the table below to identify the problem, take the suggested corrective action.
ANTENNA
The XM antenna is not connected. Check whether the XM antenna
cable is attached securely.
ANTENNAA short circuit occurs in the antenna or the surrounding antenna cable.
See a Lexus certified dealer for assistance.
UPDATING
You have not subscribed to the XM Satellite Radio. The radio is being
updated with the latest encryption code. Contact the XM Satellite
Radio for subscription information. When a contract is canceled, you
can choose the CH000º and all free-to-air channels.
UPDATINGThe premium channel you selected is not authorized. Wait for about 2
seconds until the radio returns to the previous channel or CH001º. If
it does not change automatically, select another channel. If you want
to listen to the premium channel, contact the XM Satellite Radio.
NO
SIGNALThe XM signal is too weak at the current location. Wait until your ve-
hicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit
has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Select
another channel.
-----There is no song/program title or artist name/feature associated with the
channel at that time. No action needed.
---The channel you selected is no longer available. Wait for about 2 sec-
onds until the radio returns to the previous channel or CH001º. If it does
not change automatically, select another channel.
The XM Listener Care Center is also available on the phone, please call 1-800-XM-
RADIO (1-877-515-3987) during the following hours:
Monday Ð Saturday: 6 a.m. Ð 2 a.m. Sunday: 8 p.m. Ð 8 a.m. (ET)
Page 22 of 72
180AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)

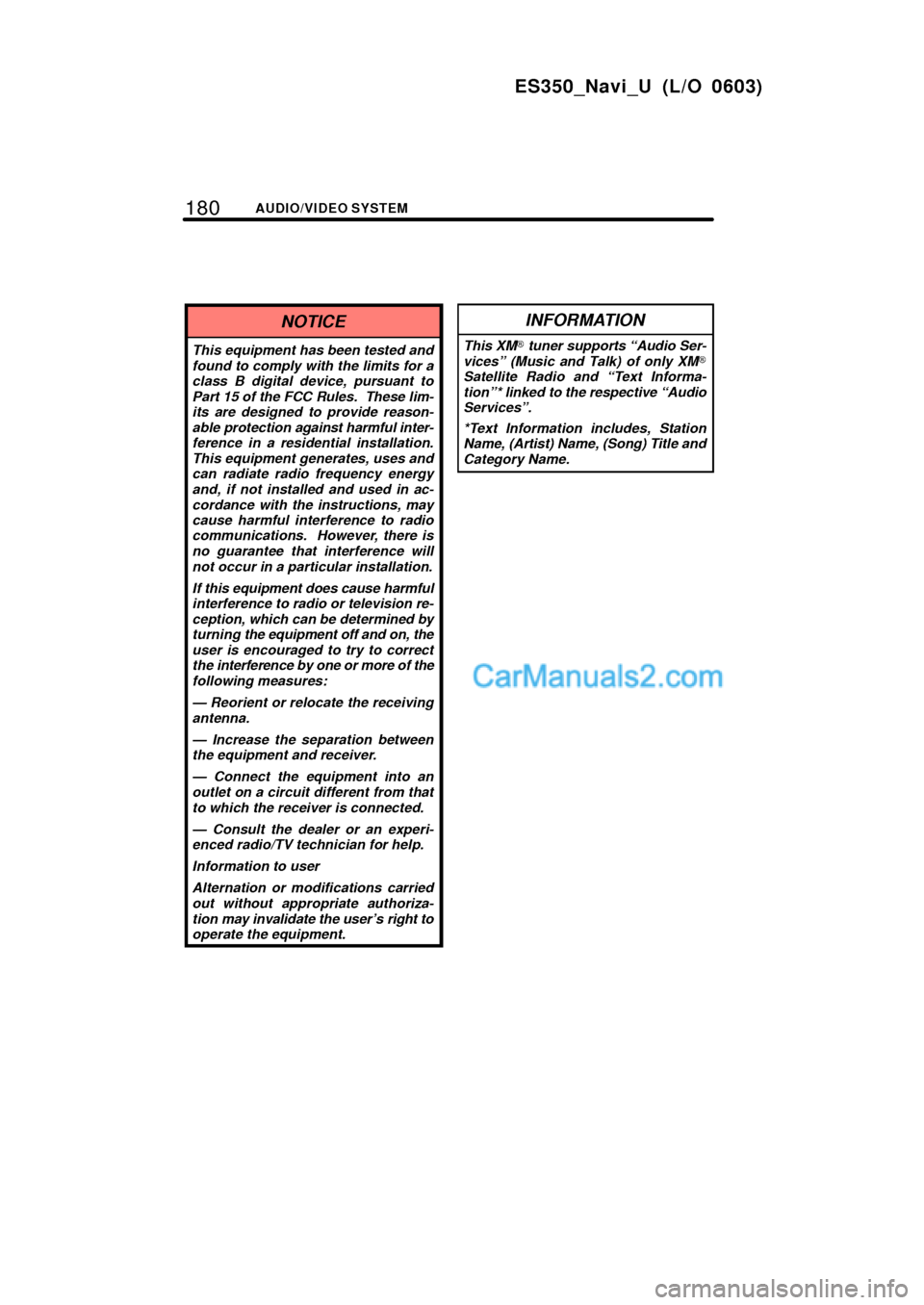

NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reason-
able protection against harmful inter-
ference in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in ac-
cordance with the instructions, may
cause harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
Ð Reorient or relocate the receiving
antenna.
Ð Increase the separation between
the equipment and receiver.
Ð Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Ð Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user's right to
operate the equipment.
INFORMATION
This XM tuner supports Audio Ser-
vicesº (Music and Talk) of only XMSatellite Radio and Text Informa-
tionº* linked to the respective Audio
Servicesº.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.
Page 44 of 72
202AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
(c) Selecting a desired disc
On the screen:
Touch the desired disc number.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.
On the audio panel:
Push the
º or º button of CH/
DISCº.
When you release the button, the changer
will start playing the selected disc from the
first track.(d) Operating a DVD disc
NOTE: The playback condition of some
DVD discs may be determined by a DVD
software producer. This DVD changer
plays a disc as the software producer in-
tended. So some functions may not work
properly. Be sure to read the instruction
manual for the DVD disc separately pro-
vided. For the detailed information about
DVD video discs, see (g) DVD player and
DVD video disc informationº on page 217.
Precautions on DVD video disc
When recording with a DVD video, DVD
audio or video CD, audio tracks may not
record in some cases while the menu is
displayed. As audio will not play in this
case, verify that the video tracks are play-
ing and then activate playback.
When playback of a disc is completed:
If an audio CD or MP3/WMA disc is
playing, the first track or file starts.
If a DVD video, DVD audio or video CD
is playing, playback will stop or the
menu screen will be displayed.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
CAUTION
Conversational speech on some
DVDs is recorded at a low volume to
emphasize the impact of sound ef-
fects. If you adjust the volume as-
suming that the conversations repre-
sent the maximum volume level that
the DVD will play, you may be startled
by louder sound effects or when you
change to a different audio source.
The louder sounds may have a signif-
icant impact on the human body or
pose a driving hazard. Keep this in
mind when you adjust the volume.
Page 60 of 72
218AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code
by which this video disc
can be played.
ALL: in all countries
Number: region code
DVD video disc glossary
DVD video discs: Digital versatile Disc
that holds video. DVD video discs have
adopted MPEG2º, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40 on
average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed de-
pending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti-angle and multi-language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with a
level of restrictions of the country. The lev-
el of restrictions varies depending on the
DVD video disc. Some DVD video discs
cannot be played at all, or violent scenes
are skipped or replaced with other scenes.
Level 1: DVD video discs for children can
be played.
Level 2 - 7: DVD video discs for children
and G-rated movie can be played.
Level 8: All types of the DVD video discs
can be played.
Multi-angle feature: You can enjoy the
same scene at different angles.
Multi-language feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If
the DVD video disc does not have the
same region code as the DVD player, you
cannot play the disc on the DVD player.
For region codes, see page 218.
Audio: This DVD player can play liner
PCM, Dolby digital, DTS and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divid-
ed in parts by title and chapter.
