4-3. Do-it-yourself maintenance
Washer fluid
If any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

298
4-3. Do-it-yourself maintenance
Installing tire pressure warning valve & transmitters
When replacing tires or wheels, tire pressure warning valve & transmit-
ters must also be installed.
When new tire pressure warning valve & transmitters are installed, new tire
pressure warning valve & transmitter ID codes must be registered in the tire
pressure warning ECU and tire pressure warning system must be initialized.
Have tire pressure warning valve & transmitter ID codes registered by your
Lexus dealer. (→P. 299, 300)
If equipped with compact spare
tire
■The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valve & transmitters to detect low tire inflation
pressure before serious problems arise. (→P. 343)
Front

299
4-3. Do-it-yourself maintenance
4
Maintenance and care
Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following
circumstances:
●When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
●When changing the tire size.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the pressure benchmark.
■How to initialize the tire pressure warning system
Park the vehicle in safe place and turn off the engine.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (→P. 391)
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the engine switch to IG-ON mode.
Press the tire pressure warning
reset button for more than 3 sec-
onds. At this time, the tire inflation
pressure warning indicator flashes
3 times.
Wait for a few minutes with the IG-ON mode, and then turn the
engine switch to OFF mode.
STEP1
STEP2
STEP3
STEP4
STEP5

300
4-3. Do-it-yourself maintenance
Registering and selecting ID codes
■Registering ID codes
2 sets of tire pressure warning valve & transmitter ID codes can be
registered. Once a second set of tires is registered at “2nd”, you can
switch between tire set settings simply by pressing the tire pressure
warning select switch.
There are 2 settings:
“MAIN” position: The ID code of the tire pressure warning valve &
transmitter on the tires originally installed on the vehicle is registered.
“2nd” position: The code is not registered. When you replace a new set
of tires, purchase tire pressure warning valve & transmitters from your
Lexus dealer and have the new ID code registered by your Lexus
dealer.
■Selecting ID codes
When replacing tires, make sure to select the ID code set that matches
the new tire set. If the tire pressure select switch is set to the wrong tire
setting, the system will not work properly. After about 1 hour, the tire
pressure warning light blinks (comes on after blinking for 1 minute) to
indicate a system malfunction.
MAIN
2nd

302
4-3. Do-it-yourself maintenance
■Tire types
1 Summer tires
Summer tires are high-speed performance tires best suited to highway driving
under dry conditions. Since summer tires do not have the same traction perfor-
mance as snow tires, summer tires are inadequate for driving on snow-covered
or icy roads. For driving on snow-covered roads or icy roads, the use of snow tires
is recommended. When installing snow tires, be sure to replace all four tires.
2 All season tires
All season tires are designed to provide better traction in snow and to be ade-
quate for driving in most winter conditions, as well as for use year round. All sea-
son tires, however, do not have adequate traction performance compared with
snow tires in heavy or loose snow. Also, all season tires fall short in acceleration
and handling performance compared with summer tires in highway driving.
3Snow tires
For driving on snow-covered roads or icy roads, we recommend using snow tires.
If you need snow tires, select tires of the same size, construction and load capac-
ity as the originally installed tires. Since your vehicle has radial tires as original
equipment, make sure your snow tires also have radial construction. Do not install
studded tires without first checking local regulations for possible restriction.
Snow tires should be installed on all wheels. (→P. 1 4 7 )
■Initializing the tire pressure warning system
Initialize the tires with the tire inflation pressure adjusted to the specified level.
■If you push the tire pressure reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the specified level
and initialize the system again.
■When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the warning light does
not flash.
●After driving for a certain period of time since the initialization has been com-
pleted, the warning light flashes.

303
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■Tire pressure warning system certification
For vehicles sold in the USA
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
●Consult the dealer or an experienced radio-TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.

304
4-3. Do-it-yourself maintenance
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train, as well as dangerous handling characteristics,
which may lead to fatal or injury accidents.
●Do not mix tires of different makes, models, tread patterns or tread wear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix radial, bias-belted, or bias-ply tires.
●Do not mix summer, all season and winter tires.
■When initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire not inflation pressure is actually normal.
NOTICE
■Repairing or replacing tires, wheels and tire pressure warning valve & transmit-
ters
●When removing or fitting the wheels, tires or the tire pressure warning valve &
transmitter, contact your Lexus dealer as the tire pressure warning valve & trans-
mitter may be damaged if not handled correctly.
●When replacing tires, make sure also to replace the tire pressure warning valve &
transmitter grommets.
■Do not use puncture sealant sprays to repair flats
Puncture sealant sprays may damage tire pressure warning valve & transmitters.
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.
■If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

309
4-3. Do-it-yourself maintenance
4
Maintenance and care
Wheels
■When replacing wheels
The wheels of your Lexus are equipped with sensors that allow the tire pressure
warning system sensors to provide advanced warning in the event of a loss in tire
pressure. Whenever wheels are replaced, the tire pressure warning valve & trans-
mitters must be switched over from the old wheels. (→P. 2 9 9 )
If a wheel is bent, cracked or heavily corroded, it should be replaced. Oth-
erwise, the tire may separate from the wheel or cause loss of handling con-
trol.
■Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and offset.
Replacement wheels are available at your Lexus dealer.
Lexus does not recommend using:
• Wheels of different sizes or types
• Used wheels
• Bent wheels that have been straightened
■Aluminum wheel precautions
●Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
●When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
●Be careful not to damage the aluminum wheels when using tire
chains.
●Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

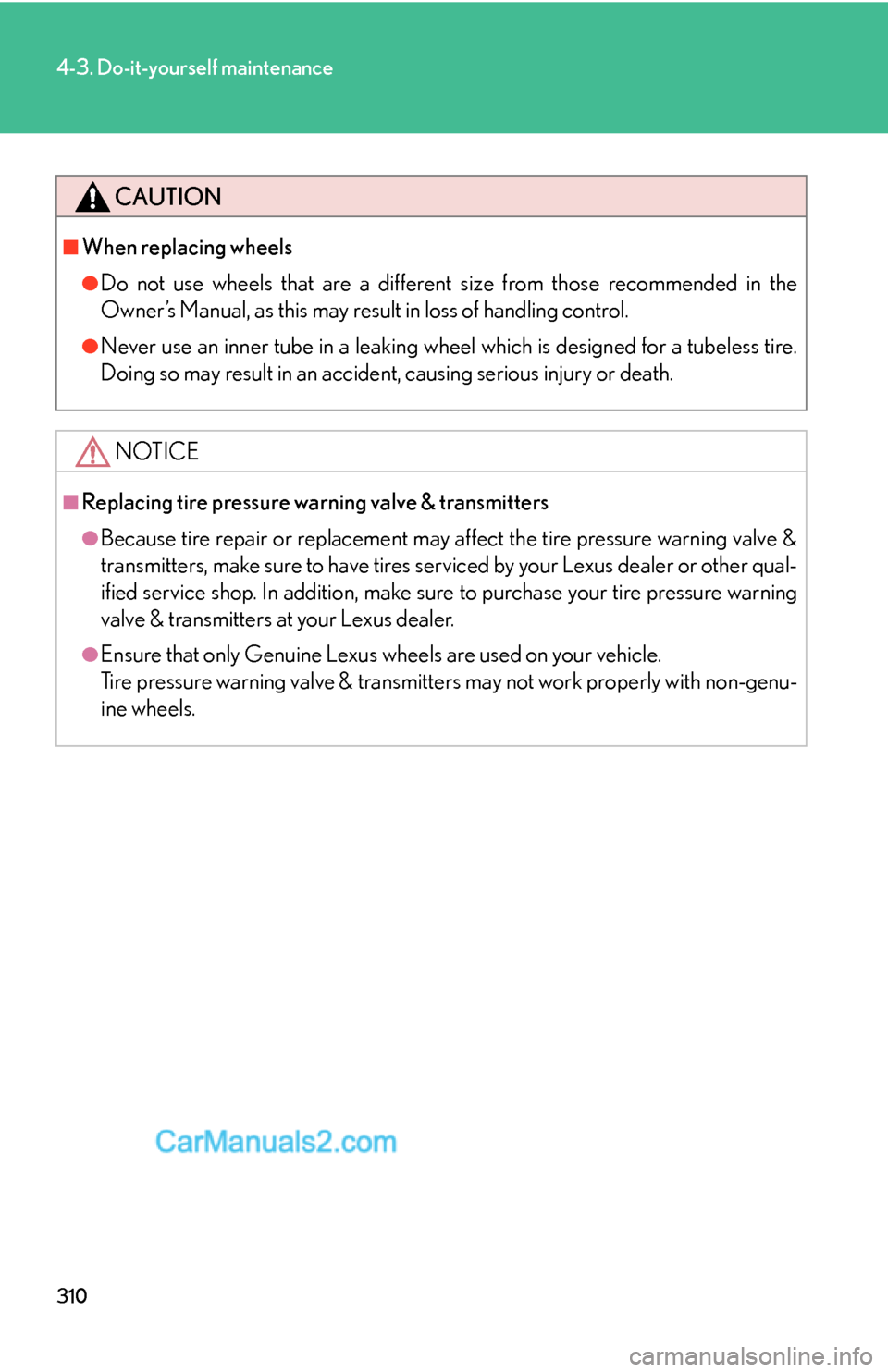

310
4-3. Do-it-yourself maintenance
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing serious injury or death.
NOTICE
■Replacing tire pressure warning valve & transmitters
●Because tire repair or replacement may affect the tire pressure warning valve &
transmitters, make sure to have tires serviced by your Lexus dealer or other qual-
ified service shop. In addition, make sure to purchase your tire pressure warning
valve & transmitters at your Lexus dealer.
●Ensure that only Genuine Lexus wheels are used on your vehicle.
Tire pressure warning valve & transmitters may not work properly with non-genu-
ine wheels.
