Lexus ES350 2008 Audio/video System

AUDIO/VIDEO SYSTEM
235
Changing the still picture
DVD audio only Ð
Touch Prev. Stillº or Next Stillº on the
screen to forward or reverse the still
pictures.
Changing the subtitle language
Each time you touch Subtitleº, the lan-
guage is selected from the ones stored
in the discs and changed.
To turn off the subtitle, touch Hideº.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
236
Changing the audio language
DVD video only Ð
Each time you touch AUDIOº, the lan-
guage is selected from the ones stored
in the discs and changed.
When you touch
, the previous
screen returns.
Changing the audio format
DVD audio only Ð
Each time you touch AUDIOº, another
audio format stored on the disc is se-
lected.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
237
Changing the angle
The angle can be selected for discs that
are multi-angle compatible when the
angle mark appears on the screen.
Each time you touch Angleº, the angle
changes.
When you touch
, the previous
screen returns.
Setup menu
The initial setting can be changed.
After you change the initial setting, touch
Enterº. The previous picture will be dis-
played.
When Defaultº is touched, all menus are
initialized.
AUDIO LANGUAGE
You can change the audio language.
1. Touch Audio Languageº.
2. Touch the language you want to
hear on the Select Audio Languageº
screen.
If you cannot find the language you want to
hear on this screen, touch Otherº and en-
ter a language code. For the entry of lan-
guage code, see page 239.

AUDIO/VIDEO SYSTEM
238
SUBTITLE LANGUAGE
You can change the subtitle language.
1. Touch Subtitle Languageº.
2. Touch a language you want to read
on the Select Subtitle Languageº
screen.
If you cannot find the language you want to
read on this screen, touch Otherº and en-
ter a language code. For the entry of lan-
guage code, see page 239.
To return to the Setup Menuº screen,
touch
.
DVD LANGUAGE
You can change the language on the DVD
video menu.
1. Touch DVD Languageº.
2. Touch the language you want to
read on the DVD Languageº screen.
If you cannot find the language you want to
read on this screen, touch Otherº and en-
ter a language code. For the entry of lan-
guage code, see page 239.
To return to the Setup Menuº screen,
touch
.ANGLE MARK
The multi-angle mark can be turned on or
off on the screen while the disc which is
multi-angle compatible is being played.
Each time you touch Angle Markº, the
angle mark on the screen turns on or off al-
ternately.
PARENTAL LOCK
The level of viewer restrictions can be
changed.
1. Touch Parental Lockº.
2. Enter the 4-digit personal code on
the Enter Personal Codeº screen.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
10 touches of Clearº will initialized the
personal code.
3. Touch a parental level (1 Ð 8) on the
Restriction Levelº.
To return to the Setup Menuº screen,
touch
.

AUDIO/VIDEO SYSTEM
239
Enter subtitle language code
If you touch Otherº on the Select Audio
Languageº screen, Select Subtitle Lan-
guageº screen or DVD Languageº
screen, you can select the language you
want to hear or read by entering a lan-
guage code.
1. Enter the 4-digit language code.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
2. Touch Enterº.
Code
Language
1001Japanese
0514English
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czech
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish

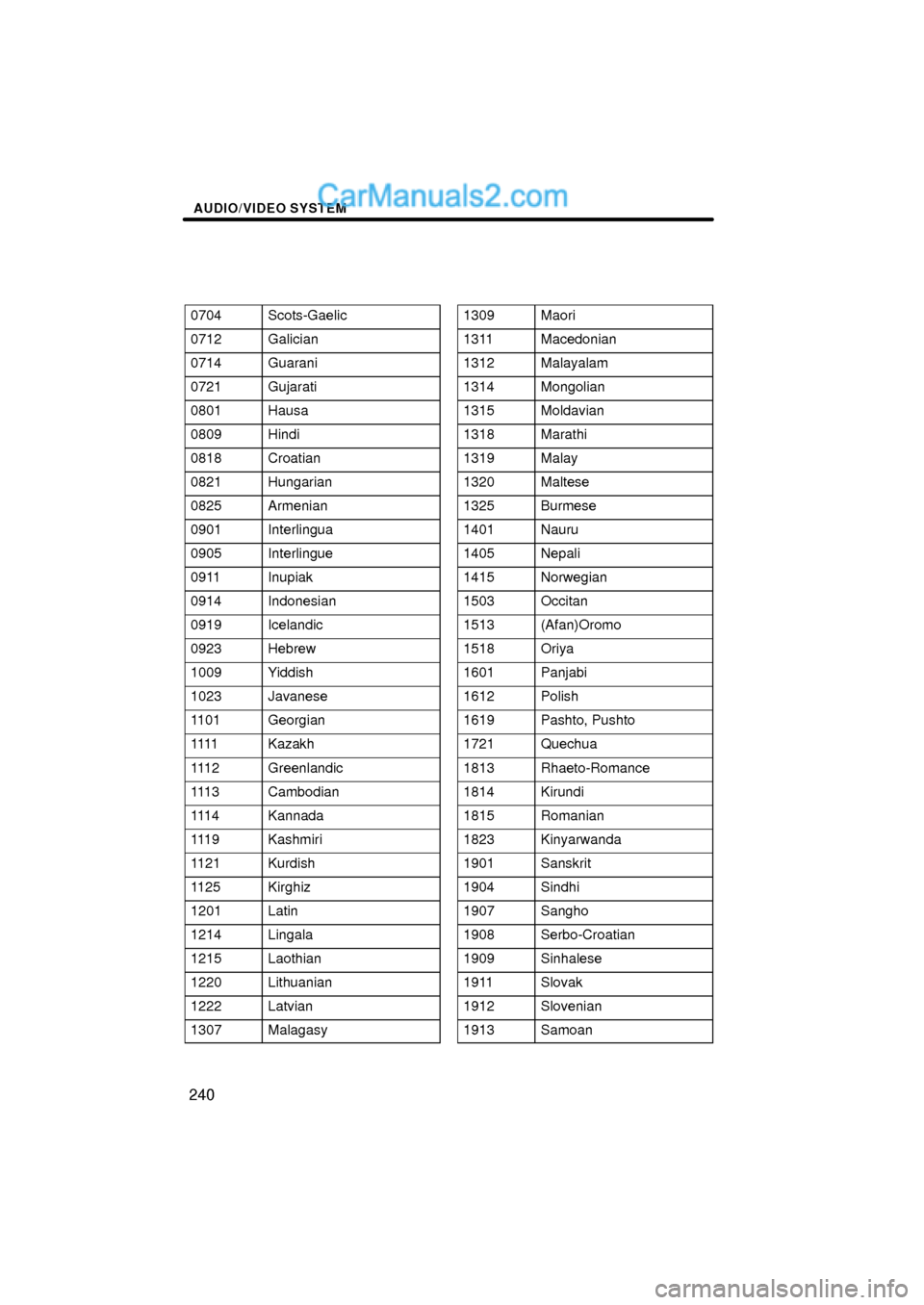

AUDIO/VIDEO SYSTEM
240
0704Scots-Gaelic
0712Galician
0714Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan)Oromo
1518Oriya
1601Panjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto-Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo-Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan

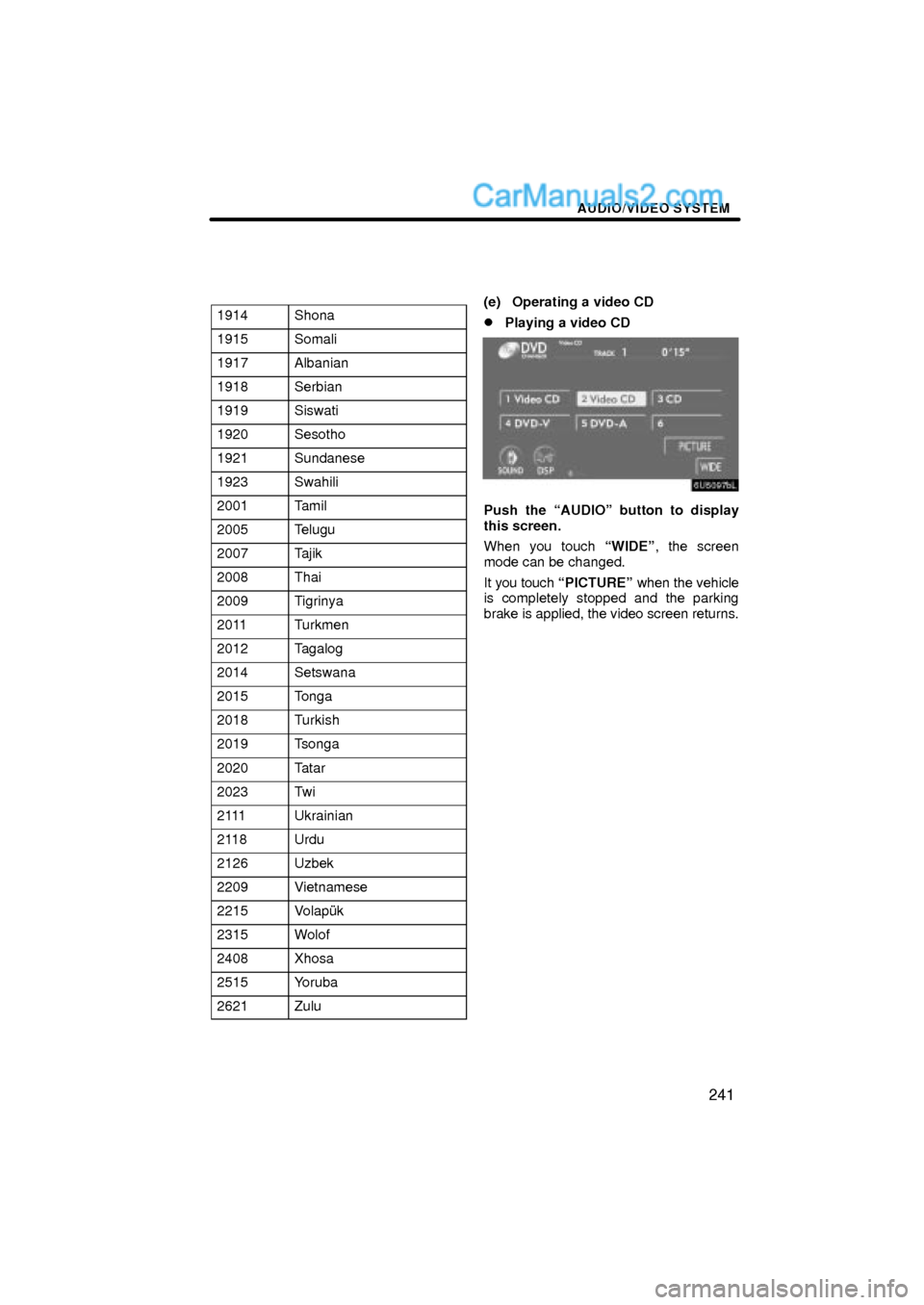

AUDIO/VIDEO SYSTEM
241
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volap˜k
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu
(e) Operating a video CD
Playing a video CD
Push the AUDIOº button to display
this screen.
When you touch WIDEº, the screen
mode can be changed.
It you touch PICTUREº when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.

AUDIO/VIDEO SYSTEM
242
Displaying operation buttons
If you touch the part where touch-screen
buttons are not located while you are
watching video on the video CD, video CD
operation buttons will appear.
>Page2º: Use this button to display the
operation buttons on the second page.
 operation buttons on the top page.
Hide Buttonsº: Use this button to turn off
the operation buttons from the display.
If
º appears on the display when you
touch the button, the operation is not per-
mitted.
Description of each button
BUTTONS ON TOP PAGE
Select Numberº: The track or number
search screen appears. (See page 243.)
Returnº: Touching this will display the
predetermined scene and start playing
from there.
Prev. Menuº: When you touch this button
while the disc menu is displayed, the pre-
vious page appears on the screen. If you
touch this button while the changer is play-
ing video, the previous track is searched
and played.
Next Menuº: When you touch this button
while the disc menu is displayed, the next
page appears on the display. If you touch
this button while the changer is playing vid-
eo, the next track is searched and played.
Main/Subº: A multiplex transmission
changing button. The mode changes from
Main/Sub to Main, to Sub and back to
Main/Sub by touching this button.
BUTTONS ON SECOND PAGE
: Use this button to pause the video
screen.
: Touch this button to fast reverse
during playback.
: Touch this button during pause to
resume playing.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.

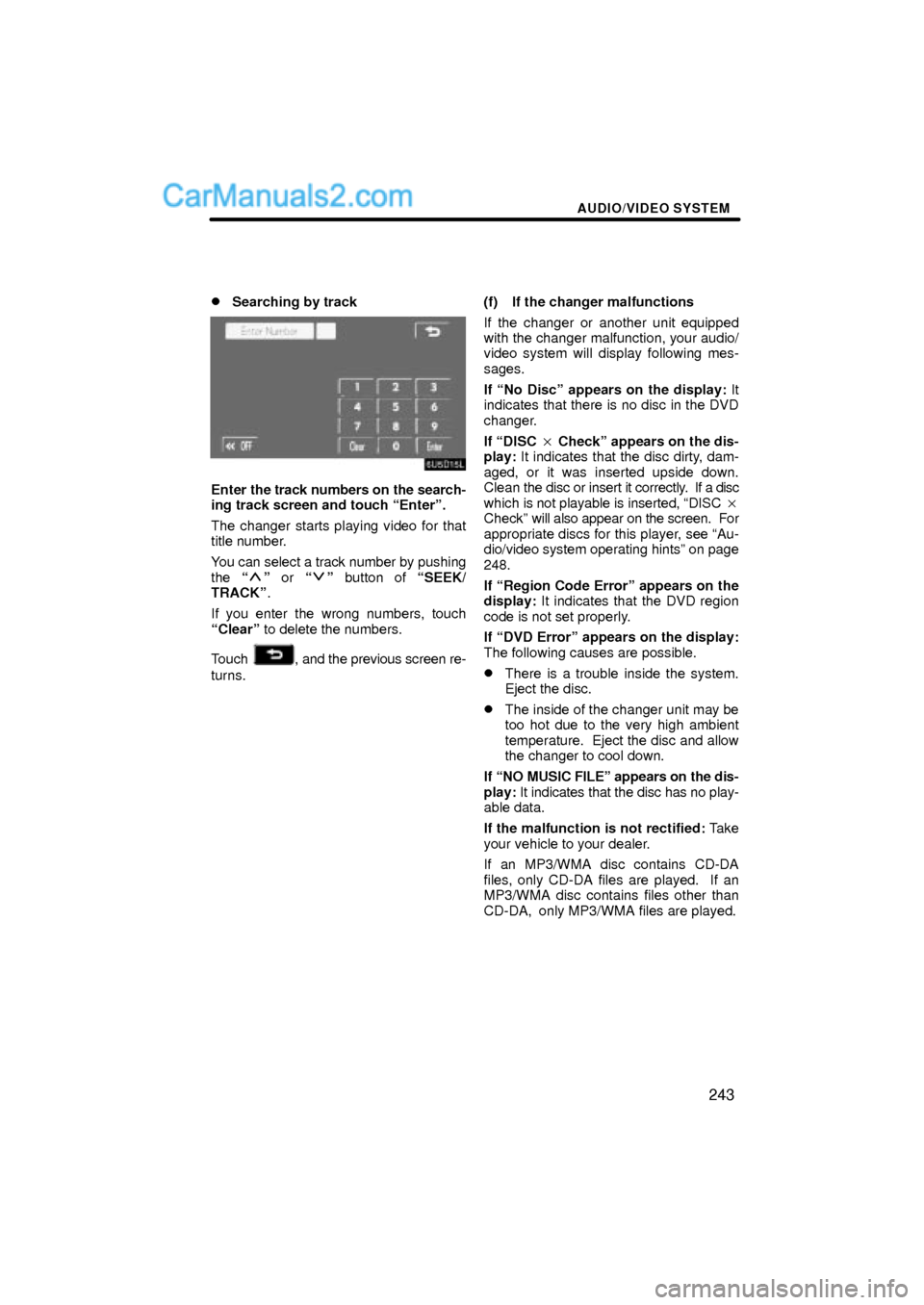

AUDIO/VIDEO SYSTEM
243
Searching by track
Enter the track numbers on the search-
ing track screen and touch Enterº.
The changer starts playing video for that
title number.
You can select a track number by pushing
the
º or º button of SEEK/
TRACKº.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
Touch
, and the previous screen re-
turns.(f) If the changer malfunctions
If the changer or another unit equipped
with the changer malfunction, your audio/
video system will display following mes-
sages.
If No Discº appears on the display: It
indicates that there is no disc in the DVD
changer.
If DISC
Checkº appears on the dis-
play: It indicates that the disc dirty, dam-
aged, or it was inserted upside down.
Clean the disc or insert it correctly. If a disc
which is not playable is inserted, DISC

Checkº will also appear on the screen. For
appropriate discs for this player, see Au-
dio/video system operating hintsº on page
248.
If Region Code Errorº appears on the
display: It indicates that the DVD region
code is not set properly.
If DVD Errorº appears on the display:
The following causes are possible.There is a trouble inside the system.
Eject the disc.
The inside of the changer unit may be
too hot due to the very high ambient
temperature. Eject the disc and allow
the changer to cool down.
If NO MUSIC FILEº appears on the dis-
play: It indicates that the disc has no play-
able data.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3/WMA disc contains CD-DA
files, only CD-DA files are played. If an
MP3/WMA disc contains files other than
CD-DA, only MP3/WMA files are played.

AUDIO/VIDEO SYSTEM
244

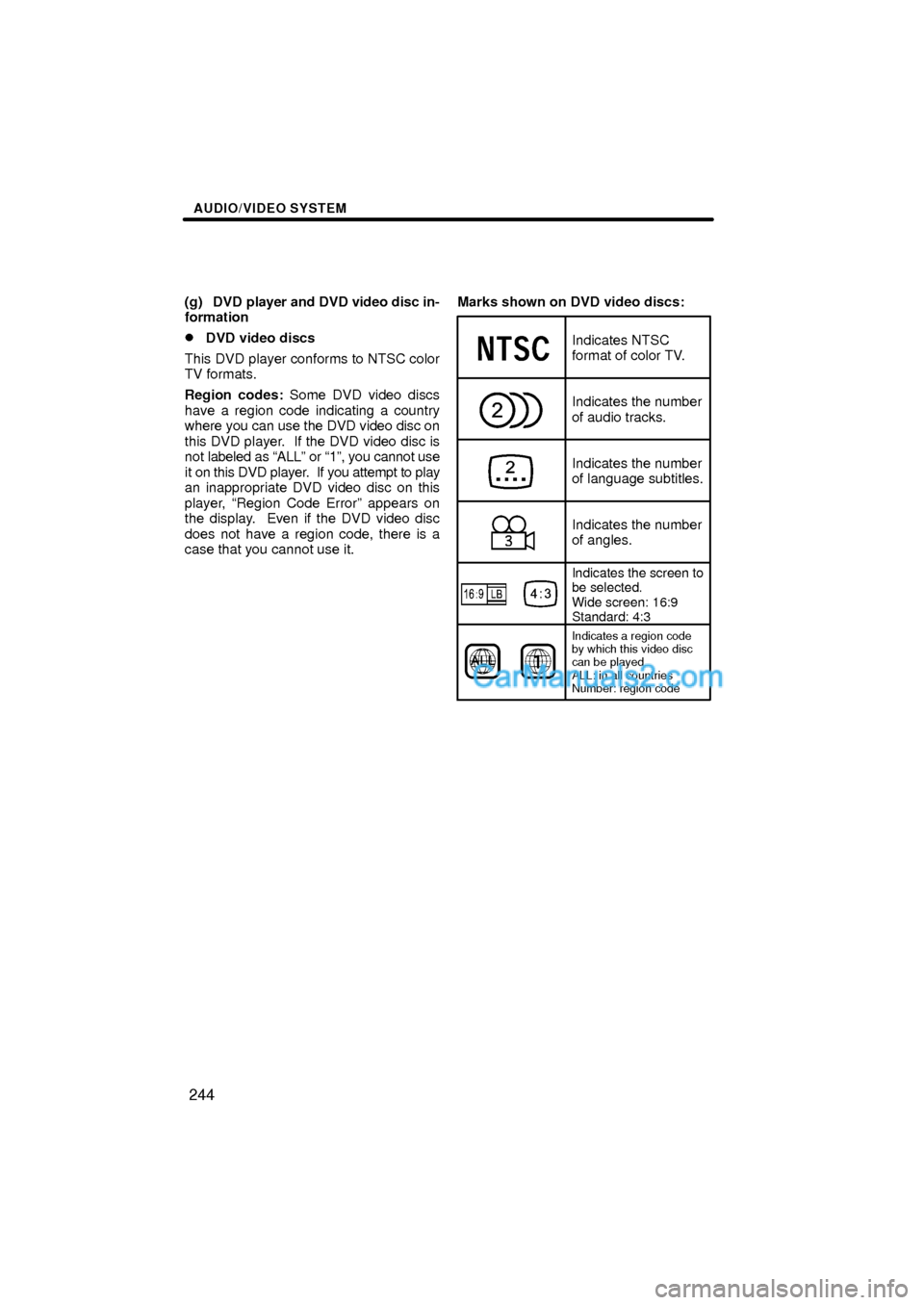

(g) DVD player and DVD video disc in-
formation
DVD video discs
This DVD player conforms to NTSC color
TV formats.
Region codes: Some DVD video discs
have a region code indicating a country
where you can use the DVD video disc on
this DVD player. If the DVD video disc is
not labeled as ALLº or 1º, you cannot use
it on this DVD player. If you attempt to play
an inappropriate DVD video disc on this
player, Region Code Errorº appears on
the display. Even if the DVD video disc
does not have a region code, there is a
case that you cannot use it.Marks shown on DVD video discs:Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code
by which this video disc
can be played.
ALL: in all countries
Number: region code
