Lexus ES350 2008 Audio/video System

AUDIO/VIDEO SYSTEM
225
(a) Inserting or ejecting discs
The ENGINE START STOPº switch must
be in the ACCESSORY or IGNITION ON
mode.
Your DVD changer can store up to 6 discs.
Setting a single disc:
1. Push the LOADº button briefly.
The amber indicators at both ends of the
slot start blinking. After the amber indica-
tors change to green and stay on, the DVD
changer door will open.
2. Insert only one disc while the DVD
changer door is open.
You can set a disc at the lowest empty disc
number.
After insertion, the set disc is automatically
loaded.
If the label faces down, the disc cannot be
played. In this case, DISC
Checkº ap-
pears on the screen.
If you do not insert the disc within 15 sec-
onds after pushing the LOADº button, the
beep will sound and the operation will be
canceled automatically.
If you need to insert the next disc, repeat
the same procedure to insert another disc.

AUDIO/VIDEO SYSTEM
226

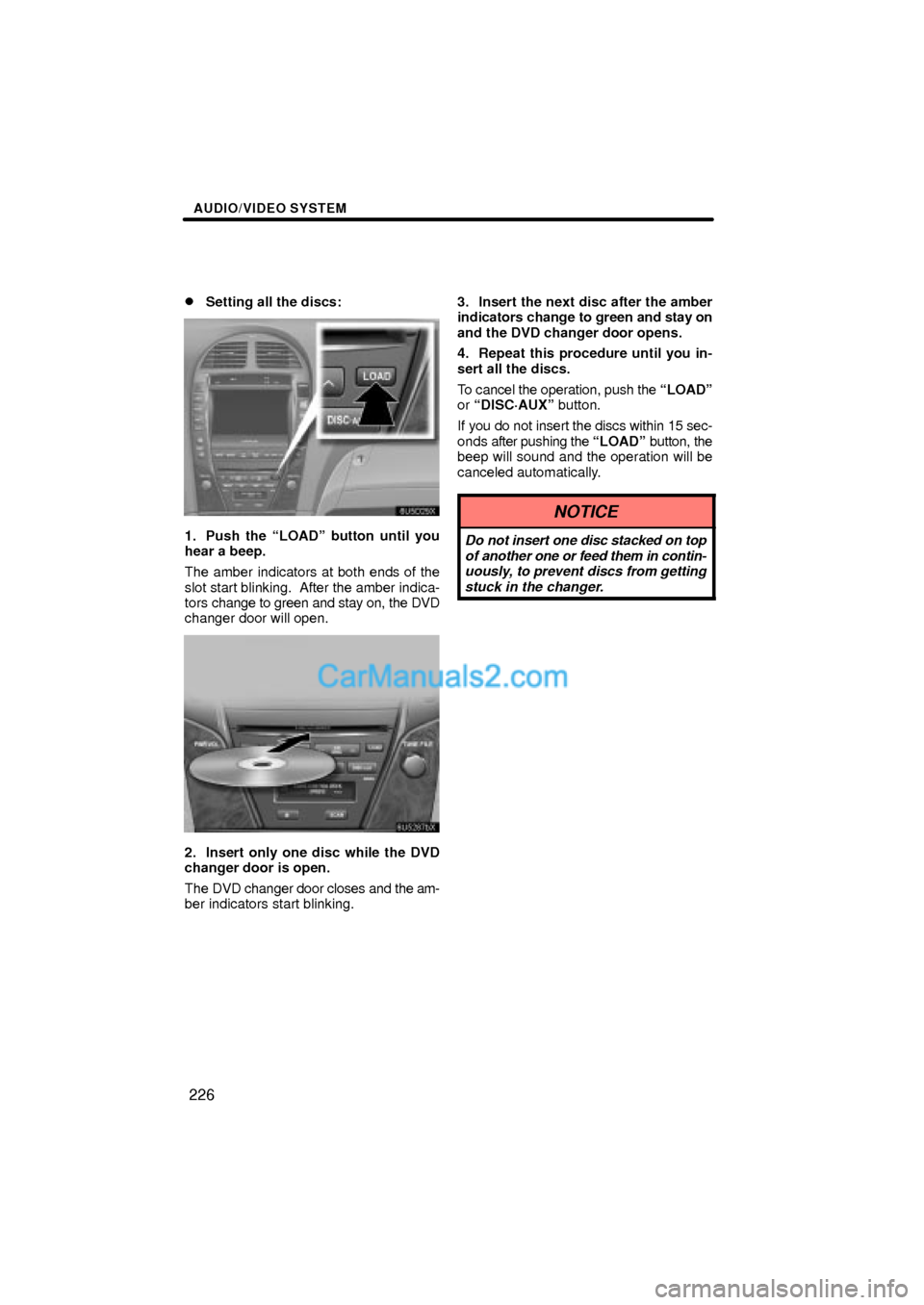

Setting all the discs:
1. Push the LOADº button until you
hear a beep.
The amber indicators at both ends of the
slot start blinking. After the amber indica-
tors change to green and stay on, the DVD
changer door will open.
2. Insert only one disc while the DVD
changer door is open.
The DVD changer door closes and the am-
ber indicators start blinking.3. Insert the next disc after the amber
indicators change to green and stay on
and the DVD changer door opens.
4. Repeat this procedure until you in-
sert all the discs.
To cancel the operation, push the LOADº
or DISC´AUXº button.
If you do not insert the discs within 15 sec-
onds after pushing the LOADº button, the
beep will sound and the operation will be
canceled automatically.
NOTICE
Do not insert one disc stacked on top
of another one or feed them in contin-
uously, to prevent discs from getting
stuck in the changer.

AUDIO/VIDEO SYSTEM
227
Ejecting a single alone:
1. Push the º or º button of CH/
DISCº or touch the disc number button
on the screen to highlight the disc num-
ber you want to eject.
2. Push the button for the disc
briefly.
At this time, the amber indicators of the slot
start blinking and the disc is ejected.
3. After the blinking indicators stay on,
remove the disc.
Ejecting all the discs:
1. Push the button for the disc un-
til you hear a beep.
At this time, the amber indicators of the slot
start blinking and a disc is ejected.
2. After the blinking indicators stay on,
remove the disc.
The indicators start blinking again and the
next disc is ejected.
To cancel the operation, push the LOADº
or DISC´AUXº button.
If you do not remove the disc within 15 sec-
onds after it is ejected, the beep will sound
and the operation will be canceled auto-
matically.
When all the discs are removed, the indi-
cators go out.
The numbers of the trays where the disc is
not set are dimmed.

AUDIO/VIDEO SYSTEM
228

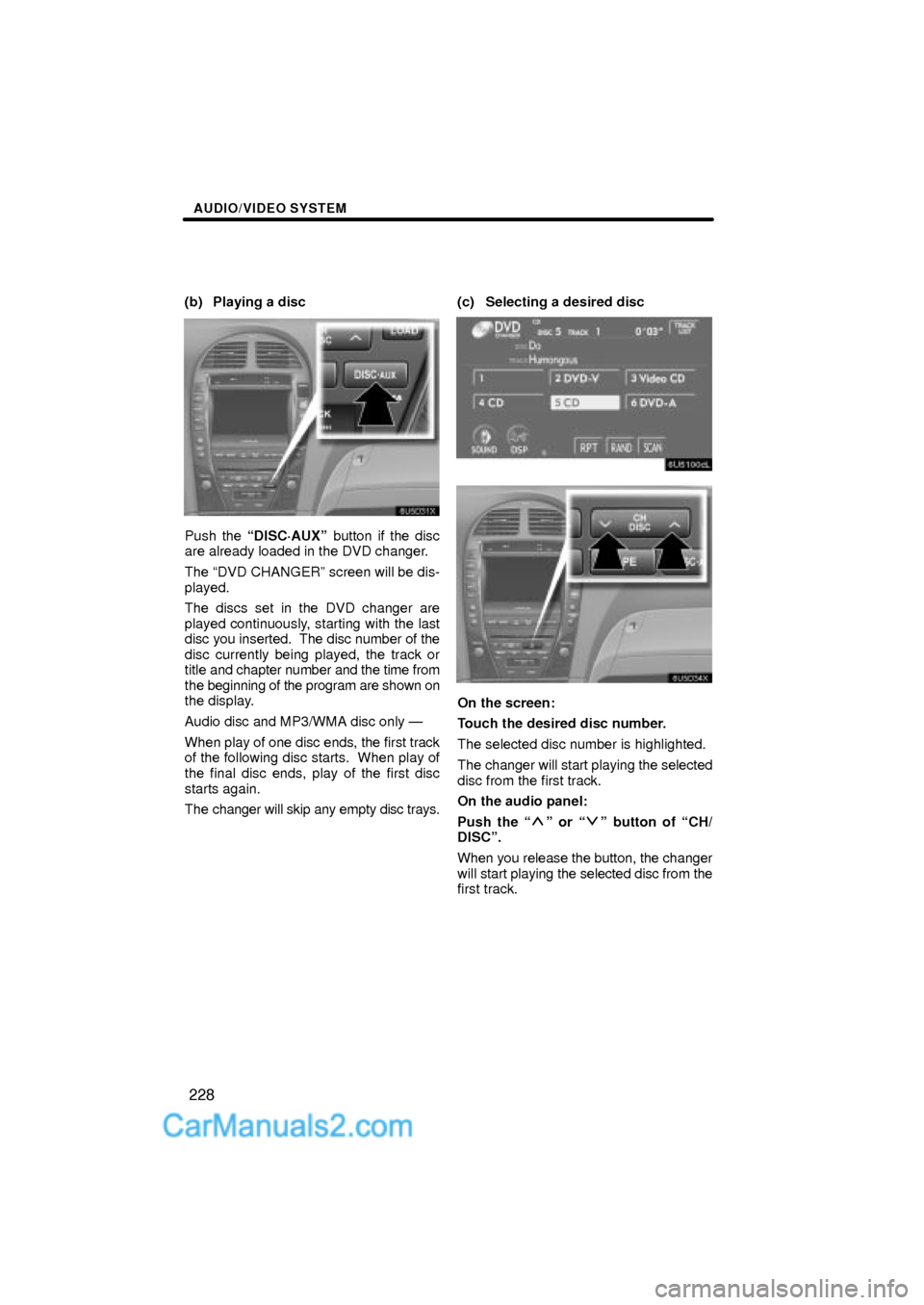

(b) Playing a disc
Push the DISC´AUXº button if the disc
are already loaded in the DVD changer.
The DVD CHANGERº screen will be dis-
played.
The discs set in the DVD changer are
played continuously, starting with the last
disc you inserted. The disc number of the
disc currently being played, the track or
title and chapter number and the time from
the beginning of the program are shown on
the display.
Audio disc and MP3/WMA disc only Ð
When play of one disc ends, the first track
of the following disc starts. When play of
the final disc ends, play of the first disc
starts again.
The changer will skip any empty disc trays.(c) Selecting a desired disc
On the screen:
Touch the desired disc number.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.
On the audio panel:
Push the
º or º button of CH/
DISCº.
When you release the button, the changer
will start playing the selected disc from the
first track.

AUDIO/VIDEO SYSTEM
229
(d) Operating a DVD disc
NOTE: The playback condition of some
DVD discs may be determined by a DVD
software producer. This DVD changer
plays a disc as the software producer in-
tended. So some functions may not work
properly. Be sure to read the instruction
manual for the DVD disc separately pro-
vided. For the detailed information about
DVD video discs, see (g) DVD player and
DVD video disc informationº on page 244.
Precautions on DVD video disc
When recording with a DVD video, DVD
audio or video CD, audio tracks may not
record in some cases while the menu is
displayed. As audio will not play in this
case, verify that the video tracks are play-
ing and then activate playback.
When playback of a disc is completed:
If an audio CD or MP3/WMA disc is
playing, the first track or file starts.
If a DVD video, DVD audio or video CD
is playing, playback will stop or the
menu screen will be displayed.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
CAUTION
Conversational speech on some
DVDs is recorded at a low volume to
emphasize the impact of sound ef-
fects. If you adjust the volume as-
suming that the conversations repre-
sent the maximum volume level that
the DVD will play, you may be startled
by louder sound effects or when you
change to a different audio source.
The louder sounds may have a signif-
icant impact on the human body or
pose a driving hazard. Keep this in
mind when you adjust the volume.
This DVD Hint!º screen appears when
the video screen is first displayed after
the ENGINE START STOPº switch is in
the ACCESSORY or IGNITION ON
mode.
Touch OKº when you read the message.

AUDIO/VIDEO SYSTEM
230
Playing a DVD disc
Push the AUDIOº button to display this
screen. You can operate the touch-
screen buttons and choose the number of
the disc you want to play. The selected
disc is automatically played.
When you touch WIDEº, the screen
mode can be changed.
It you touch PICTUREº when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
Displaying DVD controls

DVD video

AUDIO/VIDEO SYSTEM
231

DVD audio
If you touch a part of the screen, where
controls are not located while watching
video, DVD controls will appear.
> Page2º: Touching this will display on
the second page of DVD controls.
< Page1º: Touching this will display the
top page of DVD controls.
Hide Buttonsº: Touching this will turn off
the controls from the screen.
If
º appears on the screen when you
touch a control, the operation relevant to
the control is not permitted.
Description of DVD controls
TOP PAGE OF DVD VIDEO CONTROLS
Menuº and Top Menuº: If you touch ei-
ther button, the menu screen for DVD vid-
eo appears. (For the operation, see the
manual that come with the DVD video disc
provided separately.)
: The menu control key appears on
the screen. (See page 232.)
: Touching this will pause the video
screen.
: Touching this will fast reverse.
: Touching this will stop the DVD
video disc.
: Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD VIDEO
CONTROLS
Setupº: The initial setup screen appears.
(See page 237.)
Searchº: The title search screen ap-
pears. (See page 233.)
Returnº: Touching this will display the
predetermined scene and start playing
from there.
AUDIOº: The audio changing screen ap-
pears. (See page 236.)
Subtitleº: The subtitle changing screen
appears. (See page 235.)
Angleº: The angle selection screen ap-
pears. (See page 237.)

AUDIO/VIDEO SYSTEM
232
TOP PAGE OF DVD AUDIO CONTROLS
Top Menuº: If you touch this button, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc
manual that is provided separately.)
AUDIOº: The audio changing screen ap-
pears. (See page 236.)
: The menu control key appears on
the screen. (See page 232.)
: Touch this button to pause the
disc.
: Touching this will fast reverse.
: Touching this will stop the disc.
: Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD AUDIO
CONTROLS
Setupº: The initial setup screen ap-
pears. (See page 237.)
Select Numberº: The track or number
search screen appears. (See page 233.)
Searchº: The group search screen ap-
pears. (See page 233.)
Returnº: Touching this will display the
predetermined scene and start playing
from there.
Prev. Stillº: Touch this button to reverse
the still pictures. (See page 235.)
Next Stillº: Touch this button to forward
the still pictures. (See page 235.)
Subtitleº: The subtitle changing screen
appears. (See page 235.)
Angleº: The angle selection screen ap-
pears. (See page 237.)
Selecting a menu item
Enter the menu item using ,
,  and
 buttons and touch Enterº.
The changer starts playing video for that
menu item. (For details, see the manual
that comes with the DVD video disc pro-
vided separately.)
Each time you touch Move Buttonsº, the
controls on the screen move upward and
downward.
When you touch < will disappear. To display them again,
touch >>ONº.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
233
Searching by title
DVD video only Ð
Enter the title number and touch En-
terº.
The player starts playing video for that title
number.
When you push the
º or º button of
SEEK/TRACKº, you can select a chap-
ter.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
When you touch
, the previous
screen returns.
Searching by track
DVD audio only Ð
Enter the track numbers on the search-
ing track screen and touch Enterº.
The changer starts playing video for that
title number.
You can select a track number by pushing
the
º or º button of SEEK/
TRACKº.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
Touch
, and the previous screen re-
turns.

AUDIO/VIDEO SYSTEM
234

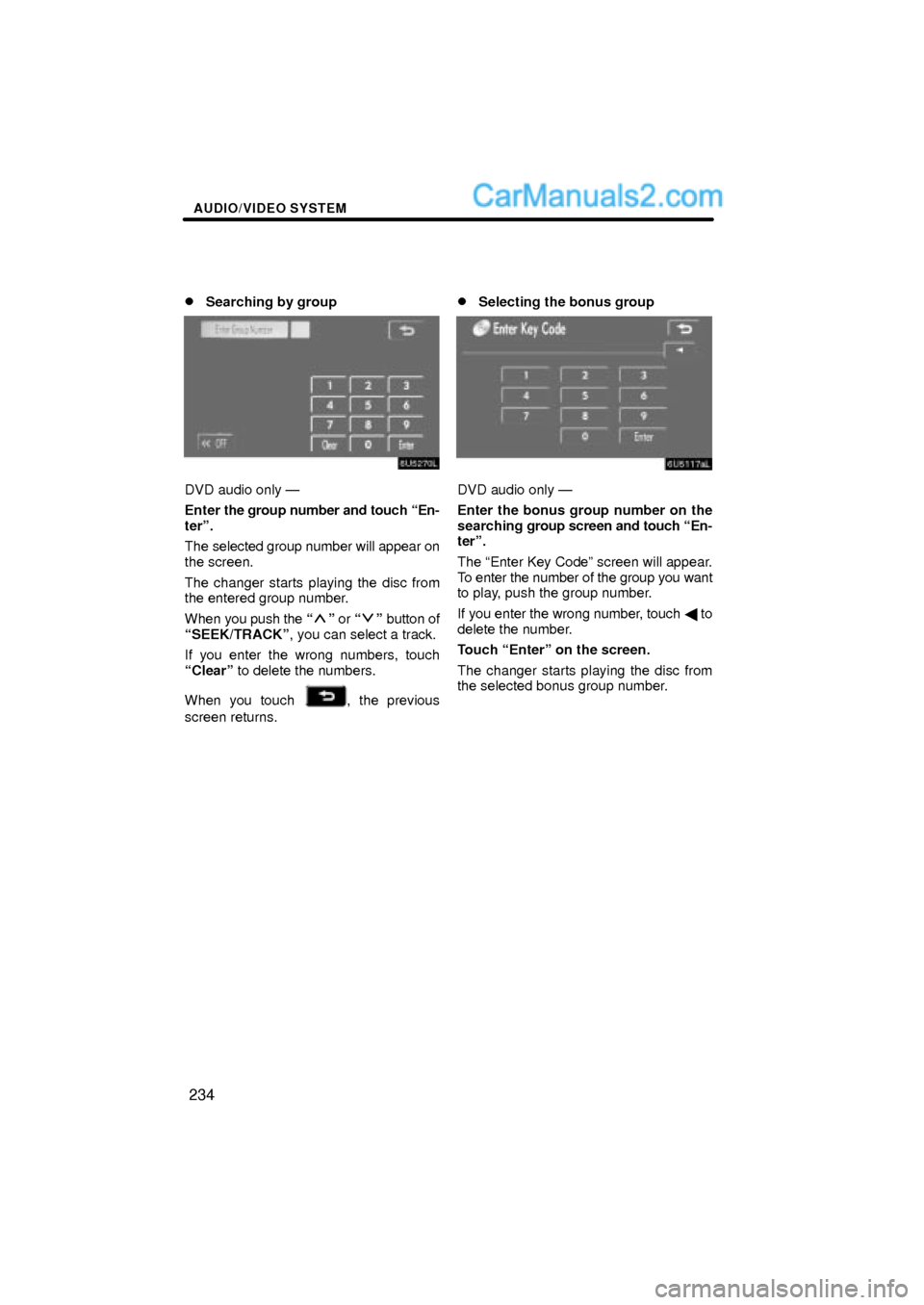

Searching by group
DVD audio only Ð
Enter the group number and touch En-
terº.
The selected group number will appear on
the screen.
The changer starts playing the disc from
the entered group number.
When you push the
º or º button of
SEEK/TRACKº, you can select a track.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
When you touch
, the previous
screen returns.
Selecting the bonus group
DVD audio only Ð
Enter the bonus group number on the
searching group screen and touch En-
terº.
The Enter Key Codeº screen will appear.
To enter the number of the group you want
to play, push the group number.
If you enter the wrong number, touch  to
delete the number.
Touch Enterº on the screen.
The changer starts playing the disc from
the selected bonus group number.
