Lexus ES350 2009 Owner's Manual

449
6-2. Customization
6
Vehicle specifications
ES350_U_(L/O_0808)
Door lock
(
→P. 3 7 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF
Power win-
dows
(
→P. 6 0 )
Linked mechanical key
operationON
(Open and
close)OFF
Open only
Close only
Wireless remote control
linked operationON
(Open only)OFF
Linked entry functionONOFF
ItemFunctionDefault settingCustomized setting

450
6-2. Customization
ES350_U_(L/O_0808)
Moon roof
(standard
type)
(
→P. 63)
Linked mechanical key
operationON
(Open and close)OFF
Open only
Close only
Linked operation of com-
ponents when mechanical
key is used
Slide onlyTilt only
Wireless remote control
linked operationON
(Open only)OFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Automatic
light control
system
(
→P. 1 3 5 )
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 3 5 )
Daytime running light sys-
tem (USA only)ONOFF
Intuitive park-
ing assist
(
→P. 1 5 5 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.5 ft. (150 cm)1.8 ft. (60 cm)
ItemFunctionDefault settingCustomized setting

451
6-2. Customization
6
Vehicle specifications
ES350_U_(L/O_0808)

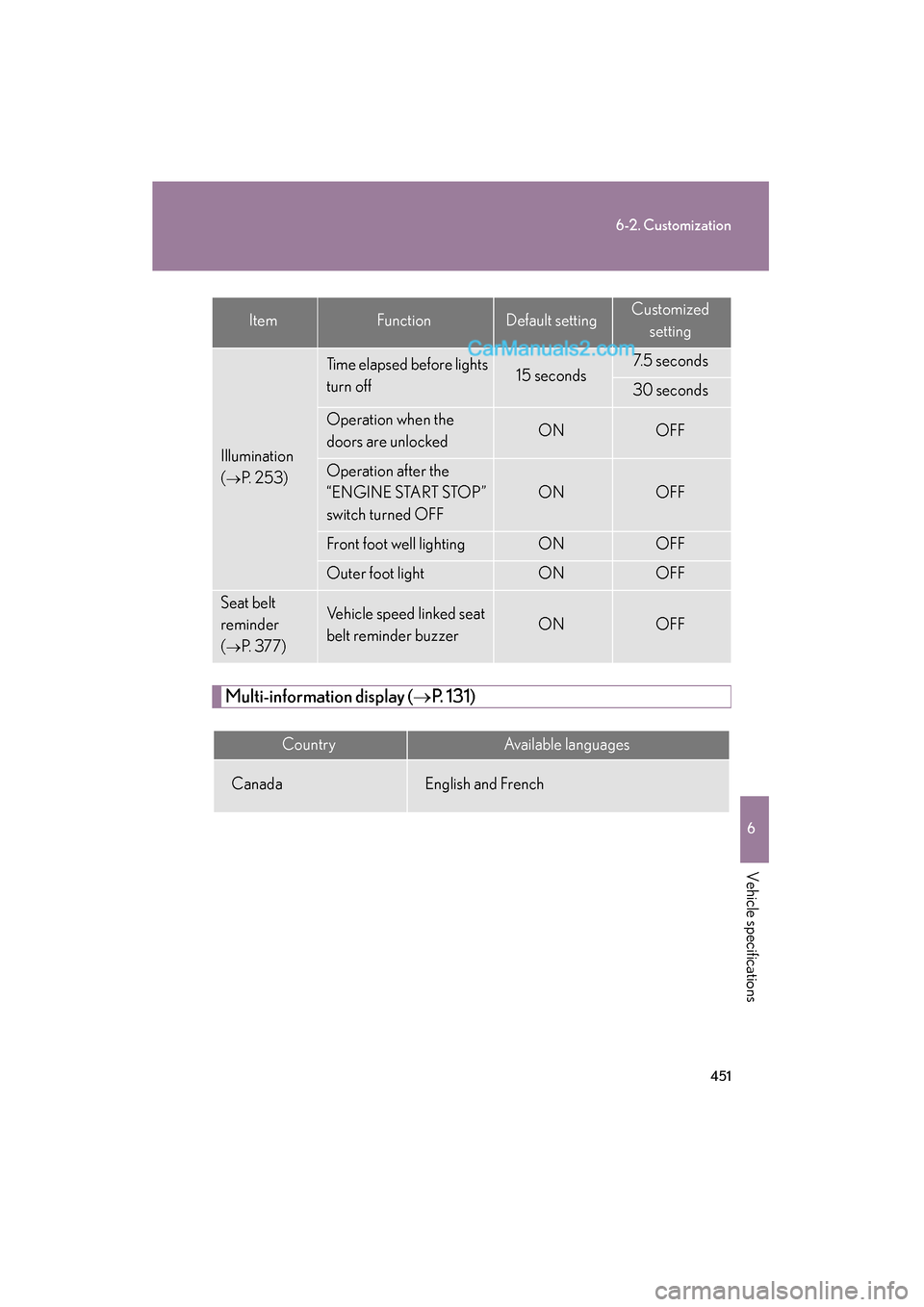

Multi-information display (→P. 131)
Illumination
(
→P. 2 5 3 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front foot well lightingONOFF
Outer foot lightONOFF
Seat belt
reminder
(
→P. 3 7 7 )
Vehicle speed linked seat
belt reminder buzzerONOFF
CountryAvailable languages
CanadaEnglish and French
ItemFunctionDefault settingCustomized
setting

452
ES350_U_(L/O_0808)

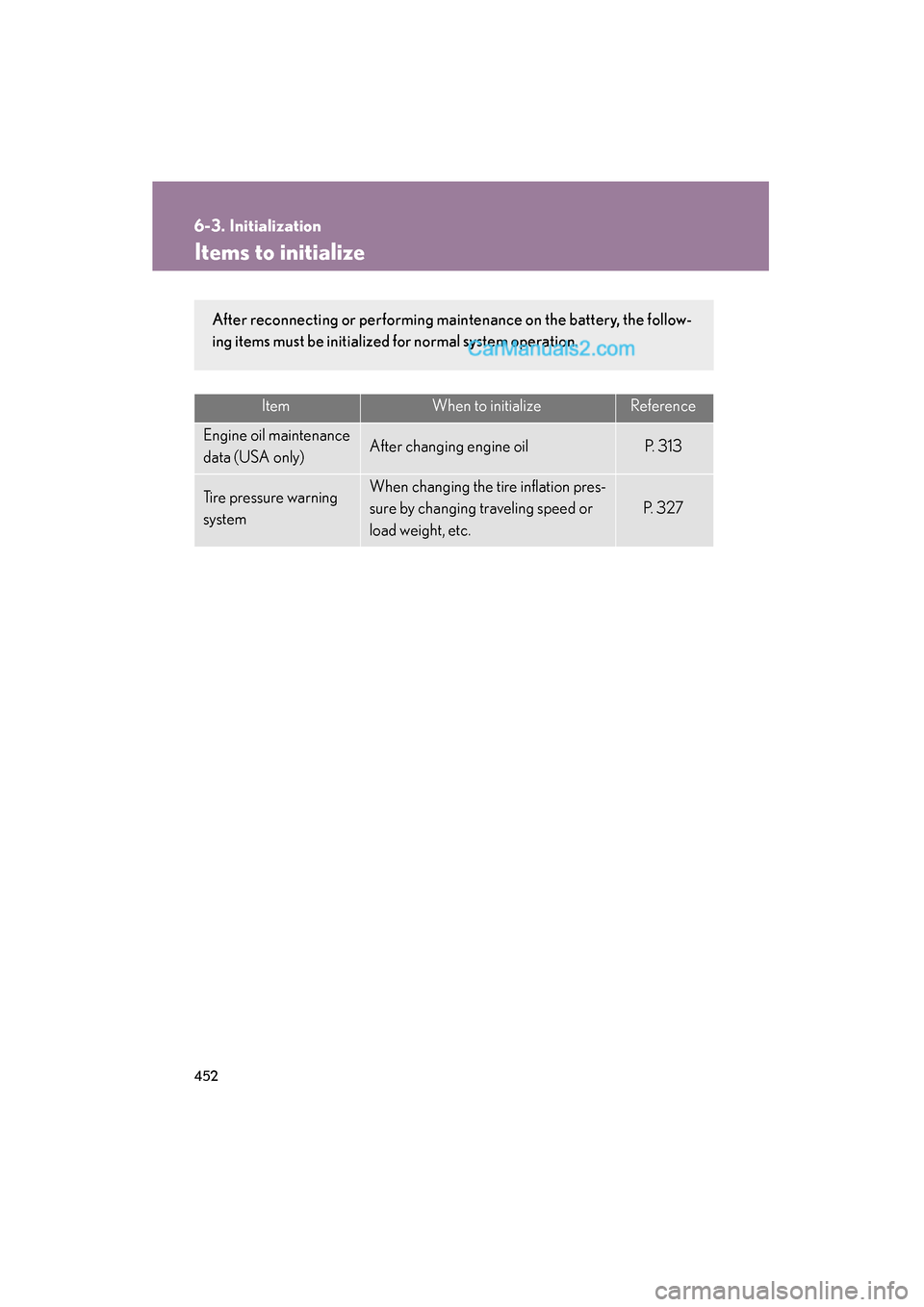

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil maintenance
data (USA only)After changing engine oilP. 3 1 3
Tire pressure warning
systemWhen changing the tire inflation pres-
sure by changing traveling speed or
load weight, etc.
P. 3 2 7
After reconnecting or performing maintenance on the battery, the follow-
ing items must be initialized for normal system operation.

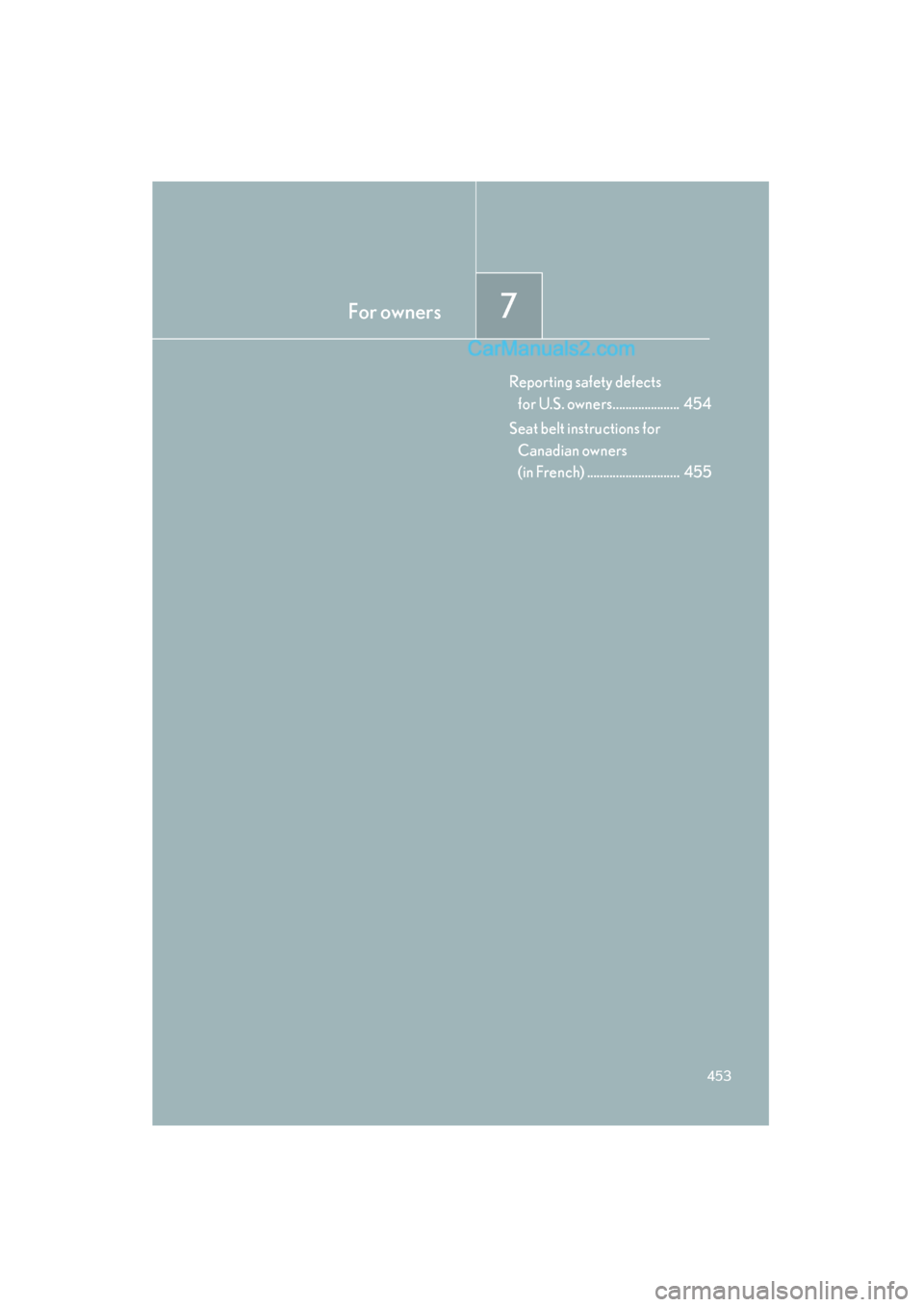

For owners7
453
ES350_U_(L/O_0808)
Reporting safety defects for U.S. owners..................... 454
Seat belt instructions for Canadian owners
(in French) ............................. 455

454
ES350_U_(L/O_0808)

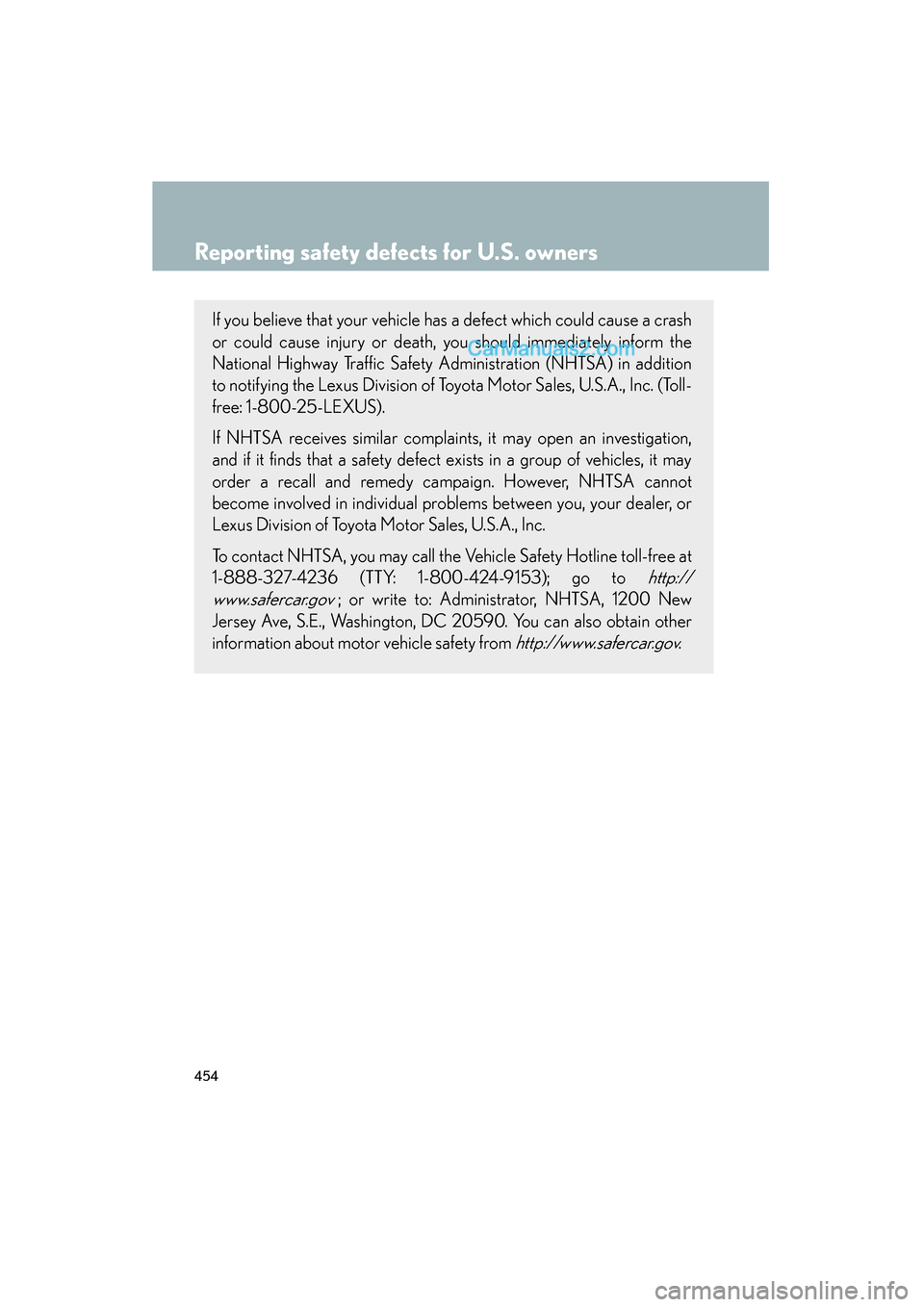

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from
http://www.safercar.gov.

455
7
ES350_U_(L/O_0808)
For owners

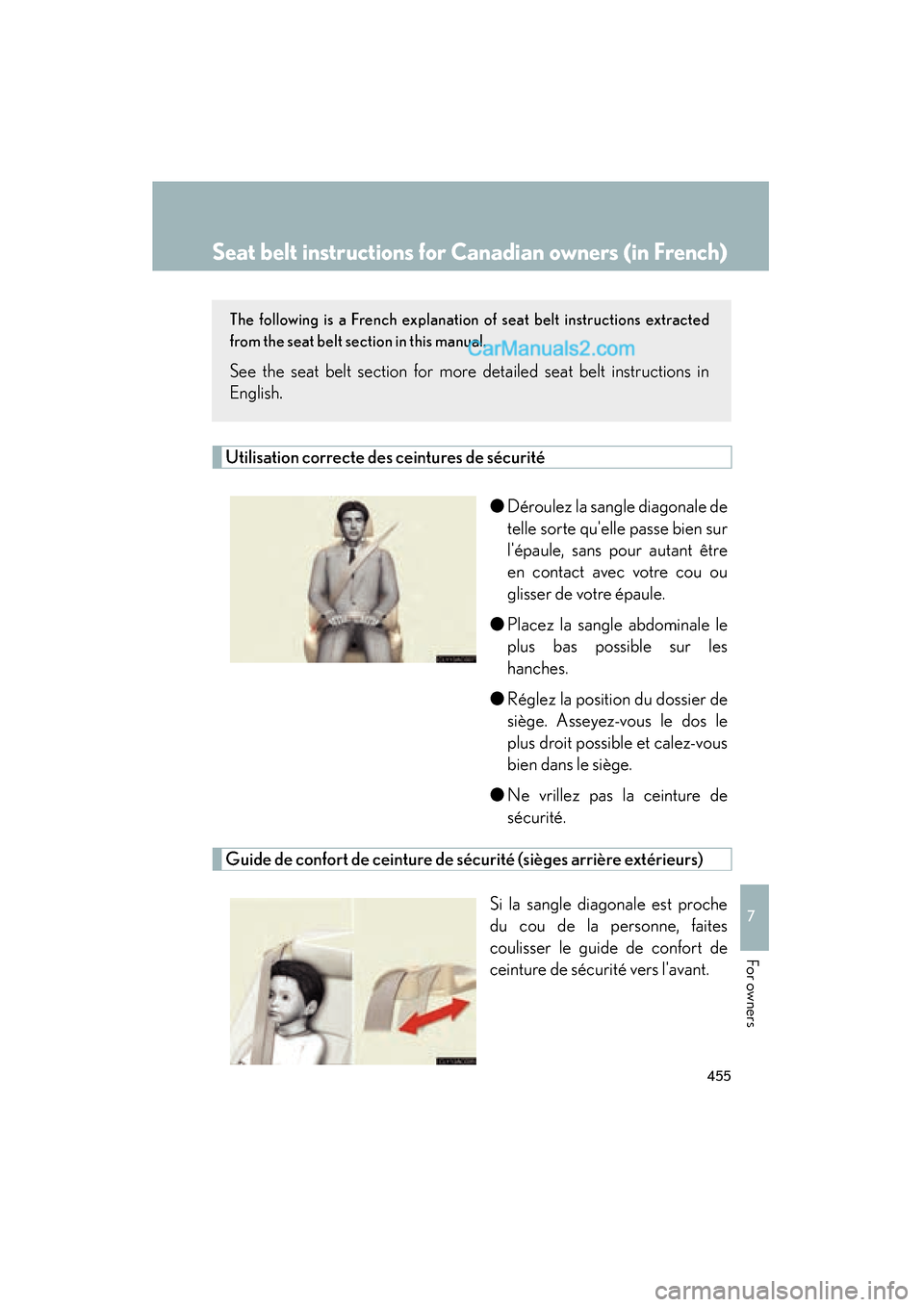

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions extracted
from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité●Déroulez la sangle diagonale de
telle sorte qu'elle passe bien sur
l'épaule, sans pour autant être
en contact avec votre cou ou
glisser de votre épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de
siège. Asseyez-vous le dos le
plus droit possible et calez-vous
bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.
Guide de confort de ceinture de sécurité (sièges arrière extérieurs)
Si la sangle diagonale est proche
du cou de la personne, faites
coulisser le guide de confort de
ceinture de sécurité vers l'avant.

456
ES350_U_(L/O_0808)

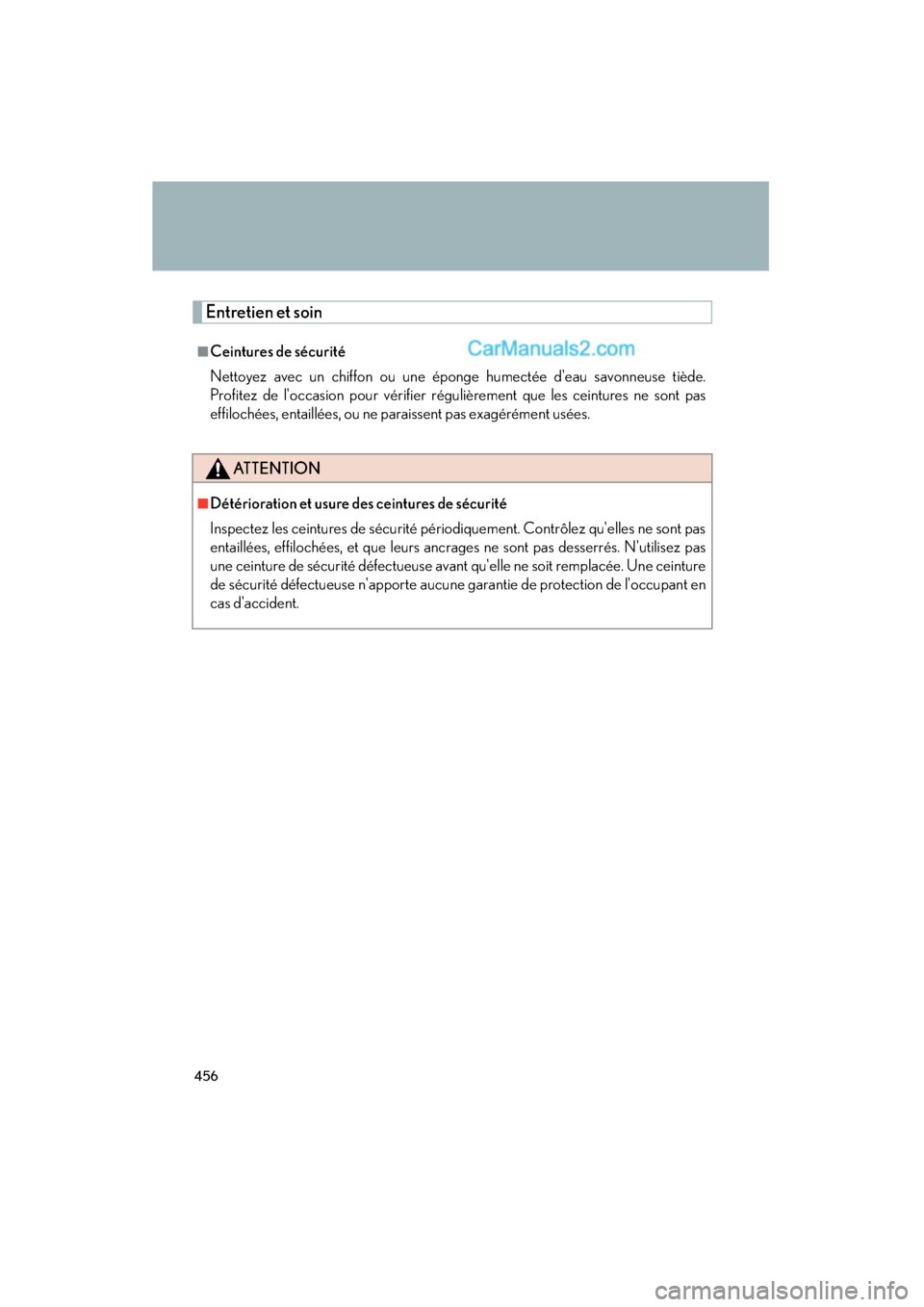

Entretien et soin
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède.
Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont pas
effilochées, entaillées, ou ne paraissent pas exagérément usées.
ATTENTION
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne sont pas
entaillées, effilochées, et que leurs ancrages ne sont pas desserrés. N'utilisez pas
une ceinture de sécurité défectueuse avant qu'elle ne soit remplacée. Une ceinture
de sécurité défectueuse n'apporte aucune garantie de protection de l'occupant en
cas d'accident.

Index
457
ES350_U_(L/O_0808)
Abbreviation list ..................... 458
Alphabetical index .................. 460
What to do if... ........................ 470
For details of equipment related to the navigation system,
such as the audio system and the air conditioning systems,
refer to the “Navigation System Owner's Manual”.

458
ES350_U_(L/O_0808)

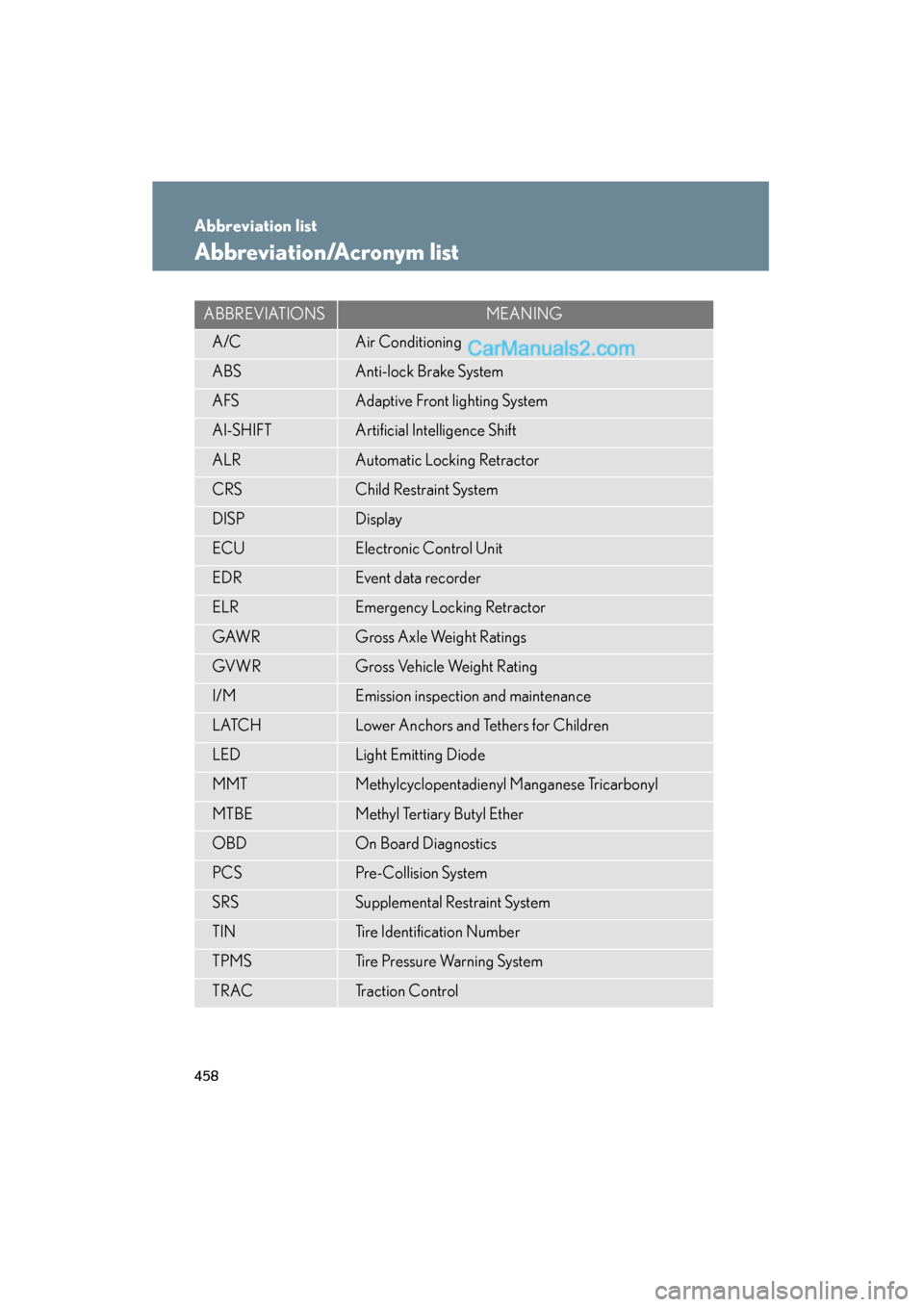

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A /CAir Conditioning
ABSAnti-lock Brake System
AFSAdaptive Front lighting System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent data recorder
ELREmergency Locking Retractor
G AW RGross Axle Weight Ratings
GVWRGross Vehicle Weight Rating
I/MEmission inspection and maintenance
L ATC HLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTraction Control
