When trouble arises
419
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.

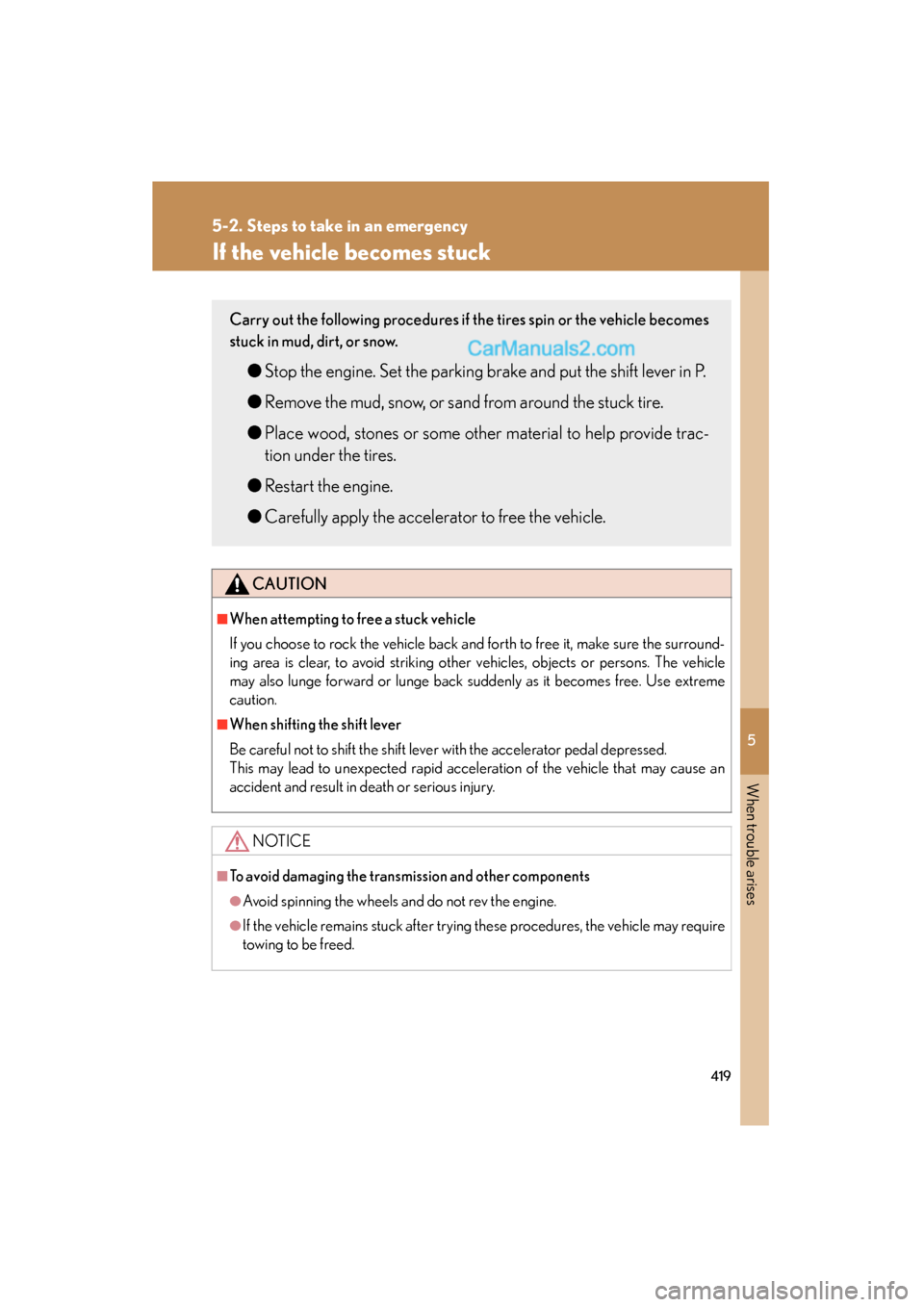

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
●Stop the engine. Set the parking brake and put the shift lever in P.
● Remove the mud, snow, or sand from around the stuck tire.
● Place wood, stones or some other material to help provide trac-
tion under the tires.
● Restart the engine.
● Carefully apply the accelerator to free the vehicle.

420
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)

Vehicle specifications6
421
ES350_U_(L/O_0808)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 422
Fuel information ..................... 432
Tire information...................... 435
6-2. Customization Customizable features ........ 447
6-3. Initialization Items to initialize .................... 452

422
ES350_U_(L/O_0808)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

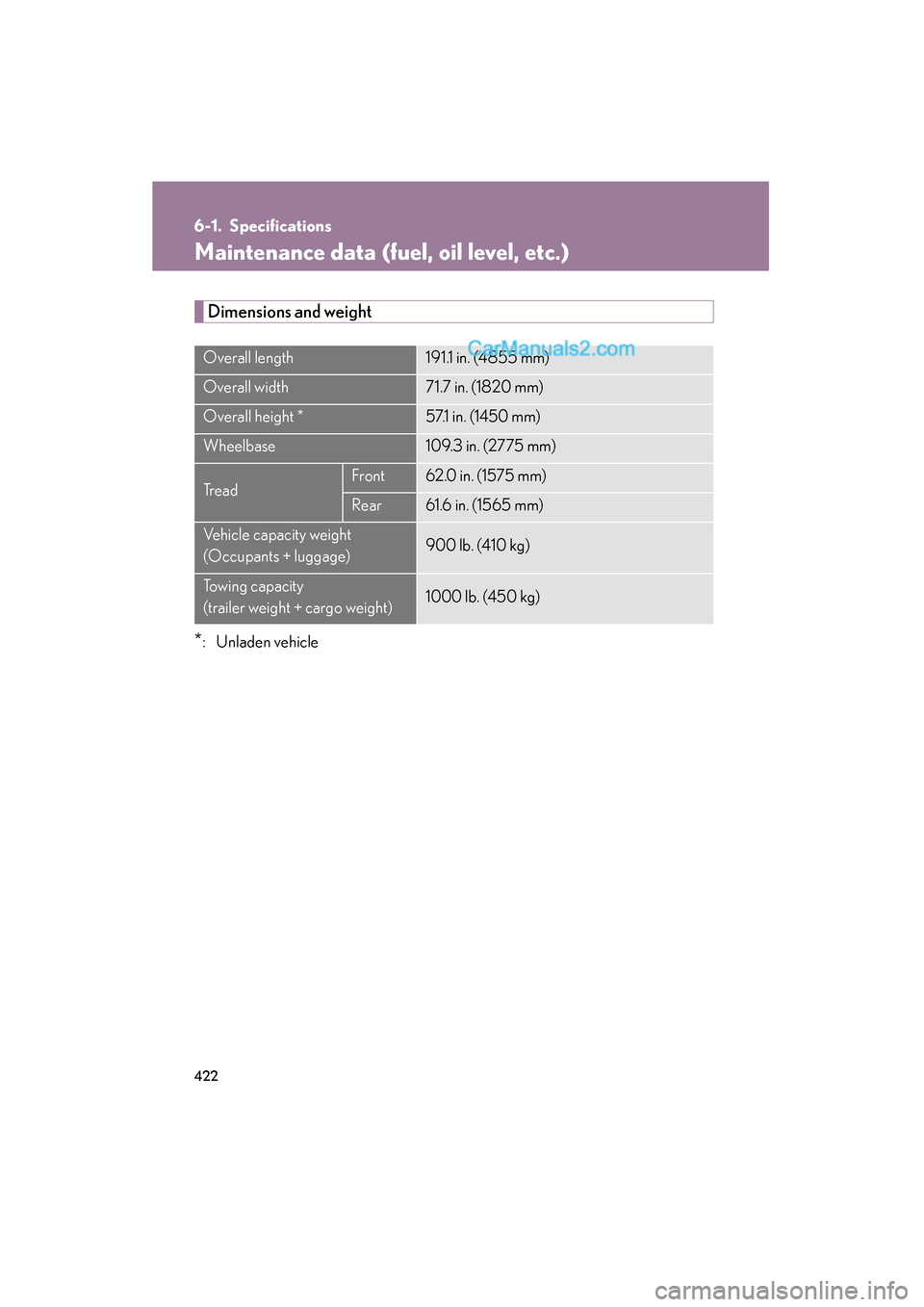

Dimensions and weight
*: Unladen vehicle
Overall length191.1 in. (4855 mm)
Overall width71.7 in. (1820 mm)
Overall height *57.1 in. (1450 mm)
Wheelbase109.3 in. (2775 mm)
Tr e a dFront62.0 in. (1575 mm)
Rear61.6 in. (1565 mm)
Vehicle capacity weight
(Occupants + luggage)900 lb. (410 kg)
Towing capacity
(trailer weight + cargo weight)1000 lb. (450 kg)

423
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)

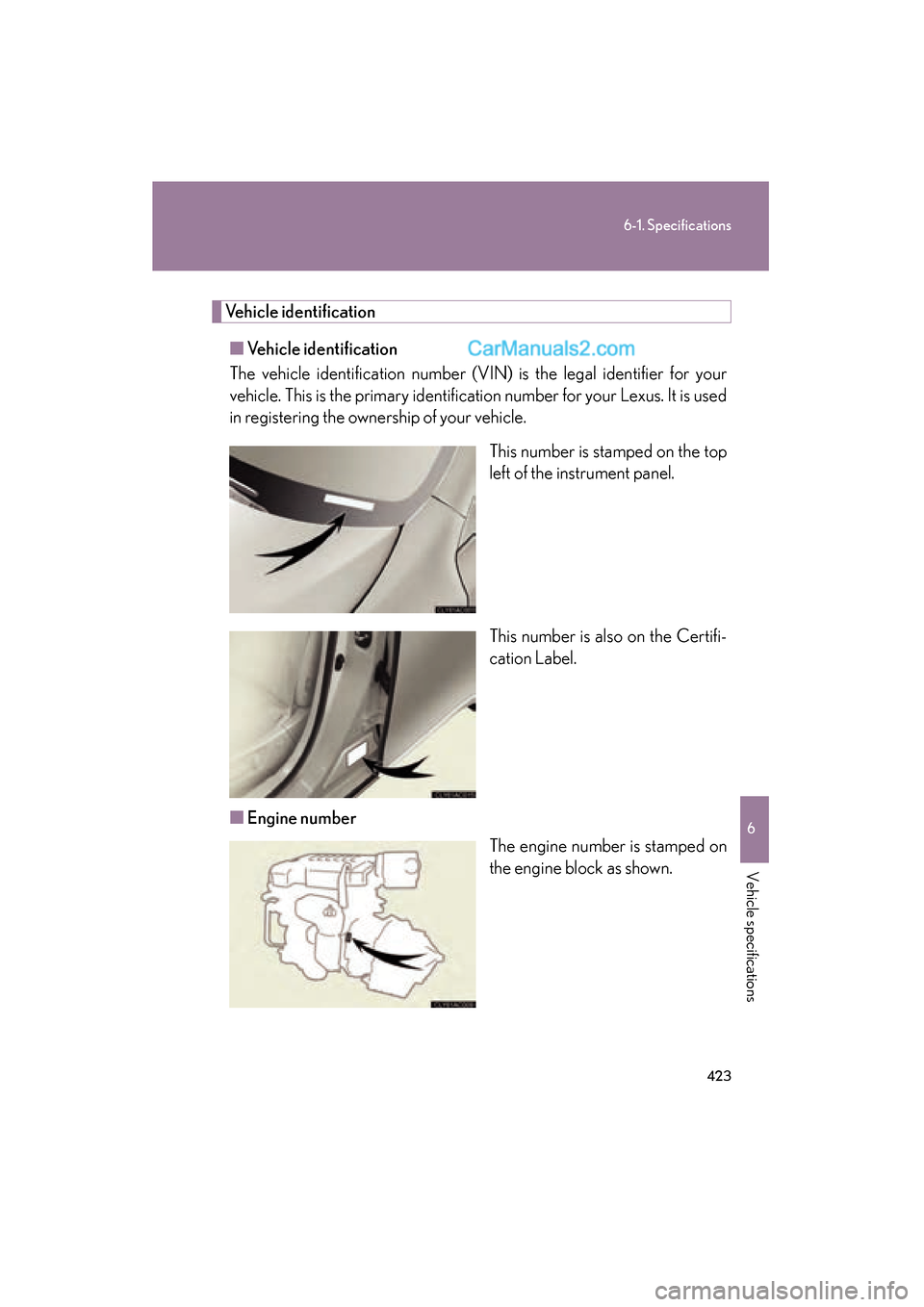

Vehicle identification■ Vehicle identification
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifi-
cation Label.
■ Engine number
The engine number is stamped on
the engine block as shown.

424
6-1. Specifications
ES350_U_(L/O_0808)

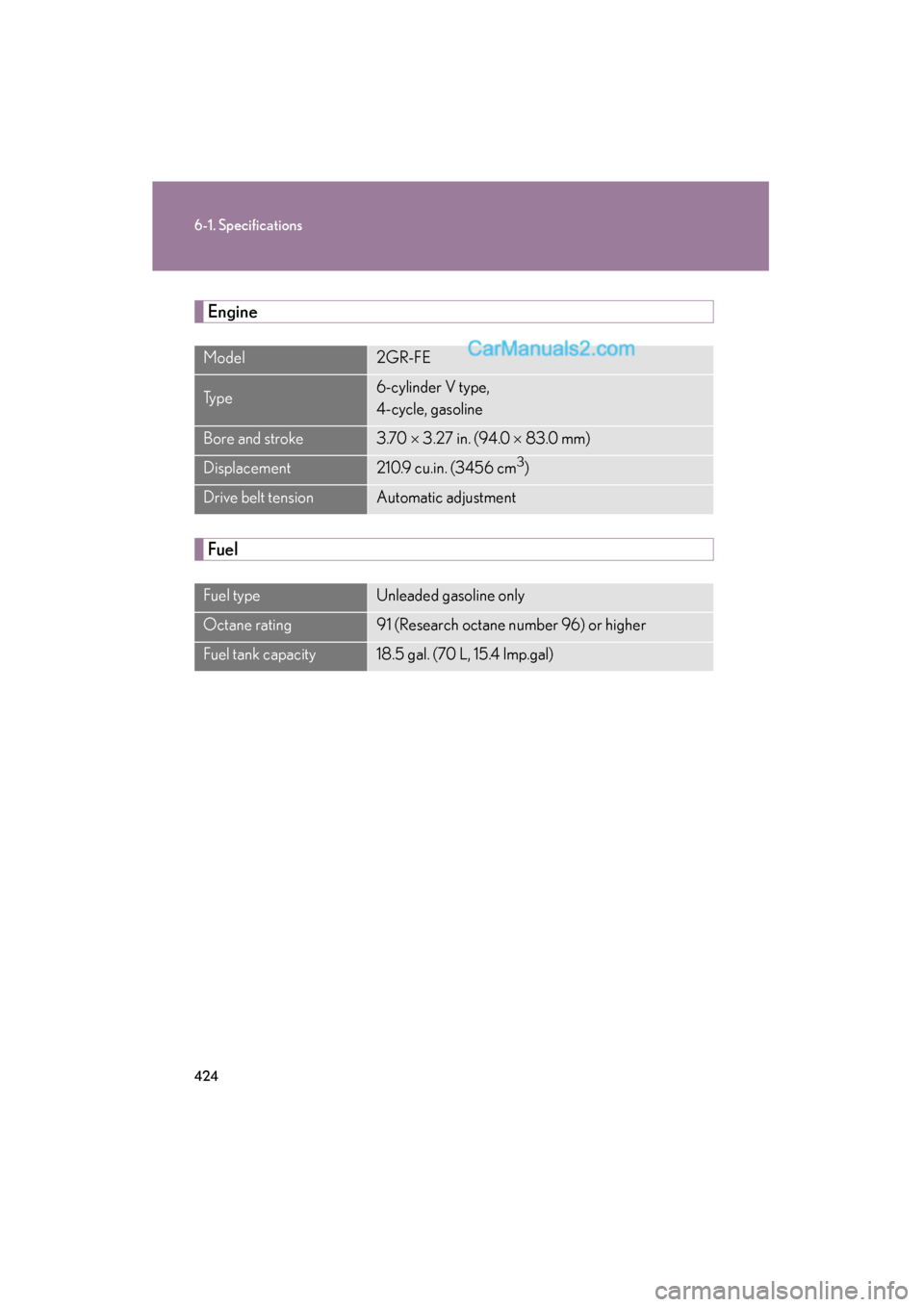

Engine
Fuel
Model2GR-FE
Ty p e6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity18.5 gal. (70 L, 15.4 lmp.gal)

425
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)

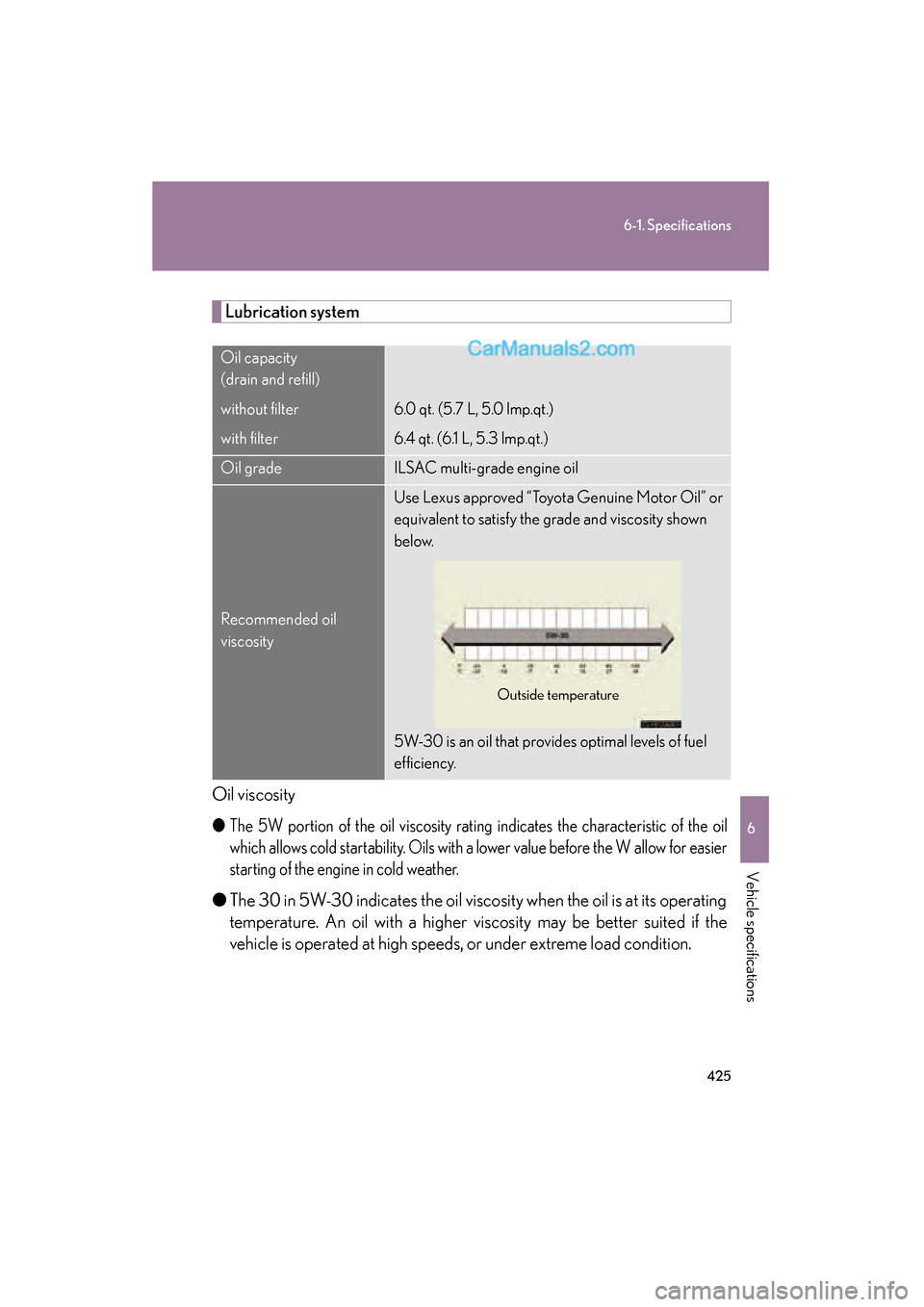

Lubrication system
Oil viscosity
●The 5W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load condition.
Oil capacity
(drain and refill)
without filter 6.0 qt. (5.7 L, 5.0 lmp.qt.)
with filter6.4 qt. (6.1 L, 5.3 lmp.qt.)
Oil gradeILSAC multi-grade engine oil
Recommended oil
viscosity
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
5W-30 is an oil that provides optimal levels of fuel
efficiency.
Outside temperature

426
6-1. Specifications
ES350_U_(L/O_0808)
Cooling system
Ignition system
Capacity9. 5 q t .
(9.0 L, 7.9 lmp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make DENSO
Gap
FK20HR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only above spark plugs. Do not adjust gaps for your engine performance or
smooth driveability.

427
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0808)
Electrical system
Automatic Transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, contactyour Lexus dealer.
Battery
Open voltage at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Fluid capacity*6.87 qt. (6.5 L, 5.72 lmp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transaxle accompanied by vibration,
and ultimately damage the automatic transaxle of your vehicle.

428
6-1. Specifications
ES350_U_(L/O_0808)
Brakes
*1: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,3 0.6 kg f ) .
Steering
Pedal clearance *12.4 in. (61 mm) Min.
Pedal free play0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  10 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)
Power steering fluidAutomatic transmission fluid
DEXRON® II or III
