key Lexus ES350 2009 Service Manual

394
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
Follow the correction procedure for problem in smart access system with push-button start.
After taking the specified steps to correct the suspected problem, check
that the warning message turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 8 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
n o r m a l l y.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the “ENGINE
S TA R T S TO P ”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
395
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once3 times
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STO P ” s w i t c h
OFF or confirm
the location of the
electronic key.
Con-
tinuousCon-
tinuous
(Displayed alternately)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever out of in
P, the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area.
• Shift the shift lever to P.
• Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( →P. 3 4 2 )

396
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)*: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be de pleted or there may be difficulties
receiving the signal from the key. ( →P. 2 6 )
Interior
buzzerExterior buzzerWarning messageDetailsCorrection
procedure

Indicates that a
door has been
opened or closed
and the “ENGINE
S TA R T S TO P ”
switch has been
switched twice to
ACCESSORY
mode from OFF.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Comes on for 15 seconds.)
(Flashing)
Indicates that the
steering lock has
not released.
Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
OnceIndicates that the
electronic key
does not operate
properly.
→ P. 4 1 2


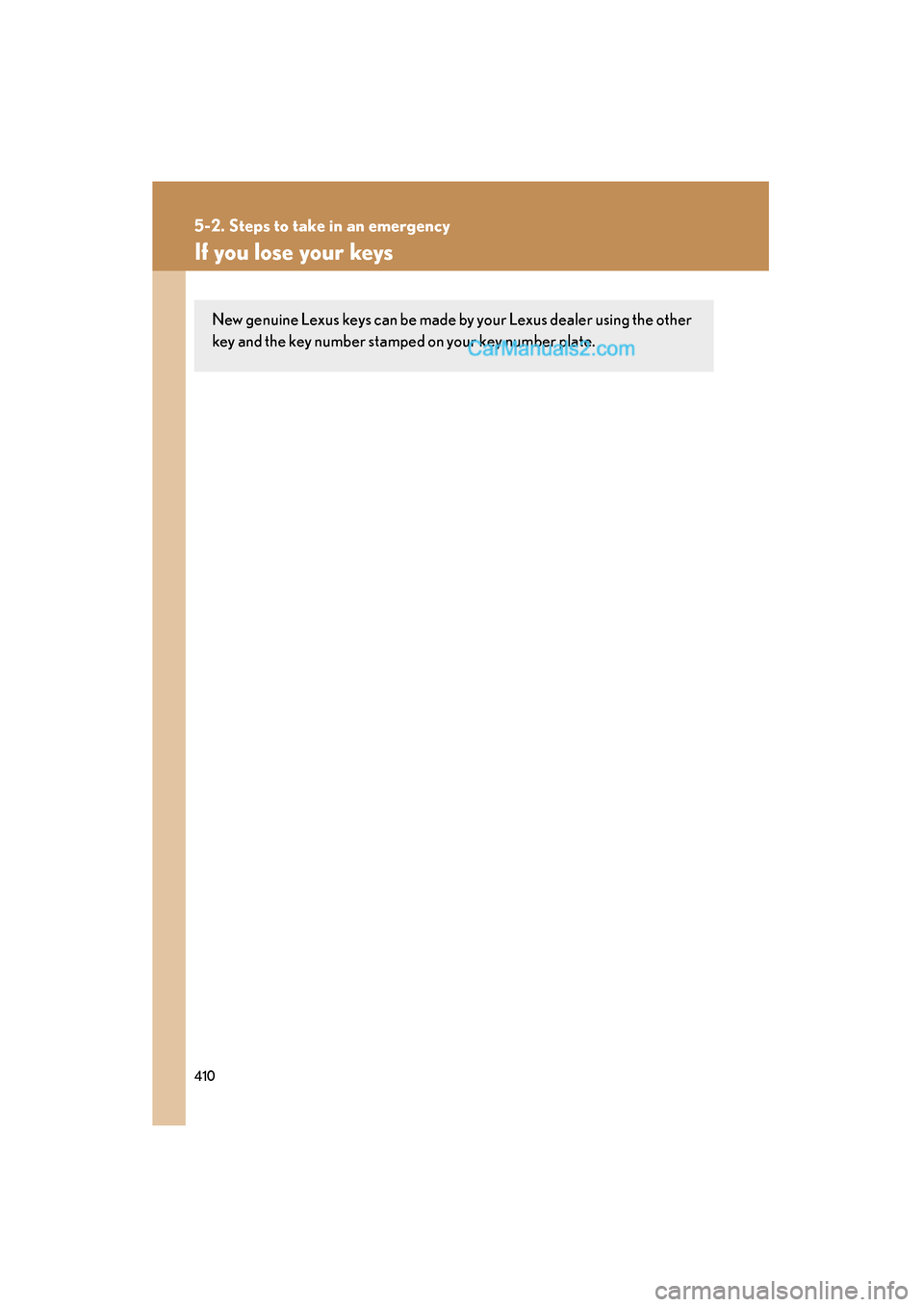

410
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate.

5
When trouble arises
411
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)

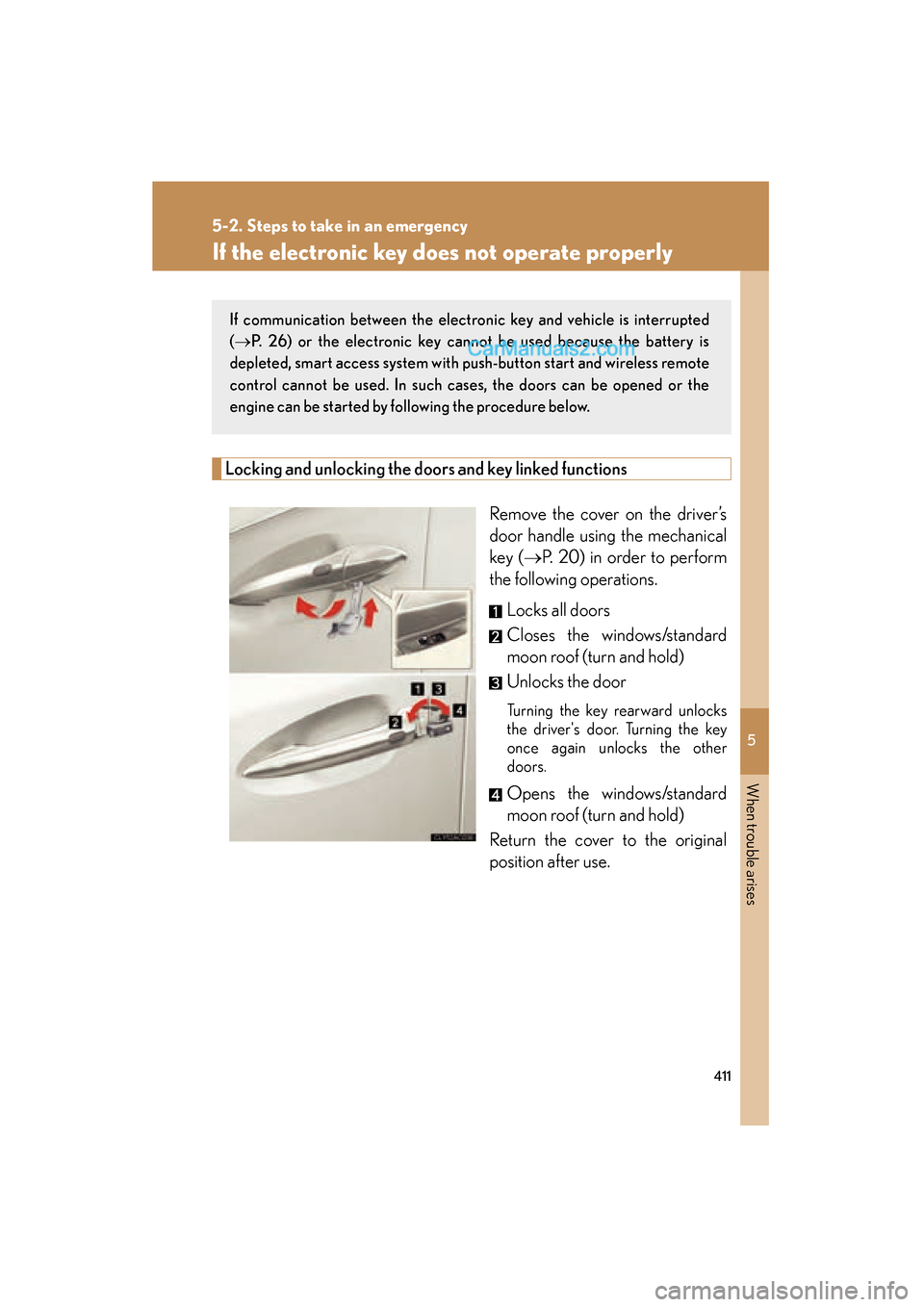

If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Remove the cover on the driver’s
door handle using the mechanical
key (→P. 20) in order to perform
the following operations.
Locks all doors
Closes the windows/standard
moon roof (turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/standard
moon roof (turn and hold)
Return the cover to the original
position after use.
If communication between the electronic key and vehicle is interrupted
( → P. 26) or the electronic key cann ot be used because the battery is
depleted, smart access system with push-button start and wireless remote
control cannot be used. In such cases, the doors can be opened or the
engine can be started by following the procedure below.

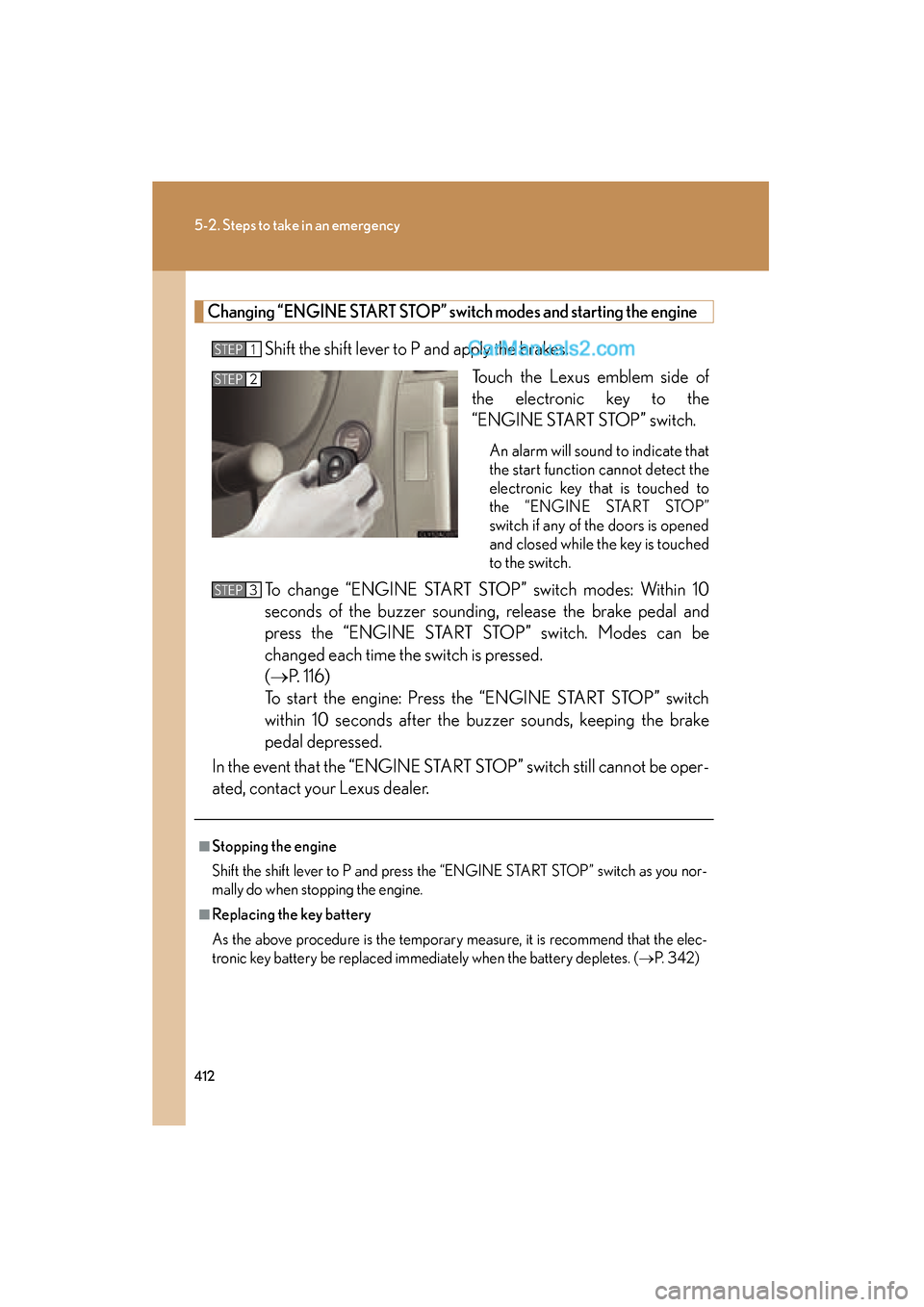

412
5-2. Steps to take in an emergency
ES350_U_(L/O_0808)
Changing “ENGINE START STOP” switch modes and starting the engine
Shift the shift lever to P and apply the brakes.Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
To change “ENGINE START ST OP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed.
(→ P. 1 1 6 )
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be oper-
ated, contact your Lexus dealer.
STEP1
STEP2
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is the temporary measure, it is recommend that the elec-
tronic key battery be replaced immediately when the battery depletes. ( →P. 3 4 2 )
STEP3

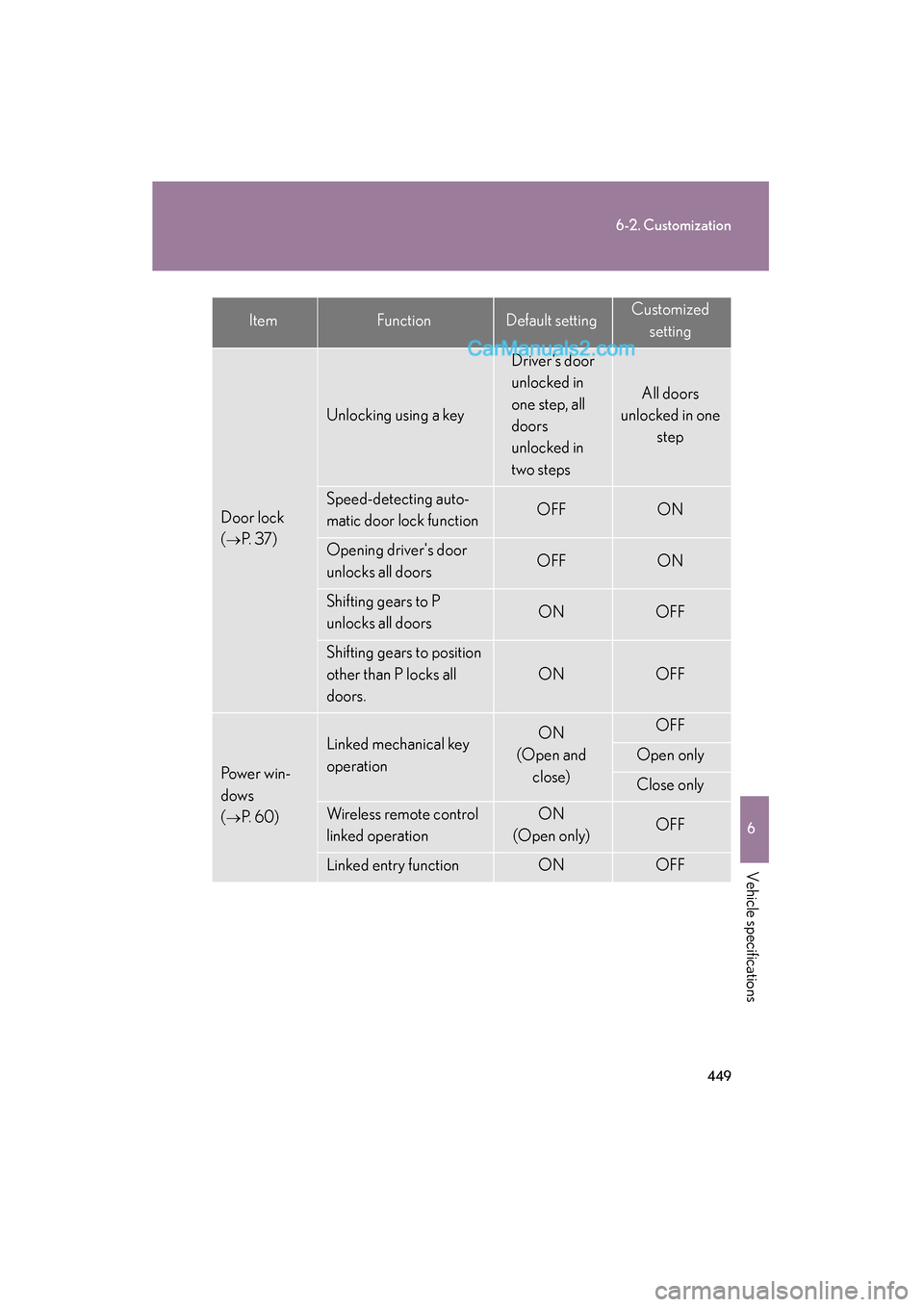

449
6-2. Customization
6
Vehicle specifications
ES350_U_(L/O_0808)
Door lock
(
→P. 3 7 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF
Power win-
dows
(
→P. 6 0 )
Linked mechanical key
operationON
(Open and
close)OFF
Open only
Close only
Wireless remote control
linked operationON
(Open only)OFF
Linked entry functionONOFF
ItemFunctionDefault settingCustomized setting

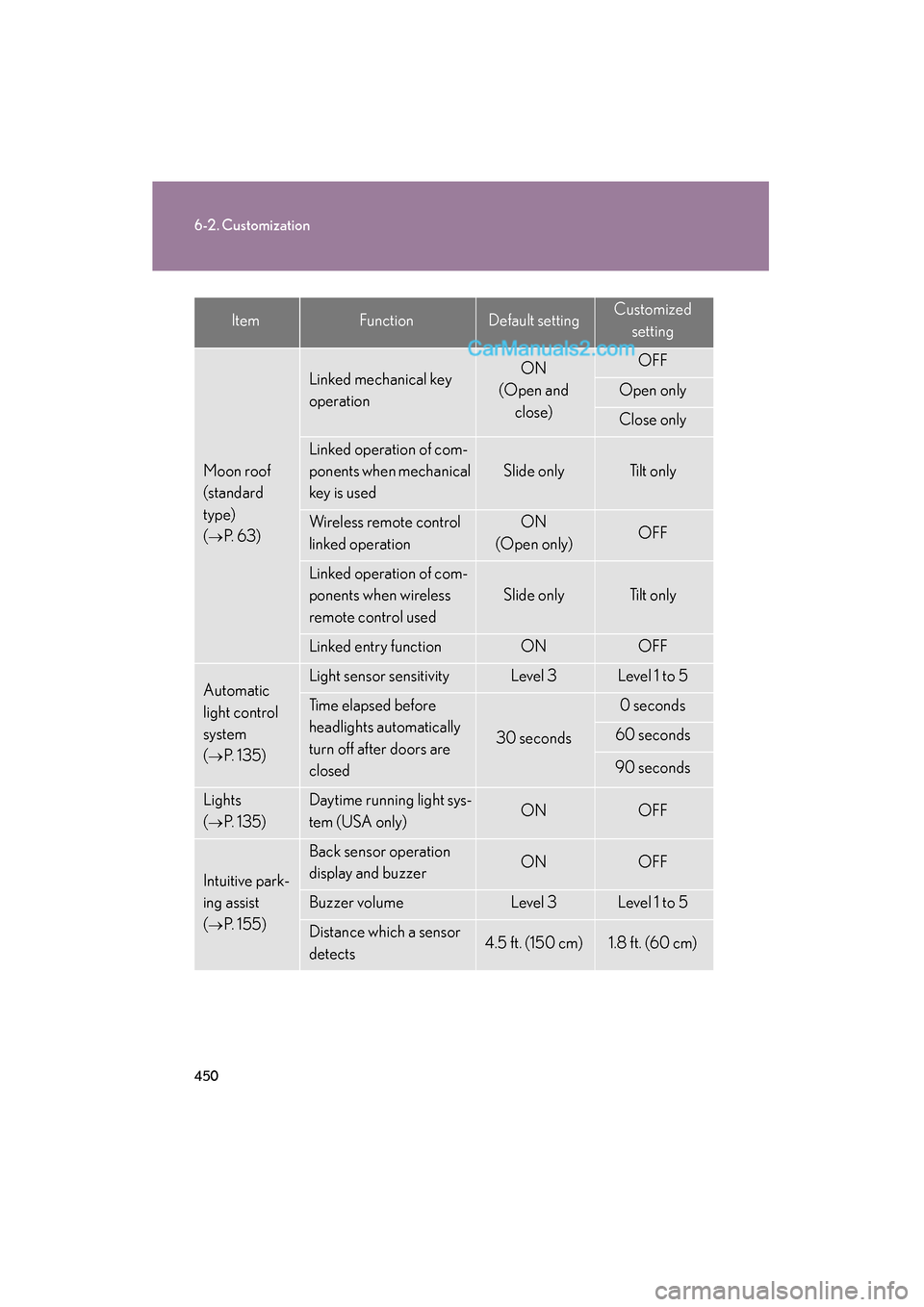

450
6-2. Customization
ES350_U_(L/O_0808)
Moon roof
(standard
type)
(
→P. 63)
Linked mechanical key
operationON
(Open and close)OFF
Open only
Close only
Linked operation of com-
ponents when mechanical
key is used
Slide onlyTilt only
Wireless remote control
linked operationON
(Open only)OFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Automatic
light control
system
(
→P. 1 3 5 )
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 3 5 )
Daytime running light sys-
tem (USA only)ONOFF
Intuitive park-
ing assist
(
→P. 1 5 5 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.5 ft. (150 cm)1.8 ft. (60 cm)
ItemFunctionDefault settingCustomized setting

461
Alphabetical index
ES350_U_(L/O_0808)
Back-up lightsWattage ................................................... 431
Battery Checking ................................................322
If the vehicle has discharged battery.................................................... 413
Preparing and checking before winter ...................................... 172
Bluetooth
®..............................................225
Brake
Fluid ............................................................ 319
Parking brake ........................................ 123
Brake assist ............................................... 161
Break-in tips .............................................109
Care Exterior ....................................................292
Interior..................................................... 295
Seat belts ............................................... 296
Cargo capacity .......................................168
Cargo hooks ...........................................278
CD changer ........................................... 205
CD player................................................ 205
Chains......................................................... 174
Child restraint system Booster seats, definition.................... 93
Booster seats, installation ............... 100
Convertible seats, definition ........... 93
Convertible seats, installation ...... 100
Front passenger occupant
classification system ........................ 88
Infant seats, definition ......................... 93
Infant seats, installation..................... 100 Installing CRS with lower
anchorages...........................................98
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 103
Child safety Airbag precautions ..............................83
Battery precautions ............... 324, 415
Child restraint system ......................... 93
Child-protectors ...................................38
How your child should wear
the seat belt .......................................... 53
Installing child restraints..................... 97
Moon roof precautions......................66
Power window lock switch ..............60
Power window precautions ............ 62
Removed electronic key battery
precautions........................................343
Seat belt comfort guide .......................51
Seat belt extender precautions......55
Seat belt precautions .......................... 53
Seat heater precautions.................... 271
Trunk precautions................................. 42
Child-protectors ......................................38
Cigarette lighter.................................... 267
Cleaning Exterior.................................................... 292
Interior .....................................................295
Seat belts ................................................296
Clock ......................................................... 265
Compass ..................................................286
Condenser ............................................... 319
Console box ........................................... 257
B
C

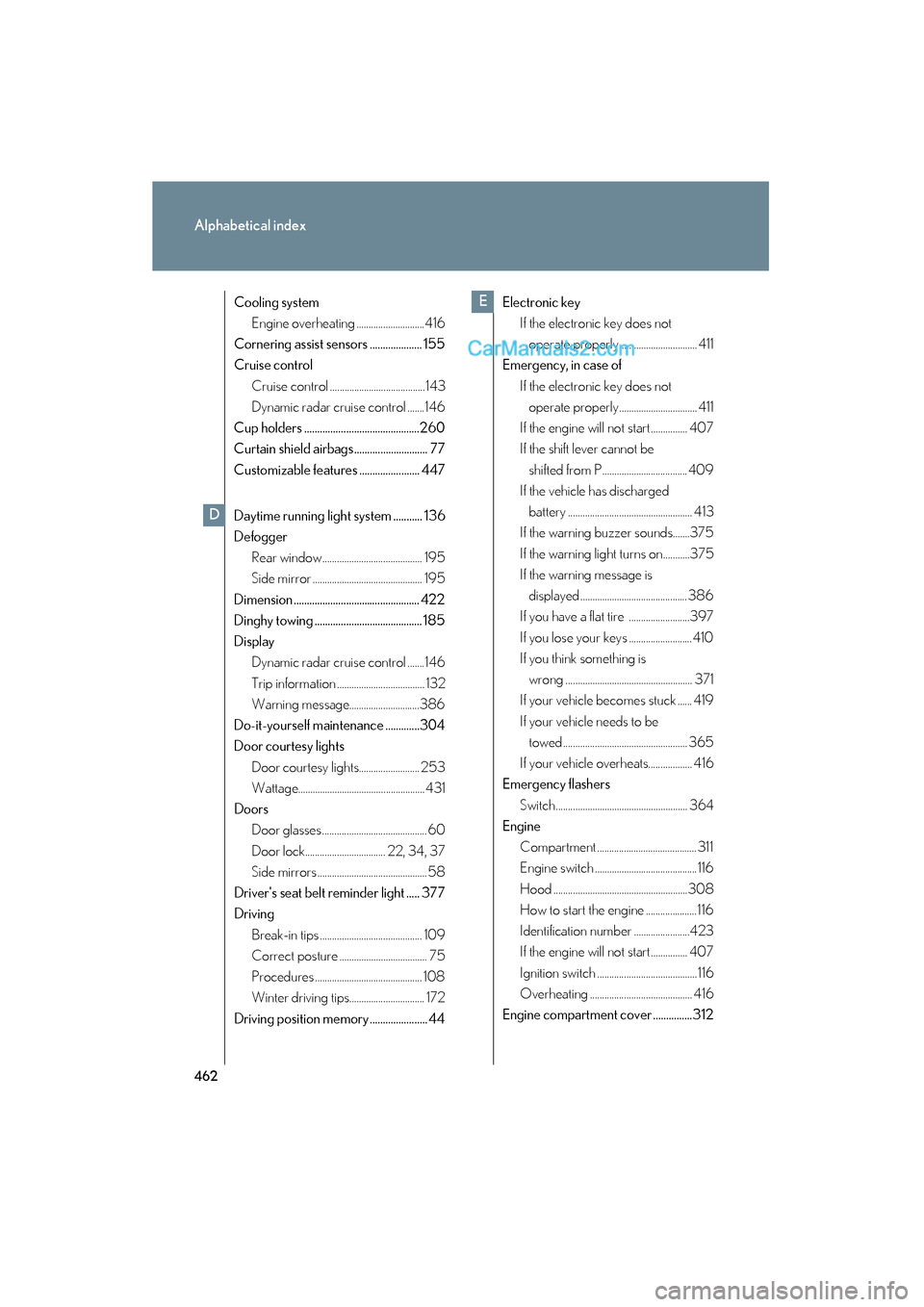

462
Alphabetical index
ES350_U_(L/O_0808)
Cooling systemEngine overheating ............................416
Cornering assist sensors .................... 155
Cruise control Cruise control ....................................... 143
Dynamic radar crui se control .......146
Cup holders ............................................260
Curtain shield airbags............................ 77
Customizable features ....................... 447
Daytime running light system ........... 136
Defogger Rear window......................................... 195
Side mirror ............................................. 195
Dimension ................................................ 422
Dinghy towing ......................................... 185
Display Dynamic radar crui se control .......146
Trip information .................................... 132
Warning message.............................386
Do-it-yourself maintenance .............304
Door courtesy lights Door courtesy lights......................... 253
Wattage.................................................... 431
Doors Door glasses ........................................... 60
Door lock................................. 22, 34, 37
Side mirrors ............................................. 58
Driver's seat belt reminder light ..... 377
Driving Break-in tips .......................................... 109
Correct posture .................................... 75
Procedures ............................................ 108
Winter driving tips............................... 172
Driving position memory ...................... 44 Electronic key
If the electronic key does not
operate properly................................ 411
Emergency, in case of
If the electronic key does not operate properly................................ 411
If the engine will not start ............... 407
If the shift lever cannot be shifted from P................................... 409
If the vehicle has discharged
battery ................................................... 413
If the warning buzzer sounds.......375
If the warning light turns on...........375
If the warning message is
displayed ............................................ 386
If you have a flat tire .........................397
If you lose your keys .......................... 410
If you think something is
wrong .................................................... 371
If your vehicle becomes stuck ...... 419
If your vehicle needs to be towed ................................................... 365
If your vehicle overheats.................. 416
Emergency flashers
Switch...................................................... 364
Engine
Compartment ......................................... 311
Engine switch .......................................... 116
Hood .......................................................308
How to start the engine ..................... 116
Identification number .......................423
If the engine will not start ............... 407
Ignition switch .........................................116
Overheating .......................................... 416
Engine compartment cover ...............312
D
E
