Page 3 of 475
TABLE OF CONTENTS
ES350_U_(L/O_0808)
1
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6Vehicle
specificationsDetailed vehicle information.
7For ownersReporting safety defects for U.S. owners and seat belt in-
structions for Canadian owners
IndexAlphabetical listing of information contained in this manual.
Page 4 of 475
TABLE OF CONTENTSIndex
ES350_U_(L/O_0808)
2
1-1. Key informationKeys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk...................................................... 41
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats .......................................... 43
Driving position memory (driver’s seat) ................................. 44
Seat position memory (front passenger’s seat) ............. 47
Head restraints................................. 49

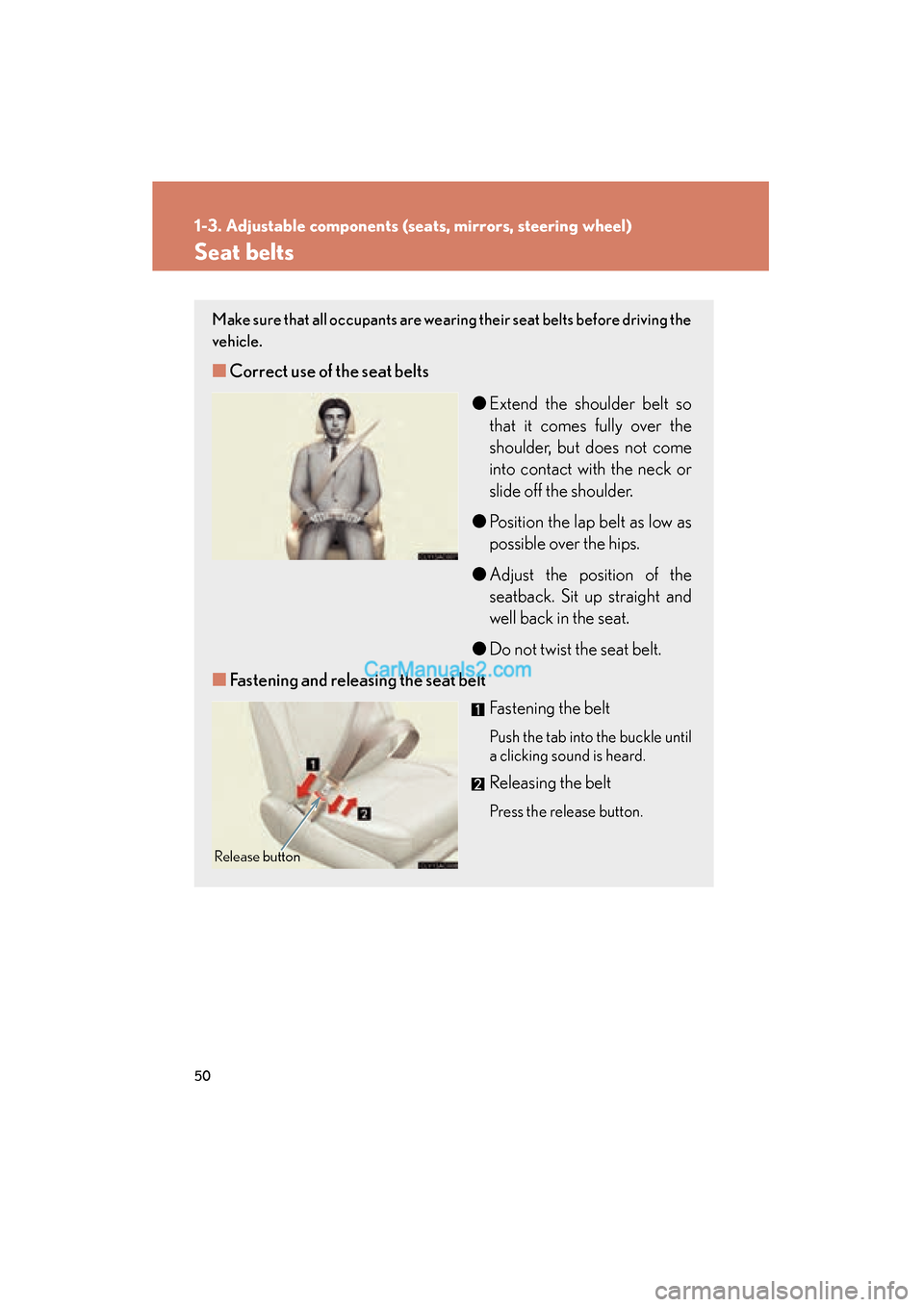

Seat belts ........................................... 50
Steering wheel.................................. 56
Anti-glare inside rear view mirror ................................................ 57
Outside rear view mirrors .......... 58
1-4. Opening and closing the windows and moon roof
Power windows................................ 60
Moon roof .......................................... 63 1-5. Refueling
Opening the fuel tank cap........... 67
1-6. Theft deterrent system Engine immobilizer system ......... 70
Alarm.................................................... 72
Theft prevention labels ................. 74
1-7. Safety information Correct driving posture ............... 75
SRS airbags ....................................... 77
Front passenger occupant classification system ................... 88
Child restraint systems ................. 93
Installing child restraints ............... 97
2-1. Driving procedures Driving the vehicle ........................ 108
Engine (ignition) switch ................ 116
Automatic Transmission .............. 119
Turn signal lever............................. 122
Parking brake ................................. 123
Horn.................................................... 124
1Before driving
2When driving
Page 7 of 475
1
2
3
4
5
6
7
ES350_U_(L/O_0808)
5
5-1. Essential informationEmergency flashers..................... 364
If your vehicle needs to be towed.............................................. 365
If you think something is wrong .............................................. 371
Fuel pump shut off system ........ 372
Event data recorder.................... 373
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer sounds... ...... 375
If a warning message is displayed...................................... 386
If you have a flat tire..................... 397
If the engine will not start .......... 407
If the shift lever cannot be shifted from P ............................. 409
If you lose your keys ..................... 410
If the electronic key does not operate properly .......................... 411
If the vehicle battery is discharged .................................... 413
If your vehicle overheats ............ 416
If the vehicle becomes stuck .... 419 6-1. Specifications
Maintenance data (fuel, oil level, etc.)..................... 422
Fuel information............................ 432
Tire information ............................ 435
6-2. Customization Customizable features .............. 447
6-3. Initialization Items to initialize ........................... 452
Reporting safety defects for U.S. owners........................... 454
Seat belt instructions for Canadian owners
(in French) .................................... 455
Abbreviation list ................................... 458
Alphabetical index............................... 460
What to do if... ....................................... 470
5When trouble arises6Vehicle specifications
7For owners
Index
Page 10 of 475
ES350_U_(L/O_0808)
8
A
Pictorial indexInterior
Power window switches P. 60
SRS front passenger airbag P. 77
SRS knee airbags P. 77
SRS driver airbag P. 77
Floor mat P. 277
Console box P. 257
Seat belts P. 50
Front seats P. 43
SRS side airbags P. 77
Power outlet P. 268
AUX adapter P. 222
Head restraints P. 49
Cup holders P. 260
Armrest P. 273
Page 18 of 475
ES350_U_(L/O_0808)
16
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
r a n t y.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control system, anti-lock brake system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.
Page 19 of 475
ES350_U_(L/O_0808)
17
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
When left unattended, children may be able to start the vehicle or shift the vehicle
into neutral. There is also a danger that children may injure themselves by playing
with the cigarette lighter, the windows, the moon roof, or other features of the vehi-
cle. In addition, heat build-up or extremely cold temperatures inside the vehicle can
be fatal to children.
Page 21 of 475
Before driving1
19
ES350_U_(L/O_0808)
1-1. Key informationKeys .............................................. 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .................... 22
Wireless remote control ......... 34
Doors ............................................ 37
Trunk .............................................. 41
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 43
Driving position memory (driver’s seat) ........................... 44
Seat position memory (front passenger’s seat) ....... 47
Head restraints .......................... 49
Seat belts .................................... 50
Steering wheel........................... 56
Anti-glare inside rear view mirror ......................................... 57
Outside rear view mirrors ..... 58 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 60
Moon roof ................................... 63
1-5. Refueling Opening the fuel tank cap ...... 67
1-6. Theft deterrent system Engine immobilizer system.... 70
Alarm............................................ 72
Theft prevention labels ............ 74
1-7. Safety information Correct driving posture ......... 75
SRS airbags ................................ 77
Front passenger occupant classification system.............. 88
Child restraint systems ........... 93
Installing child restraints......... 97
Page 42 of 475
40
1-2. Opening, closing and locking the doors and trunk
ES350_U_(L/O_0808)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 411)
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed. (Customizable fea-
tures →P. 4 4 7 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in serious injury or death.
Be especially careful for the front doors, the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child protector locks when children are seated in the rear seat.
Page 45 of 475
43
1
Before driving
ES350_U_(L/O_0808)
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch
Seat leg support adjusting switch (driver’s seat) (if equipped)
Page 52 of 475
50
1-3. Adjustable components (seats, mirrors, steering wheel)
ES350_U_(L/O_0808)
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle until
a clicking sound is heard.
Releasing the belt
Press the release button.
Release button
