Lexus ES350 2010  Instrument Cluster 134
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display ill

Page 2 of 11

Lexus ES350 2010  Instrument Cluster 135
2-2. Instrument cluster
2
When driving
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
When the headlight switch is
turned to ON, th

Page 3 of 11

Lexus ES350 2010  Instrument Cluster 136
2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various system

Page 4 of 11

Lexus ES350 2010  Instrument Cluster 137
2-2. Instrument cluster
2
When driving
Center panel (without navigation system)
Center panel (with navigation system)

Page 5 of 11

Lexus ES350 2010  Instrument Cluster 138
2-2. Instrument cluster

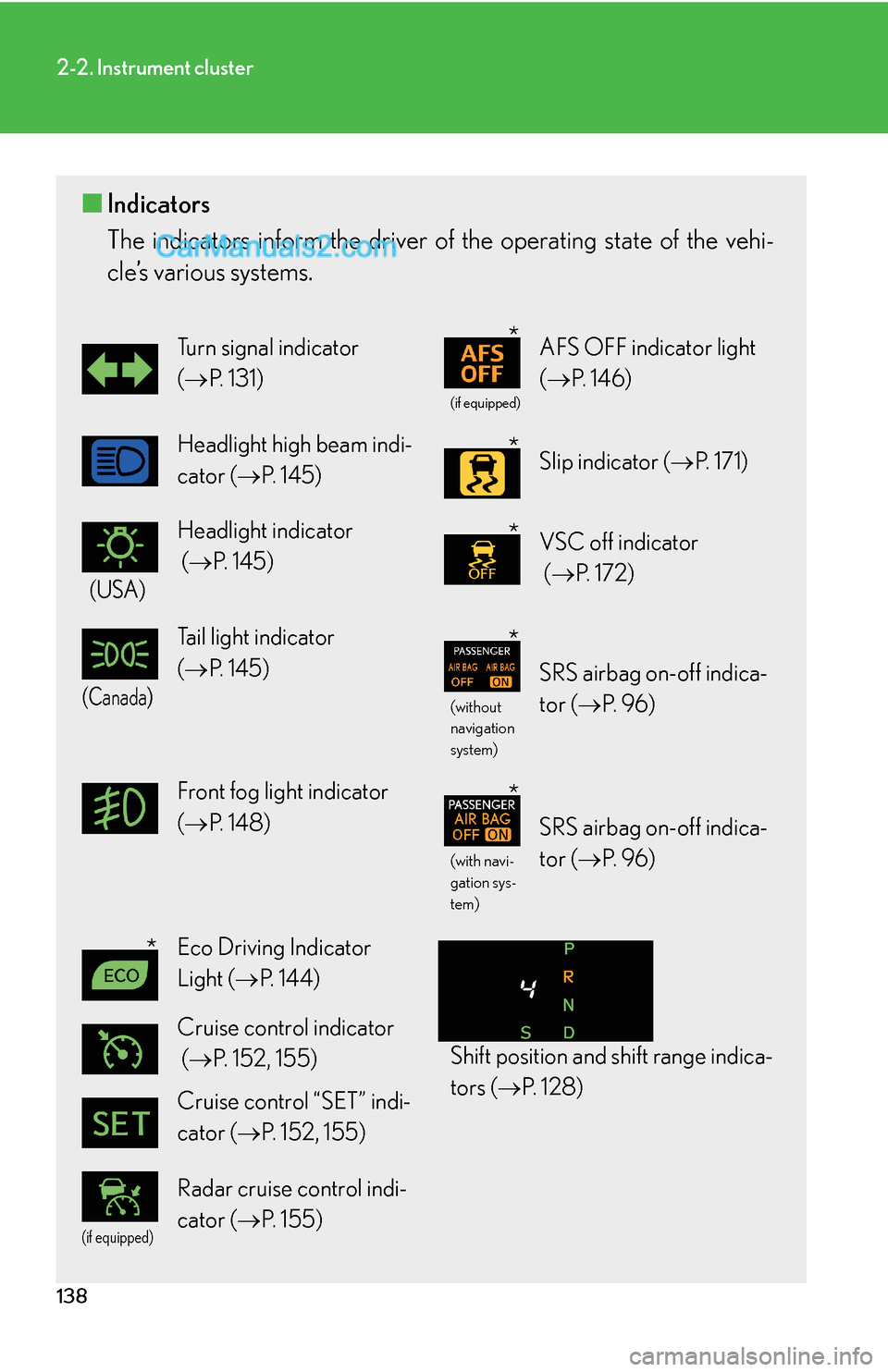

■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→P. 131)
(if equipped)
AFS OFF indic

Page 6 of 11

Lexus ES350 2010  Instrument Cluster 139
2-2. Instrument cluster
2
When driving
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning lights not
come on when yo

Page 7 of 11

Lexus ES350 2010  Instrument Cluster 140
2-2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
●Trip

Page 8 of 11

Lexus ES350 2010  Instrument Cluster 141
2-2. Instrument cluster
2
When driving
Trip information
Type A
Display items can be switched by
pushing the “DISP” switch.
Type B
Display items can be switched by
pushing the “DISP” swi

Page 9 of 11

Lexus ES350 2010  Instrument Cluster 142
2-2. Instrument cluster
■Outside temperature
■Driving range
■Average fuel consumption
■Average fuel consumption after refueling
■Current fuel consumption
Displays the outside air tem

Page 10 of 11

Lexus ES350 2010  Instrument Cluster 143
2-2. Instrument cluster
2
When driving
■Eco Driving Indicator Zone Display
→P.  1 4 4
■Eco Driving Indicator Light customization
■Average vehicle speed
■Elapsed time
Eco Driving Indicat
