tilt Lexus ES350 2010 Owner's Manuals

ES350_U
14
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 145
P. 131
P. 148Gauges and meters P. 134
Multi-information display P. 140
Windshield wipers and
washer switch
P. 149
Engine (ignition) switch P. 124
Trunk opener main switch P. 45
Glove box P. 312
Tilt and telescopic steering control switch P. 64
Parking brake pedal P. 132
Audio remote control switches P. 253
Hood lock release lever P. 370
Tire pressure warning reset switch P. 389
“AFS OFF” switch∗ P. 146
Tire pressure warning select switch P. 390
Horn P. 133

64
1-3. Adjustable components (seats, mirrors, steering wheel)
ES350_U
Steering wheel
Auto tilt awayWhen the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Turning the “ENGINE START
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position while the
“ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
Up
Down
Away from the driver
Toward the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

71
1
1-4. Opening and closing the windows and moon roof
Before driving
ES350_U
Moon roof
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■Opening and closing
Standard type
Open
The moon roof stops slightly
before the fully opened position.
Push the switch again to fully
open.
Close
Push the switch in the either direc-
tion to stop the moon roof partway.
Glass typeOpen
Close (push and hold)
The moon roof stops once. Push
and hold the switch again to fully
close.

72
1-4. Opening and closing the windows and moon roof
ES350_U
■Tilting up and down
Standard type
Tilt up
Tilt down
Push the switch to either side to
stop the moon roof partway.
Glass typeTilt up
Push the switch to either side to
stop the moon roof partway.
Tilt down (push and hold)

73
1-4. Opening and closing the windows and moon roof
1
Before driving
ES350_U
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock moon roof operation (standard type)
●The moon roof can be opened and closed using the mechanical key. (oP. 4 7 5 )
●The moon roof can be closed using the entry function. ( oP. 2 7 )
■Operating the moon roof after turnin g the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■To reduce moon roof wind noise (standard type)
Drive with the moon roof opened to slightly before the fully open position as driving
with the moon roof opened fully will cause wind noise.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when th e moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features oP. 5 1 1 )

83
1
Before driving
ES350_U
1-7. Safety information
Correct driving posture
Drive in a good posture as follows:
Sit upright and well back in
the seat. (oP. 4 9 )
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( oP. 4 9 )
Adjust the seatback so that
the controls are easily opera-
ble.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(o P. 6 4 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( oP. 56)
Wear the seat belt correctly.
(o P. 58)

91
1-7. Safety information
1
Before driving
ES350_U
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a
clear margin of safety. This distance is measured from the center of the steering
wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can
change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many driv- ers can achieve the 10 in. (250 mm) distance, even with the driver seat all the
way forward, simply by reclining the back of the seat somewhat. If reclining
the back of your seat makes it hard to see the road, raise yourself by using a
firm, non-slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still main-
taining control of the foot pedals, steering wheel, and your view of the instrument
panel controls.

412
4-3. Do-it-yourself maintenance
ES350_U■
Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR RH25 APower window
2RR DOOR LH25 APower window
3FUEL OPN7. 5 AFuel filler door opener
4FR FOG15 AFront fog lights
5OBD7. 5 AOn-board diagnosis system
6ECU-B NO.27. 5 AECU powers
7STO P10 AStop lights
8TI & TE30 ATilt and telescopic steering
9A /C7. 5 AAir conditioning system
10PWR25 APower windows
11DOOR NO.225 AMain body ECU
12S/ROOF30 AMoon roof
13TA I L10 AFront and rear side marker lights, tail
lights, license plate lights
14PA N E L7. 5 ASwitch illumination

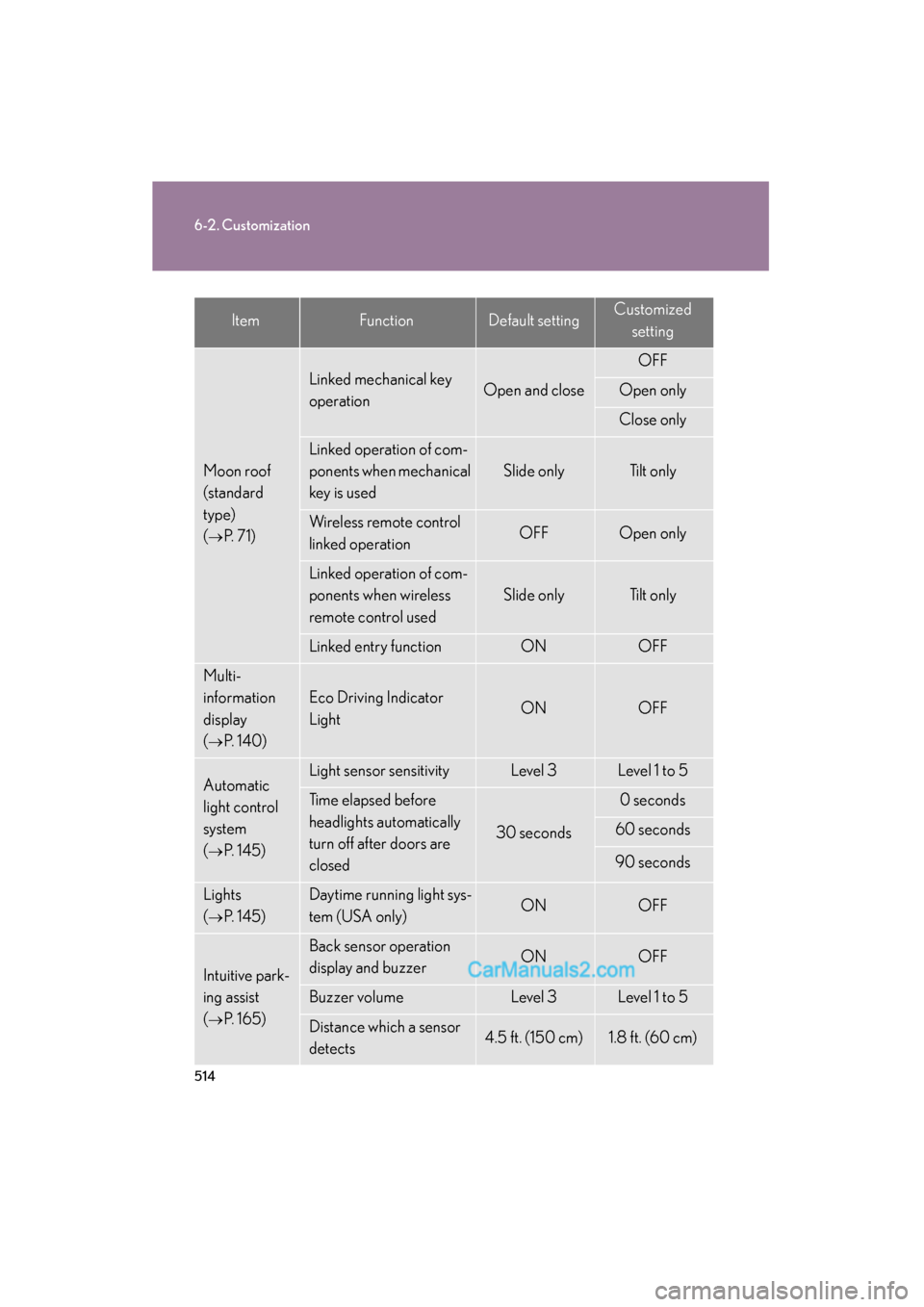

514
6-2. Customization
ES350_U
Moon roof
(standard
type)
(
oP. 71)
Linked mechanical key
operationOpen and close
OFF
Open only
Close only
Linked operation of com-
ponents when mechanical
key is used
Slide onlyTilt only
Wireless remote control
linked operationOFFOpen only
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Multi-
information
display
(
oP. 1 4 0 )
Eco Driving Indicator
LightONOFF
Automatic
light control
system
(
oP. 1 4 5 )
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
oP. 1 4 5 )
Daytime running light sys-
tem (USA only)ONOFF
Intuitive park-
ing assist
(
oP. 1 6 5 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.5 ft. (150 cm)1.8 ft. (60 cm)
ItemFunctionDefault settingCustomizedsetting
