131
2-1. Driving procedures
2
When driving
ES350_U
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( oP. 4 9 5 )
■ Front bulb locations
■ Rear bulb locations
Headlight high beam
Headlight
low beam
(halogen
bulb)
Front turn signal light
Front side
marker light
Rear turn signal light Stop/tail light
Rear side marker light
Back-up light
Tail light

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■
Front side marker lights and front turn signal lights
Remove the access hole cover.
Front side marker light
Front turn signal light
Turn the bulb base counterclock-
wise.
Front side marker light Remove the light bulb.
STEP1
STEP2
STEP3

420
4-3. Do-it-yourself maintenance
ES350_UFront turn signal light
Remove the light bulb.
STEP3

422
4-3. Do-it-yourself maintenance
ES350_U■
Stop/tail, rear turn signal and rear side marker lights
Open the trunk lid and remove the
access hole cover.
Stop/tail light
Rear turn signal light
Rear side marker light
Turn the bulb base counterclock-
wise.
Stop/tail light Remove the light bulb.
STEP1
STEP2
STEP3

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_URear turn signal light
Remove the light bulb.
Rear side marker light Remove the light bulb.
STEP3
STEP3

424
4-3. Do-it-yourself maintenance
ES350_U■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low beams (discharge bulbs)
● Parking lights
● Front fog lights
● Side turn signal lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED light bulbs
The parking lights, side turn signal lights , high mounted stoplight and license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to
your Lexus dealer to have the light replaced.

495
6-1. Specifications
6
Vehicle specifications
ES350_U
Light bulbs
*: If equipped
A: D4R discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: HB4 halogen bulbs
E: Wedge base bulbs (amber)
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam) Discharge bulbs
*
Halogen bulbs*
D4RH1135
55AB
Headlights (high beam)900560C
Front fog lights900651D
Front turn signal lights21E
Front side marker lights5F
Tr u n k l i g h t5G
Rear side marker lights5F
Stop/tail lights744321 /5F
Tail lights74435F
Rear turn signal lights21E
Back-up lights92116F
Outer foot lights5F
Interior
Vanity lights8F
Door courtesy lights5F
Front interior/personal lights5F
Rear interior light5G

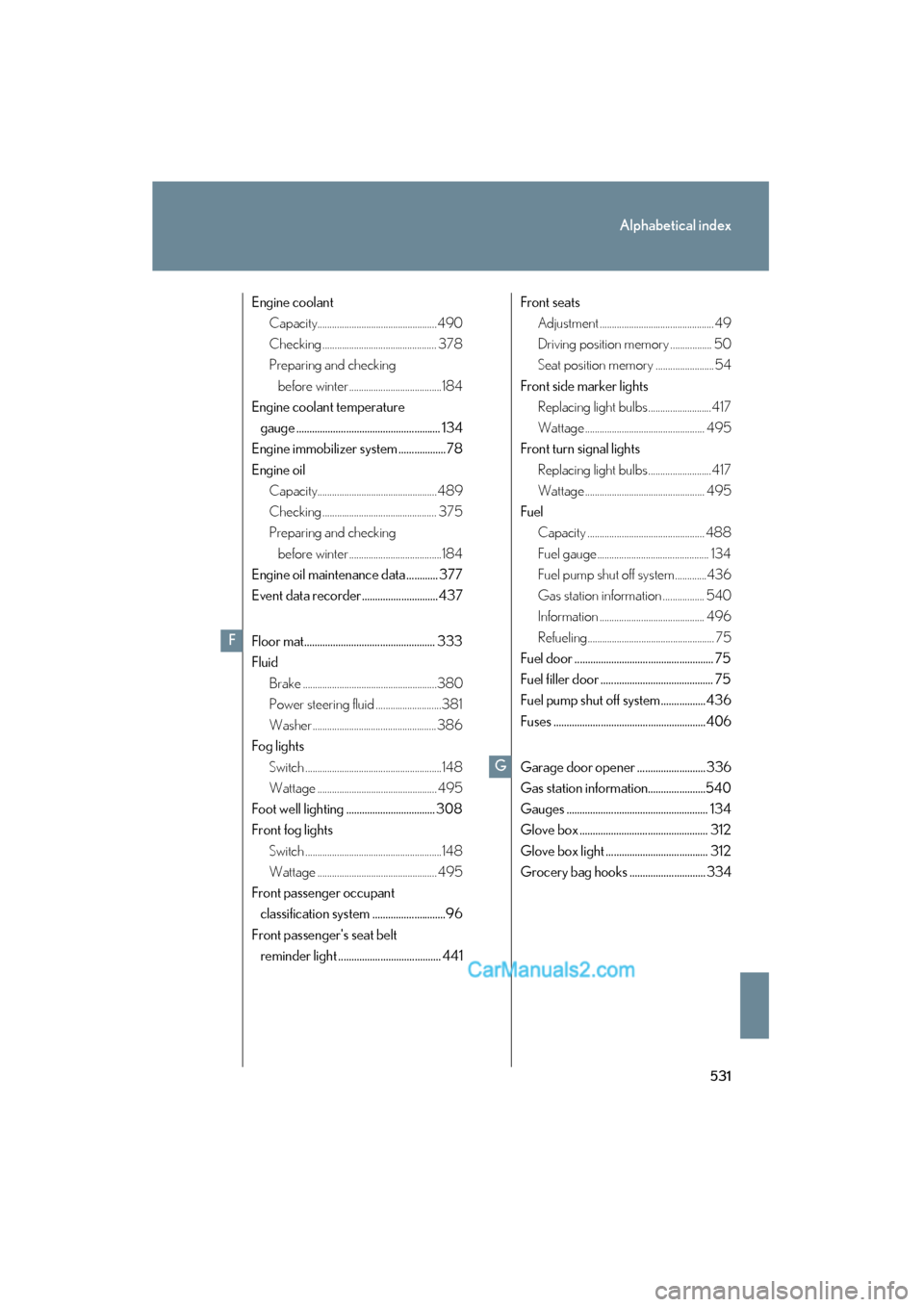

531
Alphabetical index
ES350_U
Engine coolantCapacity.................................................490
Checking ............................................... 378
Preparing and checking
before winter ......................................184
Engine coolant temperature
gauge ....................................................... 134
Engine immobilizer system ..................78
Engine oil Capacity.................................................489
Checking ............................................... 375
Preparing and checking
before winter ......................................184
Engine oil maintenance data ............ 377
Event data recorder.............................437
Floor mat.................................................. 333
Fluid
Brake .......................................................380
Power steering fluid ...........................381
Washer ................................................... 386
Fog lights
Switch ........................................................148
Wattage ................................................. 495
Foot well lighting .................................. 308
Front fog lights Switch ........................................................148
Wattage ................................................. 495
Front passenger occupant classification system ............................96
Front passenger's seat belt reminder light ....................................... 441 Front seats
Adjustment ............................................... 49
Driving position memory ................. 50
Seat position memory ........................ 54
Front side marker lights Replacing light bulbs .......................... 417
Wattage ................................................. 495
Front turn signal lights
Replacing light bulbs .......................... 417
Wattage ................................................. 495
Fuel Capacity ................................................ 488
Fuel gauge .............................................. 134
Fuel pump shut off system .............436
Gas station information ................. 540
Information ........................................... 496
Refueling.................................................... 75
Fuel door ..................................................... 75
Fuel filler door ........................................... 75
Fuel pump shut off system................. 436
Fuses ..........................................................406
Garage door opener ..........................336
Gas station information......................540
Gauges ...................................................... 134
Glove box ................................................. 312
Glove box light ....................................... 312
Grocery bag hooks ............................. 334
F
G

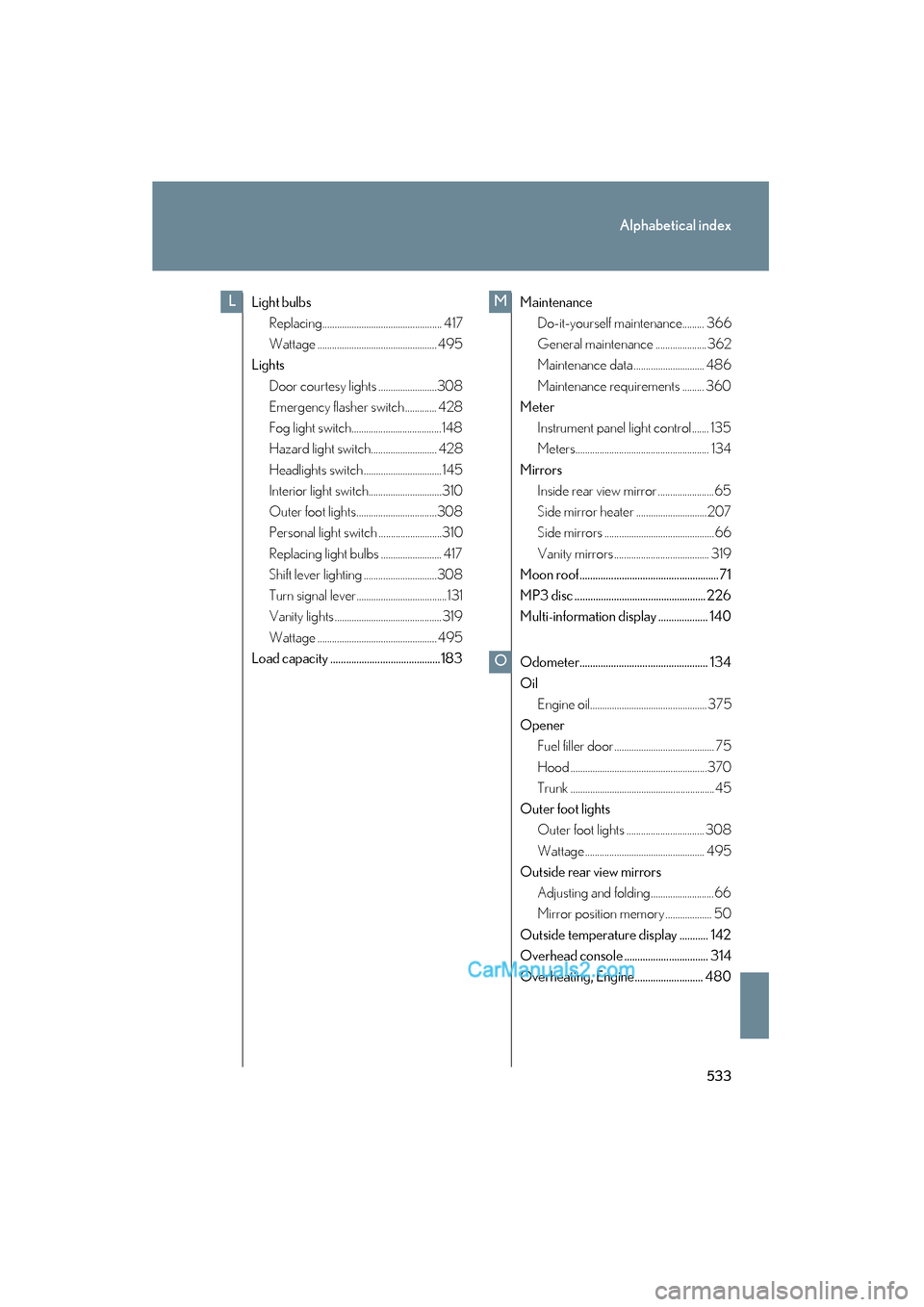

533
Alphabetical index
ES350_U
Light bulbsReplacing................................................. 417
Wattage ................................................. 495
Lights
Door courtesy lights ........................308
Emergency flasher switch ............. 428
Fog light switch.....................................148
Hazard light switch........................... 428
Headlights switch ................................ 145
Interior light switch..............................310
Outer foot lights.................................308
Personal light switch ..........................310
Replacing light bulbs ......................... 417
Shift lever lighting ..............................308
Turn signal lever.....................................131
Vanity lights ............................................ 319
Wattage ................................................. 495
Load capacity ..........................................183 Maintenance
Do-it-yourself maintenance......... 366
General maintenance .....................362
Maintenance data ............................. 486
Maintenance requirements ......... 360
Meter
Instrument panel light control....... 135
Meters....................................................... 134
Mirrors Inside rear view mirror .......................65
Side mirror heater .............................207
Side mirrors .............................................66
Vanity mirrors ....................................... 319
Moon roof.....................................................71
MP3 disc .................................................. 226
Multi-information display ................... 140
Odometer................................................. 134
Oil Engine oil................................................375
Opener Fuel filler door ......................................... 75
Hood ........................................................370
Trunk ........................................................... 45
Outer foot lights Outer foot lights ................................ 308
Wattage ................................................. 495
Outside rear view mirrors
Adjusting and folding.......................... 66
Mirror position memory ................... 50
Outside temperature display ........... 142
Overhead console ................................ 314
Overheating, Engine.......................... 480LM
O
