When trouble arises
459
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened). A buzzer also sounds.
Close the moon roof.
(Flashing)
Indicates that the parking
brake is still engaged
(with the vehicle having
reached a speed of more
than 3 mph [5 km/h]).A buzzer also sounds.
Release the parking
brake.
Indicates that the washer
fluid level is low.A buzzer also sounds.
Add washer fluid.

460
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
Indicates that engine oil
level is low.A buzzer also sounds.Check the level of engine
oil, and add if necessary.
(USA only)
Indicates that the engine
oil is scheduled to be
changed.A buzzer also sounds.
Check and the engine oil,
and change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(USA only)
Indicates that the engine
oil should be changed.A buzzer also sounds.
Check and change the
engine oil.Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).

5
When trouble arises
461
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
(If equipped)
Indicates that the pre-
collision system is not
currently functional.• Clean the grille and the sensor.
• Wait until the pre-colli- sion system cools down.
(If equipped)
Indicates that the sensor
of intuitive parking assist
is dirty or covered with
ice.A buzzer also sounds.
Clean the sensor.
(Flashing and then con- tinuously on)
(Flashing)
(If equipped)Indicates that the radar
cruise control sensor is
dirty or covered with ice. A buzzer also sounds.
Clean the sensor.

462
5-2. Steps to take in an emergency
ES350_U
Warning messageDetailsCorrection procedure
(Flashing and then con-tinuously on)
(Flashing)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
because the windshield
wipers are set at high
speed operation mode. A buzzer also sounds.
Turn them off or set them
to either the intermittent
or the slow mode.
(Flashing)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode). A buzzer also sounds.
Slow the vehicle by apply-
ing the brakes.
Indicates one or more
stop lights are burned
out.Have the defective bulbs
replaced by your Lexus
dealer.

5
When trouble arises
463
5-2. Steps to take in an emergency
ES350_U

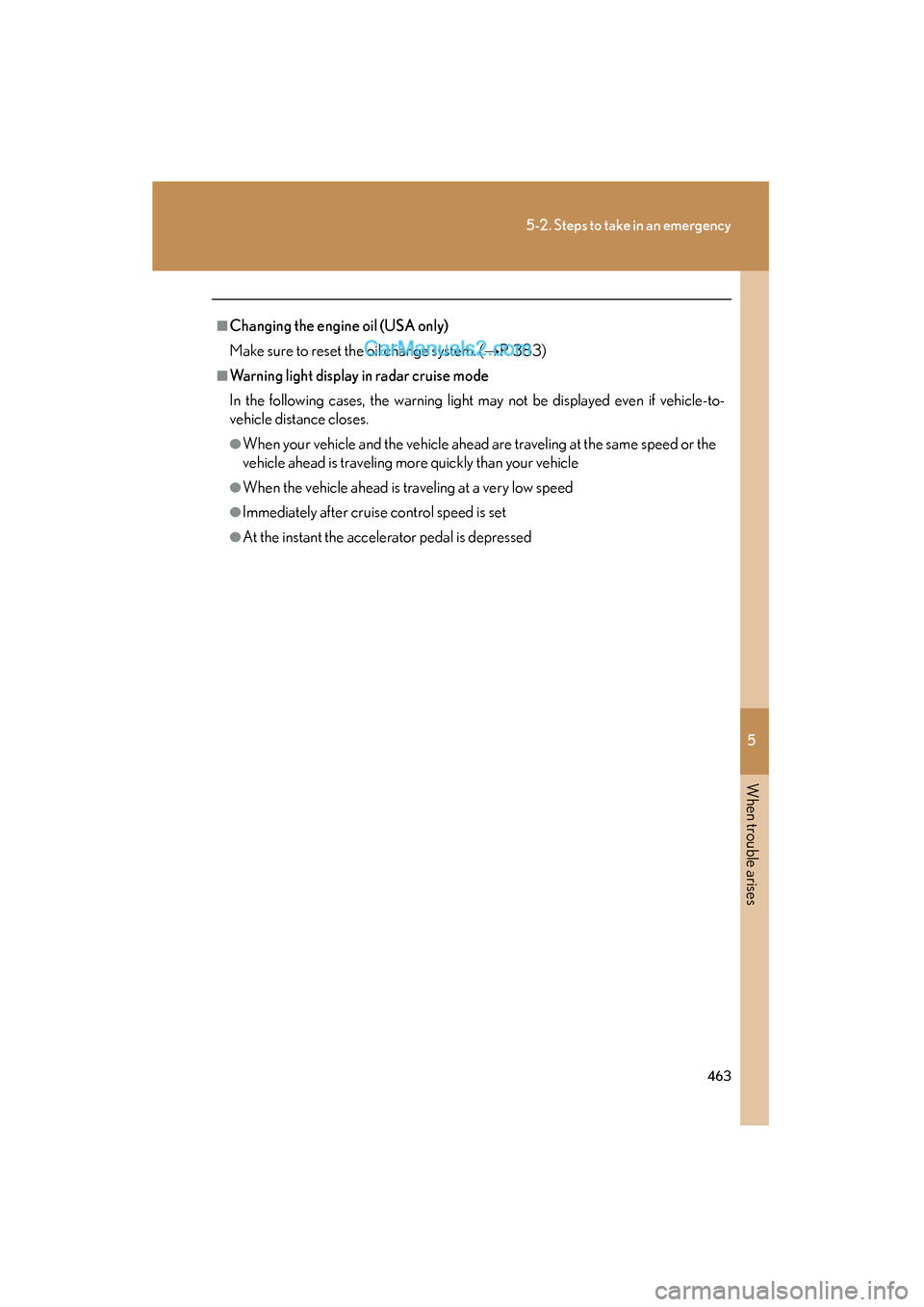

■Changing the engine oil (USA only)
Make sure to reset the oil change system. (→P. 383)
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance closes.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed

464
5-2. Steps to take in an emergency
ES350_U
Follow the correction procedure for problem in smart access system with push-button start.
After taking the specified steps to correct the suspected problem, check
that the warning message turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 8 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
n o r m a l l y.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the “ENGINE
S TA R T S TO P ”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
465
5-2. Steps to take in an emergency
ES350_U
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once3 times
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STO P ” s w i t c h
OFF or confirm
the location of the
electronic key.
Con-
tinuousCon-
tinuous
(Displayed alternately)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever out of P,
the “ENGINE
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area.
• Shift the shift lever to P.
• Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( →P. 411)

466
5-2. Steps to take in an emergency
ES350_U*: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be de pleted or there may be difficulties
receiving the signal from the key. ( →P. 30)
Interior
buzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
Indicates that a
door has been
opened or closed
and the “ENGINE
S TA R T S TO P ”
switch has been
switched twice to
ACCESSORY
mode from OFF.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Comes on for 15 seconds.)
(Flashing)
Indicates that the
steering lock has
not released.
Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
OnceIndicates that the
electronic key
does not operate
properly.
→ P. 4 8 1


5
When trouble arises

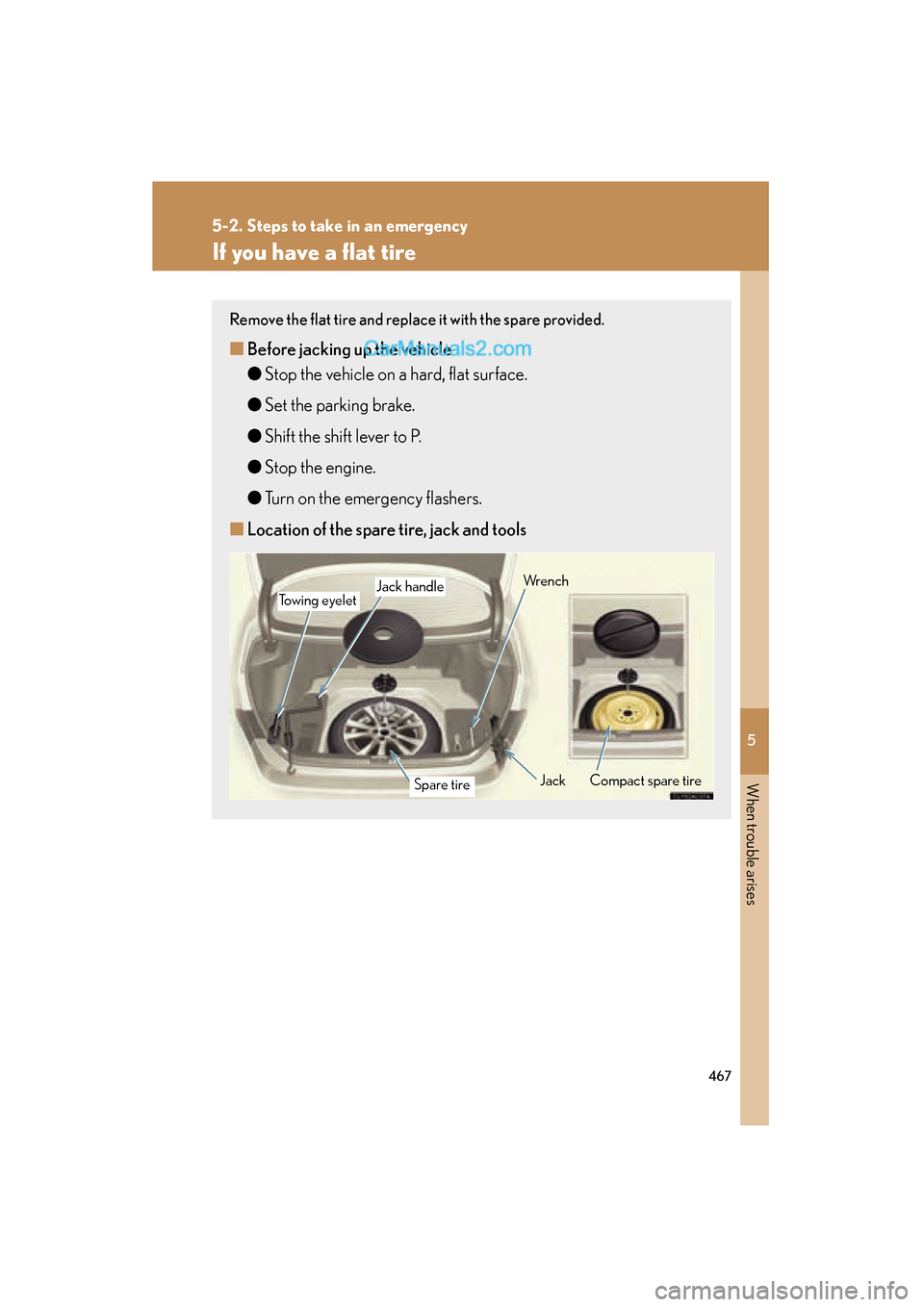

467
5-2. Steps to take in an emergency
ES350_U
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack
Jack handle
Spare tireCompact spare tire
Wr e n c h
Towing eyelet

468
5-2. Steps to take in an emergency
ES350_U

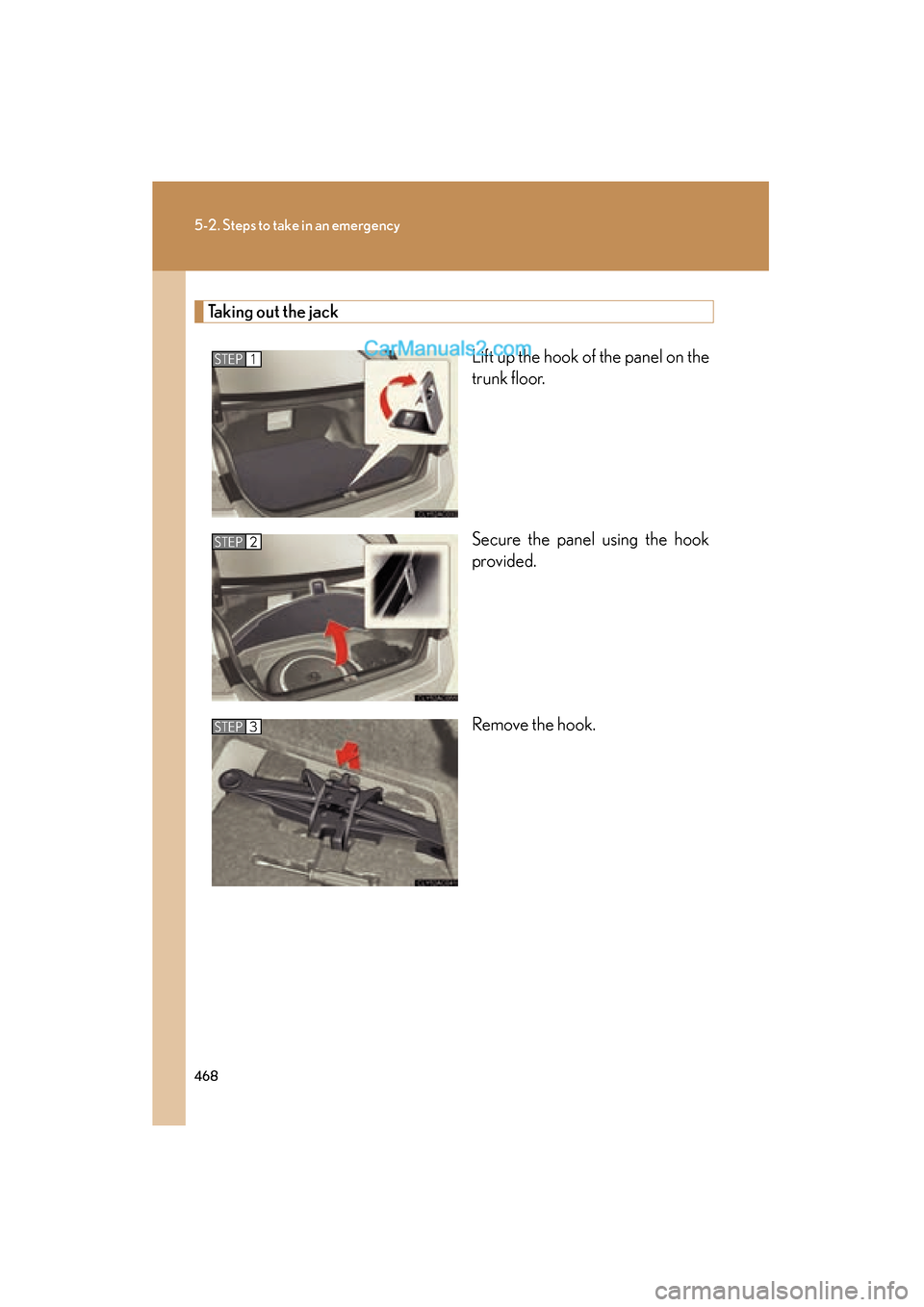

Taking out the jackLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Remove the hook.
STEP1
STEP2
STEP3
