Lexus ES350 2011 Owner's Manuals

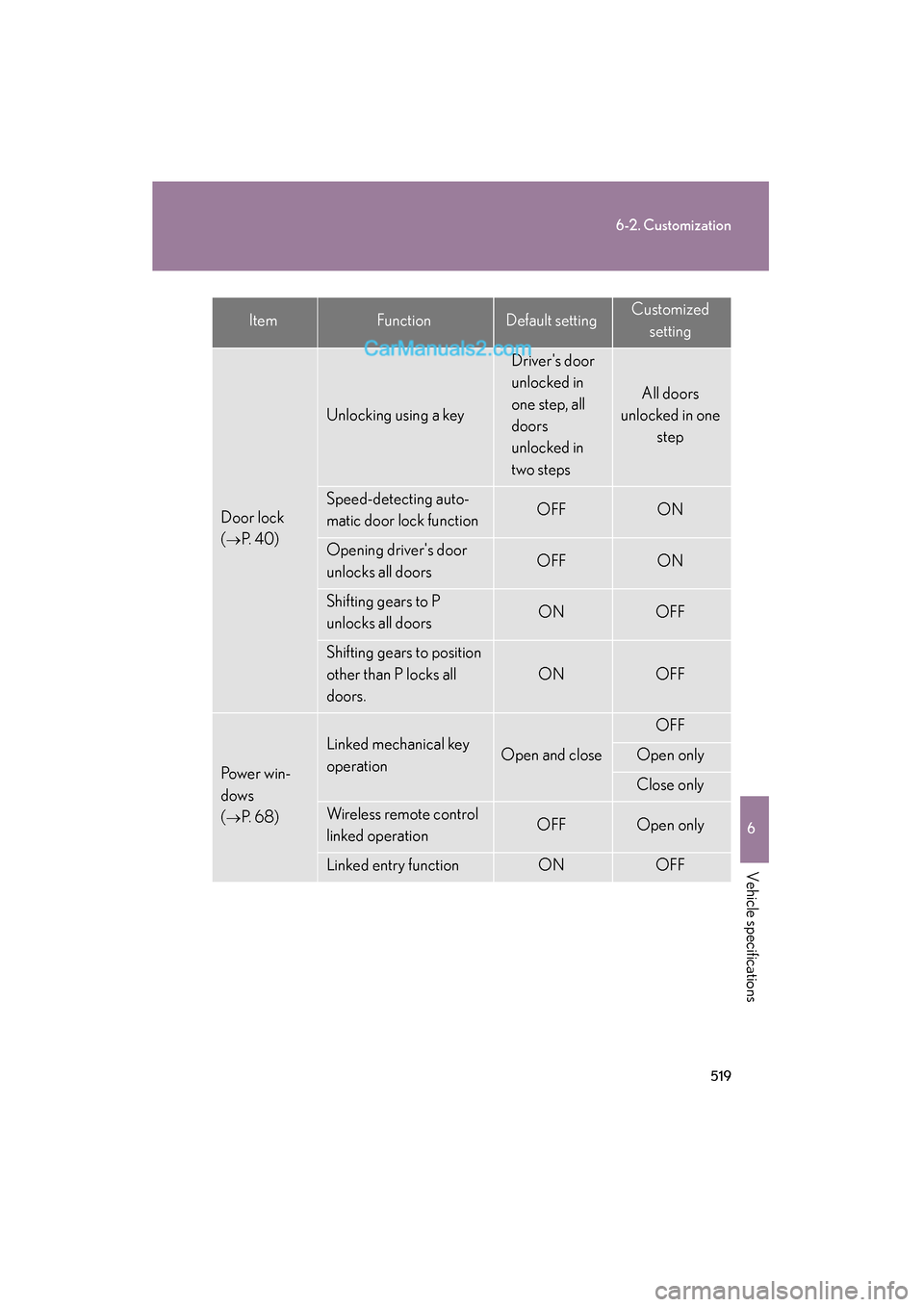

519
6-2. Customization
6
Vehicle specifications
ES350_U
Door lock
(
→P. 4 0 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF
Power win-
dows
(
→P. 6 8 )
Linked mechanical key
operationOpen and close
OFF
Open only
Close only
Wireless remote control
linked operationOFFOpen only
Linked entry functionONOFF
ItemFunctionDefault settingCustomizedsetting

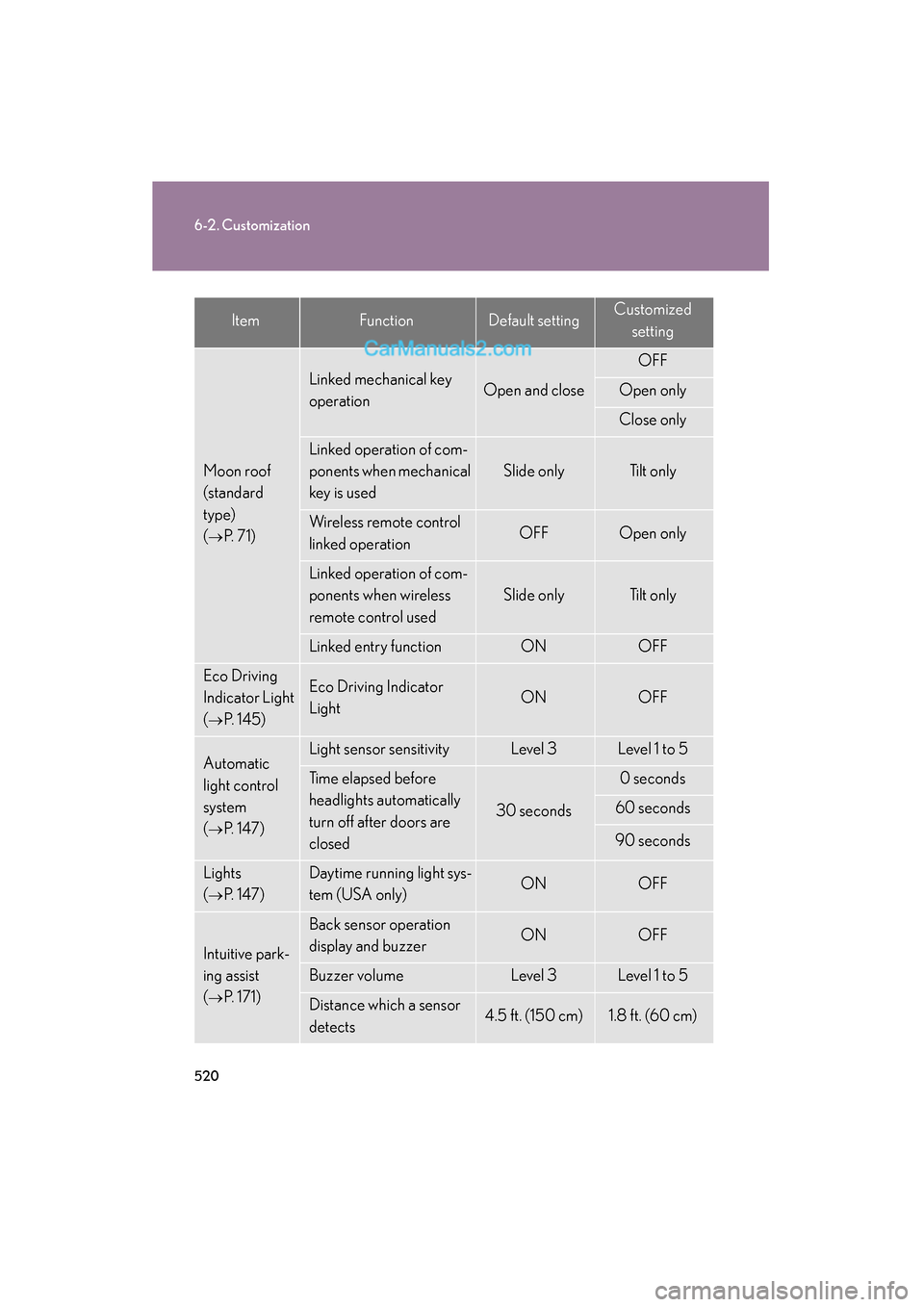

520
6-2. Customization
ES350_U
Moon roof
(standard
type)
(
→P. 71)
Linked mechanical key
operationOpen and close
OFF
Open only
Close only
Linked operation of com-
ponents when mechanical
key is used
Slide onlyTilt only
Wireless remote control
linked operationOFFOpen only
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Linked entry functionONOFF
Eco Driving
Indicator Light
(
→P. 1 4 5 )
Eco Driving Indicator
LightONOFF
Automatic
light control
system
(
→P. 147)
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 147)
Daytime running light sys-
tem (USA only)ONOFF
Intuitive park-
ing assist
(
→P. 171)
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.5 ft. (150 cm)1.8 ft. (60 cm)
ItemFunctionDefault settingCustomizedsetting

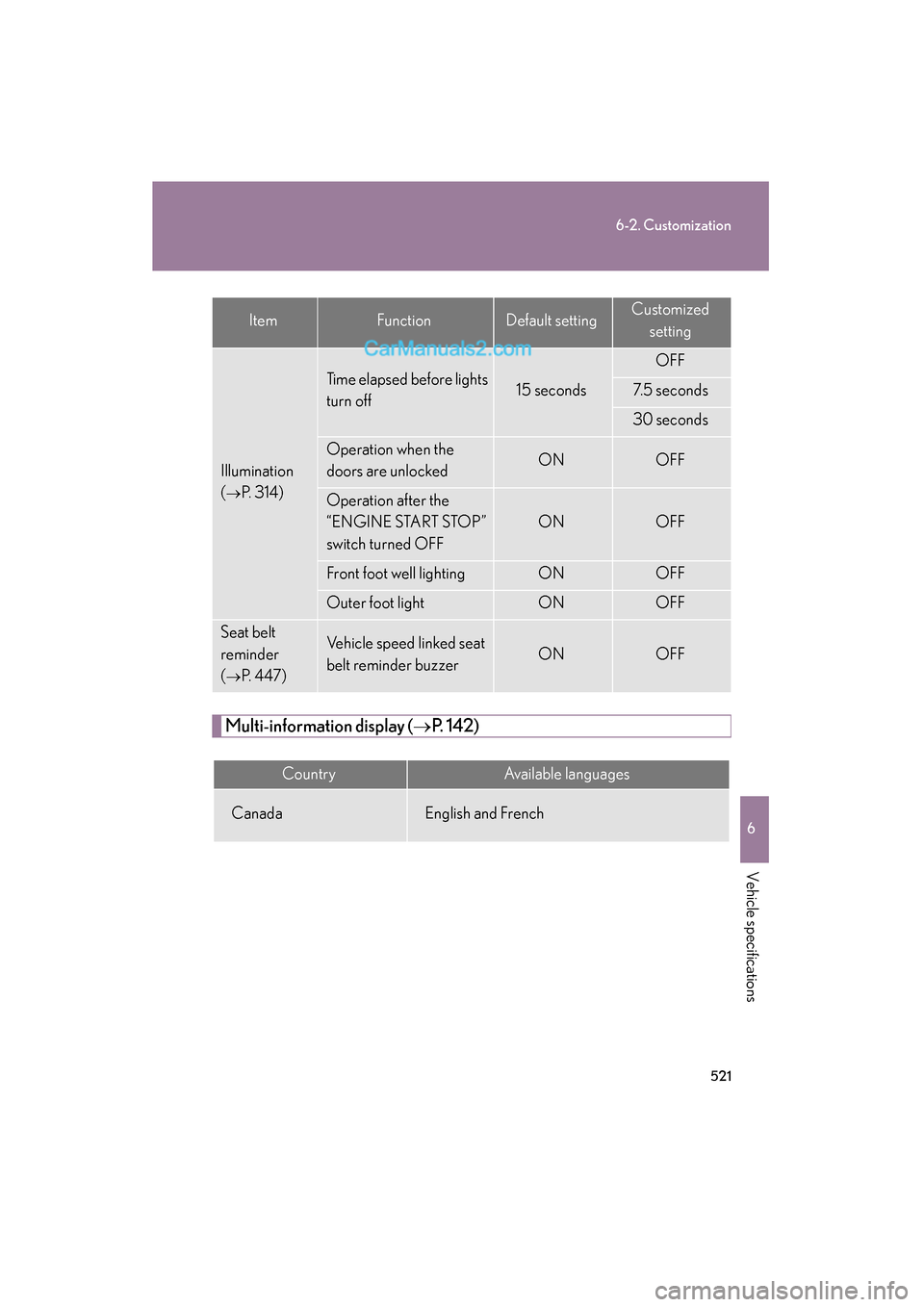

521
6-2. Customization
6
Vehicle specifications
ES350_U
Multi-information display (→P. 142)
Illumination
(
→P. 3 1 4 )
Time elapsed before lights
turn off15 seconds
OFF
7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front foot well lightingONOFF
Outer foot lightONOFF
Seat belt
reminder
(
→P. 4 4 7 )
Vehicle speed linked seat
belt reminder buzzerONOFF
CountryAvailable languages
CanadaEnglish and French
ItemFunctionDefault settingCustomized
setting

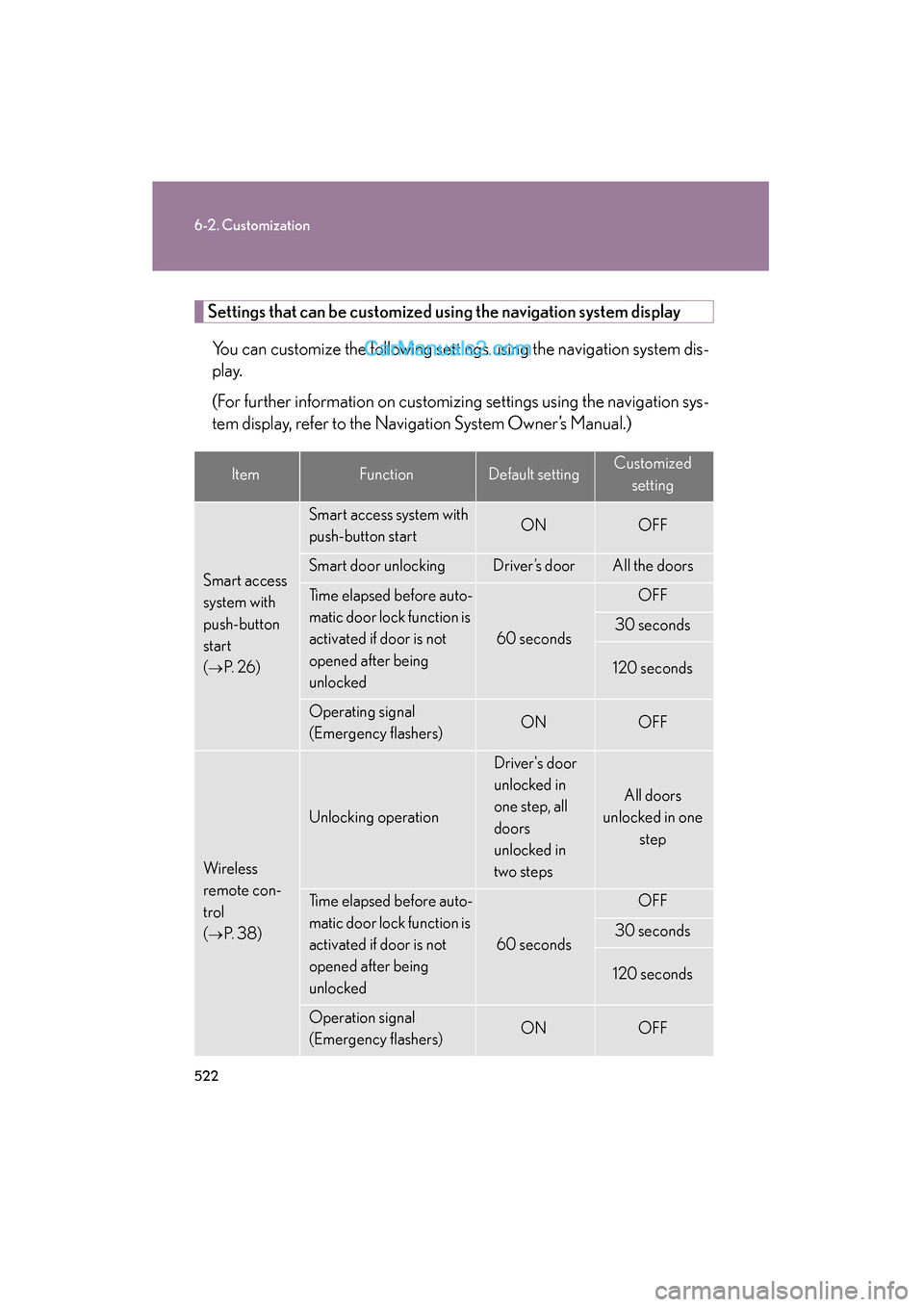

522
6-2. Customization
ES350_U
Settings that can be customized using the navigation system displayYou can customize the following settings using the navigation system dis-
play.
(For further information on customizing settings using the navigation sys-
tem display, refer to the Navigation System Owner’s Manual.)
ItemFunctionDefault settingCustomized setting
Smart access
system with
push-button
start
(
→P. 2 6 )
Smart access system with
push-button startONOFF
Smart door unlocking Driver’s doorAll the doors
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Operating signal
(Emergency flashers)ONOFF
Wireless
remote con-
trol
(
→P. 3 8 )
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal
(Emergency flashers)ONOFF

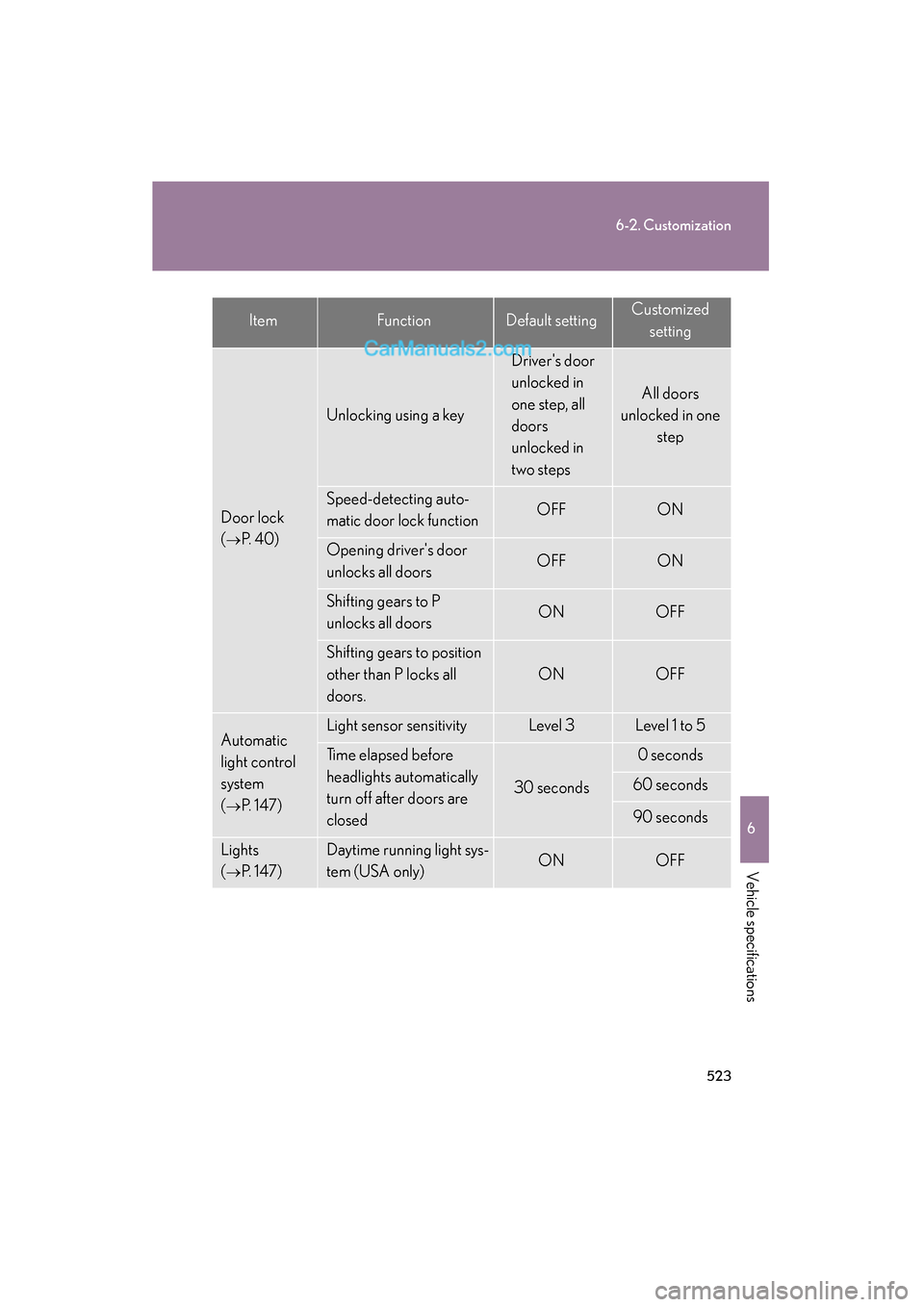

523
6-2. Customization
6
Vehicle specifications
ES350_U
Door lock
(
→P. 4 0 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in one
step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doorsOFFON
Shifting gears to P
unlocks all doorsONOFF
Shifting gears to position
other than P locks all
doors.
ONOFF
Automatic
light control
system
(
→P. 147)
Light sensor sensitivityLevel 3Level 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 147)
Daytime running light sys-
tem (USA only)ONOFF
ItemFunctionDefault settingCustomizedsetting

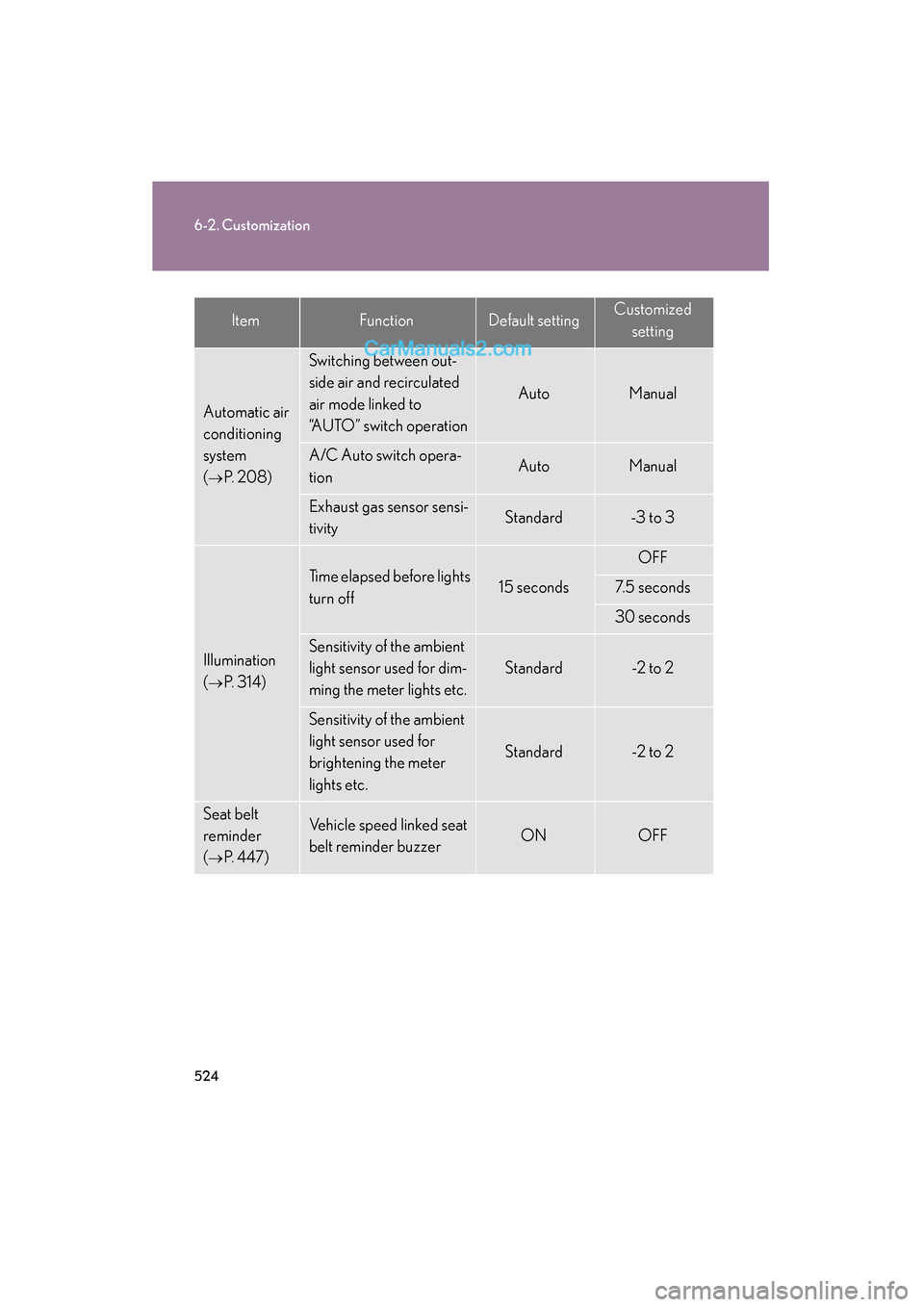

524
6-2. Customization
ES350_U
Automatic air
conditioning
system
(
→P. 2 0 8 )
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
AutoManual
A/C Auto switch opera-
tionAutoManual
Exhaust gas sensor sensi-
tivityStandard-3 to 3
Illumination
(
→P. 3 1 4 )
Time elapsed before lights
turn off15 seconds
OFF
7.5 seconds
30 seconds
Sensitivity of the ambient
light sensor used for dim-
ming the meter lights etc.
Standard-2 to 2
Sensitivity of the ambient
light sensor used for
brightening the meter
lights etc.
Standard-2 to 2
Seat belt
reminder
(
→P. 4 4 7 )
Vehicle speed linked seat
belt reminder buzzerONOFF
ItemFunctionDefault settingCustomizedsetting

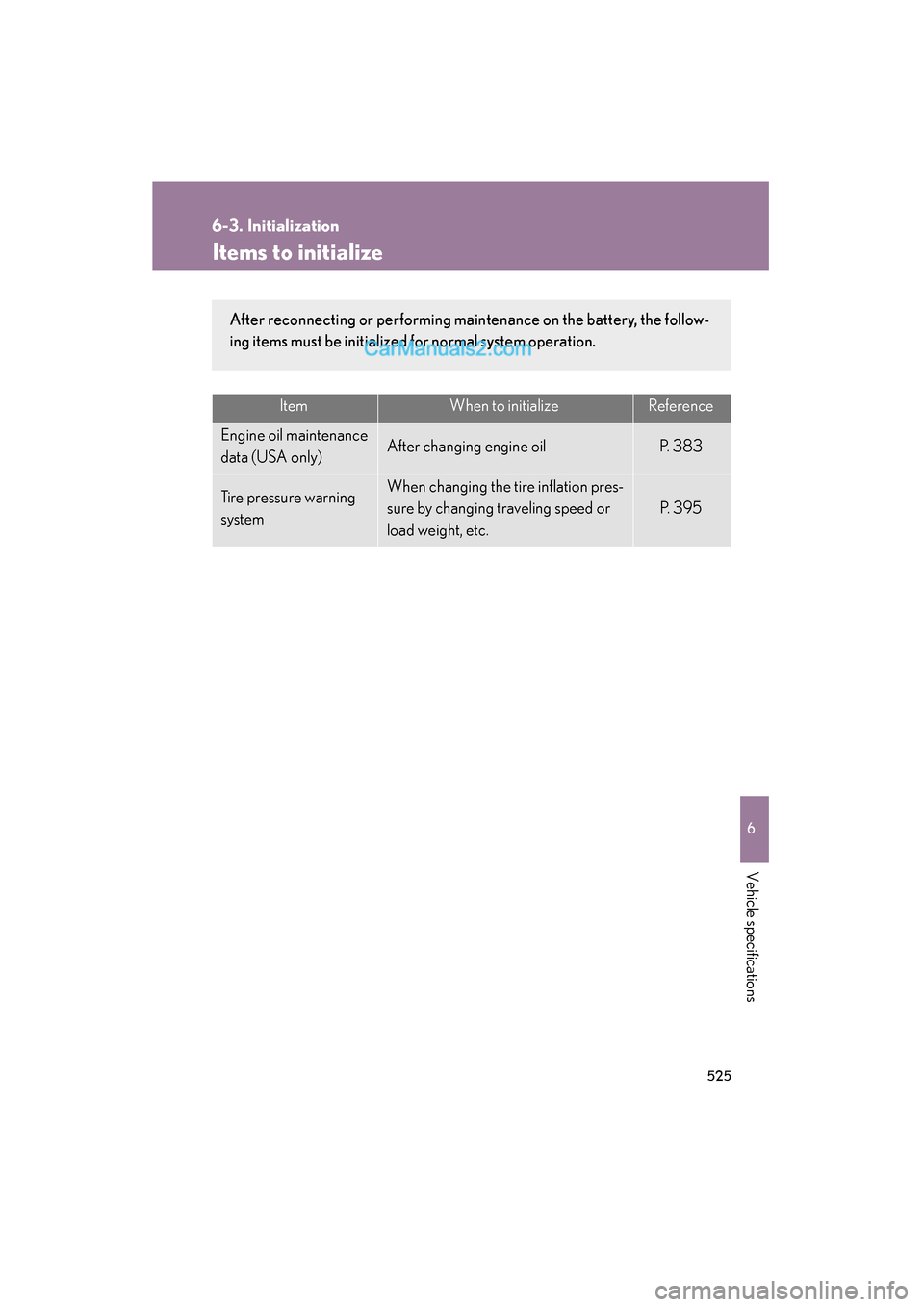

525
6
Vehicle specifications
ES350_U
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil maintenance
data (USA only)After changing engine oilP. 3 8 3
Tire pressure warning
systemWhen changing the tire inflation pres-
sure by changing traveling speed or
load weight, etc.
P. 3 9 5
After reconnecting or performing maintenance on the battery, the follow-
ing items must be initialized for normal system operation.

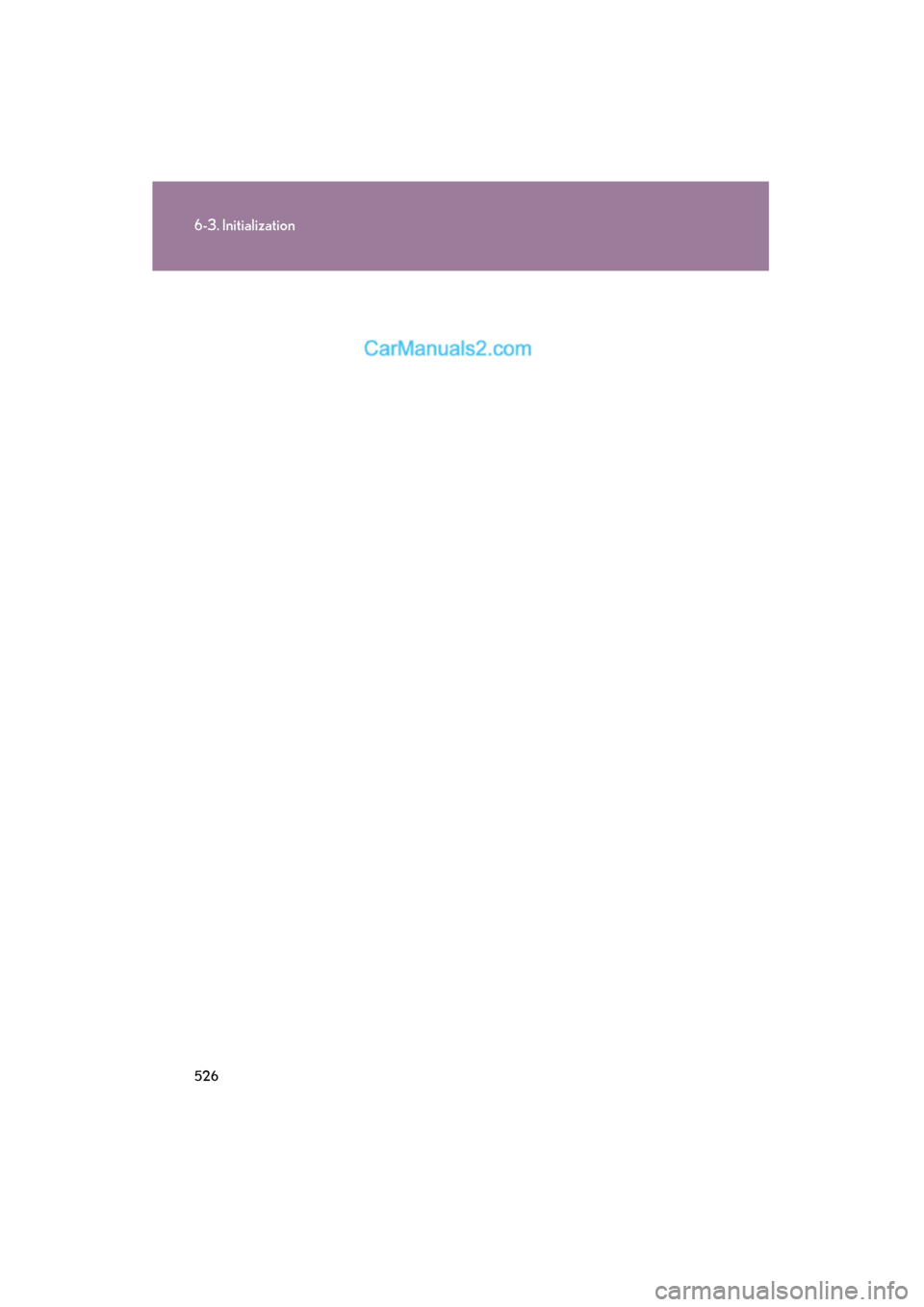

526
6-3. Initialization
ES350_U

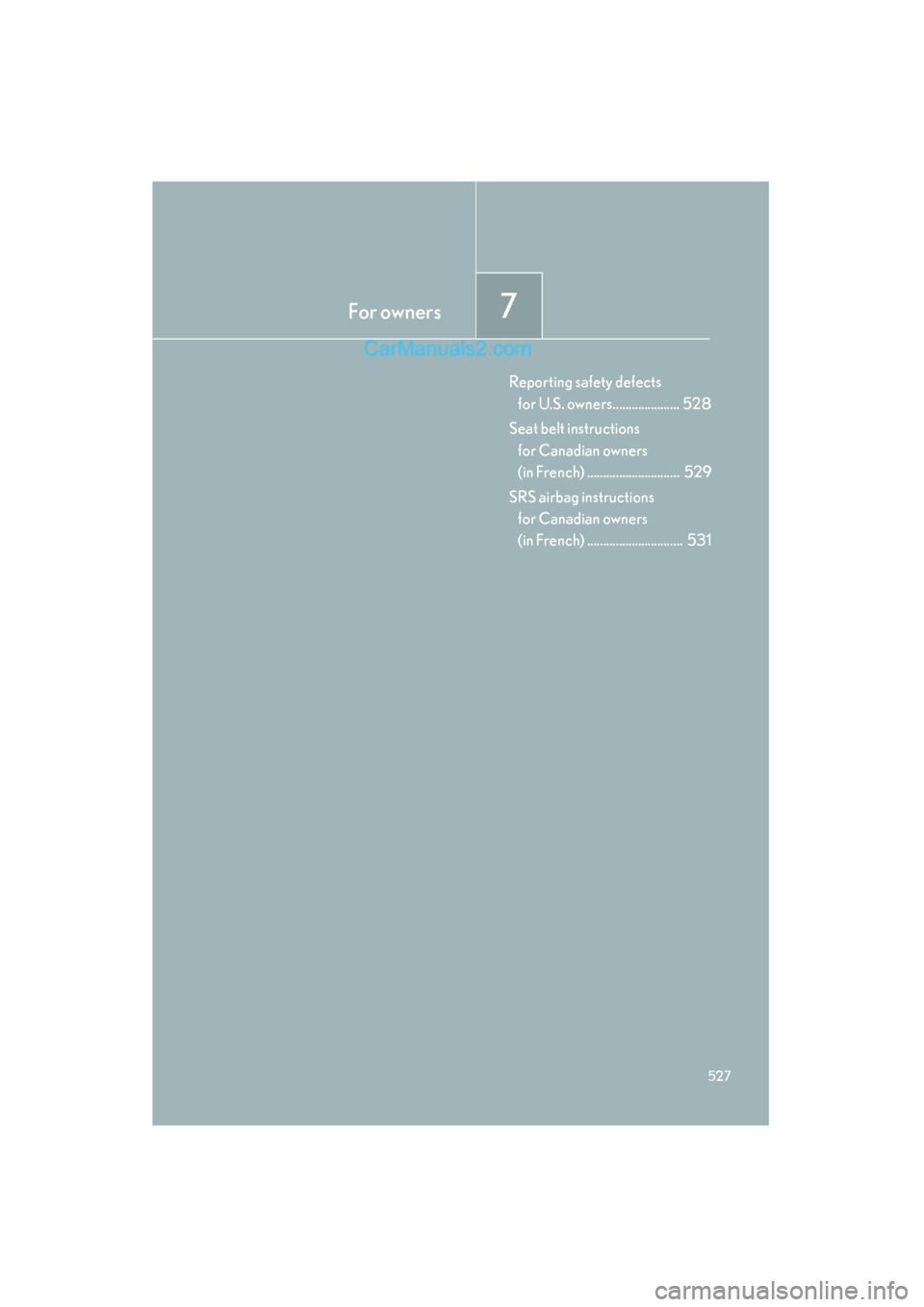

For owners7
527
ES350_U
Reporting safety defects for U.S. owners..................... 528
Seat belt instructions for Canadian owners
(in French) ............................. 529
SRS airbag instructions for Canadian owners
(in French) .............................. 531

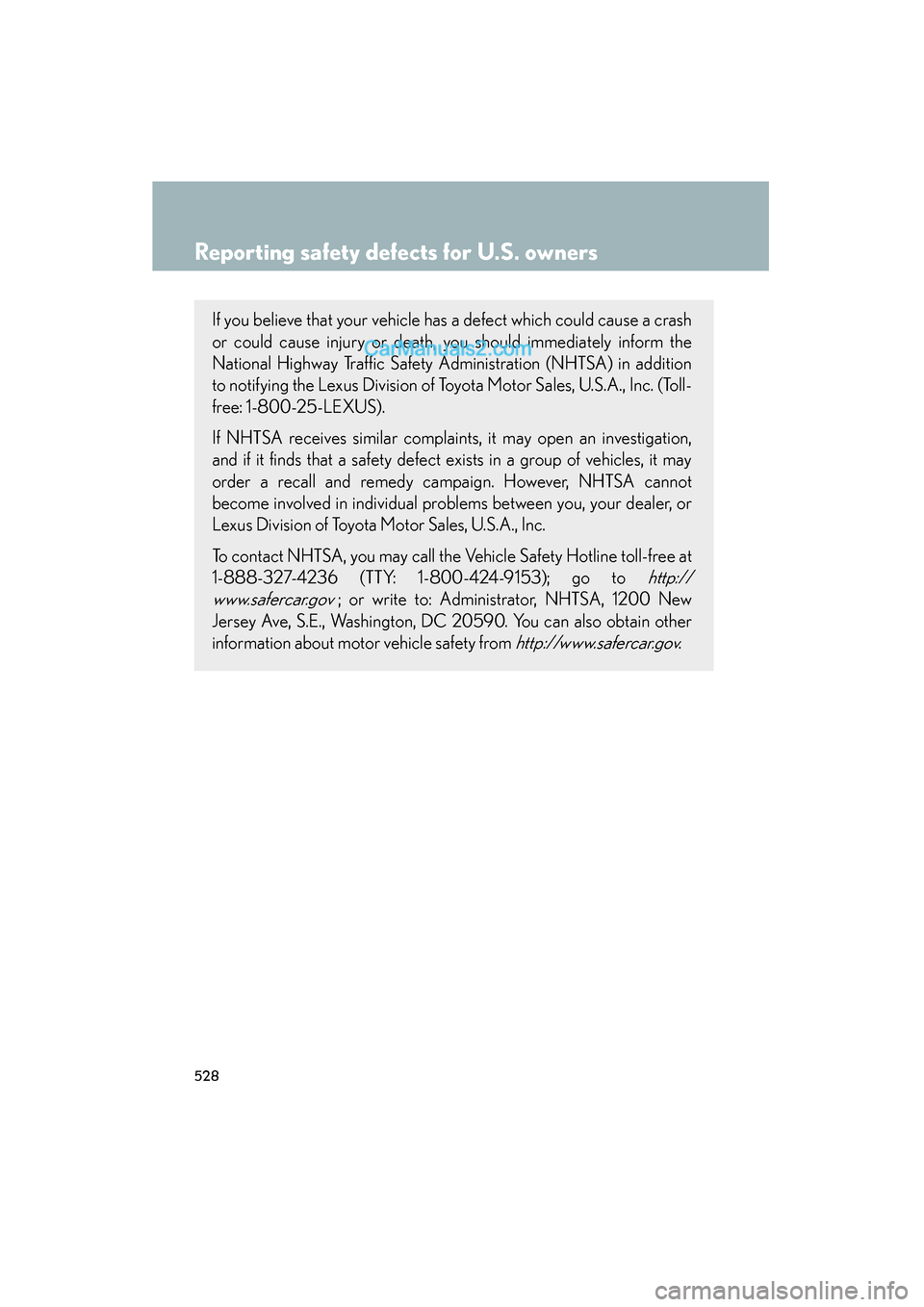

528
ES350_U
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll-
free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from
http://www.safercar.gov.
