Lexus ES350 2013 Owner's Manual / LEXUS 2013 ES300H,ES350 OWNERS MANUAL (OM33A01U)

341
ES350 300h_OM_OM33A01U_(U)
5-1. Lexus Display Audio system
5
Interior features

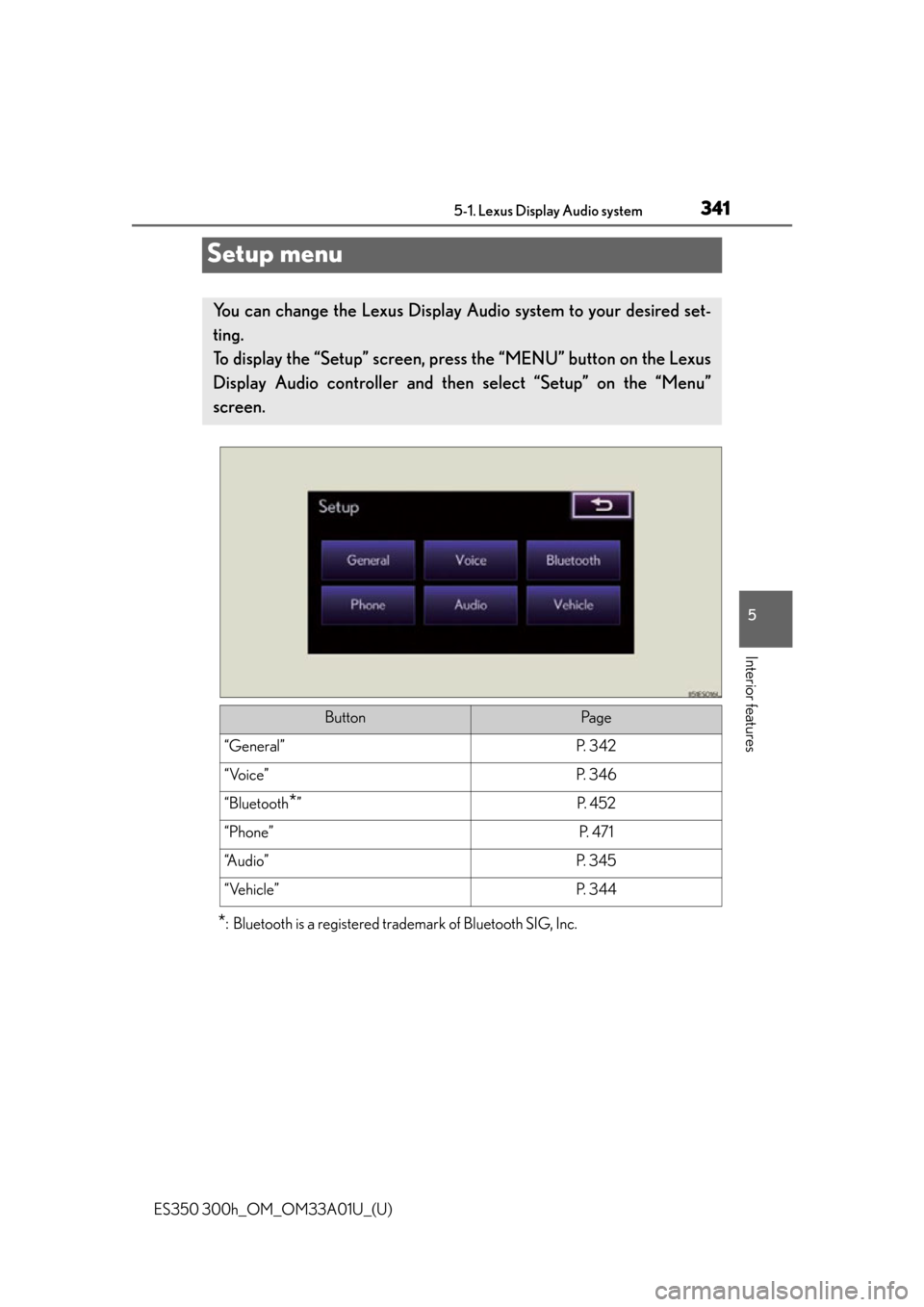

Setup menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
You can change the Lexus Display Au dio system to your desired set-
ting.
To display the “Setup” screen, pr ess the “MENU” button on the Lexus
Display Audio controller and then select “Setup” on the “Menu”
screen.
ButtonPa g e
“General”P. 3 4 2
“Voice”P. 3 4 6
“Bluetooth*”P. 4 5 2
“Phone”P. 4 7 1
“A u d i o ”P. 3 4 5
“Vehicle”P. 3 4 4

3425-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)
This screen is used for various settings.Display the “Setup” screen. ( P. 3 4 1 )
Select “General” on the “Setup” screen.
Select language ( P. 343)
Beep on/off
Select button color
Customize Startup Image
The initial screen displayed when the “START STOP ENGINE” <“POWER”>
switch is turned to ACCESSORY or IGNITION ON mode can be
changed to image 1, or image 2 which displays the vehicle screen.
Animation on/off
The animation effect for audio source se lection screen, screen transitions, etc.
can be set to “On” or “Off”.
Personal data can be deleted. ( P. 3 4 3 )
When you complete settings, select “Save”.
General settings
1
2
Pa g e 1Pa g e 2
1
2
3
4
5
6
3

ES350 300h_OM_OM33A01U_(U)
3435-1. Lexus Display Audio system
5
Interior features
■Selecting a languageSelect “Language” on the “General Settings” screen.
Select the desired language.
The selectable languages may dif-
fer depending on the model or
region.
■Delete personal dataSelect “Delete Personal Data” on the “General Settings” screen.
Select “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
A confirmation screen will be displayed. Select “Yes”.
The following personal data can be deleted or turned to their default
settings.
• Phonebook data
• Call history data
• Speed dial data
• Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
•Sound settings
•Preset switch data
• Last used radio station
1
2
1
2
3

3445-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)
This screen is used for various vehicle settings.Display the “Setup” screen. ( P. 3 4 1 )
Select “Vehicle” on the “Setup” screen. Vehicle customization settings
( P. 3 4 4 )
LEXUS park assist settings

( P. 279)
■Vehicle customization settings
Various setting can be changed.
Select “Vehicle Customization” on the “Vehicle Settings” screen.
Refer to the list of settings that
can be changed for details.
( P. 853)
When you complete settings, select “Save”.
Vehicle settings
1
2
: If equipped
1
2
1
2

ES350 300h_OM_OM33A01U_(U)
3455-1. Lexus Display Audio system
5
Interior features
This screen is used for various audio settings.Display the “Setup” screen. ( P. 3 4 1 )
Select “Audio” on the “Setup” screen. HD Radio™ technology set-
tings ( P. 385)
iPod setting ( P. 345)
When you complete settings, select “Save”.
■iPod setting
This screen is used for iPod setting. Select “iPod Settings” on the “Audio Settings” screen. ( P. 345)
Select “Display Cover Art”.
“On” or “Off” can be selected to
display/iPod cover art in the
screen.
Audio settings
1
2
1
2
3
1
2

3465-1. Lexus Display Audio system
ES350 300h_OM_OM33A01U_(U)
This screen is used for guidance for Bluetooth® hands-free systems set-
ting.
Display the “Setup” screen. ( P. 3 4 1 )
Select “Voice” on the “Setup” screen. Voice guidance volume setting
Voice recognition prompts on/
off
Restore default settings
When you complete settings, select “OK”.
Voice settings
1
2
1
2
3
3

347
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
5
Interior features
Automatic air conditioning system (with the Lexus
Display Audio system)
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation sys tem or the Lexus Display Audio sys-
tem
 P. 359
Air outlets and fan speed are automatica lly adjusted according to the
temperature setting.
To display the air conditioning operation screen, press the “MENU”
button on the Lexus Display Audio controller and then select “Cli-
mate”.

348
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
Control panel
Air conditioning operation
screen
Outside temperature display
Automatic mode button
“OFF” button
Fan speed control button
Air outlet selector button
Windshield defogger button
DUAL mode button Passenger’s side temperature
control buttons
Passenger’s side temperature
display
Outside/recirculated air mode
button
Driver’s side temperature dis-
play
Driver’s side temperature con-
trol buttons1
2
3
4
5
6
7
8
9
10
11
12
13

ES350 300h_OM_OM33A01U_(U)
3495-2. Using the air conditioning system and defogger
5
Interior features
Adjusting driver’s side tempera-
ture setting
Adjusting passenger’s side tem-
perature setting
Adjusting the fan speed
Selecting air outlet mode
Cooling and dehumidification
function on/off
Dual mode on/off
Micro dust and pollen filter on/off
Windshield wiper de-icer on/off
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted ac cording to the temperature setting.
Press or select of the “TEMP” to increase the temperature
and or to decrease the temperature.
When is selected (the indicator on is on) or the passenger’s side
temperature control button is pressed, the temperature for the driver and passen-
ger seats can be adjusted separately.
Automatic air conditioni ng system control screen
1
2
3
4
5
6
7
8
Using the automatic air conditioning system
1
2

350
ES350 300h_OM_OM33A01U_(U)
5-2. Using the air conditioning system and defogger
To turn on the air conditioning system and adjust the fan speed, press
on to increase the fan speed and to decrease the
fan speed or select “ ” of to increase the fan speed and “ ”
to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, press or select of the
“TEMP” to increase the temperatur e and or to decrease the
temperature.
When is selected (the indicator on is on) or the passenger’s side
temperature control button is pressed, the temperature for the driver and passen-
ger seats can be adjusted separately.
To change the air outlets, press
or select an air outlet
switch on the operation screen.
Adjusting the settings manually
1
2
3
