3815-3. Using the Lexus Display Audio system
5
Interior features
■Seek tuning
Press and hold “” or “ ” on the “PRST•TRACK” button.
■Manual tuning
Turn the “TUNE•SCROLL” knob.
■Preset stations
Press “ ” or “ ” on the “PRST•TRACK” button or select desired preset
stations.
Radio mode has a mix preset function, which can store up to 36 stations
(6 station per page  6 page) from any of the AM, FM or SAT bands.
Search for desired stations by turning the “TUNE•SCROLL” knob or
pressing and holding “ ” or “ ” on the “PRST•TRACK” button.
Select and hold one of the preset stations (1-6 every page).
Select “SCAN” on the screen.
“SCAN” appears on the screen. The radio will find the next station and stay there
for 10 seconds if “All” or “HD Only” is selected, or 5 seconds if “Analog” is
selected ( P. 385), and then scan again.
Select “SCAN” once again when the desired station is reached.
Selecting a station
Setting station presets (excluding XM® Satellite Radio)
Scanning radio stations (excluding XM® Satellite Radio)
1
2
1
2

382
ES350 300h_OM_OM33A01U_(U)
5-3. Using the Lexus Display Audio system
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information. RBDS featur es are available only when listen-
ing to an FM station that broadcasts RBDS information and the “FM Info”
indicator is on.
■Selecting a desired type
Select “Options”.
Select “FM Info” to turn the
indicator on.
RBDS (Radio Broadcast Data System)
1
2

ES350 300h_OM_OM33A01U_(U)
3835-3. Using the Lexus Display Audio system
5
Interior features
Select “TYPE ” or “  TYPE” to select program types.
The type of program changes each time the button is selected.
•Classical
•Country
• EasyLis (Easy Listening)
• Inform (Information)
•Jazz
•News
• Oldies
•Other
•Pop Music
• Religion
•Rock
•R&B (Rhythm and Blues)
•Sports
•Talk
• Traffic (Not available when “HD Radio Settings” are set to analog)
• Alert (Emergency Alert)
When a program is set, “TYPE SEEK” appears.
Select “TYPE SEEK”.
The radio seeks or scans for sta-
tions by the relevant program type.
If no relevant program can be
found, “no type” will appear on the
screen.
3
4

384
ES350 300h_OM_OM33A01U_(U)
5-3. Using the Lexus Display Audio system
■Traffic announcement
Select “Traffic” on the “Options”
screen.
“TRAF SEEK” appears on the screen,
and the radio will start seeking any
station broadcasting traffic program
information.
If no traffic program station is found,
“No Traffic” appears on the screen.
HD Radio™ Technology is the digital evolution of analog AM/FM radio. Your radio
product has a special receiver which allows it to receive digital broadcasts (where
available) in addition to the analog broadcasts it already receives. Digital broadcasts
have better sound quality than analog broadcasts as digital broadcasts provide free,
crystal clear audio with no static or distortion. For more information, and a guide to
available radio stations and programming, refer to www.hdradio.com
.
HD Radio™ technology in formation (if equipped)
HD Radio Technology manufactured under license from iBiquity Digital Corpora-
tion. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiquity Digital Corp.

ES350 300h_OM_OM33A01U_(U)
3855-3. Using the Lexus Display Audio system
5
Interior features
■HD Radio™ technology settingsDisplay the “Setup” screen. ( 
P. 3 4 1)
Select “Audio” on the “Setup” screen.
Select “HD Radio Settings”.
Select “HD Radio/Analog Set-
tings”. Receiving both analog and
digital broadcasts
Receiving only digital
broadcasts
Receiving only analog
broadcasts
■Using HD Radio™ technologySelect “HD Radio” portion to
turn the indicator on.
The radio receiver will automati-
cally tune from an analog signal to a
digital signal within 5 seconds.
An orange “HD)” logo indicator
will be displayed when in digital.
Search for desired stations by turning the “TUNE•SCROLL” knob or
pressing and holding “ ” or “” on the “PRST•TRACK” button.
1
2
3
4
1
2
3
1
2

386
ES350 300h_OM_OM33A01U_(U)
5-3. Using the Lexus Display Audio system
■Selecting a desired type Select “Options”.
Select “TYPE ” or “ TYPE” to select program types.
The type of program changes each time the button is selected. ( P. 3 8 2 )
When a program is set, “TYPE SEEK” appears.
Select “TYPE SEEK”.
The radio seeks or scans for stations by the relevant program type.
If no relevant program can be found, “no type” will appear on the screen.
■Displaying text information
Information such as the artist name, song title, album title and music
genre being listened to are displayed on the text screen.
Select “Text”.
Select “Additional Informa-
tion” to display messages from
the station.
1
2
3
1
2

ES350 300h_OM_OM33A01U_(U)
3875-3. Using the Lexus Display Audio system
5
Interior features
■Changing the multiple or supplemental programs
On the FM radio frequency most digital stations have multiple or sup-
plemental programs on one FM station.
Select “Multicast”.
Each time “Multicast” is selected,
the supplemental program
changes.
If “Multicast” is selected when
tuned to the last of the supplemen-
tal programs, the main program will
be returned to.
■Preserving tag information
Tag information in the music broadcas ting is preserved in the system
and transmits to an iPod.
Select “Tag” to bookmark the
music information.
Connect iPod using an iPod cable. ( P. 405)
The music tag moves from the system into the iPod.
If tagging the music information fails, error message will be displayed on the
screen. If this occurs, tag the information again.
Turn on the power of the iPod if it is not turned on.
When the iPod is connected to iTunes, the “tagged” information of the songs
which were tagged while listening to the radio can be viewed. Then a user may
decide to purchase the song or CD/Album.
1
2

388
ES350 300h_OM_OM33A01U_(U)
5-3. Using the Lexus Display Audio system

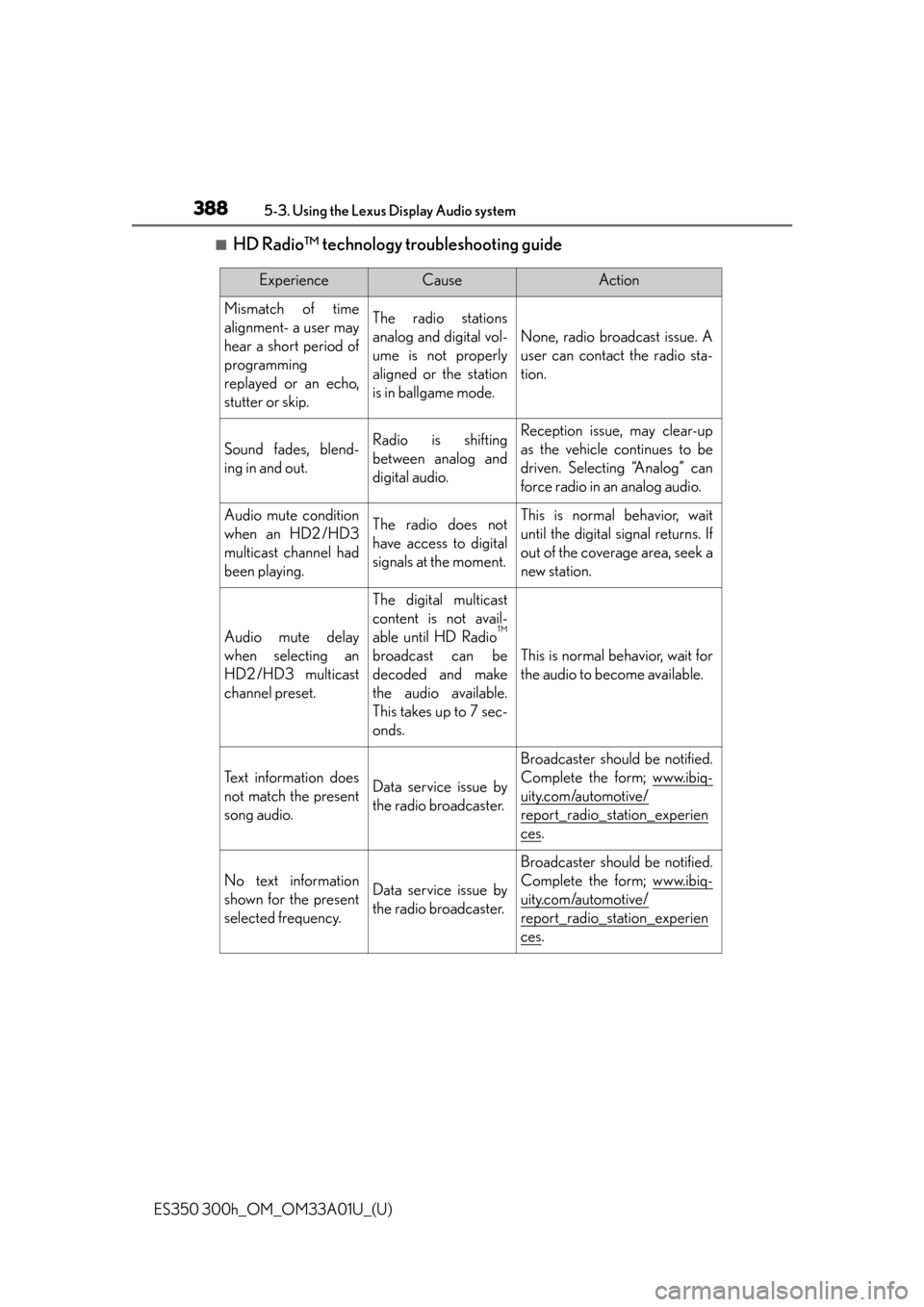

■HD Radio™ technology troubleshooting guide
ExperienceCauseAction
Mismatch of time
alignment- a user may
hear a short period of
programming
replayed or an echo,
stutter or skip.The radio stations
analog and digital vol-
ume is not properly
aligned or the station
is in ballgame mode.
None, radio broadcast issue. A
user can contact the radio sta-
tion.
Sound fades, blend-
ing in and out.Radio is shifting
between analog and
digital audio.Reception issue, may clear-up
as the vehicle continues to be
driven. Selecting “Analog” can
force radio in an analog audio.
Audio mute condition
when an HD2 /HD3
multicast channel had
been playing.The radio does not
have access to digital
signals at the moment.This is normal behavior, wait
until the digital signal returns. If
out of the coverage area, seek a
new station.
Audio mute delay
when selecting an
HD2 /HD3 multicast
channel preset.
The digital multicast
content is not avail-
able until HD Radio
™
broadcast can be
decoded and make
the audio available.
This takes up to 7 sec-
onds.This is normal behavior, wait for
the audio to become available.
Text information does
not match the present
song audio.Data service issue by
the radio broadcaster.
Broadcaster should be notified.
Complete the form; www.ibiq-
uity.com/automotive/
report_radio_station_experien
ces.
No text information
shown for the present
selected frequency.Data service issue by
the radio broadcaster.
Broadcaster should be notified.
Complete the form; www.ibiq-
uity.com/automotive/
report_radio_station_experien
ces.

ES350 300h_OM_OM33A01U_(U)
3895-3. Using the Lexus Display Audio system
5
Interior features
■Receiving XM® Satellite Radio
Press the “RADIO” button or select “SAT” on the audio source
selection.
Turn the “TUNE•SCROLL” knob to select the desired channel in the
all categories or press and hold “ ” or “ ” on the “PRST•TRACK”
button to select the desired channel in the current category.
■Setting XM® Satellite Radio channel presets
Select the desired channel. Select and hold one of the preset stations
(1-6 every page).
XM® Satellite Radio (if equipped)
1
2

390
ES350 300h_OM_OM33A01U_(U)
5-3. Using the Lexus Display Audio system
■Changing the channel categorySelect “Options”.
Select “TYPE ” or “ TYPE”.
■Scanning XM® Satellite Radio channels
Scanning channels in the current category Select “SCAN” on the screen.
“SCAN” appears on the screen.
Select “SCAN” once again when the desired channel is reached.
■Displaying the title and artist name
Select “Text”.
The screen will show up to 64
characters.
1
