wipers Lexus ES350 2014 Owner's Manual

4
ES350_QG_OM33A70U_(U)

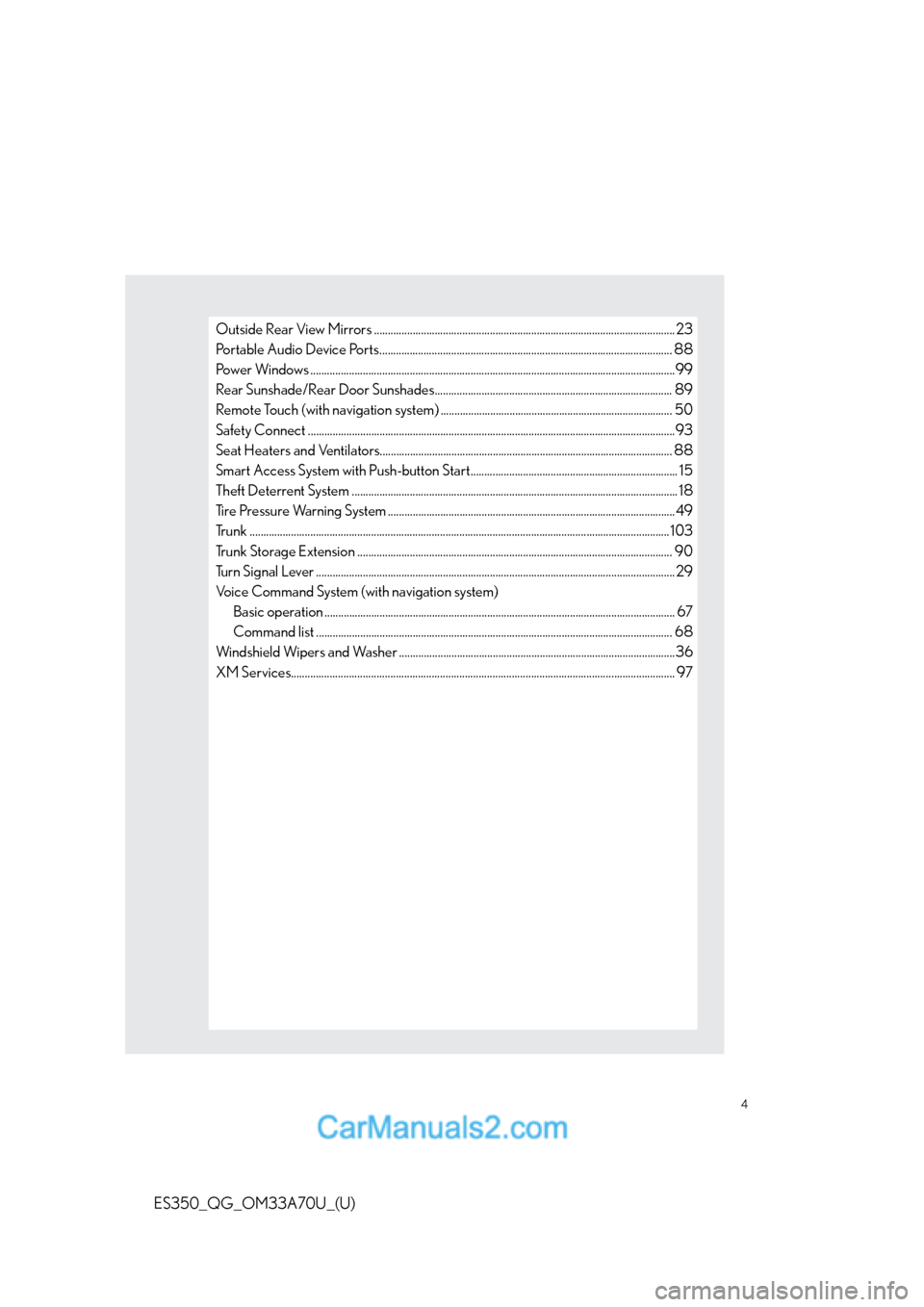

Outside Rear View Mirrors .............................................................................................................23
Portable Audio Device Ports.......................................................................................................... 88
Power Windows ....................................................................................................................................99
Rear Sunshade/Rear Door Sunshades...................................................................................... 89
Remote Touch (with navigation system) .................................................................................... 50
Safety Connect .....................................................................................................................................93
Seat Heaters and Ventilators.......................................................................................................... 88
Smart Access System with Push-button Start........................................................................... 15
Theft Deterrent System ...................................................................................................................... 18
Tire Pressure Warning System ........................................................................................................ 49
Trunk ........................................................................................................................................................ 103
Trunk Storage Extension .................................................................................................................. 90
Turn Signal Lever .................................................................................................................................. 29
Voice Command System (with navigation system)
Basic operation ............................................................................................................................... 67
Command list ................................................................................................................................. 68
Windshield Wipers and Washer ....................................................................................................36
XM Services........................................................................................................................................... 97

36
ES350_QG_OM33A70U_(U)

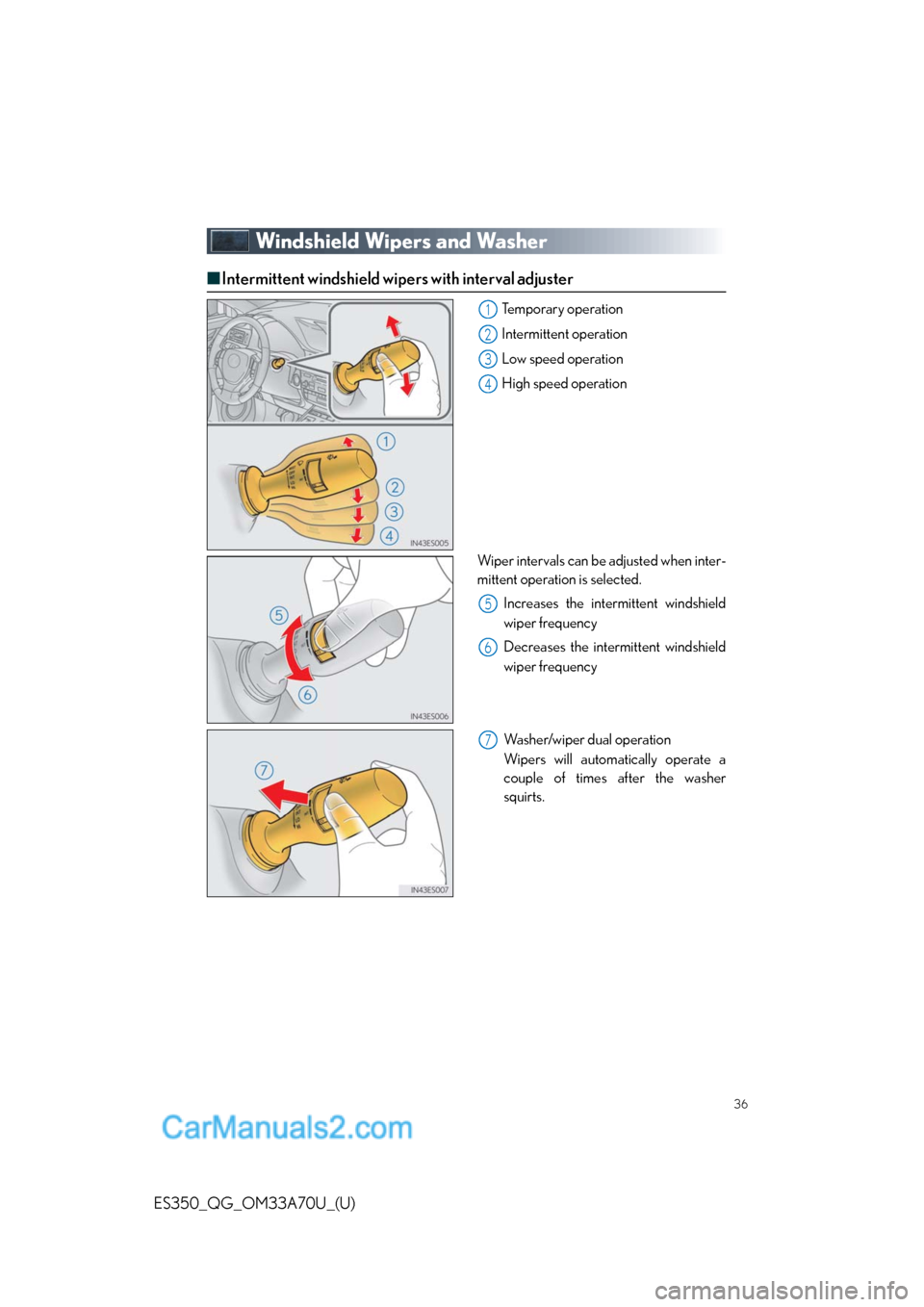

Windshield Wipers and Washer
â– Intermittent windshield wipers with interval adjuster
Temporary operation
Intermittent operation
Low speed operation
High speed operation
Wiper intervals can be adjusted when inter-
mittent operation is selected.
Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.1
2
3
4
5
6
7

37
ES350_QG_OM33A70U_(U)
â– Rain-sensing windshield wipers
Te m p o r a r y o p e r a t i o n
Rain-sensing wiper operation (AUTO)
Low speed operation
High speed operation
With AUTO selected, the wipers will
operate automatically when the sen-
sor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
The sensor sensitivity can be adjusted when
AUTO is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.1
2
3
4
5
6
7

38
ES350_QG_OM33A70U_(U)

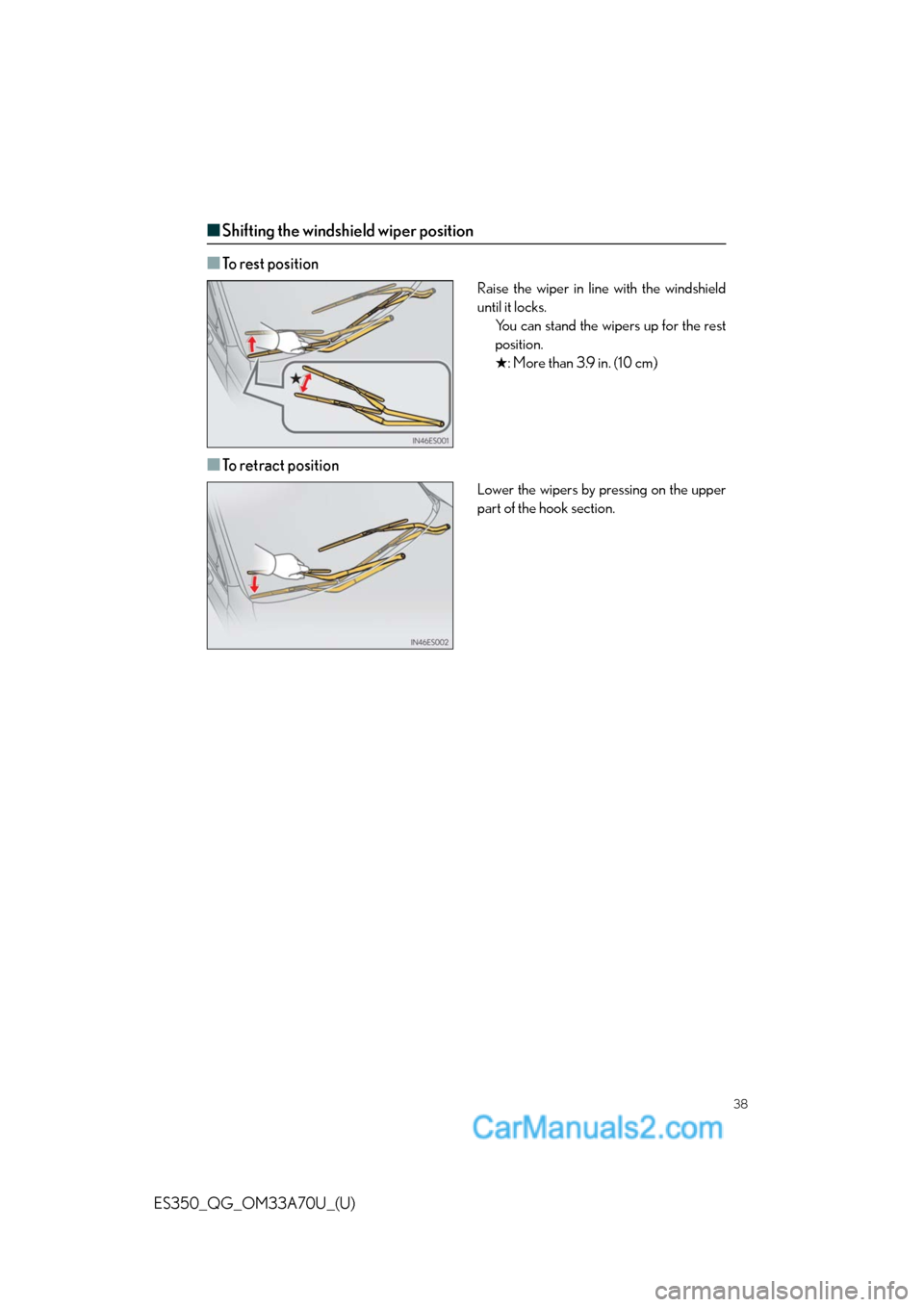

â– Shifting the windshield wiper position
â–
To rest position
Raise the wiper in line with the windshield
until it locks.
You can stand the wipers up for the rest
position.
★: More than 3.9 in. (10 cm)
â– To retract position
Lower the wipers by pressing on the upper
part of the hook section.
