boot Lexus ES350 2014 Warranty and Services Guide

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
48
6 Months or 5,000 Miles1
❑ Inspect and adjust all fluid levels
❑ Program Lexus Personalized Settings,
if requested
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If you drive primarily under certain special
operating conditions, you should also replace
the engine oil with 0W-20 oil and replace the
oil filter. See page 44 for conditions that apply.
Some conditions require additional maintenance.
See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________
12 Months or 10,000 Miles2
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________
1 This service, excluding maintenance required for special operating conditions, is complimentary when performed by an
authorized Lexus dealership.
2This service is complimentary when performed by an authorized Lexus dealership.
129173_text.indd 488/20/13 10:24 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log49
18 Months or 15,000 Miles
❑ Inspect and adjust all fluid levels
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Engine coolant (see page 69)
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect engine air filter
❑ Tighten nuts and bolts on chassis __
Exhaust pipes and mountings
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Wiper blades
Date: __________________________ Mileage: __________________________
129173_text.indd 498/20/13 10:24 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
50
24 Months or 20,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
30 Months or 25,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 508/20/13 10:24 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log51
36 Months or 30,000 Miles
❑ Replace engine oil with 0W-20 oil; replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Replace cabin air filter
❑ Replace brake fluid
❑ Replace engine air filter
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Brake rotor thickness and runout
__ Engine coolant (see page 69)
__ Exhaust pipes and mountings
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Tighten nuts and bolts on chassis __
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Transmission for signs of leakage
__ Wiper blades
❑ Replace Smart Key battery
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Date: __________________________ Mileage: __________________________
129173_text.indd 518/20/13 10:24 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
52
42 Months or 35,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
48 Months or 40,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 528/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log53
54 Months or 45,000 Miles
❑ Inspect and adjust all fluid levels
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Engine coolant (see page 69)
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect engine air filter
❑ Tighten nuts and bolts on chassis __
Exhaust pipes and mountings
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Wiper blades
Date: __________________________ Mileage: __________________________
129173_text.indd 538/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log
54
60 Months or 50,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
66 Months or 55,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 548/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log55
72 Months or 60,000 Miles
❑ Replace engine oil with 0W-20 oil; replace oil filter
❑ Replace cabin air filter
❑ Replace brake fluid
❑ Replace engine air filter
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Brake rotor thickness and runout
__ Drive belts
__ Engine coolant (see page 69)
__ Exhaust pipes and mountings
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Tighten nuts and bolts on chassis __
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Transmission for signs of leakage
__ Wiper blades
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Date: __________________________ Mileage: __________________________
129173_text.indd 558/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE

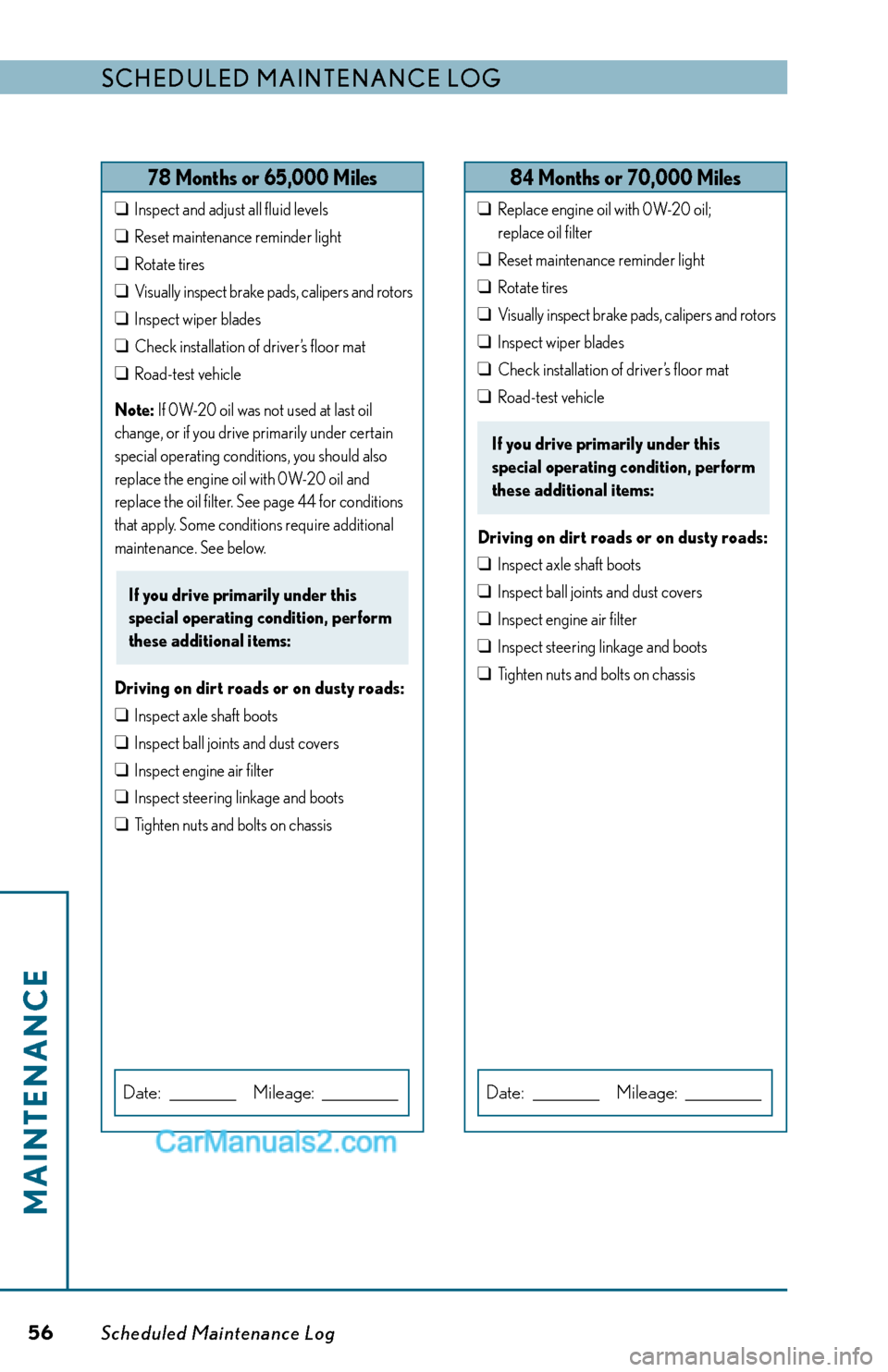

Scheduled Maintenance Log
56
78 Months or 65,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
84 Months or 70,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
Date: _______ Mileage: ________Date: _______ Mileage: ________
129173_text.indd 568/20/13 10:25 PM

Scheduled Maintenance log
MAINTENANCE
Scheduled Maintenance Log57
90 Months or 75,000 Miles
❑ Inspect and adjust all fluid levels
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Rotate tires
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Drive belt
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect engine air filter
❑ Tighten nuts and bolts on chassis __
Engine coolant (see page 69)
__ Exhaust pipes and mountings
__ Rack-and-pinion assembly
__ Steering linkage and boots
__ Wiper blades
Date: __________________________ Mileage: __________________________
129173_text.indd 578/20/13 10:25 PM
