Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

ES350_300h_OM_OM33B99U_(U)

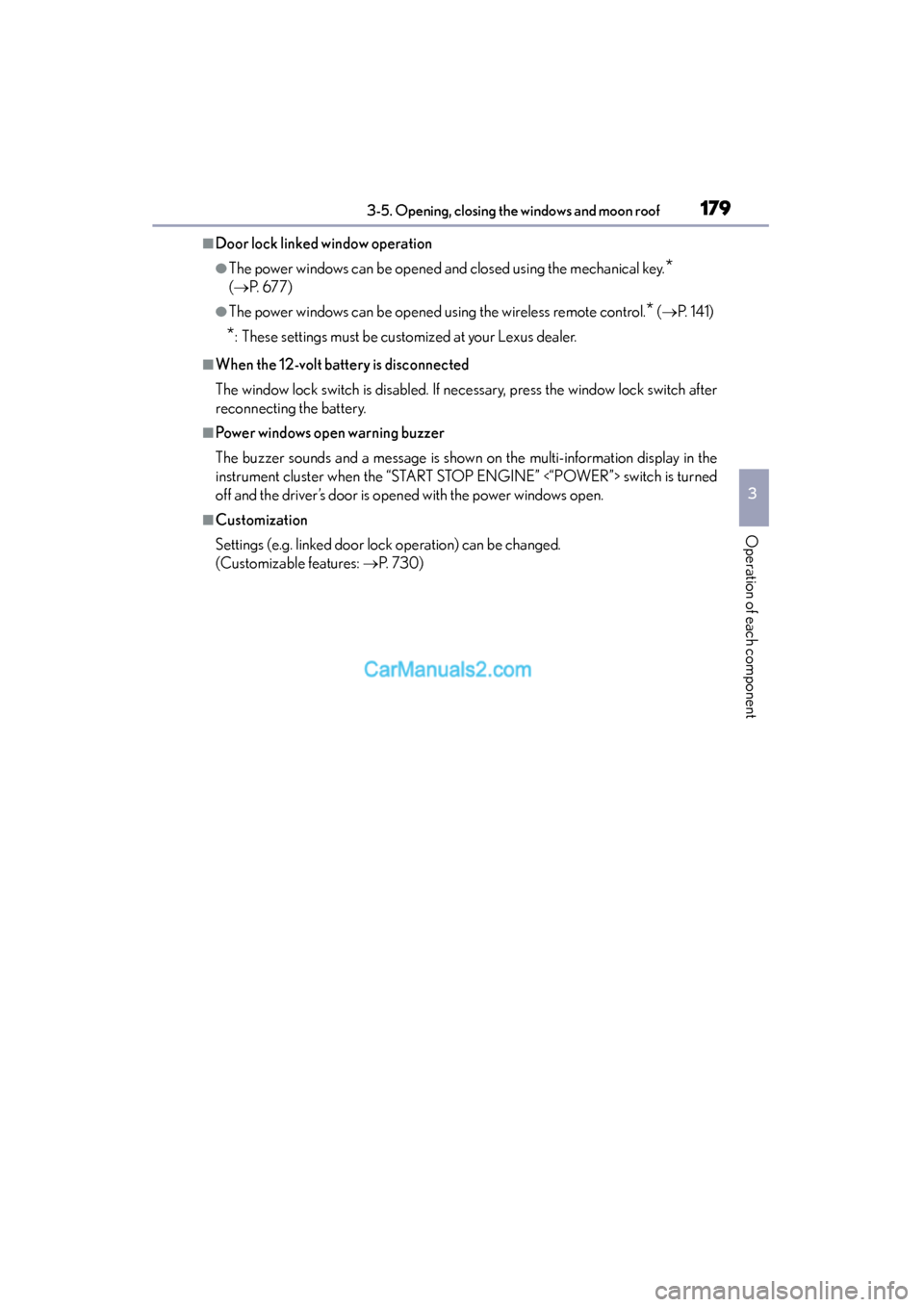

1793-5. Opening, closing the windows and moon roof
3
Operation of each component
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
(→ P. 6 7 7 )
●The power windows can be opened using the wireless remote control.* (→ P. 141)
*: These settings must be customized at your Lexus dealer.
■When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned
off and the driver’s door is opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 7 3 0 )

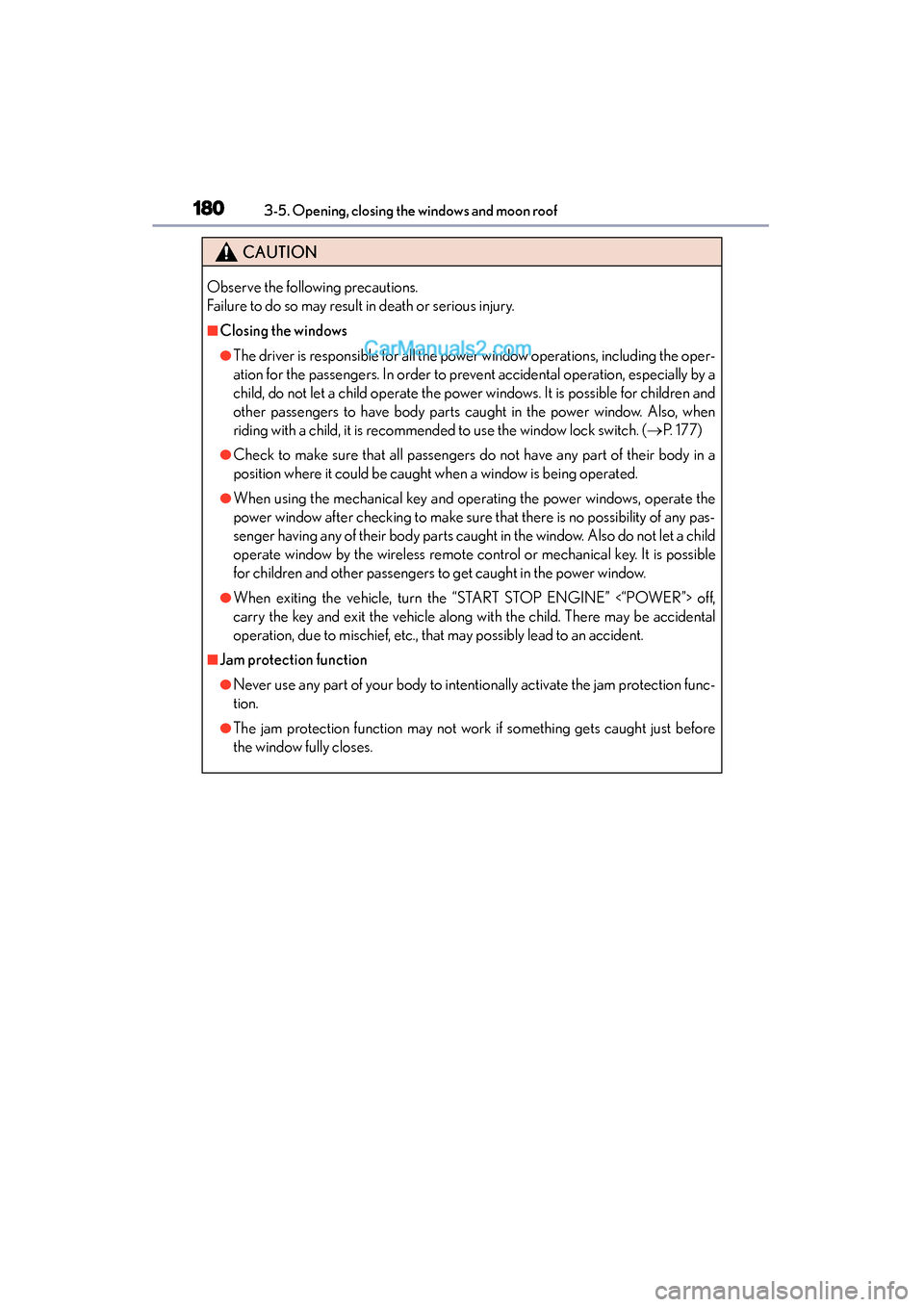

180
ES350_300h_OM_OM33B99U_(U)
3-5. Opening, closing the windows and moon roof
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the oper-
ation for the passengers. In order to prevent accidental operation, especially by a
child, do not let a child operate the power windows. It is possible for children and
other passengers to have body parts caught in the power window. Also, when
riding with a child, it is recommended to use the window lock switch. (→P. 177)
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●When using the mechanical key and operating the power windows, operate the
power window after checking to make sure that there is no possibility of any pas-
senger having any of their body parts caught in the window. Also do not let a child
operate window by the wireless remote control or mechanical key. It is possible
for children and other passengers to get caught in the power window.
●When exiting the vehicle, turn the “START STOP ENGINE” <“POWER”> off,
carry the key and exit the vehicle along with the child. There may be accidental
operation, due to mischief, etc., that may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.

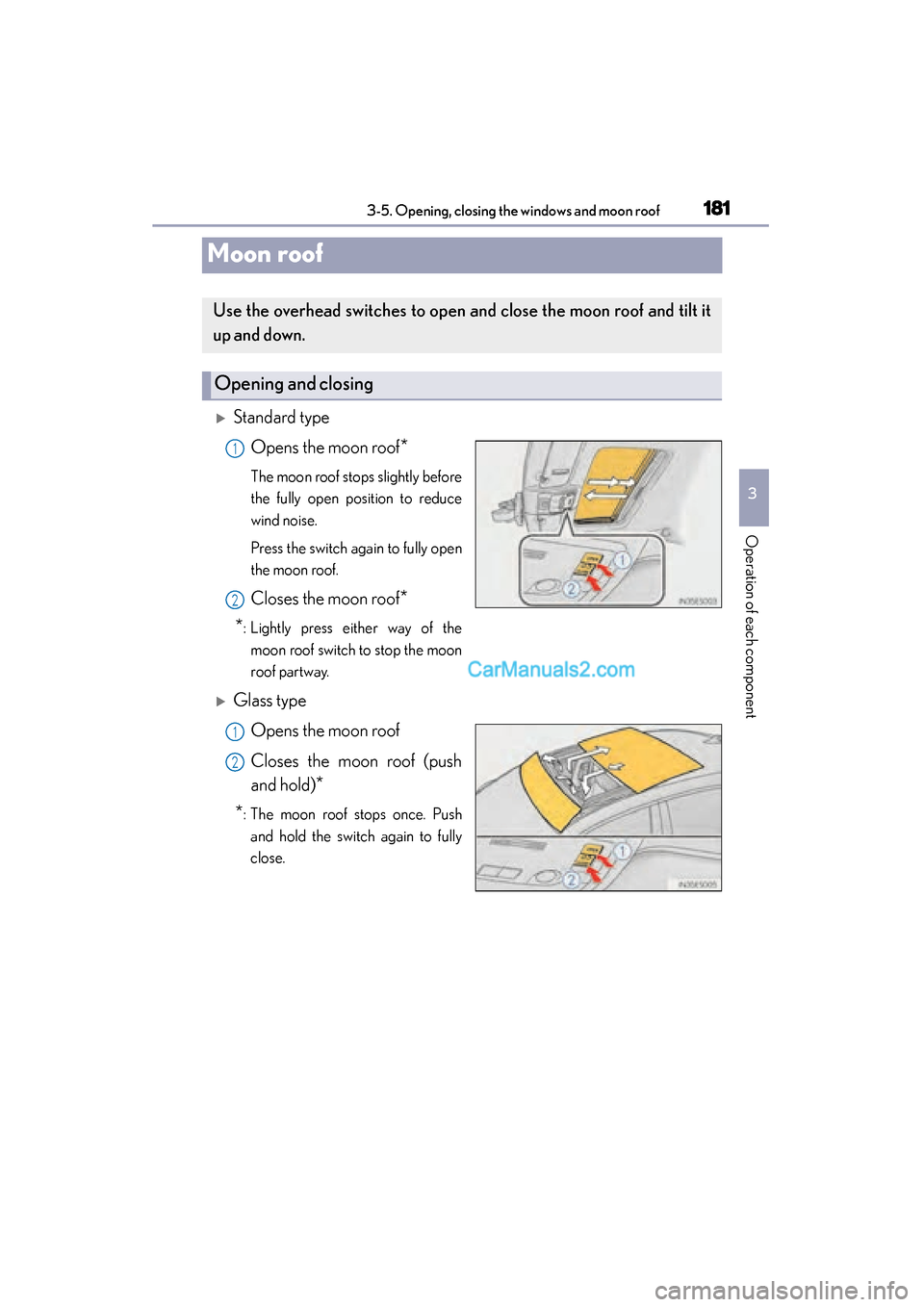

181
ES350_300h_OM_OM33B99U_(U)
3-5. Opening, closing the windows and moon roof
3
Operation of each component
Moon roof
XStandard typeOpens the moon roof
*
The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.
Closes the moon roof*
*
: Lightly press either way of the moon roof switch to stop the moon
roof partway.
XGlass type
Opens the moon roof
Closes the moon roof (push
and hold)
*
*
: The moon roof stops once. Push and hold the switch again to fully
close.
Use the overhead switches to open and close the moon roof and tilt it
up and down.
Opening and closing
1
2
1
2

182
ES350_300h_OM_OM33B99U_(U)
3-5. Opening, closing the windows and moon roof
XStandard typeTilts the moon roof up
*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof switch to stop the moon
roof partway.
XGlass type
Tilts the moon roof up
*
Tilts the moon roof down (push
and hold)
*: Lightly press either way of themoon roof switch to stop the moon
roof partway.
Tilting up and down
1
2
1
2

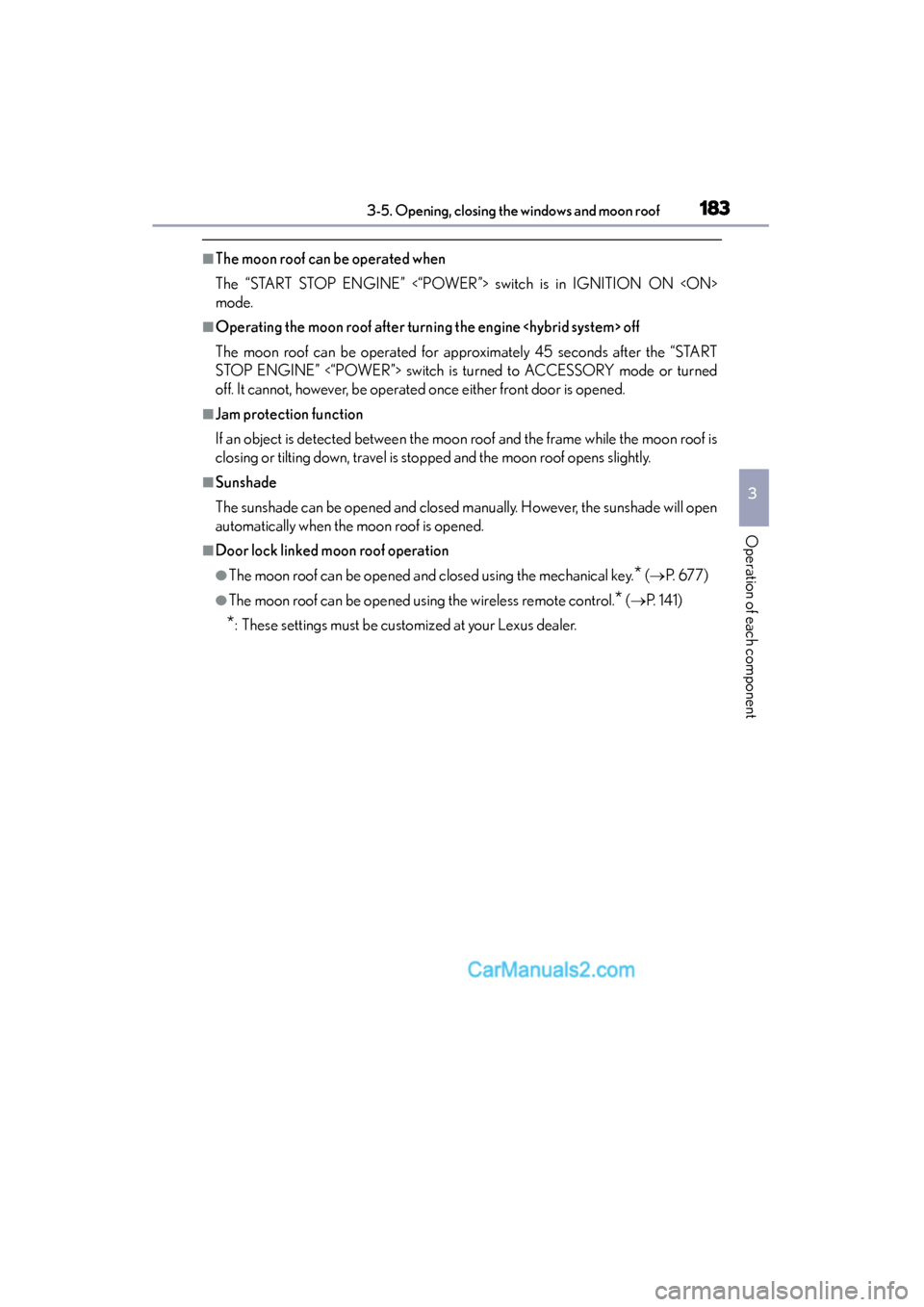

ES350_300h_OM_OM33B99U_(U)
1833-5. Opening, closing the windows and moon roof
3
Operation of each component
■The moon roof can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the “START
STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* ( → P. 677)
●The moon roof can be opened using the wireless remote control.* (→ P. 141)
*: These settings must be customized at your Lexus dealer.

184
ES350_300h_OM_OM33B99U_(U)
3-5. Opening, closing the windows and moon roof
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightlyStop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 seconds.*2
Then it will close again, tilt up and pause for approximately 1 second. Finally, it
will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
●If the moon roof tilts down but then tilts back upStop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt up posi-
tion and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt
down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
*1: If the switch is released at the incorrect time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automaticoperation will be disabled. In that case, press and hold the “CLOSE” or “UP”
switch, and the moon roof will tilt up and pause for approximately 1 second. Then
it will tilt down, open and close. Check to make sure that the moon roof is com-
pletely closed and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by your Lexus dealer.
1
2
3
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
1853-5. Opening, closing the windows and moon roof
3
Operation of each component
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned
off and the driver’s door is opened with the moon roof open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 7 3 0 )
CAUTION
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●The driver is responsible for moon roof opening and closing operations. In order
to prevent accidental operation, especially by a child, do not let a child operate
the moon roof. It is possible for children and other passengers to have body parts
caught in the moon roof.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●When using the mechanical key and operating the moon roof, operate the moon
roof after checking to make sure that there is no possibility of any passenger hav-
ing any of their body parts caught in the moon roof. Also do not let a child operate
moon roof by the wireless remote control or mechanical key. It is possible for chil-
dren and other passengers to get caught in the moon roof.
●When exiting the vehicle, turn the “START STOP ENGINE” <“POWER”> off,
carry the key and exit the vehicle along with the child. There may be accidental
operation, due to mischief, etc., that may possibly lead to an accident.

186
ES350_300h_OM_OM33B99U_(U)
3-5. Opening, closing the windows and moon roof
CAUTION
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.

187
ES350_300h_OM_OM33B99U_(U)
4Driving
4-1. Before drivingDriving the vehicle ......................188
Cargo and luggage .................... 199
Vehicle load limits ......................202
Trailer towing ................................203
Dinghy towing..............................204
4-2. Driving procedures Engine (ignition) switch (gasoline vehicles) ................. 205
Power (ignition) switch (hybrid vehicles) ....................... 212
EV drive mode (hybrid vehicles) ....................... 219
Automatic transmission (gasoline vehicles) .................. 222
Hybrid transmission (hybrid vehicles) ...................... 226
Turn signal lever ......................... 230
Parking brake ................................ 231
Horn.................................................232
4-3. Operating the lights and wipers
Headlight switch .........................233
Automatic High Beam ............. 237
Fog light switch............................ 244
Windshield wipers and washer................................. 245 4-4. Refueling
Opening the fuel tank cap ..... 249
4-5. Using the driving support systems
Cruise control ............................. 254
Dynamic radar cruise control ............................258
LDA (Lane Departure Alert) .........273
Intuitive parking assist ............... 281
Lexus parking assist monitor ........................................ 294
Driving mode select switch .............................................. 311
Driving assist systems................ 313
Hill-start assist control (hybrid vehicles) ....................... 319
PCS (Pre-Collision System)........... 321
BSM (Blind Spot Monitor) ..... 328 •Blind Spot Monitor function .................................... 332
• Rear Cross Traffic Alert function .................................... 335
4-6. Driving tips Hybrid vehicle driving tips (hybrid vehicles) .....................338
Winter driving tips ...................... 341

188

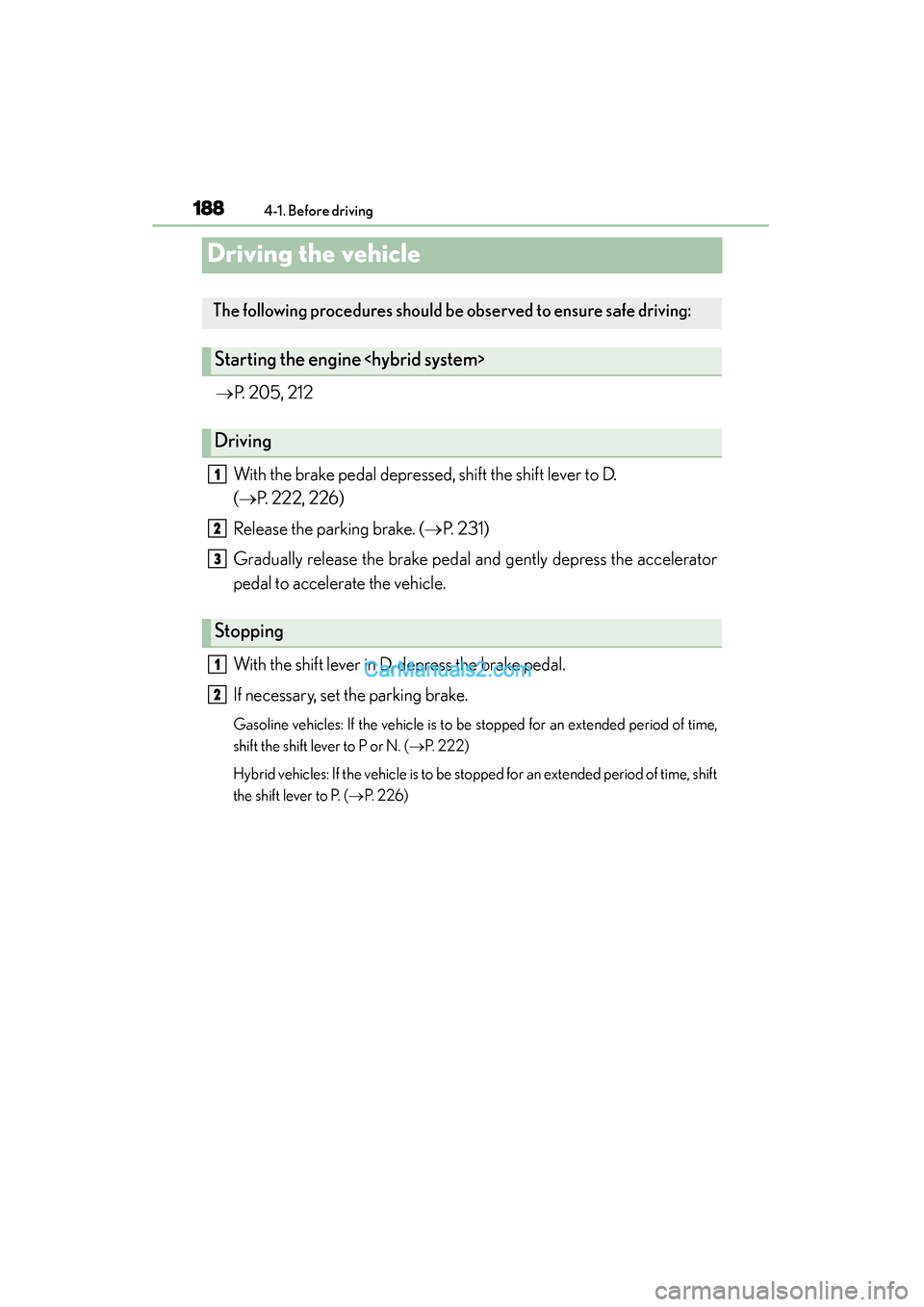

ES350_300h_OM_OM33B99U_(U)
4-1. Before driving
Driving the vehicle
→P. 205, 212
With the brake pedal depressed, shift the shift lever to D.
(→ P. 222, 226)
Release the parking brake. ( →P. 2 3 1 )
Gradually release the brake pedal and gently depress the accelerator
pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
Gasoline vehicles: If the vehicle is to be stopped for an extended period of time,
shift the shift lever to P or N. (→ P. 222)
Hybrid vehicles: If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P. ( →P. 2 2 6 )
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
1
2
3
1
2
