Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

369
ES350_300h_OM_OM33B99U_(U)
5-3. Using the audio system
5
Lexus Display Audio system
Selecting the audio source
Press the “AUDIO” button to display the “Source” screen.
If the “Source” screen is not displayed, press the button again.
Select the desired audio source.
The audio source can be selected by pressing the “RADIO” or “MEDIA” button.
Press the “MODE” switch when the audio system is turned on. The audio
source changes each time the “MODE” switch is pressed.
■Rearranging the list
The listing order of the source list can be rearranged.Move the controller to the left while on the “Source” screen.
Select “Audio Source Select”.
Select an item you wish to move and then select where to move the item to.
Switching between audio sources such as radio and CD are explained
in this section.
Changing audio source
Using the steering wheel switch es to change audio sources
1
2
1
2
3

370
ES350_300h_OM_OM33B99U_(U)
5-3. Using the audio system
Optimal use of the audio system
Audio menu screen. (→P. 375)
Select “Sound Settings”.
To change between the sound setting screen and DSP setting screen,
move the controller to the right then select the desired screen.
X“Sound Settings” Adjust the treble, mid or
bass.
Adjust the front/rear audio bal-
ance.
Adjust the left/right audio bal-
ance.
X“DSP”
Set the automatic sound levelizer
(ASL) on/off
Set the surround function on/off
On the “Sound Settings” screen, sound quality (Treble/Mid/Bass), vol-
ume balance and DSP settings can be adjusted.
How to adjust the sound settings and sound quality
1
2
123
4
5
1
2

ES350_300h_OM_OM33B99U_(U)
3715-3. Using the audio system
5
Lexus Display Audio system
■The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode separately.
■About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to the vehicle
speed.

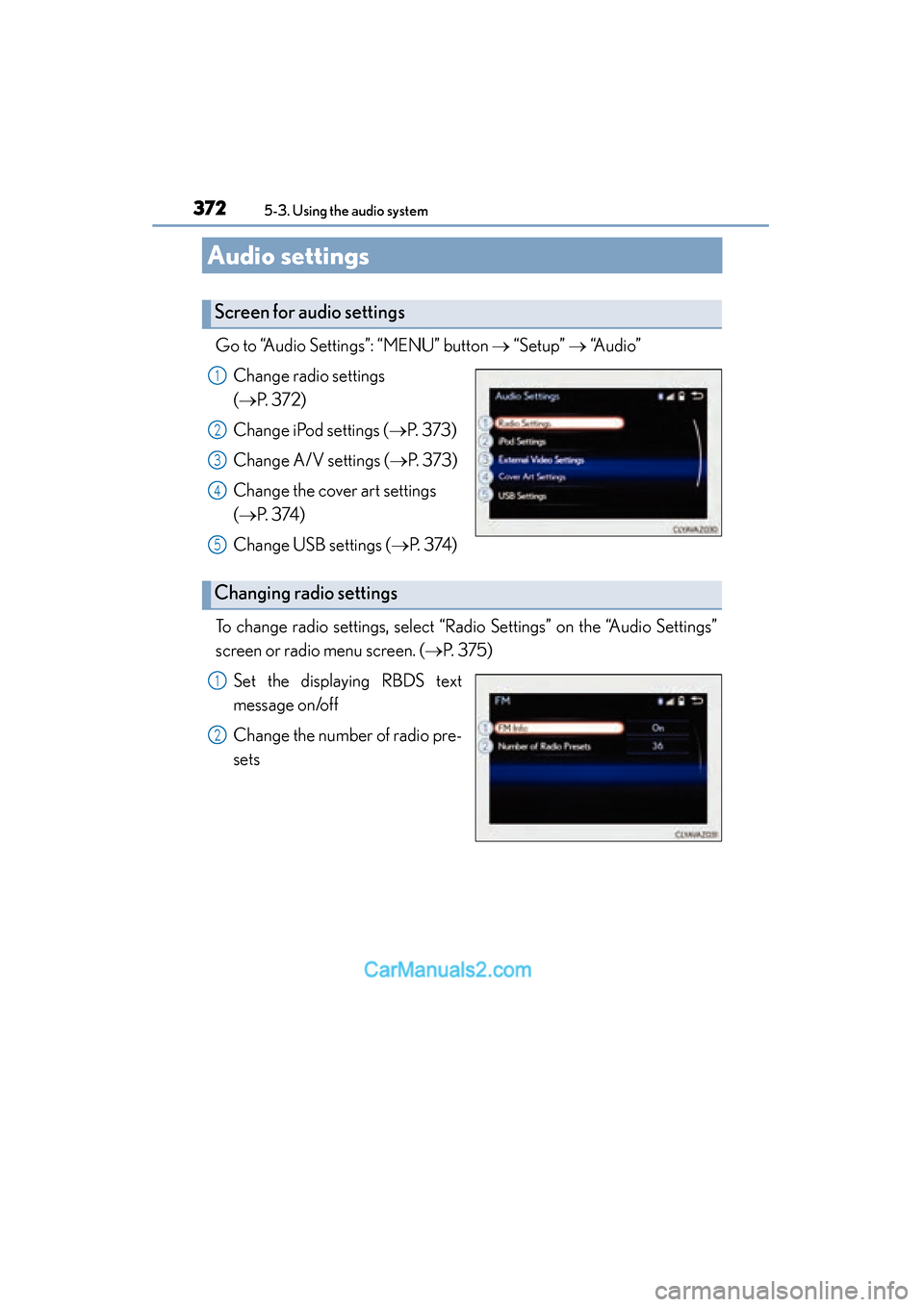

372
ES350_300h_OM_OM33B99U_(U)
5-3. Using the audio system
Audio settings
Go to “Audio Settings”: “MENU” button → “Setup” → “A u d i o ”
Change radio settings
(→ P. 3 7 2 )
Change iPod settings ( →P. 373)
Change A/V settings ( →P. 373)
Change the cover art settings
(→ P. 3 74 )
Change USB settings ( →P. 3 74 )
To change radio settings, select “Radio Settings” on the “Audio Settings”
screen or radio menu screen. ( →P. 375)
Set the displaying RBDS text
message on/off
Change the number of radio pre-
sets
Screen for audio settings
1
2
3
4
5
Changing radio settings
1
2

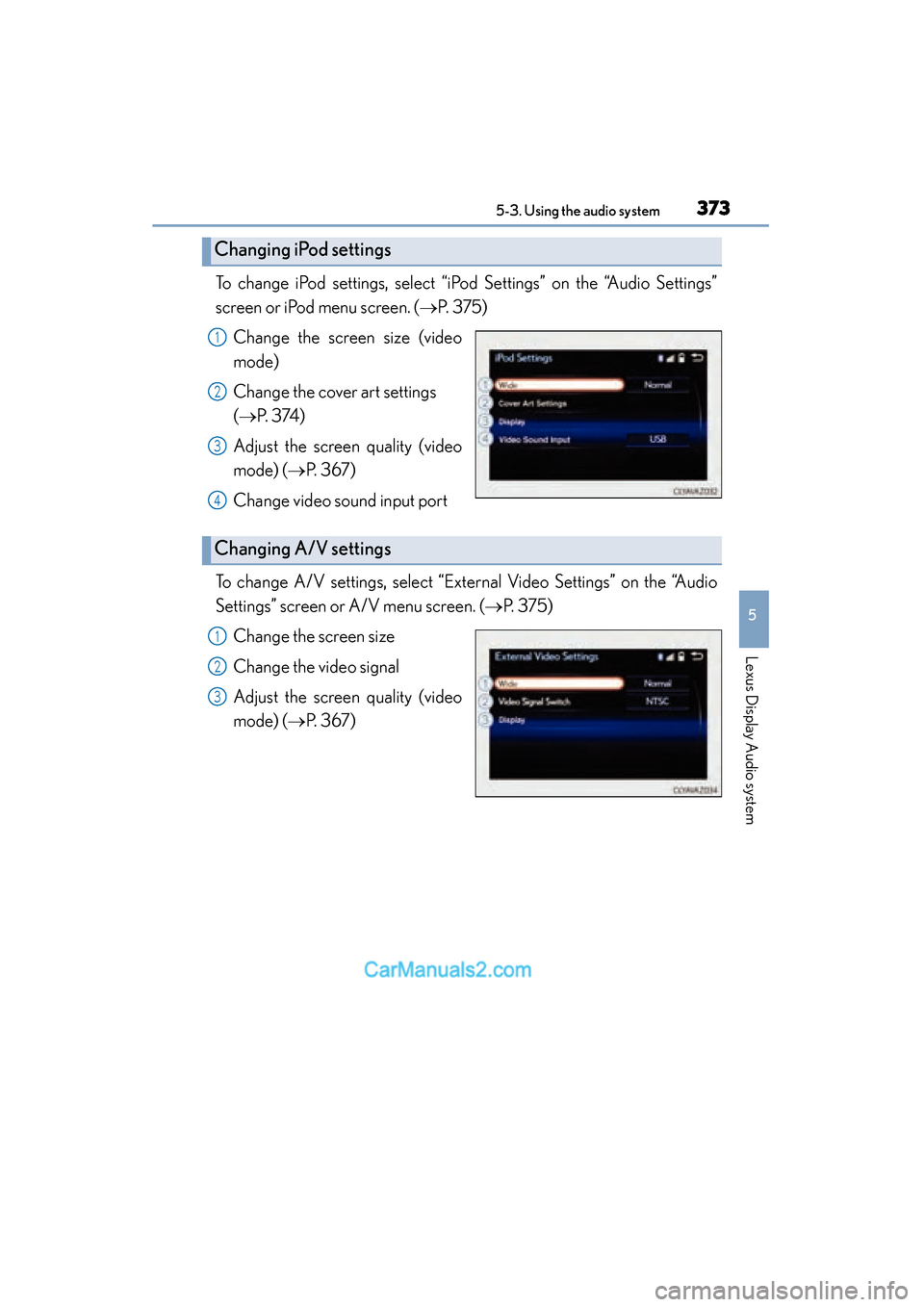

ES350_300h_OM_OM33B99U_(U)
3735-3. Using the audio system
5
Lexus Display Audio system
To change iPod settings, select “iPod Settings” on the “Audio Settings”
screen or iPod menu screen. ( →P. 375)
Change the screen size (video
mode)
Change the cover art settings
(→ P. 3 74 )
Adjust the screen quality (video
mode) ( →P. 367)
Change video sound input port
To change A/V settings, select “Ext ernal Video Settings” on the “Audio
Settings” screen or A/V menu screen. (→ P. 375)
Change the screen size
Change the video signal
Adjust the screen quality (video
mode) ( →P. 367)
Changing iPod settings
1
2
3
4
Changing A/V settings
1
2
3

3745-3. Using the audio system
ES350_300h_OM_OM33B99U_(U)
To change the cover art settings, select “Cover Art Settings” on the “Audio
Settings” screen, CD or MP3/WMA/AAC disc menu screen. ( →P. 375)
Select to set the cover art display
of the DISC mode on/off.
Select to set the cover art display
of the USB mode on/off.
Change the priority of the
Gracenote database of the USB
mode.
Select to set the cover art display of the iPod mode on/off.
Change the priority of the Gracenote database of the iPod mode.
To change USB settings, select “USB Settings” on the “Audio Settings”
screen or USB menu screen. ( →P. 375)
Change the cover art settings
(→ P. 3 74 )
Changing the cover art settings
1
2
3
Changing USB settings
4
5
1

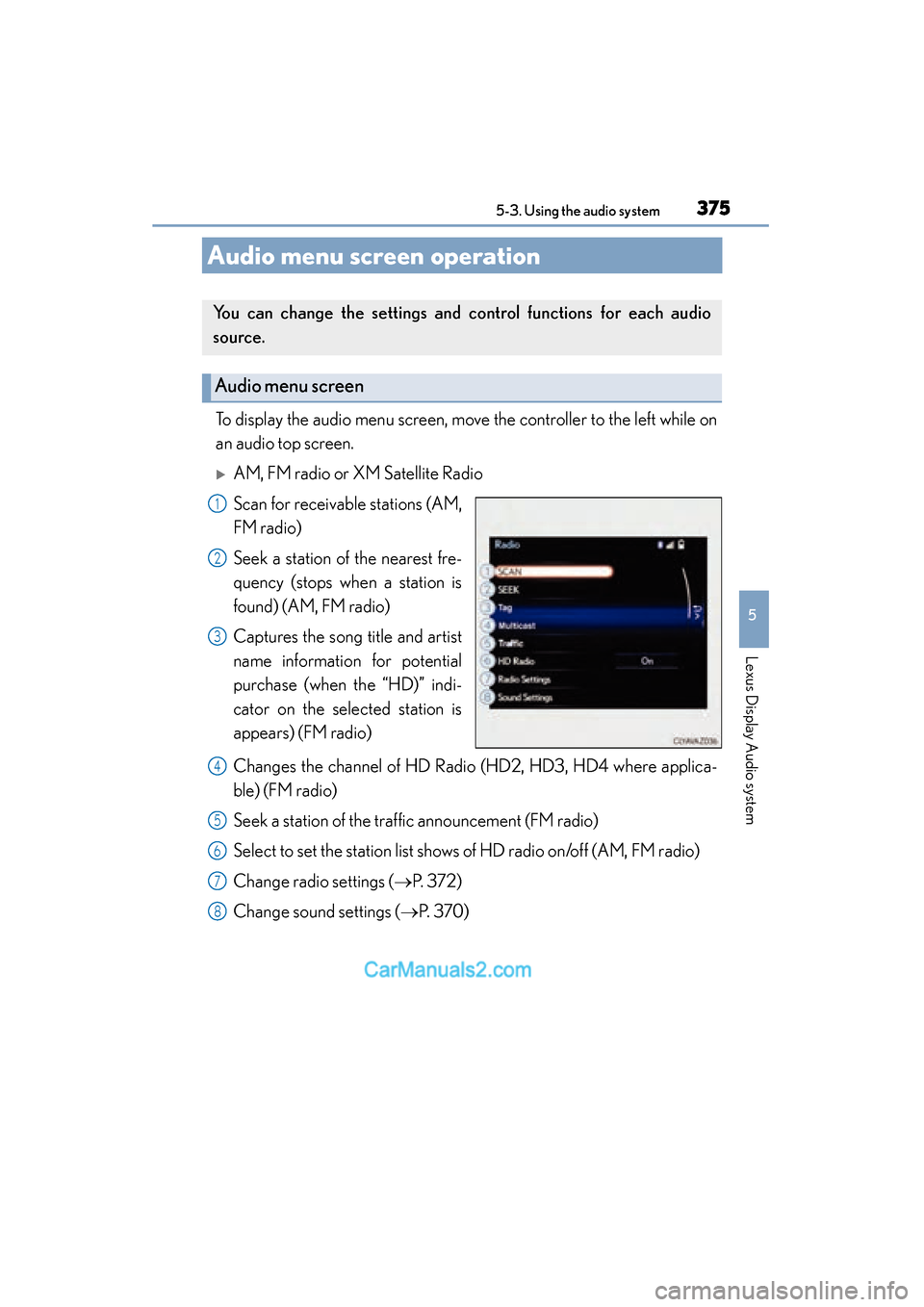

375
ES350_300h_OM_OM33B99U_(U)
5-3. Using the audio system
5
Lexus Display Audio system
Audio menu screen operation
To display the audio menu screen, move the controller to the left while on
an audio top screen.
XAM, FM radio or XM Satellite Radio
Scan for receivable stations (AM,
FM radio)
Seek a station of the nearest fre-
quency (stops when a station is
found) (AM, FM radio)
Captures the song title and artist
name information for potential
purchase (when the “HD)” indi-
cator on the selected station is
appears) (FM radio)
Changes the channel of HD Radio (HD2, HD3, HD4 where applica-
ble) (FM radio)
Seek a station of the traffic announcement (FM radio)
Select to set the station list shows of HD radio on/off (AM, FM radio)
Change radio settings (→P. 3 7 2 )
Change sound settings ( →P. 3 7 0 )
You can change the settings and control functions for each audio
source.
Audio menu screen
1
2
3
4
5
6
7
8

3765-3. Using the audio system
ES350_300h_OM_OM33B99U_(U)
XCD, MP3/WMA/AAC disc, iPod, USB or Bluetooth®
Play or pause a track/file
Select a track/file
Select a folder/album (MP3/
WMA/AAC disc or USB)
Select and hold: Fast-forward or
rewind a track/file
Select a repeat mode.
(→P. 3 7 7 )
Select a random/shuffle play
mode. ( →P. 3 7 7 )
Select a full screen mode (iPod
video mode)
Change iPod settings (iPod)
(→ P. 373)
Change USB settings (USB) ( →P. 3 74 )
Connect a Bluetooth device (Bluetooth
®) (→ P. 4 1 0 )
Change the cover art settings (CD or MP3/WMA/AAC disc)
(→ P. 3 74 )
Change sound settings ( →P. 3 7 0 )
XA/V
Select full screen mode
Change A/V settings
(→ P. 373)
Change sound settings
(→ P. 3 7 0 )
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3

ES350_300h_OM_OM33B99U_(U)
3775-3. Using the audio system
5
Lexus Display Audio system
Repeat play
ModeActionTarget audio source
File/track repeat All media
Folder repeat MP3/WMA/AAC disc, USB
Album repeat USB, Bluetooth
®
Random/shuffle playback
ModeActionTarget audio source
Random/shuffle play of the disc/
folder/album All media
Random play of all folders MP3/WMA/AAC disc, USB
Random/shuffle play of all albums iPod, USB, Bluetooth
®

378
ES350_300h_OM_OM33B99U_(U)
5-4. Using the radio
Radio operation
Pressing the “RADIO” button displays the radio top screen from any
screen of the selected source.
■Menu screen
→P. 3 7 5
Tune in to the desired station using one of the following methods.
■Seek tuning
Press and hold then release “ ∧” or “ ∨”.
Seek turning can also be operated on the menu screen. ( →P. 375)
The radio will begin seeking up or down for a station of the nearest fre-
quency and will stop when a station is found.
■Manual tuning
Turn the “TUNE•SCROLL” knob.
■Preset stations
Select the desired preset station by pressing “ ∧” or “ ∨” or controller.
Select “AM”, “FM” or “SAT” on the audio source selection screen to
begin listening to the radio.
Radio top screen
Selecting a station (AM or FM radio)
