Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

ES350_300h_OM_OM33B99U_(U)

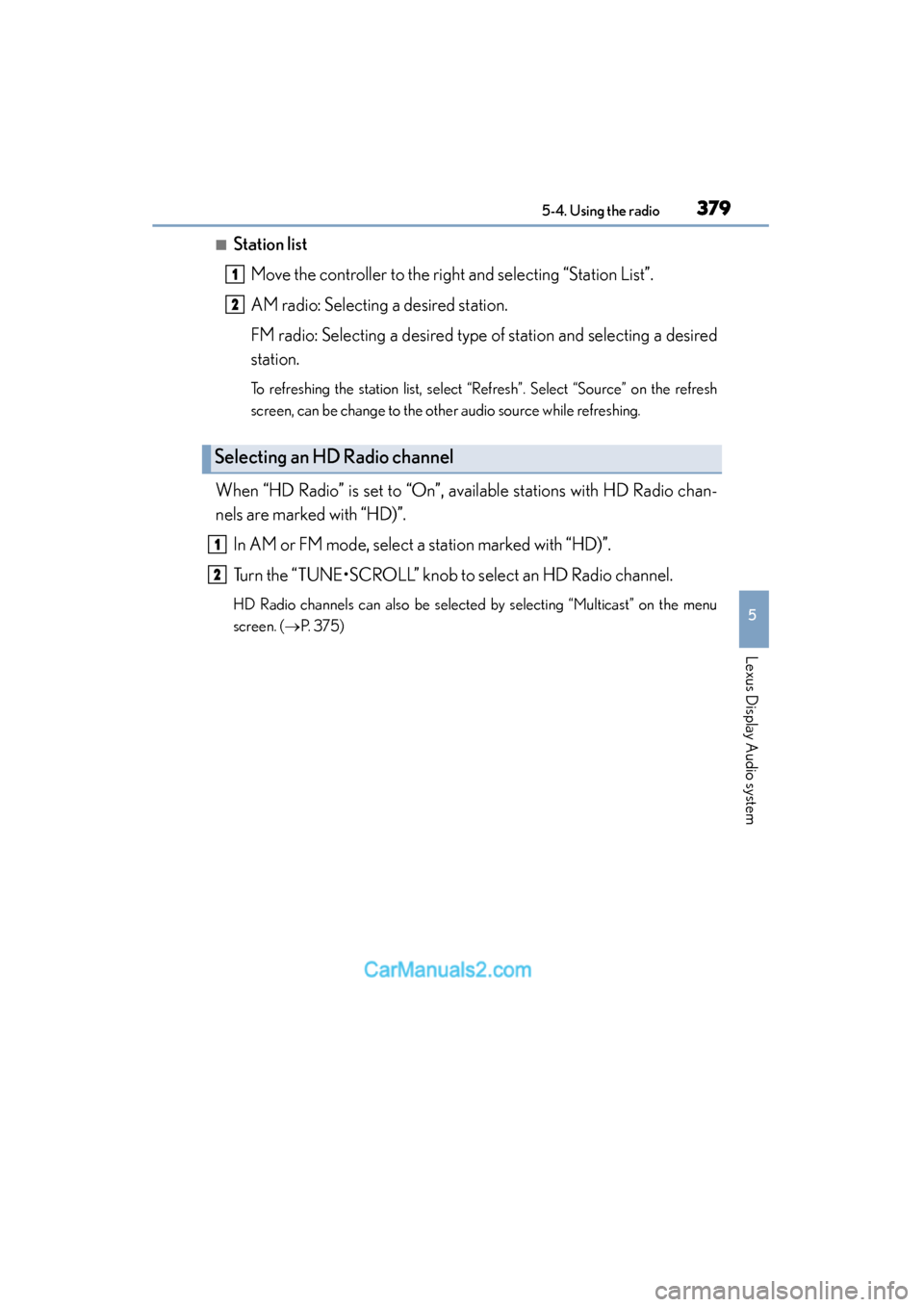

3795-4. Using the radio
5
Lexus Display Audio system
■Station listMove the controller to the right and selecting “Station List”.
AM radio: Selecting a desired station.
FM radio: Selecting a desired type of station and selecting a desired
station.
To refreshing the station list, select “Refresh”. Select “Source” on the refresh
screen, can be change to the other audio source while refreshing.
When “HD Radio” is set to “On”, available stations with HD Radio chan-
nels are marked with “HD)”.
In AM or FM mode, select a station marked with “HD)”.
Turn the “TUNE•SCROLL” knob to select an HD Radio channel.
HD Radio channels can also be selected by selecting “Multicast” on the menu
screen. ( →P. 3 7 5 )
Selecting an HD Radio channel
1
2
1
2

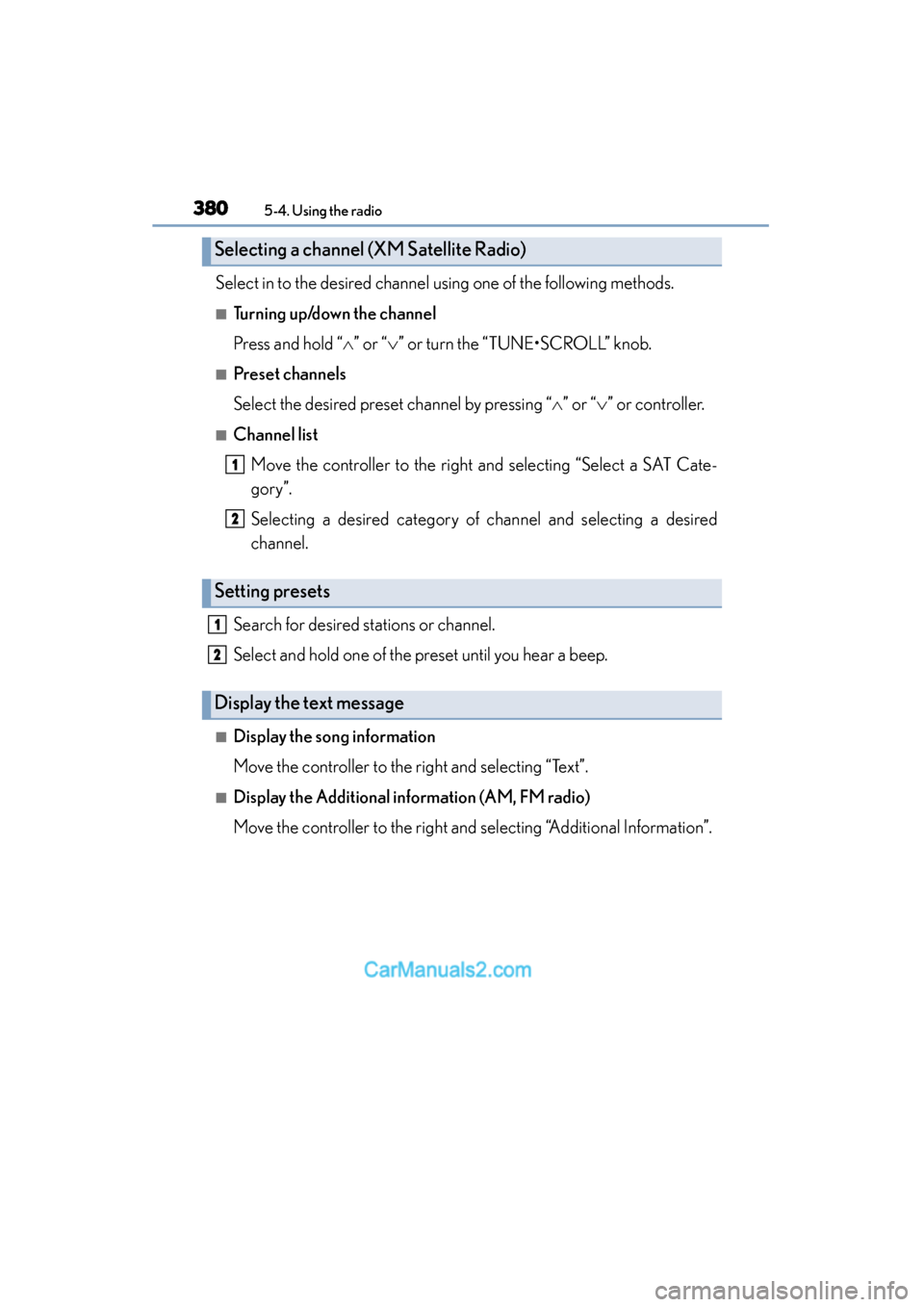

3805-4. Using the radio
ES350_300h_OM_OM33B99U_(U)
Select in to the desired channel using one of the following methods.
■Turning up/down the channel
Press and hold “∧” or “ ∨” or turn the “TUNE•SCROLL” knob.
■Preset channels
Select the desired preset channel by pressing “ ∧” or “ ∨” or controller.
■Channel list
Move the controller to the right and selecting “Select a SAT Cate-
gory”.
Selecting a desired category of channel and selecting a desired
channel.
Search for desired stations or channel.
Select and hold one of the preset until you hear a beep.
■Display the song information
Move the controller to the right and selecting “Text”.
■Display the Additional information (AM, FM radio)
Move the controller to the right and selecting “Additional Information”.
Selecting a channel (XM Satellite Radio)
Setting presets
Display the text message
1
2
1
2

ES350_300h_OM_OM33B99U_(U)
3815-4. Using the radio
5
Lexus Display Audio system
HD Radio™ Technology is the digital evolution of analog AM/FM radio.
Your radio product has a special receiver which allows it to receive digital
broadcasts (where available) in addition to the analog broadcasts it
already receives.
Digital broadcasts have better sound quality than analog broadcasts as
digital broadcasts provide free, crystal clear audio with no static or distor-
tion. For more information, and a guide to available radio stations and pro-
gramming, refer to www.hdradio.com
.
“HD Radio features included in Lexus radios:
Digital Sound - HD Radio broadcasts deliver crystal-clear, digital audio
quality to listeners.
HD2 /HD3 Channels - FM stations can provide additional digital only
audio programming with expanded content and format choices on HD2 /
HD3 channels.
PSD - Program Service Data (PSD) gives you on-screen information such
as artist name and song title.
iTunes Tagging - Listeners can tag (store) songs they like for later review
and purchase through iTunes.
Artist Experience - Images related to the broadcast are displayed on the
radio screen, such as album cover art and station logos.”
HD Radio™ Technology
HD Radio Technology manufactured under license from iBiquity Digital
Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio,
and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.

3825-4. Using the radio
ES350_300h_OM_OM33B99U_(U)
■HD Radio™ Technology troubleshooting guide
ExperienceCauseAction
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an
echo, stutter or skip.The radio stations analog
and digital volume are not
properly aligned or the
station is in ballgame
mode.
None, radio broadcast
issue. A user can contact
the radio station.
Sound fades, blending in
and out.Radio is shifting between
analog and digital audio.
Reception issue, may
clear-up as the vehicle
continues to be driven.
Set “HD Radio” to off, can
force radio in an analog
audio.
Audio mute condition
when an HD2 /HD3 mul-
ticast channel had been
playing.The radio does not have
access to digital signals at
the moment.
This is normal behavior,
wait until the digital signal
returns. If out of the cov-
erage area, seek a new
station.
Audio mute delay when
selecting an HD2 /HD3
multicast channel preset.
The digital multicast con-
tent is not available until
HD Radio™ broadcast
can be decoded and
make the audio available.
This takes up to 7 sec-
onds.
This is normal behavior,
wait for the audio to
become available.
Text information does not
match the present song
audio.Data service issue at the
radio broadcaster.
Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.
No text information
shown for the present
selected frequency.Data service issue by the
radio broadcaster.
Broadcaster should be
notified. Complete the
form: www.ibiquity.com/
automotive/
report_radio_station_
experiences.

ES350_300h_OM_OM33B99U_(U)
3835-4. Using the radio
5
Lexus Display Audio system
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
●The radio antenna is mounted inside the rear window. To maintain clear radio
reception, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the rear window.
■XM Radio Services — Descriptions
●Radio and Entertainment
XM offers more than 170 satellite radio channels of commercial-free music and
premier sports, news, talk, and entertainment. XM is broadcast via satellites to
millions of listeners across the continental United States. XM subscribers listen to
XM on satellite radio receivers for the car, home, and portable use. More
information about XM is available online at www.siriusxm.com
(U.S.A.) or
www.xmradio.ca
(Canada).
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying
Te x t I n f o r m a t i o n o f X M
® Satellite Radio.

3845-4. Using the radio
ES350_300h_OM_OM33B99U_(U)
■XM Radio Services — Subscription Instructions
For XM Services requiring a subscription (such as XM Radio), the following para-
graph shall be included.
Required XM Radio monthly subscriptions sold separately after trial period. Sub-
scription fee is consumer only. All fees and programming subject to change. Sub-
scriptions are subject to the Customer Agreement available at www.siriusxm.com
(U.S.A.) or www.xmradio.ca (Canada) XM service only available in the 48 contigu-
ous United States and 10 Canadian provinces. © 2011 Sirius XM Radio Inc. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All other
marks, channel names and logos are the property of their respective owners.
For more information, program schedules, and to subscribe or extend subscription
after complimentary trial period; more information is available at:
XU.S.A. Customers:
Visit w ww.siriusxm.com
or call 1-877-515-3987
XCanadian Customers:
Visit w ww.xmradio.ca
or call 1-877-438-9677
●Radio ID
You will need the radio ID when activating XM service or reporting a problem. If
“Ch000” is selected using the “TUNE•SCROLL” knob, the ID code, which is 8
alphanumeric characters, will be displayed. If another channel is selected, the ID
code will no longer be displayed. The channel (000) alternates between displaying
the radio ID and the specific radio code.

ES350_300h_OM_OM33B99U_(U)
3855-4. Using the radio
5
Lexus Display Audio system
■XM Radio Services — Legal Disclaimers and Warnings
●Fees and Taxes — Subscription fee, taxes, one time activation fee, and other fees
may apply. Subscription fee is consumer only. All fees and programming subject to
change. Subscriptions subject to Customer Agreement available at
www.siriusxm.com
(U.S.A.) or www.xmradio.ca (Canada) XM service only
available in the 48 contiguous United States and Canada
*.
*: Canada — some deterioration of service may occur in extreme northern lati-
tudes. This is beyond the control of XM Satellite Radio.
Explicit Language Notice — Channels with frequent explicit language are indi-
cated with an “XL” preceding the channel name. Channel blocking is available for
XM Satellite Radio receivers by notifying XM at;
XU.S.A. Customers:
Visit www.siriusxm.com
or calling 1-877-515-3987
XCanadian Customers:
Visit w ww.xmradio.ca
or calling 1-877-438-9677
It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate,
or otherwise make available any technology or software incorporated in receivers
compatible with the XM Satellite Radio System or that support the XM website, the
Online Service or any of its content. Furthermore, the AMBE
® voice compression
software included in this product is protected by intellectual property rights includ-
ing patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc.
Note: this applies to XM receivers only and not XM Ready devices.

3865-4. Using the radio
ES350_300h_OM_OM33B99U_(U)
■If the satellite radio does not operate normally
If a problem occurs with the XM tuner, a message will appear on the screen. Refer to
the table below to identify the problem, and take the suggested corrective action.
Contact the XM Listener Care Center at 1-877-515-3987 (U.S.A.) or
1-877-438-9677 (Canada).
SAT Check Antenna
The XM antenna is not connected. Check whether the
XM antenna cable is attached securely.
There is a short-circuit in the antenna or the surrounding
antenna cable. See a Lexus certified dealer.
SAT Ch Unauthorized
You have not subscribed to XM Satellite Radio. The radio
is being updated with the latest encryption code. Con-
tact XM Satellite Radio for subscription information.
When a contract is canceled, you can choose “Ch000”
and all free-to-air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “Ch001”. If it does not change auto-
matically, select another channel. To listen to the pre-
mium channel, contact XM Satellite Radio.
SAT No Signal
The XM signal is too weak at the current location. Wait
until your vehicle reaches a location with a stronger sig-
nal.
SAT LoadingThe unit is acquiring audio or program information. Wait
until the unit has received the information.
SAT Channel Off AirThe channel you selected is not broadcasting any pro-
gramming. Select another channel.
-----
There is no song/program title or artist name/feature
associated with the channel at that time. No action is
required.
SAT Chan Unavailable
The channel you selected is no longer available. Wait for
about 2 seconds until the radio returns to the previous
channel or “Ch001”. If it does not change automatically,
select another channel.

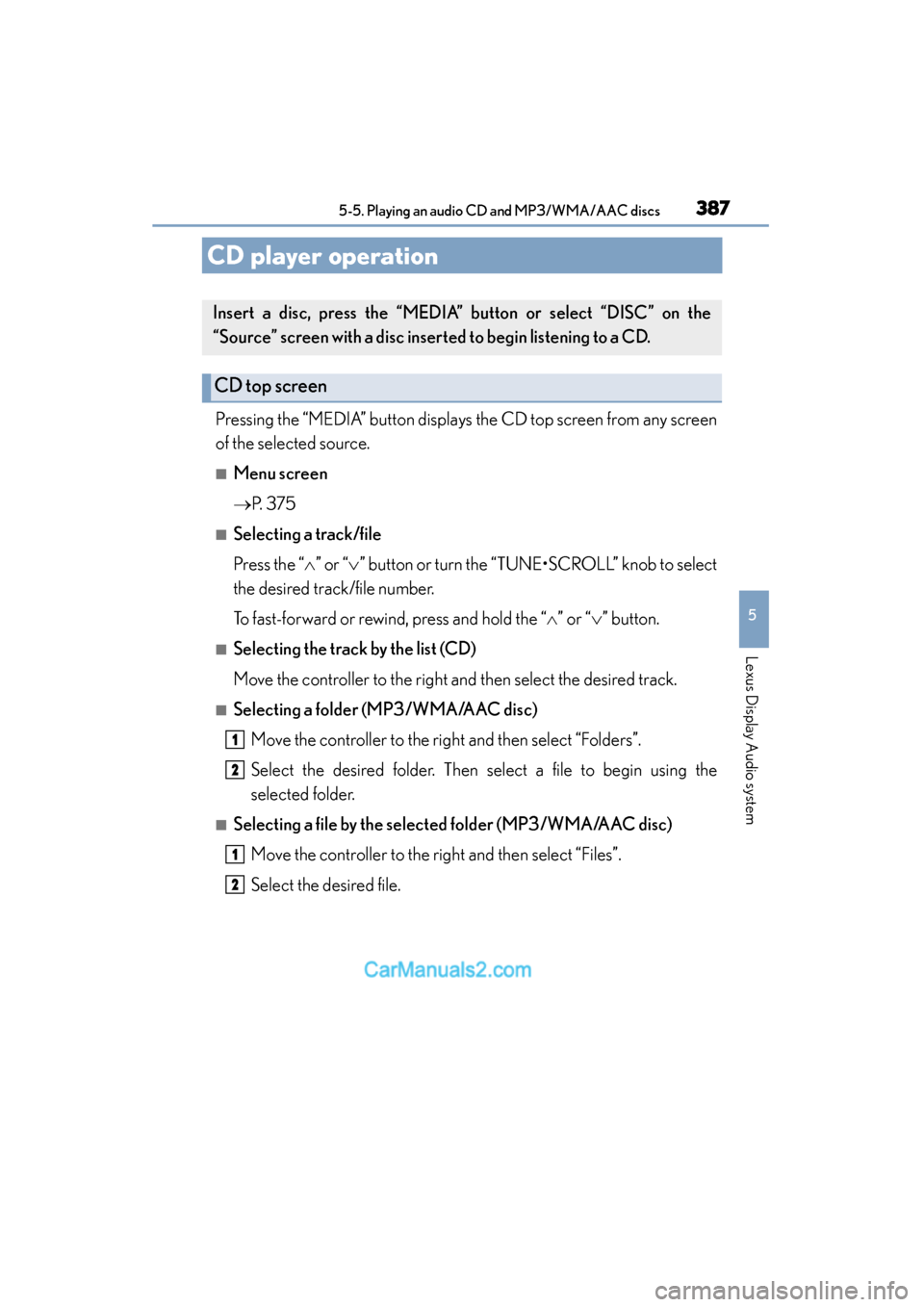

387
ES350_300h_OM_OM33B99U_(U)
5-5. Playing an audio CD and MP3/WMA/AAC discs
5
Lexus Display Audio system
CD player operation
Pressing the “MEDIA” button displays the CD top screen from any screen
of the selected source.
■Menu screen
→P. 3 7 5
■Selecting a track/file
Press the “ ∧” or “∨ ” button or turn the “TUNE•SCROLL” knob to select
the desired track/file number.
To fast-forward or rewind, press and hold the “ ∧” or “ ∨” button.
■Selecting the track by the list (CD)
Move the controller to the right and then select the desired track.
■Selecting a folder (MP3/WMA/AAC disc)
Move the controller to the right and then select “Folders”.
Select the desired folder. Then select a file to begin using the
selected folder.
■Selecting a file by the selected folder (MP3/WMA/AAC disc)Move the controller to the right and then select “Files”.
Select the desired file.
Insert a disc, press the “MEDIA” button or select “DISC” on the
“Source” screen with a disc inserted to begin listening to a CD.
CD top screen
1
2
1
2

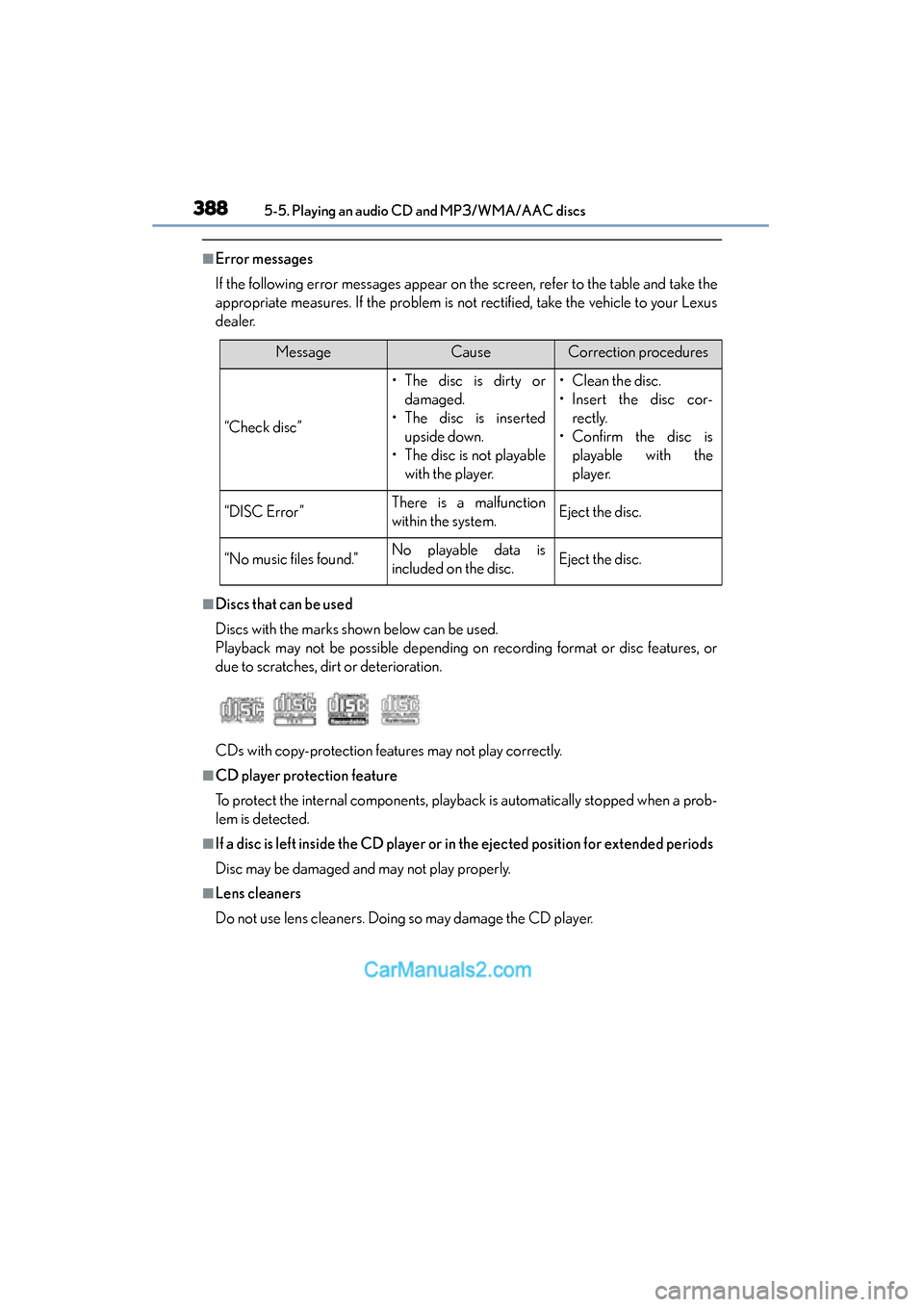

3885-5. Playing an audio CD and MP3/WMA/AAC discs
ES350_300h_OM_OM33B99U_(U)
■Error messages
If the following error messages appear on the screen, refer to the table and take the
appropriate measures. If the problem is not rectified, take the vehicle to your Lexus
dealer.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
■CD player protection feature
To protect the internal components, playback is automatically stopped when a prob-
lem is detected.
■If a disc is left inside the CD player or in the ejected position for extended periods
Disc may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
MessageCauseCorrection procedures
“Check disc”
• The disc is dirty or damaged.
•The disc is inserted upside down.
• The disc is not playable with the player.•Clean the disc.
• Insert the disc cor-rectly.
•Confirm the disc is playable with the
player.
“DISC Error”There is a malfunction
within the system.Eject the disc.
“No music files found.”No playable data is
included on the disc.Eject the disc.
