Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

ES350_300h_OM_OM33B99U_(U)
4295-9. Bluetooth® Phone
5
Lexus Display Audio system
Selecting “Next” or “Previous” displays the next or previous message.
If a message is too long, select “Read More” to display the full text.
■Option menu
Move the controller to the left while on the message screen.Select a prepared message
and send a reply message.
Call a sender.
If more than one phone number is
registered for a sender, a phone
number selection screen will be
displayed.
Call a phone number written in a message.
Select “Play” to have a message read out loud.
Select “Stop” to stop this function.
Select “Mark Unread” to mark mail that has been read as unread.
Select “Mark Read” to mark mail that has not been read as read.
Move the controller to the left while on the message screen.
Select “Quick Message” to display the “Quick Message” screen.
Select the desired message and then select “Send”.
Message screen
1
2
Replying to a message
3
4
5
1
2
3

4305-9. Bluetooth® Phone
ES350_300h_OM_OM33B99U_(U)

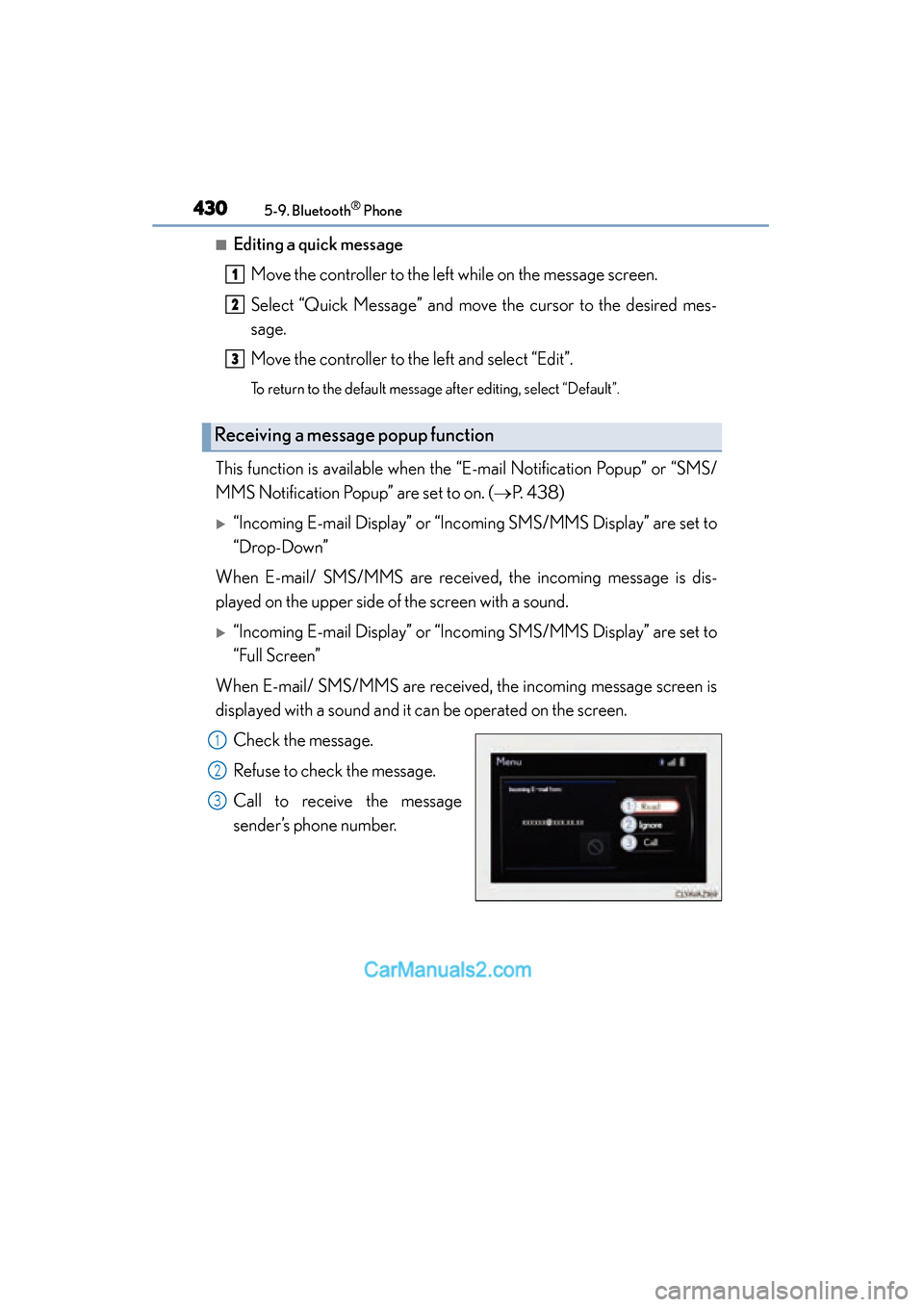

■Editing a quick messageMove the controller to the left while on the message screen.
Select “Quick Message” and move the cursor to the desired mes-
sage.
Move the controller to the left and select “Edit”.
To return to the default message after editing, select “Default”.
This function is available when the “E-mail Notification Popup” or “SMS/
MMS Notification Popup” are set to on. ( →P. 4 3 8 )
X“Incoming E-mail Display” or “Inc oming SMS/MMS Display” are set to
“Drop-Down”
When E-mail/ SMS/MMS are received, the incoming message is dis-
played on the upper side of the screen with a sound.
X“Incoming E-mail Display” or “Inc oming SMS/MMS Display” are set to
“Full Screen”
When E-mail/ SMS/MMS are received, the incoming message screen is
displayed with a sound and it can be operated on the screen. Check the message.
Refuse to check the message.
Call to receive the message
sender’s phone number.
Receiving a message popup function
1
2
3
1
2
3

431
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
5
Lexus Display Audio system

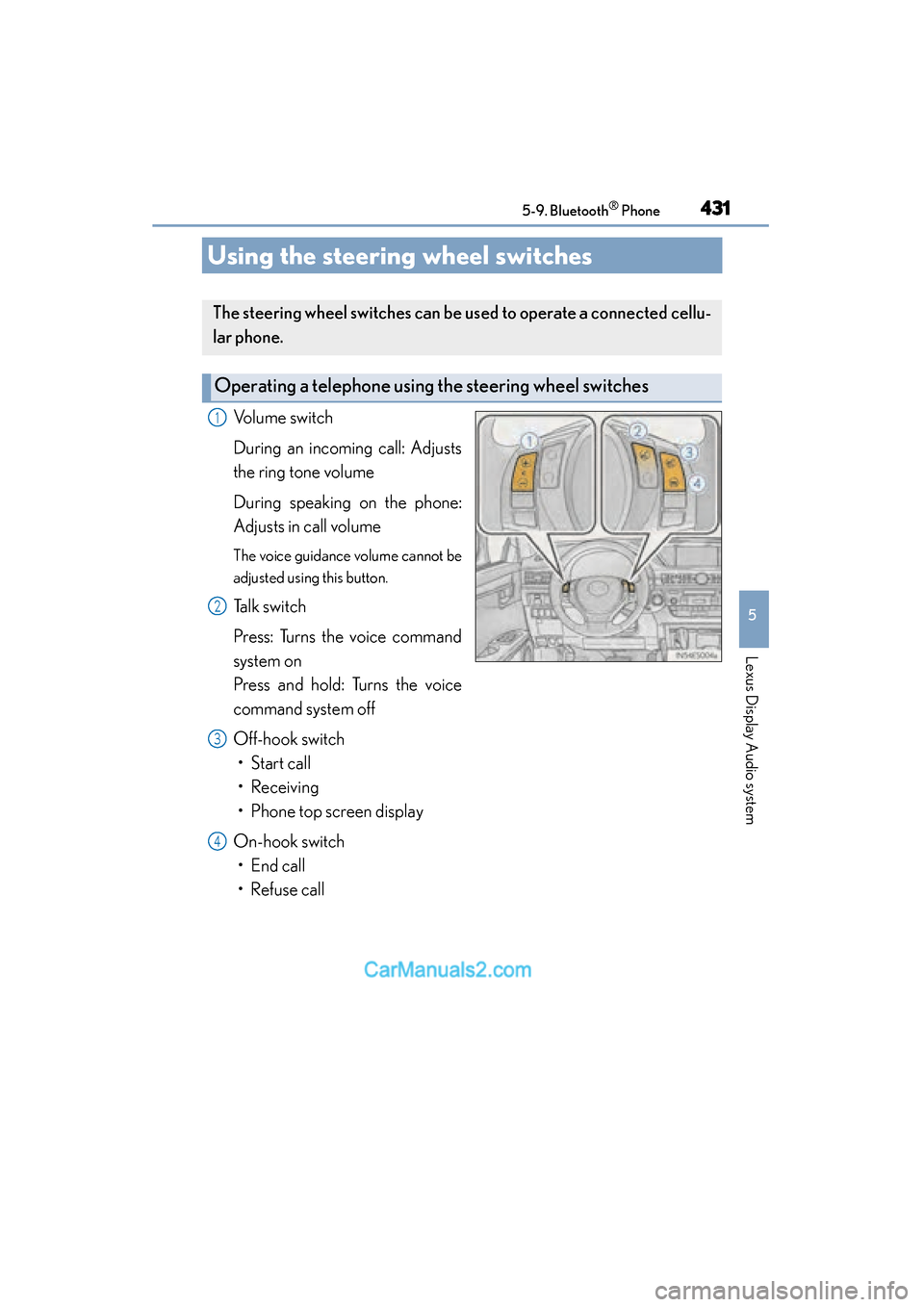

Using the steering wheel switches
Volume switch
During an incoming call: Adjusts
the ring tone volume
During speaking on the phone:
Adjusts in call volume
The voice guidance volume cannot be
adjusted using this button.
Talk switch
Press: Turns the voice command
system on
Press and hold: Turns the voice
command system off
Off-hook switch•Start call
• Receiving
• Phone top screen display
On-hook switch • End call
• Refuse call
The steering wheel switch es can be used to operate a connected cellu-
lar phone.
Operating a telephone using the steering wheel switches
1
2
3
4

432
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone

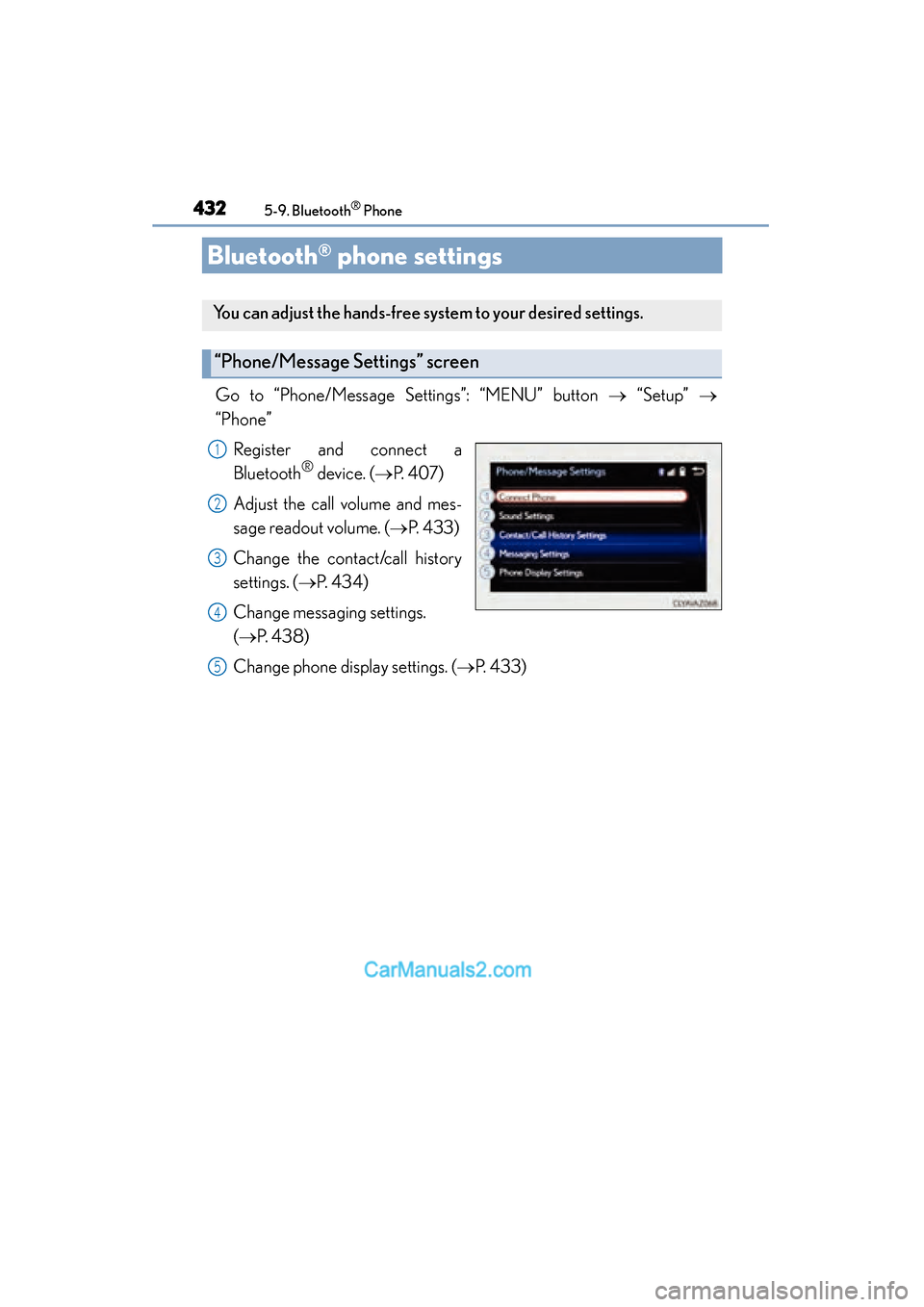

Bluetooth® phone settings
Go to “Phone/Message Settings”: “MENU” button → “Setup” →
“Phone”
Register and connect a
Bluetooth
® device. ( →P. 4 0 7 )
Adjust the call volume and mes-
sage readout volume. ( →P. 433)
Change the contact/call history
settings. ( →P. 4 3 4 )
Change messaging settings.
(→ P. 4 3 8 )
Change phone display settings. ( →P. 433)
You can adjust the hands-free system to your desired settings.
“Phone/Message Settings” screen
1
2
3
4
5

ES350_300h_OM_OM33B99U_(U)
4335-9. Bluetooth® Phone
5
Lexus Display Audio system

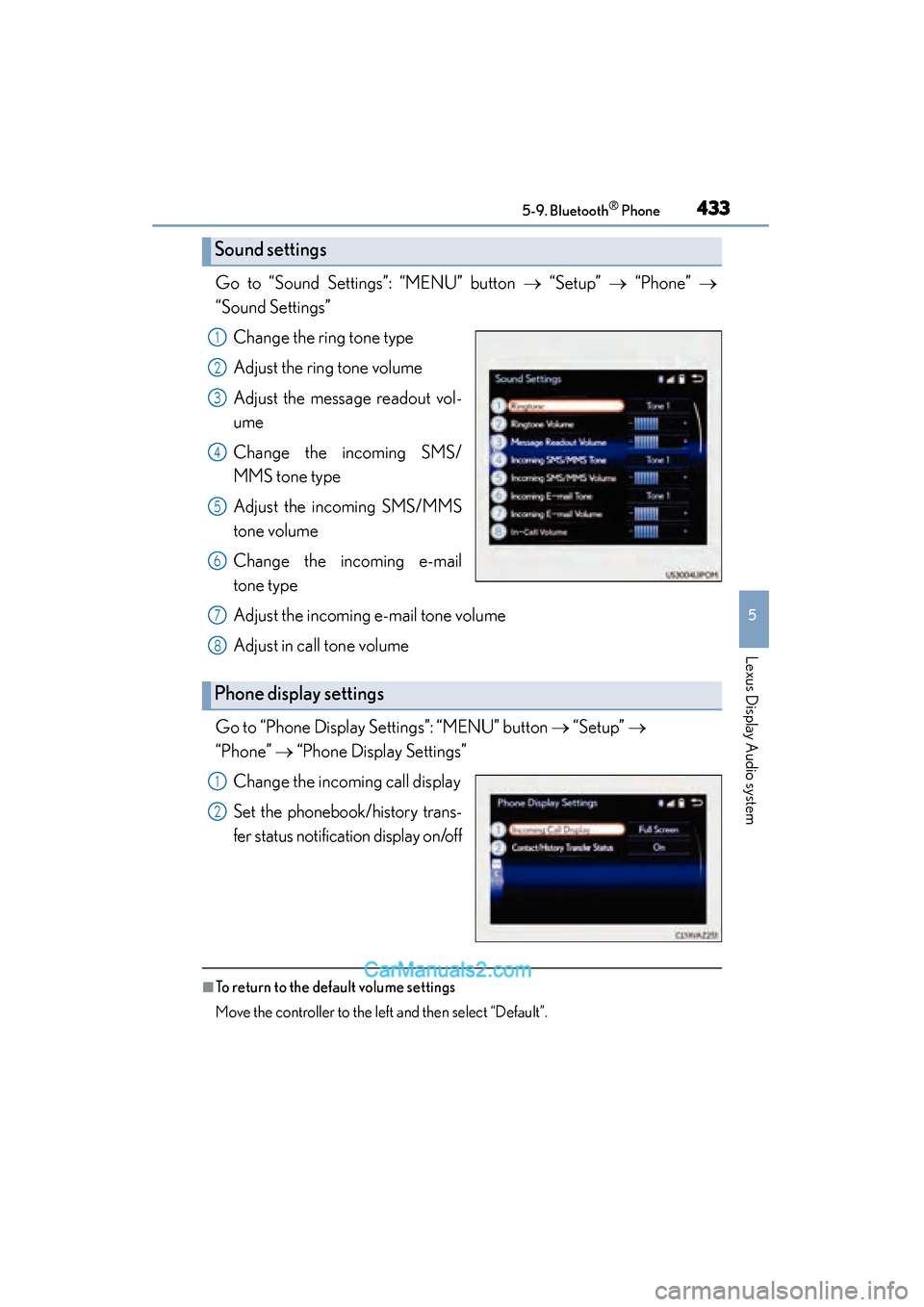

Go to “Sound Settings”: “MENU” button → “Setup” → “Phone” →
“Sound Settings”
Change the ring tone type
Adjust the ring tone volume
Adjust the message readout vol-
ume
Change the incoming SMS/
MMS tone type
Adjust the incoming SMS/MMS
tone volume
Change the incoming e-mail
tone type
Adjust the incoming e-mail tone volume
Adjust in call tone volume
Go to “Phone Display Settings”: “MENU” button → “Setup” →
“Phone” → “Phone Display Settings”
Change the incoming call display
Set the phonebook/history trans-
fer status notification display on/off
■To return to the default volume settings
Move the controller to the left and then select “Default”.
Sound settings
1
2
3
4
5
6
Phone display settings
7
8
1
2

434

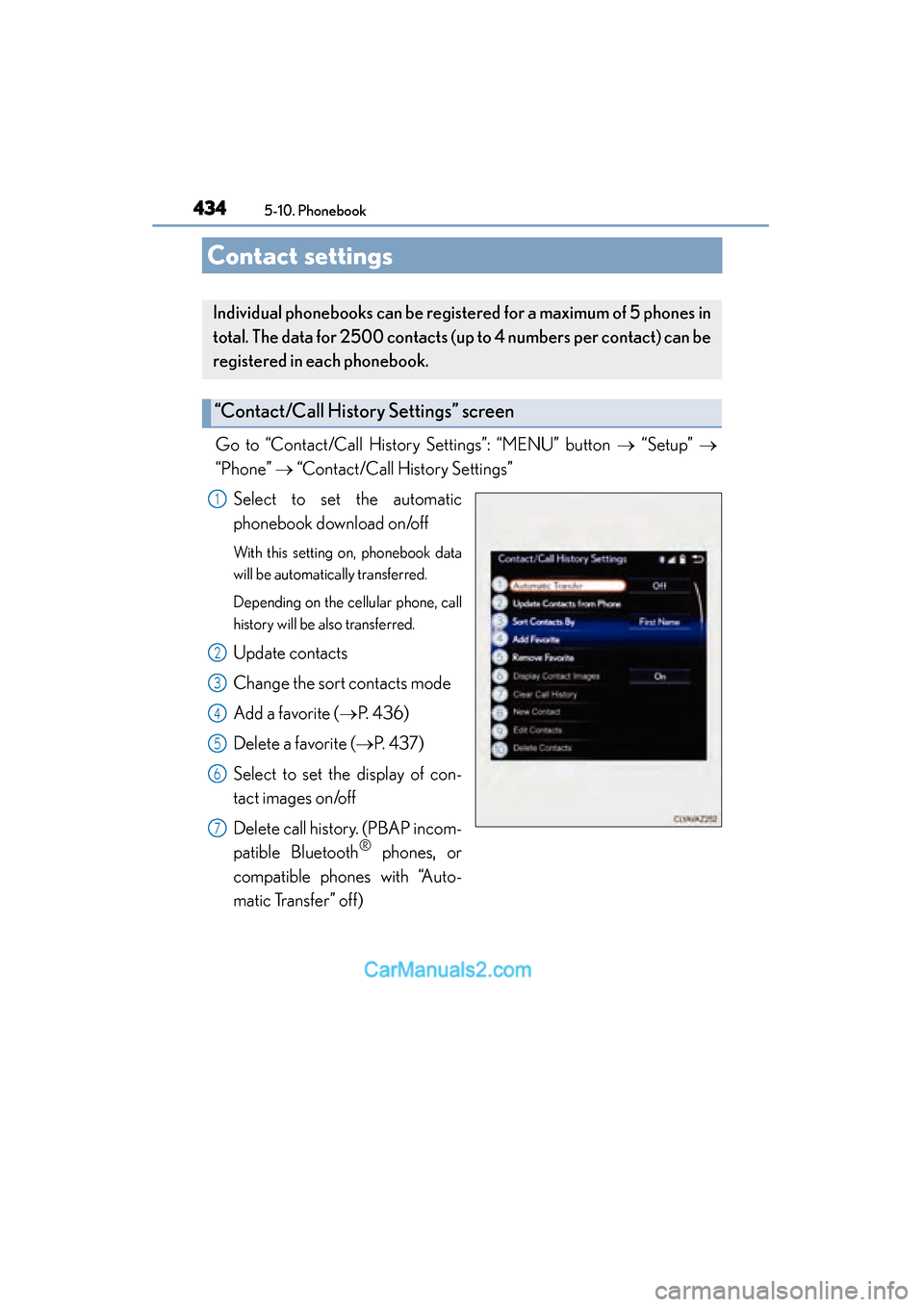

ES350_300h_OM_OM33B99U_(U)
5-10. Phonebook
Contact settings
Go to “Contact/Call History Settings”: “MENU” button → “Setup” →
“Phone” → “Contact/Call History Settings”
Select to set the automatic
phonebook download on/off
With this setting on, phonebook data
will be automatically transferred.
Depending on the cellular phone, call
history will be also transferred.
Update contacts
Change the sort contacts mode
Add a favorite (→ P. 4 3 6 )
Delete a favorite ( →P. 4 3 7 )
Select to set the display of con-
tact images on/off
Delete call history. (PBAP incom-
patible Bluetooth
® phones, or
compatible phones with “Auto-
matic Transfer” off)
Individual phonebooks can be regis tered for a maximum of 5 phones in
total. The data for 2500 contacts (up to 4 numbers per contact) can be
registered in each phonebook.
“Contact/Call History Settings” screen
1
2
3
4
5
6
7

ES350_300h_OM_OM33B99U_(U)
4355-10. Phonebook
5
Lexus Display Audio system

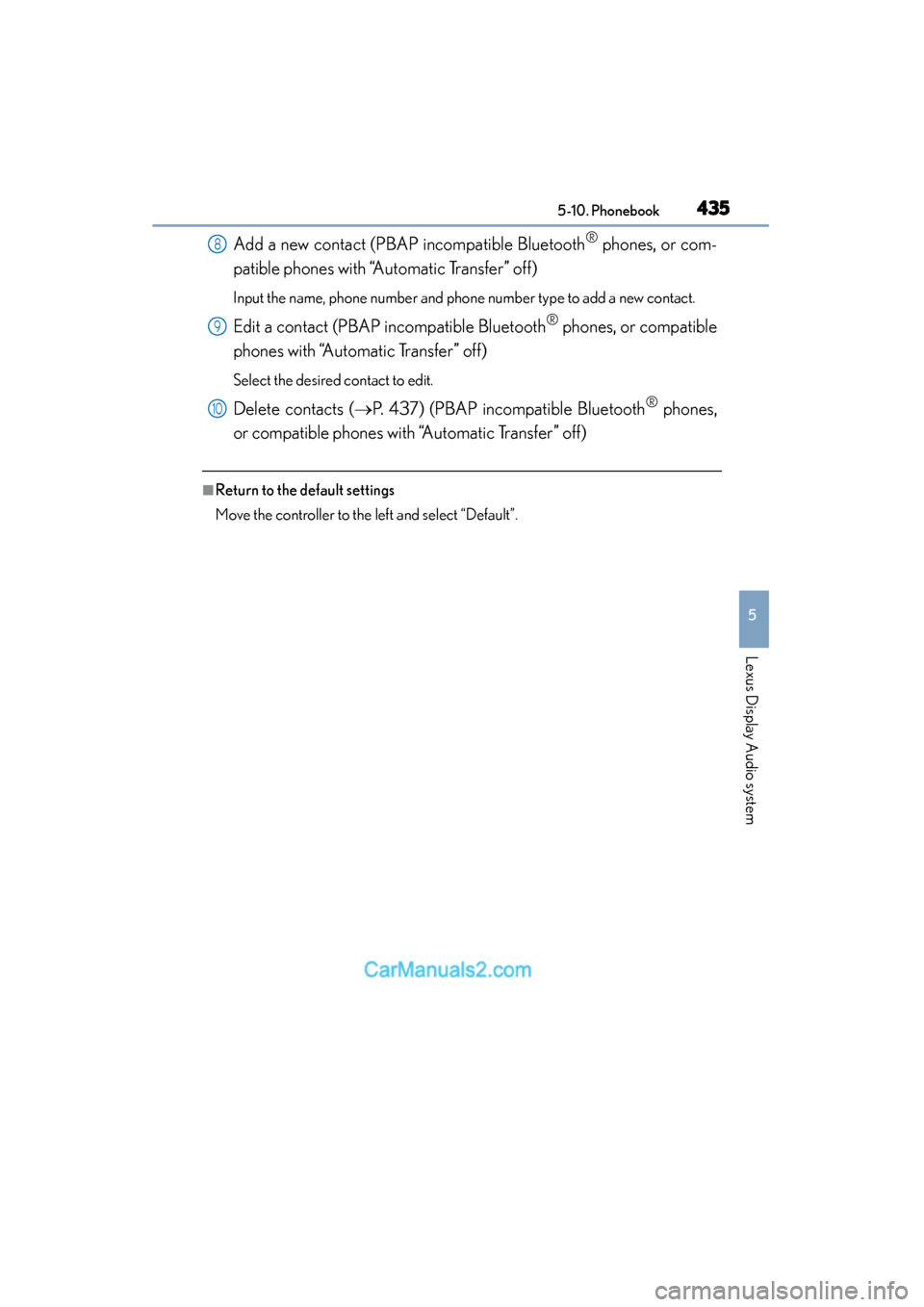

Add a new contact (PBAP incompatible Bluetooth® phones, or com-
patible phones with “Automatic Transfer” off)
Input the name, phone number and phone number type to add a new contact.
Edit a contact (PBAP incompatible Bluetooth® phones, or compatible
phones with “Automatic Transfer” off)
Select the desired contact to edit.
Delete contacts ( →P. 437) (PBAP incompatible Bluetooth® phones,
or compatible phones with “Automatic Transfer” off)
■Return to the default settings
Move the controller to the left and select “Default”.
8
9
10

4365-10. Phonebook
ES350_300h_OM_OM33B99U_(U)

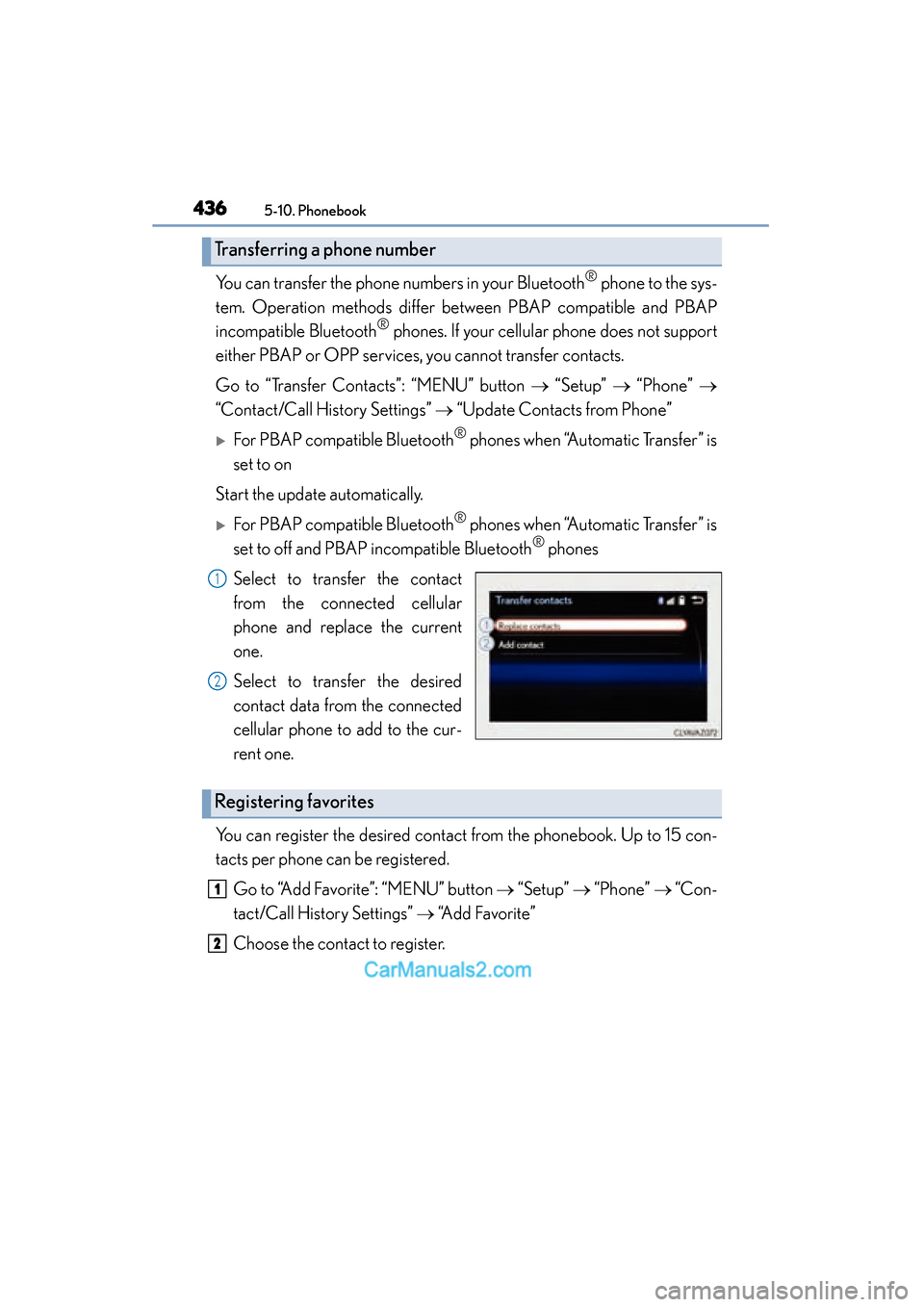

You can transfer the phone numbers in your Bluetooth® phone to the sys-
tem. Operation methods differ be tween PBAP compatible and PBAP
incompatible Bluetooth
® phones. If your cellular phone does not support
either PBAP or OPP services, you cannot transfer contacts.
Go to “Transfer Contacts”: “MENU” button → “Setup” → “Phone” →
“Contact/Call History Settings” → “Update Contacts from Phone”
XFor PBAP compatible Bluetooth® phones when “Automatic Transfer” is
set to on
Start the update automatically.
XFor PBAP compatible Bluetooth® phones when “Automatic Transfer” is
set to off and PBAP incompatible Bluetooth
® phones
Select to transfer the contact
from the connected cellular
phone and replace the current
one.
Select to transfer the desired
contact data from the connected
cellular phone to add to the cur-
rent one.
You can register the desired contact from the phonebook. Up to 15 con-
tacts per phone can be registered. Go to “Add Favorite”: “MENU” button → “Setup” → “Phone” → “Con-
tact/Call History Settings” → “Add Favorite”
Choose the contact to register.
Transferring a phone number
1
2
Registering favorites
1
2

ES350_300h_OM_OM33B99U_(U)
4375-10. Phonebook
5
Lexus Display Audio system

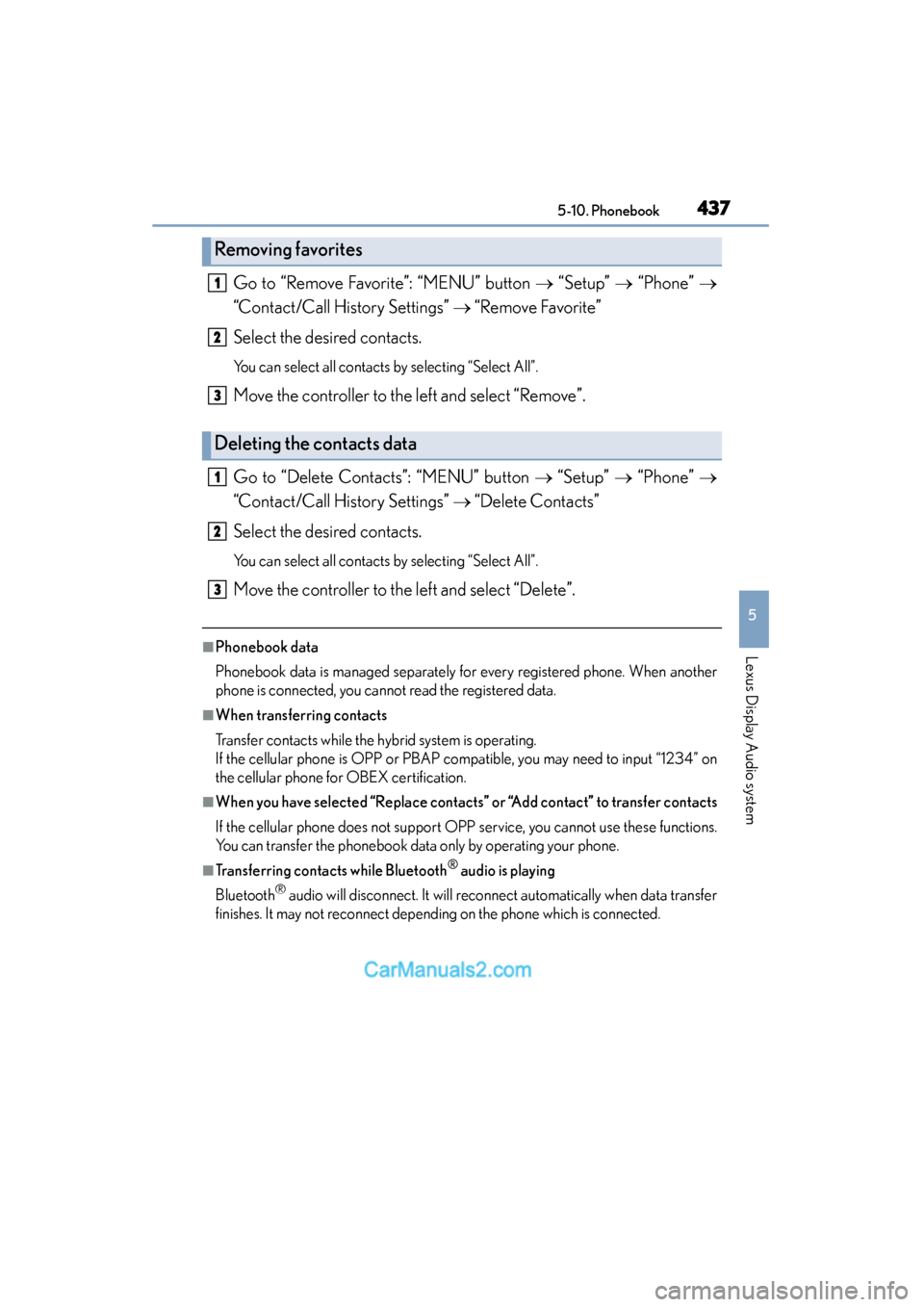

Go to “Remove Favorite”: “MENU” button → “Setup” → “Phone” →
“Contact/Call History Settings” → “Remove Favorite”
Select the desired contacts.
You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Remove”.
Go to “Delete Contacts”: “MENU” button → “Setup” → “Phone” →
“Contact/Call History Settings” → “Delete Contacts”
Select the desired contacts.
You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Delete”.
■Phonebook data
Phonebook data is managed separately for every registered phone. When another
phone is connected, you cannot read the registered data.
■When transferring contacts
Transfer contacts while the hybrid system is operating.
If the cellular phone is OPP or PBAP compatible, you may need to input “1234” on
the cellular phone for OBEX certification.
■When you have selected “Replace contacts” or “Add contact” to transfer contacts
If the cellular phone does not support OPP service, you cannot use these functions.
You can transfer the phonebook data only by operating your phone.
■Transferring contacts while Bluetooth® audio is playing
Bluetooth
® audio will disconnect. It will reconnect automatically when data transfer
finishes. It may not reconnect depending on the phone which is connected.
Removing favorites
Deleting the contacts data
1
2
3
1
2
3

438
ES350_300h_OM_OM33B99U_(U)
5-10. Phonebook

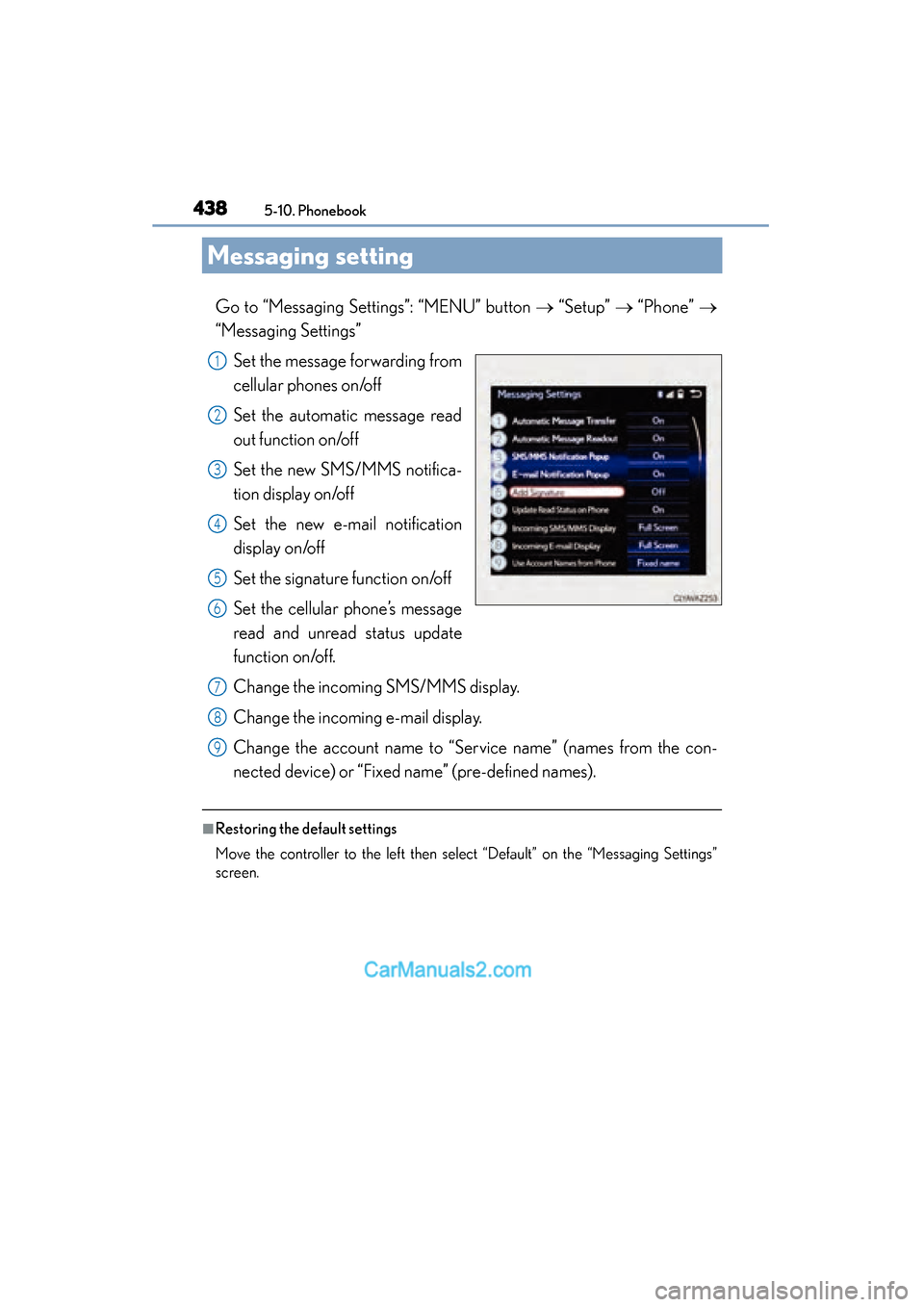

Messaging setting
Go to “Messaging Settings”: “MENU” button → “Setup” → “Phone” →
“Messaging Settings”
Set the message forwarding from
cellular phones on/off
Set the automatic message read
out function on/off
Set the new SMS/MMS notifica-
tion display on/off
Set the new e-mail notification
display on/off
Set the signature function on/off
Set the cellular phone’s message
read and unread status update
function on/off.
Change the incoming SMS/MMS display.
Change the incoming e-mail display.
Change the account name to “Service name” (names from the con-
nected device) or “Fixed name” (pre-defined names).
■Restoring the default settings
Move the controller to the left then select “Default” on the “Messaging Settings”
screen.
1
2
3
4
5
6
7
8
9
