Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

419
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
5
Lexus Display Audio system

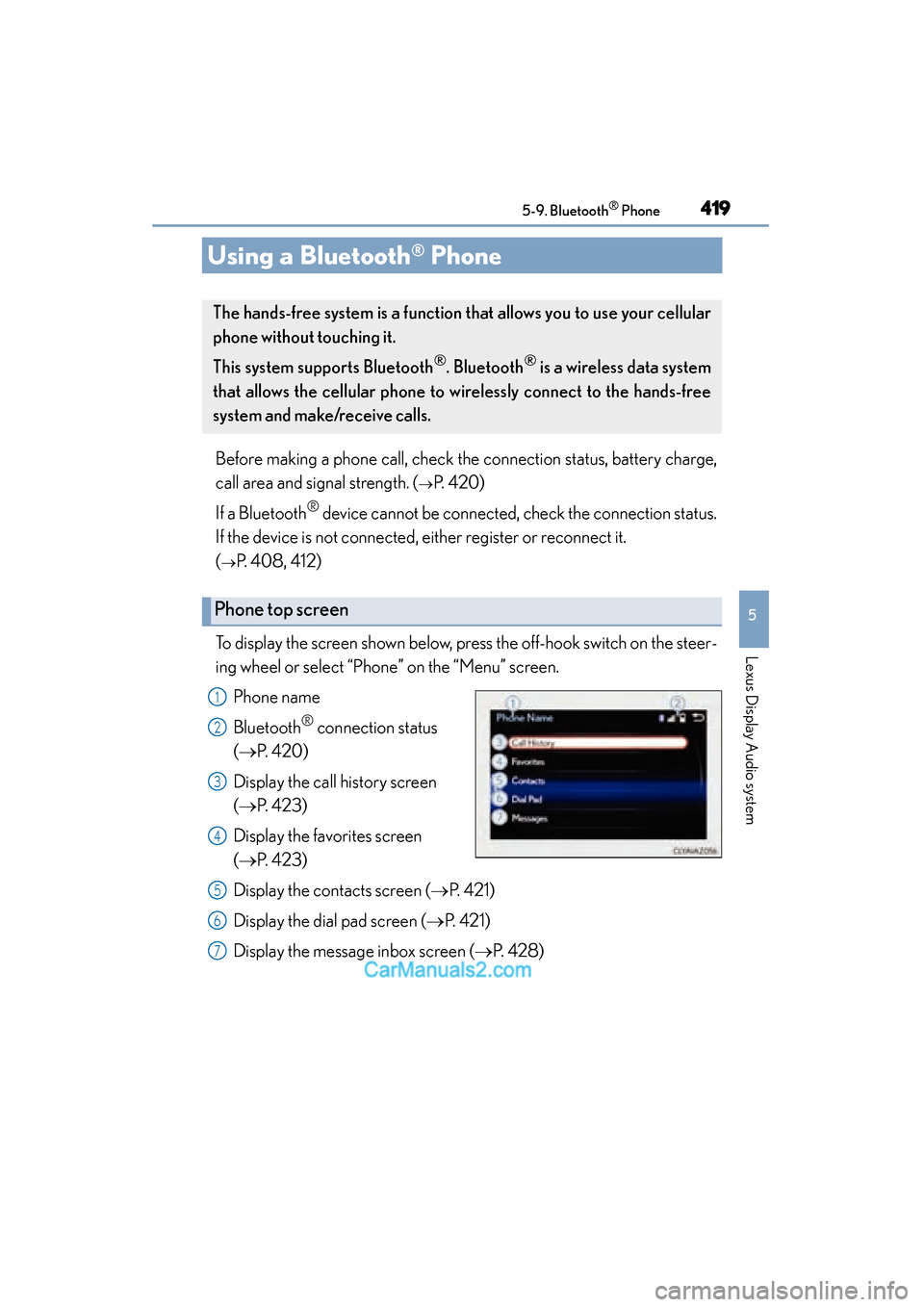

Using a Bluetooth® Phone
Before making a phone call, check the connection status, battery charge,
call area and signal strength. (
→P. 4 2 0 )
If a Bluetooth
® device cannot be connected, check the connection status.
If the device is not connected, either register or reconnect it.
(
→P. 408, 412)
To display the screen shown below, press the off-hook switch on the steer-
ing wheel or select “Phone” on the “Menu” screen. Phone name
Bluetooth
® connection status
(→ P. 4 2 0 )
Display the call history screen
(→ P. 423)
Display the favorites screen
(→ P. 423)
Display the contacts screen ( →P. 4 2 1 )
Display the dial pad screen ( →P. 421)
Display the message inbox screen ( →P. 4 2 8 )
The hands-free system is a function th at allows you to use your cellular
phone without touching it.
This system supports Bluetooth
®. Bluetooth® is a wireless data system
that allows the cellular phone to wirelessly connect to the hands-free
system and make/receive calls.
Phone top screen
1
2
3
4
5
6
7

4205-9. Bluetooth® Phone
ES350_300h_OM_OM33B99U_(U)

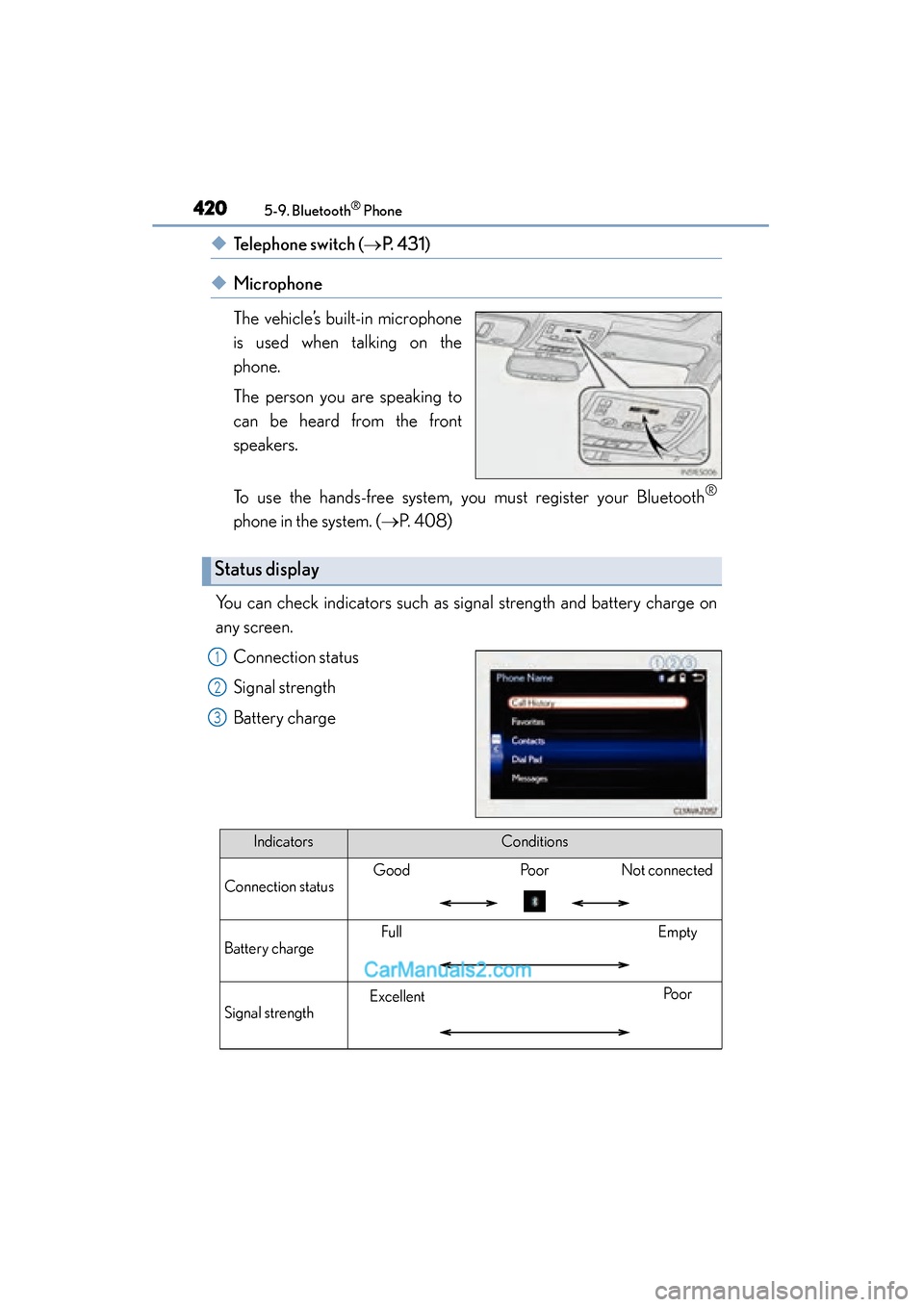

◆Telephone switch (→P. 4 3 1 )
◆Microphone
The vehicle’s built-in microphone
is used when talking on the
phone.
The person you are speaking to
can be heard from the front
speakers.
To use the hands-free system, you must register your Bluetooth
®
phone in the system. ( →P. 4 0 8 )
You can check indicators such as signal strength and battery charge on
any screen. Connection status
Signal strength
Battery charge
Status display
1
2
3
IndicatorsConditions
Connection status
GoodPo o rNot connected
Battery charge
FullEmpty
Signal strength
ExcellentPo o r

421
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
5
Lexus Display Audio system

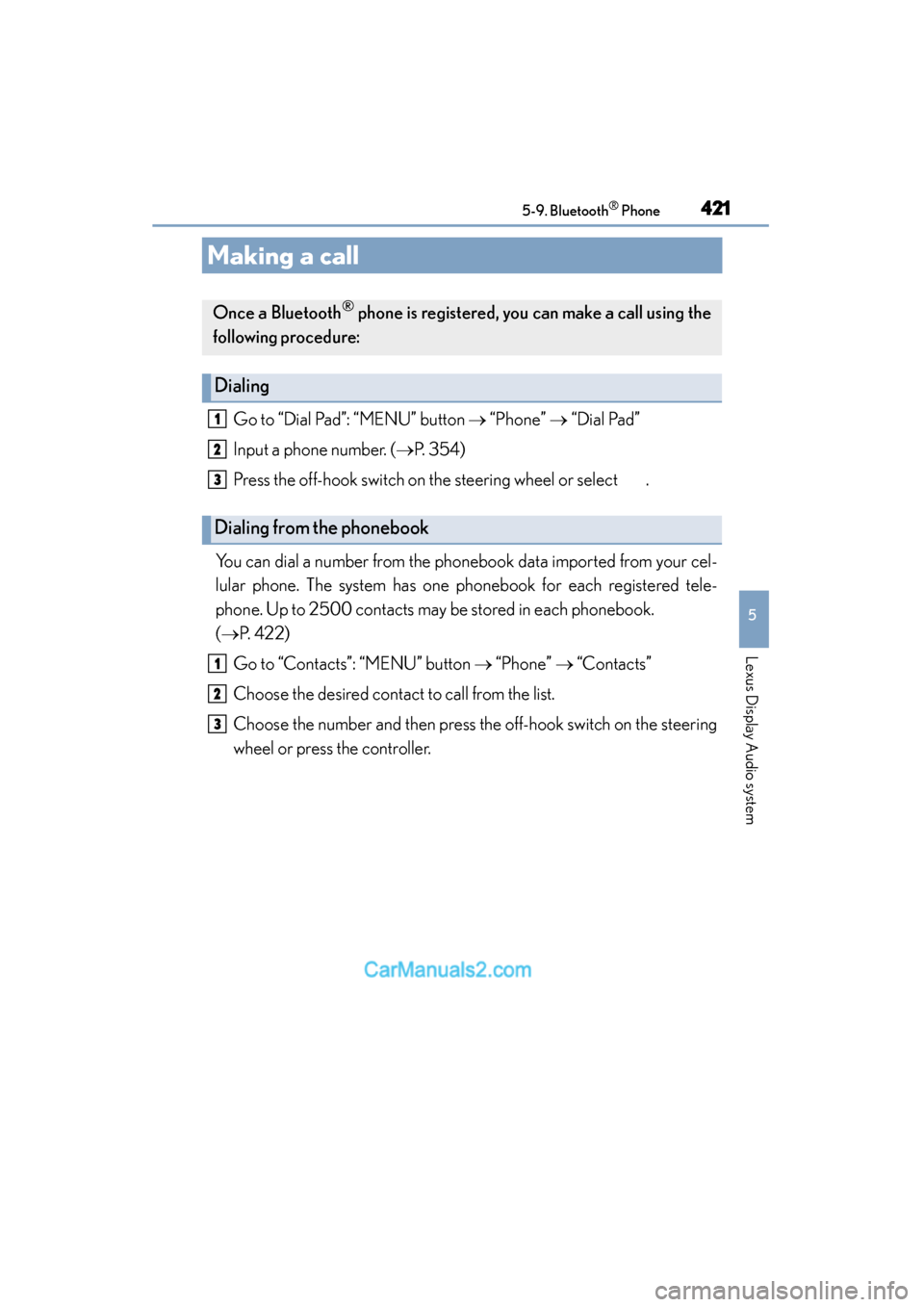

Making a call
Go to “Dial Pad”: “MENU” button → “Phone” → “Dial Pad”
Input a phone number. ( →P. 3 5 4 )
Press the off-hook switch on the steering wheel or select .
You can dial a number from the phonebook data imported from your cel-
lular phone. The system has one phonebook for each registered tele-
phone. Up to 2500 contacts may be stored in each phonebook.
(→ P. 4 2 2 )
Go to “Contacts”: “MENU” button → “Phone” → “Contacts”
Choose the desired contact to call from the list.
Choose the number and then press the off-hook switch on the steering
wheel or press the controller.
Once a Bluetooth® phone is registered, you can make a call using the
following procedure:
Dialing
Dialing from the phonebook
1
2
3
1
2
3

4225-9. Bluetooth® Phone
ES350_300h_OM_OM33B99U_(U)

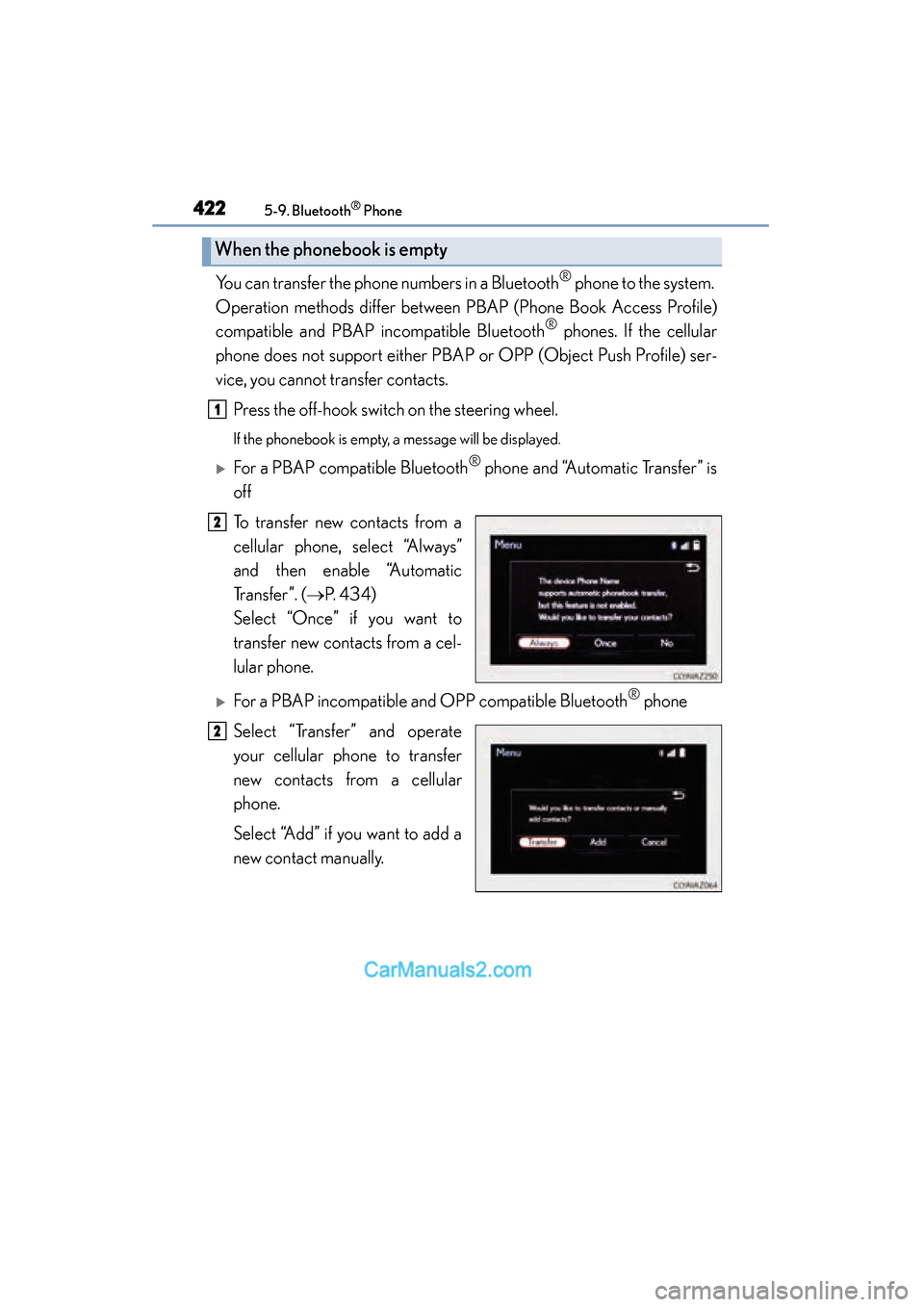

You can transfer the phone numbers in a Bluetooth® phone to the system.
Operation methods differ between PBAP (Phone Book Access Profile)
compatible and PBAP incompatible Bluetooth
® phones. If the cellular
phone does not support either PBAP or OPP (Object Push Profile) ser-
vice, you cannot transfer contacts.
Press the off-hook switch on the steering wheel.
If the phonebook is empty, a message will be displayed.
XFor a PBAP compatible Bluetooth® phone and “Automatic Transfer” is
off
To transfer new contacts from a
cellular phone, select “Always”
and then enable “Automatic
Tr a n s f e r ” . ( →P. 4 3 4 )
Select “Once” if you want to
transfer new contacts from a cel-
lular phone.
XFor a PBAP incompatible and OPP compatible Bluetooth® phone
Select “Transfer” and operate
your cellular phone to transfer
new contacts from a cellular
phone.
Select “Add” if you want to add a
new contact manually.
When the phonebook is empty
1
2
2

ES350_300h_OM_OM33B99U_(U)
4235-9. Bluetooth® Phone
5
Lexus Display Audio system

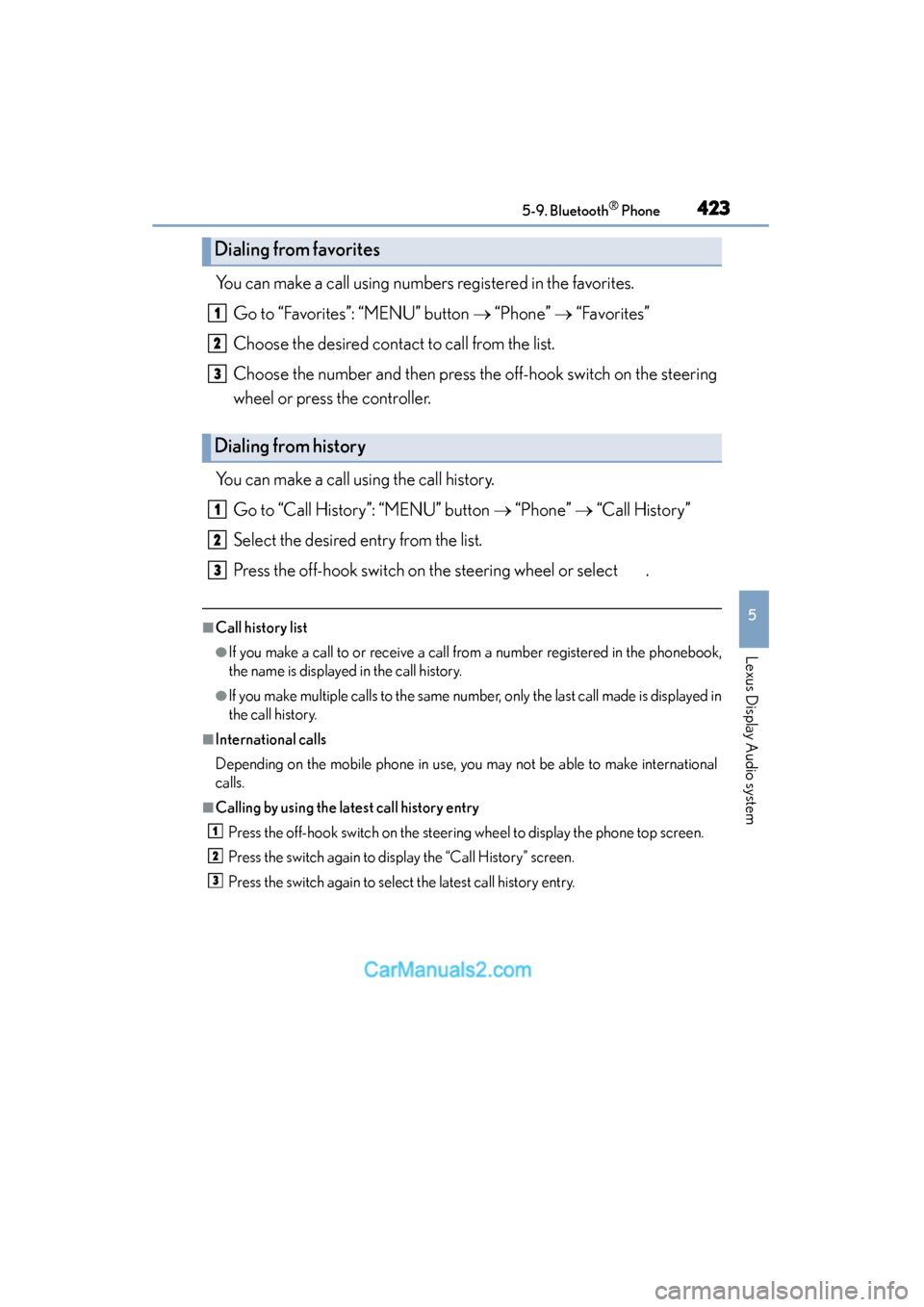

You can make a call using numbers registered in the favorites.Go to “Favorites”: “MENU” button → “Phone” → “Favorites”
Choose the desired contact to call from the list.
Choose the number and then press the off-hook switch on the steering
wheel or press the controller.
You can make a call using the call history. Go to “Call History”: “MENU” button → “Phone” → “Call History”
Select the desired entry from the list.
Press the off-hook switch on the steering wheel or select .
■Call history list
●If you make a call to or receive a call from a number registered in the phonebook,
the name is displayed in the call history.
●If you make multiple calls to the same number, only the last call made is displayed in
the call history.
■International calls
Depending on the mobile phone in use, you may not be able to make international
calls.
■Calling by using the latest call history entry Press the off-hook switch on the steering wheel to display the phone top screen.
Press the switch again to display the “Call History” screen.
Press the switch again to select the latest call history entry.
Dialing from favorites
Dialing from history
1
2
3
1
2
3
1
2
3

424
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone

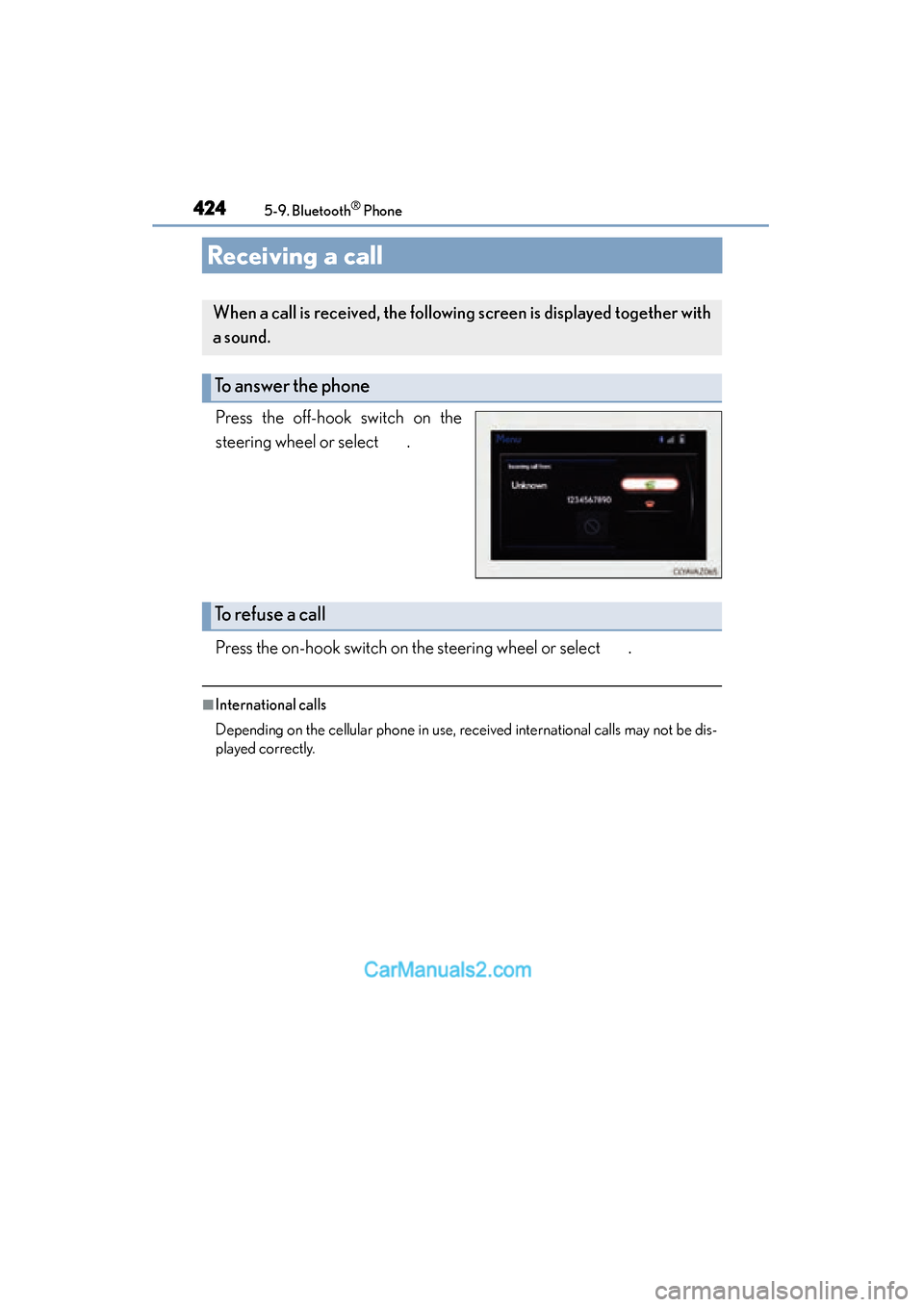

Receiving a call
Press the off-hook switch on the
steering wheel or select .
Press the on-hook switch on the steering wheel or select .
■International calls
Depending on the cellular phone in use, received international calls may not be dis-
played correctly.
When a call is received, the following screen is displayed together with
a sound.
To answer the phone
To r e f u s e a c a l l

425
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
5
Lexus Display Audio system

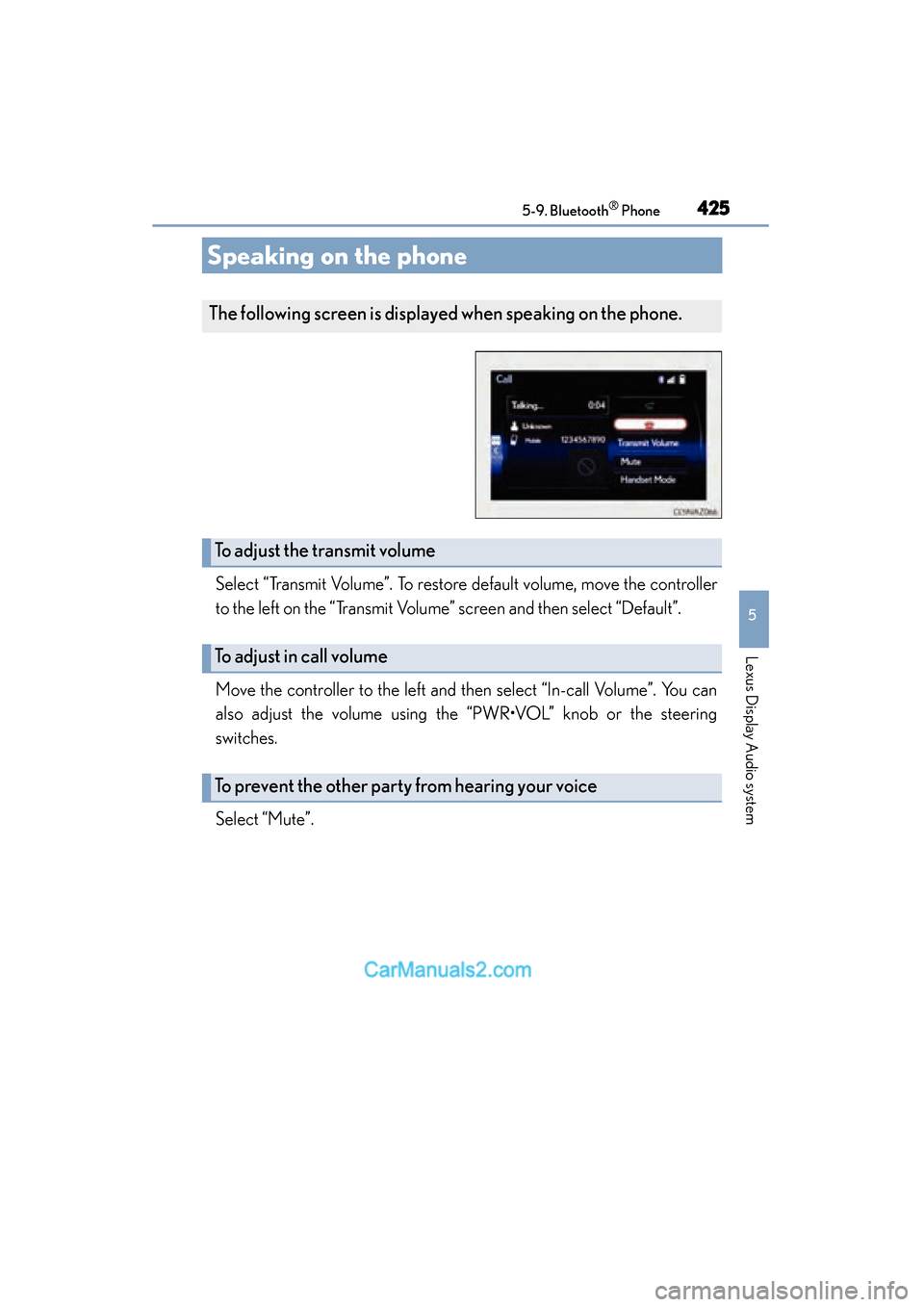

Speaking on the phone
Select “Transmit Volume”. To restore default volume, move the controller
to the left on the “Transmit Volume” screen and then select “Default”.
Move the controller to the left and then select “In-call Volume”. You can
also adjust the volume using the “PWR•VOL” knob or the steering
switches.
Select “Mute”.
The following screen is displayed when speaking on the phone.
To adjust the transmit volume
To adjust in call volume
To prevent the other party from hearing your voice

4265-9. Bluetooth® Phone
ES350_300h_OM_OM33B99U_(U)

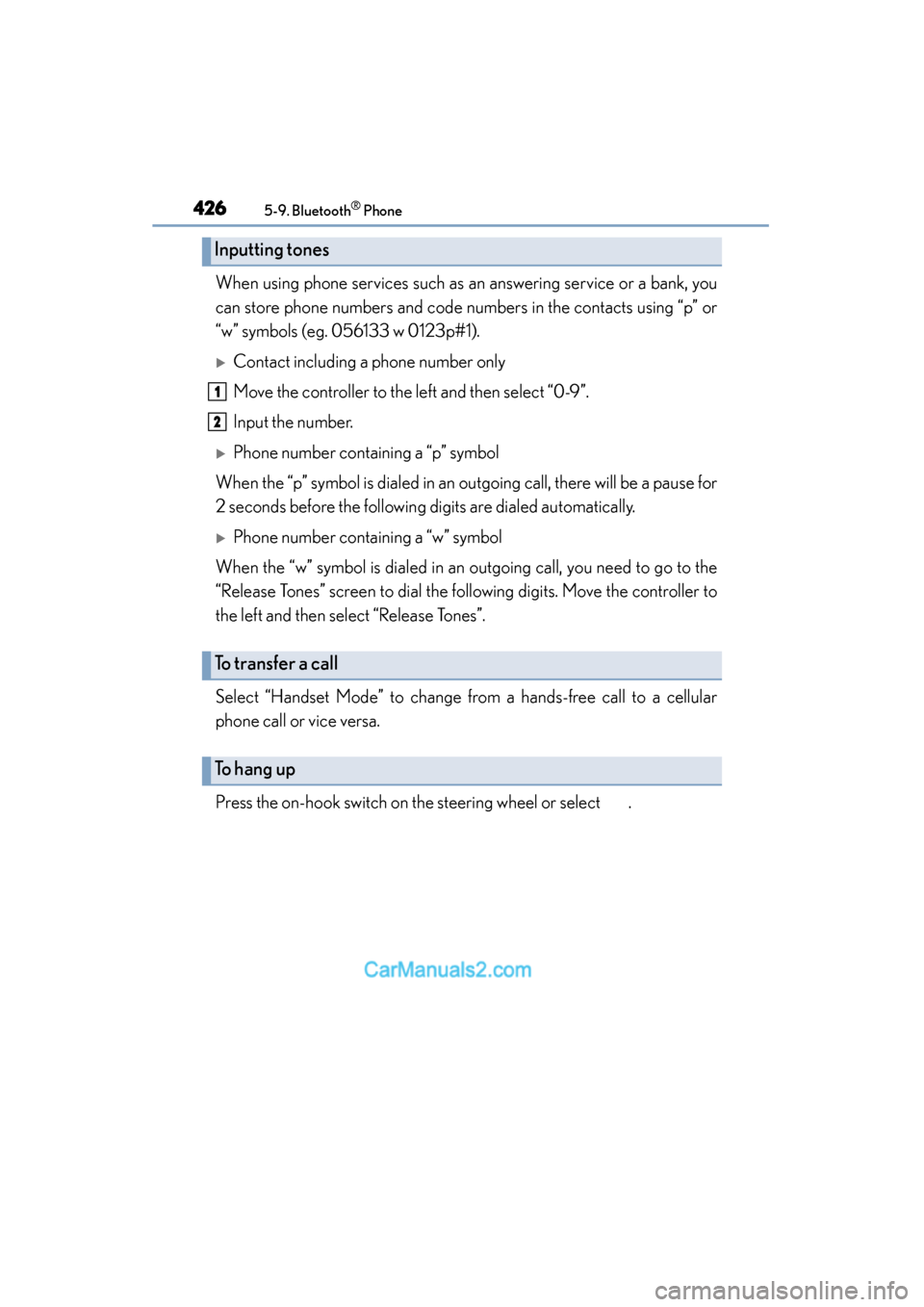

When using phone services such as an answering service or a bank, you
can store phone numbers and code numbers in the contacts using “p” or
“w” symbols (eg. 056133 w 0123p#1).
XContact including a phone number only
Move the controller to the left and then select “0-9”.
Input the number.
XPhone number containing a “p” symbol
When the “p” symbol is dialed in an ou tgoing call, there will be a pause for
2 seconds before the following digits are dialed automatically.
XPhone number containing a “w” symbol
When the “w” symbol is dialed in an outgoing call, you need to go to the
“Release Tones” screen to dial the following digits. Move the controller to
the left and then select “Release Tones”.
Select “Handset Mode” to change from a hands-free call to a cellular
phone call or vice versa.
Press the on-hook switch on the steering wheel or select .
Inputting tones
To transfer a call
To h a n g u p
1
2

ES350_300h_OM_OM33B99U_(U)
4275-9. Bluetooth® Phone
5
Lexus Display Audio system

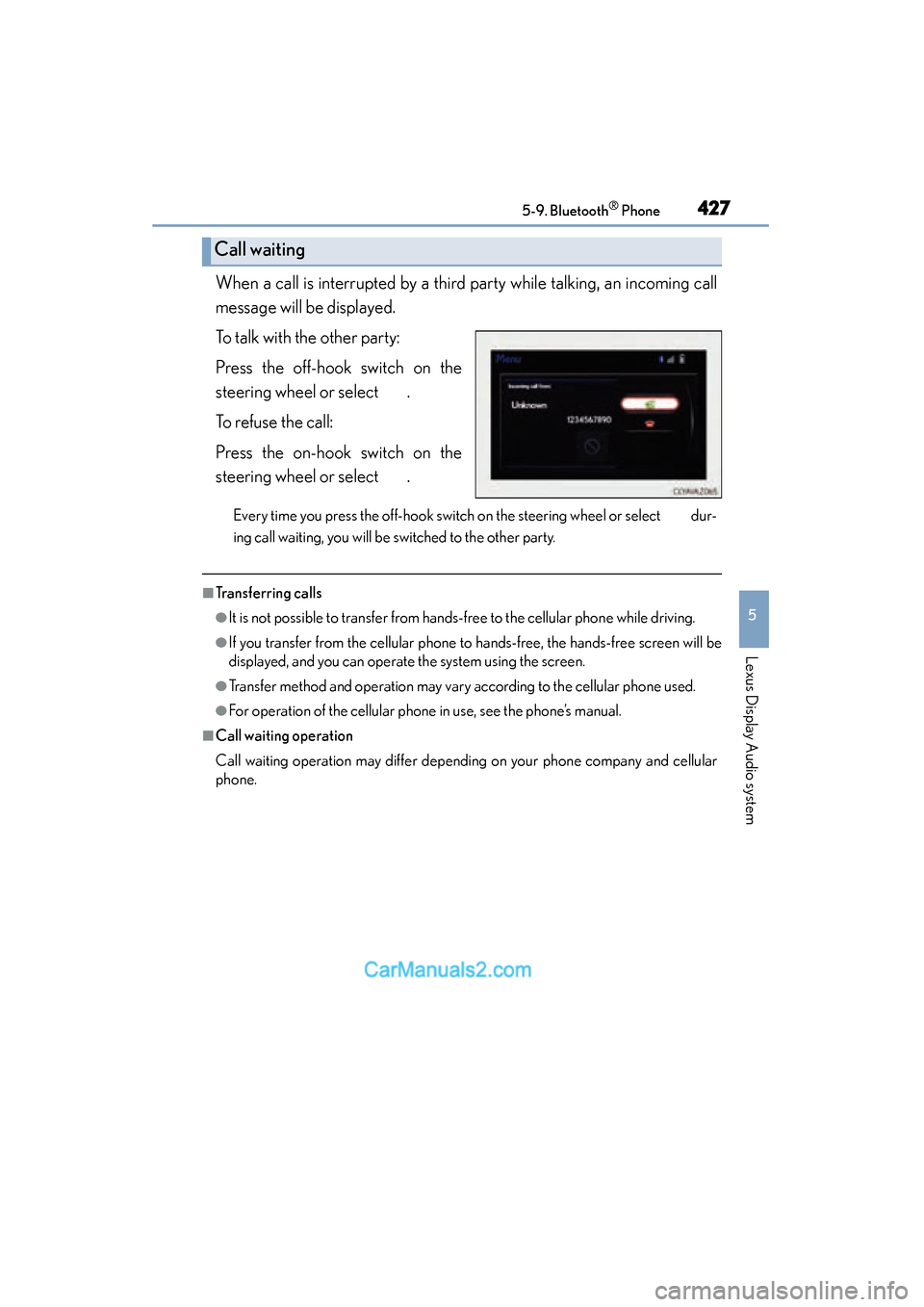

When a call is interrupted by a third party while talking, an incoming call
message will be displayed.
To talk with the other party:
Press the off-hook switch on the
steering wheel or select .
To refuse the call:
Press the on-hook switch on the
steering wheel or select .
Every time you press the off-hook switch on the steering wheel or select dur-
ing call waiting, you will be switched to the other party.
■Transferring calls
●It is not possible to transfer from hands-free to the cellular phone while driving.
●If you transfer from the cellular phone to hands-free, the hands-free screen will be
displayed, and you can operate the system using the screen.
●Transfer method and operation may vary according to the cellular phone used.
●For operation of the cellular phone in use, see the phone’s manual.
■Call waiting operation
Call waiting operation may differ depending on your phone company and cellular
phone.
Call waiting

428
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone

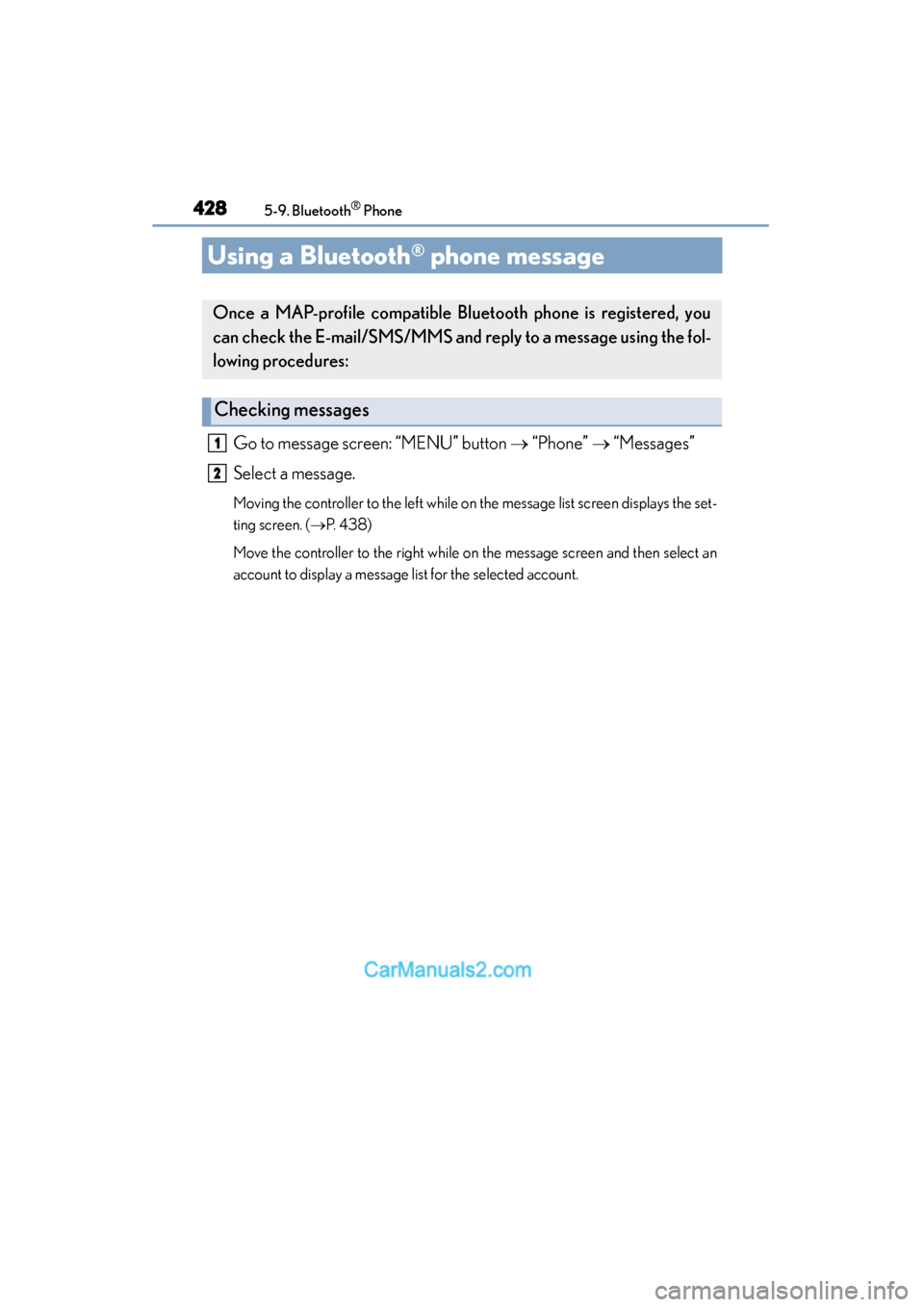

Using a Bluetooth® phone message
Go to message screen: “MENU” button → “Phone” → “Messages”
Select a message.
Moving the controller to the left while on the message list screen displays the set-
ting screen. ( →P. 4 3 8 )
Move the controller to the right while on the message screen and then select an
account to display a message list for the selected account.
Once a MAP-profile compatible Blu etooth phone is registered, you
can check the E-mail/SMS/MMS and reply to a message using the fol-
lowing procedures:
Checking messages
1
2
