dimensions Lexus ES350 2015 Owner's Manual

700
ES350_300h_OM_OM33B99U_(U)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length192.7 in. (4895mm)
Overall width71.7 in. (1820mm)
Overall height*57.1 in. (1450mm)
Wheelbase111.0 in. (2820mm)
Tr e a dFront62.6 in. (1590mm)
Rear62.0 in. (1575mm)
Vehicle capacity weight
(Occupants + luggage)905 lb. (410 kg)

ES350_300h_OM_OM33B99U_(U)
7219-1. Specifications
9
Vehicle specifications

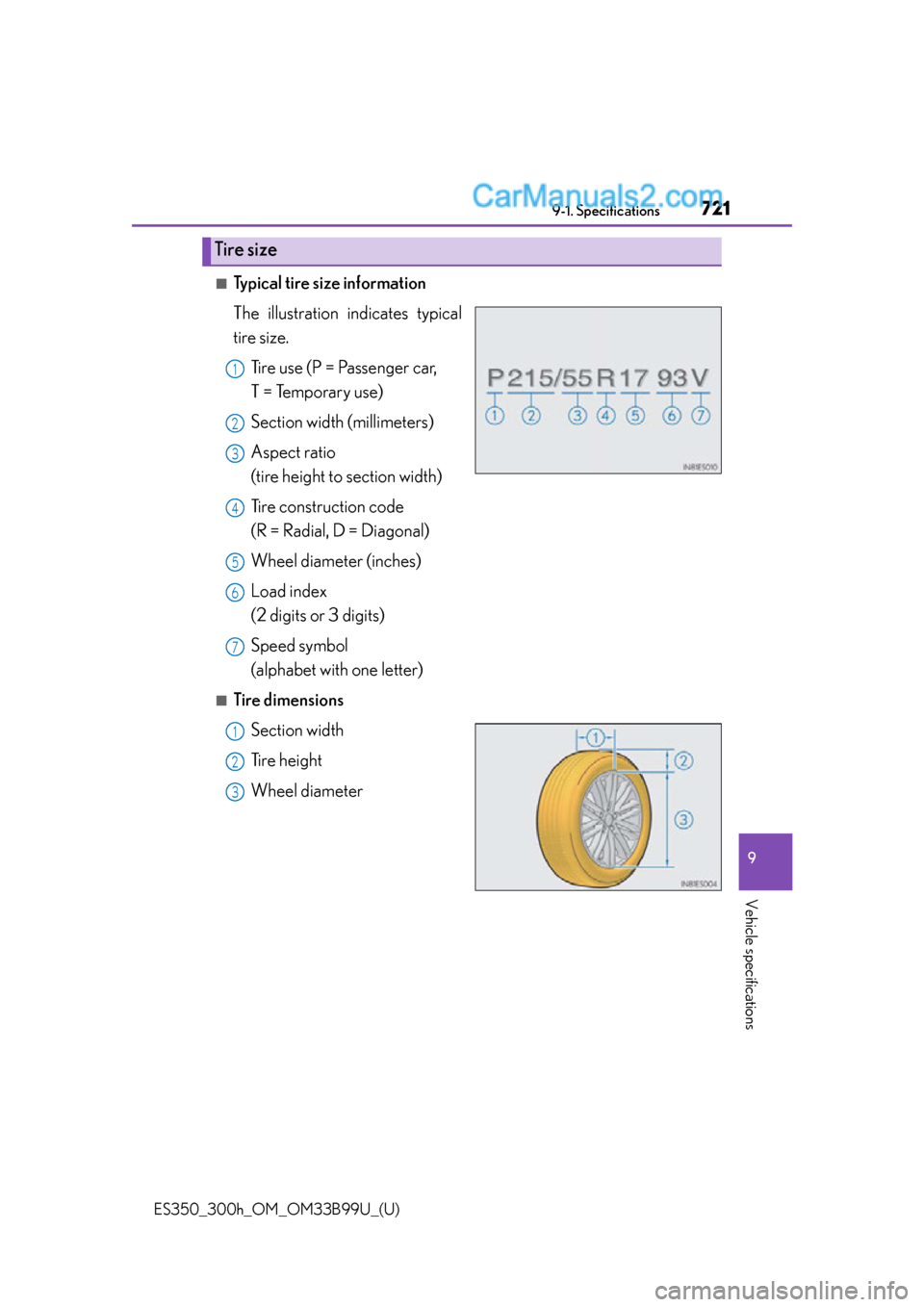

■Typical tire size information
The illustration indicates typical
tire size.Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index
(2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■Tire dimensionsSection width
Tire height
Wheel diameter
Tire size
1
2
3
4
5
6
7
1
2
3
