Page 21 of 112
21
ES350_QG_OM33B82U_(U)
Outside Rear View Mirrors
Selects a mirror to adjust (“L”: left
or “R”: right)
Adjust the mirror up, down, in or
out using the switch
nFolding the mirrors
Push the mirror back in the direction of
the vehicle’s rear.
n Linked mirror function when reversing
When the mirror select switch is in the L or R position, the outside rear view mirrors
will automatically angle downwards when the vehicle is reversing in order to give a
better view of the ground.
To disable this function, move the mirror select switch to the neutral position
(between L and R).
nAdjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position. The adjusted
angle will be memorized and the mirror will automatically tilt to the memorized
angle whenever the shift lever is shifted to R from next time.
The memorized downward tilt position of the mirror is linked to the normal posi-
tion (angle adjusted with the shift lever in other than R). Therefore, if the normal
position is changed after adjustment, the tilt position will also change. When the
normal position is changed, readjust the angle in reversing.
1
2
Page 22 of 112
22
ES350_QG_OM33B82U_(U)
Engine (Ignition) Switch
nStarting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
will be displayed on the
multi-information display. If it is
not displayed, the engine cannot
be started.
Press the engine switch. The engine will crank until it
starts or for up to 30 seconds,
whichever is less.
Continue depressing the brake
pedal until the engine is com-
pletely started.
The engine can be started from
any engine switch mode.
Performing the following operations wh en carrying the electronic key on your
person starts the engine or changes engine switch modes.
1
2
3
4
Page 23 of 112
23
ES350_QG_OM33B82U_(U)
nStopping the engine
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake.
Press the engine switch.
Release the brake pedal and check that “POWER ON” on the multi-information
display is off.
n Changing engine switch modes
Modes can be changed by pressing the engi ne switch with the brake pedal released.
(The mode changes each time the switch is pressed.)
Off
*
The emergency flashers can be used.
ACCESSORY mode Some electrical components such as
the audio system can be used.
“POWER ON” will be displayed on
the multi-information display.
IGNITION ON mode All electrical components can be
used.
“POWER ON” will be displayed on
the multi-information display.
*: If the shift lever is in a position other
than P when turning off the engine,
the engine switch will be turned to
ACCESSORY mode, not to off.
1
2
3
4
5
Page 24 of 112
24
ES350_QG_OM33B82U_(U)
nIf your vehicle has to be stopped in an emergency
Only in an emergency, such as if it b ecomes impossible to stop the vehicle in the
normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required
to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as much
as possible. To stop the engine, press and hold the
engine switch for 2 consecutive seconds
or more, or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
1
2
3
4
3
Press and hold for 2 seconds or
more
4
5
Page 25 of 112
25
ES350_QG_OM33B82U_(U)

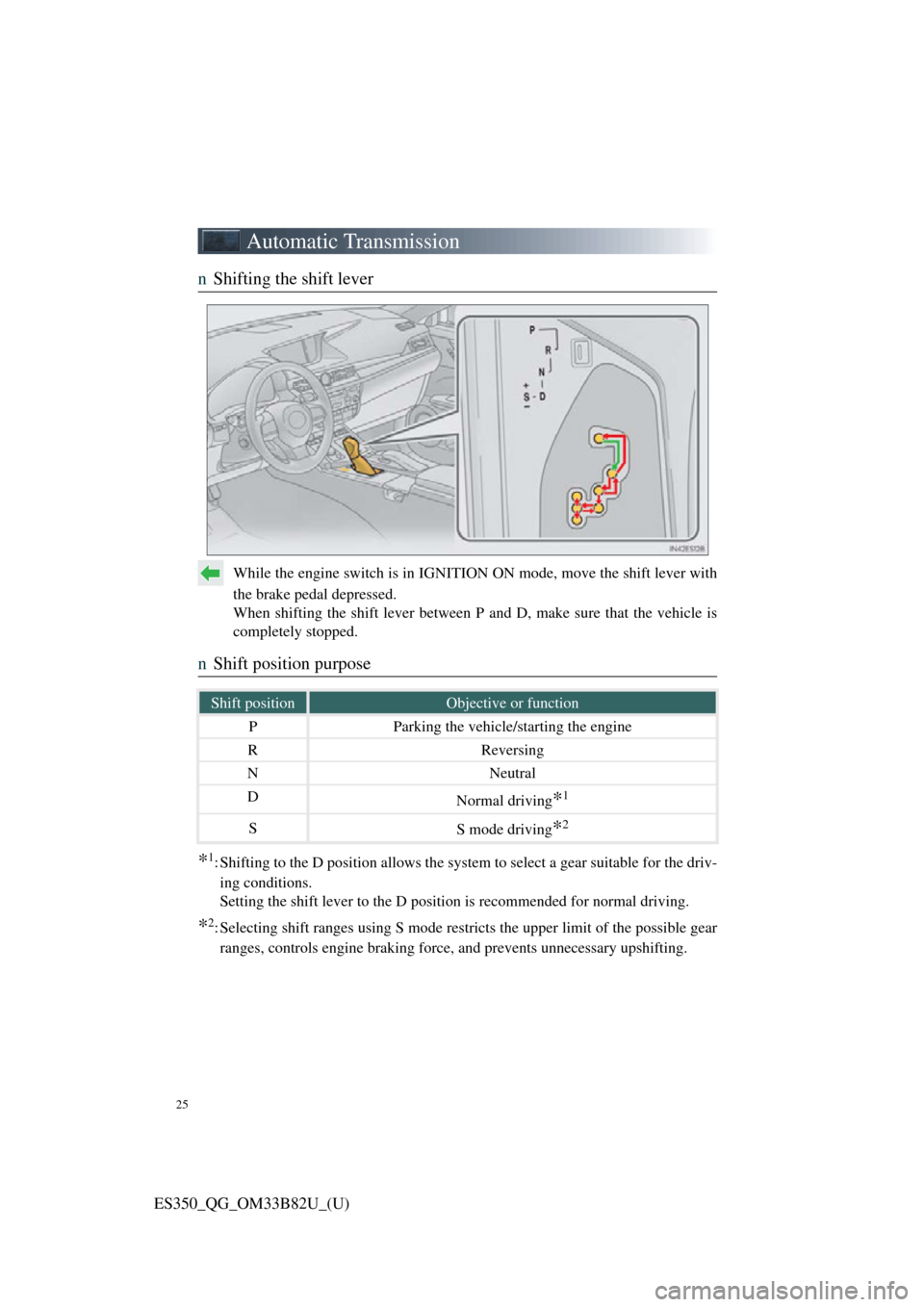

Automatic Transmission
nShifting the shift lever
While the engine switch is in IGNITI ON ON mode, move the shift lever with
the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
n Shift position purpose
*1: Shifting to the D position allows the system to select a gear suitable for the driv-
ing conditions.
Setting the shift lever to the D position is recommended for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of the possible gear ranges, controls engine braking for ce, and prevents unnecessary upshifting.
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
SS mode driving*2
Page 26 of 112
26
ES350_QG_OM33B82U_(U)
nSelecting gears in the S position
When the shift lever is in the S position, the shift lever can be operated as follows:
Upshifting
Downshifting
The selected shift range, from 1 to
6, will be displayed in the meter.
The initial shift range in S mode is
set automatically to 5 or 4 accord-
ing to vehicle speed. But, the initial
shift range may be set to 3 if AI-
SHIFT has operated while the shift
lever was in the D position.
1
2
n Shift ranges and their functions • Automatically selecting gears between 1 and 6 according to vehicle speed
and driving conditions. But, the gear is limited according to selected shift
range.
• You can choose from 6 levels of engine braking force.
• A lower shift range will provide greater engine braking force than a higher
shift range, and the engine speed will also increase.
Page 27 of 112
27
ES350_QG_OM33B82U_(U)
Turn Signal Lever
Right turn
Lane change to the right (move the
lever partway and then release it)
The right hand signals will flash 3
times.
Lane change to the left (move the
lever partway and then release it)
The left hand signals will flash 3
times.
Left turn1
2
3
4
n Customization
The number of times the turn signals flash during a lane change can be changed.
Page 28 of 112
28
ES350_QG_OM33B82U_(U)
Multi-information Display
Drive information
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist information
Select to display the cruise contro l or dynamic radar cruise control/
LDA (Lane Departure Alert with st eering control) information, when
the system is used. ( →P.37, 39, 43)
Warning message display
Select to display warning messages and measures to be taken if a mal-
function is detected.
Settings display
Select to change the meter display settings.
The multi-information display presents the driver with a variety of vehicle data.
Page 29 of 112
29
ES350_QG_OM33B82U_(U)
nOperating the meter control switches
The multi-information display is oper-
ated using the meter control switches.
Select an item/change pages
Enter/Set
Return to the previous screen
Press:
Displays the screen registered to
When no screen has been regis-
tered, the drive information screen
will be displayed.
Press and hold:
Registers the currently displayed
screen to
The registration confirmation
screen is displayed. If the selected
screen cannot be registered, a regis-
tration failure message will be
shown.
1
2
3
4
If a problem is detected in any of th e vehicle’s systems, a warning message is
shown on the multi-information display.
Page 30 of 112
30
ES350_QG_OM33B82U_(U)
Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Zone Dis-
play
Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.
Eco driving ratio based on accelera-
tion
If the acceleration exceeds the Zone
of Eco driving, the right side of the
Eco Driving Indicator Zone Dis-
play will illuminate.
When this happens, the Eco Driv-
ing Indicator Light will turn off.
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
l The engine is not running.
l The shift lever is in any position other than D.
l Neither normal mode nor Eco drive mode is selected. ( →P. 4 6 )
l The vehicle speed is approximately
80 mph (130 km/h) or higher.
Settings of the display and non-display
of the Eco Driving Indicator Light can
be changed.1
2
3
4
