5118-2. Steps to take in an emergency
ES350_OM_OM06134U_(U)
8
When trouble arises
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
5
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●Do not loosen the radiator cap or the cool ant reservoir cap while the engine and radi-
ator are hot. High temperature steam or coolant could spray out.
6
7

5128-2. Steps to take in an emergency
ES350_OM_OM06134U_(U)
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).
●Do not use any coolant additive.

513
ES350_OM_OM06134U_(U)8-2. Steps to take in an emergency
8
When trouble arises
If the vehicle becomes stuck
Stop the engine. Set the parking br
ake and shift the shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other materi al under the front wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 258)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in deat h or serious injury.
1
2
3
4
5

5148-2. Steps to take in an emergency
ES350_OM_OM06134U_(U)
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

515
ES350_OM_OM06134U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) ................... 516
Fuel information.......................... 525
Tire information ..........................528
9-2. Customization Customizable features ............538
9-3. Initialization Items to initialize .........................548

516
ES350_OM_OM06134U_(U)9-1. Specifications

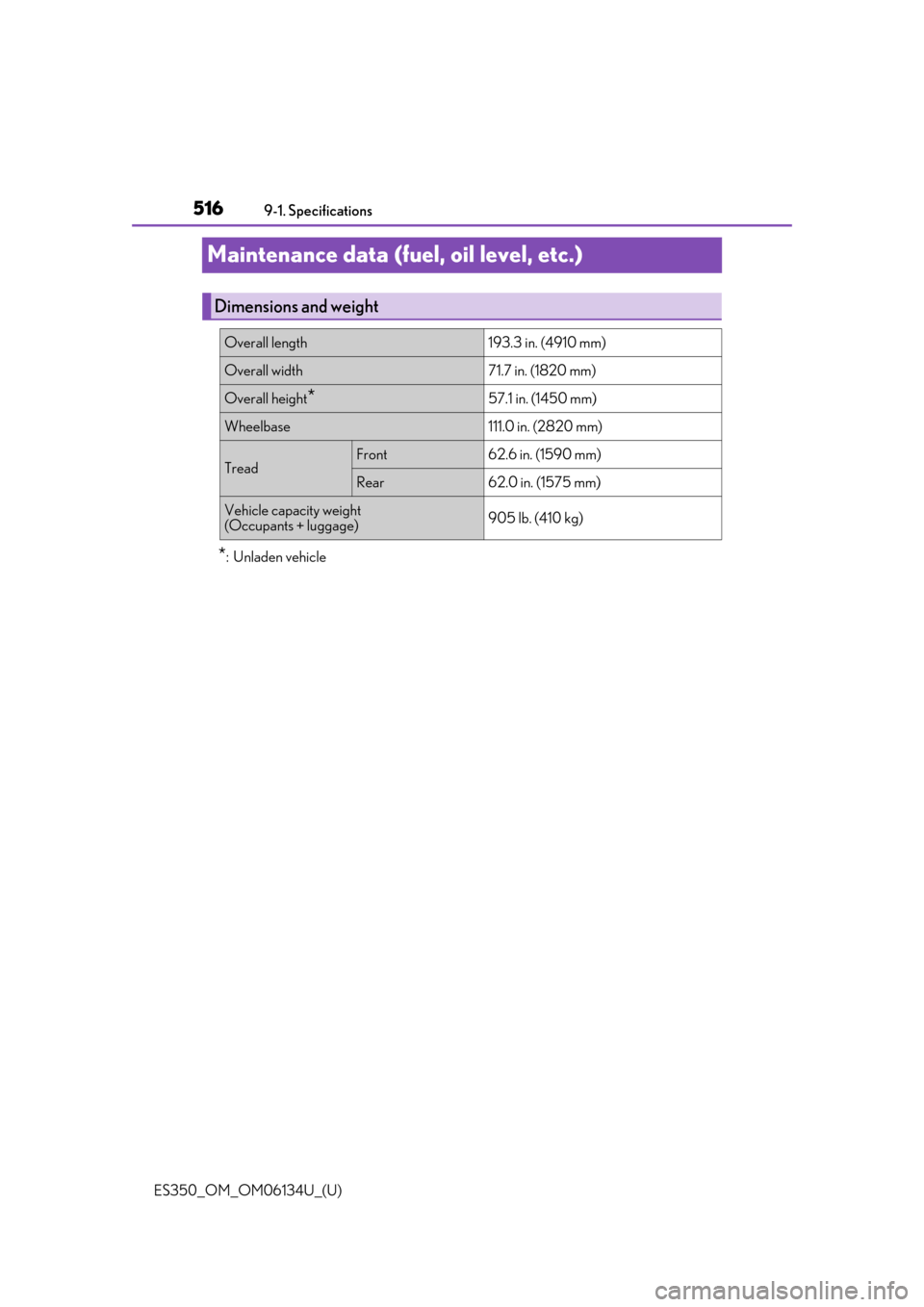

Maintenance data (fuel, oil level, etc.)
*:Unladen vehicle
Dimensions and weight
Overall length193.3 in. (4910 mm)
Overall width71.7 in. (1820 mm)
Overall height*57.1 in. (1450 mm)
Wheelbase111.0 in. (2820 mm)
TreadFront62.6 in. (1590 mm)
Rear62.0 in. (1575 mm)
Vehicle capacity weight
(Occupants + luggage)905 lb. (410 kg)

ES350_OM_OM06134U_(U)
5179-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

518
ES350_OM_OM06134U_(U)9-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

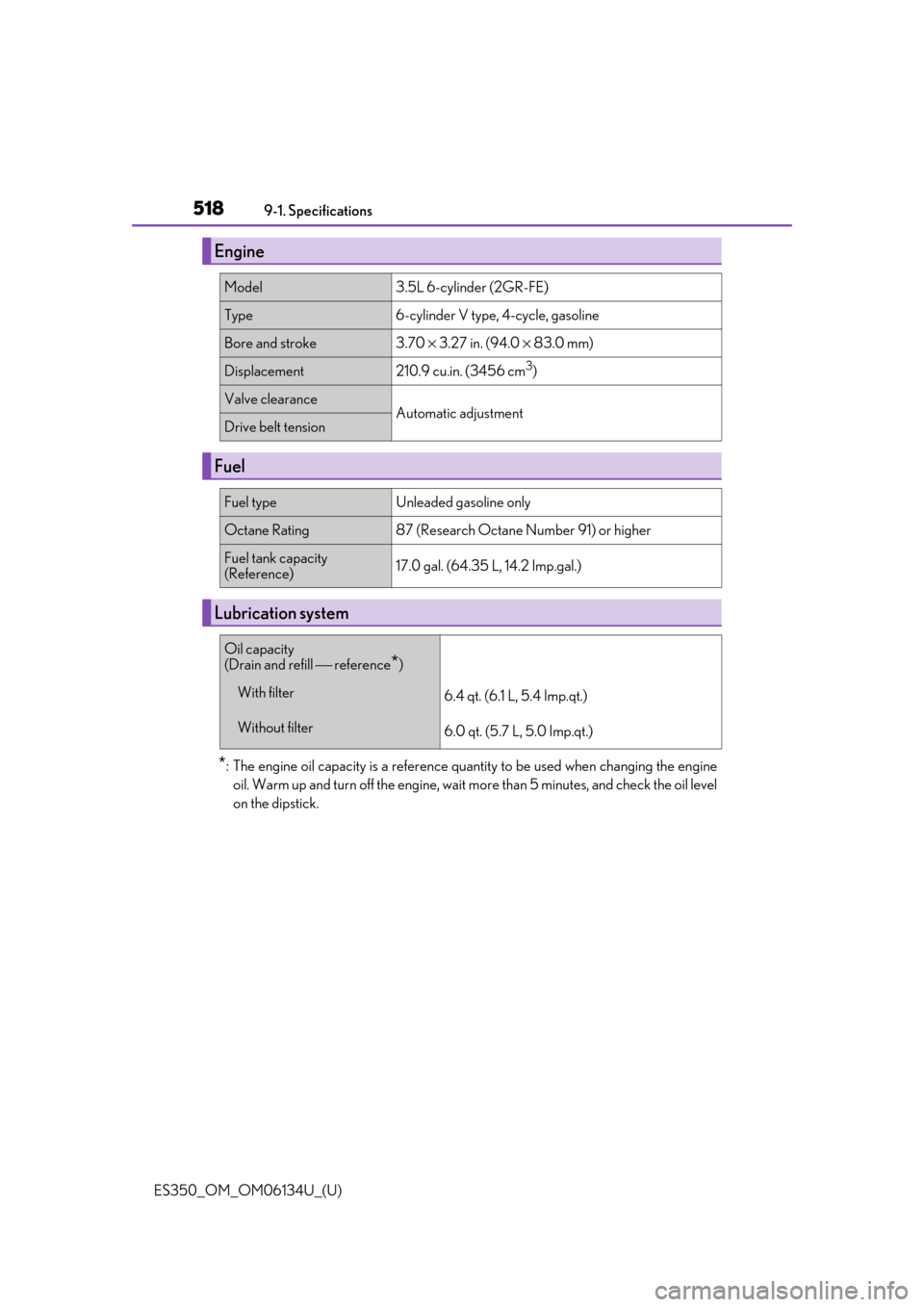

Engine
Model3.5L 6-cylinder (2GR-FE)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill ⎯ reference
*)
With filter6.4 qt. (6.1 L, 5.4 Imp.qt.)
Without filter6.0 qt. (5.7 L, 5.0 Imp.qt.)

ES350_OM_OM06134U_(U)
5199-1. Specifications
9
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

520
ES350_OM_OM06134U_(U)9-1. Specifications
Cooling system
Capacity
9.7 qt. (9.2 L, 8.1 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage at 68°F
(20° C):12.3 V or higher
(Voltage is checked 20 minutes after the engine and all
lights are turned off.)
Charging rates5 A max.
