key Lexus ES350 2020 Owner's Manual / LEXUS 2020 ES350 THROUGH SEPT. 2019 PROD. OWNER'S MANUAL QUICK GUIDE (OM06176U)

2
ES350_QG_OM06176U_(U)
Headlights..................................................................................................................................32
Head-up Display ...................................................................................................................... 29
Keys ........................................................................................................................... ................... 12
Lexus Climate Concierge ..................................................................................................... 61
Lexus Enform Remote ............................................................................................................ 81
Lexus Enform Safety Connect ............................................................................................ 79
Lexus Enform Service Connect ..........................................................................................82
Multi-information Display..................................................................................................... 2 6
Navigation System
*
Registering home ............................................................................................................... ........... 46
Destination search - Search by address .............................................................................. 46
Destination search - Search points of intere st by name ............................................... 48
Destination search - Search points of intere st by category ........................................ 49
Destination search - Search points of interest by phone number ............................ 49
Voice Command System .......................................................................................................... 6 6
Opening the fuel tank cap ....................................................................................................85
Parking Brake .................................................................................................................. .........23
Pictorial Index................................................................................................................ ..............3
Remote Touch ................................................................................................................... ....... 37
SiriusXM Satellite Radio.......... .............................................................. .................... .......... 83
Smart Access System with Push-button Start ................................................................. 13
Turn Signal Lever .............................................................................................................. .......22
USB/AUX Ports .................................................................................................................. .... 74
Voice Command System
*
Basic operation ................................................................................................................ .............. 66
Command list................................................................................................................... ................67
Windshield Wipers and Washer .........................................................................................35
*: These features may be oper ated by Voice Command (See P.66)

12
ES350_QG_OM06176U_(U)
●Smart access system with push-button
start ( P.13)
● Wireless remote control
To take out the mechanical key, push the
release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechani cal key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
Locks the doors
Unlocks the doors
Opens the windows and moon roof (if
equipped) or panora mic moon roof (if
equipped) (press and hold)
*
Opens the trunk
Sounds the alarm
*: This setting must be customized at your
Lexus dealer.
Keys
Electronic key
Mechanical key
Wireless remote control
A
B
C
D
E

13
ES350_QG_OM06176U_(U)
1Grip the driver’s door handle to unlock
the door. Holding the driver’s door
handle for approximately 2 seconds
unlocks all the doors. Grip the passen-
ger’s door handle to unlock all the
doors.
*
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are locked.
*: The door unlock settings can be
changed.
2Touch the lock sensor (the indentation on the upper part of the door handle) to lock all
the doors.
Check that the door is securely locked.
Smart Access System with Push-button Start
The following operations can be performed simply by carrying the electronic key on your
person, for example in your pocket. The driver should always carry the electronic key.
For details on starting the engine, see page 16.
Unlocking and locking the doors from the outside

14
ES350_QG_OM06176U_(U)
■Using the outside button
Press the button.
When all the doors are unlocked using one
of the following methods, the trunk can be
opened without the electronic key:
•Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
■Using the Hands Free Power Trunk Lid (vehicles with power trunk lid)
1
While carrying an electronic ke y, stand within the smart access system with push-but-
ton start operation range, approximately 11.8 to 19.7 in. (30 to 50 cm) from the rear
bumper.
Kick sensor
Hands Free Power Trunk Lid operation
detection area
Smart access system with push-button
start operation detection area
2Perform a kick operation by moving your foot to within approximately 3.9 in. (10 cm) of
the rear bumper and then pulling it back.
Kick sensor
Hands Free Power Trunk Lid operation
detection area
3When the kick sensor detects that your foot is pulled back, a buzzer will sound and the
trunk will automatically fully open.
Opening the trunk
A
B
C
A
B
For details on what to do when the electronic key does not operate properly, see page 91.

16
ES350_QG_OM06176U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.23)
Parking brake indicator will come on.
2Check that the shif t lever is in P
3Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the engine
cannot be started.
4Press the engine switch shortly and firmly.
When operating the engine switch, one short, firm press is enough. It is not necessary
to press and ho ld the switch.
The engine will crank until it starts or for up to 30 seconds, whichever is less. Continue
depressing the brake pedal until the engine is completely started.
The engine can be started from any engine switch mode.
Engine (Ignition) Switch
Performing the following operations when carrying the electronic key on your person
starts the engine or changes engine switch modes.
Starting the engine

59
ES350_QG_OM06176U_(U)
■Audio control switch
Turn to select a chapter.
Press to select a chapter.
Press and hold to fast forward/rewind.
■Control screen
Select to display the menu control key
Select to display the menu screen
Select to change the chapter.
Select and hold to rewind.
Select to stop the video screen
Select to play/pause
Select to change the chapter.
During playback: Select and hold to
fast forward.
During a pause: Select and hold to
slow forward.
Select to display expanded screen
video
DVD (12.3-inch display model)
A
B
A
B
C
D
E
F
G

What to do if...

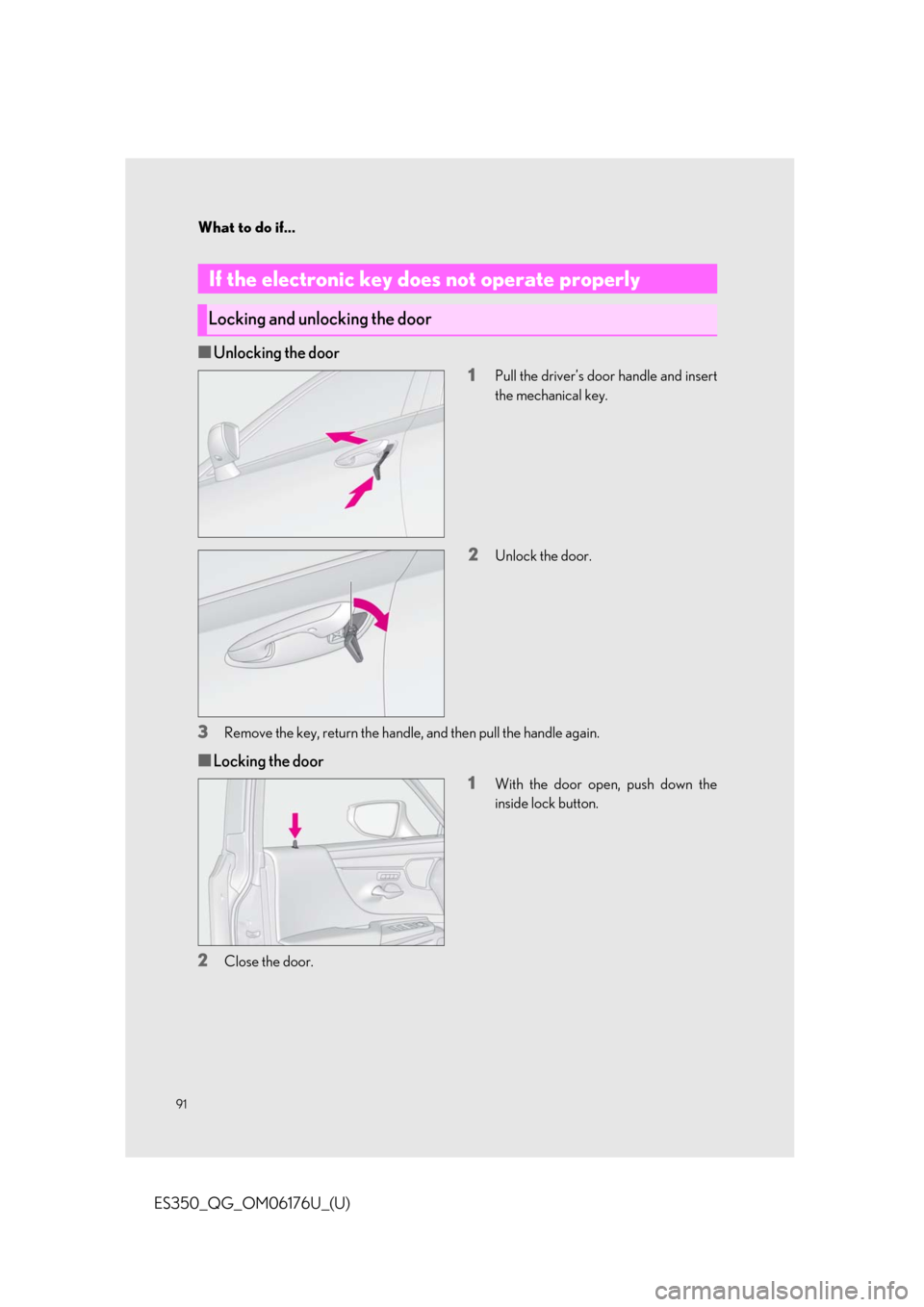

91
ES350_QG_OM06176U_(U)
■Unlocking the door1
Pull the driver’s door handle and insert
the mechanical key.
2Unlock the door.
3Remove the key, return the handle, and then pull the handle again.
■Locking the door
1
With the door open, push down the
inside lock button.
2Close the door.
If the electronic key does not operate properly
Locking and unlocking the door

92
What to do if...
ES350_QG_OM06176U_(U)
Turn the mechanical key clockwise to open.
1Ensure that the shift lever is in P and depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
pushbutton start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCESSORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine switch shortly and firmly.
In the event that the engine still cannot be started, contact your Lexus dealer.
Opening the trunk
Starting the engine
If the electronic key battery becomes depleted, a warning message will be shown on the
multi-information display. Replace the battery wi th a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.
