611-4. Theft deterrent system
1
For safety and security
1-4.Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
■Conditions that may cause the system to
malfunction
●If the grip portion of the key is in contact
with a metallic object
●If the key is in close proximity to or touch-
ing a key registered to the security sys-
tem (key with a built-in transponder chip)
of another vehicle
■Certifications for the en gine immobilizer system
For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico
Engine immobilizer system
The vehicle’s keys have built-in
transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.
Operating the system

621-4. Theft deterrent system
For vehicles sold in Canada
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

631-4. Theft deterrent system
1
For safety and security
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if
equipped) or panoramic moon roof
(if equipped) are closed before the
alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the doors, trunk and hood, and
lock all the doors using the entry func-
tion or wireless re mote control. The
system will be set automatically after
30 seconds.
Except for Canada, the alarm can also
be set using the mechanical key.
The indicator light changes from being on
to flashing when the system is set.
■Canceling or stopping
Do one of the following to deactivate
or stop the alarm:
 Except for Canada: Unlock the
doors using the entry function, wire-
less remote control or mechanical
key.
 For Canada: Unlock the doors using
the entry function or wireless
remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key
*. (The doors will lock again
automatically.)
 A locked trunk is unlocked or
opened in any way other than
using the entry function or wire-
less remote control.
 The hood is opened.
*:Except for Canada
Setting/canceling/stopping the
alarm system

641-4. Theft deterrent system
■Triggering of the alarm

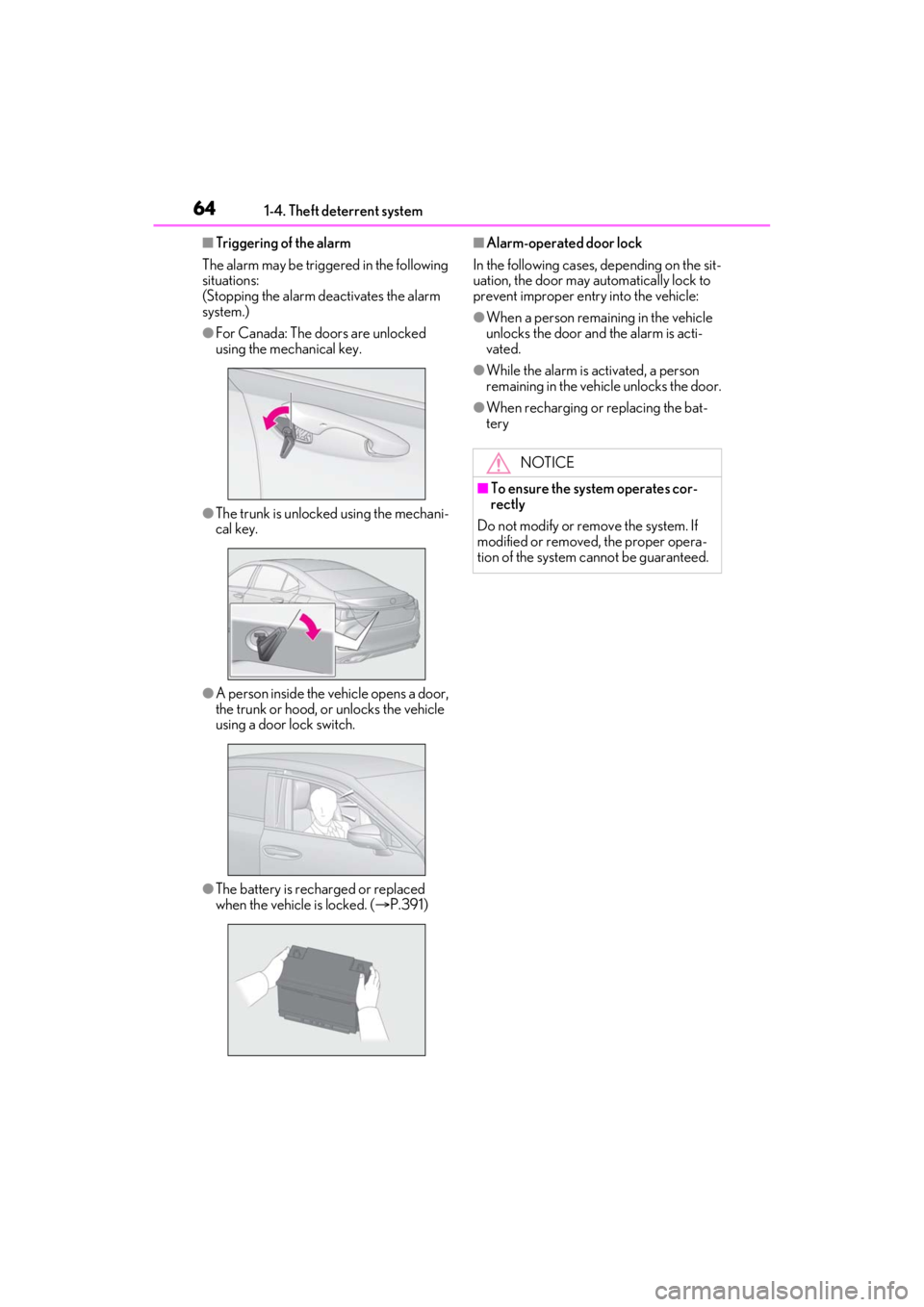

The alarm may be trigge red in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●For Canada: The doors are unlocked
using the mechanical key.
●The trunk is unlocked using the mechani-
cal key.
●A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using a door lock switch.
●The battery is rech arged or replaced
when the vehicle is locked. ( P.391)
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

65
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
2-1. Instrument cluster
Warning lights and indicators . 66
Gauges and meters (except F SPORT models) ........................ 70
Gauges and meters (F SPORT models) .......................................... 73
Multi-information display.......... 77
Head-up display ........................... 84
Fuel consumption screen.......... 88

662-1. Instrument cluster
2-1.Instrument cluster
Except F SPORT models
The image may differ from the actual condition.
F SPORT models
The image may differ from the actual condition.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

672-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.361)
(red)
(Canada)
Brake system warning light*1
(  P.361)
(yellow)
Brake system warning light*1
(  P.361)
High coolant temperature
warning light
*2 (  P.361)
Charging system warning
light
*2 (  P.362)
Low engine oil pressure warn-
ing light
*2 (  P.362)
(U.S.A.)
Malfunction indicator lamp*1
(  P.362)
(Canada)
Malfunction indicator lamp*1
(  P.362)
SRS warning light
*1 (  P.362)
(U.S.A.)
ABS warning light*1 ( P.363)
(Canada)
ABS warning light*1 ( P.363)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 (  P.363)
(red)
Electric power st eering system
warning light
*1 (  P.363)
(yellow)
Electric power steering system
warning light
*1 ( P.363)
Low fuel level warning light
(  P.364)
Driver’s and front passenger’s
seat belt re minder light
(  P.364)
Rear passengers’ seat belt
reminder lights ( P.364)
Tire pressure warning light
*1
(  P.365)
(orange)
LTA indicator*2 ( P.365)
(flashes)
Intuitive parking assist OFF indi-
cator
*1 (if equipped) ( P.365)
(flashes)
RCTA OFF indicator*1 (if
equipped) ( P.366)
(flashes)
RCD OFF indicator (if
equipped) (P.366)
(flashes)
PKSB OFF indicator*1 (if
equipped) ( P.366)
(flashes or
illuminates)PCS warning light*1 (  P.367)
Slip indicator
*1 (  P.367)
(flashes)
(U.S.A.)
Parking brake indicator
(  P.367)
(flashes)
(Canada)
Parking brake indicator
(  P.367)

682-1. Instrument cluster
*1: These lights come on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will go off after
the engine is on, or after a few seconds.
There may be a malfunction in a system
if the lights do not come on, or go off.
Have the vehicle inspected by your
Lexus dealer.
*2: This light illuminates on the multi-infor- mation display.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
(flashes)
Brake hold operated indica-
tor
*1 (  P.368)
Master warning light
*1
(  P.368)
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not avail-
able to help protect you in an accident,
which could result in death or serious
injury. Have the ve hicle inspected by
your Lexus dealer immediately if this
occurs.
Indicators
Turn signal indicator ( P.153)
(U.S.A.)
Headlight indicator ( P.158)
(Canada)
Tail light indicator ( P.158)
Headlight high beam indicator
( P.160)
Automatic High Beam indicator
(  P.161)
PCS warning light
*1, 2 (  P.177)
Cruise control indicator
(  P.195)
Dynamic radar cruise control
indicator ( P.195)
Cruise control “SET” indicator
(  P.195)
(white)
LTA indicator ( P.189)
(green)
LTA indicator (P.189)
(orange)
(flashes)LTA indicator ( P.189)
BSM outside rear view mirror
indicators
*1, 3 (if equipped)
(  P.205, 220)
BSM indicator (if equipped)
(  P.205)
Intuitive parking assist OFF indi-
cator
*1, 2 (if equipped)
(  P.214)
RCTA OFF indicator
*1, 2 (if
equipped) ( P.220)
RCD OFF indicator
*2 (if
equipped) ( P.224)
PKSB OFF indicator
*1, 2 (if
equipped) ( P.228)
(flashes)
Slip indicator*1 ( P.247)
VSC OFF indicator
*1, 2
(  P.247)

692-1. Instrument cluster
2
Vehicle status information and indicators
Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights come on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will go off after
the engine is on, or after a few seconds.
There may be a malfunction in a system
if the lights do not come on, or go off.
Have the vehicle inspected by your
Lexus dealer.
*2: This light comes on when the system is turned off.
*3: This light illuminates on the outside rear view mirrors.
*4: When the outside temperature is approximately 37°F (3°C) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*5: This light illuminates on the center panel.
Smart access system with push-
button start indicator (
P.144)
(U.S.A.)
Parking brake indicator
( P.154)
(Canada)
Parking brake indicator
( P.154)
Brake hold standby indicator
*1
(  P.156)
Brake hold operated indica-
tor
*1 (  P.156)
Eco Driving Indicator Light
*1
(  P.80)
Low outside temperature indi-
cator
*4 (  P.70, 73)
(U.S.A.)
“AIR BAG ON/OFF” indica-
tor
*1, 5 ( P.37)
(Canada)
“AIR BAG ON/OFF” indica-
tor
*1, 5 ( P.37)
Eco drive mode indicator
(  P.210)
Sport mode indicator ( P.210)
Custom mode indicator
(  P.210)
Eco drive mode indicator
(  P.210)
Sport S mode indicator
( P.210)
Sport S+ mode indicator
(  P.210)

702-1. Instrument cluster

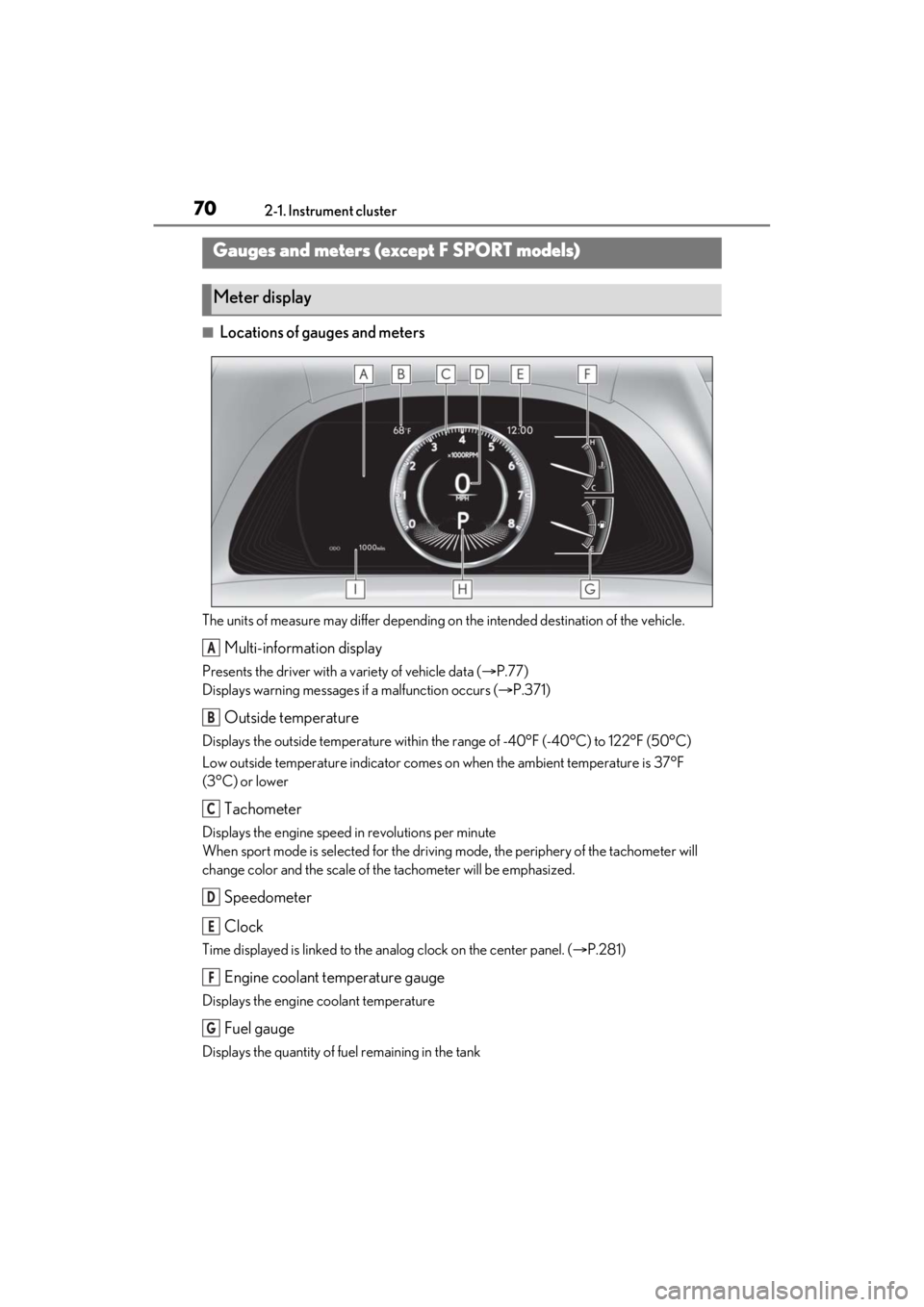

■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehicle.
Multi-information display
Presents the driver with a variety of vehicle data ( P.77)
Displays warning messages if a malfunction occurs ( P.371)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Speedometer
Clock
Time displayed is linked to the analog clock on the center panel. (P.281)
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Gauges and meters (except F SPORT models)
Meter display
A
B
C
D
E
F
G
