4038-1. Specifications
8

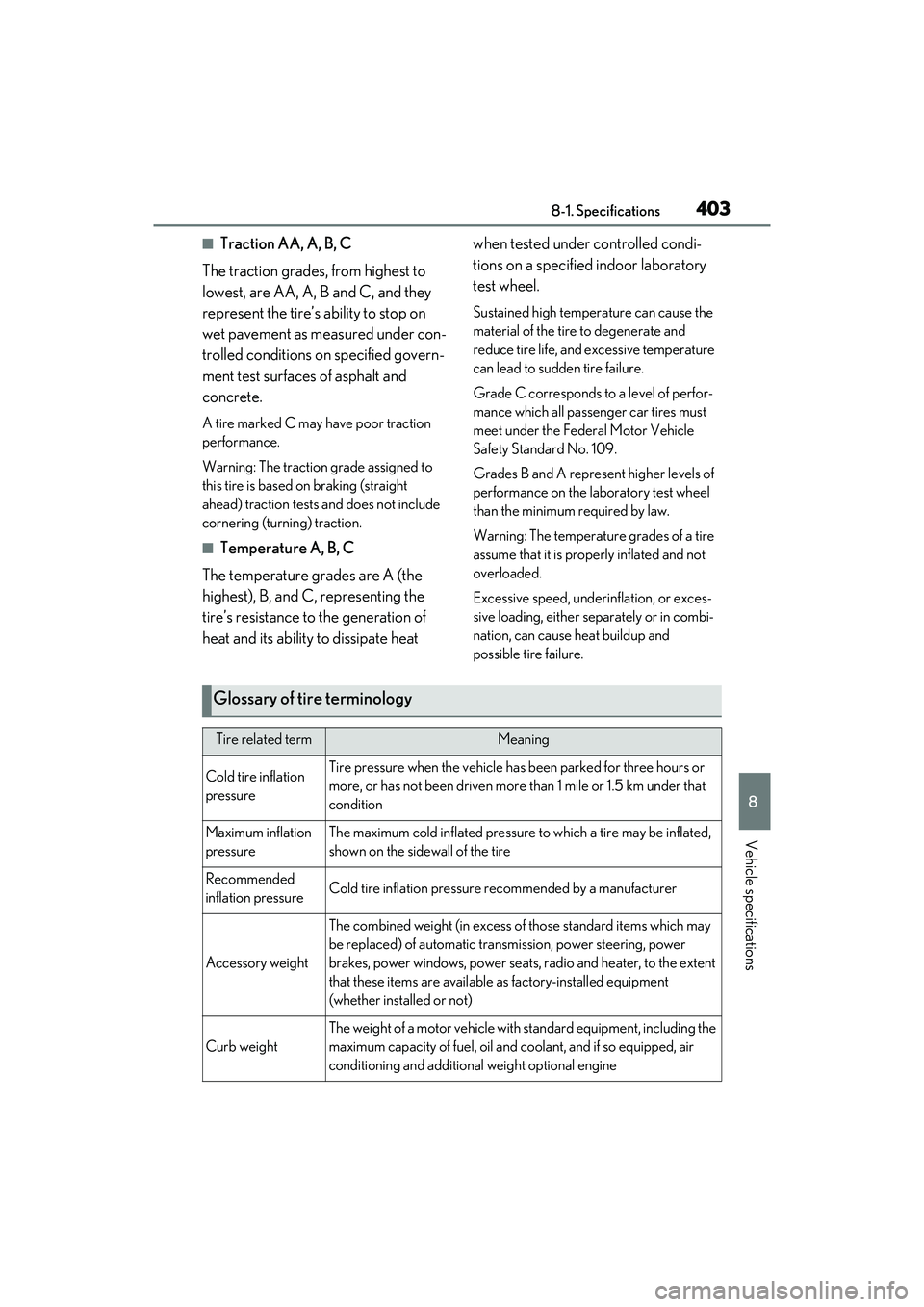

Vehicle specifications
■Traction AA, A, B, C
The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.
A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.
■Temperature A, B, C
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressureTire pressure when the vehicle has been parked for three hours or
more, or has not been driven more
than 1 mile or 1.5 km under that
condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a tire may be inflated,
shown on the sidewall of the tire
Recommended
inflation pressureCold tire inflation pressure recommended by a manufacturer
Accessory weight
The combined weight (in excess of those standard items which may
be replaced) of automatic transmission, power steering, power
brakes, power windows, power seats, radio and heater, to the extent
that these items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equipment, including the
maximum capacity of fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional engine

440Alphabetical index
Compartment ............................................... 312
Engine switch.................................................144
Fuel pump shut off system ................... 350
Hood................................................................. 310
How to start the engine............................144
Identification number ...............................389
If the engine will not start ....................... 374
If your vehicle has to be stopped in an emergency ................................................ 344
Ignition switch (engine switch) .............144
Overheating .................................................382
Tachometer .............................................. 68, 71
Engine coolant ................................................316 Capacity ......................................................... 392
Checking .........................................................316
Preparing and checking before winter...........................................................................251
Engine coolant temperature gauge .68, 71
Engine immobilizer system ........................ 59
Engine oil ..........................................................313 Capacity .........................................................390
Checking .........................................................313
Preparing and checking before winter...........................................................................251
Warning light ............................................... 352
Engine oil maintenance data ....................315
Engine switch .................................................. 144 Auto power off function ........................... 147
Changing the engine switch modes.. 147
If your vehicle has to be stopped in an emergency ................................................ 344
Starting the engine ...................................... 144
Enhanced Vehicle Stability Control (Enhanced VSC) ...................................... 246
Enhanced VSC (Enhanced Vehicle Stabil- ity Control) .................................................. 246
EPS (Electric Power Steering) .............. 246 Function .......................................................... 246
Warning light ...............................................353
Event data recorder (EDR) ........................... 8F
Flat tire ............................................................. 365 Tire pressure warning system ............. 322
Floor mats ...........................................................22
Fluid Automatic transmission ..........................393
Brake ................................................................394
Washer ............................................................ 319
Footwell light ................................................. 273
Front passenger occupant classification system ...............................................................37
Front seats ......................................................... 112 Adjustment ....................................................... 112
Cleaning .......................................................... 301
Correct driving posture ............................ 23
Driving position memory .......................... 113
Head restraints............................................... 116
Memory recall function.............................. 115
Power easy access system ...................... 113
Seat heaters ..................................................269
Seat position memory ................................ 113
Seat ventilators ............................................269
Front side marker light ............................... 158 Light switch .................................................... 158
Front side marker lights Replacing light bulbs................... 338, 339
Wattage ......................................................... 396
Front turn signal lights .................................153 Replacing light bulbs................... 338, 339
Turn signal lever .......................................... 153
Wattage ......................................................... 396
Fuel ......................................................................169 Capacity ........................................................ 390
Fuel gauge.................................................68, 71
Fuel pump shut off system.................... 350
Information ....................................................397
Refueling.......................................................... 169
Type ................................................................. 390
Warning light ...............................................354
Fuel consumption Average fuel economy .............................. 78

448Alphabetical index
W
Warning buzzersABS ..................................................................353
Airbags ........................................................... 352
Approach warning.................................... 204
Brake hold.................................................... 358
Brake Override System .........................353
Brake system .................................................351
Charging system ....................................... 352
Downshifting ..................................................152
Drive-Start Control ..................................353
Electric power steering ..........................353
Engine ............................................................. 352
High coolant temperature ......................351
Intuitive parking assist.................. 222, 355
Low engine oil pressure......................... 352
LTA (Lane Tracing Assist).........186, 355
Open door....................................................... 99
Open hood...................................................... 99
Open trunk ...................................................... 99
Open window ............................................... 124
PKSA (Parking Support Alert) .............215
PKSB (Parking Support Brake) .........356
Pre-collision braking.................................. 176
RCD (Rear Camera Detection) ........356
RCTA (Rear Cross Traffic Alert) ......356
Seat belt ..........................................................354
Warning lights.................................................351 ABS ..................................................................353
Brake hold operated indicator .......... 358
Brake system .................................................351
Charging system ....................................... 352
Electric power steering ..........................353
High coolant temperature ......................351
Inappropriate pedal operation ...........353
Intuitive parking assist OFF indicator.........................................................................355
Low engine oil pressure......................... 352
Low fuel level ...............................................354
LTA indicator...............................................355
Malfunction indicator lamp................... 352 Master warning light................................ 358
Parking brake indicator .......................... 357
PCS...................................................................357
PKSB OFF indicator ............................... 356
RCD OFF indicator................................. 356
RCTA OFF indicator .............................. 356
Seat belt reminder light...........................354
Slip indicator................................................. 357
SRS ....................................................................352
Tire pressure ............................................... 355
Warning messages .......................................361
Washer ..............................................................164 Checking ........................................................ 319
Preparing and checking before winter........................................................................... 251
Switch................................................................ 164
Washing and waxing.................................. 298
Weight Cargo capacity .............................................142
Load limits .......................................................142
Weight............................................................ 388
Wheel lock key............................................. 366
Wheels ............................................................. 330 Size................................................................... 395
Window lock switch .....................................124
Windows ...........................................................123 Power windows............................................123
Rear window defogger...........................263
Washer ............................................................ 164
Windshield wiper de-icer .........................267
Windshield wipers ........................................164 Position..............................................................167
Rain-sensing windshield wipers .......... 164
Winter driving tips.........................................251
Wireless charger ......................................... 282
Wireless remote control ............................. 94 Battery-Saving Function.......................... 109
Locking/Unlocking ..................................... 94
Replacing the battery...............................333
