3637-2. Steps to take in an emergency
7
When trouble arises
*: A buzzer sounds the first time a message is shown on the multi-information display.
In some situations, the master warning light and warning buzzer may not oper-
ate as specified. In this case, follow the instructions displayed in the warning
message.
 If a warning light comes on or flashes at the same time that a warning message is
displayed, take corrective action according to the warning light. ( P.351)
■Warning messages
The warning messages explained below
may differ from the actual messages
according to operation conditions and vehi-
cle specifications.
■Warning buzzer
In some cases, the buzzer may not be heard
due to being in a noisy location or audio
sound.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level is low. Check the level
of the engine oil, and add if necessary.
This message may appear if the vehicle is
stopped on a slope. Move the vehicle to a
level surface and check to see if the mes-
sage disappears.
■If “Engine Stopped Steering Power
Low” is displayed
This message is displayed if the engine is
stopped while driving.
When steering wheel operations are
heavier than usual, grip the steering wheel
firmly and operate it using more force than
usual.
■If “Auto Power Off to Conserve Bat-
tery” is displayed
Power was turned off due to the automatic
power off function. Next time when starting
the engine, increase the engine speed
slightly and maintain that level for approxi-
mately 5 minutes to recharge the battery.
■If “High Power Consumption Power to
Climate Temporarily Limited” is dis-
played
Turn off unnecessary electronic equipment
to reduce power consumption.
Please wait until the power supply returns
to normal.
■If “Headlight System Malfunction Visit
Your Dealer” is displayed
The following systems may be malfunction-
ing. Have the vehicle inspected by your
Lexus dealer immediately.
●The LED headlight system
●The automatic headlight leveling system
(if equipped)
●AHB (Automatic High Beam)
■If “Radar Cruise Control Unavailable
See Owner’s Manual” is shown
The dynamic radar cruise control with full-
speed range system is suspended tempo-
rarily or until the problem shown in the mes-
Comes onDoes not sound
Indicates a condition, such as malfunction of electri-
cal components, their cond ition, or indicates the
need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an operation has
been performed incorrectly, or indicates how to
perform an operation correctly
Warning buzzer*Warning

3787-2. Steps to take in an emergency
1Ensure that the shift lever is in P and
depress the brake pedal.
2 Touch the Lexus emblem side of
the electronic key to the engine
switch.
When the electronic key is detected, a
buzzer sounds and the engine switch will
turn to IGNITION ON mode.
When the smart access system with push-
button start is deactivated in customization
setting, the engine switch will turn to
ACCESSORY mode.
3Firmly depress the brake pedal and
check that is shown on the
multi-information display. 4
Press the engine switch shortly and
firmly.
In the event that the engine still cannot
be started, contact your Lexus dealer.
■Stopping the engine
Set the parking brake, shift the shift lever to
P and press the engine switch as you nor-
mally do when stopping the engine.
■Electronic key battery
As the above procedure is a temporary
measure, it is recommended that the elec-
tronic key battery be replaced immediately
when the battery is depleted. ( P.333)
■Alarm (for Canada)
Using the mechanical key to lock the doors
will not set the alarm system.
If a door is unlocked using the mechanical
key when the alarm system is set, the alarm
may be triggered.
■Changing engine switch modes
Release the brake pedal and press the
engine switch in step 3 above.
The engine does not start and modes will be
changed each time the switch is pressed.
(  P.147)
WARNING
■When using the mechanical key and
operating the power windows or
moon roof (if equipped) or panoramic
moon roof (if equipped)
Operate the power window, moon roof
or panoramic moon roof after checking
to make sure that there is no possibility of
any passenger having any of their body
parts caught in the window, moon roof or
panoramic moon roof.
Also, do not allow children to operate the
mechanical key. It is possible for children
and other passengers to get caught in
the power window, moon roof or pan-
oramic moon roof.
Starting the engine

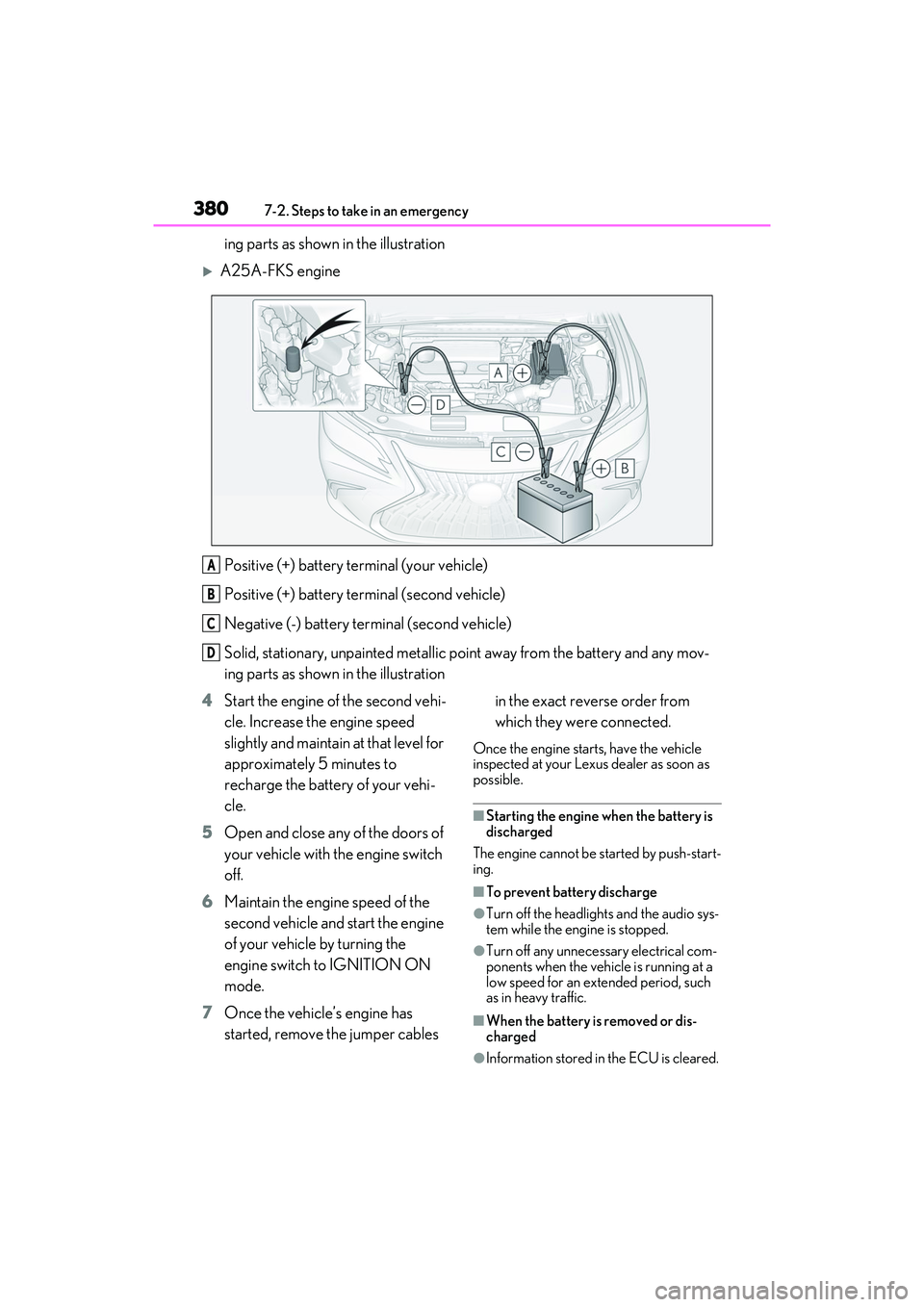

3807-2. Steps to take in an emergency
ing parts as shown in the illustration
A25A-FKS enginePositive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration
4 Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.
5 Open and close any of the doors of
your vehicle with the engine switch
off.
6 Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to IGNITION ON
mode.
7 Once the vehicle’s engine has
started, remove the jumper cables in the exact reverse order from
which they were connected.
Once the engine starts, have the vehicle
inspected at your Lexus dealer as soon as
possible.
■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights and the audio sys-
tem while the engine is stopped.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■When the battery is removed or dis-
charged
●Information stored in the ECU is cleared.
A
B
C
D

3847-2. Steps to take in an emergency
6Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning
system is turned on immediately after a
cold start. Confirm that the fan is operating
by checking the fan sound and air flow. If it
is difficult to check these, turn the air con-
ditioning system on and off repeatedly.
(The fan may not operate in freezing tem-
peratures.)
7 If the fan is not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.
WARNING
■When inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious
injury such as burns.
●If steam is seen coming from under the
hood, do not open the hood until the
steam has subsided. The engine com-
partment may be very hot.
●Keep hands and clothing (especially a
tie, a scarf or a muffler) away from the
fan and belts. Failure to do so may
cause the hands or clothing to be
caught, resulting in serious injury.
●While the engine and radiator are hot,
do not loosen or remove the coolant
inlet cap or coolant reservoir cap.
High temperature steam or coolant
could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has
cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can
cause damage to the engine.
■To prevent damage to the cooling
system
Observe the following precautions:
●Avoid contaminating the coolant with
foreign matter (such as sand or dust
etc.).
●Do not use any coolant additive.

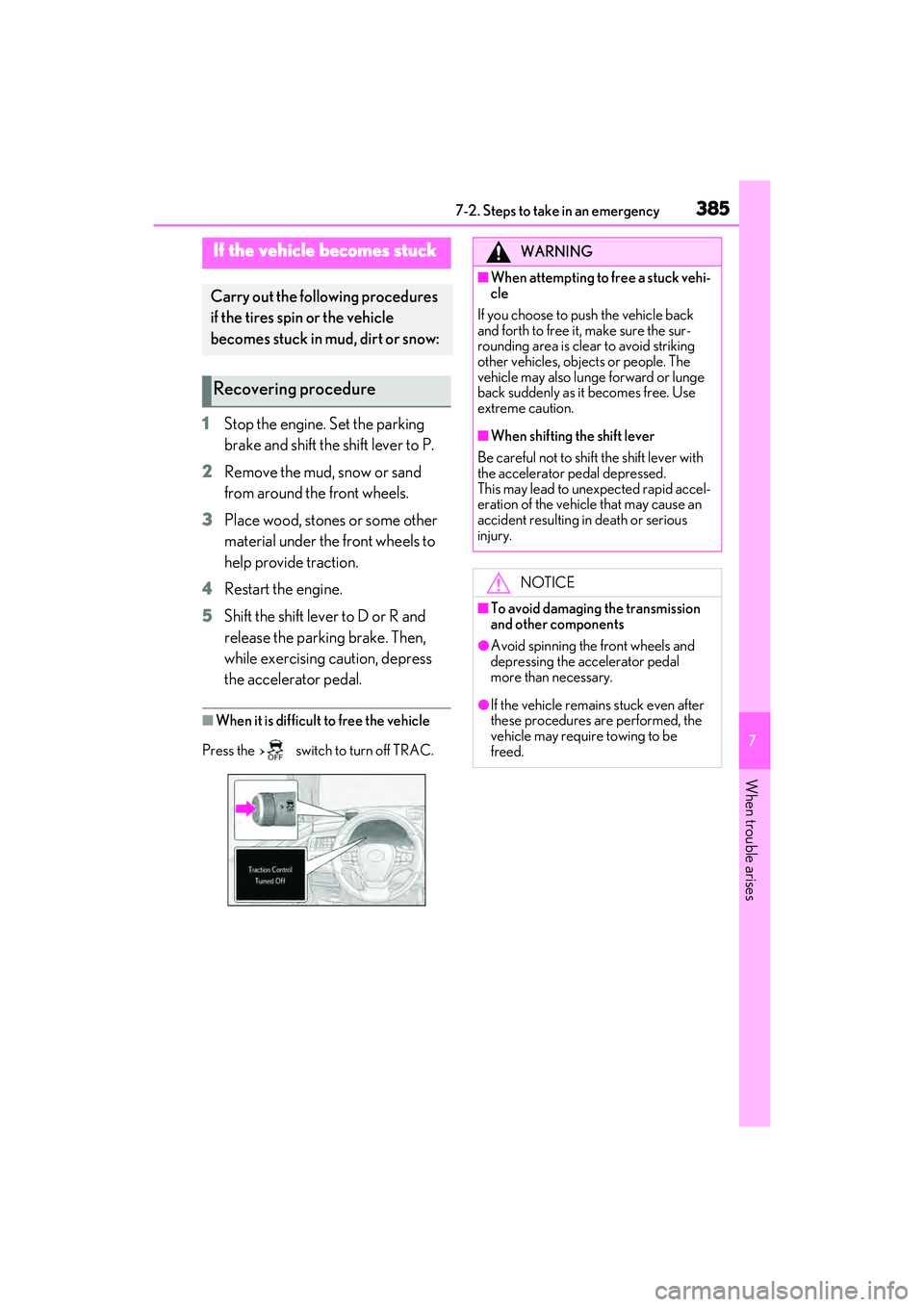

3857-2. Steps to take in an emergency
7
When trouble arises
1Stop the engine. Set the parking
brake and shift the shift lever to P.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some other
material under the front wheels to
help provide traction.
4 Restart the engine.
5 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.
■When it is difficult to free the vehicle
Press the switch to turn off TRAC.
If the vehicle becomes stuck
Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehi-
cle
If you choose to push the vehicle back
and forth to free it, make sure the sur-
rounding area is clear to avoid striking
other vehicles, objects or people. The
vehicle may also lunge forward or lunge
back suddenly as it becomes free. Use
extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with
the accelerator pedal depressed.
This may lead to unexpected rapid accel-
eration of the vehicle that may cause an
accident resulting in death or serious
injury.
NOTICE
■To avoid damaging the transmission
and other components
●Avoid spinning the front wheels and
depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after
these procedures are performed, the
vehicle may require towing to be
freed.

435What to do if... (Troubleshooting)
In this case, the engine can be started in a
temporary way. ( P.378)
 Is the battery discharged?
( P.379)
 Is the engine switch in IGNITION
ON mode?
If you cannot release the shift lever
by depressing the brake pedal with
the engine switch in IGNITION ON
mode ( P.150)
 It is locked automatically to prevent
theft of the vehicle. ( P.145)
 Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.124)
 The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.147) 
The seat belt reminder light is flash-
ing
Are the driver and the passengers wearing
the seat belts? ( P.354)
 The parking brake indicator is on
Is the parking brake released? ( P.154)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.351, 361)
 Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
( P.60)
To stop the alarm, turn the engine
switch to IGNITION ON mode, or
start the engine.
 Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.361)
 When a warning light turns on or a
warning message is displayed, refer
to P.351, 361.
The shift lever cannot be shifted
from P even if you depress the
brake pedal
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed

Alphabetical index439
Warning message..................................... 224
Distance until next engine oil change .. 70, 74
Do-it-yourself maintenance .................... 304
Door courtesy lights ................................... 273
Door lock Doors.................................................................. 96
Smart access system with push-button start ..................................................................107
Wireless remote control........................... 94
Doors ................................................................... 96 Automatic door locking and unlocking system ............................................................. 99
Door glasses .................................................. 123
Door lock.......................................................... 96
Open door warning buzzer ................... 99
Outside rear view mirrors ......................120
Rear door child-protectors ..................... 99
Drive distance .................................................. 78
Drive info 1/Drive info 2 .............................. 78
Driver’s seat position memory .................. 113 Driving position memory.......................... 113
Memory recall function ............................. 115
Drive-Start Control (DSC) Sudden start restraint control................139
Driving................................................................134 Break-in tips ...................................................135
Correct driving posture .............................23
Driving Mode Select switch................... 213
Procedures .....................................................134
Winter drive tips...........................................251
Driving information display ......................... 77
Driving Mode Select switch......................213
Driving range ................................................... 78
Driving support system information display .............................................................................80
DSC (Drive-Start Control) Sudden start restraint control................139
Dynamic radar cruise control with full- speed range ................................................. 198 Warning message..................................... 207
Dynamic Torque Control AWD system .......................................................................... 246
E
Eco drive mode ..............................................213
Eco Driving Indicator................... 79, 80, 86
Eco Driving Indicator Light .........................79
EDR (Event data recorder) ........................... 8
Elapsed time ..................................................... 78
Electric Power Steering (EPS)
Function ..........................................................246
Warning light ...............................................353
Electronic key .................................................. 92 Battery-saving function............................ 109
If the electronic key does not operate properly .......................................................376
Replacing the battery...............................333
Electronic roof sunshade Jam protection function ............................129
Operation ....................................................... 128
Emergency, in case of If a warning buzzer sounds.................... 351
If a warning light turns on........................ 351
If a warning message is displayed ...... 361
If the battery is discharged ....................379
If the electronic key does not operate properly .......................................................376
If the engine will not start........................ 374
If the fuel filler door cannot be opened ..........................................................................376
If the vehicle is submerged or water on the road is rising ......................................345
If you have a flat tire ................................. 365
If you lose your keys ................................. 375
If you think something is wrong..........349
If your vehicle becomes stuck ............ 385
If your vehicle has to be stopped in an emergency................................................. 344
If your vehicle needs to be towed ..... 347
If your vehicle overheats ........................382
Emergency flashers .................................... 344
Engine ................................................................144 ACCESSORY mode................................147

440Alphabetical index
Compartment ............................................... 312
Engine switch.................................................144
Fuel pump shut off system ................... 350
Hood................................................................. 310
How to start the engine............................144
Identification number ...............................389
If the engine will not start ....................... 374
If your vehicle has to be stopped in an emergency ................................................ 344
Ignition switch (engine switch) .............144
Overheating .................................................382
Tachometer .............................................. 68, 71
Engine coolant ................................................316 Capacity ......................................................... 392
Checking .........................................................316
Preparing and checking before winter...........................................................................251
Engine coolant temperature gauge .68, 71
Engine immobilizer system ........................ 59
Engine oil ..........................................................313 Capacity .........................................................390
Checking .........................................................313
Preparing and checking before winter...........................................................................251
Warning light ............................................... 352
Engine oil maintenance data ....................315
Engine switch .................................................. 144 Auto power off function ........................... 147
Changing the engine switch modes.. 147
If your vehicle has to be stopped in an emergency ................................................ 344
Starting the engine ...................................... 144
Enhanced Vehicle Stability Control (Enhanced VSC) ...................................... 246
Enhanced VSC (Enhanced Vehicle Stabil- ity Control) .................................................. 246
EPS (Electric Power Steering) .............. 246 Function .......................................................... 246
Warning light ...............................................353
Event data recorder (EDR) ........................... 8F
Flat tire ............................................................. 365 Tire pressure warning system ............. 322
Floor mats ...........................................................22
Fluid Automatic transmission ..........................393
Brake ................................................................394
Washer ............................................................ 319
Footwell light ................................................. 273
Front passenger occupant classification system ...............................................................37
Front seats ......................................................... 112 Adjustment ....................................................... 112
Cleaning .......................................................... 301
Correct driving posture ............................ 23
Driving position memory .......................... 113
Head restraints............................................... 116
Memory recall function.............................. 115
Power easy access system ...................... 113
Seat heaters ..................................................269
Seat position memory ................................ 113
Seat ventilators ............................................269
Front side marker light ............................... 158 Light switch .................................................... 158
Front side marker lights Replacing light bulbs................... 338, 339
Wattage ......................................................... 396
Front turn signal lights .................................153 Replacing light bulbs................... 338, 339
Turn signal lever .......................................... 153
Wattage ......................................................... 396
Fuel ......................................................................169 Capacity ........................................................ 390
Fuel gauge.................................................68, 71
Fuel pump shut off system.................... 350
Information ....................................................397
Refueling.......................................................... 169
Type ................................................................. 390
Warning light ...............................................354
Fuel consumption Average fuel economy .............................. 78

Alphabetical index441
Current fuel consumption........................ 78
Fuel filler door .................................................169 If the fuel filler door cannot be opened......................................................................... 376
Refueling ..........................................................169
Fuel gauge ...................................................68, 71
Fuel pump shut off system........................350
Fuses ................................................................. 335
G
Garage door opener ................................. 289
Gauges .........................................................68, 71
Gear Position ................................................... 80
G-force ................................................................79
Glove box ........................................................ 277
Glove box light ..............................................277
Grocery bag hooks .................................... 279
H
Hands Free Power Trunk Lid .................. 103
Headlights ....................................................... 158 AHB (Automatic High Beam)............... 161
Light switch.................................................... 158
Replacing light bulbs................................338
Headlights aim .............................................. 337
Head restraints ................................................ 116
Head-up display.............................................. 83 Driving information display area........... 83
Driving support system display area ..85
Eco Driving Indicator .................................86
HUD (Head-up display) switch............ 84
Navigation system-linked display ........ 83
Pop-up display...............................................85
Settings .............................................................. 84
Heated steering wheel .............................. 269
Heaters Air conditioning system.......................... 262
Heated steering wheel............................ 269
Outside rear view mirrors .................... 263
Seat heaters .................................................. 269
High mounted stoplight Replacing light bulbs............................... 338
Hill-start assist control ............................... 246
Hood .................................................................. 310 Open................................................................. 310
Hooks Cargo hooks................................................ 279
Coat hooks .................................................. 288
Grocery bag hooks.................................. 279
Retaining hooks (floor mat) ..................... 22
Horn ..................................................................... 119
HUD (Head-up display) switch................ 84
I
I/M test ............................................................ 307
Identification Engine............................................................. 389
Vehicle ........................................................... 388
Ignition switch (engine switch).................144 Auto power off function............................147
Changing the engine switch modes ..147
If your vehicle has to be stopped in an emergency................................................. 344
Starting the engine ......................................144
Immobilizer system........................................ 59
Indicators ........................................................... 66
Initialization Items to initialize .......................................... 419
Maintenance......................................303, 315
Power windows............................................123
Tire pressure warning system ............. 324
Inside rear view mirror ................................. 119
Instrument panel light control ........... 70, 75
Interior lights.................................................. 273
Intuitive parking assist........................215, 216 Function ............................................................216
Warning message ...................................... 218
J
JackPositioning a floor jack ............................. 310
Vehicle-equipped jack .......................... 366
