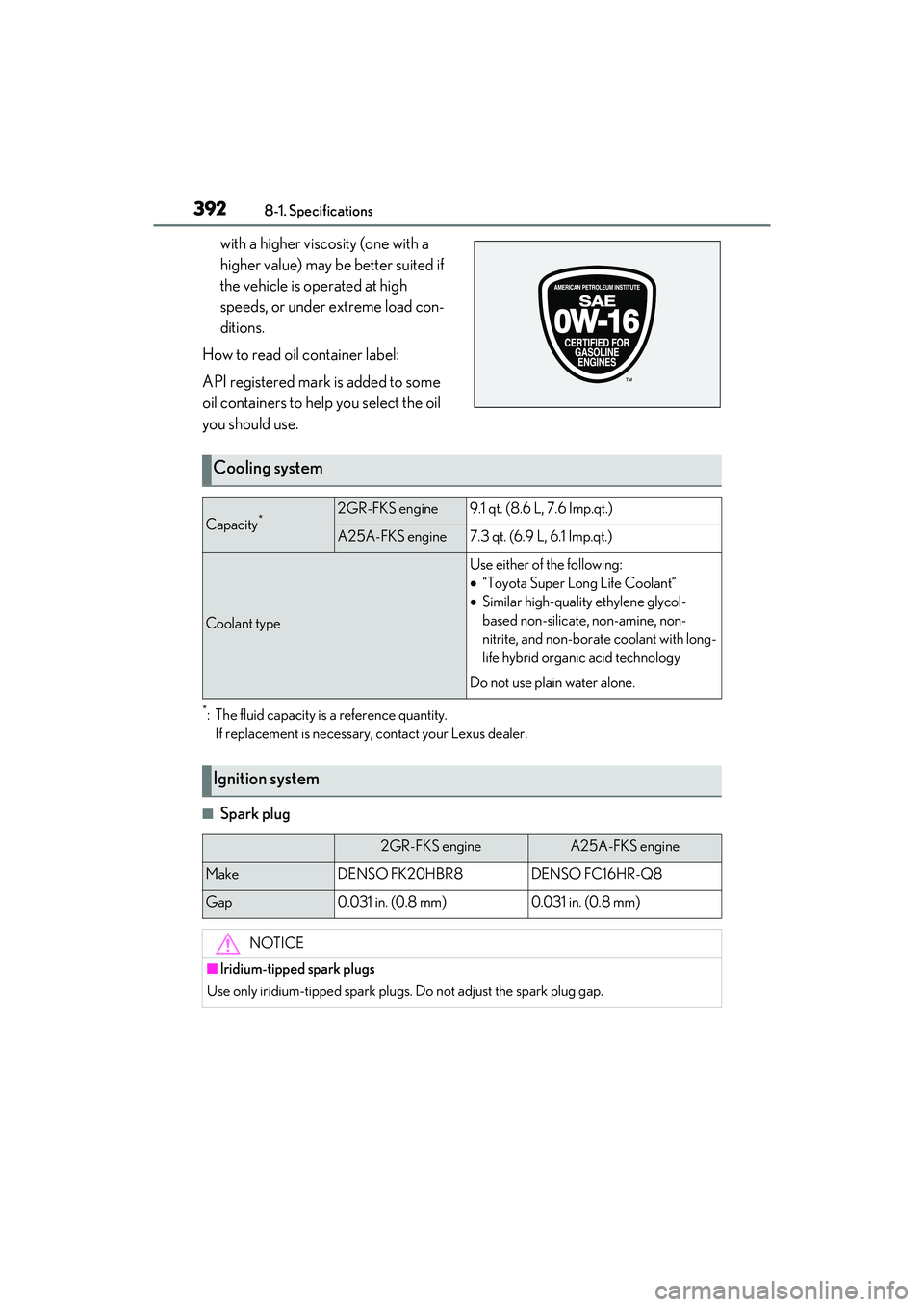

spark plugs replace LEXUS ES350 2022 Owners Manual

3928-1. Specifications
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
API registered mark is added to some
oil containers to help you select the oil
you should use.
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
■Spark plug
Cooling system
Capacity*2GR-FKS engine9.1 qt. (8.6 L, 7.6 Imp.qt.)
A25A-FKS engine7.3 qt. (6.9 L, 6.1 Imp.qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
2GR-FKS engineA25A-FKS engine
MakeDENSO FK20HBR8DENSO FC16HR-Q8
Gap0.031 in. (0.8 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
