481
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are equivalent
to those removed in load capacity, diameter, rim width and inset
*.
Replacement wheels are available at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
●Steel wheels (except for GS200t with steel spare wheel)
●Use only Lexus wheel nuts and wrenches designed for use with your alumi-
num wheels.
●When rotating, repairing or changing your tires, check that the wheel nuts are
still tight after driving 1600 km (1000 miles).
●Be careful not to damage the aluminum wheels when using tire chains.
●Use only Lexus genuine balance weights or equivalent and a plastic or rubber
hammer when balancing your wheels.
■When replacing wheels (vehicles with the tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and transmit-
ters that allow the tire pressure warning system to provide advance warning in the event
of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning
valves and transmitters must be installed. ( →P. 4 6 7 )
If a wheel is bent, cracked or heavily corroded, it should be replaced. Other-
wise, the tire may separate from the wheel or cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

4826-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)

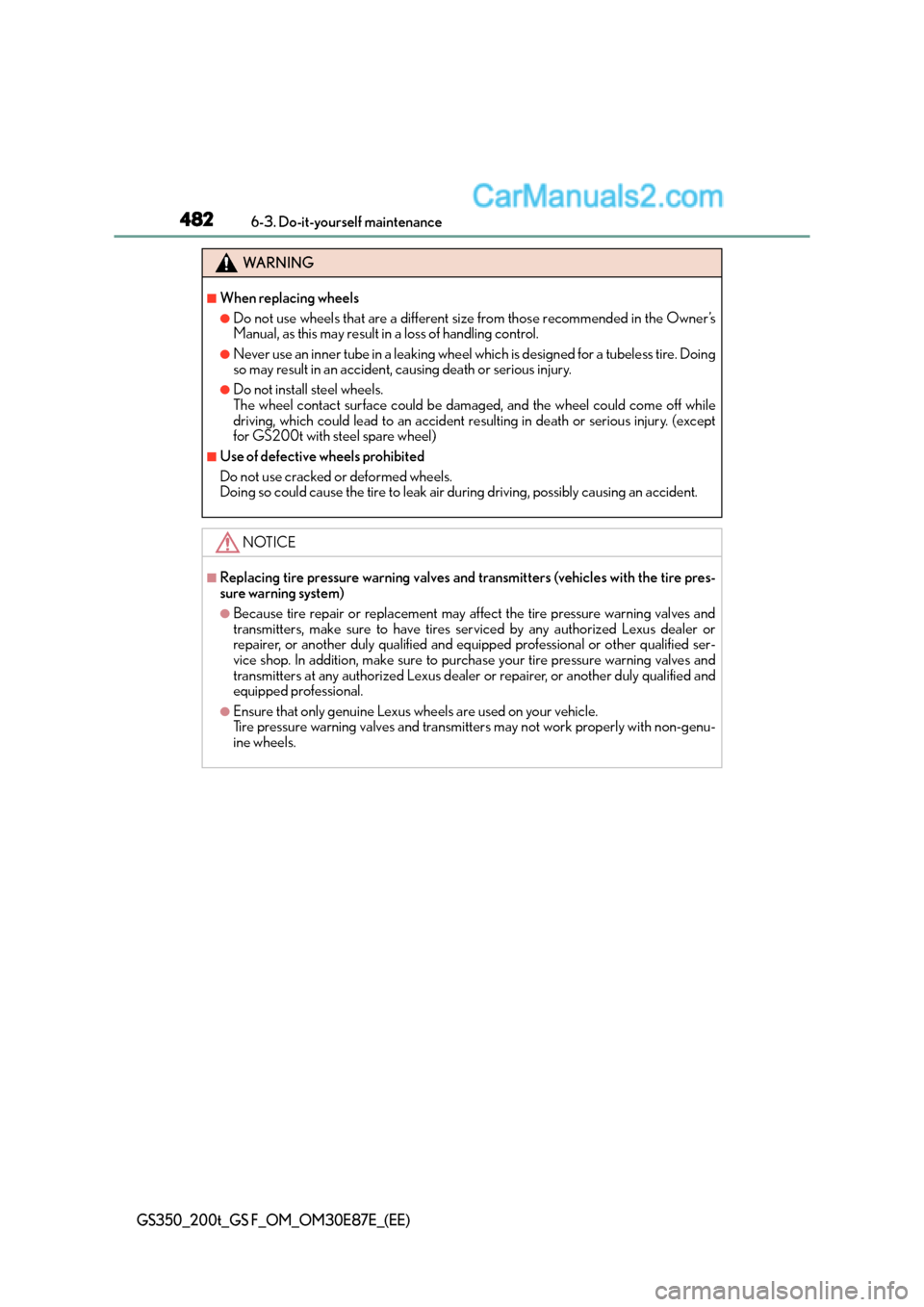

WA R N I N G
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the Owner’s
Manual, as this may result in a loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire. Doing
so may result in an accident, causing death or serious injury.
●Do not install steel wheels.
The wheel contact surface could be damaged, and the wheel could come off while
driving, which could lead to an accident resulting in death or serious injury. (except
for GS200t with steel spare wheel)
■Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an accident.
NOTICE
■Replacing tire pressure warning valves and transmitters (vehicles with the tire pres-
sure warning system)
●Because tire repair or replacement may affect the tire pressure warning valves and
transmitters, make sure to have tires serviced by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional or other qualified ser-
vice shop. In addition, make sure to purchase your tire pressure warning valves and
transmitters at any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-genu-
ine wheels.

483
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)

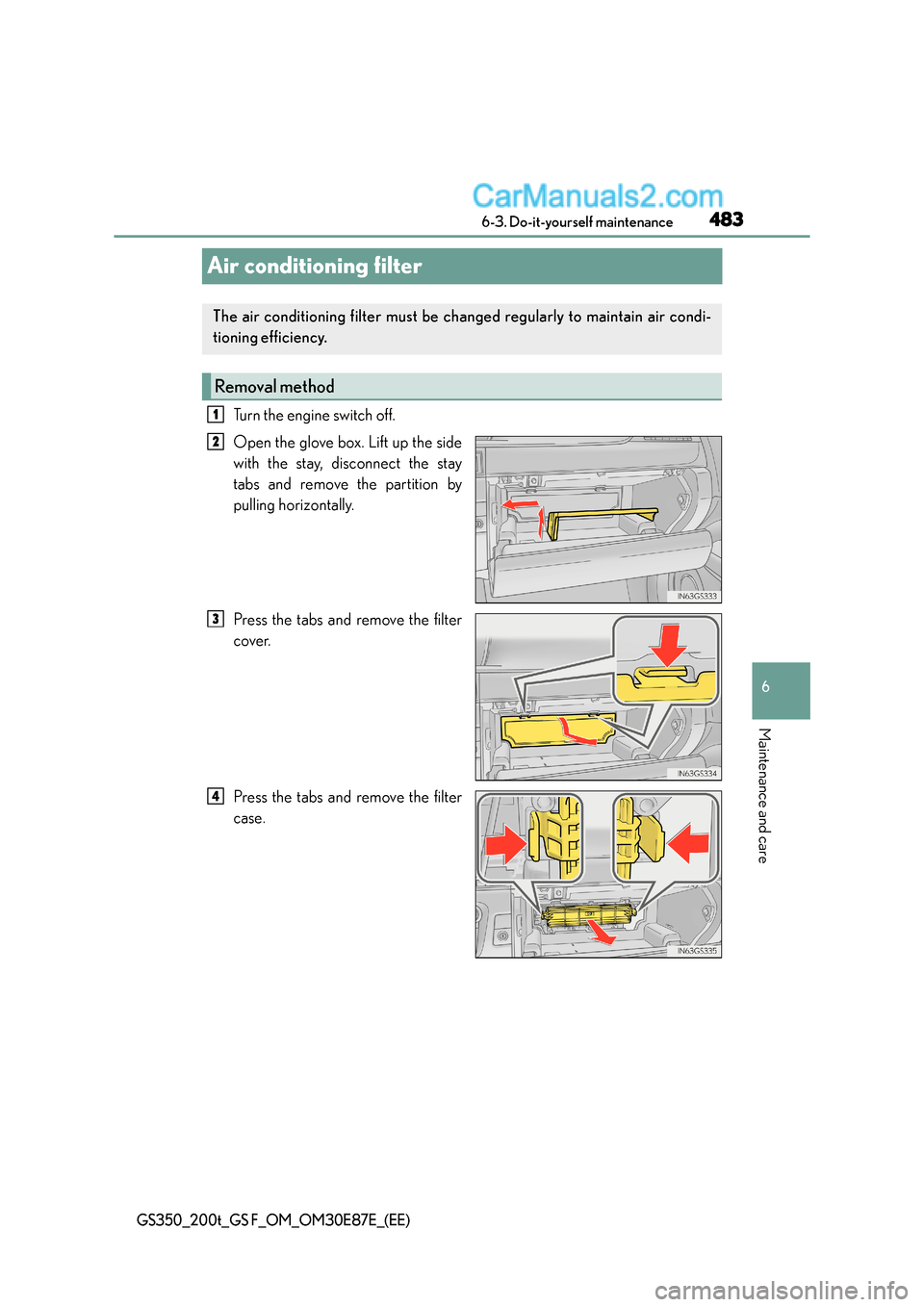

Air conditioning filter
Turn the engine switch off.
Open the glove box. Lift up the side
with the stay, disconnect the stay
tabs and remove the partition by
pulling horizontally.
Press the tabs and remove the filter
cover.
Press the tabs and remove the filter
case.
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
Removal method
1
2
3
4

4846-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)

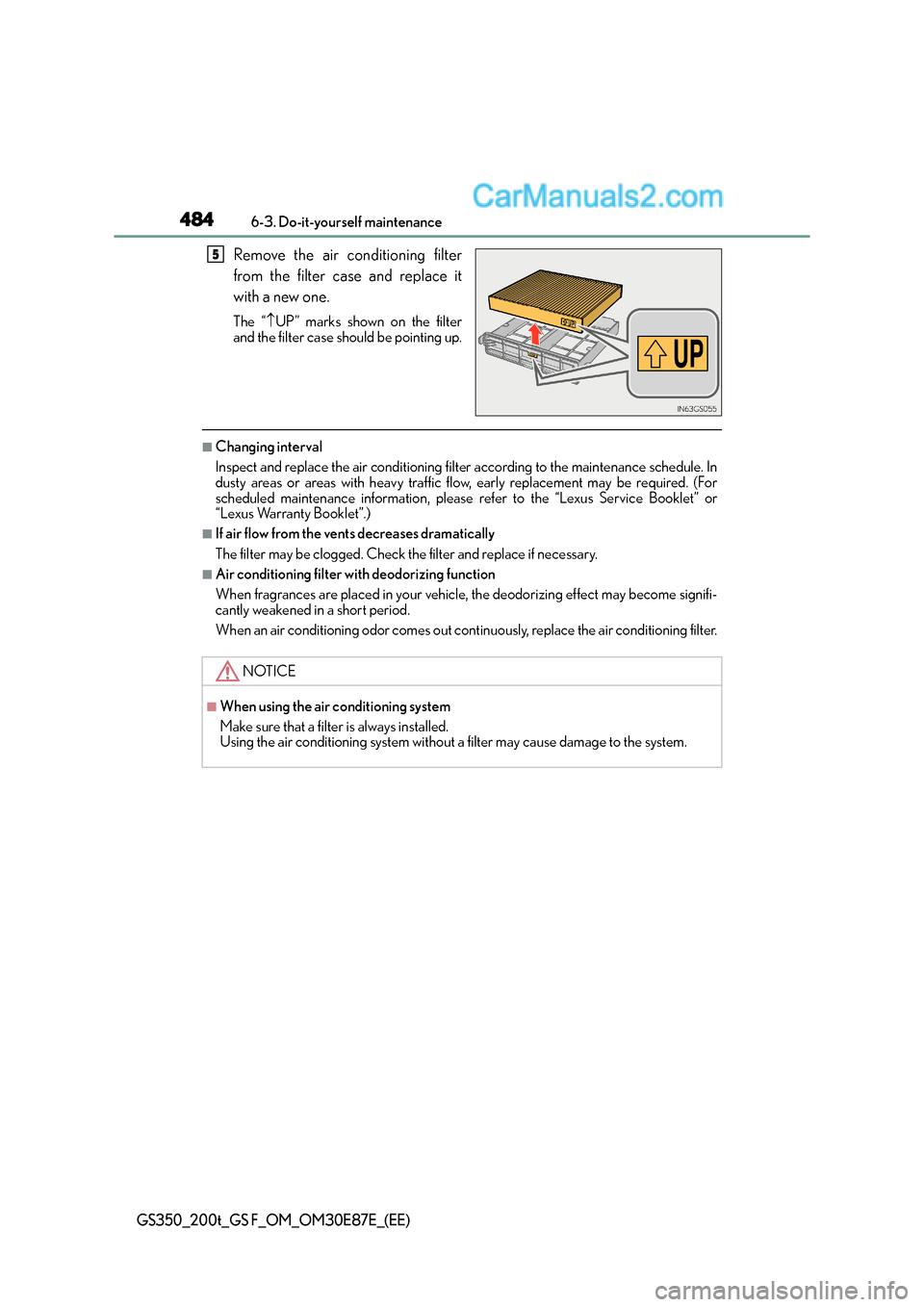

Remove the air conditioning filter
from the filter case and replace it
with a new one.
The “↑UP” marks shown on the filter
and the filter case should be pointing up.
■Changing interval
Inspect and replace the air conditioning filt er according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, early replacement may be required. (For
scheduled maintenance information, please refer to the “Lexus Service Booklet” or
“Lexus Warranty Booklet”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle, the deodorizing effect may become signifi-
cantly weakened in a short period.
When an air conditioning odor comes out cont inuously, replace the air conditioning filter.
5
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.

485
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)

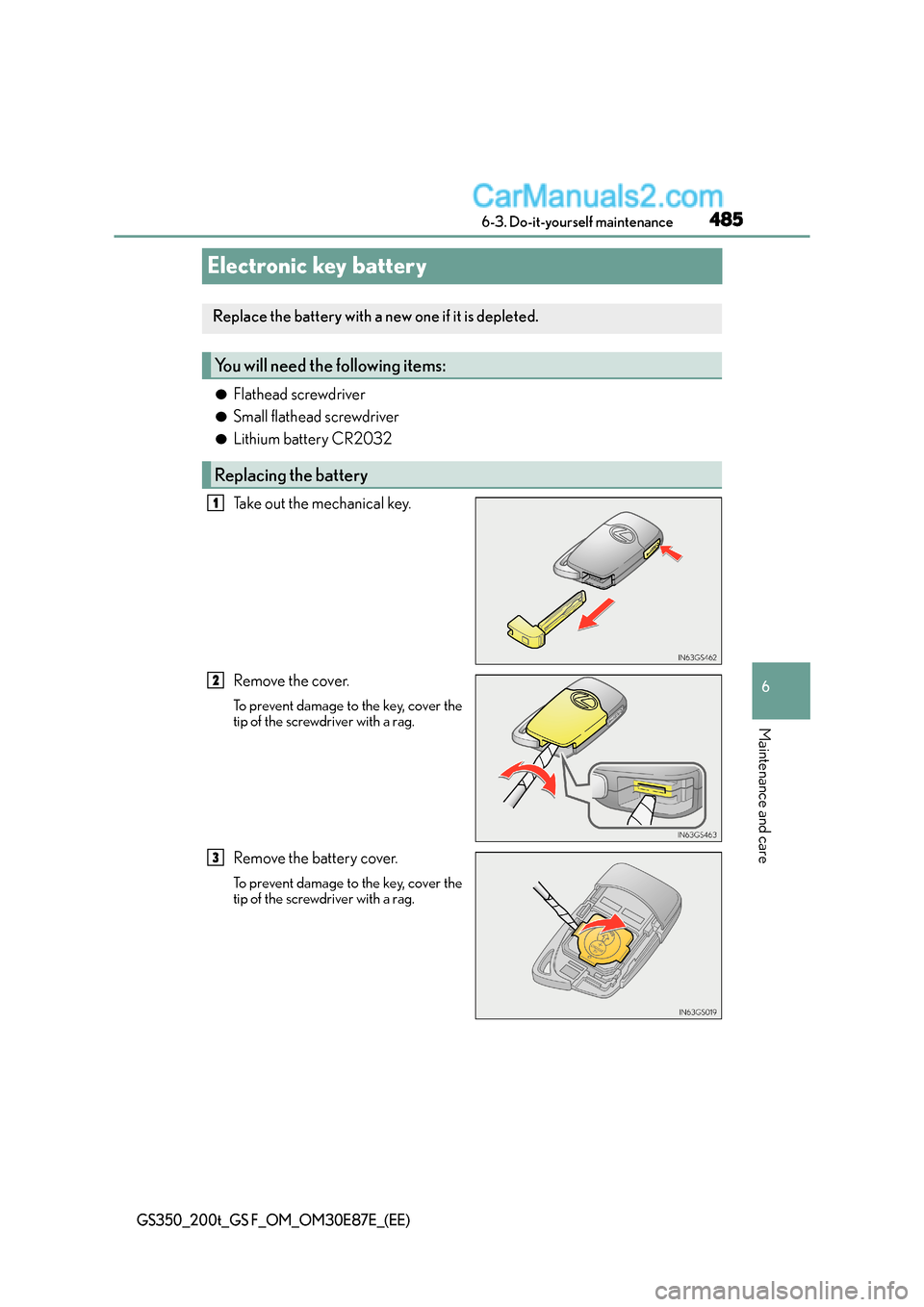

Electronic key battery
●Flathead screwdriver
●Small flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Remove the battery cover.
To prevent damage to the key, cover the
tip of the screwdriver with a rag.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

4866-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)

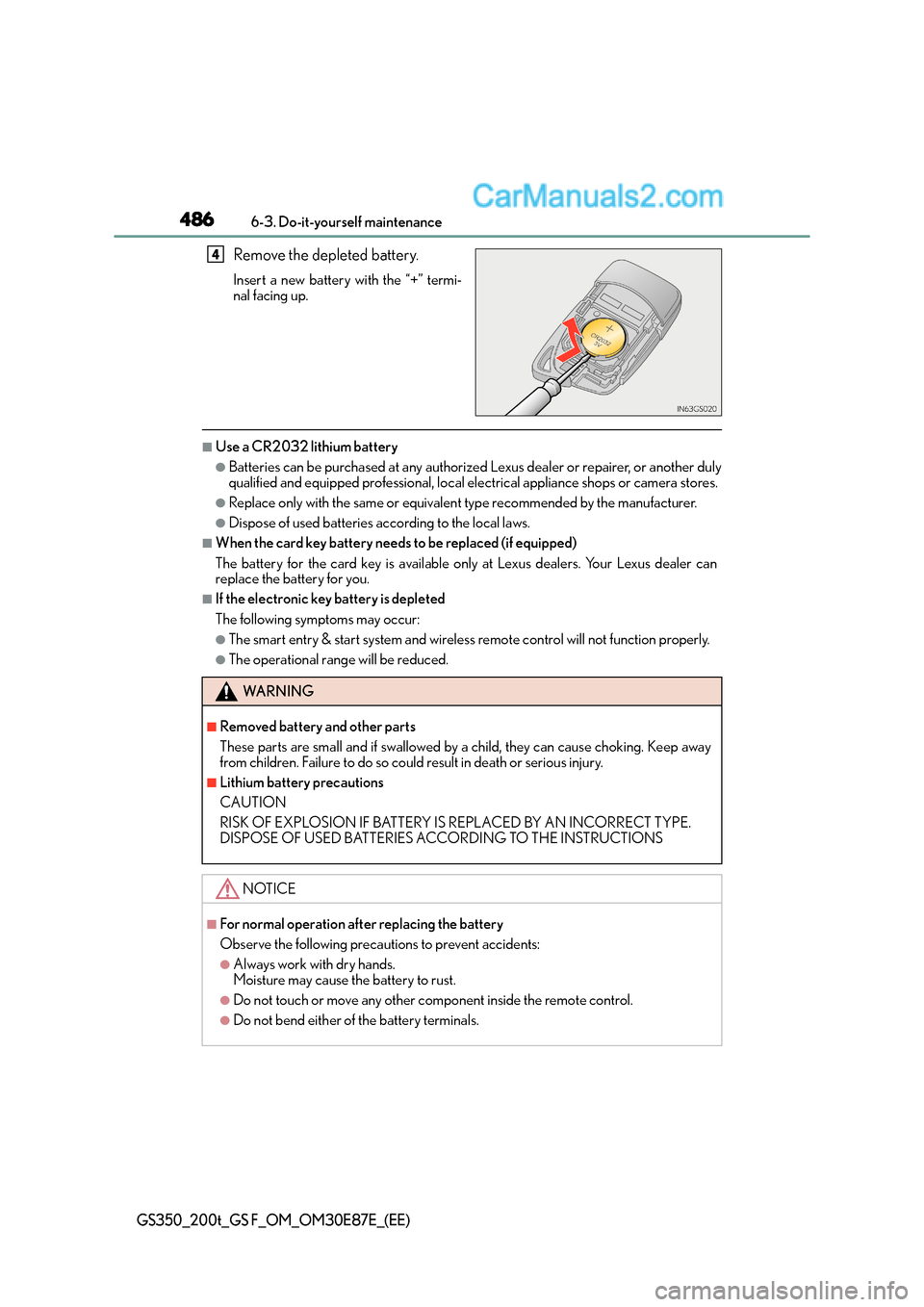

Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
■Use a CR2032 lithium battery
●Batteries can be purchased at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, local electrical appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer can
replace the battery for you.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system and wireless remote control will not function properly.
●The operational range will be reduced.
4
WA R N I N G
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so could result in death or serious injury.
■Lithium battery precautions
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

487
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)
Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
XEngine compartment: type A fuse
box (left-hand drive vehicles)XEngine compartment: type A fuse
box (right-hand drive vehicles)
Push the tab in and lift the lid off. Push the tab in and lift the lid off.
XEngine compartment (type B fuse
box)
Push the tab in and lift the lid off.
1
2

4886-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)

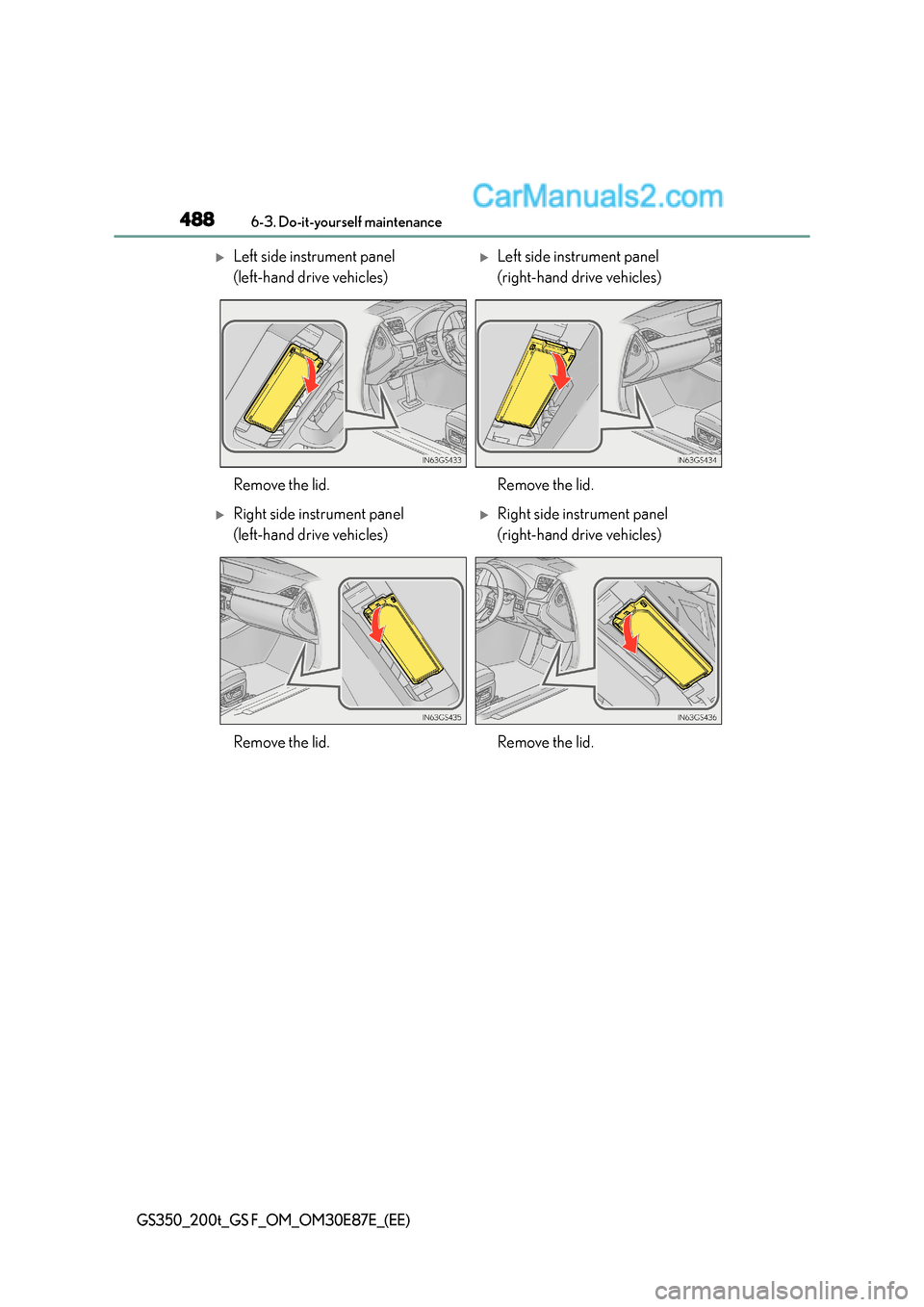

XLeft side instrument panel
(left-hand drive vehicles)XLeft side instrument panel
(right-hand drive vehicles)
Remove the lid. Remove the lid.
XRight side instrument panel
(left-hand drive vehicles)XRight side instrument panel
(right-hand drive vehicles)
Remove the lid. Remove the lid.

489 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)

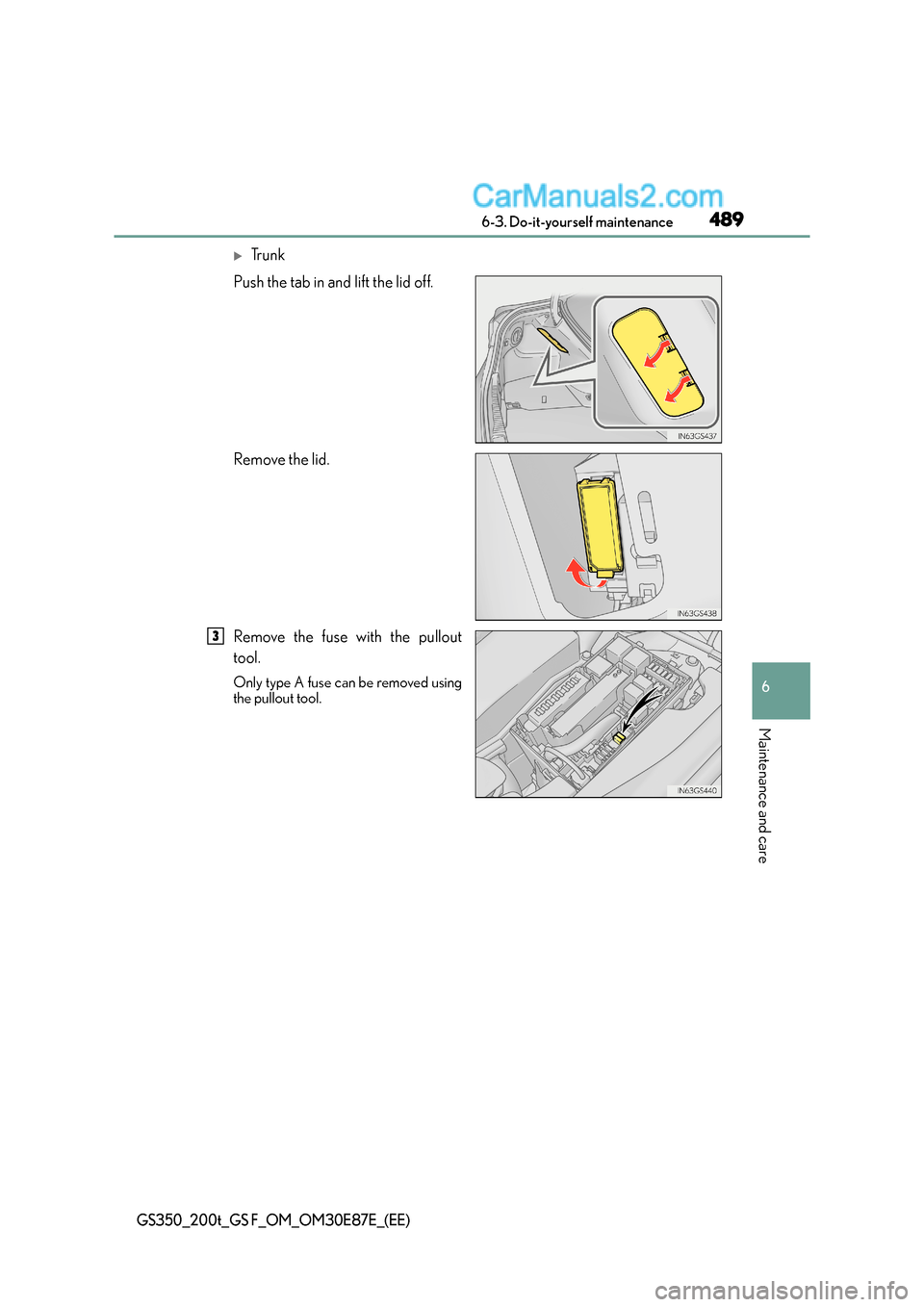

XTr u n k
Push the tab in and lift the lid off.
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
3

4906-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)
Check if the fuse is blown.Normal fuse
Blown fuse
Ty p e A a n d B :
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
4
1
2
XTy p e AXTy p e B
XTy p e CXTy p e D
