7-2. Steps to take in an emergency
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)

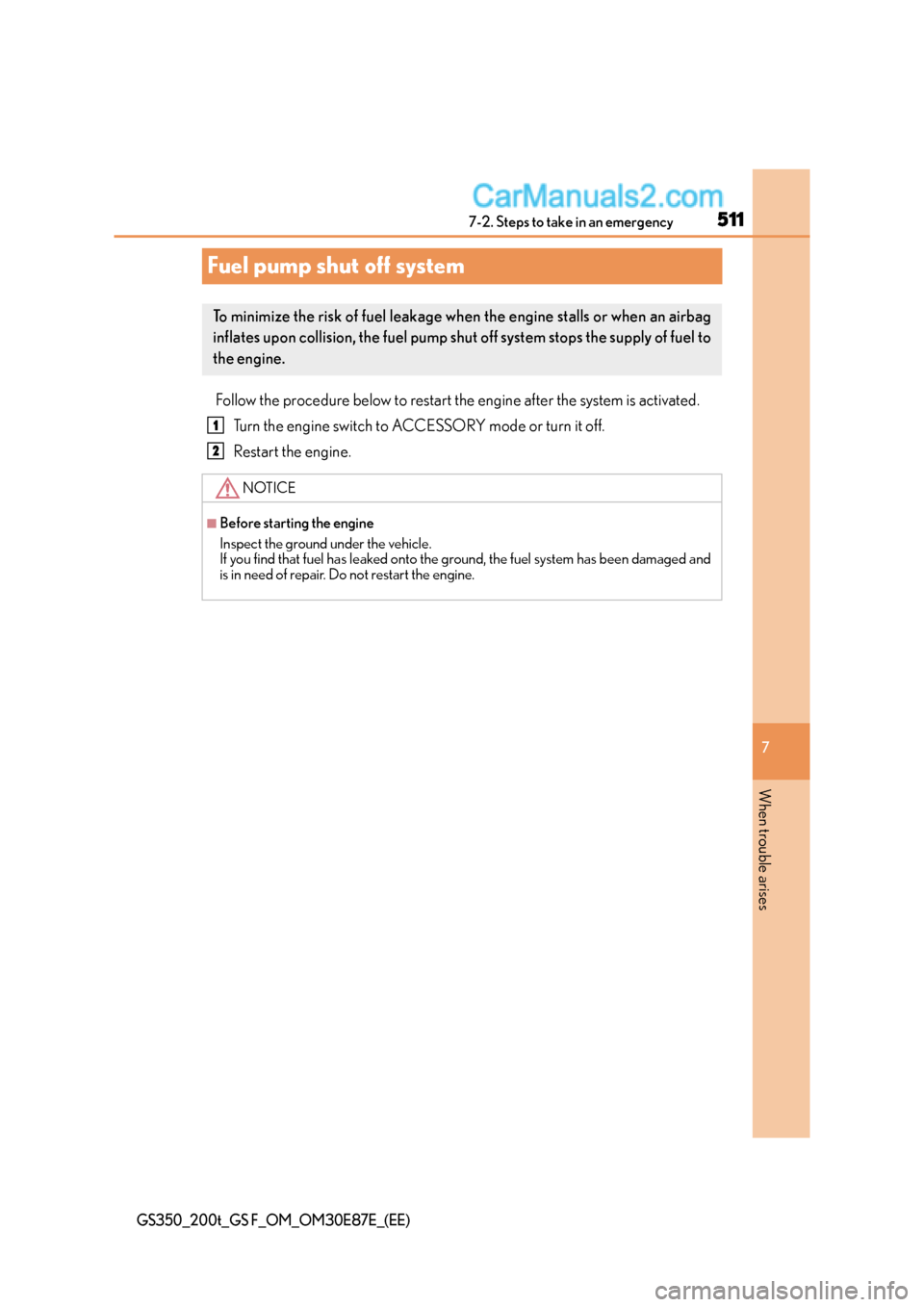

Fuel pump shut off system
Follow the procedure below to restart the engine after the system is activated.
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when an airbag
inflates upon collision, the fuel pump shut off system stops the supply of fuel to
the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged and
is in need of repair. Do not restart the engine.
1
2

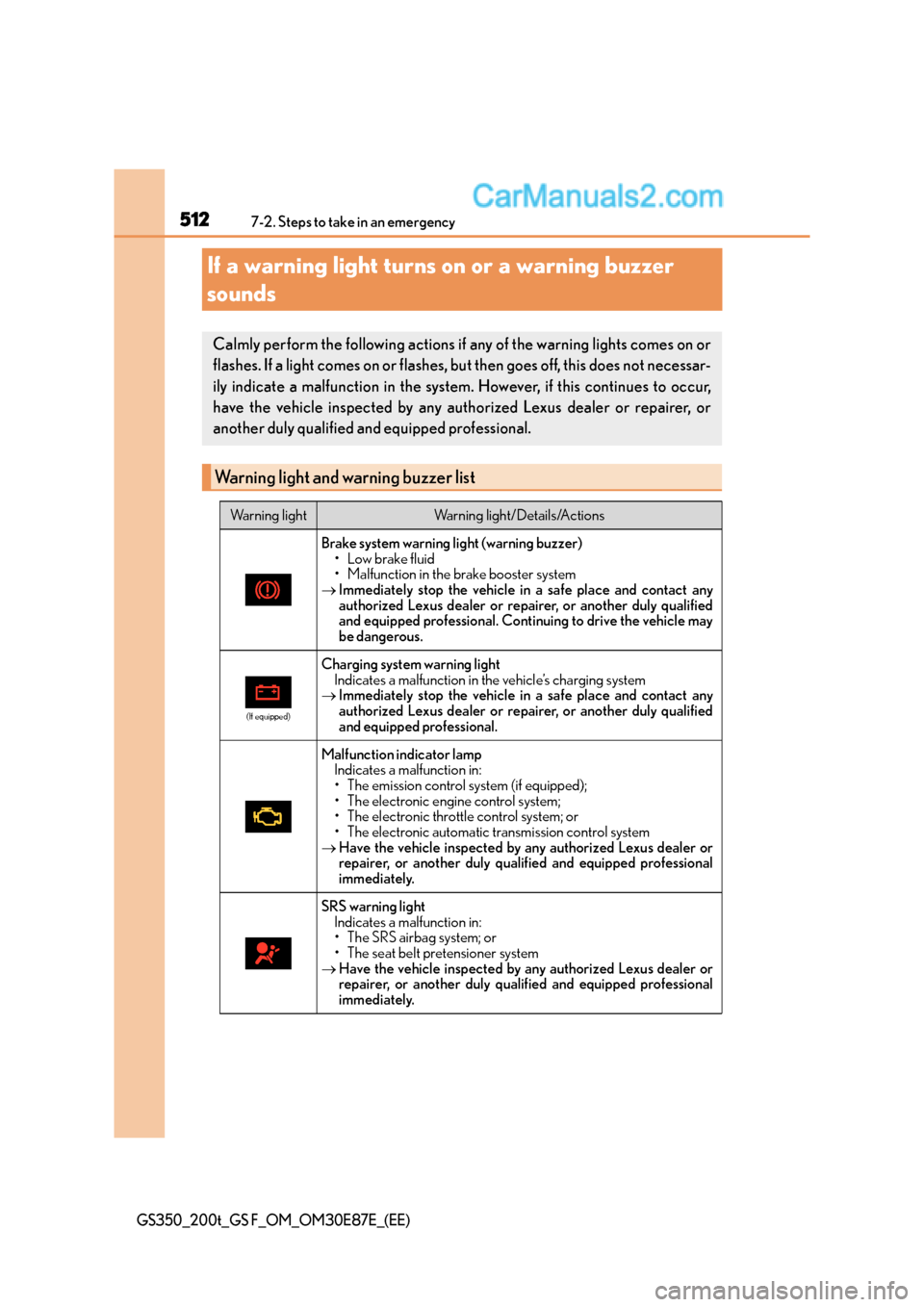

5127-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)
•Low brake fluid
• Malfunction in the brake booster system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. Continuing to drive the vehicle may
be dangerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.

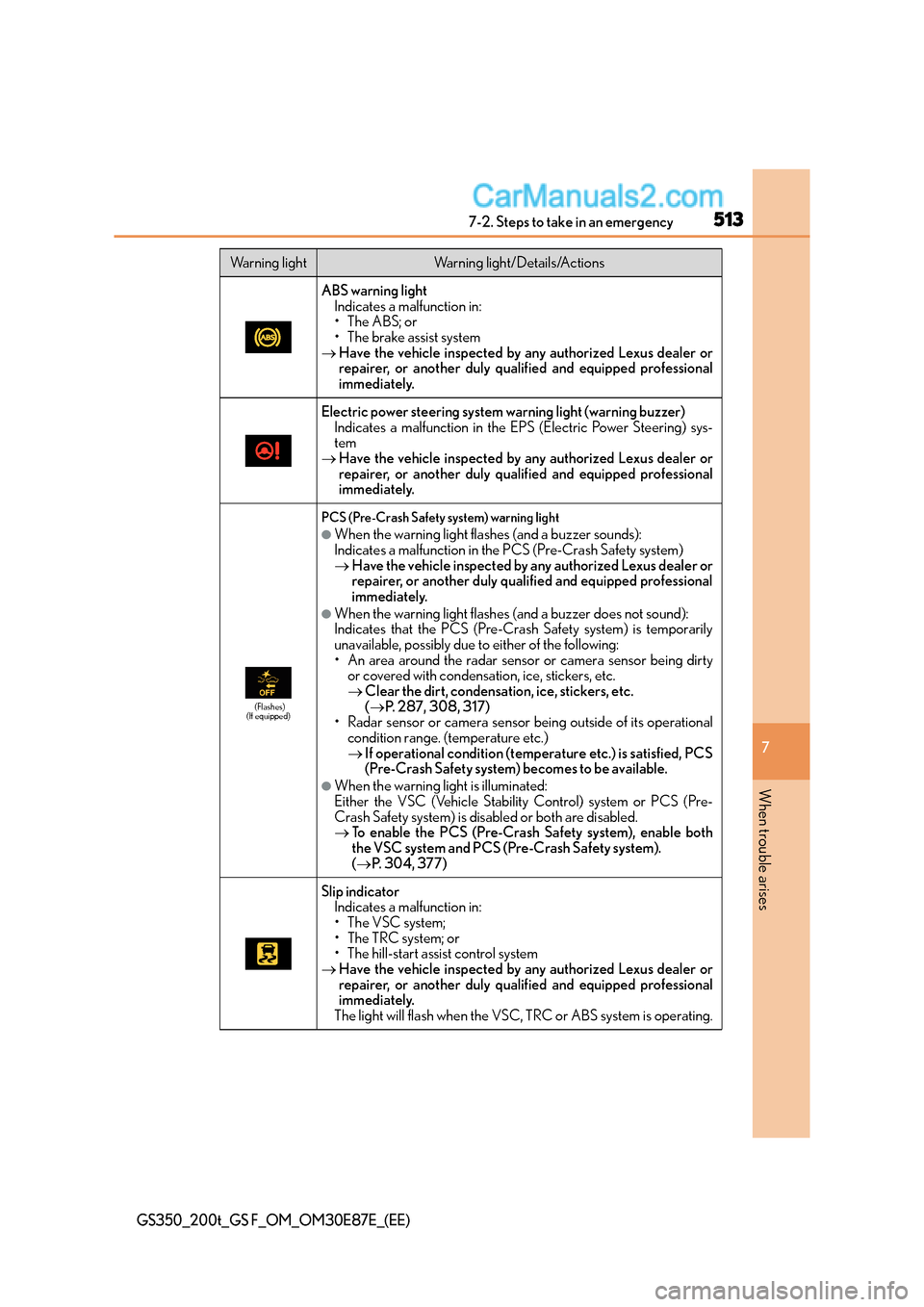

5137-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
ABS warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
(If equipped)
PCS (Pre-Crash Safety system) warning light
●When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety system)
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
●When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Crash Safety system) is temporarily
unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor being dirty
or covered with condensation, ice, stickers, etc.
→ Clear the dirt, condensation, ice, stickers, etc.
(→ P. 287, 308, 317)
• Radar sensor or camera sensor being outside of its operational
condition range. (temperature etc.)
→ If operational condition (tempera ture etc.) is satisfied, PCS
(Pre-Crash Safety system) becomes to be available.
●When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Crash Safety system) is disabled or both are disabled.
→ To enable the PCS (Pre-Crash Safety system), enable both
the VSC system and PCS (Pre-Crash Safety system).
(→ P. 3 0 4 , 3 7 7 )
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
The light will flash when the VSC, TRC or ABS system is operating.
Warning lightWarning light/Details/Actions

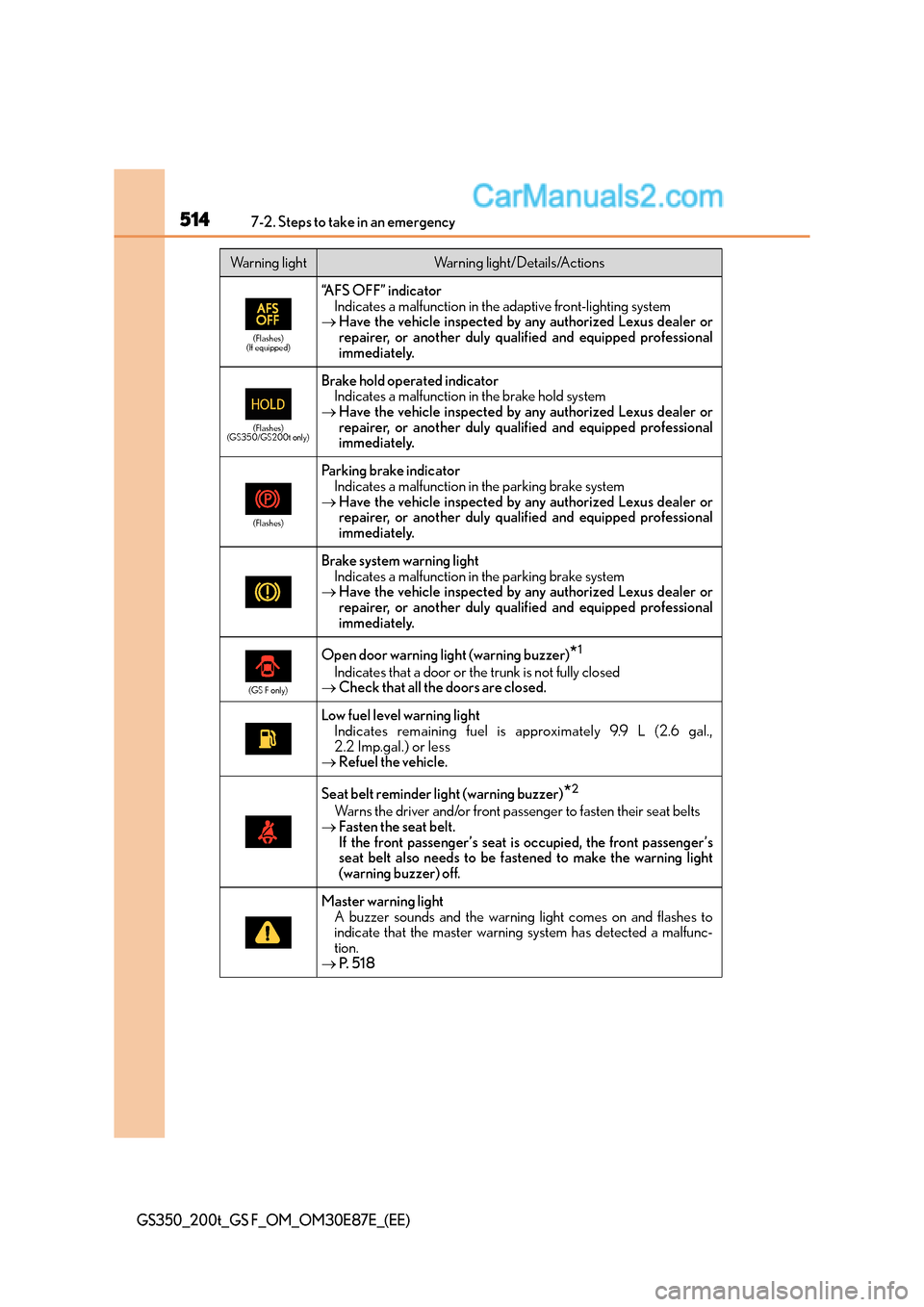

5147-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
(Flashes)
(If equipped)
“AFS OFF” indicator Indicates a malfunction in the adaptive front-lighting system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
(GS350/GS200t only)
Brake hold operated indicator Indicates a malfunction in the brake hold system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
Parking brake indicator
Indicates a malfunction in the parking brake system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Brake system warning light
Indicates a malfunction in the parking brake system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(GS F only)
Open door warning light (warning buzzer)*1
Indicates that a door or the trunk is not fully closed
→ Check that all the doors are closed.
Low fuel level warning light
Indicates remaining fuel is approximately 9.9 L (2.6 gal.,
2.2 Imp.gal.) or less
→ Refuel the vehicle.
Seat belt reminder light (warning buzzer)*2
Warns the driver and/or front passenger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
→ P. 5 1 8
Warning lightWarning light/Details/Actions

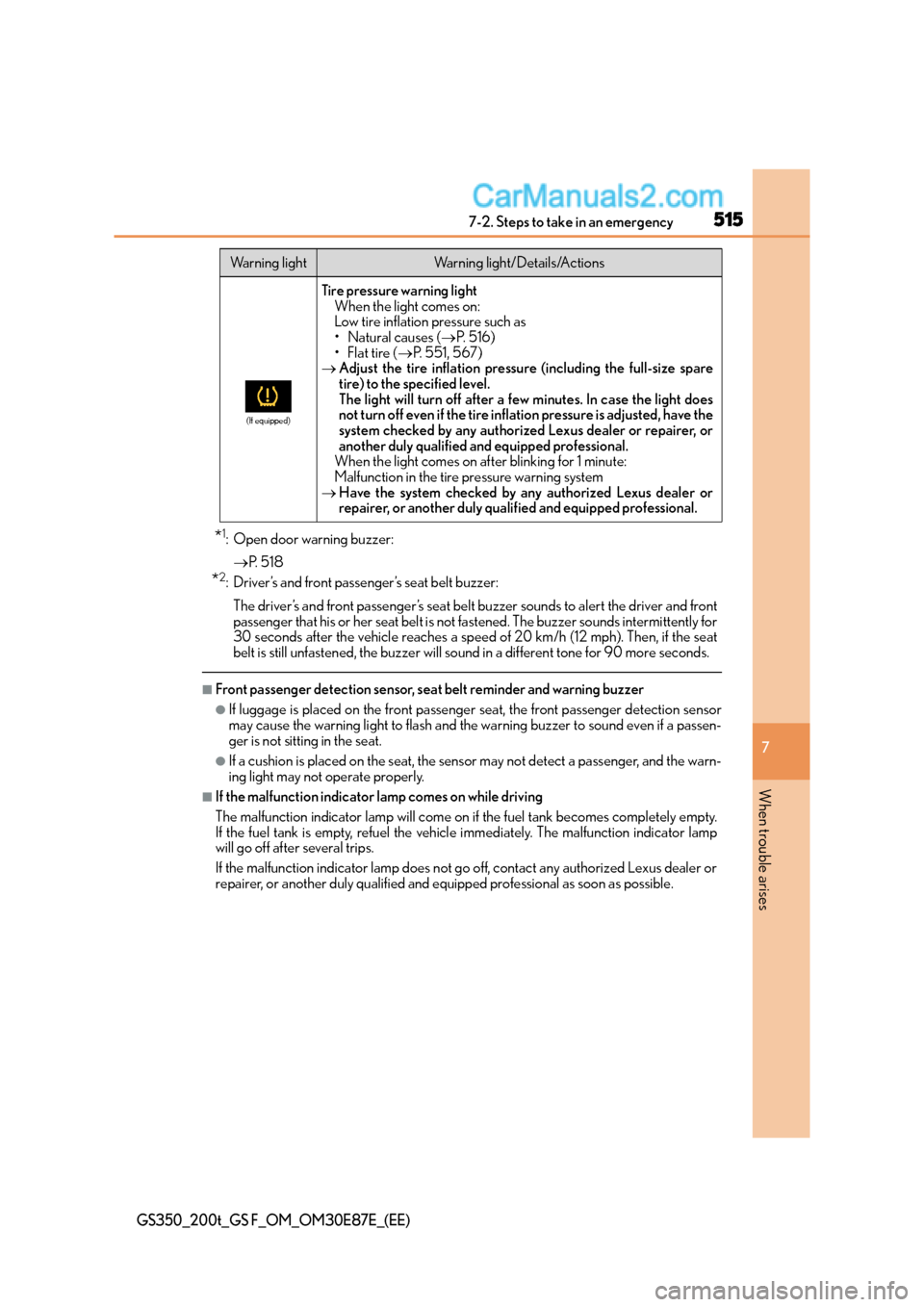

5157-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Open door warning buzzer:→ P. 5 1 8
*2: Driver’s and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and front
passenger that his or her seat belt is not fastened. The buzzer sounds intermittently for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat
belt is still unfastened , the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenge r seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty.
If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
(If equipped)
Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 5 1 6 )
• Flat tire ( →P. 551, 567)
→ Adjust the tire inflation pressure (including the full-size spare
tire) to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Warning lightWarning light/Details/Actions

5167-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily drops, the
electric power steering system warning light may come on and the warning buzzer may
sound.
■When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even after several minutes, check that the tire infla-
tion pressure is at the specifie d level and carry out initialization.
The warning light may come on again if the above operations are conducted without first
allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire: The compact spare tire is not equipped with a tire
pressure warning valve and transmitter. If a tire goes flat, the tire pressure warning light
will not turn off even though the flat tire has been replaced with the spare tire.
Vehicles with full-size spare tire: The spare tire is also equipped with a tire pressure warn-
ing valve and transmitter. The tire pressure warn ing light will turn on if the tire inflation
pressure of the spare tire is low. If a tire go es flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→ P. 4 7 0
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode, have it checked by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.

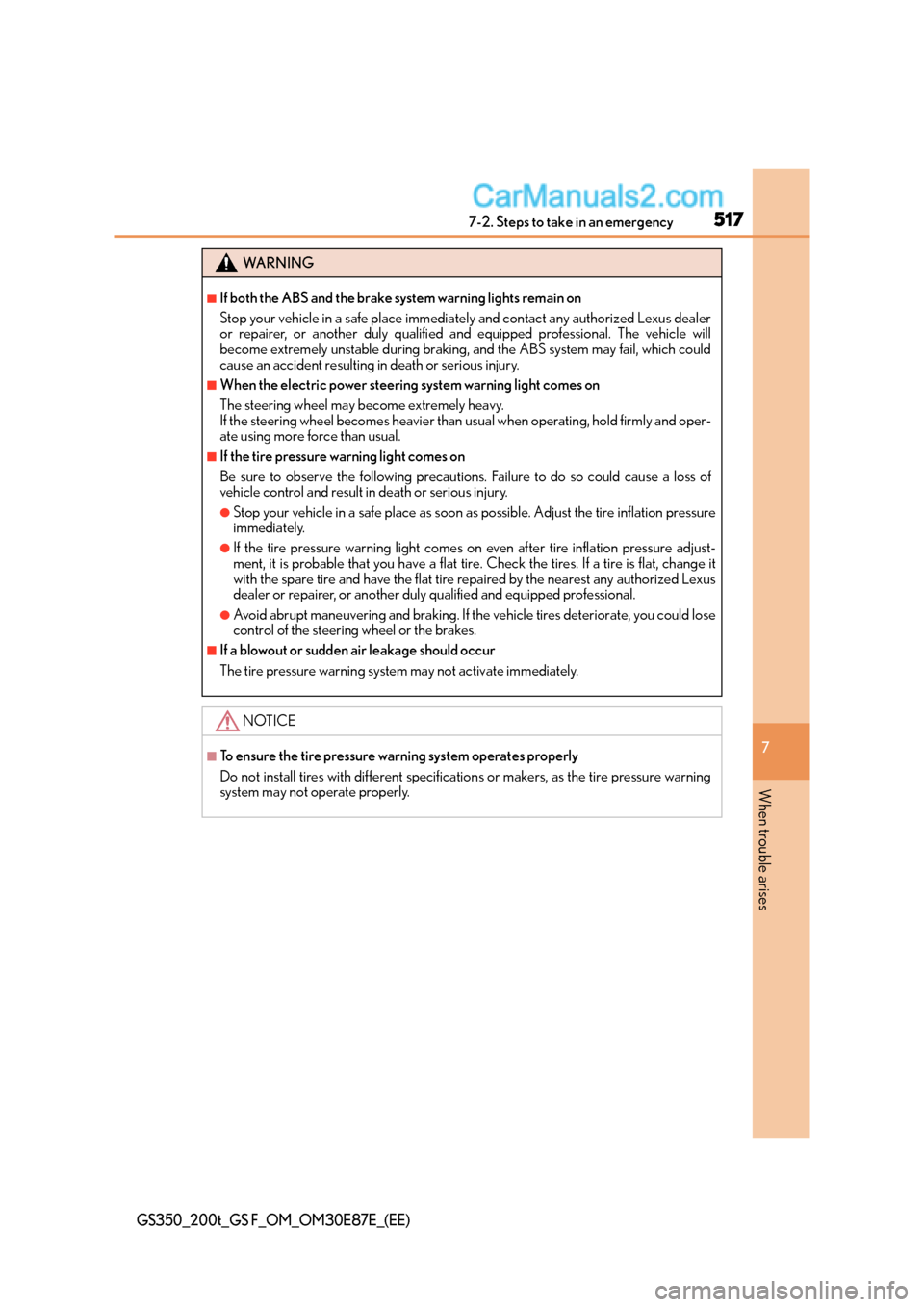

5177-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)
WA R N I N G
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional. The vehicle will
become extremely unstable during braking, and the ABS system may fail, which could
cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and oper-
ate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

5187-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
If a warning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have been
performed, contact any authorized Lexu s dealer or repairer, or another duly
qualified and equipped professional.
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
XGS350/GS200t
(except F SPORT models)XGS350/GS200t
(F SPORT models)
XGS F
1
2

5197-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30E87E_(EE)

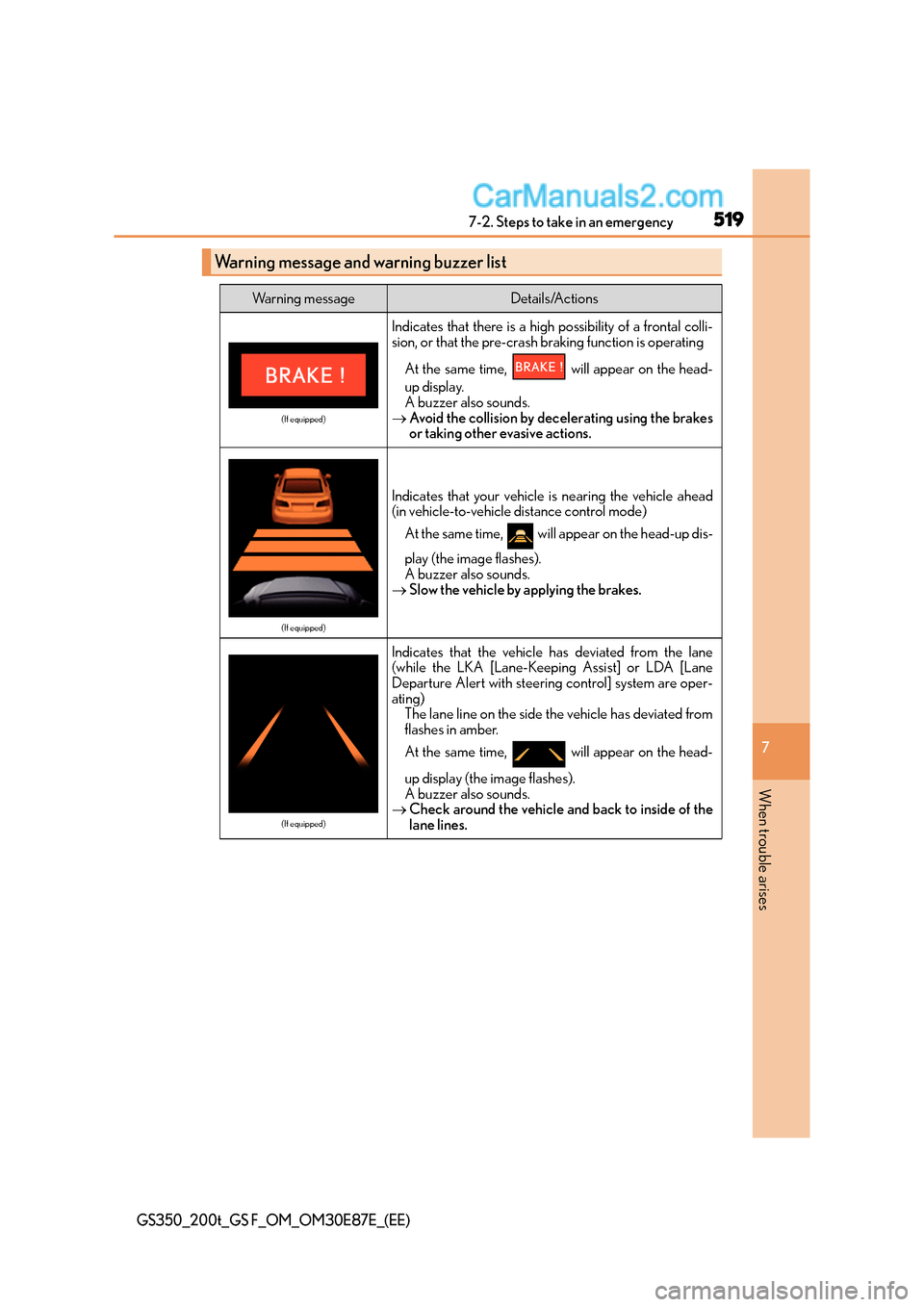

Warning message and warning buzzer list
Wa r n i n g m e s s a g eDetails/Actions
(If equipped)
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-crash br aking function is operating
At the same time, will appear on the head-
up display.
A buzzer also sounds.
→ Avoid the collision by decelerating using the brakes
or taking other evasive actions.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
At the same time, will appear on the head-up dis-
play (the image flashes).
A buzzer also sounds.
→ Slow the vehicle by applying the brakes.
(If equipped)
Indicates that the vehicle has deviated from the lane
(while the LKA [Lane-Keeping Assist] or LDA [Lane
Departure Alert with steering control] system are oper-
ating)
The lane line on the side the vehicle has deviated from
flashes in amber.
At the same time, will appear on the head-
up display (the image flashes).
A buzzer also sounds.
→ Check around the vehicle and back to inside of the
lane lines.

5207-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E87E_(EE)
Indicates a malfunction in the brake system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Continuing to drive the vehicle may be dangerous.
Indicates that hood or one or more of the doors or trunk
are not fully closed
The system also indicates which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
→ Make sure that hood or all doors or trunk are
closed.
(If equipped)
Indicates a malfunction in the Lexus parking assist
All assist-sensors flash.
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(GS350/GS200t) (GS F)
