1252. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
The settings of the following items can be changed, refer to P. 628
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane Departure Alert with steering control) (if equipped)
(→ P. 3 1 5 )
■(Lane-Keeping Assist) (if equipped) ( →P. 3 0 5 )
■(Pre-Crash Safety sy stem) (if equipped) ( →P. 2 9 3 )
■(Adaptive Front-lighting System) (if equipped) ( →P. 2 6 1 )
■(Blind Spot Monitor) (if equipped) ( →P. 3 6 1 )
■
Select to turn the speed warning on and off, or to change the speed at which
the speed warning is displayed.
■(Road Sign Assist) (if equipped) ( →P. 3 2 4 )
■
Select to set the display mode of the clock.
■
●
Oil Maintenance (if equipped) ( →P. 4 5 6 )
●TPMS (Tire pressure warning system) (if equipped) ( →P. 4 6 8 )
Settings display

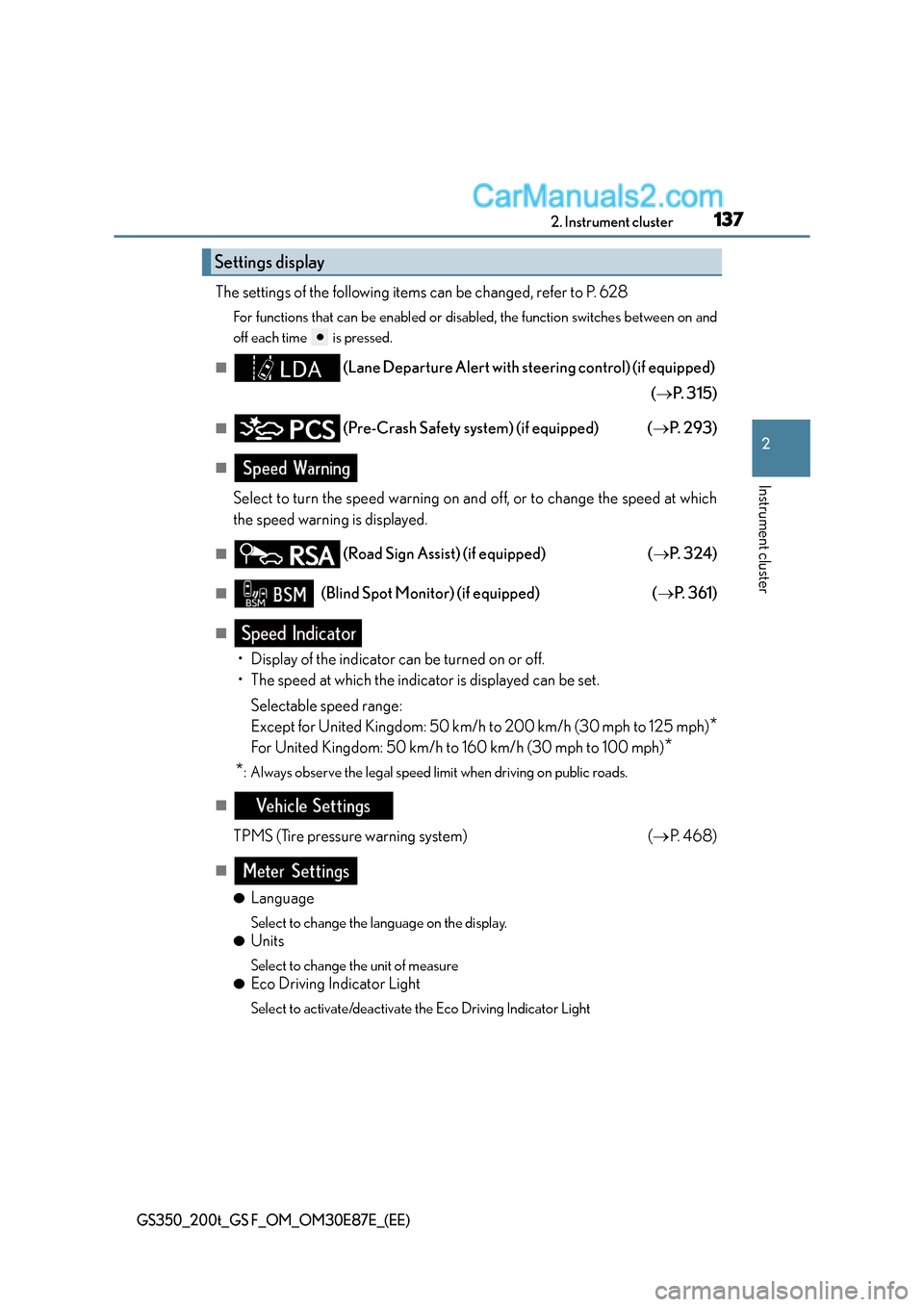

1372. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30E87E_(EE)
The settings of the following items can be changed, refer to P. 628
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane Departure Alert with steering control) (if equipped)
(→ P. 3 1 5 )
■(Pre-Crash Safety system) (if equipped) ( →P. 2 9 3 )
■
Select to turn the speed warning on and off, or to change the speed at which
the speed warning is displayed.
■(Road Sign Assist) (if equipped) ( →P. 3 2 4 )
■(Blind Spot Monitor) (if equipped) ( →P. 3 6 1 )
■
• Display of the indicator can be turned on or off.
• The speed at which the indicator is displayed can be set.
Selectable speed range:
Except for United Kingdom: 50 km/h to 200 km/h (30 mph to 125 mph)
*
For United Kingdom: 50 km/h to 160 km/h (30 mph to 100 mph)*
*
: Always observe the legal speed limit when driving on public roads.
■
TPMS (Tire pressure warning system) ( →P. 4 6 8 )
■
●
Language
Select to change the language on the display.
●Units
Select to change the unit of measure
●Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light
Settings display

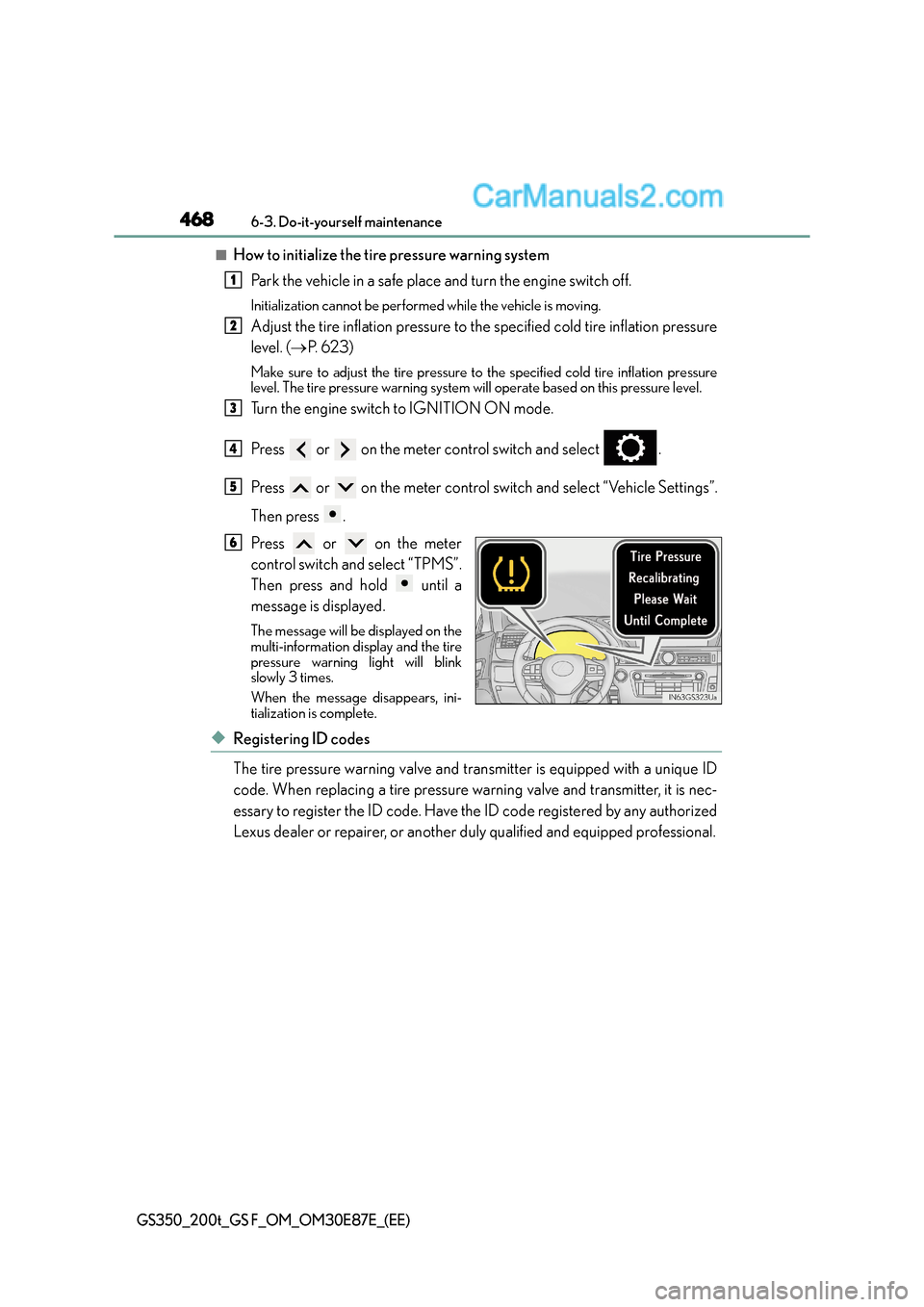

4686-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30E87E_(EE)
■How to initialize the tire pressure warning systemPark the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performe d while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation pressure
level. (→P. 6 2 3 )
Make sure to adjust the tire pressure to the specified cold tire inflation pressure
level. The tire pressure warning system will operate based on this pressure level.
Turn the engine switch to IGNITION ON mode.
Press or on the meter control switch and select .
Press or on the meter control switch and select “Vehicle Settings”.
Then press .
Press or on the meter
control switch and select “TPMS”.
Then press and hold until a
message is displayed.
The message will be displayed on the
multi-information display and the tire
pressure warning light will blink
slowly 3 times.
When the message disappears, ini-
tialization is complete.
◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique ID
code. When replacing a tire pressure wa rning valve and transmitter, it is nec-
essary to register the ID code. Have the ID code registered by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
1
2
3
4
5
6
