remove seats Lexus GS F 2015 Owner's Manuals

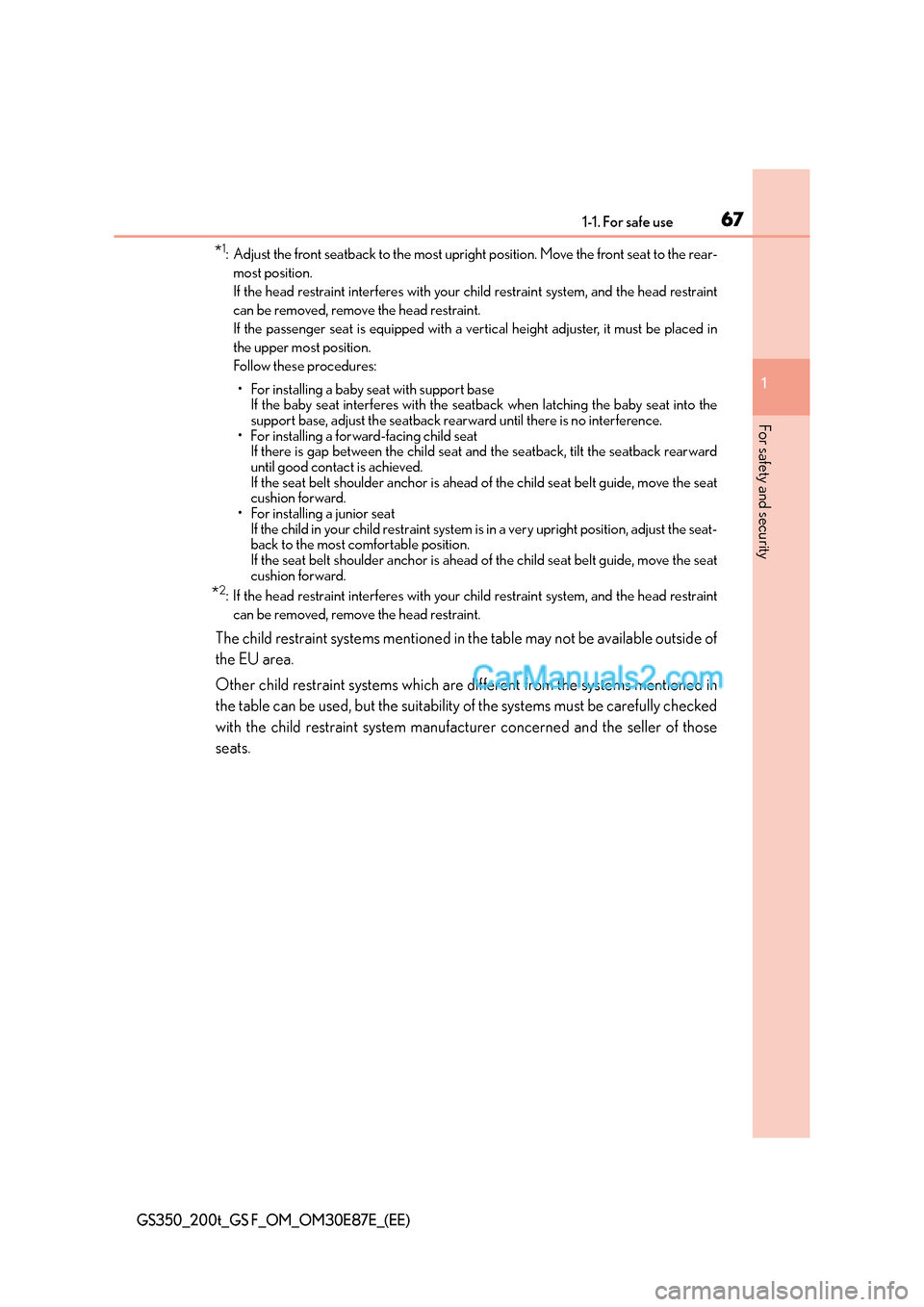

671-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Adjust the front seatback to the most upright position. Move the front seat to the rear-most position.
If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be placed in
the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into the
support base, adjust the seatback rearward until there is no interference.
• For installing a forw ard-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback rearward
until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
• For installing a junior seat
If the child in your child rest raint system is in a very upright position, adjust the seat-
back to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.

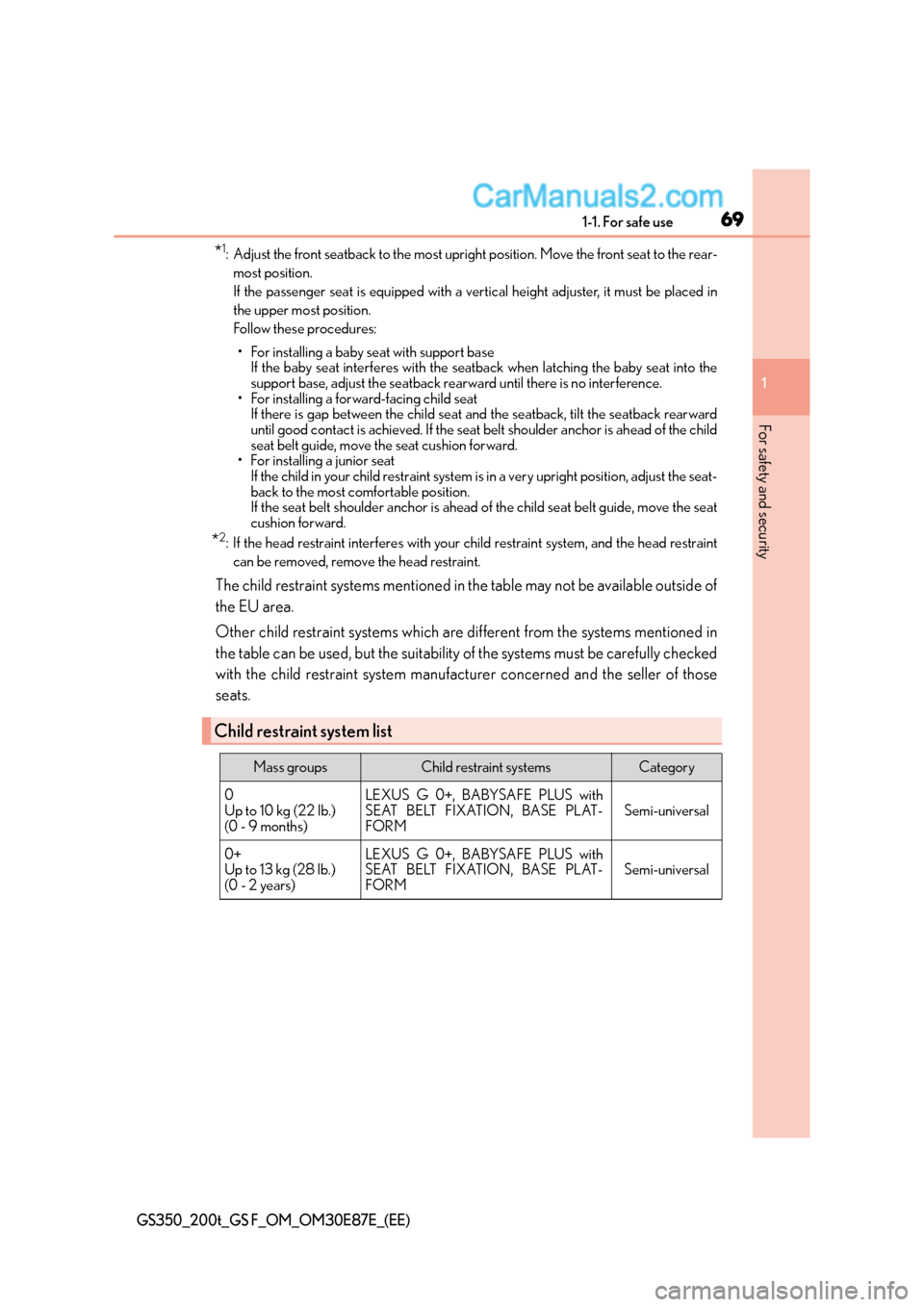

691-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
*1: Adjust the front seatback to the most upright position. Move the front seat to the rear-most position.
If the passenger seat is equipped with a vertical height adjuster, it must be placed in
the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into the
support base, adjust the seatback rearward until there is no interference.
• For installing a forwar d-facing child seat
If there is gap between the child seat and the seatback, tilt the seatback rearward
until good contact is achieved. If the seat belt shoulder anchor is ahead of the child
seat belt guide, move the seat cushion forward.
• For installing a junior seat If the child in your child rest raint system is in a very upright position, adjust the seat-
back to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the seat
cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.
Child restraint system list
Mass groupsChild restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)LEXUS G 0+, BABYSAFE PLUS with
S E AT B E LT F I X AT I O N , B A S E P L AT -
FORMSemi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)LEXUS G 0+, BABYSAFE PLUS with
S E AT B E LT F I X AT I O N , B A S E P L AT -
FORMSemi-universal

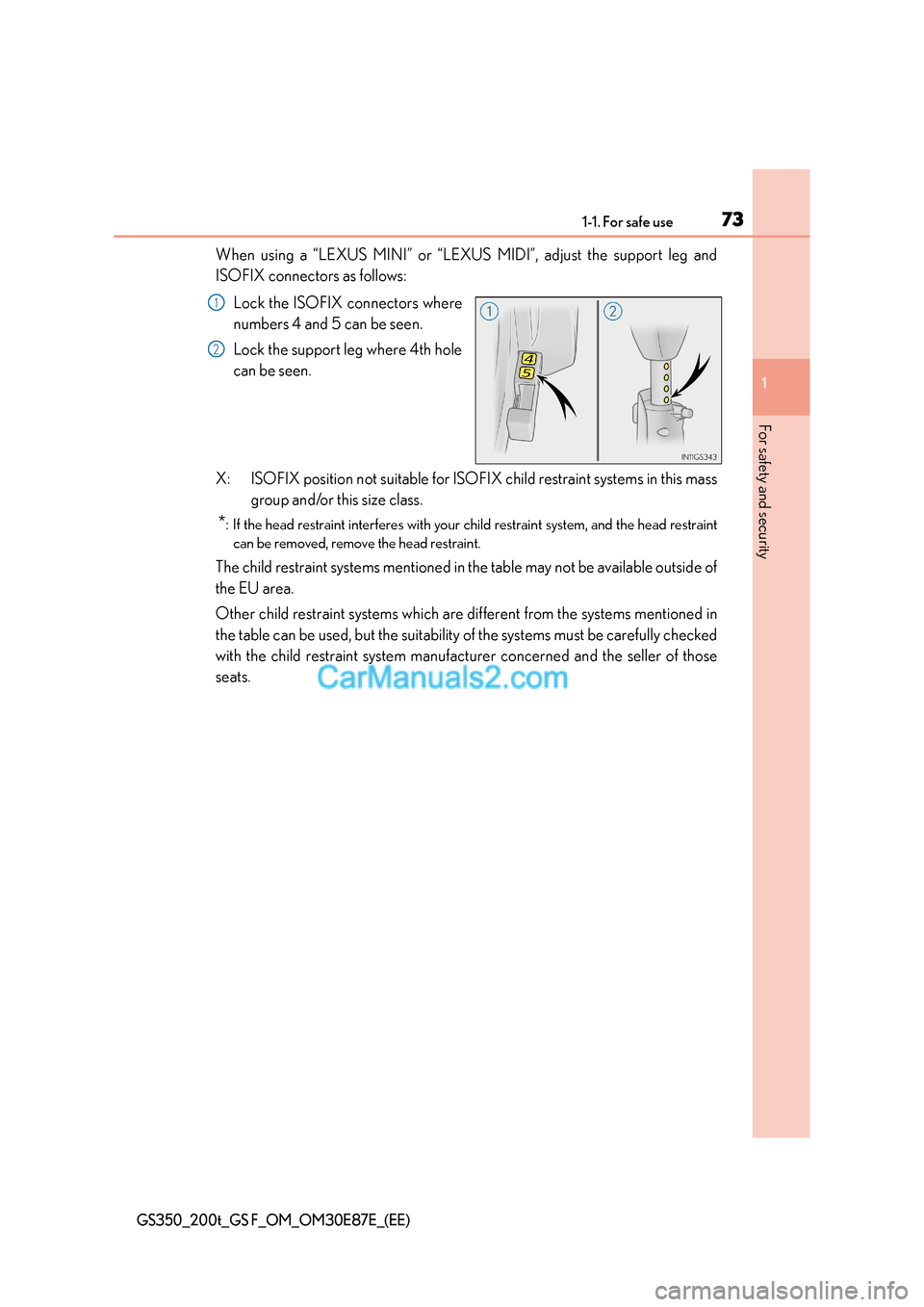

731-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg and
ISOFIX connectors as follows:Lock the ISOFIX connectors where
numbers 4 and 5 can be seen.
Lock the support leg where 4th hole
can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.
1
2

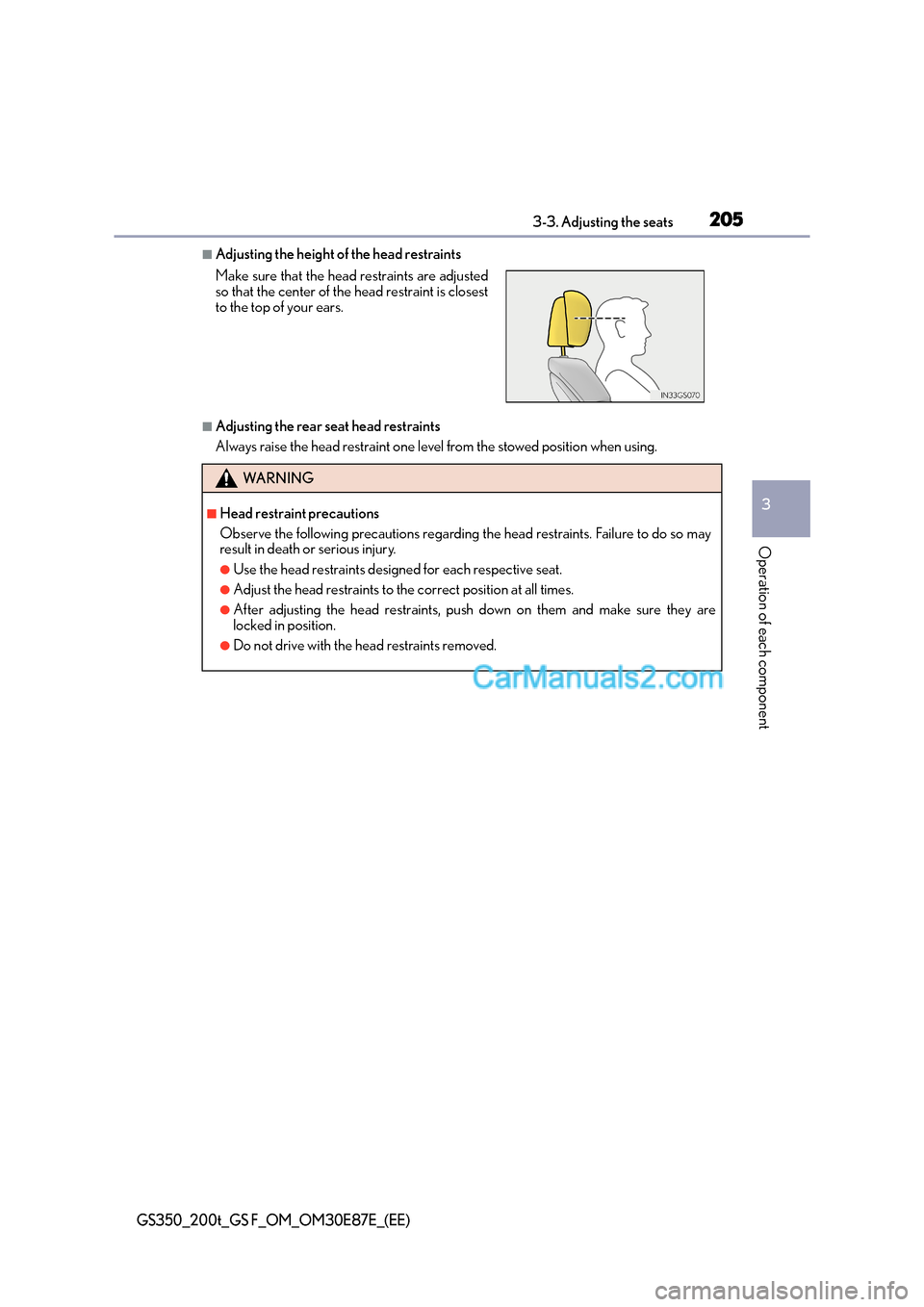

2053-3. Adjusting the seats
3
Operation of each component
GS350_200t_GS F_OM_OM30E87E_(EE)
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when using. Make sure that the head restraints are adjusted
so that the center of the head restraint is closest
to the top of your ears.
WA R N I N G
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so may
result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

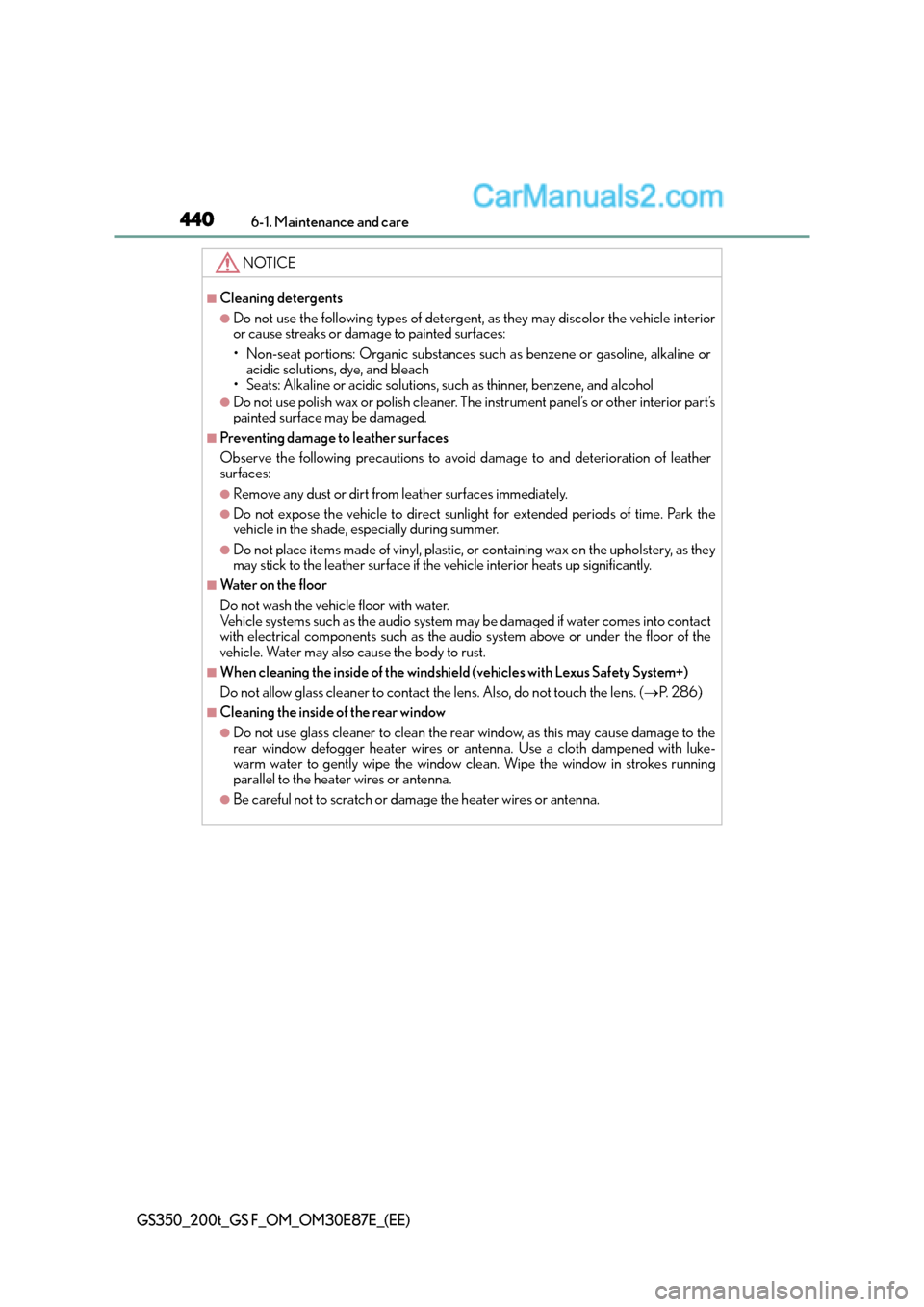

4406-1. Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle interior
or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline oracidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact
with electrical components such as the audio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with Lexus Safety System+)
Do not allow glass cleaner to contact the lens. Also, do not touch the lens. ( →P. 2 8 6 )
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running
parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

652Alphabetical index
GS350_200t_GS F_OM_OM30E87E_(EE)
Card key.................................................... 154
Care ............................................... 434, 438Aluminum wheels ..............................435
Exterior.................................................... 434
Interior .....................................................438
Seat belts ................................................439
Cargo hooks........................................... 422
CD player
*
Chains ...................................................... 383
Child restraint system ............................ 64 Baby seats, definition .......................... 65
Baby seats, installation ........................77
Child seats, definition.......................... 65
Child seats, installation........................77
Installing CRS with ISOFIX
rigid anchors........................................80
Installing CRS with seat belts...........77
Installing CRS with top strap ............81
Junior seats, definition ........................ 65
Junior seats, installation ..................... 79 Child safety ................................................ 63
Airbag precautions ............................. 53
Battery precautions..............463, 595
Child restraint system .........................64
How your child should wear the seat belt......................47, 48
Installing child restraints .....................76
Moon roof precautions .................... 219
Power window lock switch ............ 213
Power window precautions........... 215
Rear door child-protectors ............ 163
Removed electronic key battery precautions....................... 486
Seat belt comfort guide......................47
Seat belt precautions.......................... 50
Seat heater precautions ................. 409
Trunk precautions .............................. 169
Child-protectors ....................................163
Cleaning....................................... 434, 438 Aluminum wheels.............................. 435
Exterior ................................................... 434
Interior..................................................... 438
Seat belts ............................................... 439
C
