Lexus GS F 2016 Navigation Manual

309
2. SETUP
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
XDeleting contacts in the favorites list in a
different way (from the “Contact Details”
screen)
1Display the phone top screen.
(→ P.285)
2Select the “Contacts” , “Call Histor y” or
“Favorites” tab and select the desired
contact to delete.
3Select “Remove Favorite”.
4Select “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is dis-
played when the operation is complete.
1Display the “Phone Settings” screen.
( → P.300)
2Select “Messaging” .
3Select the desired item to be set.
“Messaging” SCREEN
No.Function
Select to set automatic message
transfer on/off.
Select to set automatic message read-
out on/off.
Select to set updating message read
status on phone on/off.
Select to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Select to set adding the vehicle signa-
ture to outgoing messages on/off.
Select to reset all setup items.
INFORMATION
●Depending on the phone, these functions
may not be available.

310
2. SETUP
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
1Display the “Phone Settings” screen.
(→ P.300)
2Select “Notifications” .
3Select the desired item to be set.
“Notifications” SCREENNo.Function
•With 8-inch display: Select to
change the incoming call display.
“Full Screen”: When a call is
received, the hands-free screen is
displayed and can be operated on
the screen.
“Drop-Down” : A message is dis-
played on the upper side of the
screen and can only be operated
via the steering wheel switches.
• With 12.3-inch display: Select to
change where the screen is dis-
played between the main display
and side display.
“Main Screen” : Select to display and
operate the screen on the main dis-
play.
“Side Screen” : Select to display and
operate the screen on the side dis-
play. For details of the screen:
→ P.353
Select to set the SMS/MMS notifica-
tion popup on/off.
Select to set the e-mail notification
popup on/off.
Select to change the incoming SMS/
MMS display.
“Full Screen” : When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-Down” : When an SMS/
MMS message is received, a mes-
sage is displayed on the upper side
of the screen.

311
2. SETUP
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
Select to change the incoming e-
mail display.
“Full Screen”: When an e-mail is re-
ceived, the incoming e-mail display
screen is the displayed and can be
operated on the screen.
“Drop-Down”: When an e-mail is re-
ceived, a message is displayed on
the upper side of the screen.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
● Depending on the phone, these functions
may not be available.
No.Function

312
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
3. WHAT TO DO IF...
1. TROUBLESHOOTING
XWhen using the hands-free system with a Bluetooth® device
If there is a problem with the ha nds-free system or a Bluetooth® device, first check the
table below.
SymptomLikely causeSolution
Page
Cellular phoneThis
system
The hands-free sys-
tem or Bluetooth®
device does not
work.
The connected de-
vice may not be a
compatible
Bluetooth
® cellular
phone.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Lexus dealer or
the following
website:
http://
www.lexus.com/
MobileLink
∗
The Bluetooth® ver-
sion of the connected
cellular phone may
be older than the
specified version.Use a cellular phone
with Bluetooth® ver-
sion 2.0 or higher
(recommended: Ver.
3.0 +EDR or higher).∗48

313
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8

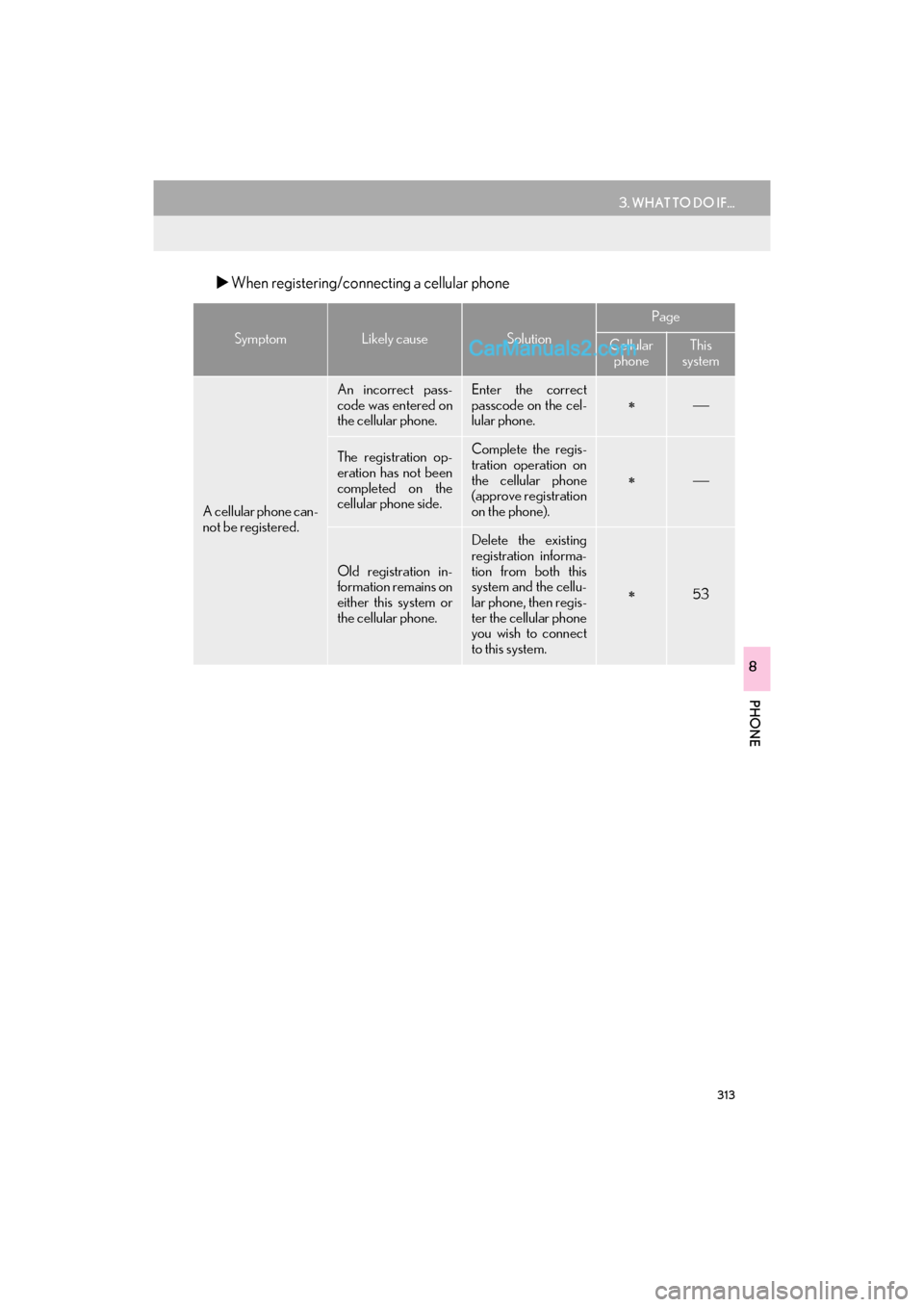

XWhen registering/connecting a cellular phone
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
A cellular phone can-
not be registered.
An incorrect pass-
code was entered on
the cellular phone.Enter the correct
passcode on the cel-
lular phone.∗
The registration op-
eration has not been
completed on the
cellular phone side.Complete the regis-
tration operation on
the cellular phone
(approve registration
on the phone).
∗
Old registration in-
formation remains on
either this system or
the cellular phone.
Delete the existing
registration informa-
tion from both this
system and the cellu-
lar phone, then regis-
ter the cellular phone
you wish to connect
to this system.
∗53

314
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
A Bluetooth® con-
nection cannot be
made.
Another Bluetooth®
device is already
connected.
Manually connect
the cellular phone
you wish to use to this
system.
53
Bluetooth® function
is not enabled on the
cellular phone.Enable the
Bluetooth® function
on the cellular phone.∗
Automatic
Bluetooth® connec-
tion on this system is
set to off.
Set automatic
Bluetooth® connec-
tion on this system to
on when the engine
switch is in
ACCESSORY or
IGNITION ON
mode.
58
Preferred device set-
tings function on this
system is set to on.
Set preferred device
settings function on
this system to off.58
Set the desired cellu-
lar phone to the high-
est automatic
connection priority.
58
SymptomLikely causeSolution
Page
Cellular phoneThis
system

315
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
XWhen making/receiving a call
“Unable to dial.
Please check your
phone.” message is
displayed.
Bluetooth® function
is not enabled on the
cellular phone.Enable the
Bluetooth® function
on the cellular phone.∗
Old registration in-
formation remains on
either this system or
the cellular phone.
Delete the existing
registration informa-
tion from both this
system and the cellu-
lar phone, then regis-
ter the cellular phone
you wish to connect
to this system.
∗53
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer
appears on the dis-
play.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

316
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22

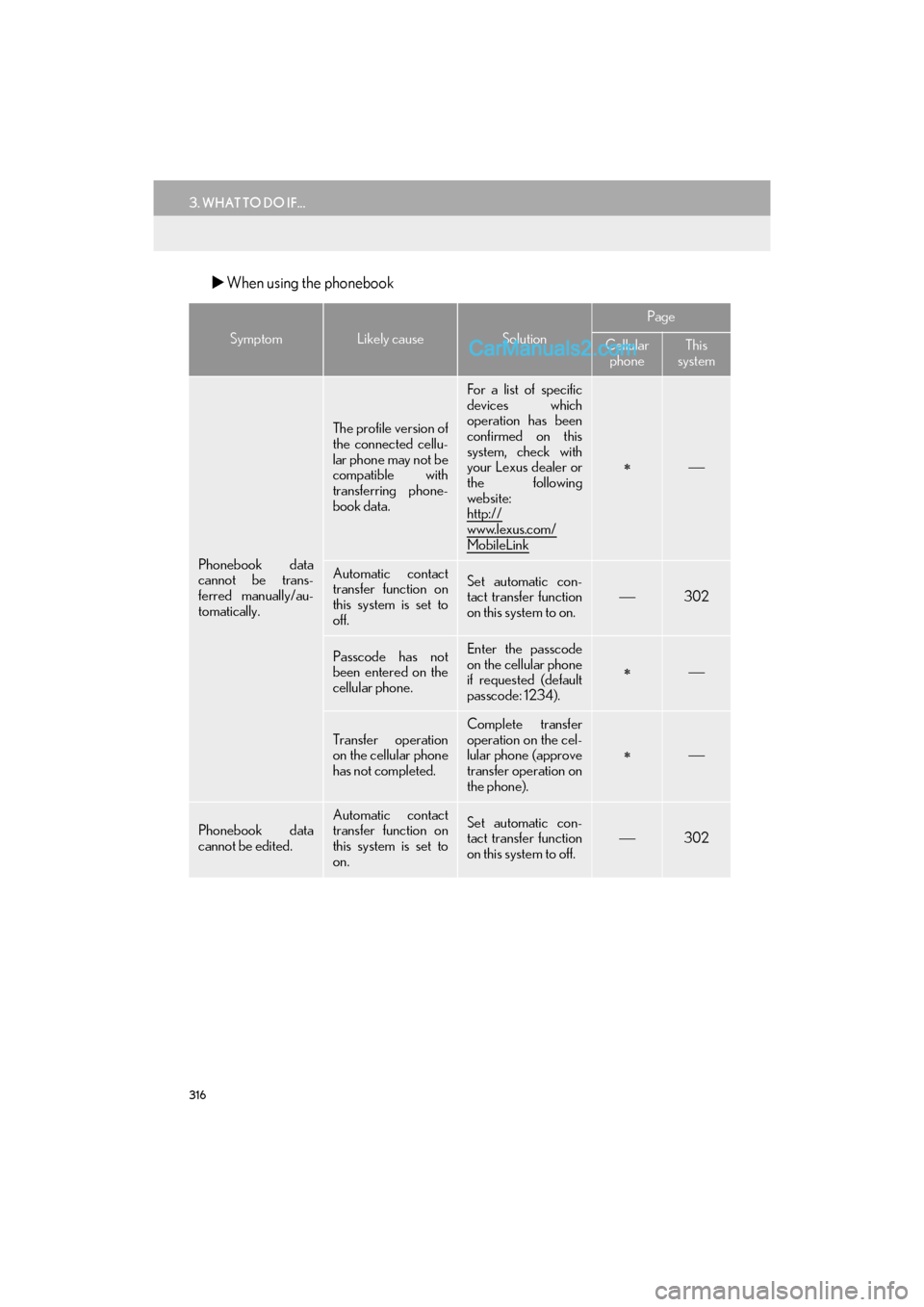

XWhen using the phonebook
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Phonebook data
cannot be trans-
ferred manually/au-
tomatically.
The profile version of
the connected cellu-
lar phone may not be
compatible with
transferring phone-
book data.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Lexus dealer or
the following
website:
http://
www.lexus.com/MobileLink
∗
Automatic contact
transfer function on
this system is set to
off.Set automatic con-
tact transfer function
on this system to on.302
Passcode has not
been entered on the
cellular phone.Enter the passcode
on the cellular phone
if requested (default
passcode: 1234).
∗
Transfer operation
on the cellular phone
has not completed.
Complete transfer
operation on the cel-
lular phone (approve
transfer operation on
the phone).
∗
Phonebook data
cannot be edited.Automatic contact
transfer function on
this system is set to
on.Set automatic con-
tact transfer function
on this system to off.302

317
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
PHONE
8
XWhen using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the phone).
∗
Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.309
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
∗310
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.∗

318
3. WHAT TO DO IF...
GS_Navi+MM_OM30F12U_(U)15.09.01 12:22
XIn other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine
switch is in ACCES-
SORY or IGNI-
TION ON
mode.
Connection confir-
mation display on this
system is set to on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
57
