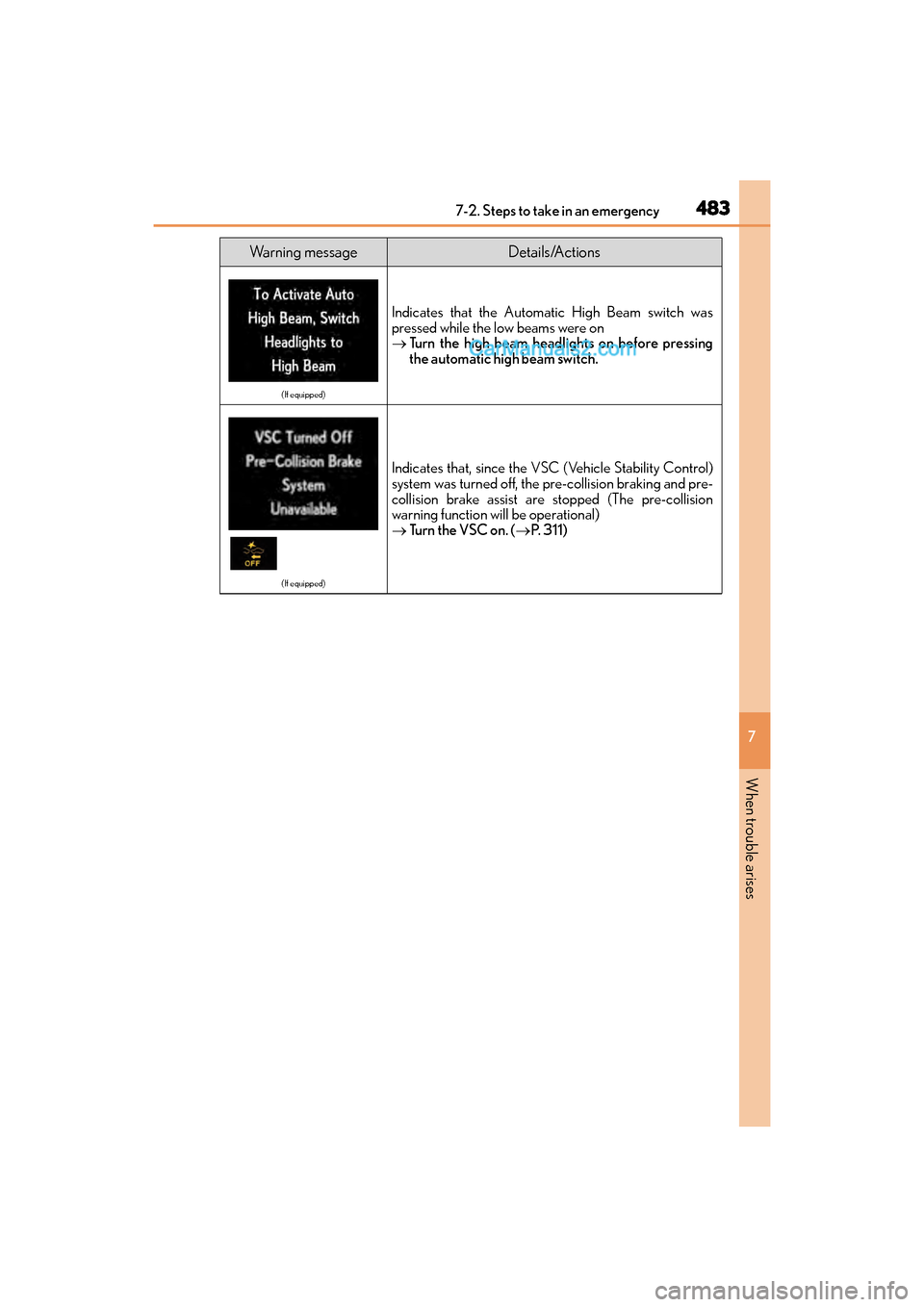

4837-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Warning messageDetails/Actions
(If equipped)
Indicates that the Automatic High Beam switch was
pressed while the low beams were on
→ Turn the high beam headlights on before pressing
the automatic high beam switch.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision braking and pre-
collision brake assist are stopped (The pre-collision
warning function will be operational)
→Tu r n t h e V S C o n . ( →P. 3 1 1 )

5007-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
■The spare tire
●GS350/GS200t: The spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
●Use the spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the spare tire. (→P. 5 5 0 )
■When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low
inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the
light remains on.
■When the spare tire is equipped
The vehicle may become lower when driving with the spare tire compared to when driv-
ing with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front and
rear tires of the same size)
Install the compact spare tire on one of the front wheels of the vehicle. Perform the fol-
lowing steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
4
WA R N I N G
■When using the spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
5
1
2
3

5127-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
■Emergency tire puncture repair kit
●The sealant has a limited lifespan. The expiry date is shown on the bottle. The sealant
should be replaced before the expiry date. Contact your Lexus dealer for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to
temporarily repair a single tire. If the sealant has been used and need to be purchased,
contact your Lexus dealer.
●The sealant can be used when the outside temperature is from -40 °F (-40 °C) to
140 °F (60 °C).
●The repair kit is exclusively designed for size and type of tires originally installed on your
vehicle. Do not use it for tires that a different size than the original ones, or for any other
purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not be
removable if it is not cleaned at once. Immediately wipe away the sealant with a wet
cloth.
●During operation of the repair kit, a loud operation noise is produced. This does not
indicate a malfunction.
●Do not use the emergency tire puncture repair kit to check or to adjust the tire pres-
sure.
■If the tire is inflated to mo re than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the hose and then
reconnect the hose.
Turn the compressor switch on and wait for several seconds, and then turn it off. Check
that the air pressure indicator shows the recommended level. ( →P. 5 5 0 )
If the air pressure is lower than the recommended level, turn the compressor switch on
again and repeat the inflation procedure until the recommended pressure is reached.
■The valve of a tire that has been repaired
●After a tire is repaired with the emergency tire puncture repair kit, the valve should be
replaced.
●After a tire is repaired with the emergency tire puncture repair kit, even if the tire infla-
tion pressure is at the recommended level, the tire pressure warning light may come
on/flash.
■Note for checking the emergenc y tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle.
Do not use sealant whose expiry date has already passed. Otherwise, repairs conducted
using the emergency tire puncture repair kit may not be performed properly. Install the air release cap to the end of the
hose and push the protrusion on the air
release cap into the tire valve to let some air
out.
1
2
3
4

602What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E86U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 5 4 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 2 1 0 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 452, 459)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 74 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 4 5 9 )
●When a warning light turns on or a warning message is displayed, refer to
P. 452, 459. A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed

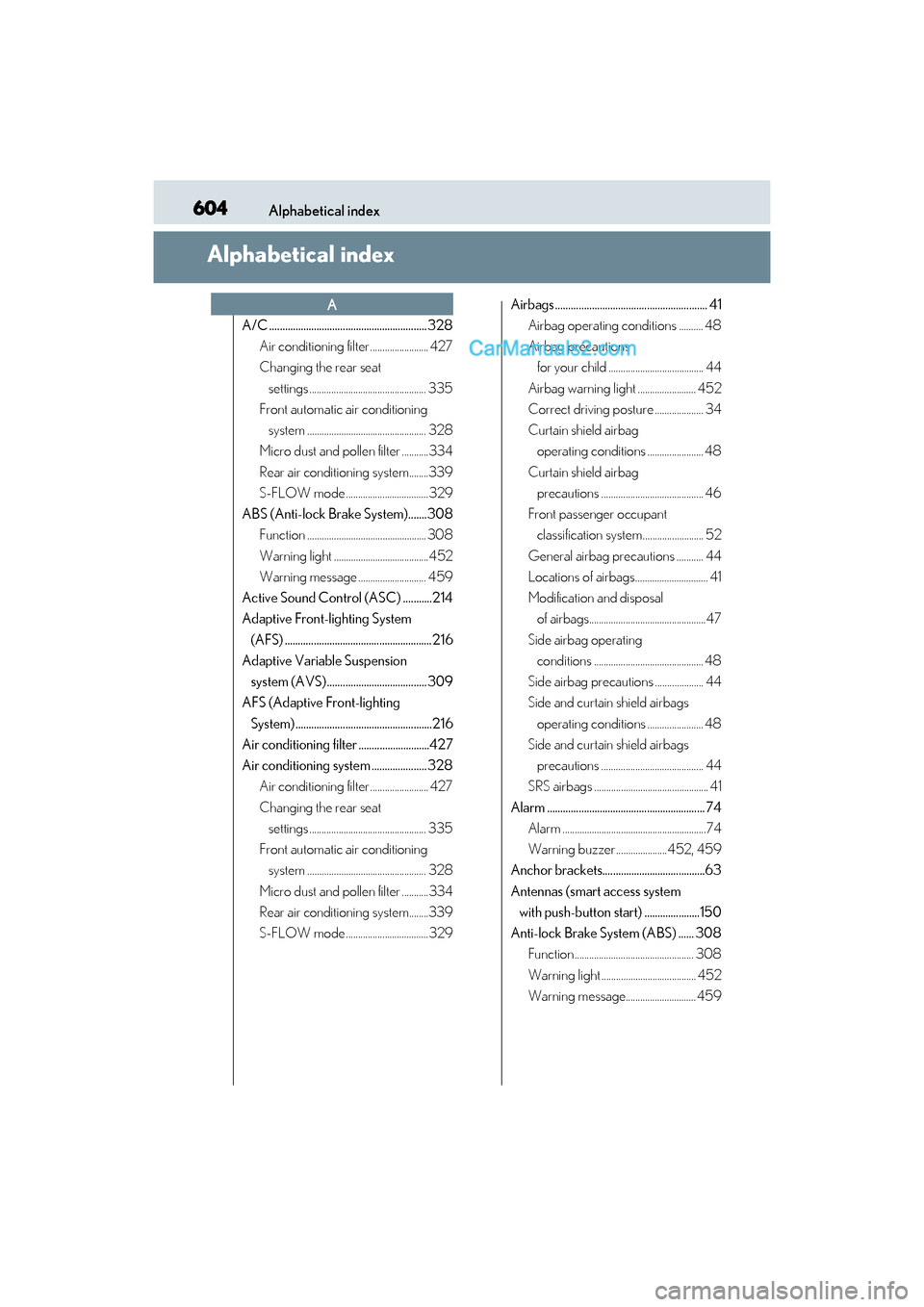

604Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Alphabetical index
A/C ............................................................ 328Air conditioning filter ........................ 427
Changing the rear seat settings ................................................ 335
Front automatic air conditioning
system ................................................. 328
Micro dust and pollen filter ...........334
Rear air conditioning system........339
S-FLOW mode .................................. 329
ABS (Anti-lock Brake System).......308 Function ................................................. 308
Warning light .......................................452
Warning message ............................ 459
Active Sound Control (ASC) ...........214
Adaptive Front-lighting System (AFS) ........................................................216
Adaptive Variable Suspension
system (AVS) ......................................309
AFS (Adaptive Front-lighting
System) ....................................................216
Air conditioning filter ...........................427
Air conditioning system ..................... 328 Air conditioning filter ........................ 427
Changing the rear seat settings ................................................ 335
Front automatic air conditioning system ................................................. 328
Micro dust and pollen filter ...........334
Rear air conditioning system........339
S-FLOW mode .................................. 329 Airbags .......................................................... 41
Airbag operating conditions .......... 48
Airbag precautions for your child ....................................... 44
Airbag warning light ........................ 452
Correct driving posture .................... 34
Curtain shield airbag operating conditions ....................... 48
Curtain shield airbag precautions .......................................... 46
Front passenger occupant classification system......................... 52
General airbag precautions ........... 44
Locations of airbags.............................. 41
Modification and disposal of airbags................................................47
Side airbag operating conditions ............................................. 48
Side airbag precautions .................... 44
Side and curtain shield airbags operating conditions ....................... 48
Side and curtain shield airbags
precautions .......................................... 44
SRS airbags ............................................... 41
Alarm ............................................................ 74 Alarm ...........................................................74
Warning buzzer .....................452, 459
Anchor brackets.......................................63
Antennas (smart access system with push-button start) .....................150
Anti-lock Brake System (ABS) ...... 308 Function ................................................. 308
Warning light ....................................... 452
Warning message............................. 459
A

605Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Approach warning....................273, 285
Armrest .................................................... 360
Armrest door ......................................... 363
ASC (Active Sound Control) ...........214
Ashtrays.................................................... 359
Assist grips .............................................. 364
Audio input
*
Audio system*
Automatic headlight leveling system ...................................................... 217
Automatic light control system.........215
Automatic transmission ..................... 202 If the shift lever cannot be shifted from P .................................... 517
M mode ................................................. 205
Paddle shift switches ........................204
AUX port
*
Auxiliary boxes ...................................... 353
AVS (Adaptive Variable Suspension system)..........................309
Back-up lights Replacing light bulbs ........................439
Battery........................................................ 410
Battery checking.................................... 410 If the vehicle battery is discharged .........................................523
Preparing and checking before winter ..................................................... 316
Warning light .......................................452 Blind Spot Monitor (BSM) ............... 298
Blind Spot Monitor function.......... 301
Rear Cross Traffic Alert function................................................303
Bluetooth
®*
Brake Fluid ..........................................................409
Parking brake ........................................210
Warning light ........................... 452, 454
Warning message............................. 459
Brake assist ............................................. 308
Brake Hold................................................ 212
Break-in tips .............................................183
Brightness control Instrument panel light control ........ 89
BSM (Blind Spot Monitor) ............... 298
Blind Spot Monitor function.......... 301
Rear Cross Traffic Alert function................................................303
Card key .................................................... 132
Care................................................378, 382 Aluminum wheels .............................. 379
Exterior ................................................... 378
Interior ..................................................... 382
Seat belts................................................383
Cargo capacity ....................................... 194
Cargo hooks .......................................... 354
CD player
*
Chains......................................................... 317
B
C
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

607Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Dimensions .............................................538
Dinghy towing..........................................196
Display12.3-inch display................................. 326
Drive information ..................... 102, 109
Dynamic radar cruise control......278
Dynamic radar cruise control with full-speed range ....................266
Energy monitor ..................................... 127
LDA (Lane Departure Alert with steering control) .................... 261
LKA (Lane-Keeping Assist) .........253
Multi-information display .....100, 108
Trip information ............................ 78, 92
Warning message ............................ 459
Do-it-yourself maintenance ...............391
Door courtesy lights Location .................................................. 347
Door lock Doors .........................................................137
Smart access system with push-button start ............................. 150
Wireless remote control ..................137
Doors........................................................... 137
Automatic door locking and unlocking system.................... 140
Door glasses ......................................... 175
Door lock ................................................ 139
Open door warning buzzer............ 151
Open door warning light...............454
Outside rear view mirrors ................ 171
Rear door child-protector.............. 140 Drive info 1/Drive info 2/
Drive info 3................................... 105, 116
Drive information ......................102, 109
Resetting .......................................102, 109
Drive-start control ..................... 183, 207
Driver’s seat position memory..........160 Driving position memory.................. 161
Memory recall function .................... 162
Power easy access system ............ 160
Driving ........................................................ 182
Break-in tips .......................................... 183
Correct driving posture .................... 34
Driving mode select switch .......... 293
Procedures .............................................182
Winter drive tips ..................................316
DRS (Dynamic Rear Steering) ....... 309
Function ..................................................309
Warning message............................. 459
DVD player
*
Dynamic radar cruise control Function .................................................. 278
Warning message............................. 459
Dynamic radar cruise control with full-speed range
Function .................................................. 266
Warning message............................. 459
Dynamic Rear Steering (DRS) ....... 309 Function ..................................................309
Warning message............................. 459
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

608Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Eco drive mode ..................................... 293
Eco Driving Indicator............................. 85
Eco driving meter .................................... 92
EDR (Event data recorder) ...................10
Electric Power Steering (EPS) .......309Function ................................................. 309
Warning light .......................................453
Warning message ............................ 459
Electronic key ..........................................132
Battery-saving function .................... 152
If the electronic key does not operate properly............................ 520
Replacing the battery ....................... 429
Emergency, in case of If a warning buzzer sounds...........452
If a warning light turns on............... 452
If a warning message
is displayed ....................................... 459
If the electronic key
does not operate properly ....... 520
If the engine will not start................. 515
If the parking brake cannot be released......................... 518
If the shift lever cannot be shifted from P ............. 517
If the vehicle battery is discharged .........................................523
If you have a flat tire ...............491, 502
If you think something is wrong.............................................. 450
If your vehicle becomes stuck .....534
If your vehicle has to be stopped in an emergency .............................443
If your vehicle needs to be towed .......................................444
If your vehicle overheats ............... 528 Emergency flashers .............................442
Emergency tire puncture repair
kit ............................................................. 502
Engine
Accessory mode ................................ 198
Compartment ..................................... 396
Engine switch ........................................ 197
Hood........................................................ 393
How to start the engine.................... 197
Identification number .......................540
Ignition switch (engine switch.................................... 197
Overheating.........................................528
Engine compartment cover............. 399
Engine coolant ...................................... 406 Capacity ................................................. 547
Checking ...............................................406
Preparing and checking
before winter ......................................316
Engine coolant temperature
gauge ................................................ 86, 94
Engine immobilizer system .................. 72
Engine oil ................................................... 401 Capacity ................................................. 542
Checking .................................................401
Oil level warning message ........... 459
Oil pressure warning message........................... 459
Preparing and checking before winter ......................................316
E

609Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)

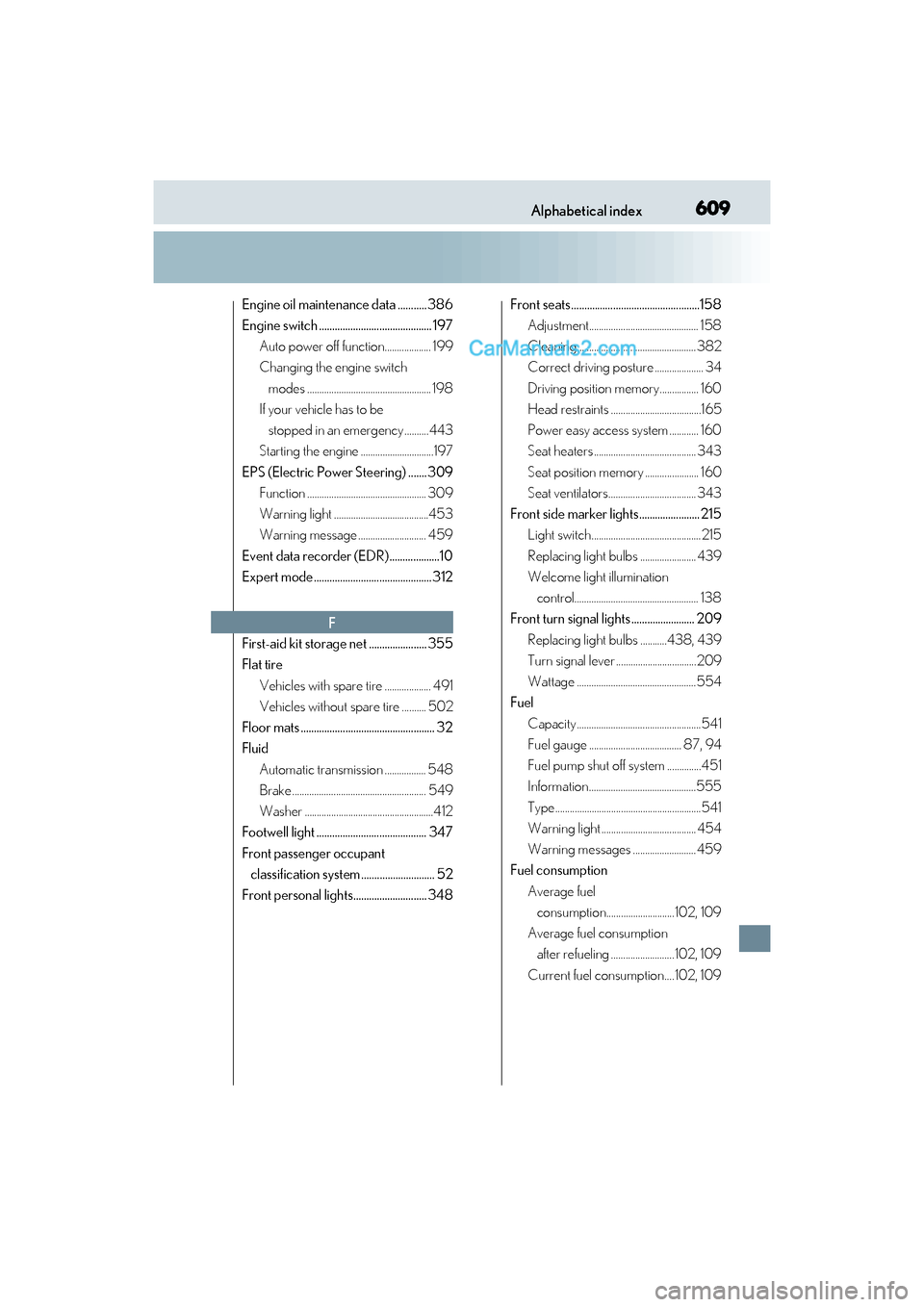

Engine oil maintenance data ........... 386
Engine switch ........................................... 197Auto power off function................... 199
Changing the engine switch modes ................................................... 198
If your vehicle has to be
stopped in an emergency ..........443
Starting the engine ..............................197
EPS (Electric Power Steering) .......309 Function ................................................. 309
Warning light .......................................453
Warning message ............................ 459
Event data recorder (EDR) ...................10
Expert mode .............................................312
First-aid kit storage net ...................... 355
Flat tire Vehicles with spare tire ................... 491
Vehicles without spare tire .......... 502
Floor mats ................................................... 32
Fluid Automatic transmission ................. 548
Brake ....................................................... 549
Washer .....................................................412
Footwell light .......................................... 347
Front passenger occupant classification system ............................ 52
Front personal lights............................ 348 Front seats.................................................158
Adjustment............................................. 158
Cleaning................................................. 382
Correct driving posture .................... 34
Driving position memory................ 160
Head restraints .....................................165
Power easy access system ............ 160
Seat heaters .......................................... 343
Seat position memory ...................... 160
Seat ventilators.................................... 343
Front side marker lights....................... 215 Light switch............................................. 215
Replacing light bulbs ....................... 439
Welcome light illumination
control................................................... 138
Front turn signal lights ........................ 209
Replacing light bulbs ...........438, 439
Turn signal lever ................................. 209
Wattage .................................................554
Fuel
Capacity ...................................................541
Fuel gauge ...................................... 87, 94
Fuel pump shut off system ..............451
Information............................................555
Type............................................................541
Warning light ....................................... 454
Warning messages .......................... 459
Fuel consumption
Average fuel consumption............................102, 109
Average fuel consumption after refueling ..........................102, 109
Current fuel consumption....102, 109
F

610Alphabetical index
GS350_200t_GS F_OM_OM30E86U_(U)
Fuel filler door .........................................227When the fuel filler door
cannot be opened ......................... 229
Fuel pump shut off system...................451
Fuses ............................................................431
Garage door opener .......................... 365
Gauges ................................................ 86, 92
Glove box ................................................. 351
Glove box light ....................................... 351
Hands-free system (for cellular phone)
*
HD Radio® system*
Head restraints ........................................165
Headlights .................................................215 Adaptive Front-lighting
System (AFS) .................................... 216
Automatic High Beam system ..... 218
Headlight leveling warning message .......................... 459
Light switch ............................................ 215
Replacing light bulbs ........................439
Headlights aim............................435, 597
Head-up display..................................... 120
Heated steering wheel ....................... 342 Heaters
Air conditioning system ................. 328
Heated steering wheel ................... 342
Seat heaters .......................................... 343
Outside rear view mirrors ............ 334
Hill-start assist control ....................... 308
Hood ......................................................... 393 Open ....................................................... 393
Warning message............................. 459
Hooks
Cargo hooks ....................................... 354
Coat hooks ........................................... 364
Luggage hook..................................... 354
Retaining hooks (floor mat)..............32
Horn.............................................................168
I/M test ..................................................... 390
Identification........................................... 539 Engine .....................................................540
Vehicle ....................................................539
Ignition switch (engine switch) ......... 197
Auto power off function ...................199
Changing the engine switch modes ................................................... 198
If your vehicle has to be
stopped in an emergency.......... 443
Starting the engine ............................. 198
Illuminated entry system ................... 349
Immobilizer system ................................. 72
Indicators ...................................................... 81
G
H
I
