Lexus GS F 2017 Navigation Manual

329
1. LEXUS ENFORM-OVERVIEW
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
LEXUS ENFORM
9
zAfter you have signed the Telematics Sub-
scription Service Agreement and are
enrolled, you can begin receiving services.
A variety of subscription terms are avail-
able. Contact your Lexus dealer, or call 1-
800-25-LEXUS (1-800-255-3987), for
further subscription details. ( →P.339)
z Destinations is available in the contiguous
United States, Washington D.C. and limited
areas of Alaska for vehicles that contain the
appropriate map data.
z Lexus Insider is available in the contiguous
United States, Wash ington D.C. and
Alaska. z
Enrollment in Lexus Enform Safety Con-
nect (via your dealership) is required to
activate all functions.
BEFORE USING THE
FUNCTION
SUBSCRIPTION
AVAILABILITY OF
FUNCTION(S)
ACTIVATION OF
FUNCTION(S)
zCertification for Lexus Enform Safety
Connect
FCC WARNING:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment should be installed and
operated keeping the radiator at least
20cm or more away from person’s body
(excluding extremities: hands, wrists, feet
and ankles).
FCC ID: N7NGTM2

330
1. LEXUS ENFORM-OVERVIEW
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
INFORMATION
●Exposure to radio frequency signals:
The Lexus Enform system installed in
your vehicle includes a low power radio
transmitter and receiver. The system
receives and also sends out radio fre-
quency (RF) signals.
● In August 1996, the Federal Communi-
cations Commission (FCC) adopted RF
exposure guidelines with safety levels for
mobile wireless phones. Those guidelines
are consistent with the safety standards
previously set by both U.S. and interna-
tional standards bodies.
• ANSI (American National Standards
Institute) C95.1 [1992]
• NCRP (National Council on Radiation Protection and Measurement) Report
86 [1986]
• ICNIRP (International Commission on Non-Ionizing Radiation Protection)
[1996]
● These standards are based on compre-
hensive and periodic evaluations of the
relevant scientific literature. Over 120
scientists, engineers, and physicians from
universities, government health agen-
cies, and industry reviewed the available
body of research to develop the ANSI
Standard (C95.1).
● The design of Lexus Enform system com-
plies with the FCC guidelines in addition
to those standards.
INFORMATION
●Contact with the Lexus response center
is dependent upon the telematics device
being in operative condition, cellular con-
nection availability, navigation map data,
and GPS satellite signal reception, which
can limit the ability to reach the response
center or receive support. Enrollment
and Telematics Subscription Service
Agreement required. A variety of sub-
scription terms are available; charges
vary by subscription term selected.
● The Lexus response center offers sup-
port in multiple languages.
● Select Lexus Enform Safety Connect-
subscribed vehicles are capable of com-
municating vehicle information. Please
see the terms and conditions for addi-
tional details.
Owners who do not wish to have their
vehicle transmit this information can opt
out at the time of enrollment or by calling
1-800-255-3987 and following the
prompts for Lexus Enform Safety Con-
nect.
● For further details about the service, con-
tact your Lexus dealer.
● Lexus Enform functions are not subject to
section 255 of the Telecommunications
Act and the system is not TTY compati-
ble.

331
1. LEXUS ENFORM-OVERVIEW
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
LEXUS ENFORM
9

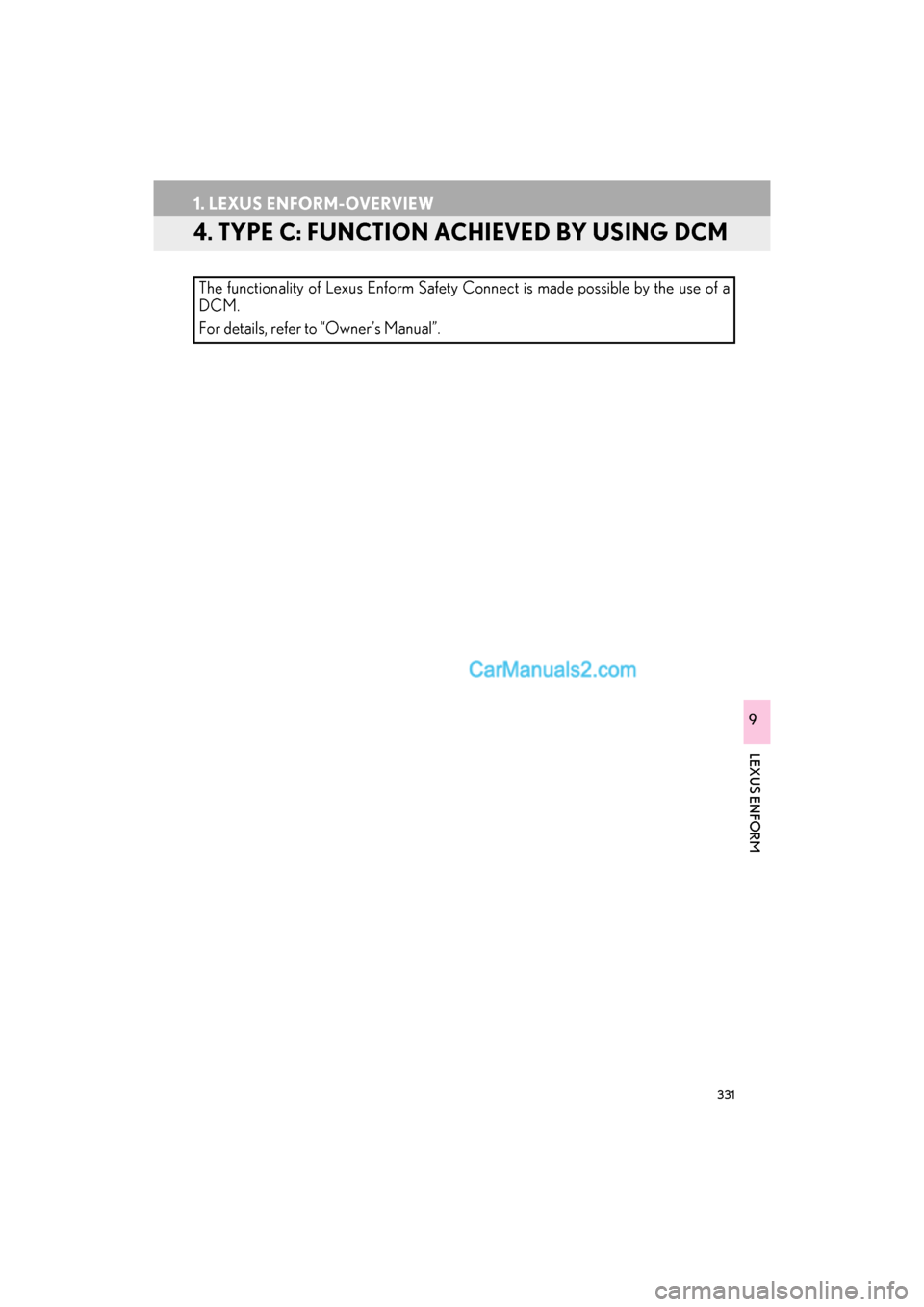

4. TYPE C: FUNCTION ACHIEVED BY USING DCM
The functionality of Lexus Enform Safety Connect is made possible by the use of a
DCM.
For details, refer to “Owner’s Manual”.

332
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
2. LEXUS ENFORM OPERATION
1. LEXUS Enform Remote
zAfter you sign the Telematics Subscription Service Agreement (see the LEXUS Enform
Safety Connect section in “Owner’s Manual”), download the LEXUS Enform Remote
app from your cellular phone’s app store, and register within the app (or enroll and com-
plete registration at the dealer), you can begin using these services.
z A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-
25-LEXUS (1-800-255-3987) for further subscription details.
z Lexus Enform Remote is available in the co ntiguous United States, Washington D.C.,
and Alaska.
For details about the functions and services provided by this app, refer to
http://www.lexus.com/enform/
.
SUBSCRIPTION
AVAILABILITY OF FUNCTION
INFORMATION
● Lexus Enform Remote should only be used by authorized users.
● Laws in some communities may require that the vehicle be within view of the user when
operating Lexus Enform Remote.
In some states, use of Lexus Enform Remote may violate state or local laws. Before using
Lexus Enform Remote, check your state and local laws.
● Any malfunction of the Lexus should be repaired by your Lexus dealer.
● Lexus Enform Remote is designed to work at temperatures above -22 °F (-30 °C). This
specification is related to the Lexus Enform Remote operation, but is dependent on the
vehicle’s operating temperature range which may be different.
● Content is subject to change without notice.
● Some features of the Lexus Enform Remote may not be available on some models.
● Additional information can be found at www.lexus.com/enform/
.
● Availability of functions of the Lexus Enform service is dependent on network reception
level.

333
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
LEXUS ENFORM
9
2. LEXUS Enform Service Connect
zLexus Enform Service Connect is available in the contiguous United States,
Washington D.C., Hawaii, Alaska, and Canada.
For details about this service and how to register, refer to
http://www.lexus.com/enform/
.
AVAILABILITY OF FUNCTION
INFORMATION
●Availability of functions of the Lexus Enform Service Connect is dependent on network
reception level.

334
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
3. LEXUS App Suite
1Press the “MENU” button on the
Remote Touch.
2Select “LEXUS App Suite” .
3Select the desired application screen
button.
: Select to activate an application.
“Update” : Select to update the applica-
tions. ( →P.334)
“Reorder” : Select to change the order of
the applications. ( →P.335)
: Displays the number of new notifica-
tions for the application
■ DOWNLOADING UPDATE
1Select “Update” on the “LEXUS App
Suite” screen. ( →P.334)
2Check that downloading starts.
“Download in Background” : Select to op-
erate other functions while downloading.
“Cancel” : Select to cancel updating.
USING LEXUS App Suite
App Suite is a function that enables ap-
plicable apps installed on a cellular
phone to be displayed on and operated
from the navigation screen. Before App
Suite can be used, a few settings need to
be performed. ( →P.327)
For details about the functions and ser-
vices provided by each application, re-
fer to http://www.lexus.com/enform/
.
UPDATING AN APPLICATION
When App Suite is activated, an applica-
tion may need to be updated. By updat-
ing the application, it can be kept to the
latest version. To update an application,
it is necessary to download update data
and install it.
If an update is available, “Update” can
be selected.

335
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
LEXUS ENFORM
9
3Check that downloading is complete.
“Later” : Select to install later. When this
screen button is selected, the screen will re-
turn to the last displayed screen. To install
the update data: (→ P.335)
“See Detail” : Select to display detailed in-
formation on the update data.
“Install” : Select to install the update data.
Follow the steps “INSTALLING THE UP-
DATE DATA” from “STEP 2”. ( →P.335)■INSTALLING THE UPDATE DATA
1Select “Install” on the “LEXUS App
Suite” screen. ( →P.334)
2Select “Continue” .
“Later” : Select to postpone the installation
of the update data and go back to the previ-
ous screen.
3Check that installing is started.
“Install in Background” : Select to operate
other function while installing.
4Select “OK” after the installing is com-
plete.
1Display the “LEXUS App Suite” screen.
( → P.334)
2Select “Reorder” .
3Select the desired application to be
moved.
4Select “<<” or “>>” to move the applica-
tion, and select “OK”.
After the downloading is complete,
“Update” will be changed to “Install”.
INFORMATION
●The App Suite function cannot be oper-
ated while installing.
REORDERING THE
APPLICATIONS
Order of the applications can be
changed.

336
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
IF A MESSAGE APPEARS ON THE SCREEN
When problems occur with starting the application player, a message will appear on
the screen. Referring to the table below, identify the problem and take the suggested
corrective action.
MessageDisplay conditionsCorrective action
“This feature is unavailable
during an emergency call.”Safety Connect is being im-
plemented.After the Safety Connect call
is finished, perform the opera-
tion again.
“This feature is unavailable
while transferring contacts.”Contacts are being trans-
ferred manually from the
phonebook.When the transfer of contacts
is complete, perform the op-
eration again.
“Unable to connect to a
Bluetooth* phone. For trou-
bleshooting assistance,
please visit the Lexus website
or contact your dealer.”
The cellular phone cannot be
connected.
Refer to http://
www.lexus.com/enform/ to
confirm if the phone is com-
patible or not.
“This feature is unavailable
during a handsfree call.”A hands-free call is in
progress.After the hands-free call is fin-
ished, perform the operation.
“To use the services, an active
application needs to be run-
ning on your phone. For more
information, please visit
lexus.com.”The LEXUS App Suite appli-
cation cannot be connected
to Bluetooth
® SPP.
Refer to http://www.lexus.com/enform/ to
confirm if the phone is
Bluetooth
® SPP compatible
or not, and then activate the
App Suite application.
“Communication error.
Please try again.”Communication was discon-
nected.After a few moments, retry the
operation.
*: The Bluetooth® word mark and logos are register ed trademarks owned by Bluetooth
SIG, Inc.

337
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
LEXUS ENFORM
9
1Press the “MAP” button on the Remote
Touch.
2Select “Dest.”.
3Select “Web Search” .
4Check that the “Web Search” screen is
displayed.
1Display the “Web Search” screen.
(→ P.337)
2Select the desired application screen
button to perform search.
3Enter a search term, and select “Go”.
4Select “Map”.
5Select “Go to ” .
6Select “OK” to start guidance.
LINKING LEXUS App Suite
AND NAVIGATION SYSTEM
LOCAL FUNCTION
The setting a destination and making a
hands-free call functions of the naviga-
tion system can be performed via App
Suite. For details about the functions and
services provided by each application,
refer to http://www.lexus.com/enform/
.
SETTING A DESTINATION
USING LEXUS App Suite
Locations that were searched for using
the App Suite can be set as a destination.
z For the operation of the route guidance
screen and the function of each screen
button: →P.1 0 6

338
2. LEXUS ENFORM OPERATION
GS_Navi+MM_OM30F99U_(U)16.07.11 14:00
1Display the “Web Search” screen.
(→ P.337)
2Select the desired application screen
button to perform search.
3Enter a search term, and select “Go”.
4Select “Call”.
5Select “Yes”.
“Cancel” : Select to cancel making a phone
call.
6Check that the “Call” screen is dis-
played.
1Display the “LEXUS App Suite” screen.
( → P.334)
2Select the desired application screen
button.
3Select the character entering space.
4Enter a search term, and then select
“OK” .
5Entering characters will be reflected on
the character entering space.
1Display the “LEXUS App Suite” screen.
(→ P.334)
2Select the desired application screen
button.
3Press the talk switch. ( →P.228)
4Say the desired keyword.
zCompletion of the keyword will be
detected automatically.
5Search results will be displayed on the
screen.
MAKING A PHONE CALL
USING LEXUS App Suite
Phone calls can be made to locations
which were searched for using App
Suite.
z For phone operation and the function of
each screen button: →P. 2 9 2
ENTERING KEYWORD
OPERATION
A keyword can be entered to an appli-
cation by the software keyboard or
voice recognition function. For details
about the functions and services provid-
ed by each application, refer to
http://www.lexus.com/enform/
.
zThe keyboard layout can be changed.
(→P.61)
ENTERING A KEYWORD
USING THE SOFTWARE
KEYBOARD
z For details on operating the keyboard:
→ P. 3 8
ENTERING A KEYWORD
USING THE VOICE
RECOGNITION FUNCTION
