Lexus GS F 2017 Owner's Manual

101
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)

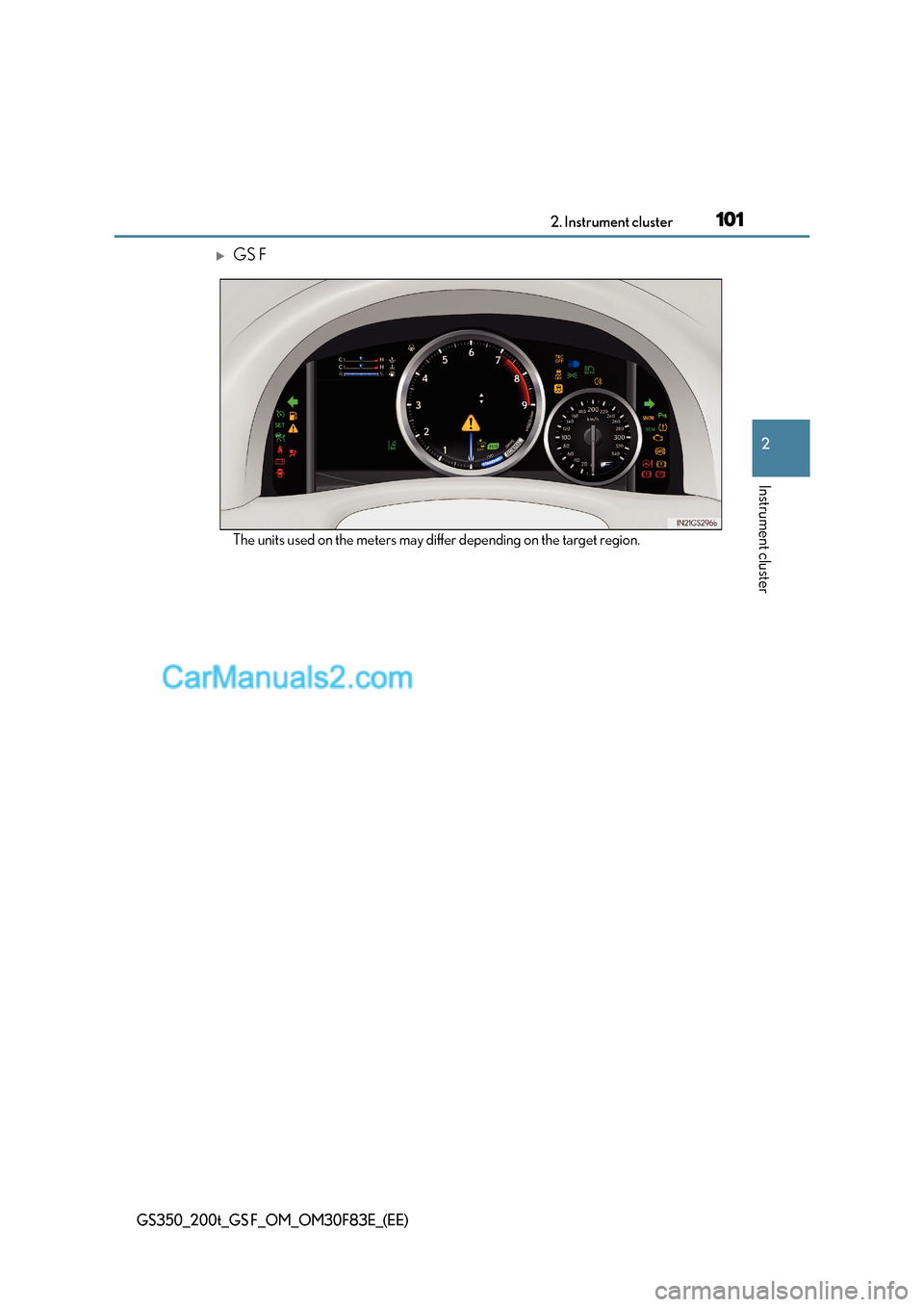

GS F
The units used on the meters may differ depending on the target region.

1022. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehicle s ystems.
* 1
: These lights turn on when the engine switch is turned to IG NITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.
Warning lights
* 1
Brake system warning light ( P. 518) *
1, 3, 4
(If equipped)
“AFS OFF” indicator (
 P. 520)
* 1, 2
Charging system warning
light (P. 518) *
1, 3, 4
Brake hold operated
indicator (
P. 520)
* 1
Malfunction indicator
lamp ( P. 518) *
3
Parking brake indicator (
 P. 520)
* 1
SRS warning light ( P. 518) *
1
Brake system warning light (
 P. 520)
* 1
ABS warning light ( P. 519) *
5
Open door warning light (
 P. 520)
* 1
Electric power steering
system warning light (
 P. 519)Low fuel level warning light ( P. 520)
* 1, 3
(If equipped)
PCS (Pre-Crash Safety
system) warning light (
 P. 519)Seat belt reminder light ( P. 520)
* 1
Slip indicator (
P. 519) *
1
Master warning light ( P. 520)
* 1
(If equipped)
Tire pressure warning light (
 P. 521)
(If equipped)
LDA warning light ( P. 521)/
LKA warning light (  P. 521)

103
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
* 2
:On some models
* 3
: The light flashes to indicate a malfunction.
* 4
:GS350/GS200t
* 5
:GS F
The indicators inform the driver of the operating state of the vehicle’s variou s sys-
tems.
Indicators
Turn signal indicator (  P. 255)
(If equipped)
Dynamic radar cruise
control indicator ( P. 331, 343)
Tail light indicator (  P. 262) Cruise control
“SET” indicator (
 P. 331, 343, 355)
Headlight high beam
indicator ( P. 262)
(If equipped)
LDA indicator ( P. 320)/
LKA indicator ( P. 311)
(If equipped)
Automatic High Beam
indicator ( P. 271)/
Adaptive High-beam
System indicator ( P. 266) *
1
(If equipped)
Lexus parking assist-sensor
indicator
* 3
Front fog light indicator ( P. 275) *
2, 3
(If equipped)
“AFS OFF” indicator (
 P. 263)
Rear fog light indicator (  P. 275) *
2, 4
Slip indicator ( P. 376)
* 5, 11
(If equipped)
Gear Shift Indicator (
 P. 251) *
2
VSC OFF indicator ( P. 378)
Cruise control indicator (  P. 339, 351, 355) *
2, 5
TRC OFF indicator ( P. 377)

1042. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
●Drive mode indicators
GS350/GS200t (except F SPORT models)
GS350/GS200t (F SPORT models) *
2, 6
(If equipped)
PCS (Pre-Crash Safety
system) warning light (
 P. 298) *
2, 9“PASSENGER AIR
BAG” indicator (
 P. 61)
* 7, 8
(If equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (
P. 363) *
10Low outside temperature
indicator (
P. 108, 113)
(If equipped)
BSM (Blind Spot Monitor)
indicator ( P. 363) *
2Eco Driving Indicator Light (
 P. 106)
* 2, 3
Brake hold standby
indicator ( P. 259) Parking brake indicator (
 P. 256)
* 2, 3
Brake hold operated
indicator ( P. 259)
Eco drive mode indicator ( P. 358)
(If equipped)
“SPORT” indicator ( P. 358)
(If equipped)
“SPORT S” indicator ( P. 358)
(If equipped)
“SPORT S+” indicator ( P. 358)
(If equipped)
“Customize” indicator ( P. 358) Snow mode indicator (
 P. 247)
Eco drive mode indicator ( P. 358) “SPORT S” indicator (
 P. 358)
“SPORT S+” indicator (  P. 358) “CUSTOMIZE” indicator (
 P. 358)
Snow mode indicator (  P. 247)

105
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
● TVD (Torque Vectoring Differential) control mode indicators (GS F)
* 1
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
* 2
: These lights turn on when the engine switch is turned to IG NITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.
* 3
:GS350/GS200t
* 4
: The light flashes to indicate that the system is operating.
* 5
:GS F
* 6
: The light turns on when the system is turned off. “NORMAL” indicator (
 P. 361) Eco drive mode indicator(
 P. 361)
“SPORT S” indicator (  P. 361) “SPORT S+” indicator (
 P. 361)
“CUSTOMIZE” indicator (  P. 361) Snow mode indicator (
 P. 247)
“EXPERT” indicator ( P. 378)
(If equipped)
“STANDARD” indicator ( P. 373)
(If equipped)
“SLALOM” indicator ( P. 373)
(If equipped)
“TRACK” indicator ( P. 373)

1062. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
*7
: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:

107
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch is operated.
●Neither normal mode nor Eco drive mode is selected. ( P. 358)
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
During Eco-friendly acceleration (Eco driving),
the Eco Driving Indicator Light will turn on.
When the acceleration exceeds the Zone of
Eco driving, or when the
vehicle is stopped, the
light turns off.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer immediately if this occurs.

1082. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
Gauges and meters (GS350/GS200t)
Except F SPORT models
F SPORT models
The units used on the speedometer may differ depending on the target region.

109
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40 C (-40 F) to 50 C
(122 F). Low outside temperature indicator comes on when the ambient temperature
is 3 C (37 F) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (P. 429)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( P. 121)
Displays warning messages in case of a malfunction (P. 524)
Odometer, trip meter, maintenance required information and speed warning
display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:

1102. Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 seconds.
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is dis-
played, pressing and holding the button
will reset the trip meter.
Changing the display
