Lexus GS F 2017 Owner's Manual

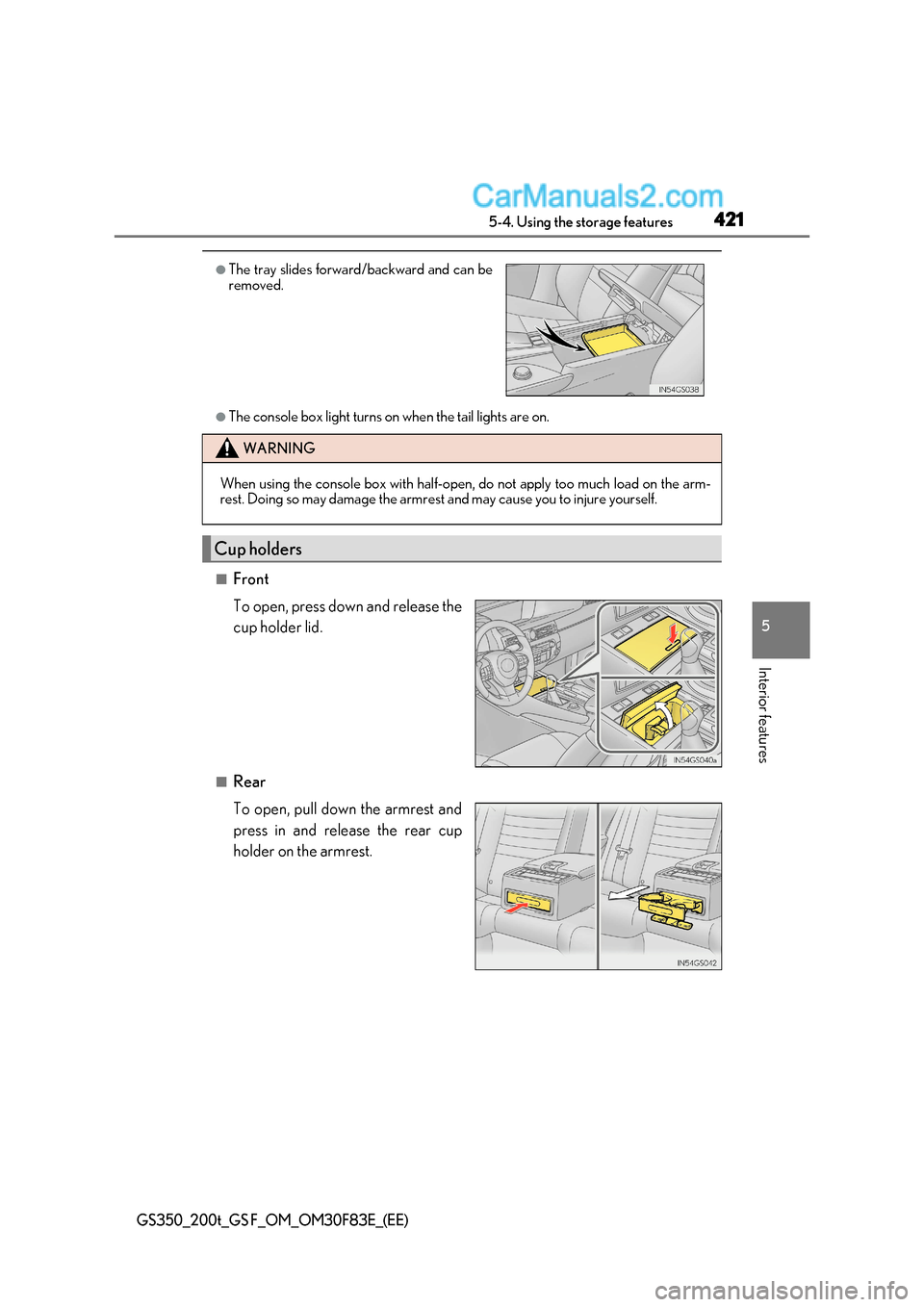

421
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
●The console box light turns on when the tail lights are on.
■Front
To open, press down and release the
cup holder lid.
■Rear
To open, pull down the armrest and
press in and release the rear cup
holder on the armrest.
●The tray slides forward/backward and can be removed.
WARNING
When using the console box with half-open, do not apply too much load on the arm-
rest. Doing so may damage the armrest and may cause you to injure yourself.
Cup holders

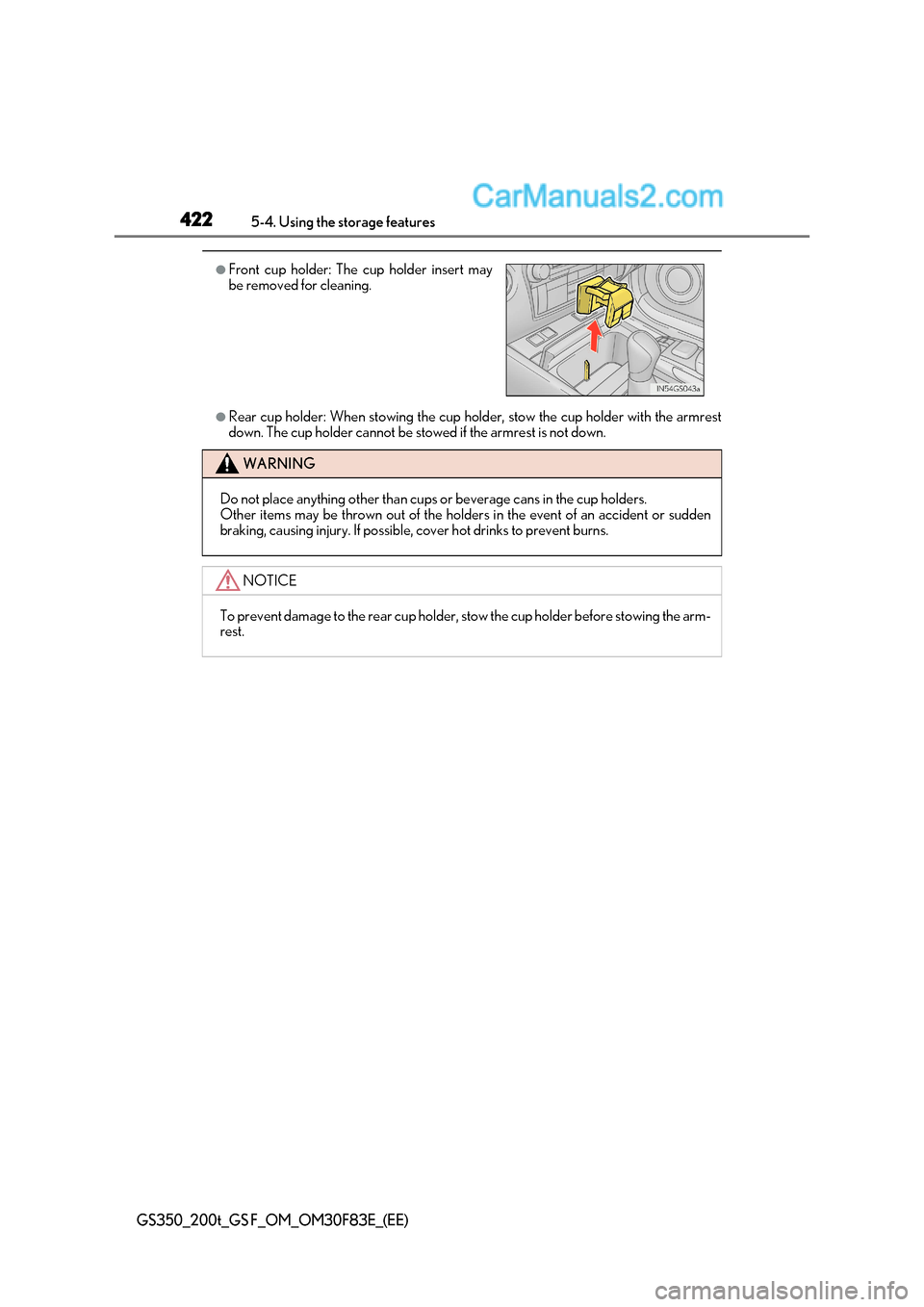

4225-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
●Rear cup holder: When stowing the cup holder, stow the cup holder with the armrest
down. The cup holder cannot be stowed if the armrest is not down.
●Front cup holder: The cup holder insert may
be removed for cleaning.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holder s in the event of an accident or sudden
braking, causing injury. If possible, cover hot drinks to prevent burns.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.

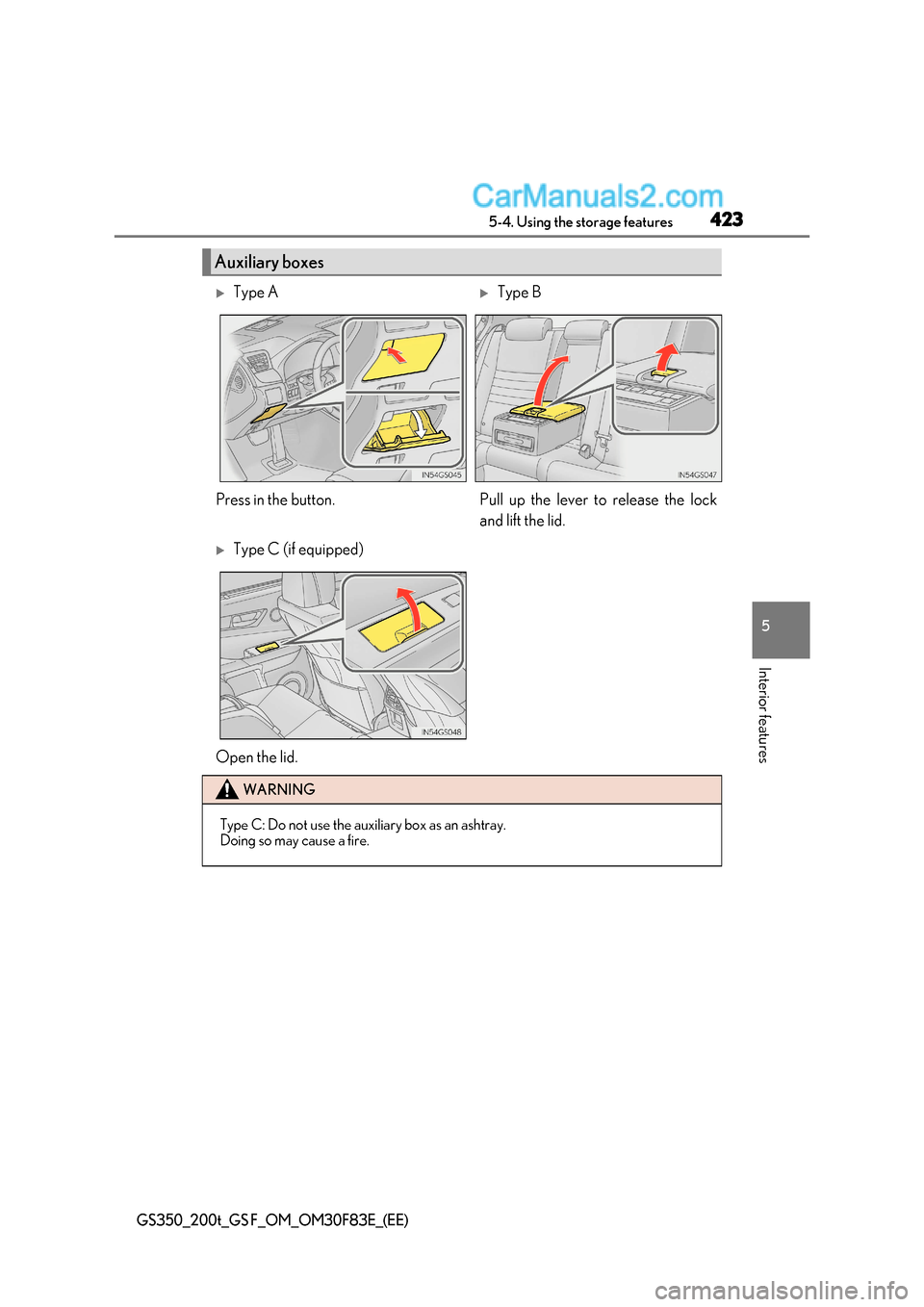

423
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Auxiliary boxes
Type AType B
Press in the button. Pull up the lever to release the lock and lift the lid.
Type C (if equipped)
Open the lid.
WARNING
Type C: Do not use the auxiliary box as an ashtray.
Doing so may cause a fire.

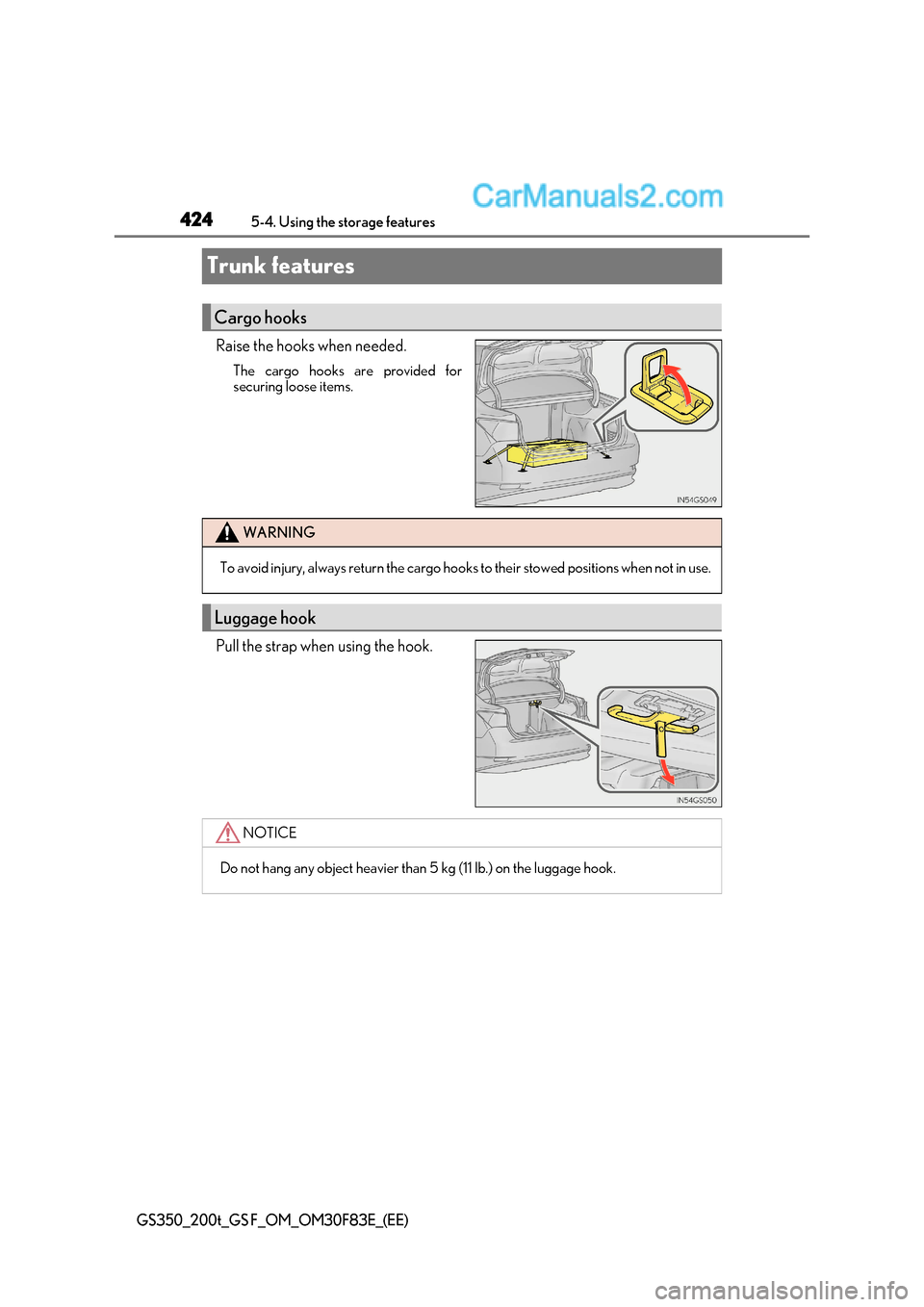

4245-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
Trunk features
Raise the hooks when needed.The cargo hooks are provided for
securing loose items.
Pull the strap when using the hook.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Luggage hook
NOTICE
Do not hang any object heavier than 5 kg (11 lb.) on the luggage hook.

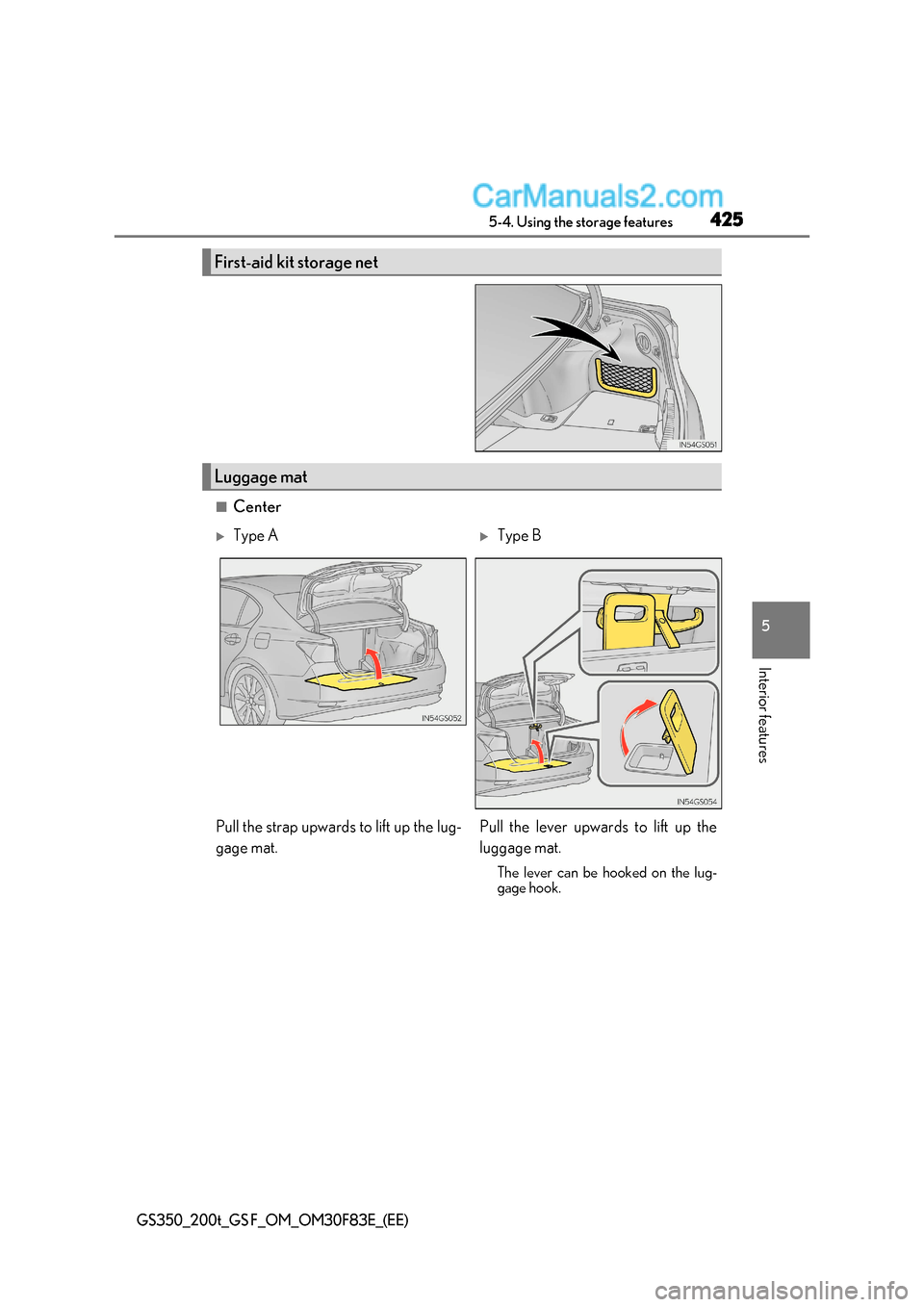

425
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
■Center
First-aid kit storage net
Luggage mat
Type AType B
Pull the strap upwards to lift up the lug-
gage mat. Pull the lever upwards to lift up the
luggage mat.
The lever can be hooked on the lug-
gage hook.

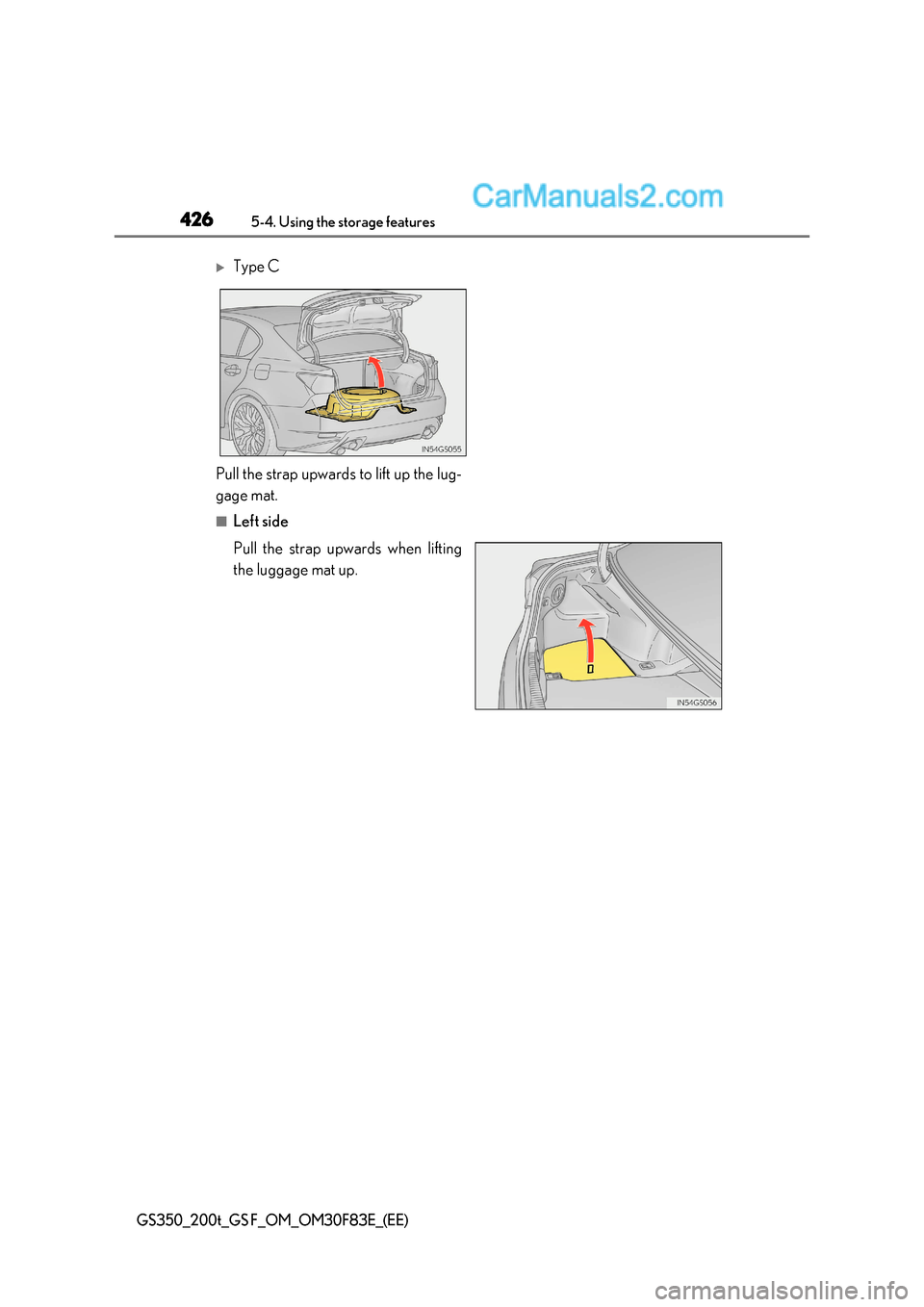

4265-4. Using the storage features
GS350_200t_GS F_OM_OM30F83E_(EE)
■Left side
Pull the strap upwards when lifting
the luggage mat up.
Type C
Pull the strap upwards to lift up the lug-
gage mat.

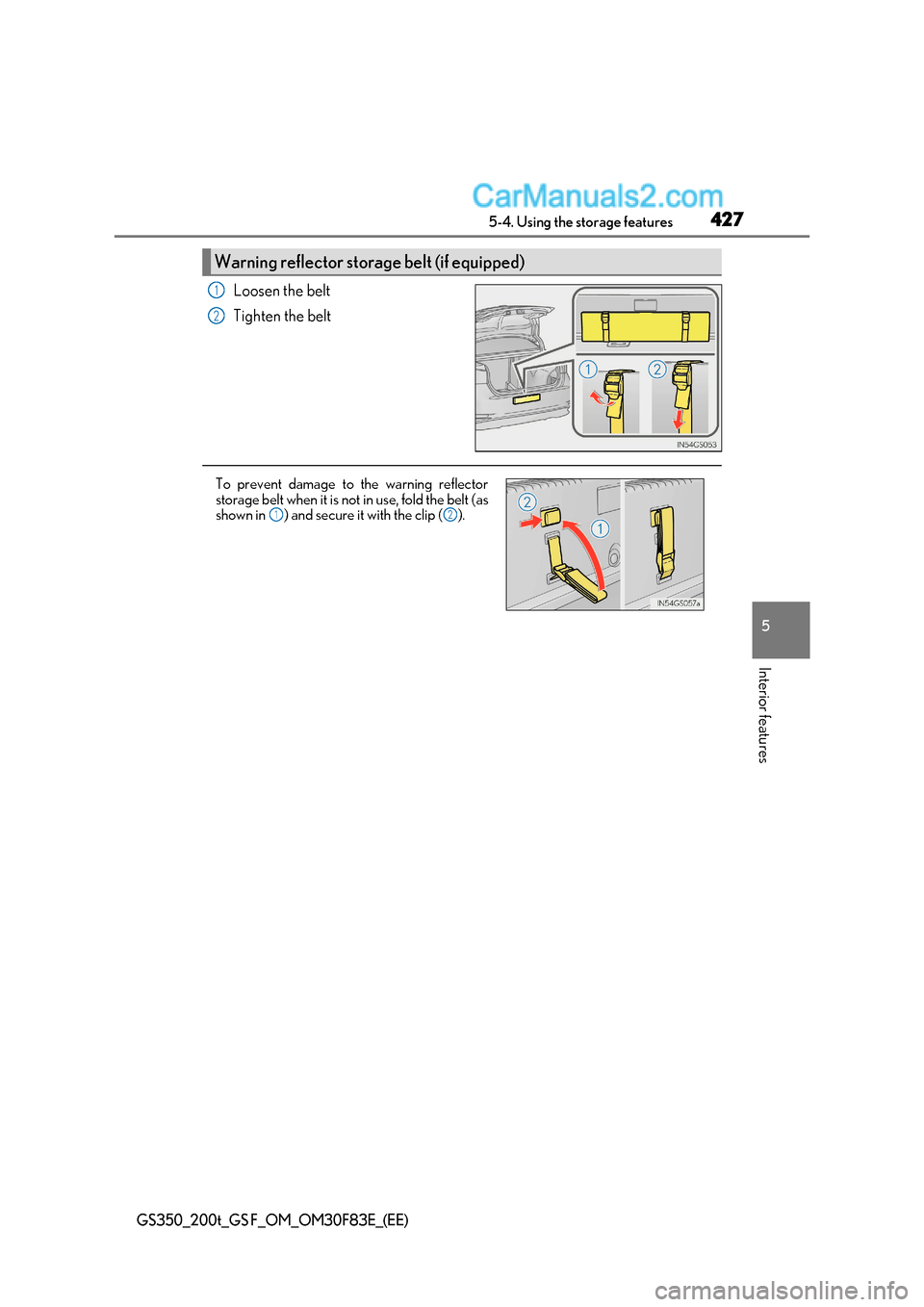

427
5-4. Using the storage features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Loosen the belt
Tighten the belt
Warning reflector storage belt (if equipped)
1
2
To prevent damage to the warning reflector
storage belt when it is not in use, fold the belt (as
shown in ) and secure it with the clip ( ).
12

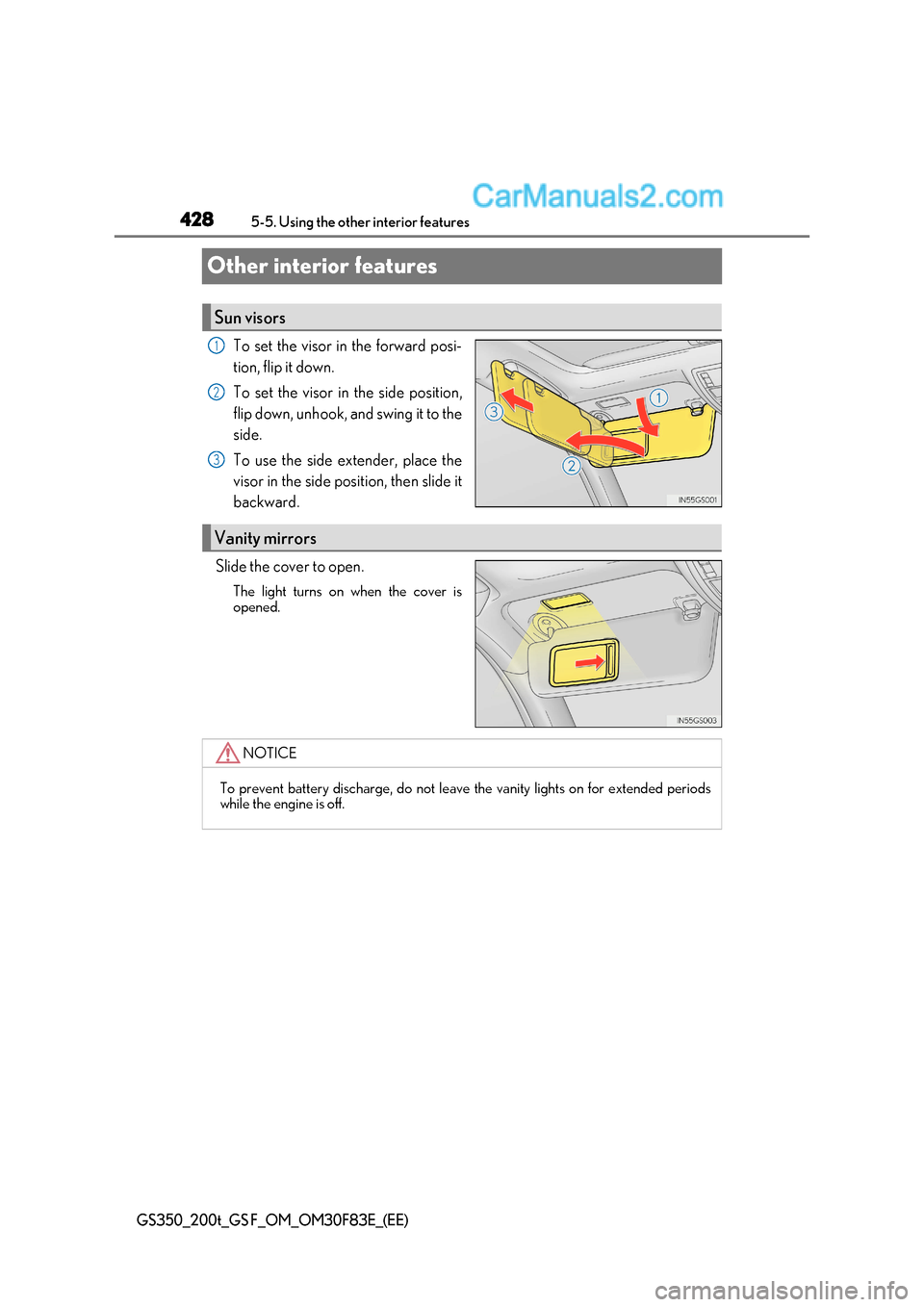

4285-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open. The light turns on when the cover is
opened.
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods
while the engine is off.

429
5-5. Using the other interior features
5
Interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
The GPS clock’s time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Open the ashtray lid. To remove the ashtray, pull the ashtray
lid upwards.
Clock
Ashtrays (if equipped)
WARNING
●Keep the ashtray closed when not in use. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the open ash-
tray or ash flying out.
●To prevent fire

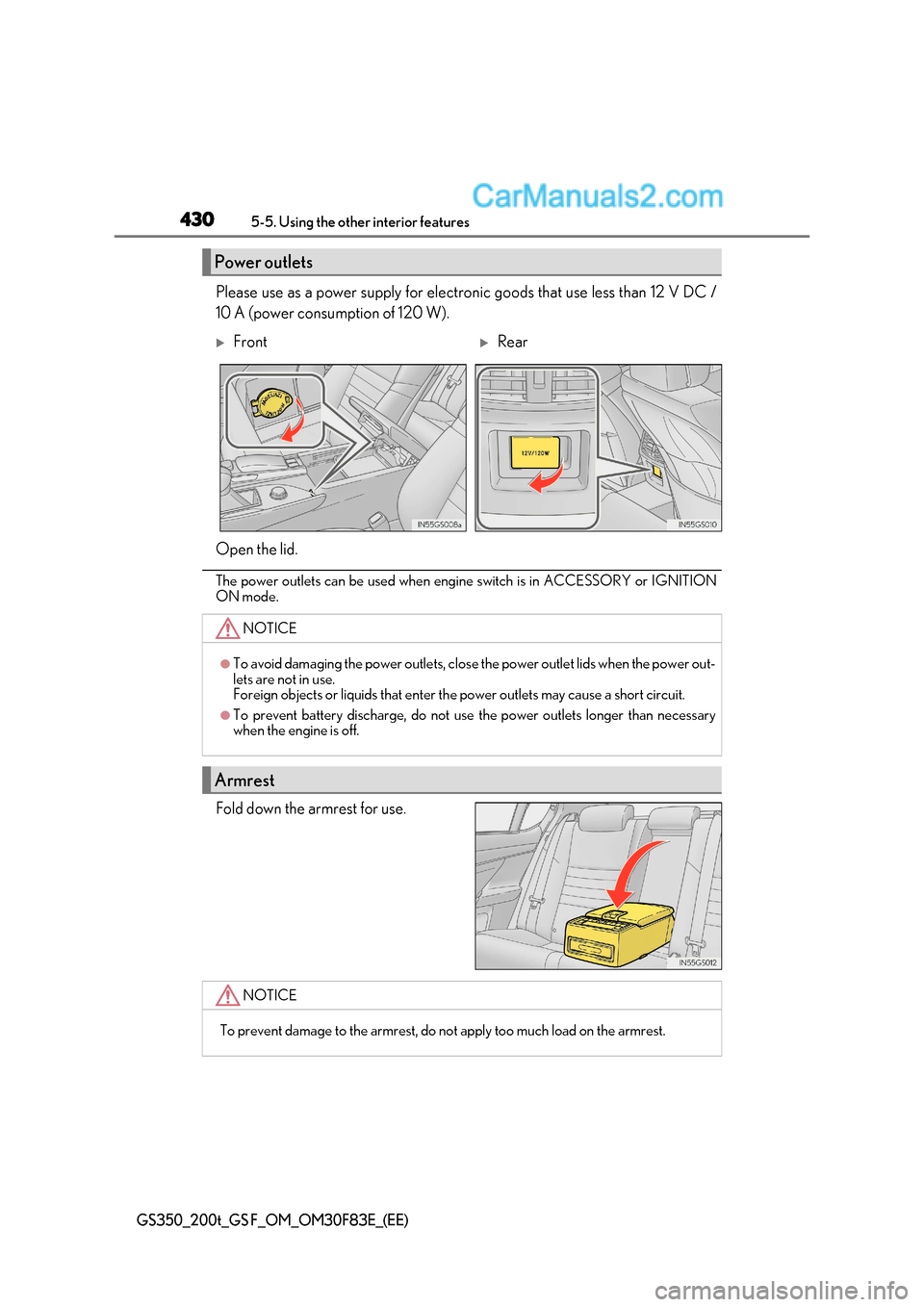

4305-5. Using the other interior features
GS350_200t_GS F_OM_OM30F83E_(EE)
Please use as a power supply for electronic goods that use less than 12 V DC /
10 A (power consumption of 120 W).
The power outlets can be used when engine switch is in ACCESSORY or IGNITION
ON mode.
Fold down the armrest for use.
Power outlets
FrontRear
Open the lid.
NOTICE
●To avoid damaging the power outlets, close the power outlet lids when the power out-
lets are not in use.
Foreign objects or liquids that enter th e power outlets may cause a short circuit.
●To prevent battery discharge, do not use the power outlets longer than necessary
when the engine is off.
Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
