Lexus GS F 2017 Owner's Manual

451
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever and
lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and cause
an accident, which may result in death or serious injury.

4526-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
Positioning a floor jack
◆Front
◆Rear
GS350/GS200t
When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
2WD models AWD models12

453
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
NOTICE
■When using a jack at the rear of the vehicle (vehicles with TVD [Torque Vectoring
Differential])
Do not set the jack in either of the positions
indicated by the illustration.

4546-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
Engine compartment
GS350
Fuse boxes (P. 493)
Battery ( P. 466)
Engine oil level dipstick( P. 459)
Engine coolant reservoir ( P. 464) Engine oil filler cap (
P. 461)
Washer fluid tank ( P. 470)
Electric cooling fans
Condenser ( P. 466)
Radiator ( P. 466)1
2
3
4
5
6
7
8
9

455
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
GS200t
Fuse boxes ( P. 493)
Battery ( P. 466)
Intercooler coolant reservoir ( P. 465)
Engine oil level dipstick( P. 459)
Engine oil filler cap ( P. 461) Engine coolant reservoir
( P. 464)
Washer fluid tank ( P. 470)
Condenser ( P. 466)
Electric cooling fans
Radiator ( P. 466)1
2
3
4
5
6
7
8
9
10

4566-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite
side of the engine compartment.
Fuse boxes ( P. 493)
Battery ( P. 466)
Engine oil level dipstick( P. 459)
Engine coolant reservoir ( P. 464) Engine oil filler cap (
P. 461)
Washer fluid tank ( P. 470)
Electric cooling fans
Condenser ( P. 466)
Radiator ( P. 466)1
2
3
4
5
6
7
8
9

457
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
■Removing the engine compartment cover
GS350/GS200t (Right-hand side)
GS350/GS200t (Center)
GS F
Engine compartment cover

4586-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)

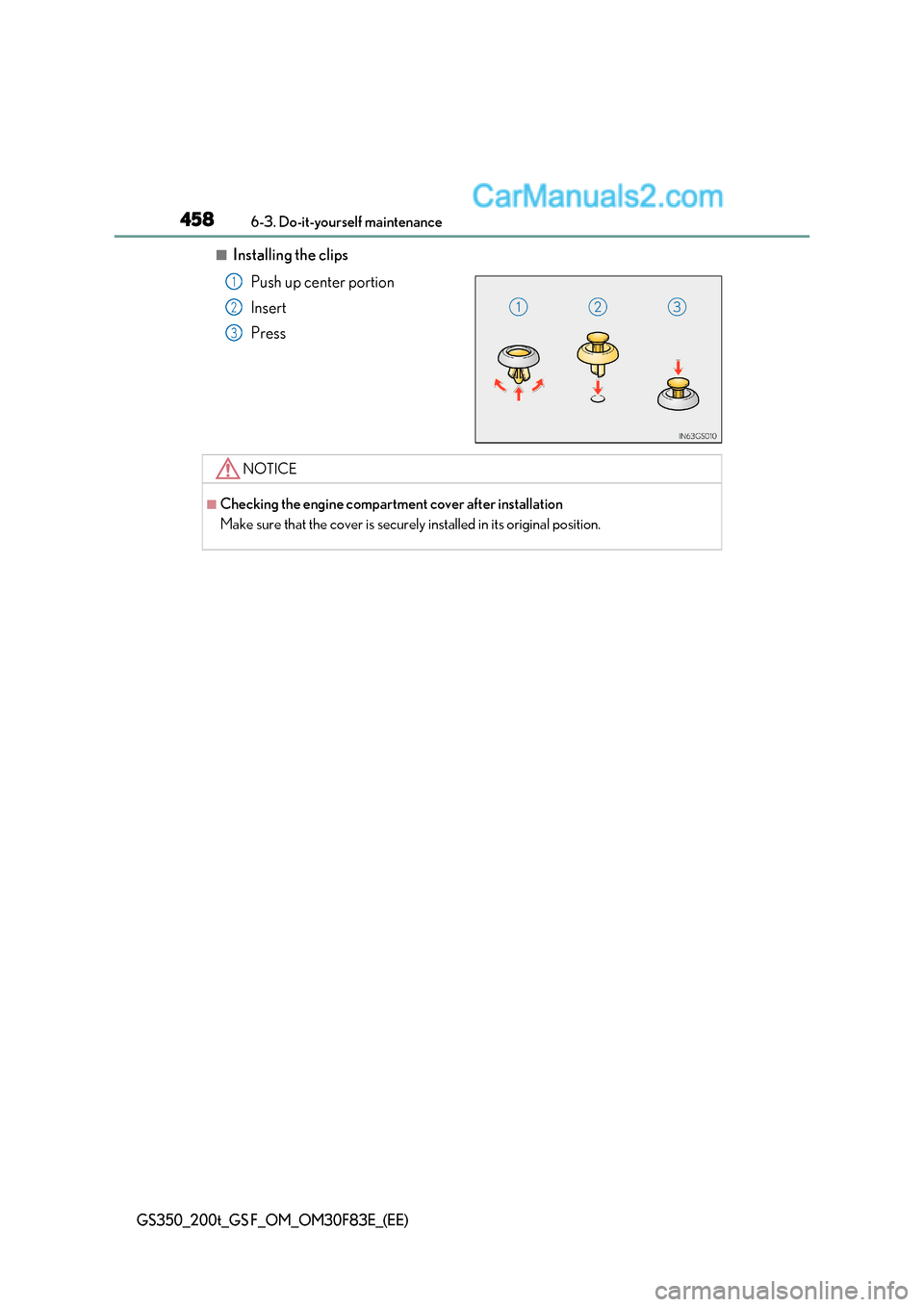

■Installing the clips
Push up center portion
Insert
Press
1
2
3
NOTICE
■Checking the engine compartment cover after installation
Make sure that the cover is securely installed in its original position.

459
6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
it off, wait more than 5 minutes for the oil to drain back into the bottom of
the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
GS350GS200t
GS F

4606-3. Do-it-yourself maintenance
GS350_200t_GS F_OM_OM30F83E_(EE)
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or engine. Wipe the dipstick and reinsert it fully.3
4
5
1
2
3
Flat dipstickNon-flat dipstick
6
