Lexus GS F 2017 Owner's Manual

611
8Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) ....................612
Fuel information.......................... 632
8-2. Customization Customizable features ............ 634
8-3. Initialization Item to initialize ............................ 651

6128-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Maintenance data (fuel, oil level, etc.)
GS350/GS200t
* 1
: Unladen vehicle
* 2
: Vehicles with 265/35R19 tires
* 3
: Vehicles with towing package
* 4
:2WD models
* 5
:AWD models
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height *12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tread
*1
Front 1575 mm (62.0 in.)
Rear 1590 mm (62.6 in.)
1560 mm (61.4 in.)
*2
Gross vehicle mass2WD
2170 kg (4784 lb.)
AWD2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*3
80 kg (176 lb.)
Towing capacity*3With brake 1600 kg (3527 lb.)
*4
1000 kg (2205 lb.) *5
Without brake
750 kg (1653 lb.)

613
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
* : Unladen vehicle
Overall length 4915 mm (193.5 in.)
Overall width 1845 mm (72.6 in.)
Overall height * 1440 mm (56.7 in.)
Wheelbase 2850 mm (112.2 in.)
Tread*Front 1555 mm (61.2 in.)
Rear 1560 mm (61.4 in.)
Gross vehicle mass 2320 kg (5115 lb.)
Maximum permissi-
ble axle capacityFront 1260 kg (2778 lb.)
Rear 1260 kg (2778 lb.)

6148-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
Vehicle identification
GS350GS200t
GS F

615
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

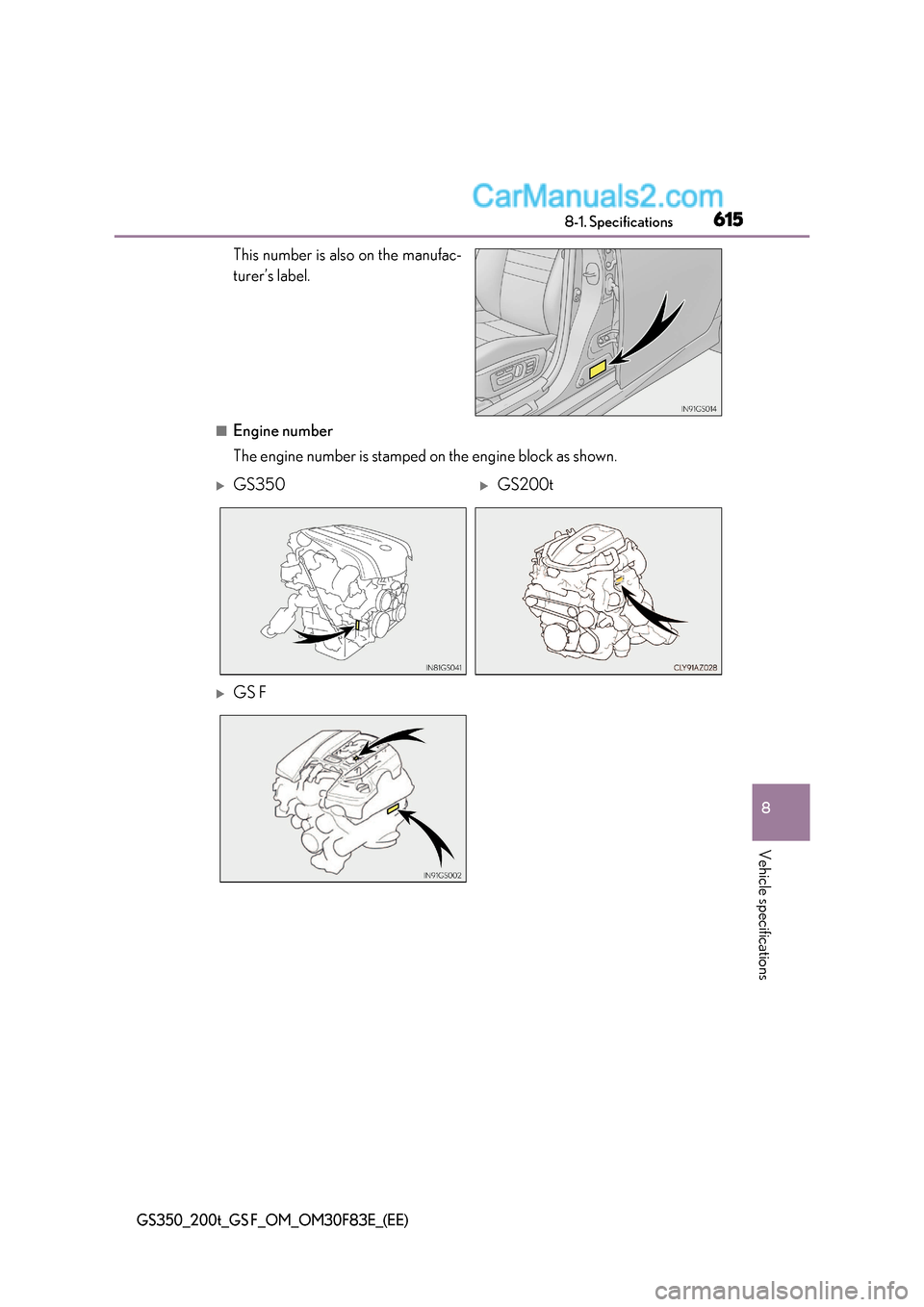

This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on the engine block as shown.
GS350GS200t
GS F

6168-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS350
GS200t
Engine
Model2GR-FKS
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement3456 cm 3
(210.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension
Model8AR-FTS
Type4-cylinder in line, 4-cycle, gasoline
(with turbocharger)
Bore and stroke86.0  86.0 mm (3.39  3.39 in.)
Displacement1998 cm 3
(121.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension

617
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS F
* : If unleaded gasoline with an octane rating of 98 RON is not available, unleaded gaso-
line with an octane rating of 95 RON may be used with no detriment to engine dura-
bility or driveability.
Model2UR-GSE
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  89.5 mm (3.70  3.52 in.)
Displacement4969 cm 3
(303.2 cu. in.)
Valve clearance (engine cold)Intake: 0.15 mm (0.006 in.)
Exhaust: 0.22 mm (0.009 in.)
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to
European standard EN228 only
Except EU area:
Unleaded gasoline only
Research
Octane
NumberGS350/GS200t95 or higher
GS F98 or higher *
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp.gal.)

6188-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
GS350
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
6.4 L (6.8 qt., 5.6 Imp.qt.)
6.0 L (6.3 qt., 5.3 Imp.qt.)

619
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Temperature range anticipated
before next oil changePreferred

6208-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Oil viscosity (0W-20 is explained here as an example):
