sensor Lexus GS F 2017 Repair Manual

535
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in the cruise control system or
dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in th e dynamic radar cruise con-
trol with full-speed range
Depress the brake pedal.
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Warning messageDetails/Actions

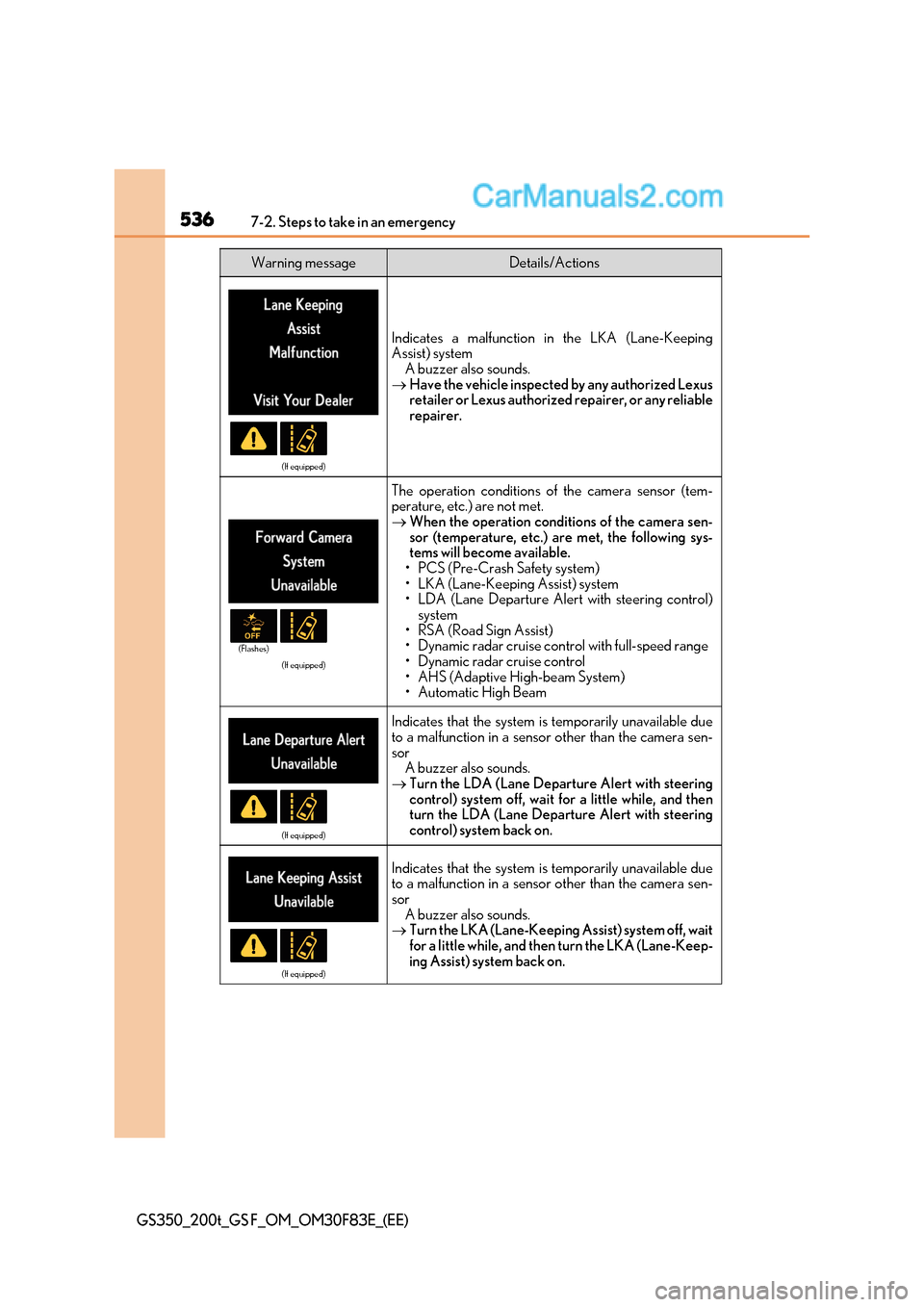

5367-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) system
A buzzer also sounds.
 Have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
(If equipped)
The operation conditions of the camera sensor (tem-
perature, etc.) are not met. When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.

537
7-2. Steps to take in an emergency
7
When trouble arises
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor.
The following systems will be temporarily unusable.

5507-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailable
A buzzer also sounds.
 When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable
repairer.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption Turn off unnecessary electronic equipment to
reduce power consumption. Please wait until the
power supply returns to normal.
If this item is frequently displayed, have the vehicle
inspected at your any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer
immediately.
(If equipped)
Indicates that part of the PC S (Pre-Crash Safety system)
sensor is dirty, covered with ice, etc.
A buzzer also sounds.
 Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

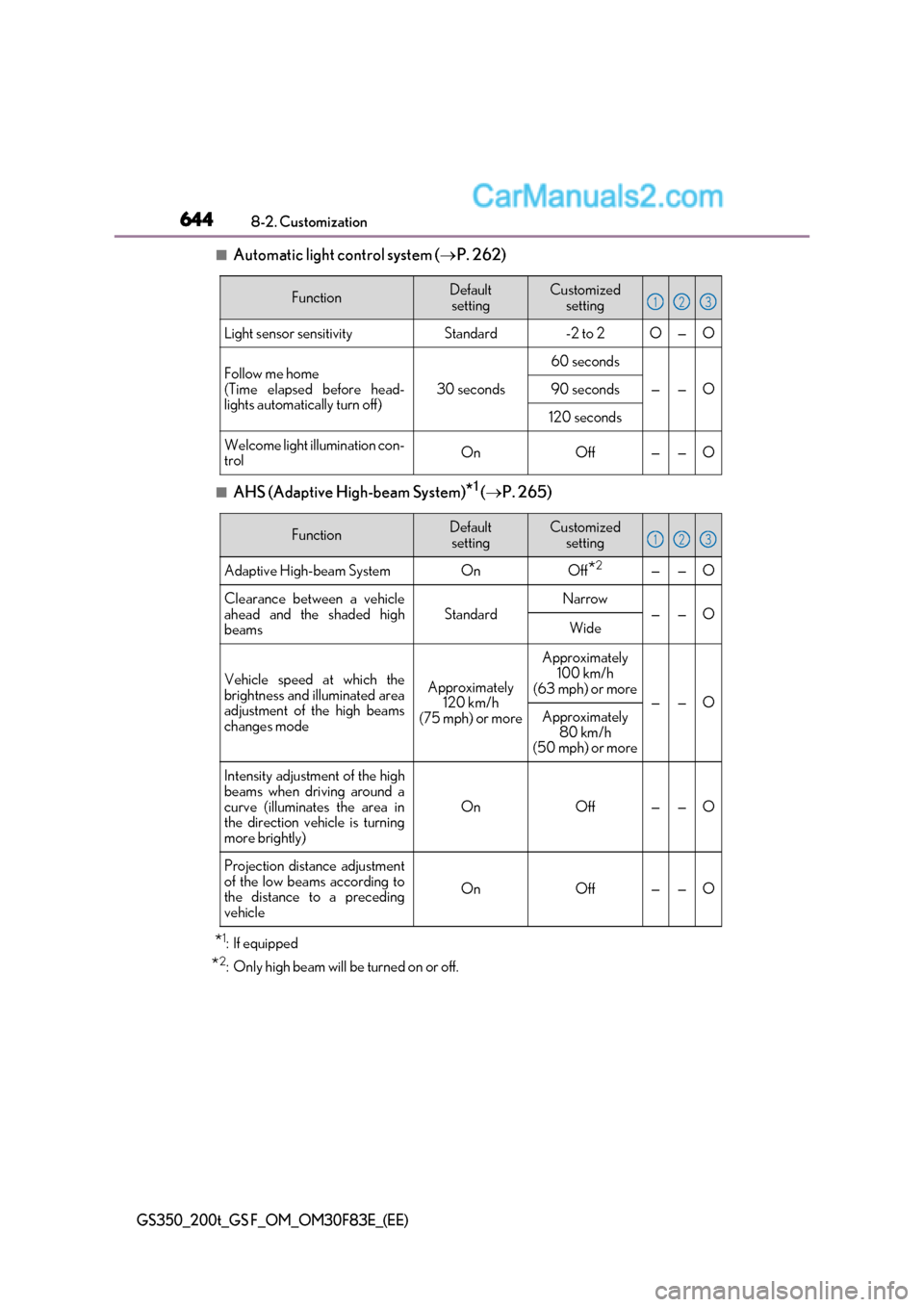

6448-2. Customization
GS350_200t_GS F_OM_OM30F83E_(EE)
■Automatic light control system (P. 262)
■AHS (Adaptive High-beam System) *1
(  P. 265)
* 1
: If equipped
* 2
: Only high beam will be turned on or off.
FunctionDefault
settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Follow me home
(Time elapsed before head-
lights automatically turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
Welcome light illumination con-
trolOnOff——O
123
FunctionDefault
settingCustomized setting
Adaptive High-beam SystemOnOff *2——O
Clearance between a vehicle
ahead and the shaded high
beamsStandardNarrow——OWide
Vehicle speed at which the
brightness and illuminated area
adjustment of the high beams
changes modeApproximately
120 km/h
(75 mph) or more
Approximately 100 km/h
(63 mph) or more
——OApproximately
80 km/h
(50 mph) or more
Intensity adjustment of the high
beams when driving around a
curve (illuminates the area in
the direction vehicle is turningmore brightly)
OnOff——O
Projection distance adjustment
of the low beams according to
the distance to a preceding
vehicle
OnOff——O
123

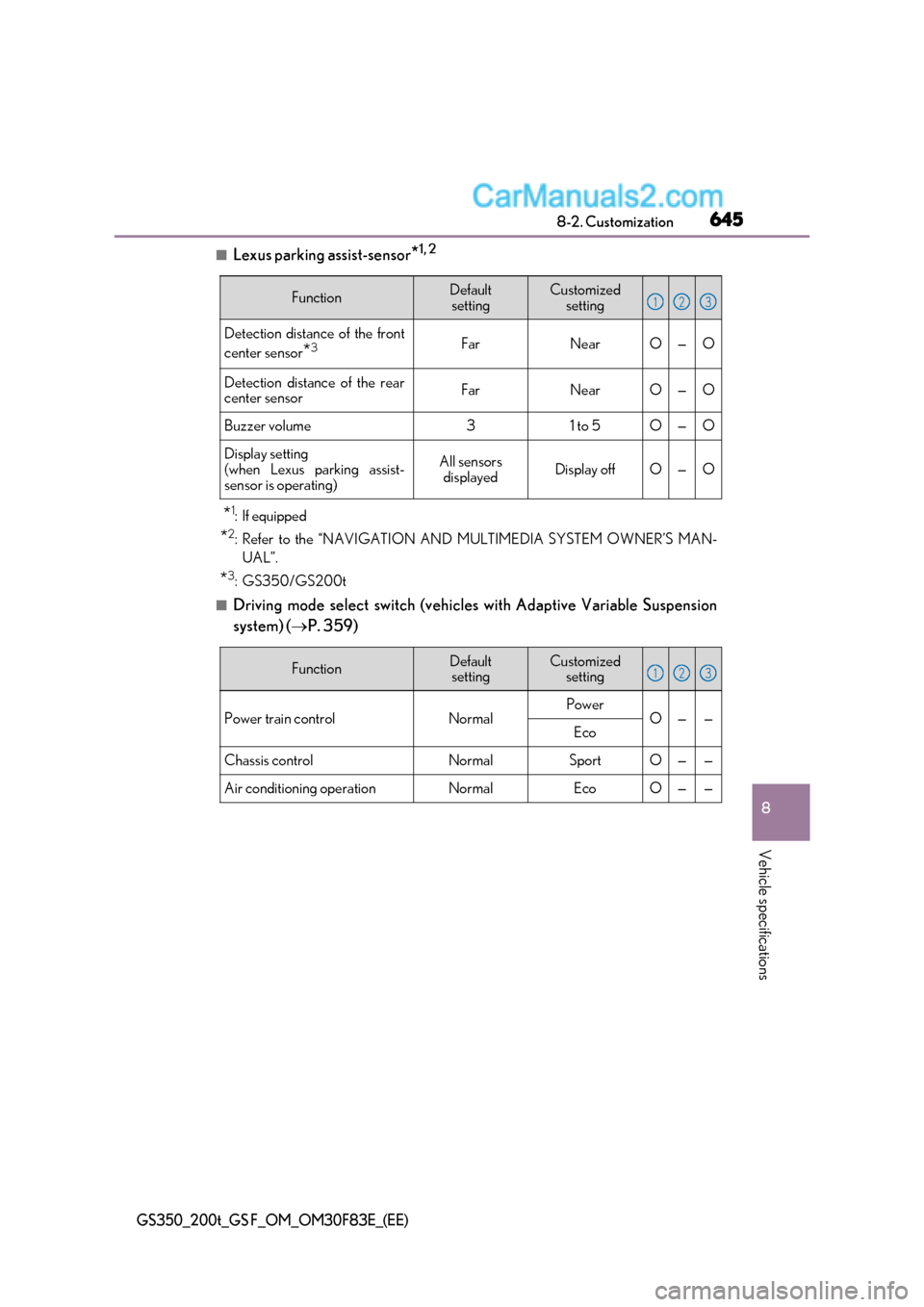

645
8
8-2. Customization
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
■Lexus parking assist-sensor*1, 2
* 1
:If equipped
* 2
: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.
* 3
: GS350/GS200t
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) ( P. 359)
FunctionDefault
settingCustomized setting
Detection distance of the front
center sensor *3FarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking assist-
sensor is operating)All sensors
displayedDisplay offO—O
123
FunctionDefaultsettingCustomized setting
Power train controlNormalPowerO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

6468-2. Customization
GS350_200t_GS F_OM_OM30F83E_(EE)
■Automatic air conditioning system (P. 396)
■Front seat heaters (without seat ventilators) * ( P. 413)
* : If equipped
FunctionDefault
settingCustomized setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch * oper-
ation
OnOffO—O
A/C Auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
* : This is the switch for turning on and off the auto-
matic mode of the air conditioning system, not
the outside air or recirculated mode switch.
123
FunctionDefaultsettingCustomized setting
Automatic operation of front
seat heaterOffOn——O
123

656What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30F83E_(EE)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 214)
● The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 242)
● The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 520)
● The parking brake indicator is on
Is the parking brake released? ( P. 256)
Depending on the situation, other type s of warning buzzer may also sound.
(  P. 518, 524)
● Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 92)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. ● Is the electronic key left inside the vehicle or the moon roof opened (if
equipped)?
Check the message on the multi-information display. ( P. 524)
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th
e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with entry function)

665
Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Heaters ..................................................... 396
Air conditioning system..................396
Heated steering wheel...................... 412
Outside rear view mirrors.............402
Seat heaters ............................................ 412
Hill-start assist control ........................ 376
Hood ........................................................... 451 Open..........................................................451
Warning message............................. 524
Hooks
Cargo hooks........................................ 424
Coat hooks ........................................... 434
Luggage hook..................................... 424
Retaining hooks (floor mat)............. 42
Horn ........................................................... 207 Identification .............................................614
Engine ....................................................... 615
Vehicle...................................................... 614
Ignition switch (engine switch)........ 240 Auto power off function ..................242
Changing the engine switch modes.................................................... 241
If your vehicle has to be stopped in an emergency .........509
Starting the engine............................ 240
Illuminated entry system ..................... 418
Immobilizer system................................. 86
Indicators .................................................. 103
Initialization Items to initialize ................................... 651
Moon roof ............................................... 219
Power windows ................................... 215
Tire pressure warning system...................................................473
Initiators (tire pressure warning system)................................................... 483
Inside door handle lights .....................416
Inside rear view mirror ....................... 209
Instrument panel light control................................................ 111, 118
Interior lights.............................................416
Intrusion sensor and tilt sensor .......... 95
ISOFIX rigid anchors .............................76I
* : Refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

666Alphabetical index
GS350_200t_GS F_OM_OM30F83E_(EE)
Jack
Positioning the jack ........................... 452
Vehicle-equipped jack ...... 558, 575
Jack handle.................................. 558, 575
Jam protection function Moon roof .............................................. 218
Power trunk lid..................................... 169
Power window ...................................... 214
Keyless entry ............................................173 Smart entry & start system .............. 173
Wireless remote control ..................154
Keys ............................................................. 154 Battery-saving function.....................175
Electronic key ........................................154
Engine switch....................................... 240
If the electronic key does not operate properly ............................594
If you lose your keys ................ 156, 157
Key number plate ................................154
Keyless entry ............................... 154, 173
Mechanical key.................................... 155
Replacing the battery.........................491
Warning buzzer ................................... 174
Wireless remote control key .........154
Knee airbags............................................... 51 Language (multi-information
display) ....................................... 635, 637
Lever
Auxiliary catch lever........................... 451
Hood lock release lever .................. 451
Shift lever ............................................... 246
Turn signal lever................................. 255
Wiper lever ...........................................276
Lexus parking assist monitor *
Lexus parking assist-sensor *
Function *
Warning message ............................ 524
Lexus Safety System+......................... 286
AHS (Adaptive High-beam System) ............................................... 265
Automatic High Beam ................... 270
Dynamic radar cruise control ..... 343
Dynamic radar cruise control with full-speed range ..................... 331
LDA (Lane Departure Alert with steering control)..................... 317
LKA (Lane-Keeping Assist) ........ 307
PCS (Pre-Crash Safety system) ................................................ 295
RSA (Road Sign Assist) ................. 326
License plate lights .............................. 262 Light switch............................................262
Replacing light bulbs ....................... 504
Welcome light illumination
control ...................................................160
Light bulbs
Replacing............................................... 498
Wattage ................................................... 631
J
K
L
