dimensions Lexus GS F 2020 Owner's Manuals

516
GS350_GS F_OM_OM30J07U_(U)8-1. Specifications
Maintenance data (fuel, oil level, etc.)
GS350
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
GS F
*:Unladen vehicle
Dimensions and weight
Overall length190.9 in. (4850 mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD57.3 in. (1455 mm)
AWD57.9 in. (1470 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Overall length193.5 in. (4915 mm)
Overall width72.6 in. (1845 mm)
Overall height*56.7 in. (1440 mm)
Wheelbase112.2 in. (2850 mm)
Tread*Front61.2 in. (1555 mm)
Rear61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)865 lb. (390 kg)

GS350_GS F_OM_OM30J07U_(U)
5358-1. Specifications
8
Vehicle specifications

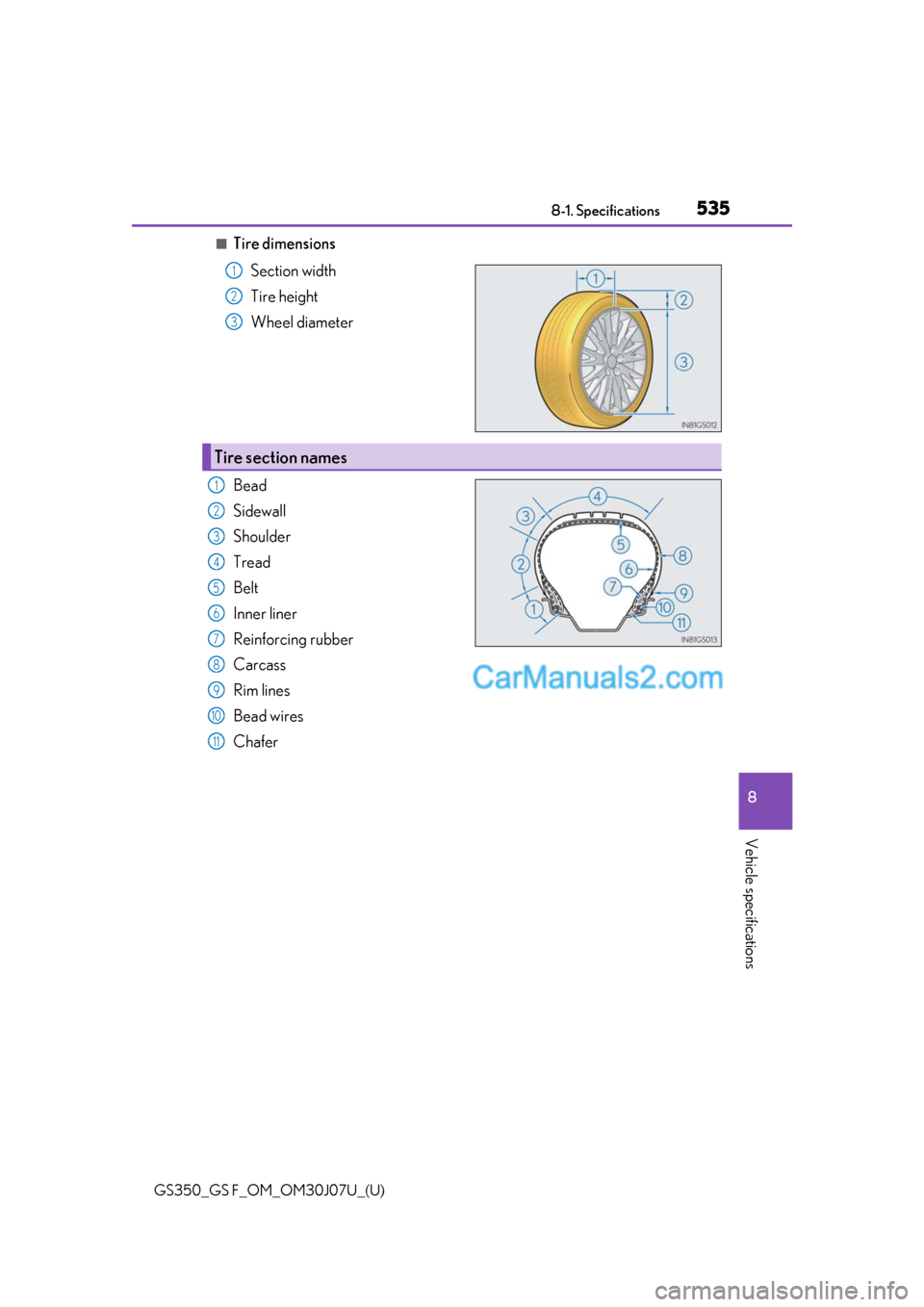

■Tire dimensionsSection width
Tire height
Wheel diameter
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
1
2
3
Tire section names
1
2
3
4
5
6
7
8
9
10
11

581Alphabetical index
GS350_GS F_OM_OM30J07U_(U)
Dimensions ...............................................516
Dinghy towing........................................ 202
Display12.3-inch display.................................. 316
Drive information ....................... 108, 115
Dynamic radar cruise control with full-speed range ....................266
Energy monitor .................................... 133
LKA (Lane-Keeping Assist) ........ 260
Multi-information display ....... 106, 114
Trip information ........................... 84, 98
Warning message ............................. 442
Do-it-yourself maintenance ............. 376
Door courtesy lights Location .................................................. 337
Door lock Doors ........................................................ 143
Smart access system with push-button start ............................. 156
Wireless remote control ................. 143
Doors...........................................................143 Automatic door locking and unlocking system.................... 146
Door glasses ........................................... 181
Door lock ................................................ 145
Open door warning buzzer.......... 157
Open door warning light............... 437
Outside rear view mirrors ............... 177
Rear door child-protector.............. 146 Drive info 1/Drive info 2/
Drive info 3..................................... 111, 122 Drive information....................... 108, 115
Resetting ........................................ 108, 115
Drive-Start Control.....................189, 213
Driver’s seat position memory.......... 166 Driving position memory................. 167
Memory recall function ................... 168
Power easy access system .............166
Driving ....................................................... 188 Break-in tips .......................................... 189
Correct driving posture .................... 34
Driving mode select switch ............281
Procedures ............................................ 188
Winter drive tips ................................305
DRS (Dynamic Rear Steering) ....... 298 Function .................................................. 298
Warning message............................. 442
DVD player
*
Dynamic radar cruise control with full-speed range Function .................................................. 266
Warning message............................. 442
Dynamic Rear Steering (DRS) ....... 298 Function .................................................. 298
Warning message............................. 442
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
