oil change Lexus GS200t 2017 Owner's Manual

125
2. Instrument cluster
2
Instrument cluster
GS350_200t_GS F_OM_OM30F83E_(EE)
The settings of the following items can be changed, refer to P. 634
For functions that can be enabled or disabled, the function switches between on and
off each time is pressed.
■(Lane-Keeping Assist) (if equipped) ( P. 307)
■(Pre-Crash Safety sy stem) (if equipped) ( P. 295)
■(Adaptive Front-lighting System) (if equipped) ( P. 263)
■(Blind Spot Monitor) (if equipped) ( P. 363)
■
Select to turn the speed warning on and off, or to change the speed at which
the speed warning is displayed.
■(Road Sign Assist ) (if equipped) ( P. 326)
■
Select to set the display mode of the clock.
■
● Oil Maintenance (if equipped) ( P. 462)
● TPMS (Tire pressure warning system) (if equipped) ( P. 474)
Settings display

2304-1. Before driving
GS350_200t_GS F_OM_OM30F83E_(EE)

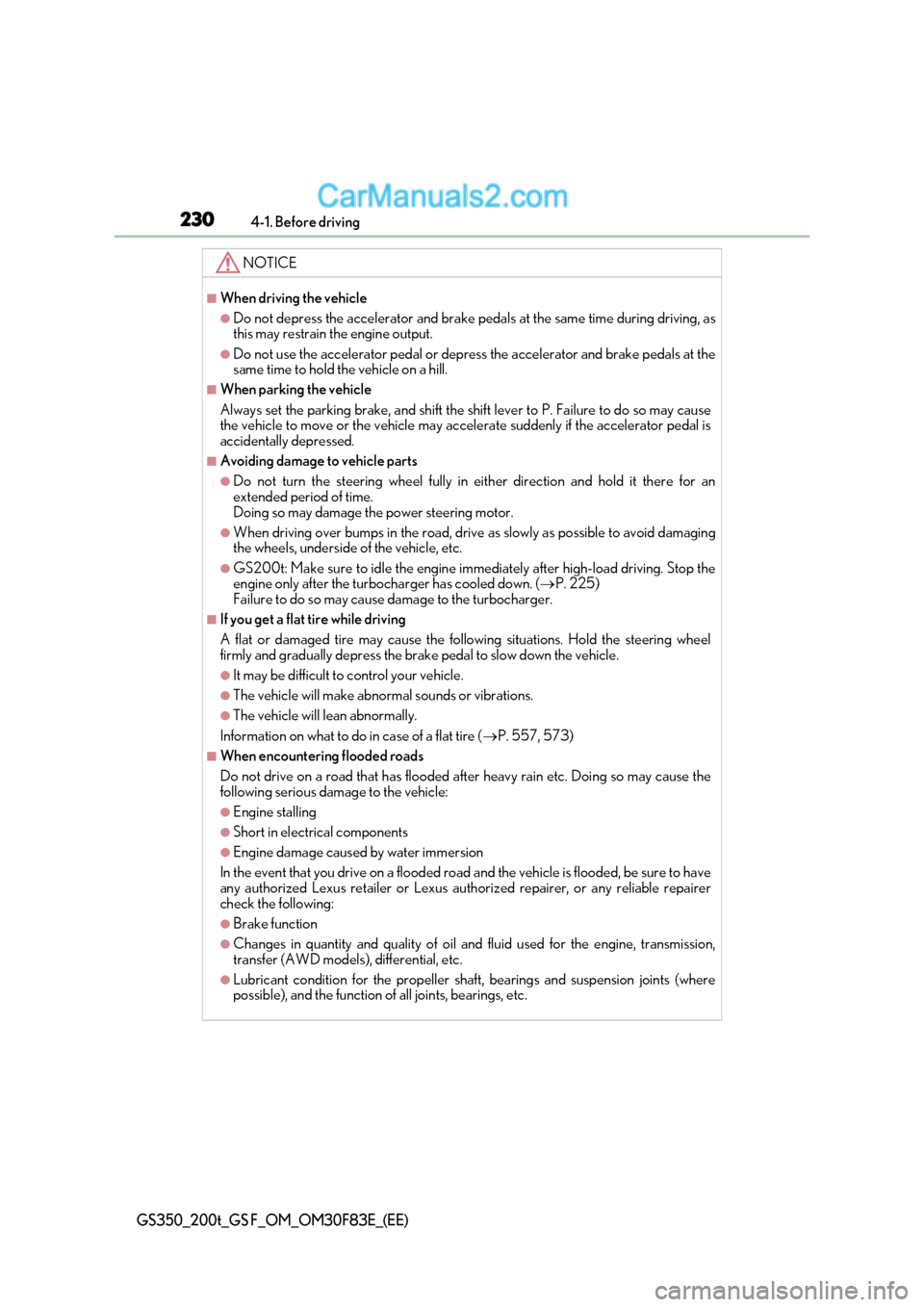

NOTICE
■When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during driving, as
this may restrain the engine output.
●Do not use the accelerator pedal or depress the accelerator and brake pedals at the
same time to hold the vehicle on a hill.
■When parking the vehicle
Always set the parking brake, and shift the shift lever to P. Failure to do so may cause
the vehicle to move or the vehicle may accelerate suddenly if the accelerator pedal is
accidentally depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for an
extended period of time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possi ble to avoid damaging
the wheels, underside of the vehicle, etc.
●GS200t: Make sure to idle the engine immediately after high-load driving. Stop the
engine only after the turbocharger has cooled down. ( P. 225)
Failure to do so may cause damage to the turbocharger.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually depress the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( P. 557, 573)
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to have
any authorized Lexus retailer or Lexus auth orized repairer, or any reliable repairer
check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
transfer (AWD models), differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible), and the function of all joints, bearings, etc.

5487-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30F83E_(EE)

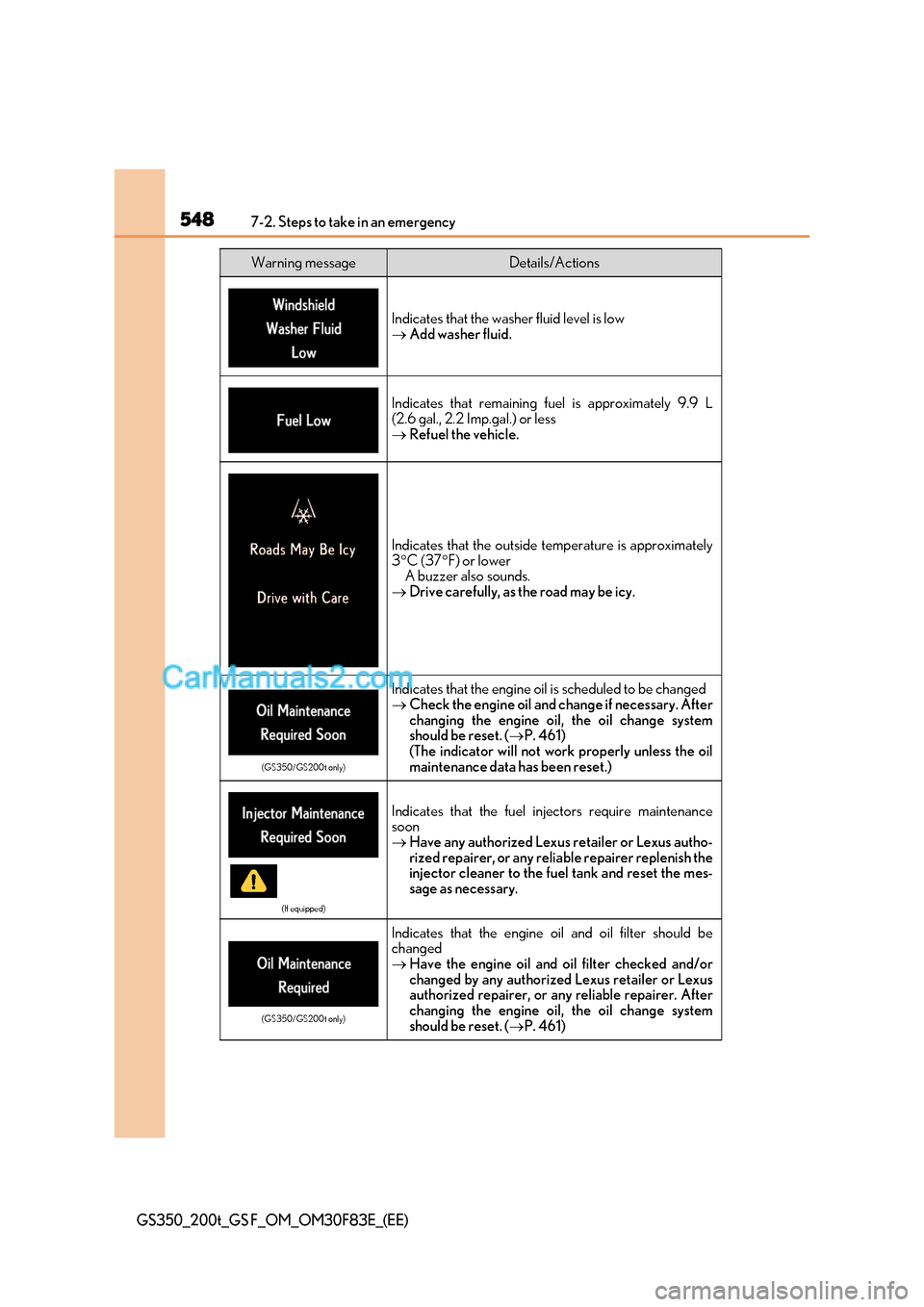

Indicates that the washer fluid level is low Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less Refuel the vehicle.
Indicates that the outside temperature is approximately 3C (37 F) or lower
A buzzer also sounds.
 Drive carefully, as the road may be icy.
(GS350/GS200t only)
Indicates that the engine oil is scheduled to be changed
 Check the engine oil and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
(The indicator will not work properly unless the oil
maintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon  Have any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer replenish the
injector cleaner to the fuel tank and reset the mes-
sage as necessary.
(GS350/GS200t only)
Indicates that the engine oil and oil filter should be
changed Have the engine oil and oil filter checked and/or
changed by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer. After
changing the engine oil, the oil change system
should be reset. ( P. 461)
Warning messageDetails/Actions

619
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

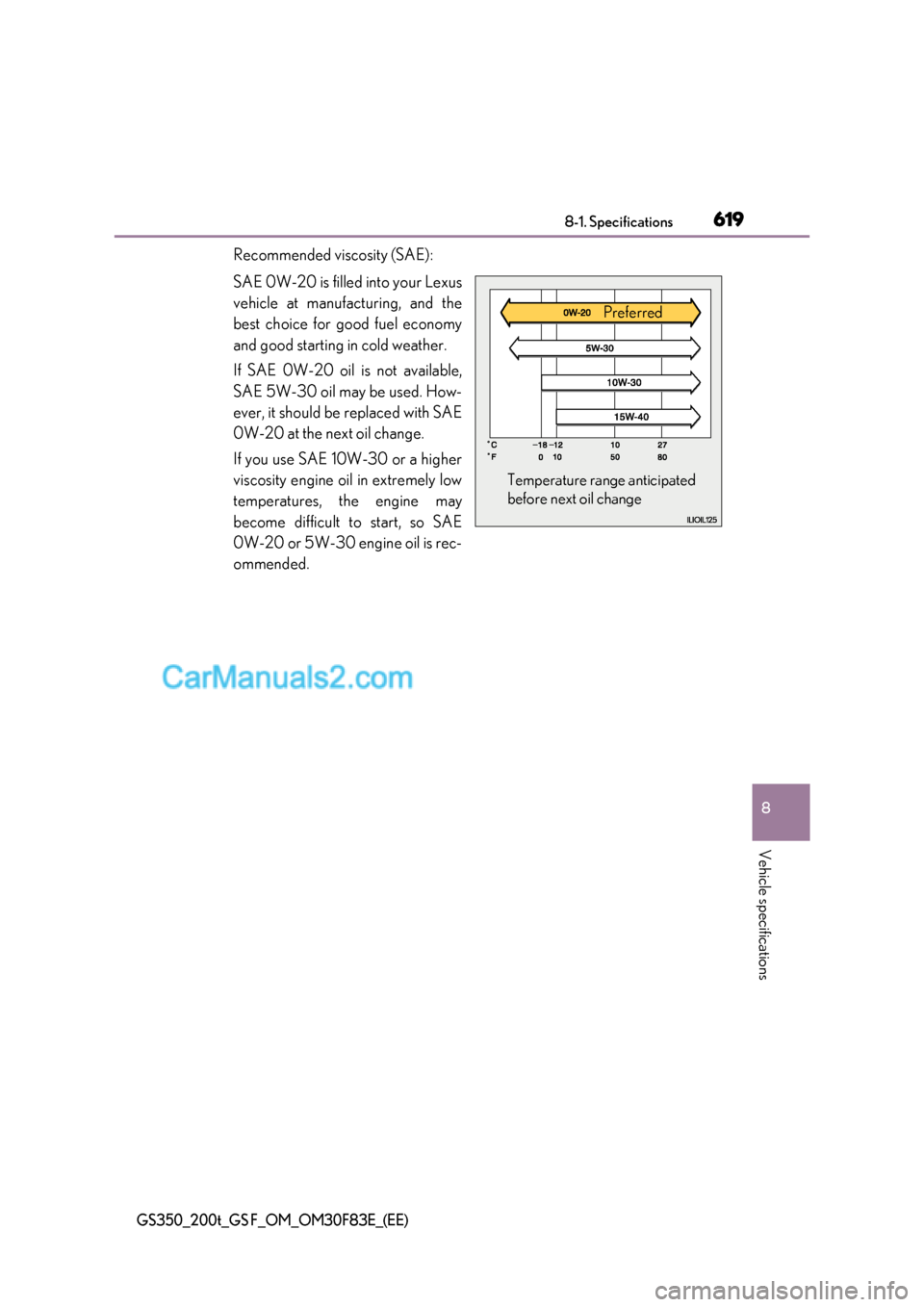

Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Temperature range anticipated
before next oil changePreferred

621
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

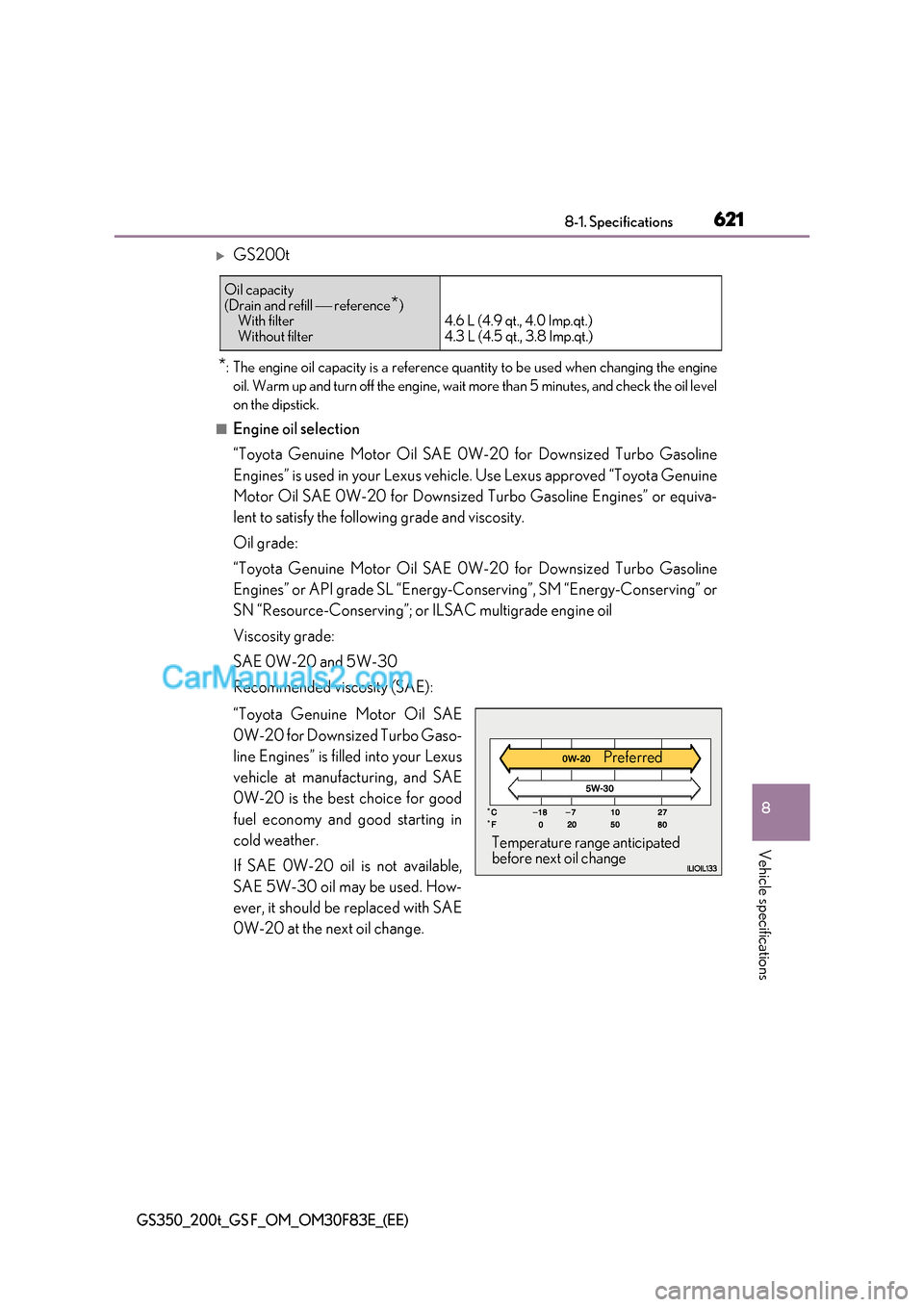

GS200t
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine
Motor Oil SAE 0W-20 for Downsized Turbo Gasoline Engines” or equiva-
lent to satisfy the following grade and viscosity.
Oil grade:
“Toyota Genuine Motor Oil SAE 0W-20 for Downsized Turbo Gasoline
Engines” or API grade SL “Energy-Co nserving”, SM “Energy-Conserving” or
SN “Resource-Conserving”; or ILSAC multigrade engine oil
Viscosity grade:
SAE 0W-20 and 5W-30
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo Gaso-
line Engines” is filled into your Lexus
vehicle at manufacturing, and SAE
0W-20 is the best choice for good
fuel economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
4.6 L (4.9 qt., 4.0 Imp.qt.)
4.3 L (4.5 qt., 3.8 Imp.qt.)
Temperature range anticipated
before next oil change Preferred

623
8
8-1. Specifications
Vehicle specifications
GS350_200t_GS F_OM_OM30F83E_(EE)

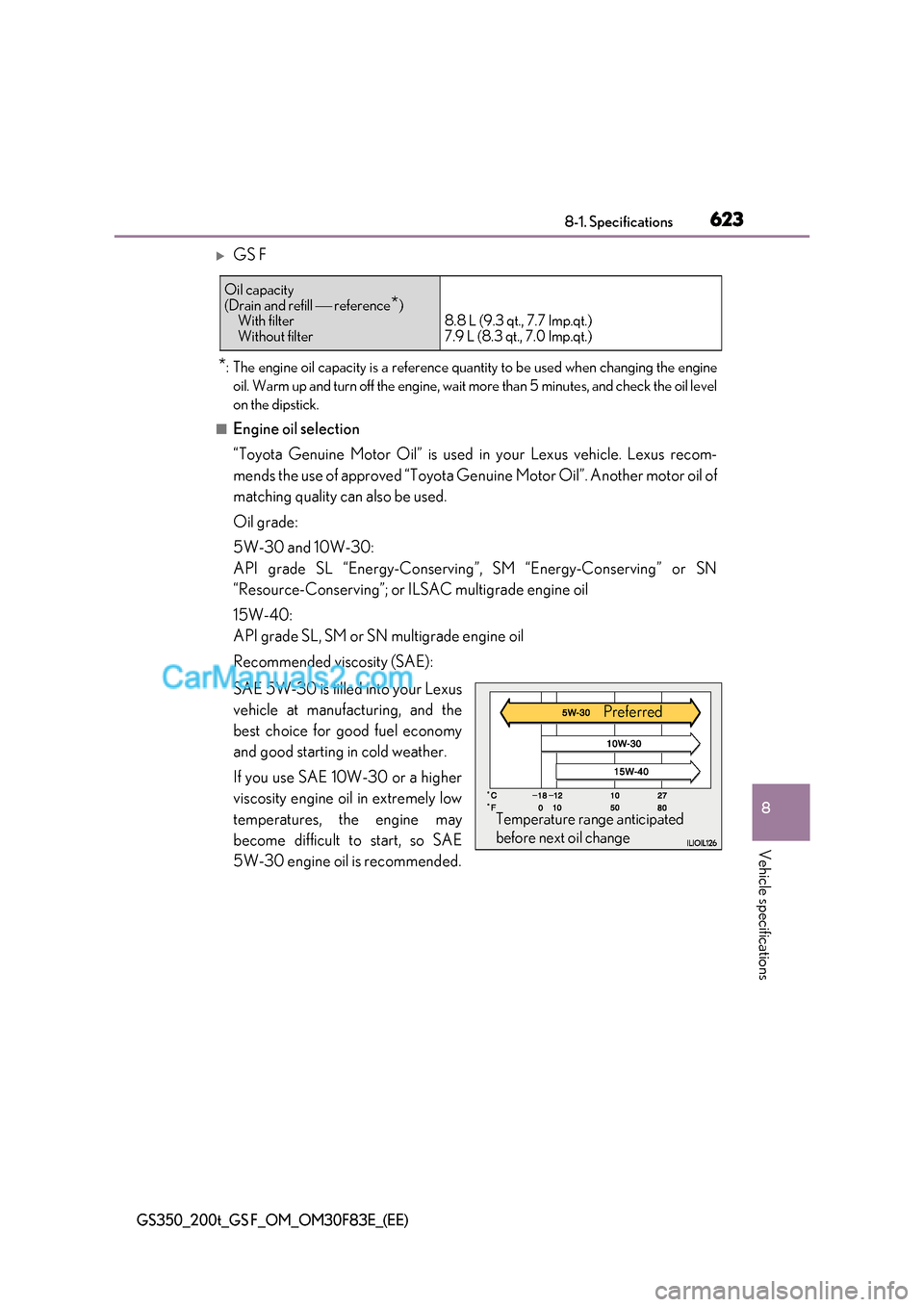

GS F
* : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
5W-30 engine oil is recommended.
Oil capacity
(Drain and refill  reference *)
With filter
Without filter
8.8 L (9.3 qt., 7.7 Imp.qt.)
7.9 L (8.3 qt., 7.0 Imp.qt.)
Temperature range anticipated
before next oil change Preferred
