3-1. Key information
Keys .................................................. 154
3-2. Opening, closing and locking the doors and trunk
Doors ............................................... 159
Trunk ................................................ 166
Smart entry & start system ...... 173
3-3. Adjusting the seats Front seats...................................... 196
Driving position memory ......... 199
Head restraints............................204
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................207
Inside rear view mirror.............209
Outside rear view mirrors .........211
3-5. Opening, closing the windows and moon roof
Power windows............................ 214
Moon roof .......................................217 4-1. Before driving
Driving the vehicle..................... 222
Cargo and luggage .................... 231
Trailer towing (vehicles without towing package) ..... 232
Trailer towing (vehicles with towing package)......................233
4-2. Driving procedures Engine (ignition) switch ...........240
Automatic transmission........... 246
Turn signal lever .........................255
Parking brake ..............................256
Brake Hold (GS350/GS200t) ...............259
ASC (Active Sound Control) (GS F) ........................ 261
4-3. Operating the lights and wipers
Headlight switch ......................... 262
AHS (Adaptive High-beam System)........................................265
Automatic High Beam ............. 270
Fog light switch ........................... 275
Windshield wipers and washer................................. 276
4-4. Refueling Opening the fuel tank cap......282
3Operation of
each component4Driving

15
Pictorial index
GS350_200t_GS F_OM_OM30F83E_(EE)
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . P. 594
Warning lights/warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 520, 526
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
To prevent freezing (windshield wiper de-icer) *. . . . . . . . . . . . . . . . . . . . . . . P. 402
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 282
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 282
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 617
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 471
Tire size/inflation pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 629
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38 3
Checking/rotation/tire pressure warning system * . . . . . . . . . . . . . . . . . . . . . P. 471
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 557, 573
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 451
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 451
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 618
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
Headlights/front position lights/daytime running lights . . . . . . . . . . . P. 262
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Front fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2751
2
3
4
5
Light bulbs of the exterior lights for driving
(Replacing method: P. 498, Watts: P. 631)
*: If equipped
6
7
8

221
4Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
4-1. Before drivingDriving the vehicle..................... 222
Cargo and luggage .................... 231
Trailer towing (vehicles without towing package) ..... 232
Trailer towing (vehicles with towing package)......................233
4-2. Driving procedures Engine (ignition) switch ...........240
Automatic transmission........... 246
Turn signal lever .........................255
Parking brake ..............................256
Brake Hold (GS350/GS200t) ...............259
ASC (Active Sound Control) (GS F) ........................ 261
4-3. Operating the lights and wipers
Headlight switch ......................... 262
AHS (Adaptive High-beam System)........................................265
Automatic High Beam .............270
Fog light switch ........................... 275
Windshield wipers and washer................................. 276
4-4. Refueling Opening the fuel tank cap......282 4-5. Using the driving support
systems
Lexus Safety System+ ..............286
PCS (Pre-Crash Safety system) ........................................ 295
LKA (Lane-Keeping Assist) .......................................... 307
LDA (Lane Departure Alert with steering control) ..............317
RSA (Road Sign Assist) .......... 326
Dynamic radar cruise control with full-speed range.............. 331
Dynamic radar cruise control ......................................... 343
Cruise control .............................355
Driving mode select switch ...........................................358
BSM (Blind Spot Monitor) ..... 363

2624-3. Operating the lights and wipers
GS350_200t_GS F_OM_OM30F83E_(EE)

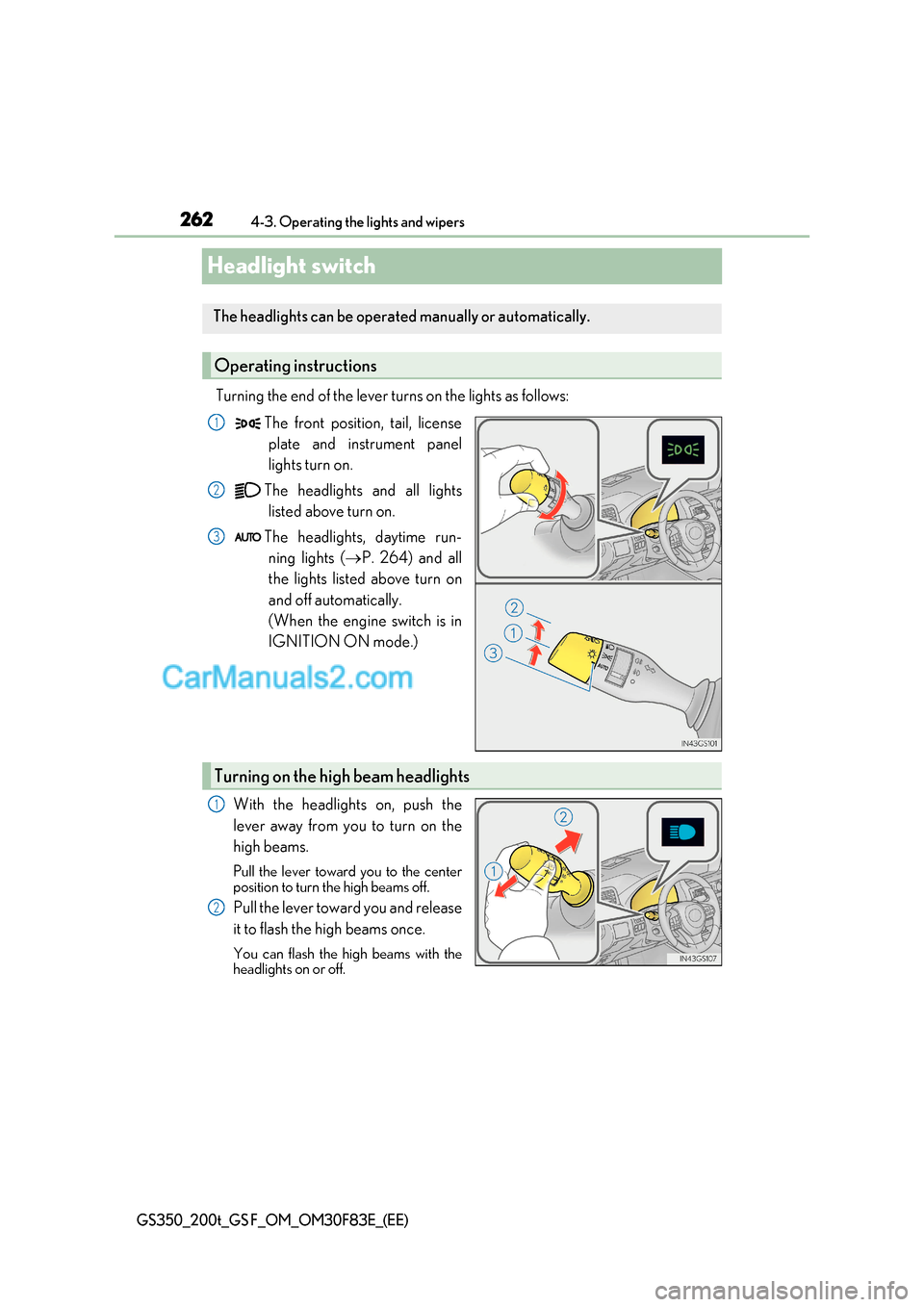

Headlight switch
Turning the end of the lever turns on the lights as follows:The front position, tail, licenseplate and instrument panel
lights turn on.
The headlights and all lights listed above turn on.
The headlights, daytime run- ning lights ( P. 264) and all
the lights listed above turn on
and off automatically.
(When the engine switch is in
IGNITION ON mode.)
With the headlights on, push the
lever away from you to turn on the
high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release
it to flash the high beams once.
You can flash the high beams with the
headlights on or off.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
Turning on the high beam headlights
1
2

263
4-3. Operating the lights and wipers
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)

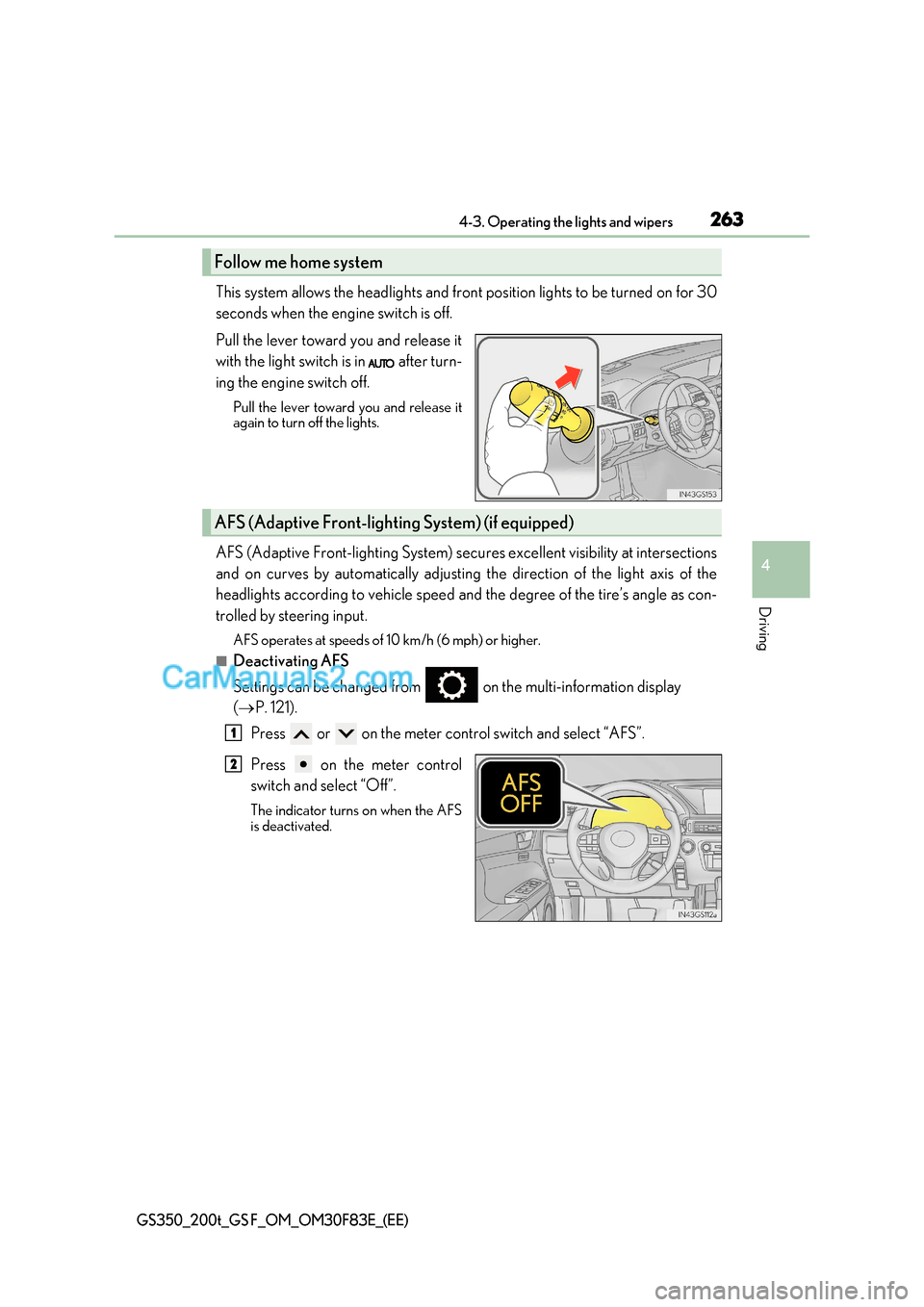

This system allows the headlights and front position lights to be turned on for 30
seconds when the engine switch is off.
Pull the lever toward you and release it
with the light switch is in after turn-
ing the engine switch off.
Pull the lever toward you and release it
again to turn off the lights.
AFS (Adaptive Front-lighting System) secures excellent visibility at intersections
and on curves by automatically adjusting the direction of the light axis of th e
headlights according to vehicle speed and the degree of the tire’s angle as con-
trolled by steering input.
AFS operates at speeds of 10 km/h (6 mph) or higher.
■Deactivating AFS
Settings can be changed from on the multi-information display ( P. 121).
Press or on the meter control switch and select “AFS”.
Press on the meter control
switch and select “Off”.
The indicator turns on when the AFS
is deactivated.
Follow me home system
AFS (Adaptive Front-lighti ng System) (if equipped)
1
2

2644-3. Operating the lights and wipers
GS350_200t_GS F_OM_OM30F83E_(EE)

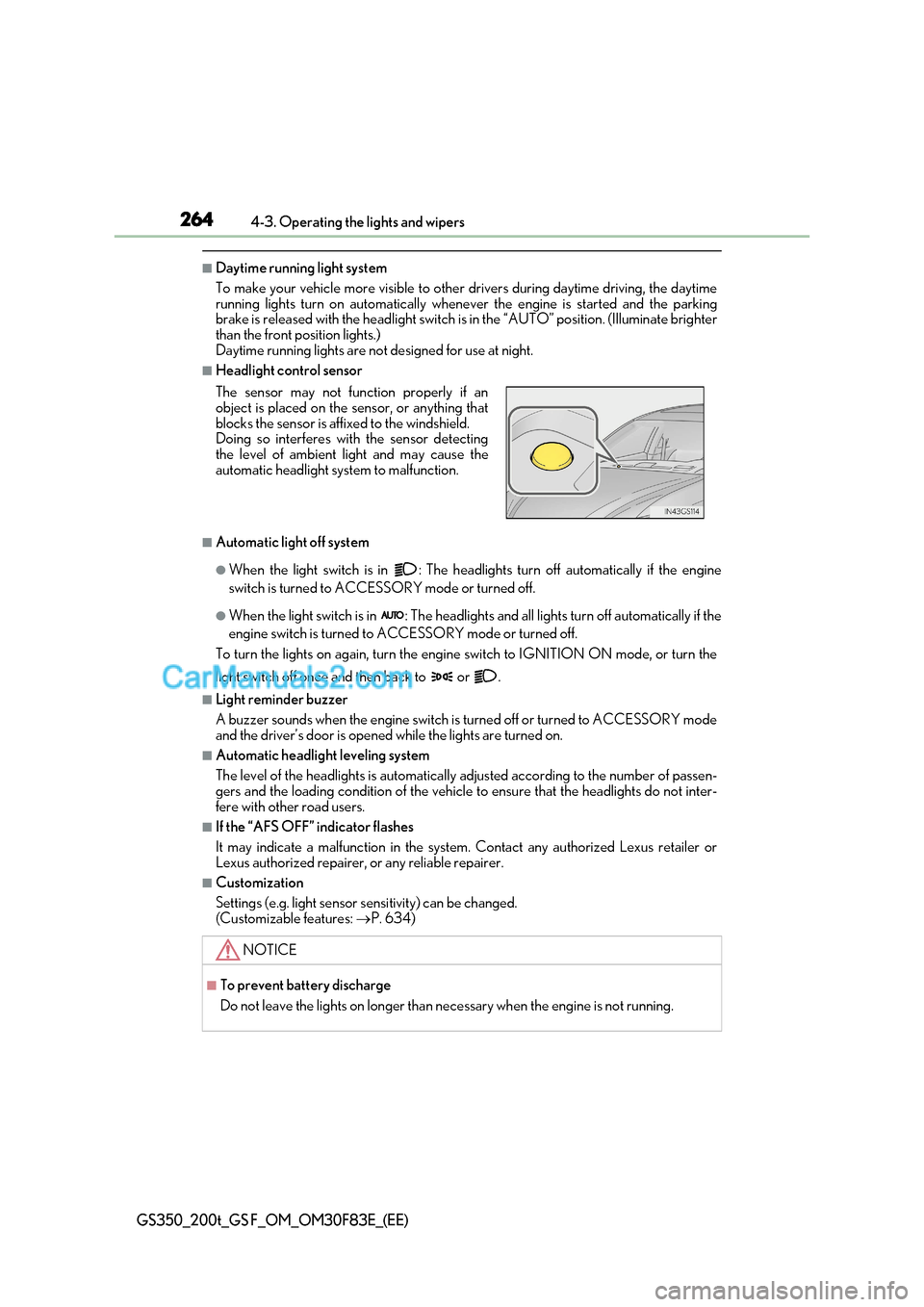

■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the daytime
running lights turn on automatically whenever the engine is started and the parking
brake is released with the head light switch is in the “AUTO” position. (Illuminate brighter
than the front position lights.)
Daytime running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in : The headlights turn off automatically if the engine
switch is turned to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if the
engine switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the engine switch to IGNITI ON ON mode, or turn the
light switch off once and then back to or .
■Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY mode
and the driver’s door is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of passen-
gers and the loading condition of the vehicle to ensure that the headlights do not inter-
fere with other road users.
■If the “AFS OFF” indicator flashes
It may indicate a malfunction in the system. Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
■Customization
Settings (e.g. light sensor se nsitivity) can be changed.
(Customizable features: P. 634)
The sensor may not function properly if an
object is placed on the sensor, or anything that
blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

265
4
4-3. Operating the lights and wipers
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)

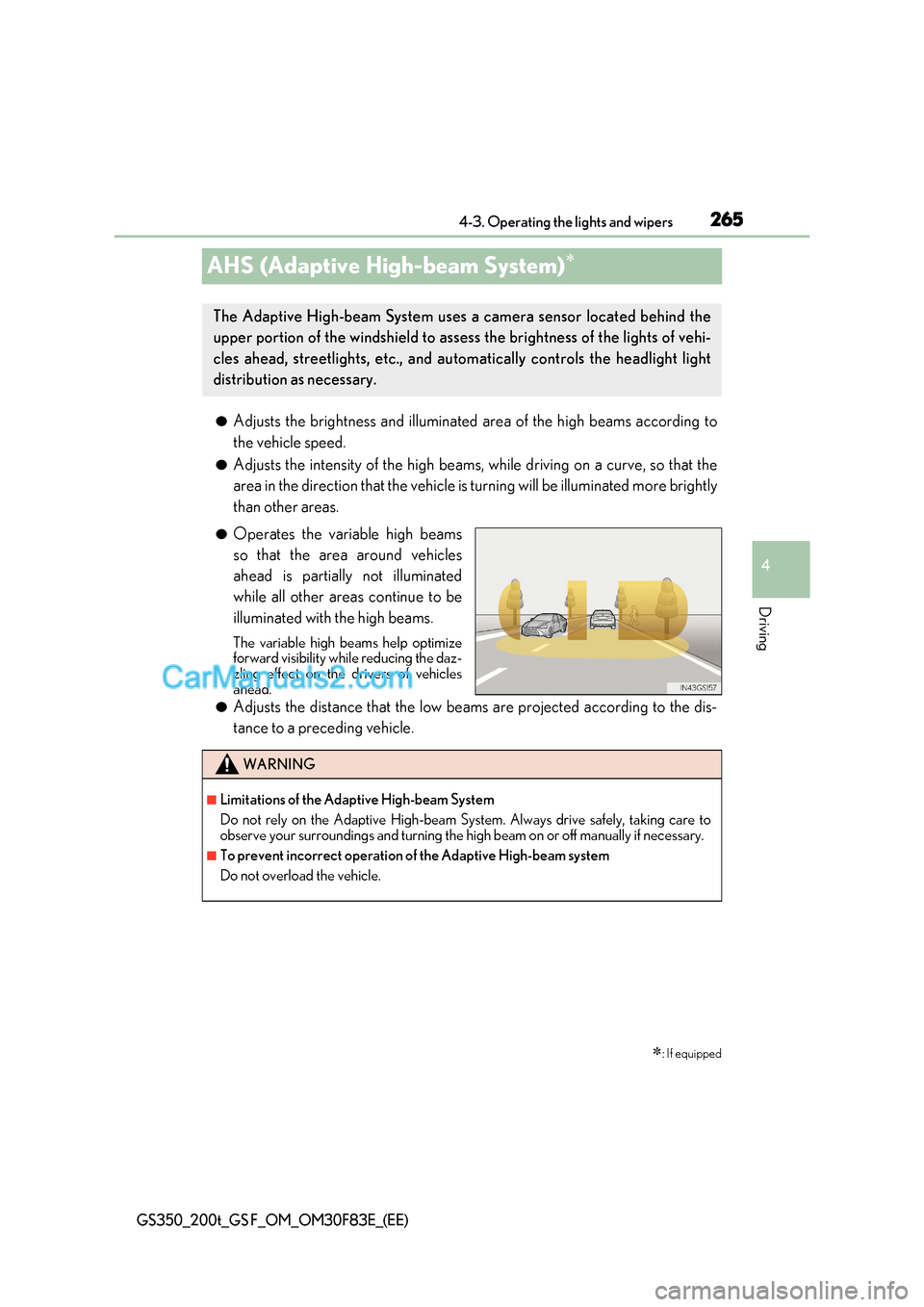

AHS (Adaptive High-beam System)
●
Adjusts the brightness and illuminated area of the high beams according to
the vehicle speed.
● Adjusts the intensity of the high beams, while driving on a curve, so t hat the
area in the direction that the vehicle is turning will be illuminated more brightly
than other areas.
● Operates the variable high beams
so that the area around vehicles
ahead is partially not illuminated
while all other areas continue to be
illuminated with the high beams.
The variable high beams help optimize
forward visibility while reducing the daz-
zling effect on the drivers of vehicles
ahead.
● Adjusts the distance that the low beams are projected according to the dis-
tance to a preceding vehicle.
: If equipped
The Adaptive High-beam System uses a camera sensor located behind the
upper portion of the windshield to assess the brightness of the lights of vehi-
cles ahead, streetlights, etc., and au tomatically controls the headlight light
distribution as necessary.
WARNING
■Limitations of the Adaptive High-beam System
Do not rely on the Adaptive High-beam System. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if necessary.
■To prevent incorrect operation of the Adaptive High-beam system
Do not overload the vehicle.

2664-3. Operating the lights and wipers
GS350_200t_GS F_OM_OM30F83E_(EE)

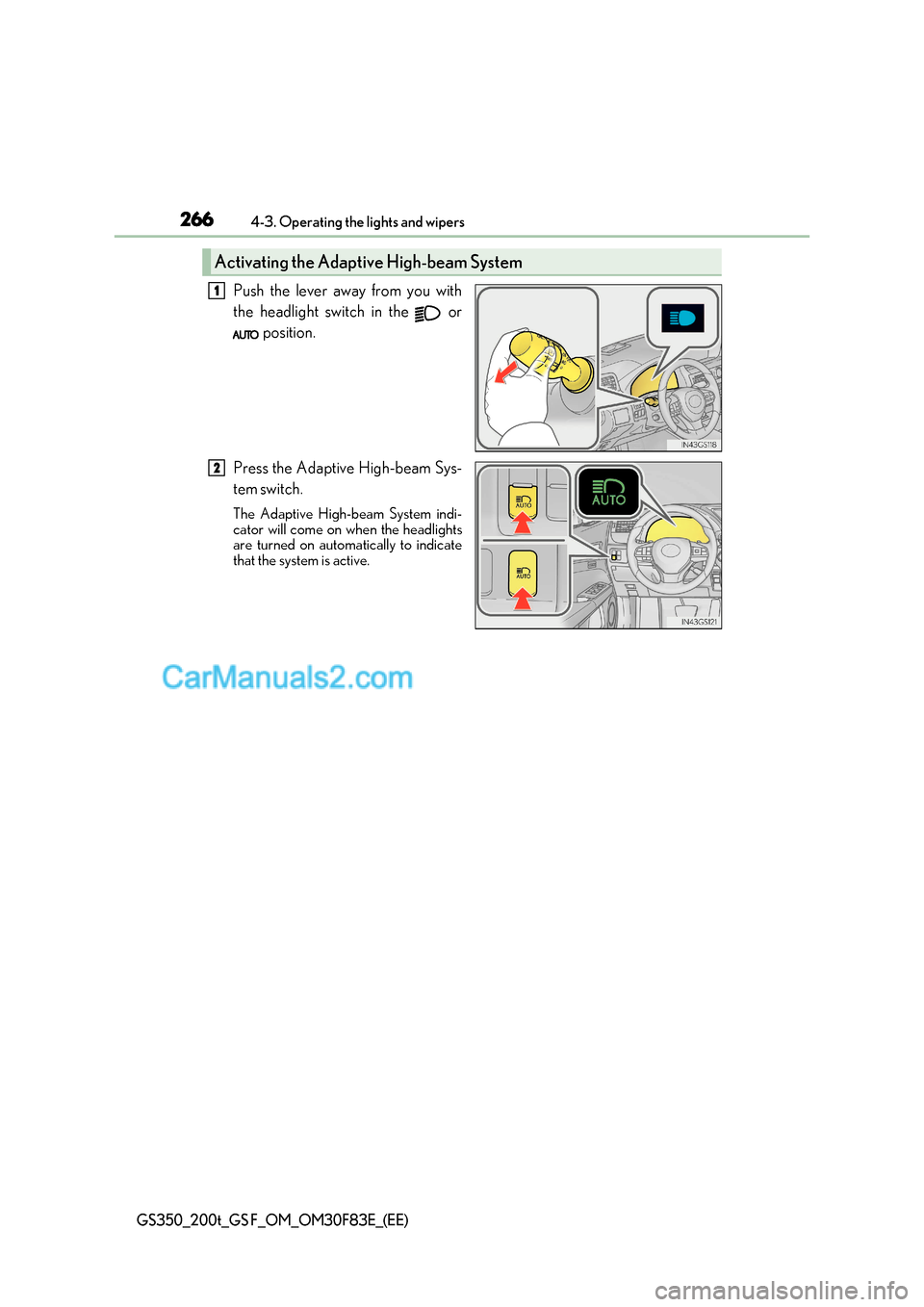

Push the lever away from you with
the headlight switch in the or
position.
Press the Adaptive High-beam Sys-
tem switch.
The Adaptive High-beam System indi-
cator will come on when the headlights
are turned on automatically to indicate
that the system is active.
Activating the Adaptive High-beam System
1
2

267
4-3. Operating the lights and wipers
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)

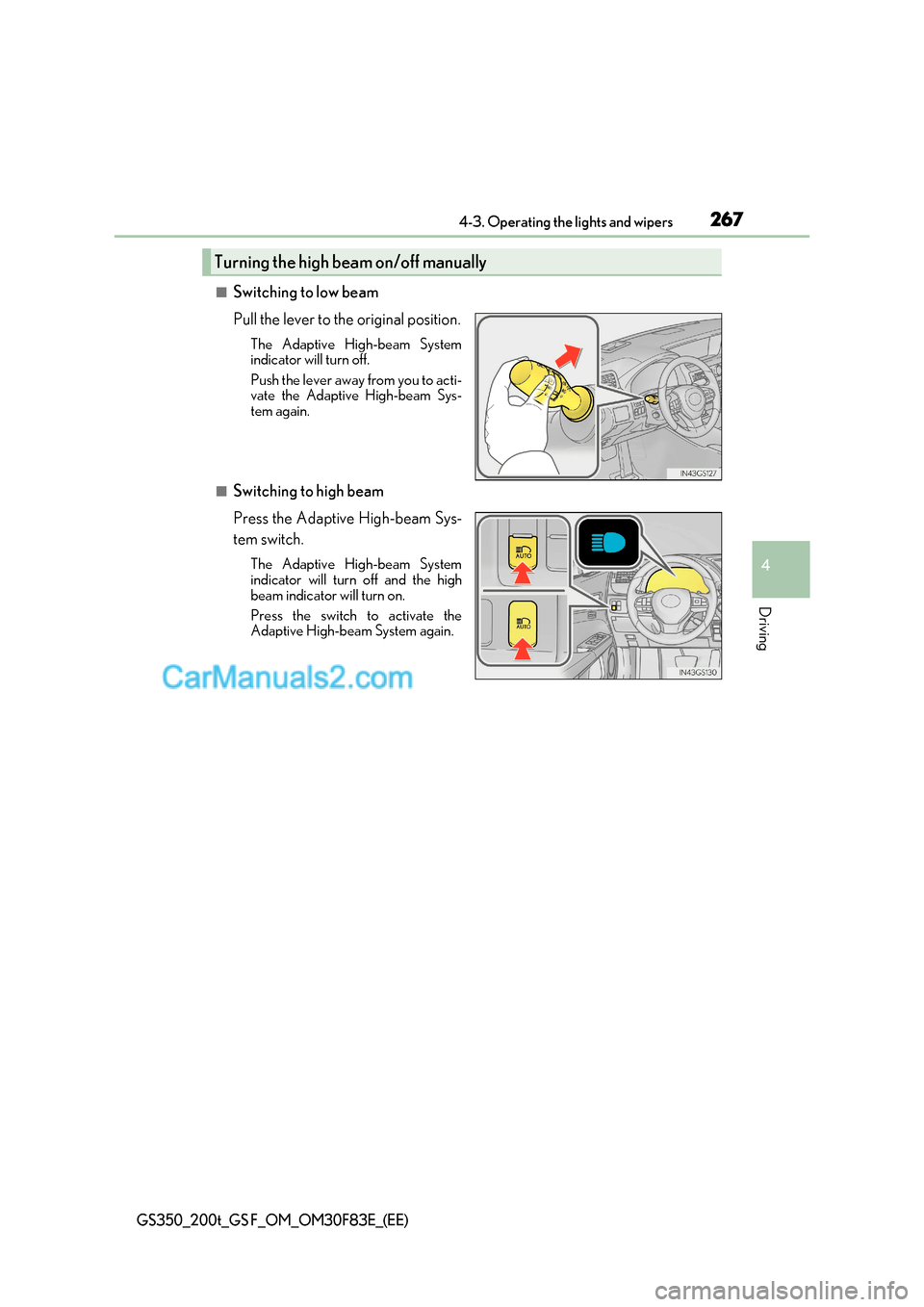

■Switching to low beam
Pull the lever to the original position.
The Adaptive High-beam System
indicator will turn off.
Push the lever away from you to acti-
vate the Adaptive High-beam Sys-
tem again.
■Switching to high beam
Press the Adaptive High-beam Sys-
tem switch.The Adaptive High-beam System
indicator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Adaptive High-beam System again.
Turning the high beam on/off manually

2684-3. Operating the lights and wipers
GS350_200t_GS F_OM_OM30F83E_(EE)

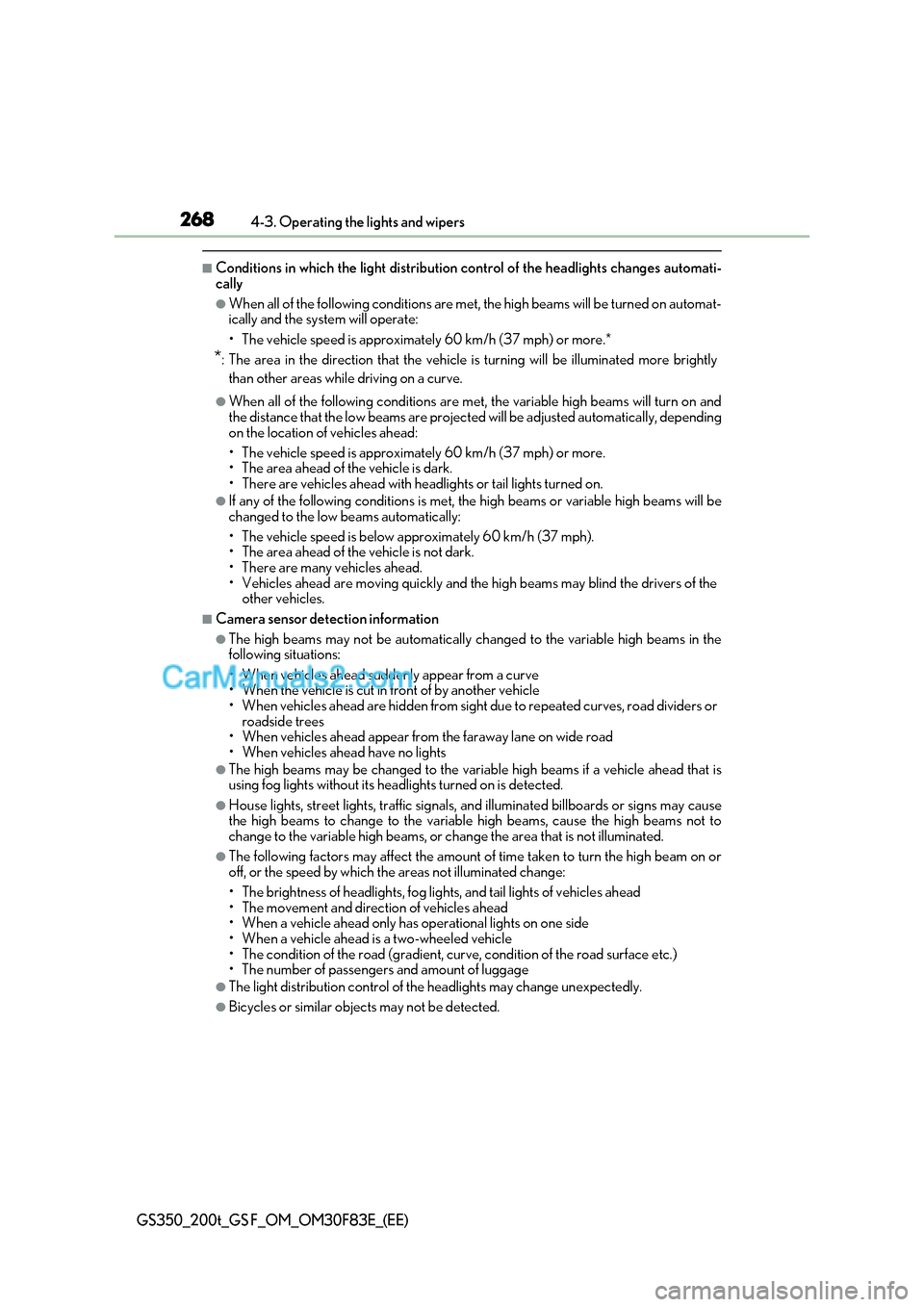

■Conditions in wh ich the light distribution control of the headlights changes automati-
cally
●When all of the following conditions are met, the high beams will be turned on automat-
ically and the system will operate:
