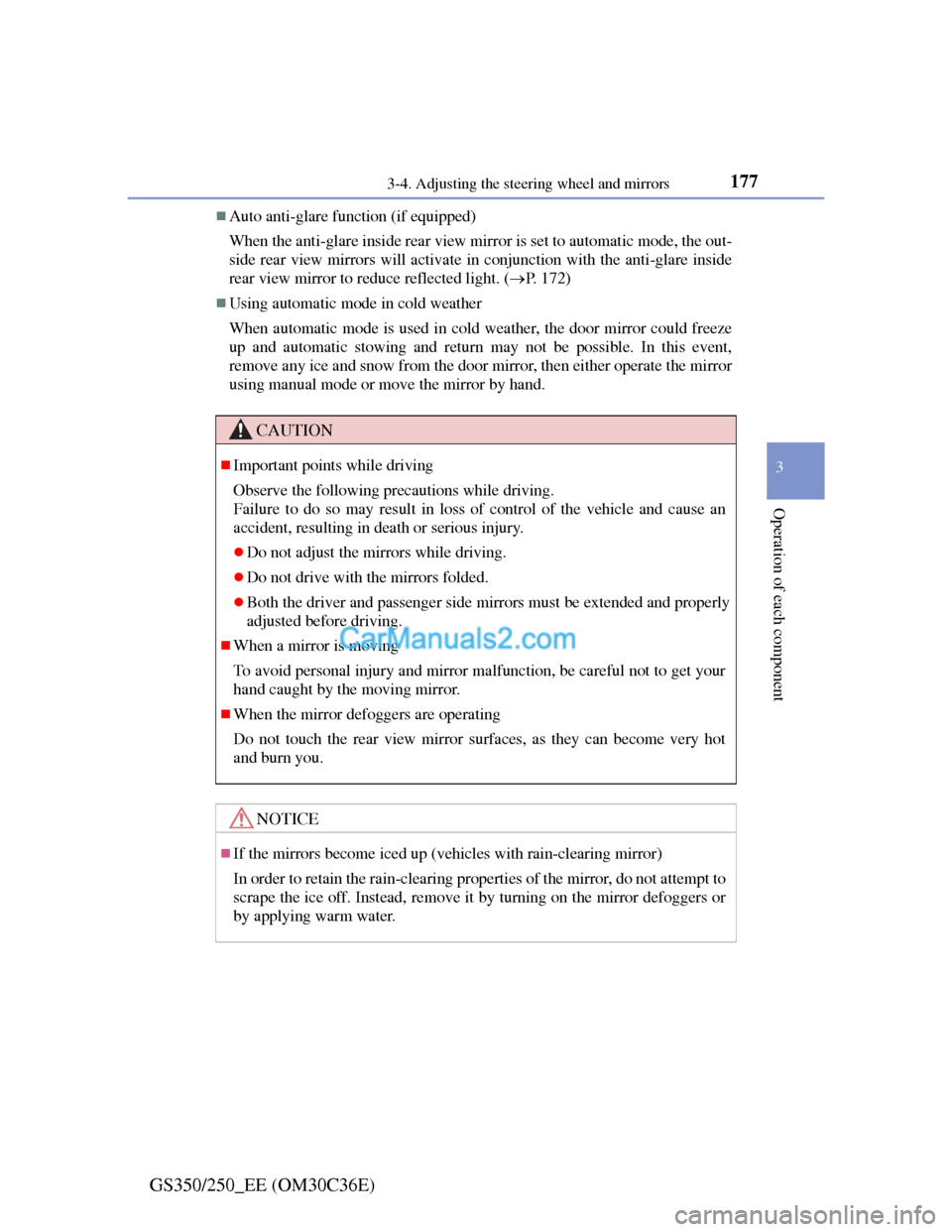

1773-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350/250_EE (OM30C36E)
Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side rear view mirrors will activate in conjunction with the anti-glare inside
rear view mirror to reduce reflected light. (P. 172)
Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror could freeze
up and automatic stowing and return may not be possible. In this event,
remove any ice and snow from the door mirror, then either operate the mirror
using manual mode or move the mirror by hand.
CAUTION
Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
If the mirrors become iced up (vehicles with rain-clearing mirror)
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or
by applying warm water.

1783-5. Opening, closing the windows and moon roof
GS350/250_EE (OM30C36E)
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the opposite
direction will stop window travel
partway.
Press the switch to lock the pas-
senger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch
Indicator

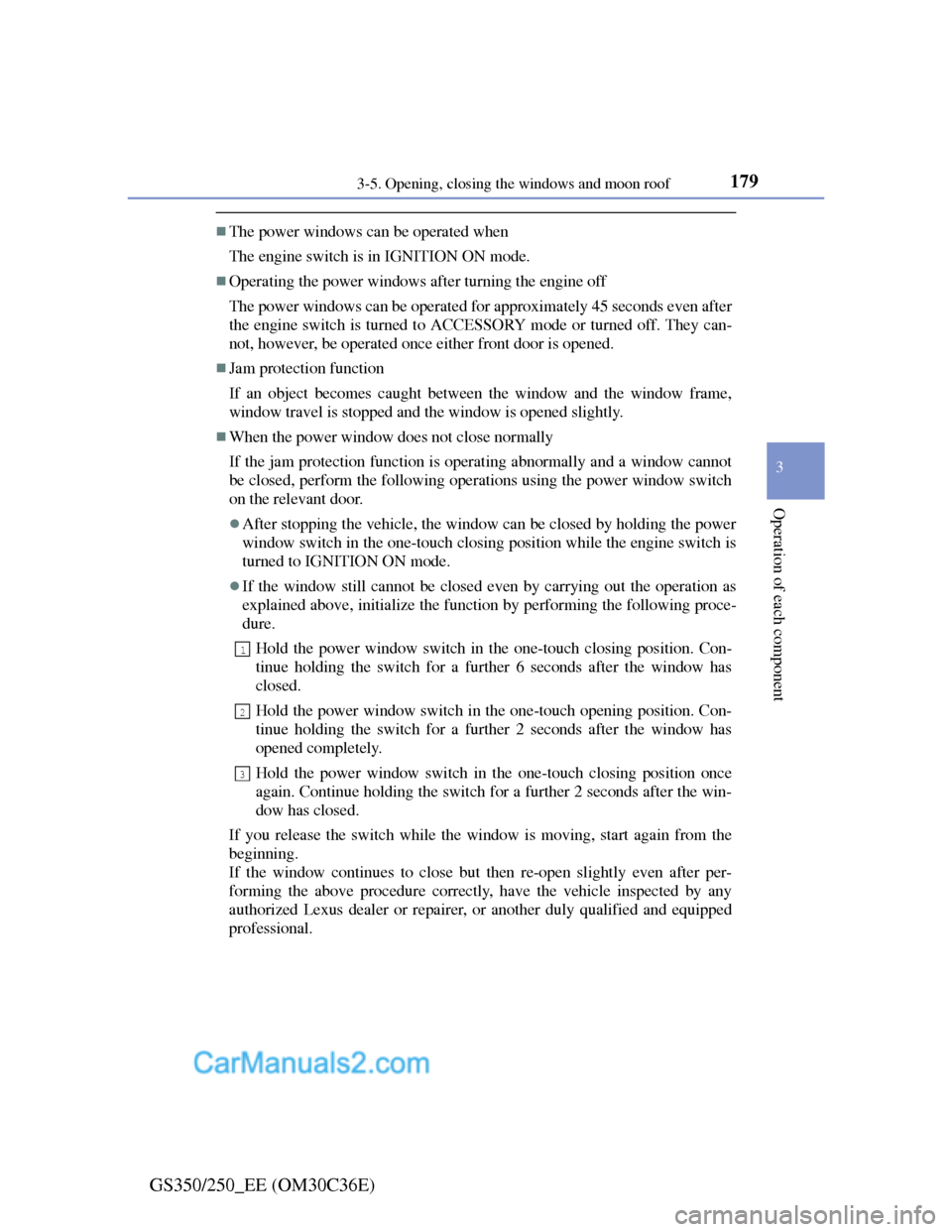

1793-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350/250_EE (OM30C36E)
The power windows can be operated when
The engine switch is in IGNITION ON mode.
Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after
the engine switch is turned to ACCESSORY mode or turned off. They can-
not, however, be operated once either front door is opened.
Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the engine switch is
turned to IGNITION ON mode.
If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after per-
forming the above procedure correctly, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
1
2
3

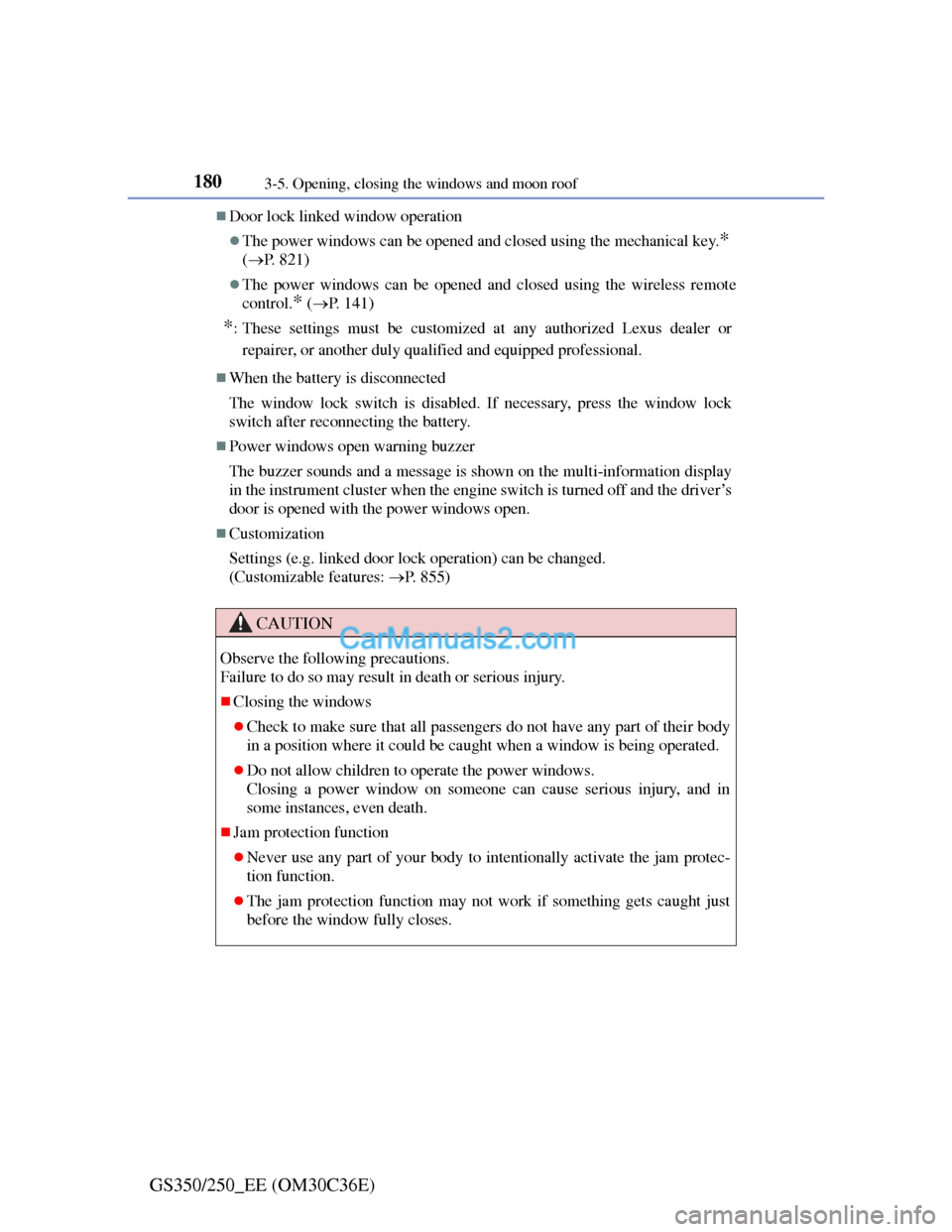

1803-5. Opening, closing the windows and moon roof
GS350/250_EE (OM30C36E)
Door lock linked window operation
The power windows can be opened and closed using the mechanical key.*
(P. 821)
The power windows can be opened and closed using the wireless remote
control.
* (P. 141)
*: These settings must be customized at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock
switch after reconnecting the battery.
Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the power windows open.
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: P. 855)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the windows
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
Jam protection function
Never use any part of your body to intentionally activate the jam protec-
tion function.
The jam protection function may not work if something gets caught just
before the window fully closes.

181

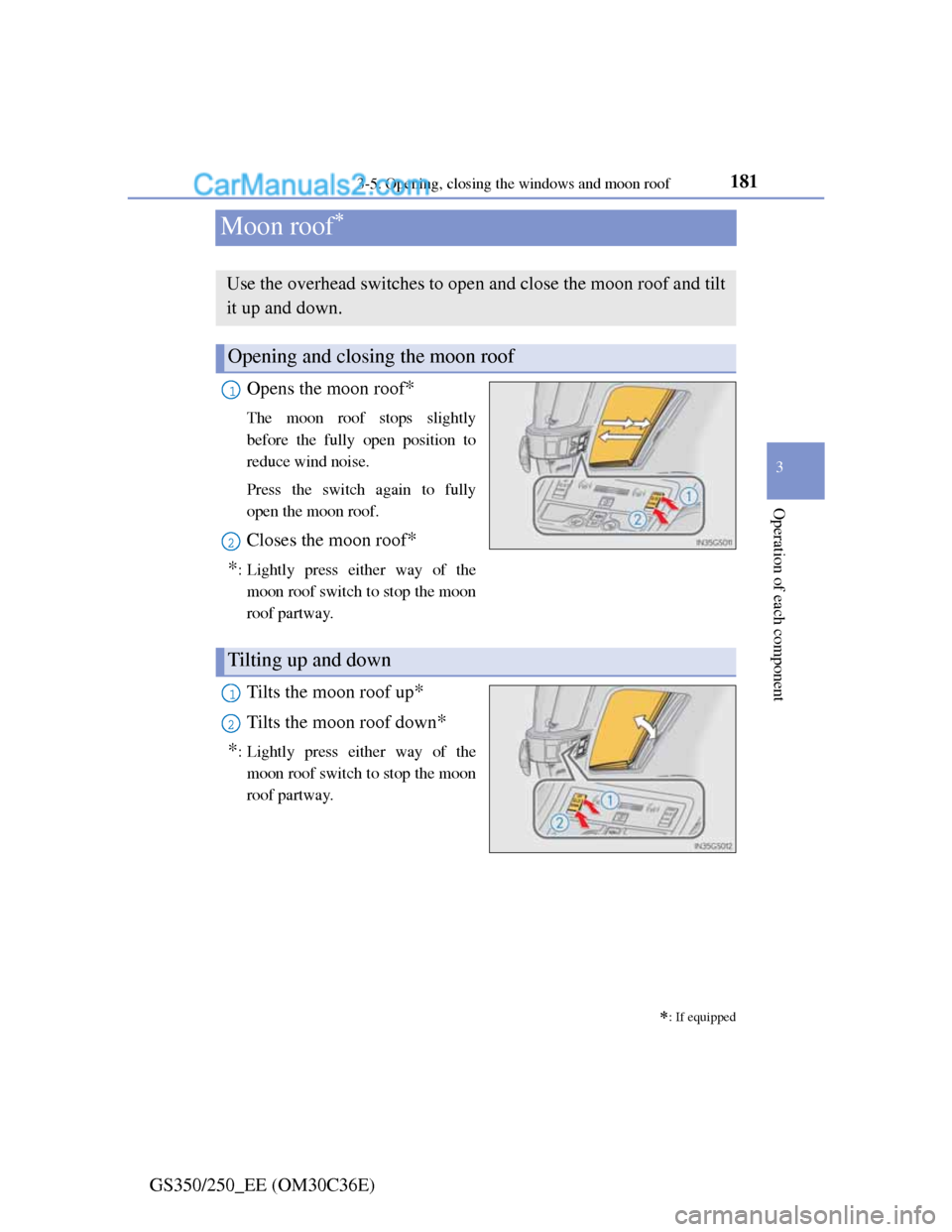

3 3-5. Opening, closing the windows and moon roof
Operation of each component
GS350/250_EE (OM30C36E)
Moon roof
Opens the moon roof*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*
: Lightly press either way of the
moon roof switch to stop the moon
roof partway.
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either way of the
moon roof switch to stop the moon
roof partway.
: If equipped
Use the overhead switches to open and close the moon roof and tilt
it up and down.
Opening and closing the moon roof
1
2
Tilting up and down
1
2

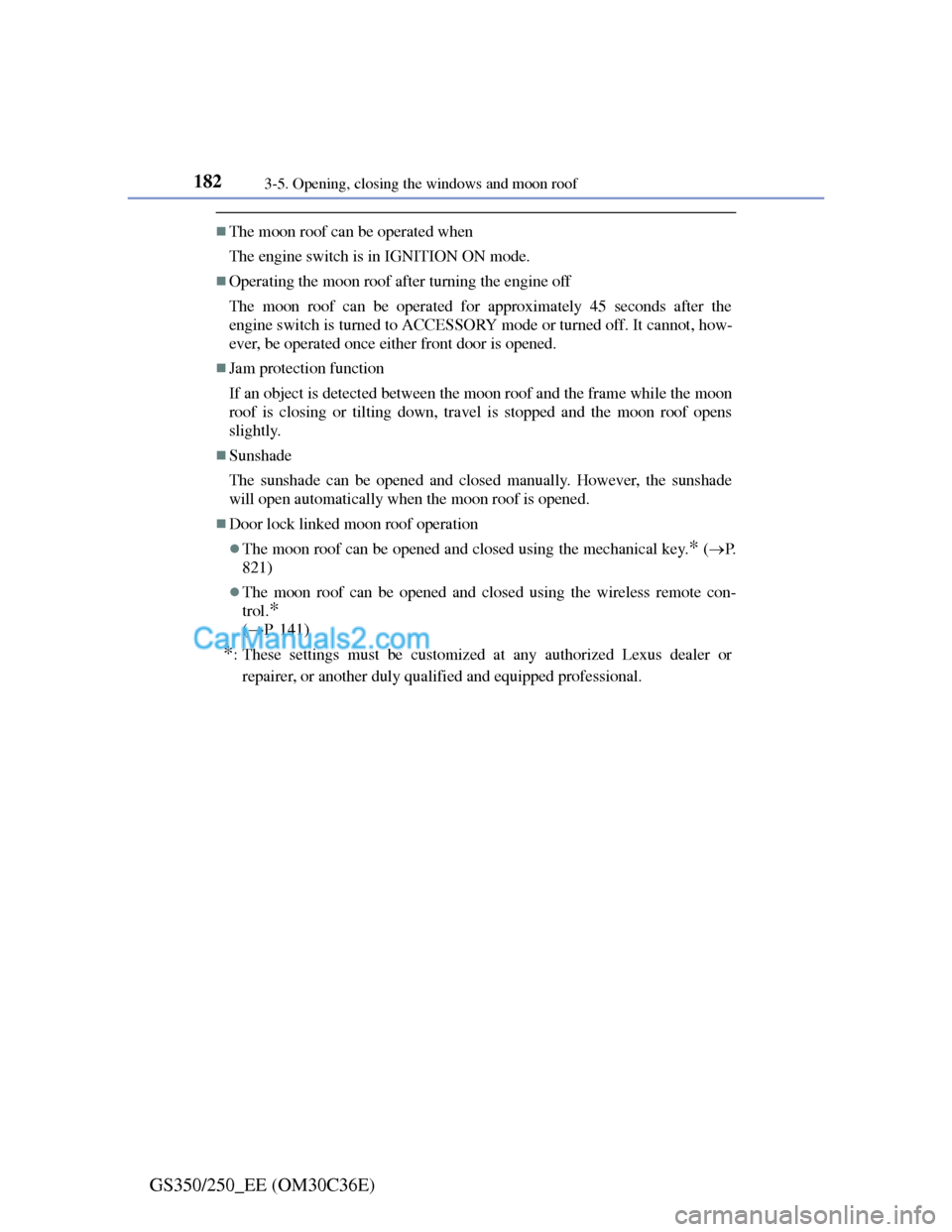

1823-5. Opening, closing the windows and moon roof
GS350/250_EE (OM30C36E)
The moon roof can be operated when
The engine switch is in IGNITION ON mode.
Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. It cannot, how-
ever, be operated once either front door is opened.
Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing or tilting down, travel is stopped and the moon roof opens
slightly.
Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.
Door lock linked moon roof operation
The moon roof can be opened and closed using the mechanical key.* (P.
821)
The moon roof can be opened and closed using the wireless remote con-
trol.
*
(P. 141)
*: These settings must be customized at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.

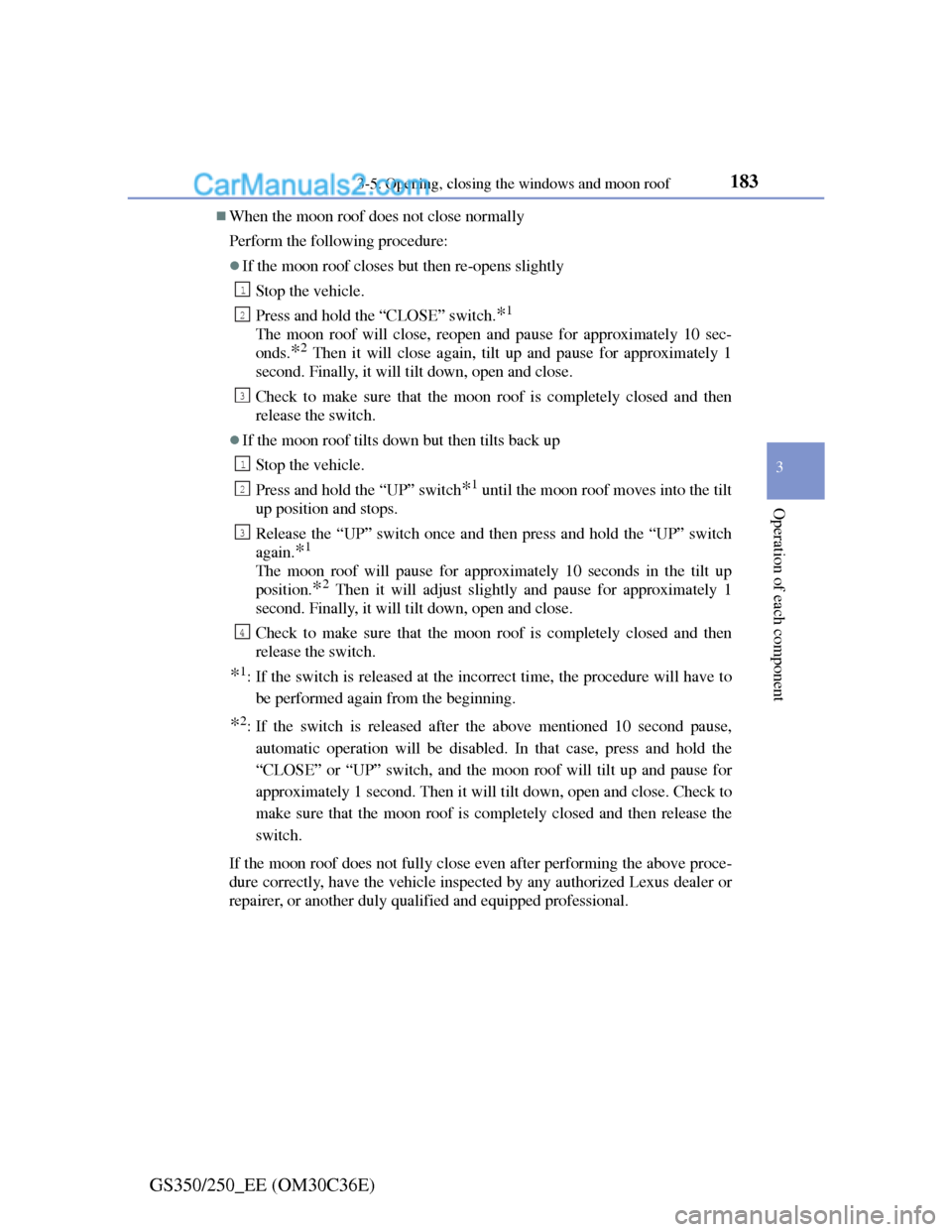

1833-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350/250_EE (OM30C36E)
When the moon roof does not close normally
Perform the following procedure:
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.
*2 Then it will close again, tilt up and pause for approximately 1
second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt
up position and stops.
Release the “UP” switch once and then press and hold the “UP” switch
again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up
position.
*2 Then it will adjust slightly and pause for approximately 1
second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*1: If the switch is released at the incorrect time, the procedure will have to
be performed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold the
“CLOSE” or “UP” switch, and the moon roof will tilt up and pause for
approximately 1 second. Then it will tilt down, open and close. Check to
make sure that the moon roof is completely closed and then release the
switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
1
2
3
1
2
3
4

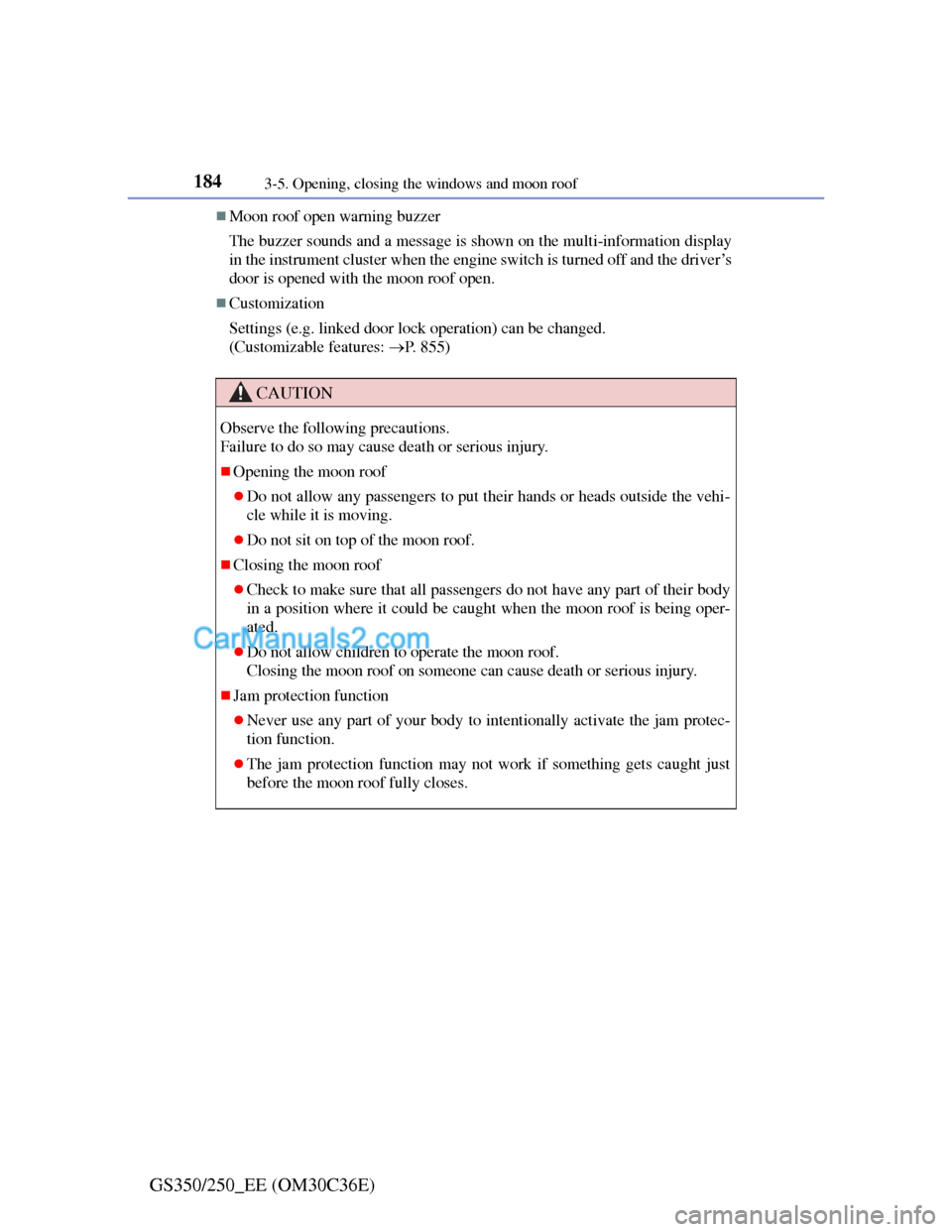

1843-5. Opening, closing the windows and moon roof
GS350/250_EE (OM30C36E)
Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the moon roof open.
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: P. 855)
CAUTION
Observe the following precautions.
Failure to do so may cause death or serious injury.
Opening the moon roof
Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
Do not sit on top of the moon roof.
Closing the moon roof
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the moon roof is being oper-
ated.
Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
Jam protection function
Never use any part of your body to intentionally activate the jam protec-
tion function.
The jam protection function may not work if something gets caught just
before the moon roof fully closes.

185
4Driving
GS350/250_EE (OM30C36E)
4-1. Before driving
Driving the vehicle............ 186
Cargo and luggage ............ 197
Trailer towing.................... 198
4-2. Driving procedures
Engine (ignition) switch.... 207
Automatic transmission .... 214
Turn signal lever ............... 222
Parking brake .................... 224
Horn .................................. 227
4-3. Operating the lights
and wipers
Headlight switch............... 228
Automatic High Beam ...... 233
Fog light switch ................ 239
Windshield wipers
and washer ...................... 241
Headlight cleaner switch ... 2484-4. Refueling
Opening the fuel tank cap . 249
4-5. Using the driving support
systems
Cruise control ................... 254
Dynamic radar cruise
control ............................. 258
LKA
(Lane-Keeping Assist) .... 274
Lexus
parking assist-sensor....... 284
Lexus
parking assist monitor..... 297
Driving mode select switch326
Driving assist systems ...... 331
Hill-start assist control ...... 339
PCS (Pre-Crash Safety
system)............................ 341
BSM (Blind Spot Monitor) 352
4-6. Driving tips
Winter driving tips ............ 359

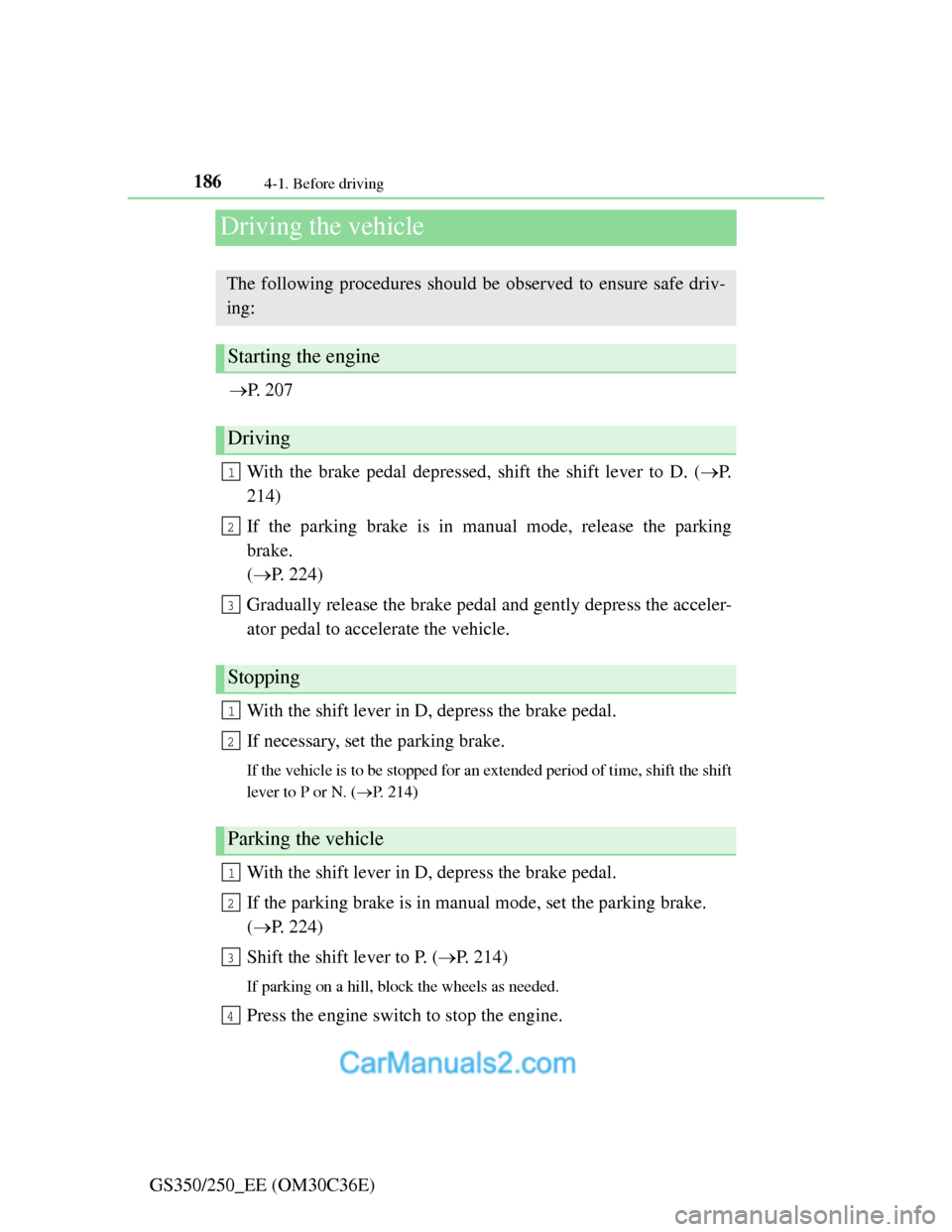

1864-1. Before driving
GS350/250_EE (OM30C36E)
Driving the vehicle
P. 207
With the brake pedal depressed, shift the shift lever to D. (P.
214)
If the parking brake is in manual mode, release the parking
brake.
(P. 224)
Gradually release the brake pedal and gently depress the acceler-
ator pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (P. 214)
With the shift lever in D, depress the brake pedal.
If the parking brake is in manual mode, set the parking brake.
(P. 224)
Shift the shift lever to P. (P. 214)
If parking on a hill, block the wheels as needed.
Press the engine switch to stop the engine.
The following procedures should be observed to ensure safe driv-
ing:
Starting the engine
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4
