Lexus GS250 2012 Owner's Manual

1683-3. Adjusting the seats
GS350/250_EE (OM30C36E)

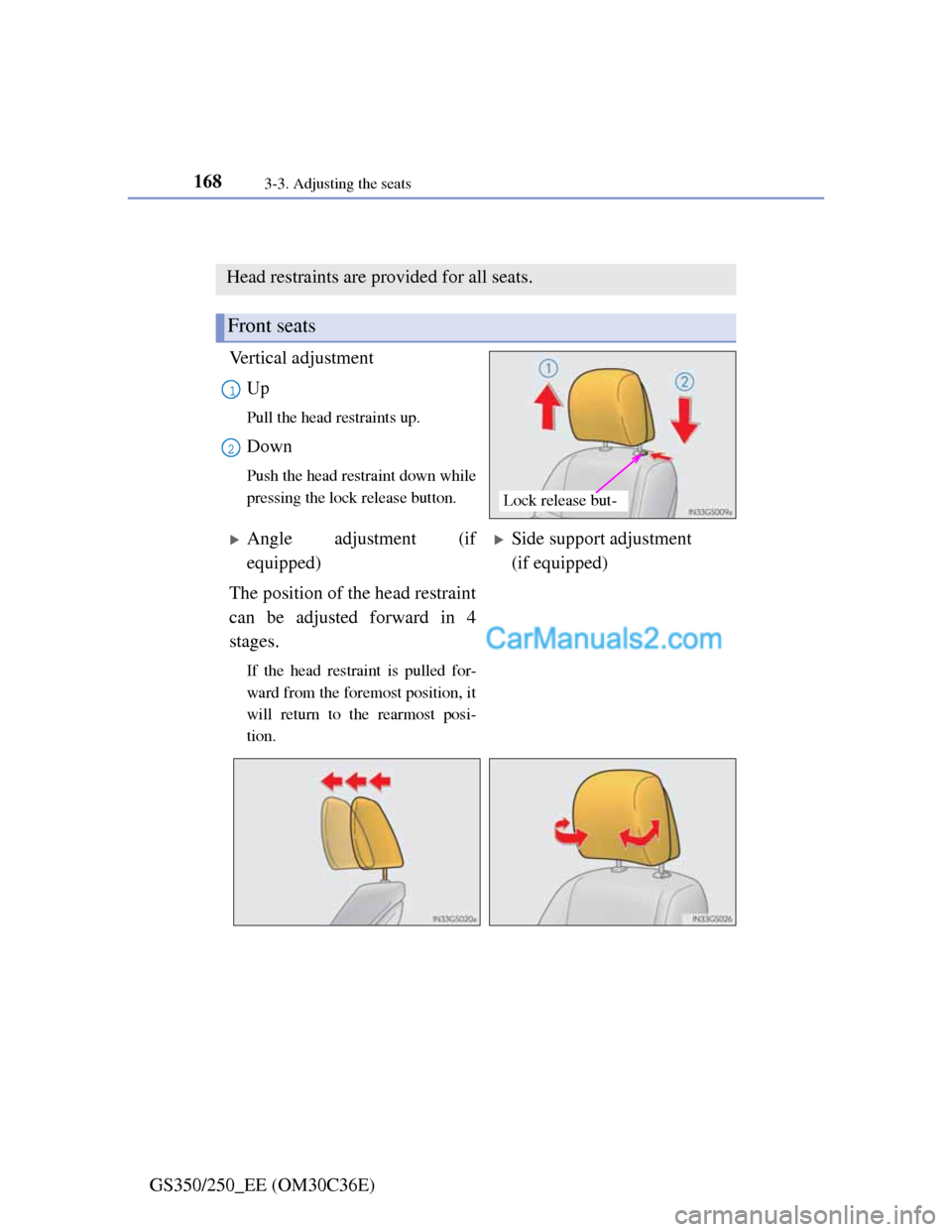

Head restraints
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front seats
Lock release but-
1
2
Angle adjustment (if
equipped)Side support adjustment
(if equipped)
The position of the head restraint
can be adjusted forward in 4
stages.
If the head restraint is pulled for-
ward from the foremost position, it
will return to the rearmost posi-
tion.

1693-3. Adjusting the seats
3
Operation of each component

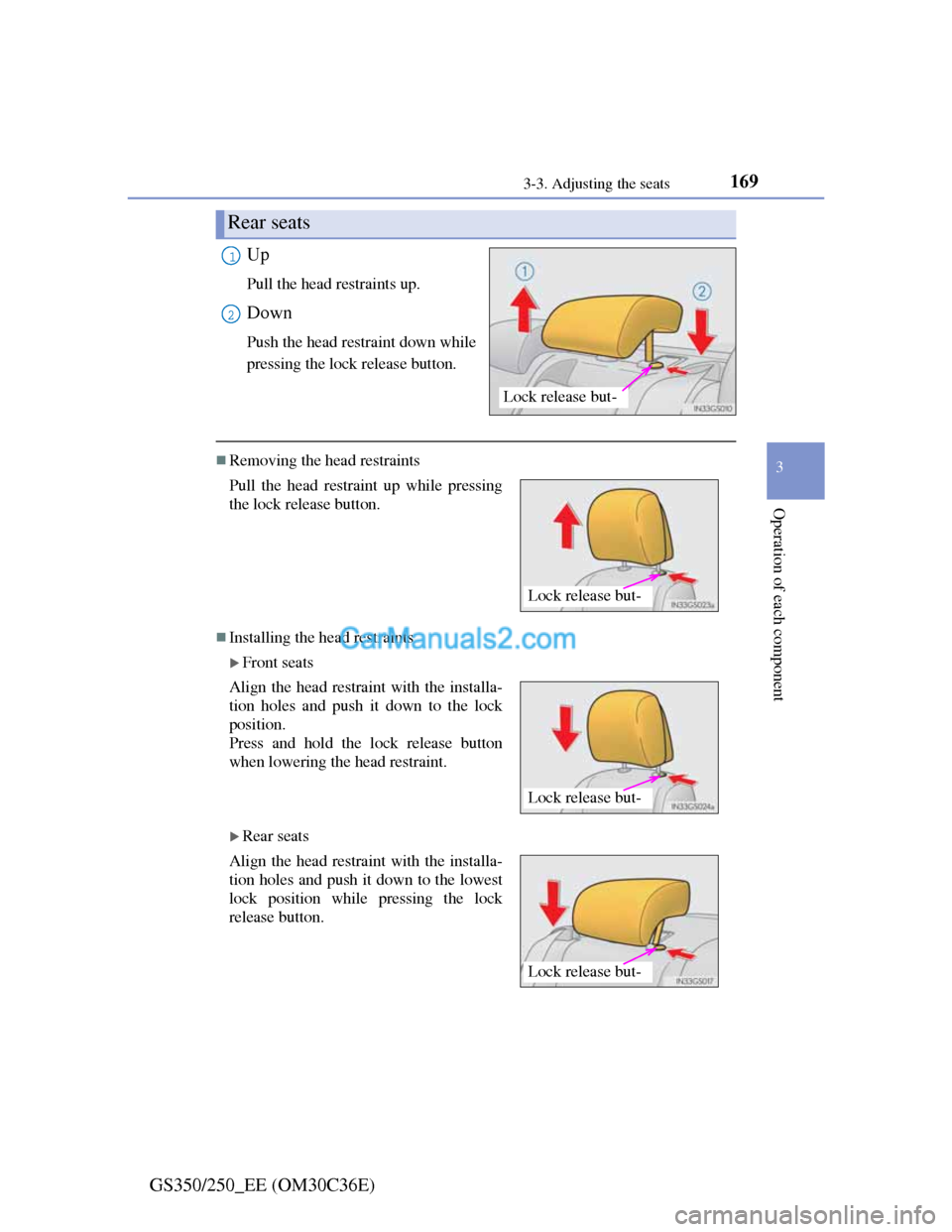

GS350/250_EE (OM30C36E)Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Removing the head restraints
Installing the head restraints
Front seats
Rear seats
Rear seats
Lock release but-
1
2
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lowest
lock position while pressing the lock
release button.
Lock release but-
Lock release but-
Lock release but-

1703-3. Adjusting the seats
GS350/250_EE (OM30C36E)

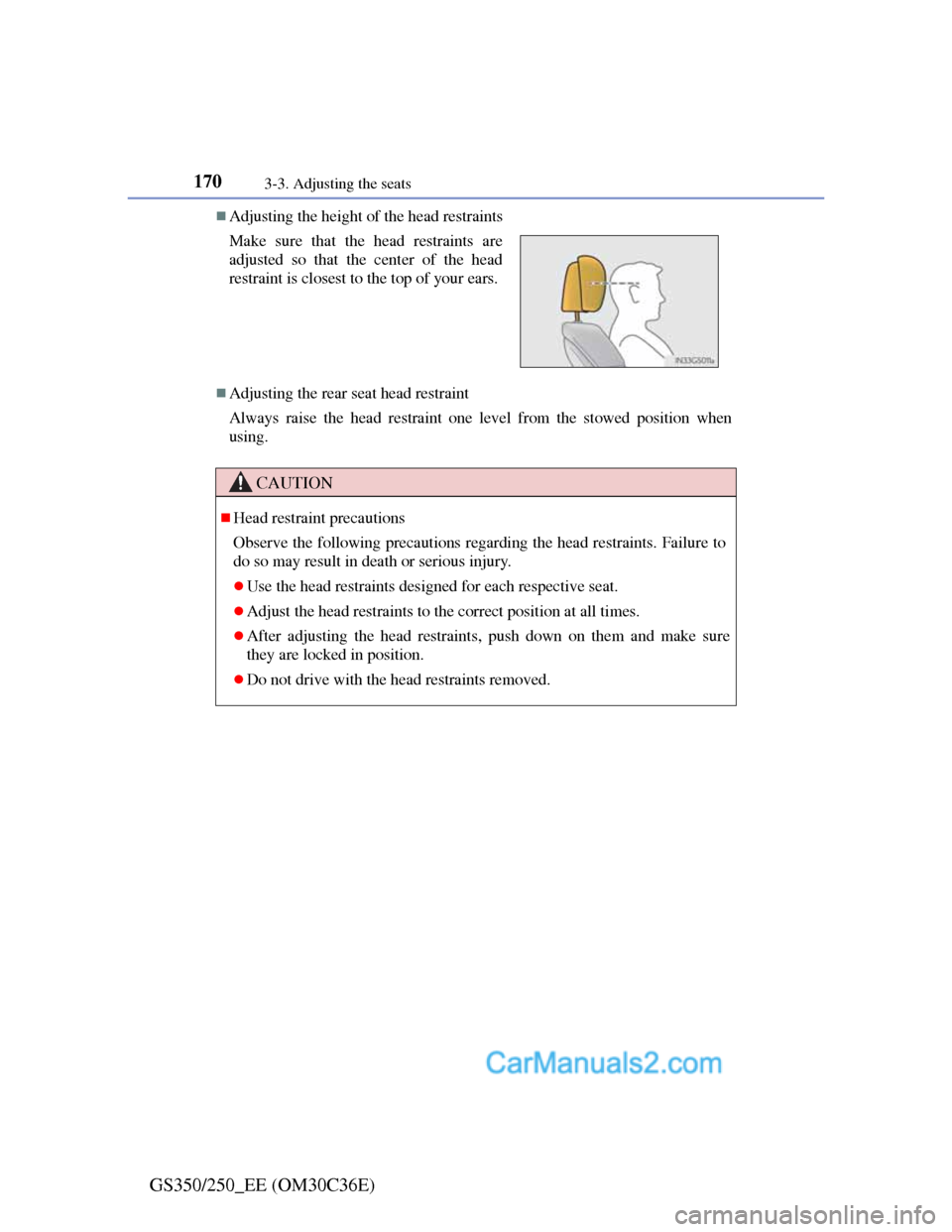

Adjusting the height of the head restraints
Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using. Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.

1703-4. Adjusting the steering wheel and mirrors
GS350/250_EE (OM30C36E)

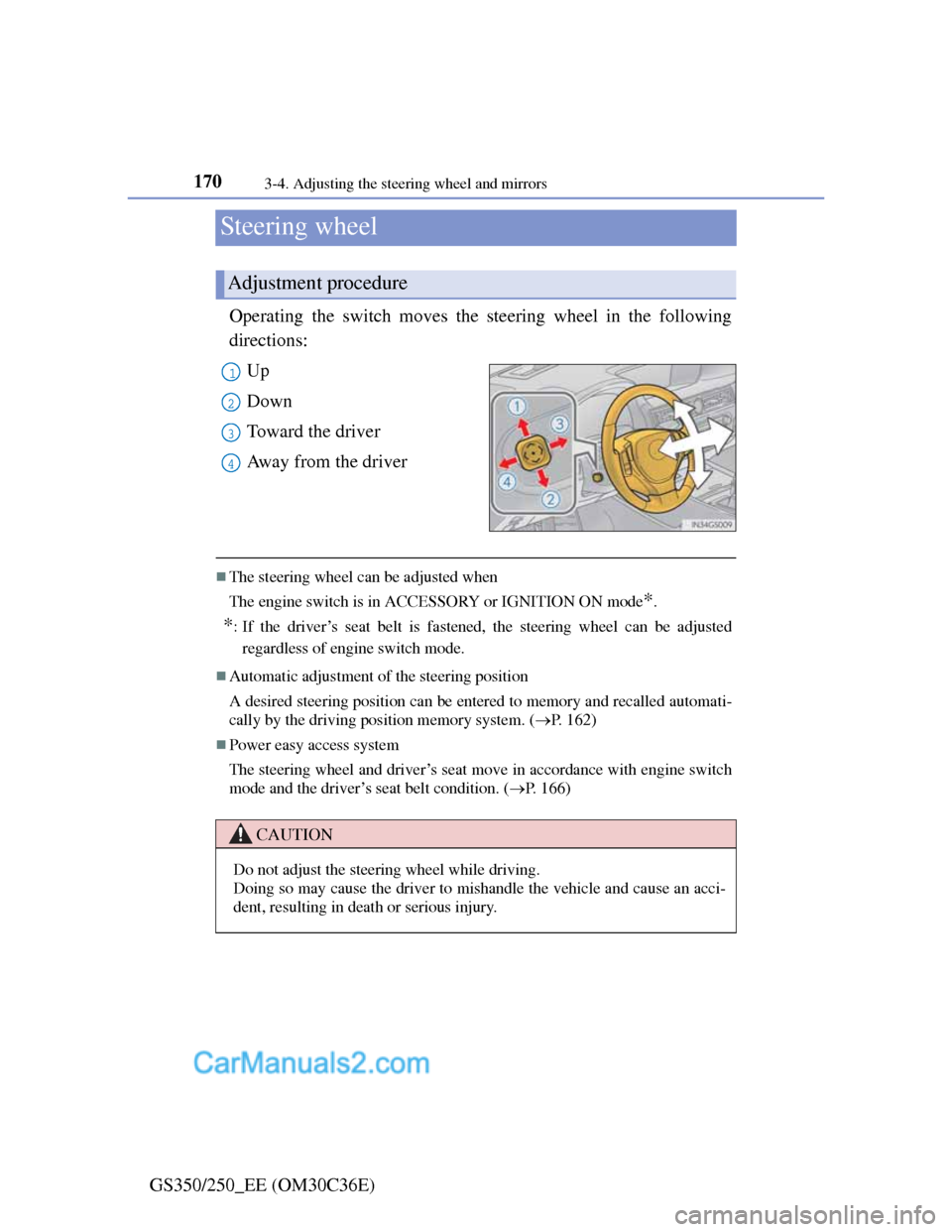

Steering wheel
Operating the switch moves the steering wheel in the following
directions:
Up
Down
Toward the driver
Away from the driver
The steering wheel can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted
regardless of engine switch mode.
Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automati-
cally by the driving position memory system. (P. 162)
Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch
mode and the driver’s seat belt condition. (P. 166)
Adjustment procedure
1
2
3
4
CAUTION
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

171
3 3-4. Adjusting the steering wheel and mirrors
Operation of each component
GS350/250_EE (OM30C36E)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driv-
ing posture.
Adjust the height of the rear
view mirror by moving it up and
down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be
reduced by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2

1723-4. Adjusting the steering wheel and mirrors
GS350/250_EE (OM30C36E)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the engine switch is
turned to IGNITION ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.

1733-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350/250_EE (OM30C36E)

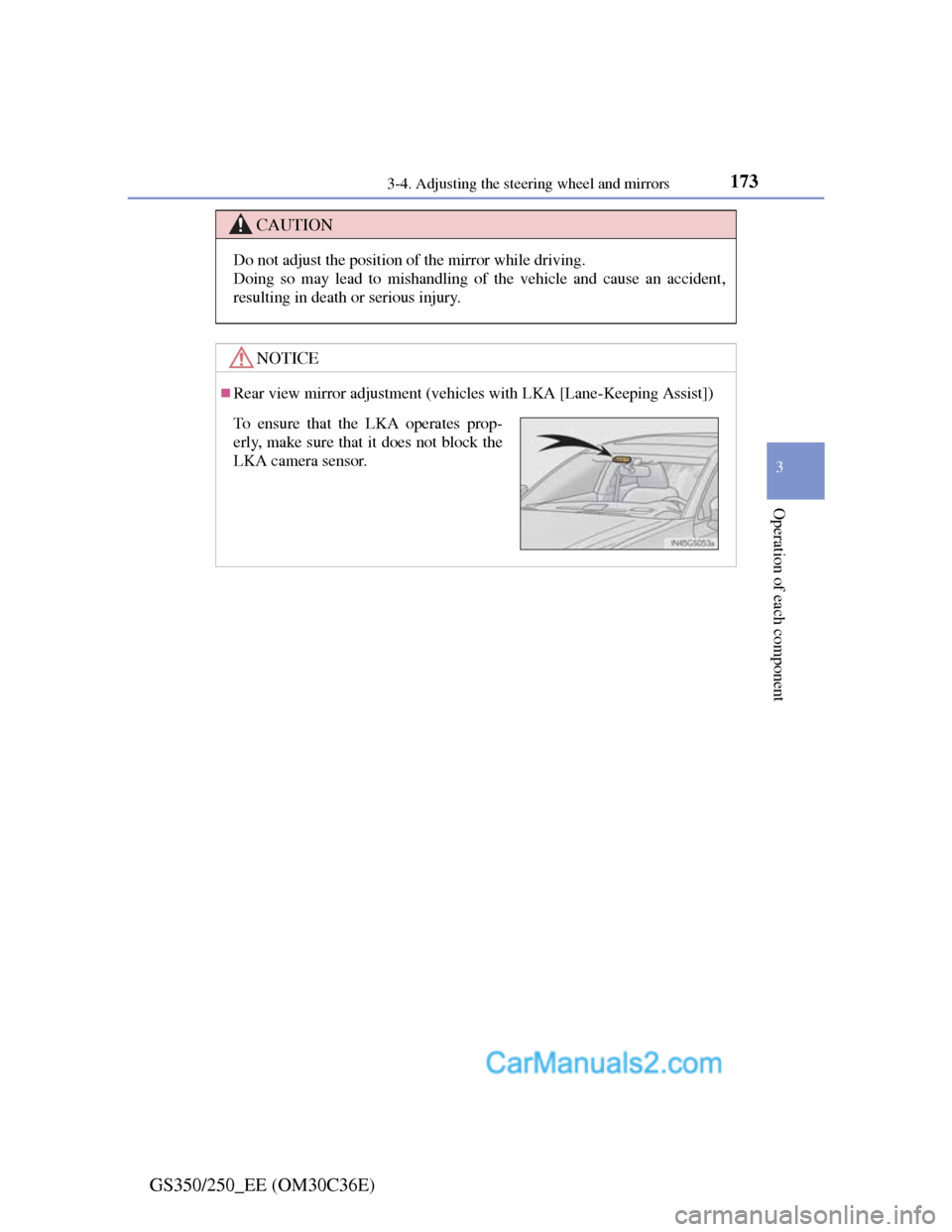

CAUTION
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
NOTICE
Rear view mirror adjustment (vehicles with LKA [Lane-Keeping Assist])
To ensure that the LKA operates prop-
erly, make sure that it does not block the
LKA camera sensor.

1743-4. Adjusting the steering wheel and mirrors
GS350/250_EE (OM30C36E)

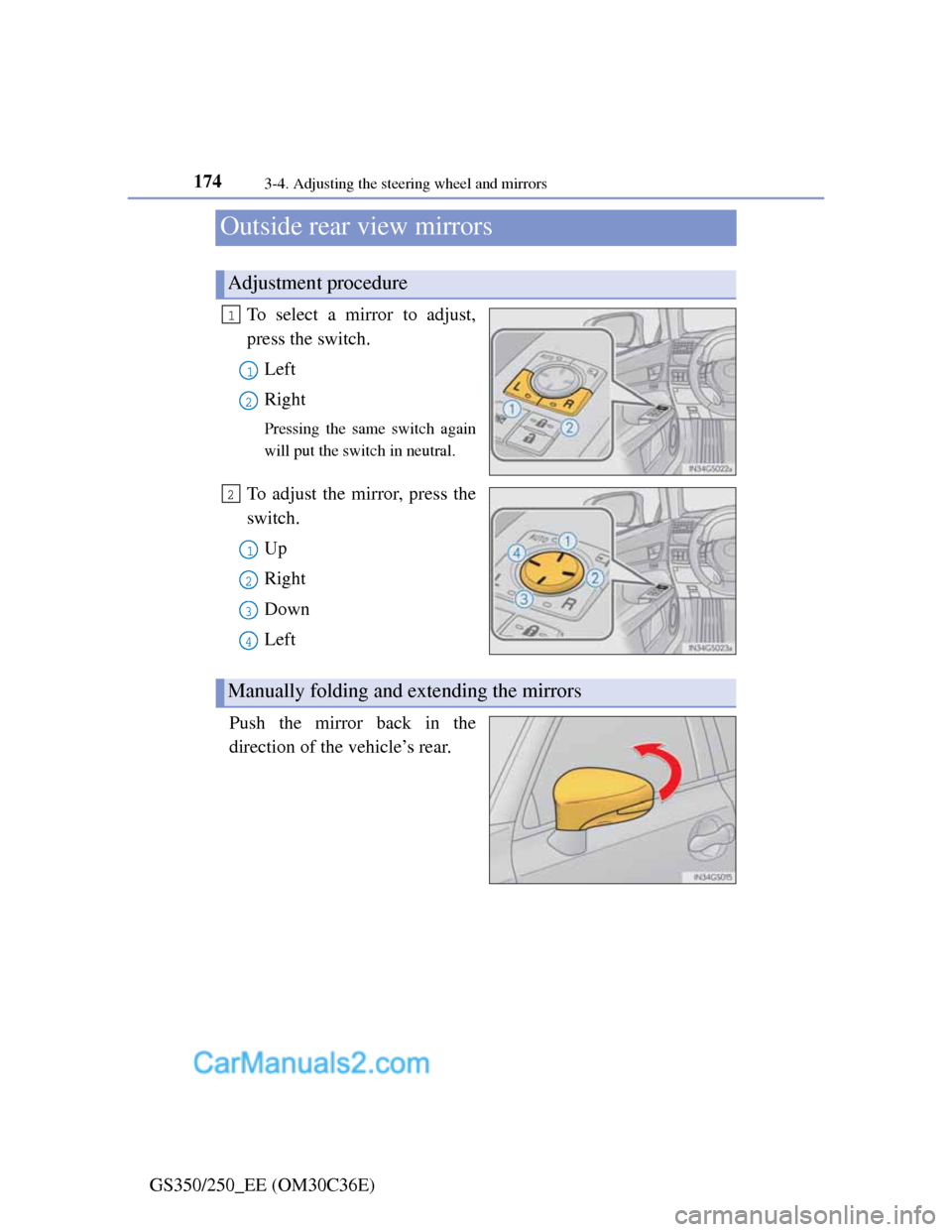

Outside rear view mirrors
To select a mirror to adjust,
press the switch.
Left
Right
Pressing the same switch again
will put the switch in neutral.
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Push the mirror back in the
direction of the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding and extending the mirrors

1753-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350/250_EE (OM30C36E)

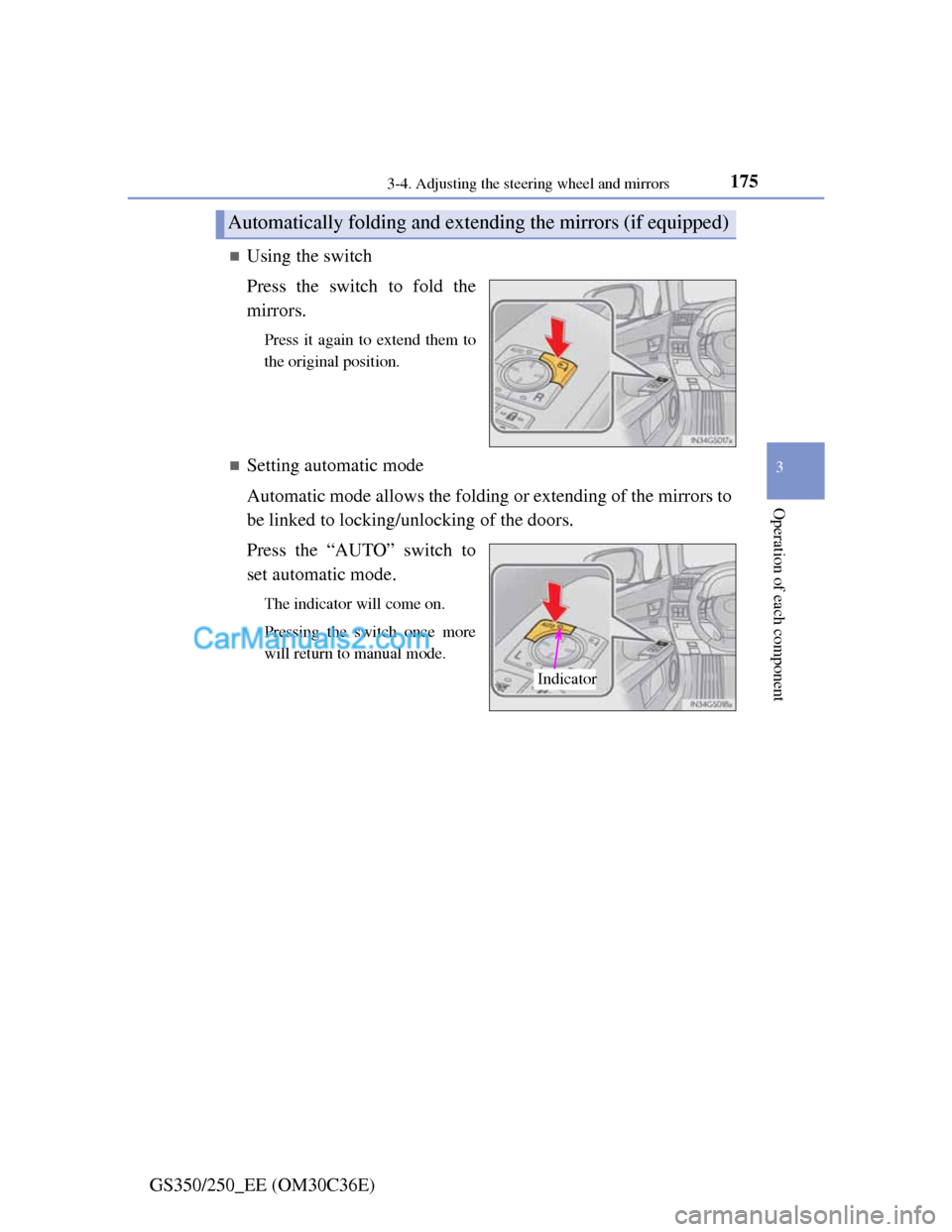

Using the switch
Press the switch to fold the
mirrors.
Press it again to extend them to
the original position.
Setting automatic mode
Automatic mode allows the folding or extending of the mirrors to
be linked to locking/unlocking of the doors.
Press the “AUTO” switch to
set automatic mode.
The indicator will come on.
Pressing the switch once more
will return to manual mode.
Automatically folding and extending the mirrors (if equipped)
Indicator

1763-4. Adjusting the steering wheel and mirrors
GS350/250_EE (OM30C36E)

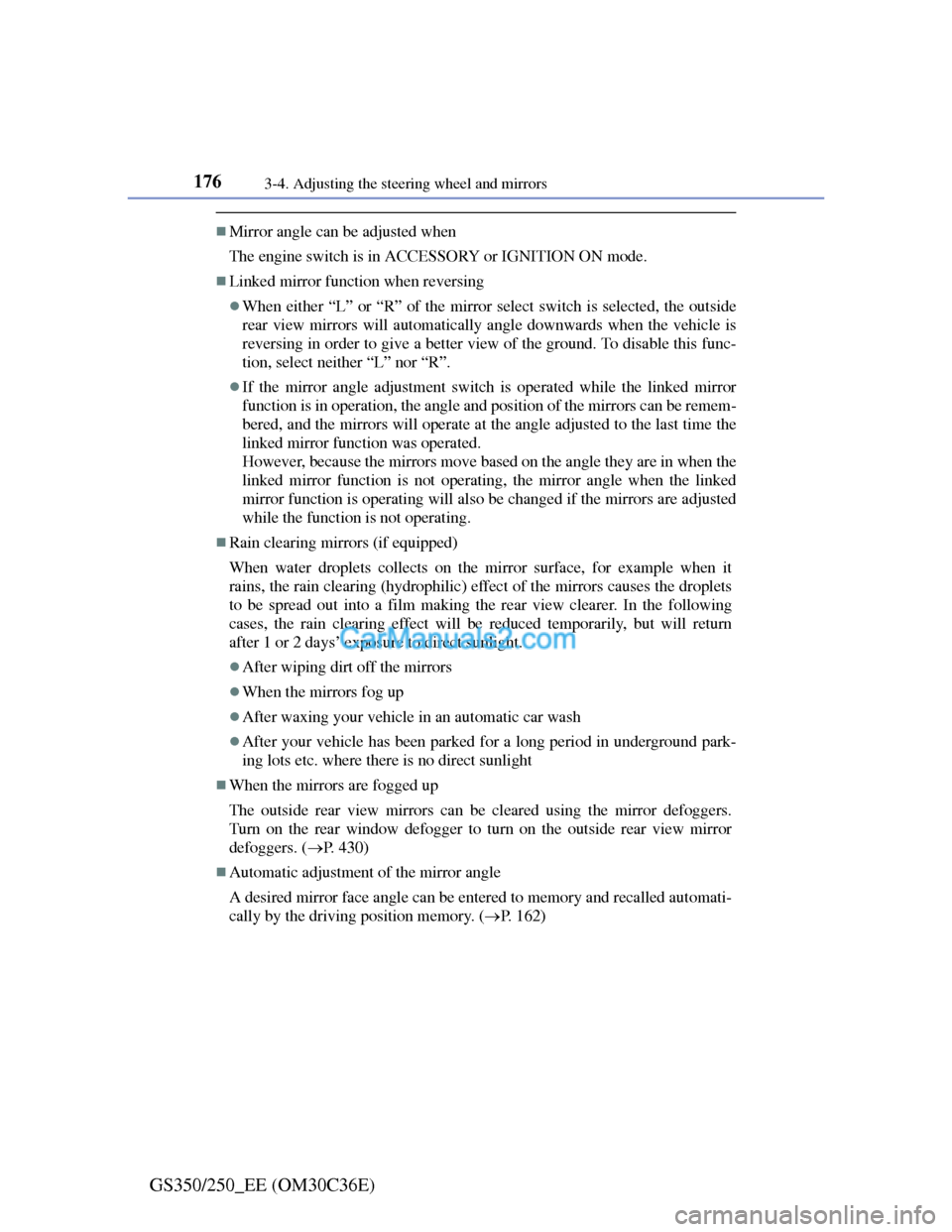

Mirror angle can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode.
Linked mirror function when reversing
When either “L” or “R” of the mirror select switch is selected, the outside
rear view mirrors will automatically angle downwards when the vehicle is
reversing in order to give a better view of the ground. To disable this func-
tion, select neither “L” nor “R”.
If the mirror angle adjustment switch is operated while the linked mirror
function is in operation, the angle and position of the mirrors can be remem-
bered, and the mirrors will operate at the angle adjusted to the last time the
linked mirror function was operated.
However, because the mirrors move based on the angle they are in when the
linked mirror function is not operating, the mirror angle when the linked
mirror function is operating will also be changed if the mirrors are adjusted
while the function is not operating.
Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it
rains, the rain clearing (hydrophilic) effect of the mirrors causes the droplets
to be spread out into a film making the rear view clearer. In the following
cases, the rain clearing effect will be reduced temporarily, but will return
after 1 or 2 days’ exposure to direct sunlight.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in underground park-
ing lots etc. where there is no direct sunlight
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to turn on the outside rear view mirror
defoggers. (P. 430)
Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automati-
cally by the driving position memory. (P. 162)
