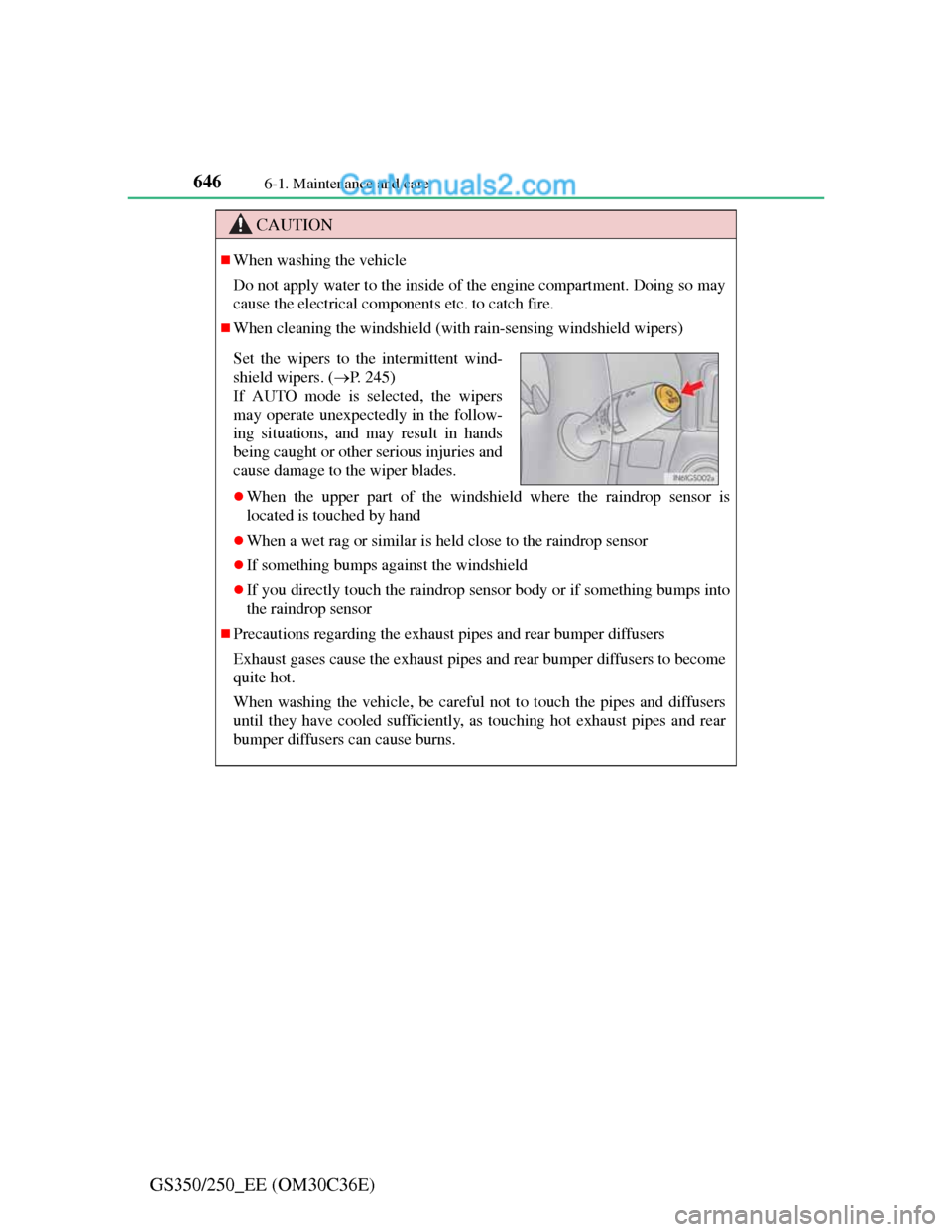

6466-1. Maintenance and care
GS350/250_EE (OM30C36E)
CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
When cleaning the windshield (with rain-sensing windshield wipers)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
Precautions regarding the exhaust pipes and rear bumper diffusers
Exhaust gases cause the exhaust pipes and rear bumper diffusers to become
quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers
until they have cooled sufficiently, as touching hot exhaust pipes and rear
bumper diffusers can cause burns.
Set the wipers to the intermittent wind-
shield wipers. (P. 245)
If AUTO mode is selected, the wipers
may operate unexpectedly in the follow-
ing situations, and may result in hands
being caught or other serious injuries and
cause damage to the wiper blades.

6506-1. Maintenance and care
GS350/250_EE (OM30C36E)
NOTICE
Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
Remove any dust or dirt from leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
When cleaning the inside of the windshield (vehicles with LKA [Lane-
Keeping Assist])
Be careful not to touch the camera sensor (P. 274).
If the camera is accidentally scratched or hit, LKA may not operate prop-
erly or may cause a malfunction.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause dam-
age to the rear window defogger heater wires or antenna. Use a cloth
dampened with lukewarm water to gently wipe the window clean. Wipe
the window in strokes running parallel to the heater wires or antenna.
Be careful not to scratch or damage the heater wires or antenna.

7066-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
8MPX-B10
Smart entry & start system, electric tilt
and telescopic steering column, power
seats, head-up display, front right-hand
door ECU, gauges and meters, steering
sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU,
power trunk lid, RR CTRL SW, clock,
body ECU, CAN gateway ECU
9DOME7.5
Personal lights, ornament lights, trunk
light, footwell lights, door courtesy
lights, vanity lights, rear door inside han-
dle illuminations, power trunk lid
10EPS80EPS
11ARS80No circuit
12HTR50Air conditioning system
13ABS NO.140VDIM
14LUG J/B ALT50Luggage compartment junction block
15PTC NO.150PTC heater
16PTC NO.250PTC heater
17ABS NO.250VDIM
18ST30Starting system
19H-LP LO30Headlights, H-LP RLY
20D/C CUT30DOME, MPX-B
21DCM7.5DCM
22ECU-B7.5Smart entry & start system
23ALT-S7.5Charging system
FuseAmpereCircuit

709 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
16MPX-B10
Smart entry & start system, electric tilt
and telescopic steering column, power
seats, head-up display, front right-hand
door ECU, gauges and meters, steering
sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU,
power trunk lid, clock, body ECU, RR
CTRL SW, CAN gateway ECU
17FILTER10Condenser
18A/C COMP7.5Air conditioning system
19H-LP CLN30Headlight cleaner
20FAN NO.240Electric cooling fans
21LH J/B ALT60Left-hand junction block
22FAN NO.180Electric cooling fans
23P/I-B NO.150H-LP HI RH, H-LP HI LH, DRL, emer-
gency brake signal
24EPB30Parking brake
25LUG J/B-B40Luggage compartment junction block
26R/B-B20EPS-B, TV
27HORN10Horn
28ETCS10Multiport fuel injection system/sequen-
tial multiport fuel injection system
29ALT-S7.5Charging system
30ECU-B7.5Smart entry & start system
31DCM7.5DCM
32D/C CUT30DOME, MPX-B
33ABS NO.250VDIM
34ST30Starting system
35H-LP LO30Headlights, H-LP RLY
FuseAmpereCircuit

7126-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Left side instrument panel
Left-hand drive vehicles
FuseAmpereCircuit
1STOP7.5Stop lights, high mounted stoplight
2P/W-B5Power window master switch
3P/SEAT1 F/L30Power seats
4D/L NO.125Power door lock system
5NV-IR10No circuit
6FL S/HTR10Seat heaters/ventilators
7WIPER30Windshield wipers
8WIPER-IG5Windshield wipers
9LH-IG10
Seat belts, body ECU, AFS, overhead
module, raindrop sensor, inside rear view
mirror, lane camera sensor (LKA), head-
up display, shift lock system, Lexus
parking assist-sensor, front left-hand
door ECU, driver monitor system,
Remote Touch screen, electric tilt and
telescopic steering column, power seats,
moon roof, Lexus parking assist-sensor
switch

7146-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Right-hand drive vehicles
FuseAmpereCircuit
1P/SEAT1 F/L30Power seats
2D/L NO.125Power door lock system
3NV-IR10No circuit
4FL S/HTR10Seat heaters/ventilators
5STRG HTR15Heated steering wheel
6WIPER-IG5Windshield wipers
7LH-IG10
Seat belts, body ECU, AFS, Remote
Touch screen, overhead module, rain-
drop sensor, moon roof, inside rear view
mirror, LKA, front left-hand door ECU,
Lexus parking assist-sensor, power seats,
CAN gateway ECU
8LH ECU-IG10Yaw rate and G sensor, air conditioning
system, AFS, driver support system
9DOOR FL30Outside rear view mirror defoggers,
power window (front left-hand)
10CAPACITOR
(HV)10No circuit
11AM27.5Power management system, smart entry
& start system
12D/L NO.225Power door lock system
13DOOR RL30Power window (rear left-hand)
14HAZ15Turn signal lights, emergency flashers

7206-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
Trunk
FuseAmpereCircuit
1PSB30Pre-crash seat belts
2PTL25Power trunk lid
3RR J/B-B10Smart entry & start system
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10Rear fog light
7DC/DC-S (HV)7.5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7.5SECURITY
10ECU-B NO.37.5Parking brake
11TRK OPN7.5Power trunk lid
12DCM (HV)7.5No circuit
13AC INV (HV)20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk lid, parking brake, tension
reducer (rear left-hand), RR CTRL SW,
tire pressure warning system
16EPS-IG5Electric power steering system
17BACK UP7.5Back-up light

7547-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and
the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered suf-
ficiently.
Check the tire inflation pressure and adjust to the appropriate level.
If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).

7607-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
(If equipped)
Indicates a malfunction in the Lexus parking-
assist sensor
The malfunctioning assist-sensor is flashing.
Indicates a malfunction in the dynamic radar
cruise control system (if equipped) or the cruise
control system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
(If equipped)
Indicates a malfunction in the LKA (Lane-Keep-
ing Assist)
(If equipped)
Indicates a malfunction in the automatic head-
light leveling system
Wa r n i n g m e s s a g eDetails

7667-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
Indicates that engine
oil level is lowCheck the level of
engine oil, and add if
necessary.
(If equipped)
Indicates that Lexus
parking assist-sensor is
dirty or covered with
ice
Clean the sensor.
(If equipped)
Indicates that the radar
sensor is dirty or cov-
ered with ice
Clean the sensor.
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehi-
cle-to-vehicle distance
• Turn off the snow
mode.
• If the windshield
wipers are on, turn
them off or set them
to a mode other than
AUTO or high speed
wiper operation.
Wa r n i n g m e s s a g eDetailsCorrection procedure
