Headlight bulb Lexus GS250 2012 Owner's Manual

15Pictorial index
GS350/250_EE (OM30C36E)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Precautions against winter season. . . . . . . . . . . . . . . . . . . . . . . P. 359
To prevent freezing (windshield wiper de-icer)
*1 . . . . . . . . . . P. 431
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . P. 646
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 838
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 850
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 672
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 782, 797
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 657
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 661
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 839
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 829
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 763
Headlights/front position lights/daytime running lights . . . . . . P. 228
Front fog lights
*1/rear fog light*2. . . . . . . . . . . . . . . . . . . . . . P. 239
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Back-up light
*2
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 720, Watts: P. 852)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14

735 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Headlights
Front position lights and daytime running lights
Side turn signal lights
Stop/tail lights
Tail lights
Rear fog light
High mounted stoplight
License plate lights
Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The lights other than the headlights, front fog lights (if equipped), front turn
signal lights, rear turn signal lights, back-up light and outer foot lights each
consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 7 2 1

7366-3. Do-it-yourself maintenance
GS350/250_EE (OM30C36E)
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the rear
of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal compo-

737 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350/250_EE (OM30C36E)
CAUTION
Discharge headlights
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
When replacing the outer foot lights
If the front window is stopping you from conducting the replace operation
properly, open the window on the side you are working on to allow you
enough space to work. Continuing the operation without giving yourself
enough space to work could lead you to scratch the vehicle.

853
8 8-1. Specifications
Vehicle specifications
GS350/250_EE (OM30C36E)

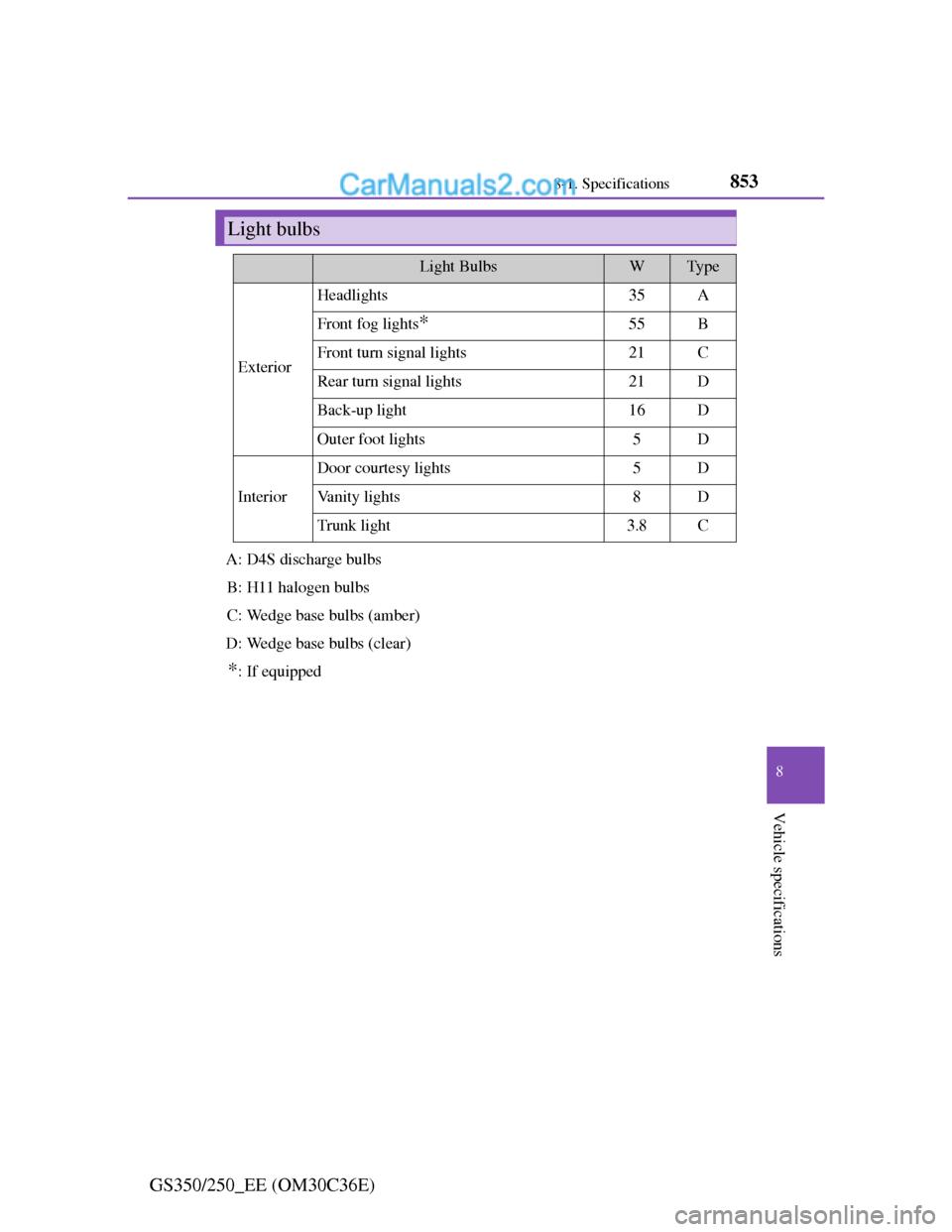

Light bulbs
Light BulbsWTy p e
Exterior
Headlights35A
Front fog lights*55B
Front turn signal lights21C
Rear turn signal lights21D
Back-up light16D
Outer foot lights5D
Interior
Door courtesy lights5D
Vanity lights8D
Trunk light3.8C
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
*: If equipped

877Alphabetical index
GS350/250_EE (OM30C36E)
Anti-lock Brake System (ABS) .333
Function ................................333
Warning light........................750
Warning message..................761
Approach warning (dynamic
radar cruise control) ................264
Armrest ......................................635
Armrest door .............................639
Ashtrays.....................................626
Assist grip..................................641
Audio input................................536
Audio system .............................432
Audio input ...........................536
AUX port/
USB port ............536, 512, 524
Bluetooth
® audio ..................498
CD/DVD player ....................467
CD/DVD player information 488
DVD video ...........................475
iPod.......................................522
MP3/WMA disc ...................469
Optimal use...........................533
Portable music player ...........536
Radio ....................................458
Rear seat audio controls........537
Steering wheel audio switch .543
USB memory ........................510
Automatic headlight leveling
system ....................................231
Automatic High Beam ..............233
Automatic light control system 228Automatic transmission ............ 215
If the shift lever cannot be
shifted from P .................... 818
M mode ................................ 219
Paddle shift switches ........... 218
AUX port .................................. 536
Auxiliary boxes ........................ 620
AVS (Adaptive Variable
Suspension system) ................ 334
Back-up light
Replacing light bulb............. 729
Wattage ................................ 853
Battery ...................................... 667
Battery checking .................. 667
If the vehicle has discharged
battery................................ 825
Preparing and checking
before winter ..................... 359
Warning light ....................... 750
Blind Spot Monitor (BSM) ...... 354
Bluetooth
®
Audio system ....................... 498
Hands-free system
(for cellular phone)............ 542
Brake
Fluid ..................................... 849
Parking brake ....................... 225
Warning light ............... 749, 751
Warning message................. 757
B

882Alphabetical index
GS350/250_EE (OM30C36E)
Gauges .........................................99
Glove box ..................................616
Glove box light ..........................616
Hands-free system
(for cellular phone) .................542
Head restraints ...........................168
Headlights .................................228
Adaptive Front-lighting
System (AFS) .....................230
Automatic High Beam
system.................................233
Discharge headlights
precautions .........................737
Follow me home system .......229
Headlight leveling warning
message ..............................760
Light switch ..........................228
Replacing light bulbs ............735
Wattage .................................853
Headlight cleaner.......................248
Head-up display ........................112
Heaters.......................................409
Air conditioning system .......409
Heated steering wheel...........629
Outside rear view mirrors .....430
Seat heaters ...........................631
Hill-start assist control ..............341Hood ......................................... 657
Open..................................... 657
Warning message................. 763
Hooks
Cargo hooks ......................... 621
Coat hooks ........................... 640
Retaining hooks (floor mat)... 34
Luggage hook ...................... 621
Utility hook .......................... 642
Horn .......................................... 228
Identification ............................ 837
Engine .................................. 837
Vehicle ................................. 837
Ignition switch (engine switch) 207
Illuminated entry system .......... 613
Immobilizer system .................... 80
Indicators .................................... 96
Initialization
Moon roof ............................ 183
Power windows.................... 179
Tire pressure warning
system................................ 675
Initiators (tire pressure warning
system) ................................... 688
Inside door handle lights .......... 611
Inside rear view mirror ............. 171
Instrument panel light control .. 100
Interior lights ............................ 611
Intrusion sensor and tilt sensor ... 89
ISOFIX rigid anchors ................. 69
G
H
I

884Alphabetical index
GS350/250_EE (OM30C36E)
Lights
Automatic High Beam
system.................................233
Fog light switch ....................239
Follow me home system .......229
Headlight switch ...................228
Illuminated entry system ......613
Interior light..........................612
Interior lights list ..................611
Personal lights ......................612
Replacing light bulbs ............724
Trunk light ............................152
Turn signal lever ...................223
Vanity lights .........................624
Wattage .................................853
Welcome light illumination
control ................................123
LKA (Lane-Keeping Assist) .....274
Operation ..............................276
Warning messages ........760, 767
Lock steering column ................211
Low profile tire .........................678
Luggage hook ............................621
Luggage security system ...........151Maintenance
Do-it-yourself maintenance . 654
Maintenance data ................. 836
Maintenance requirements... 651
Malfunction indicator lamp ...... 750
Master warning light ................ 752
Meter .......................................... 99
Head-up display ................... 112
Indicators ............................... 96
Instrument panel light control....
100
Meters .................................... 99
Multi-information display.... 102
Warning lights ....................... 95
Mirrors
Inside rear view mirror ........ 171
Outside rear view mirror
defoggers ........................... 430
Outside rear view mirrors .... 174
Vanity mirrors...................... 624
Moon roof ................................. 181
Door lock linked moon roof
operation............................ 182
Jam protection function ....... 182
Operation ............................. 181
Warning message................. 764
MP3 disc ................................... 469
Multi-information display ........ 102
Dynamic radar cruise
control ............................... 258
Lane-Keeping Assist............ 278
Language ............................. 107
Switching the display........... 104
Trip information .................. 104
Warning message................. 757M

887Alphabetical index
GS350/250_EE (OM30C36E)
Seat heaters................................631
Seat position memory ................162
Seat ventilators ..........................632
Seats ..........................................157
Adjustment ...........................157
Adjustment precautions ........159
Child seats/child restraint
system installation ................69
Cleaning................................648
Driving position memory .....162
Head restraints ......................168
Power easy access system ....166
Properly sitting in the seat ......36
Seat heaters ...........................631
Seat position memory ...........162
Seat ventilators .....................632
Sensor
Automatic headlight system .231
Automatic High Beam system ....
238
Driver monitor sensor ...........345
Humidity sensor ...................421
Inside rear view mirror .........172
Intrusion sensor and tilt sensor ...
89
Lexus parking assist-sensor ..284
LKA (Lane-Keeping Assist).274
Radar sensor .........267, 345, 361
Rain-sensing windshield
wipers .................................246
S-FLOW mode ..........................419Shift lever ................................. 215
Automatic transmission ....... 215
If the shift lever cannot be
shifted from P .................... 818
Shift lever light ......................... 611
Shift lock system ...................... 818
Side airbags ................................ 45
Side mirrors .............................. 174
Adjusting and folding .......... 174
BSM (Blind spot monitor) ... 354
Linked mirror function when
reversing ............................ 176
Mirror position memory ...... 162
Side turn signal lights ............... 223
Replacing light bulbs ........... 735
Turn signal lever .................. 223
Smart entry & start system ....... 123
Antenna location .................. 125
Entry functions .................... 123
Starting the engine ............... 207
Warning message................. 762
Snow mode ............................... 217
Snow tires ................................. 363
Spare tire................................... 783
Inflation pressure ................. 852
Storage location ................... 784
Spark plug................................. 847
Specifications ........................... 836
Speech command system ......... 402
Speedometer ............................... 99
Sport mode ............................... 328

888Alphabetical index
GS350/250_EE (OM30C36E)
Steering lock..............................211
Column lock release .............212
Steering lock system warning
message ..............................781
Steering wheel ...........................170
Adjustment ...........................170
Audio switches .....................543
Heated steering wheel...........629
Power easy access system ....166
Steering wheel position
memory ..............................162
Stop lights
Emergency brake signal .......334
Replacing light bulbs ............735
Storage feature...........................614
Stuck
If the vehicle becomes stuck.833
Sun visors ..................................624
Sun shade
Rear ......................................636
Rear door ..............................637
Roof ......................................182
Switches
AFS OFF switch ...................230
Audio remote control
switches ..............................543
Automatic High Beam switch ....
233
BSM (Blind spot monitor)
switch .................................354
Cruise control switch ............254
“DISP” button.......................104
Door lock switches ...............146
Driving mode select switch ..328Driving position memory
switches ............................. 162
Dynamic radar cruise control
switch ................................ 258
Emergency flashers switch .. 738
Engine switch ...................... 207
Fog light switch ................... 239
Headlight cleaner switch ..... 248
Heated steering wheel switch ....
629
HUD (Head-up display)
switches ............................. 112
Ignition switch ..................... 207
Lexus parking assist-sensor
switch ................................ 285
Light switches ...................... 228
LKA (Lane-Keeping Assist)
switch ................................ 276
Moon roof switches ............. 181
Outside rear view mirror
switches ............................. 174
Paddle shift switches ........... 218
PCS OFF switch .................. 344
Power door lock switch ....... 146
Power window switches ...... 178
Rear sunshade switch........... 636
Rear window and outside rear
view mirror defoggers
switch ................................ 430
Seat heater switches ............. 631
Seat ventilator switches ....... 632
Snow mode switch ............... 217
Talk switch .................. 402, 567
Telephone switches.............. 543
Tilt and telescopic steering
control switch .................... 170
